Description

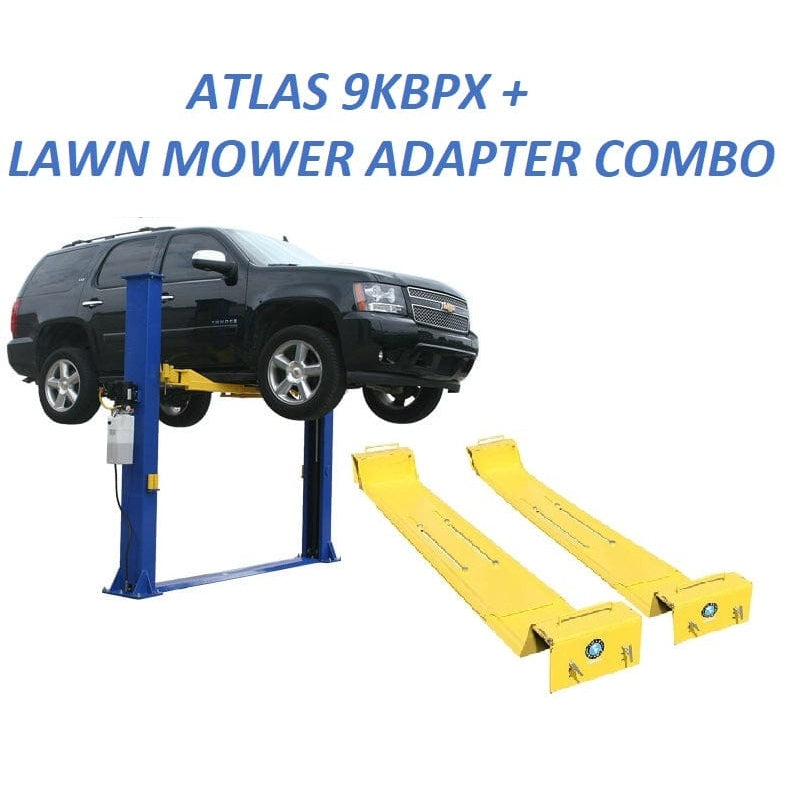

The Atlas® 9KBPX 2-Post Lift with Lawn Mower Adapter (LMA) Combo is a cost-effective, baseplate-style lift designed specifically for garages with low ceiling clearance. With a total column height of just 111½″ (9′ 3½″), this lift can be installed in most professional or home garages with ceilings as low as 9′ 6″.
Built for reliability and ease of use, the 9KBPX features dual chain-drive hydraulic cylinders, symmetric lifting arms, and automatic arm restraints. Its spring-loaded Secondary Lock System (SLS) automatically engages in the event of a slack or broken chain, providing an additional layer of safety. This model is ideal for servicing cars, SUVs, and light-duty trucks—though it is not recommended for diesel duallys or larger heavy-duty vehicles.

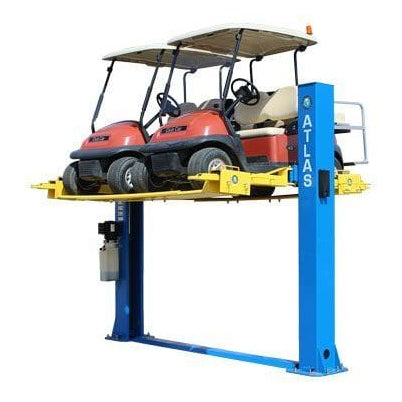

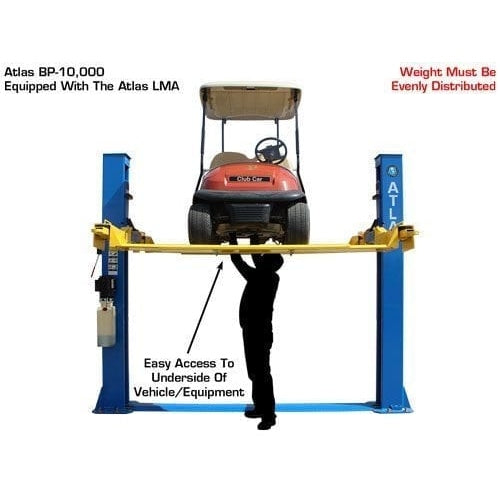

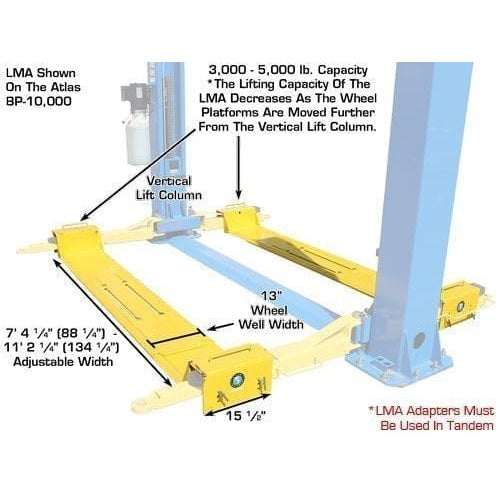

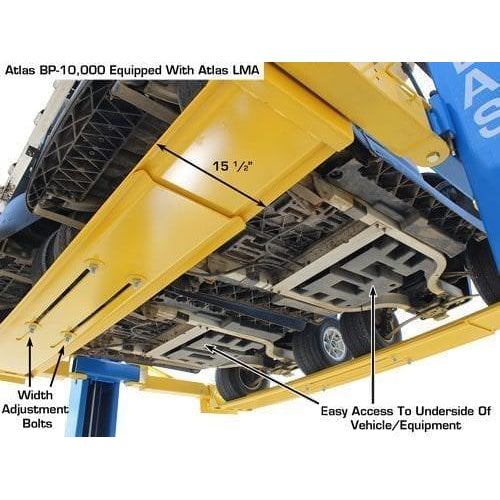

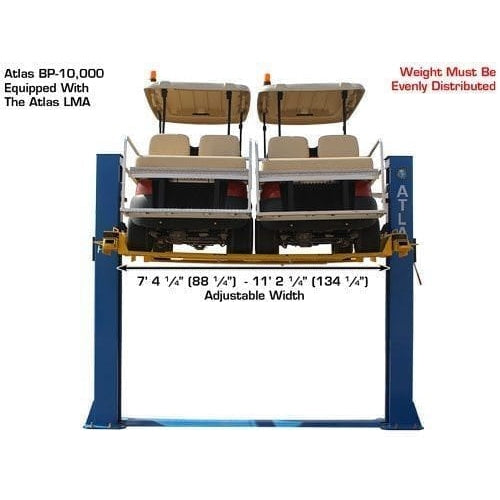

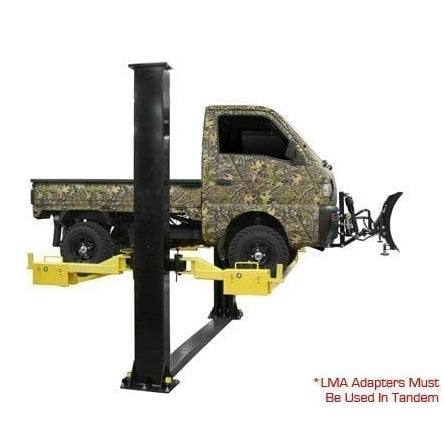

Included in this combo is the Atlas® Lawn Mower Adapter (LMA), which enhances the lift’s versatility by enabling the lifting of ATVs, UTVs, and lawn mowers. The LMA is fully adjustable along the arms to accommodate various wheelbases, with lifting capacity dependent on adapter positioning and vehicle balance (closer plates increase lifting strength).
Key Features
Atlas® 9KBPX 2-Post Lift
-
9,000 lb. lifting capacity
-

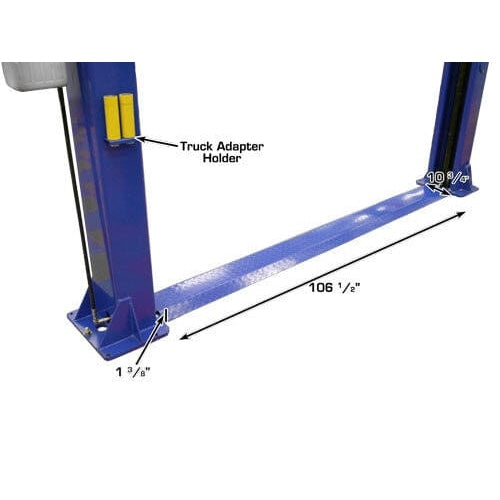

Baseplate, open-top design — perfect for low ceilings
-
9′ 3½″ column height fits garages with ceilings as low as 9′ 6″
-

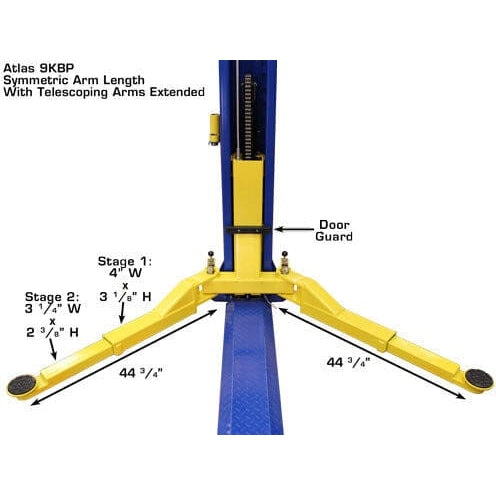

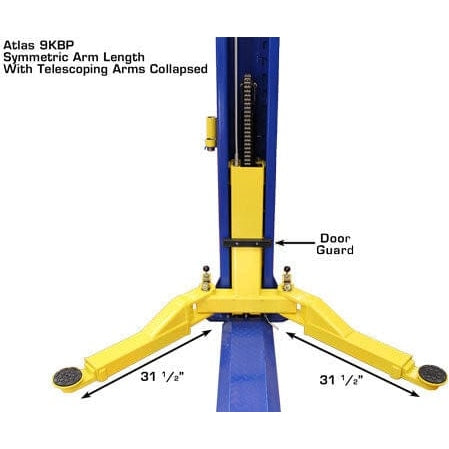

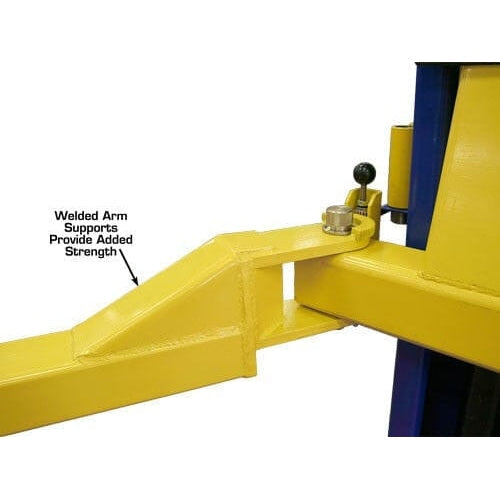

Symmetric arm configuration for balanced lifting
-

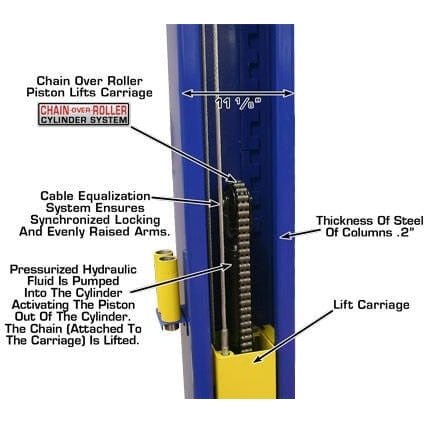

Dual hydraulic chain-drive cylinders for dependable performance
-
Built-in Secondary Lock System (SLS) for added safety
-

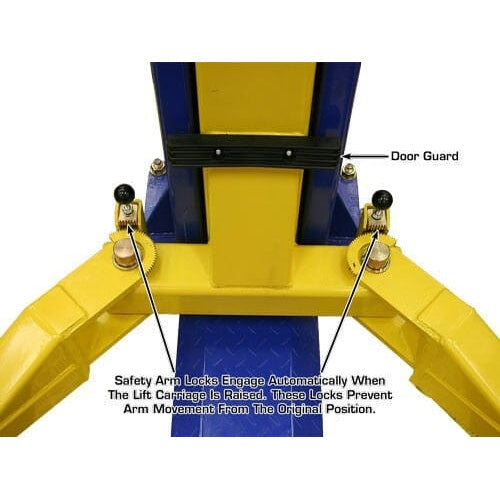

Automatic arm restraints
-

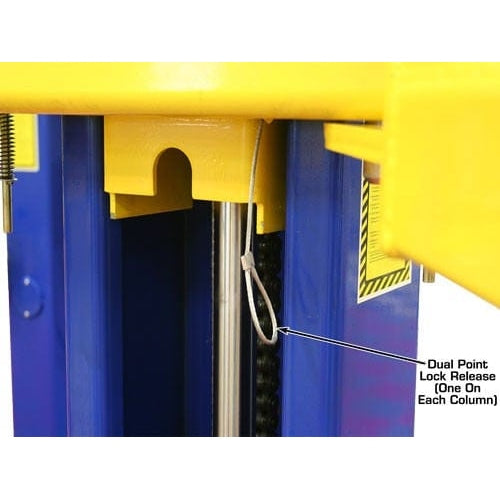

Dual-point lock release for ease of operation
-

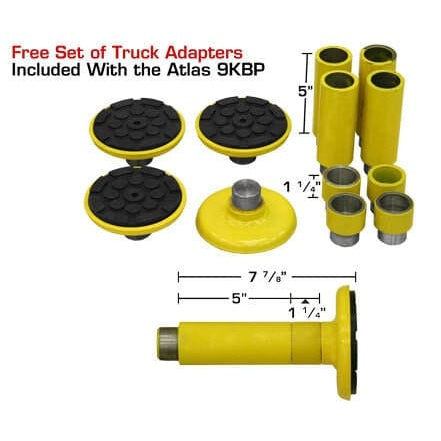

Includes 8-piece truck adapter set
-

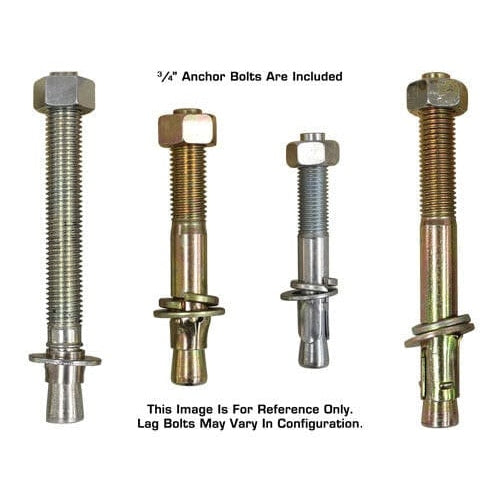

Mounting hardware included
-

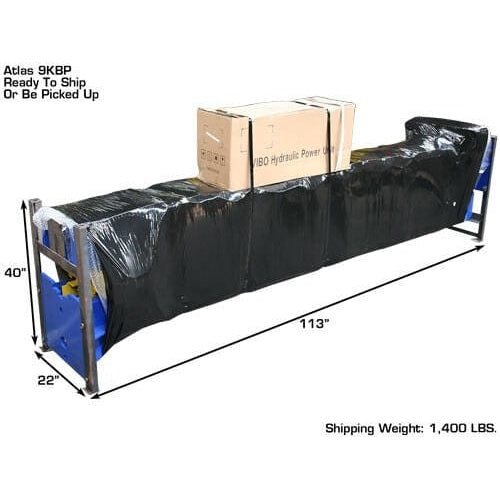

Shipping Weight: 1,400 lbs.
-
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)

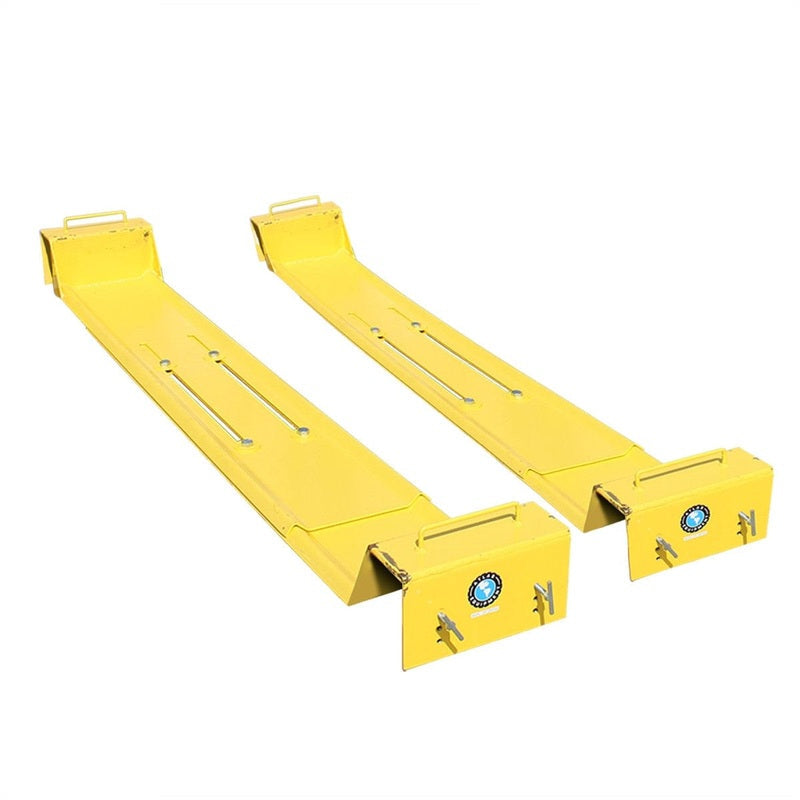

Atlas® Lawn Mower Adapter (LMA)
-
“Lawn Mower” adapter kit for 2-post lifts
-
Includes four plates and complete mounting hardware
-
Adjustable to fit a variety of vehicle types and brands (may not be compatible with all lifts)
-
Supports up to 5,000 lbs. (capacity varies by lift and wheelbase)
-

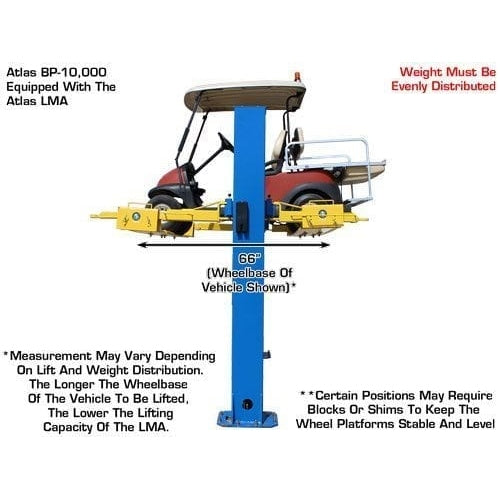

Adjustable along lift arms for different wheelbase configurations
-
May require leveling blocks or shims for optimal stability
Specifications
| Atlas® 9KBPX 2-Post Lift | Details |
|---|---|
| Capacity | 9,000 lbs |

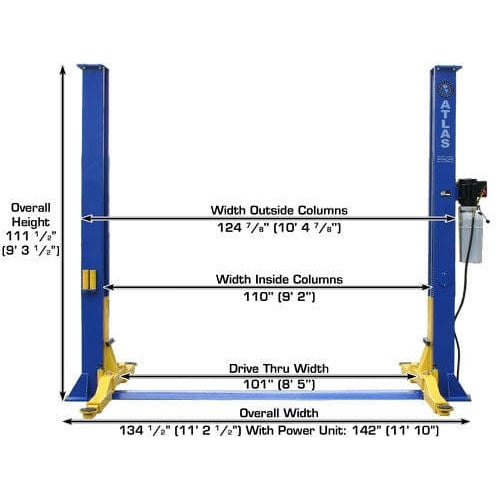

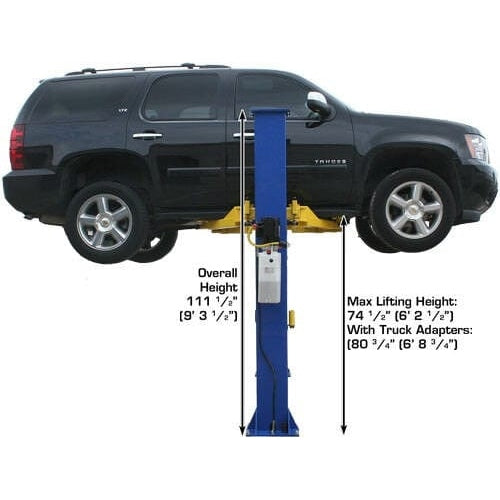

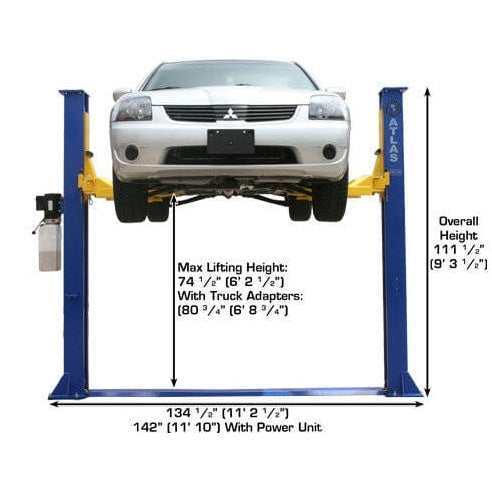

| Overall Height | 111½″ (9′ 3½″) |

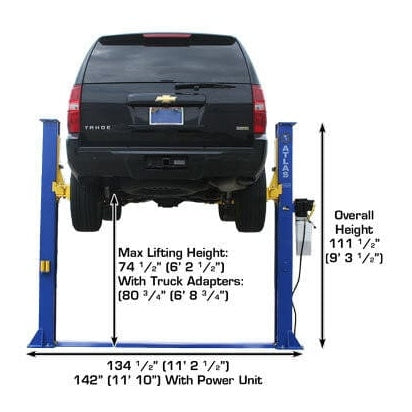

| Overall Floor Width | 134½″ (11′ 2½″) |
| Outside Column-to-Column | 124⅞″ (10′ 4⅞″) |

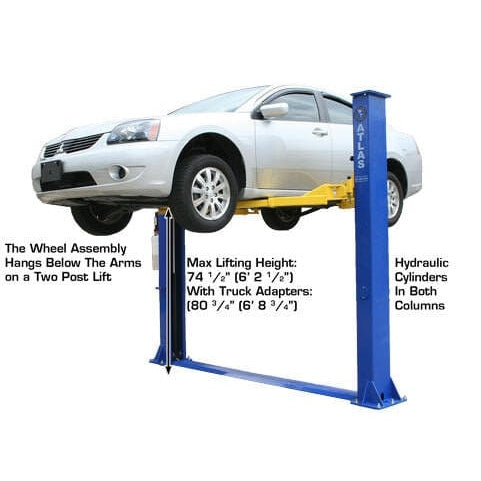

| Maximum Lift Height (Without Adapters) | 74½″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column | 110″ (9′ 2″) |
| Drive-Thru Clearance | 101″ (8′ 5″) |

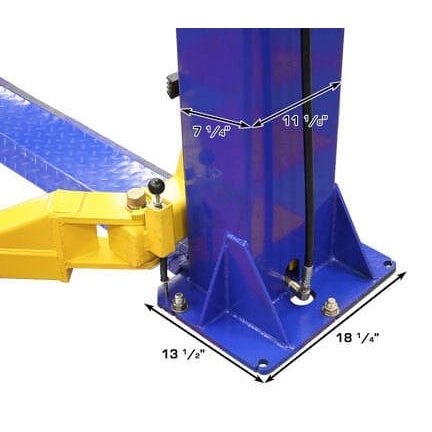

| Column Size | 7¼″ × 11″ |
| Column Steel Thickness | 5 mm |
| Base Plate | 14¼″ × 18¼″ |

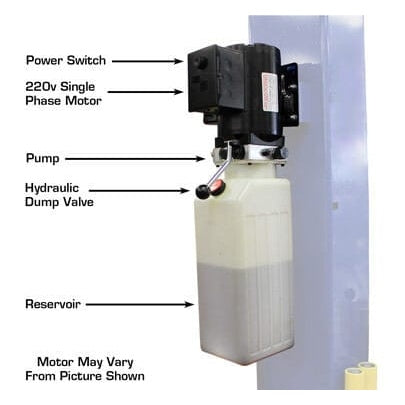

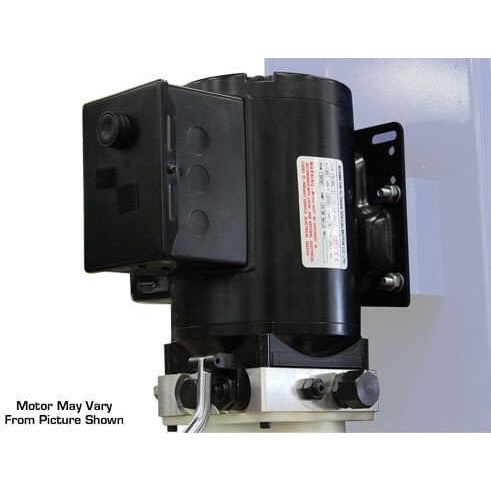

| Motor / Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 1,400 lbs |

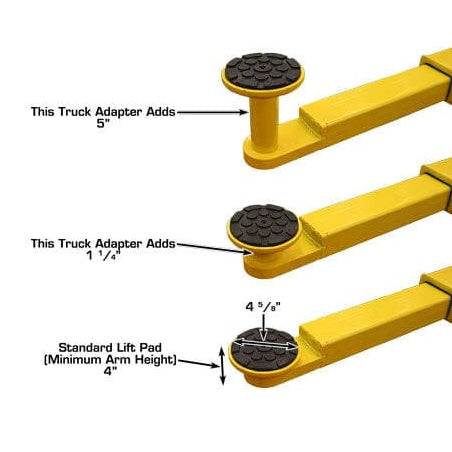

| Adapter Heights | Four each: 1.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Minimum Concrete Requirement | 4″ thick at 3,000 PSI rating |
| Atlas® Lawn Mower Adapter (LMA) | Details |
|---|---|
| Capacity | Up to 5,000 lbs* |

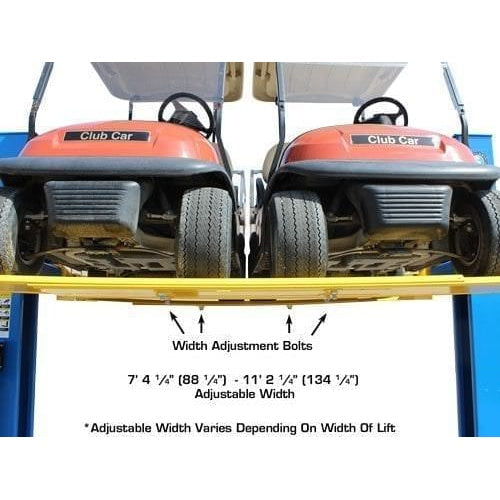

| Adjustable Width | 8′ 11″ |
| Wheelbase Range | 32″ – 90″** |
| Wheel Well Width | 12″ |
| Steel Thickness | ¼″ (2 gauge) |

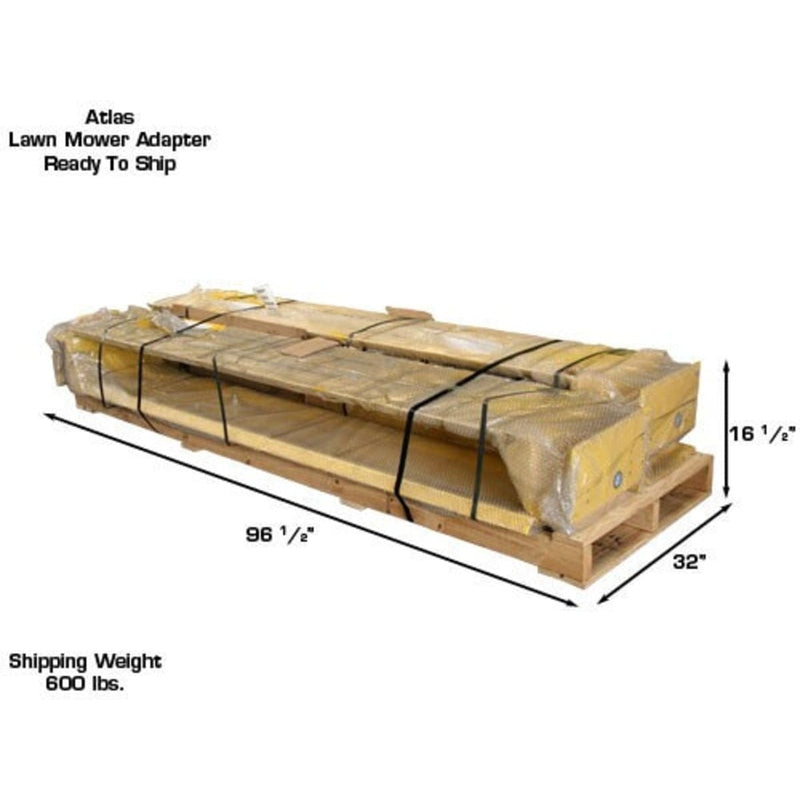

| Shipping Weight | 600 lbs |
| Composition | Two independent wheel platforms (lift not included) |
* Capacity varies depending on lift model and vehicle weight distribution.
** Longer wheelbases may require blocks or shims to ensure level lifting.
Documents
Atlas® 9KBPX Cylinder Bleeding Procedure (Do this immediately after installation)
