The Atlas® 9KOHX 2-Post Lift with Lawn Mower Adapter (LMA) Combo is a light-duty, economy-grade overhead clear-floor lift designed for homeowners and small repair shops servicing cars, SUVs, and light-duty trucks. Featuring chain-drive cylinders and a dual safety system, the 9KOHX delivers reliability and performance at an exceptional value.
The lift can be installed at two adjustable height settings—either 11′ 6″ or 11′ 10″—making it suitable for most standard garages. Its symmetric columns and versatile arm design allow operation in either symmetric or asymmetric configurations, providing flexibility for various vehicle sizes and lifting points. The EZ-metric arm design enables a low lift pad height, perfect for accessing smaller vehicles with low pickup points as well as larger trucks.
The 9KOHX also features a spring-loaded Secondary Lock System (SLS), which automatically engages in the event of chain slack or failure, enhancing operator safety.

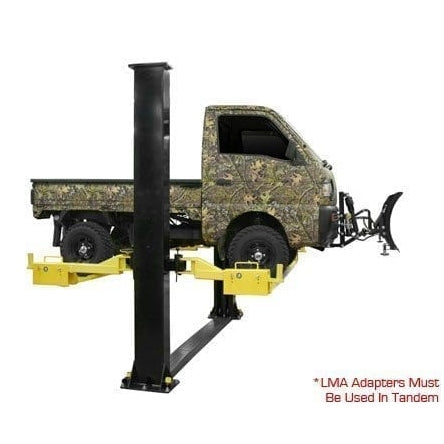

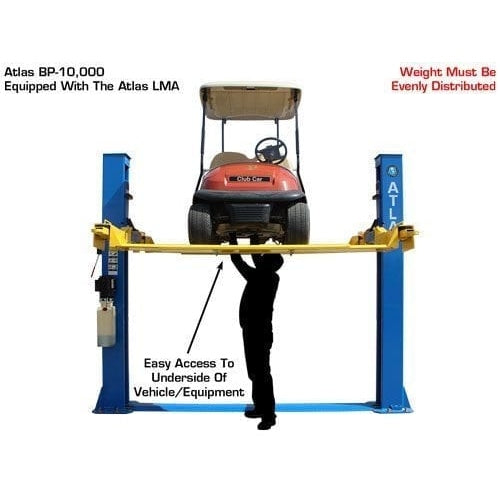

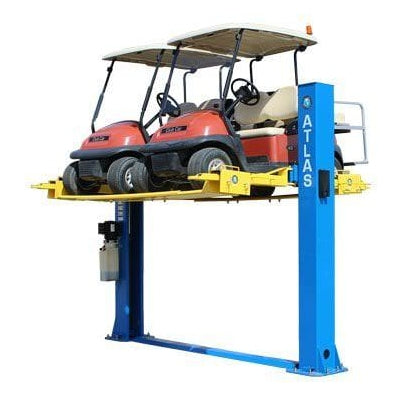

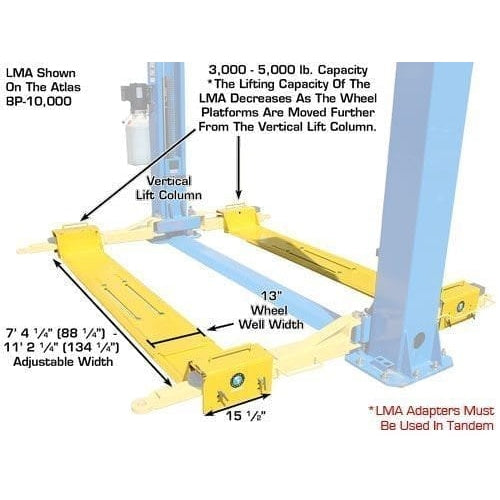

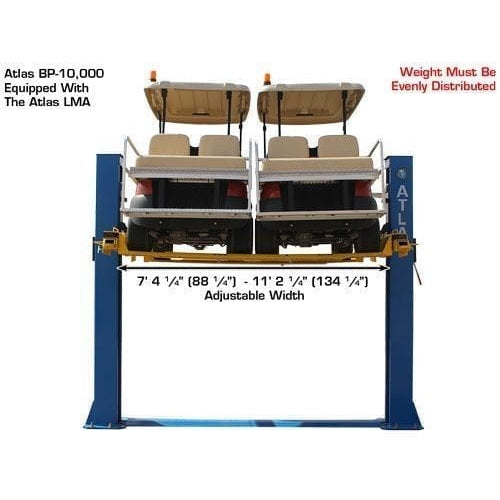

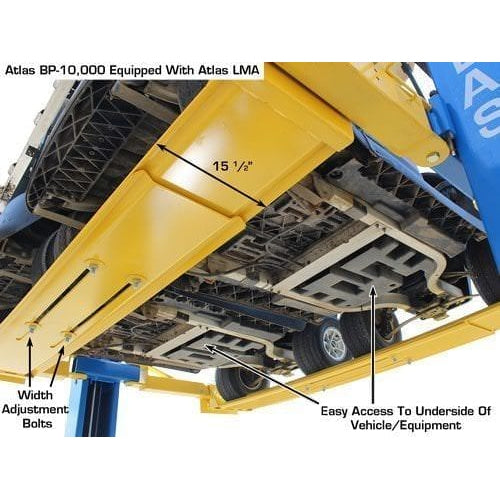

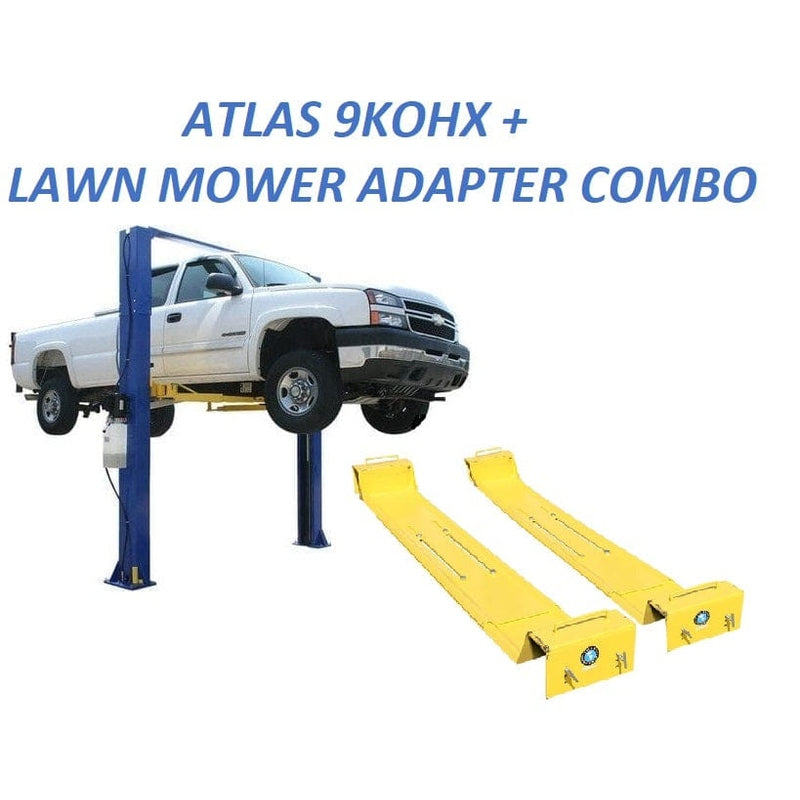

This combo package includes the Atlas® Lawn Mower Adapter (LMA), designed to make the 2-post lift more versatile for ATVs, UTVs, and lawn mowers. The LMA is adjustable along the lift arms to fit a variety of wheelbases, with lifting capacity dependent on adapter positioning and vehicle balance (closer plate placement increases capacity).
Key Features
Atlas® 9KOHX 2-Post Lift
-
9,000 lb. lifting capacity
-
Overhead, open-floor design
-

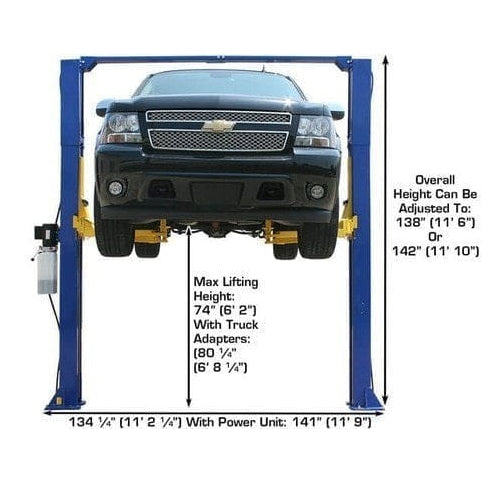

Adjustable overall height: 138″ (11′ 6″) or 142″ (11′ 10″)
-

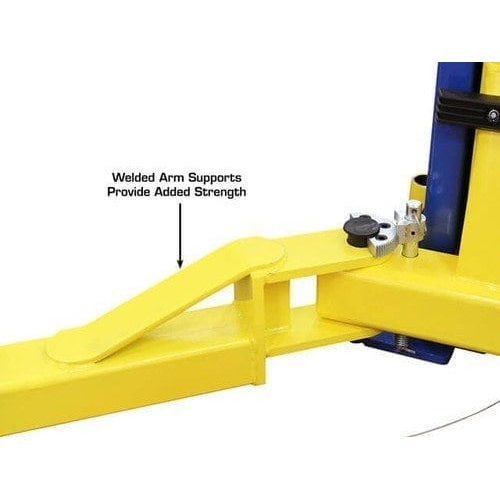

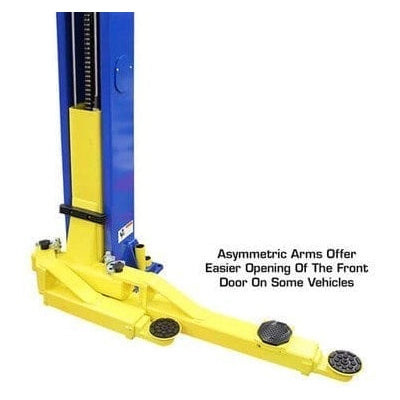

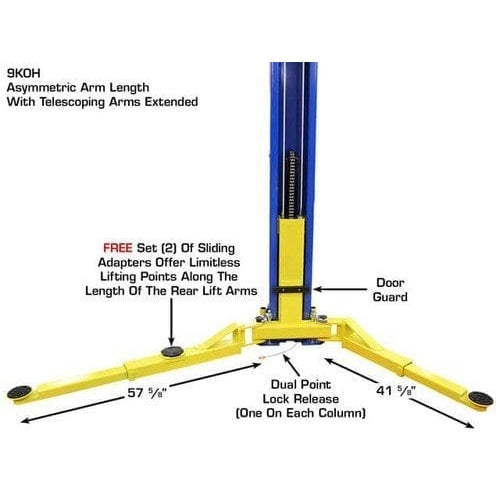

Asymmetric/symmetric arm configuration
-

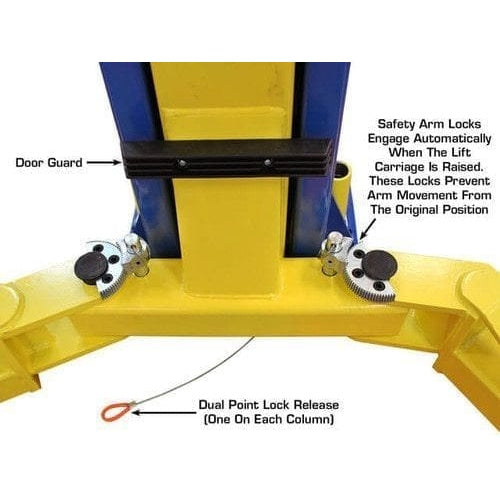

Automatic arm restraints
-

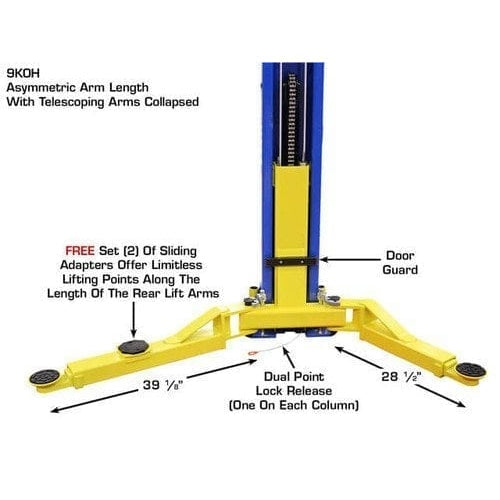

Dual-point lock release system
-
Rubber guards on carriages for protection
-

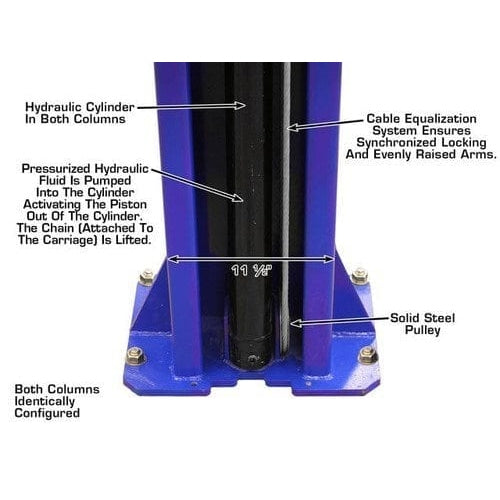

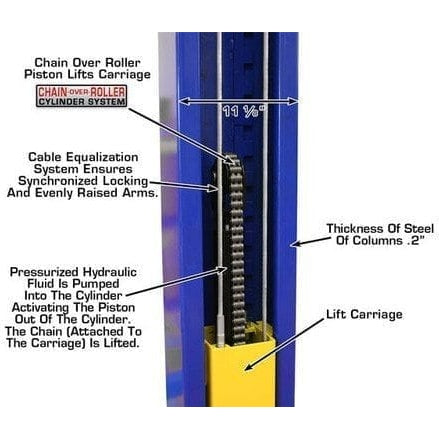

Dual hydraulic chain-drive cylinders
-
Built-in secondary lock system (SLS)
-

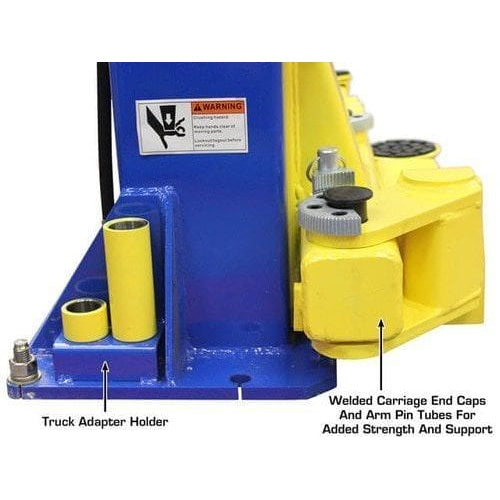

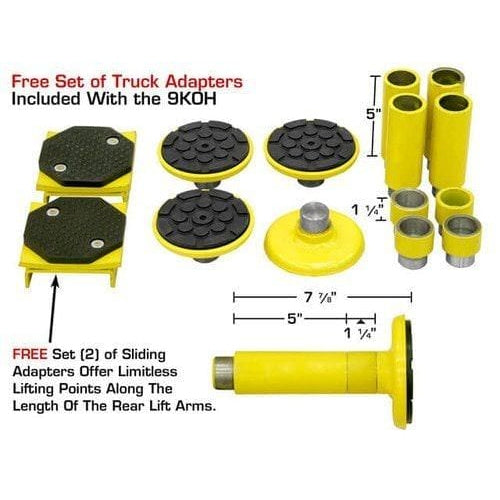

Includes free 8-piece truck adapter set
-
Includes free set of sliding arm adapters
-

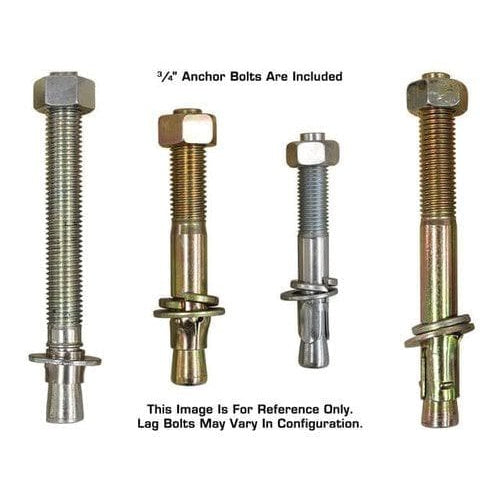

Mounting hardware included
-

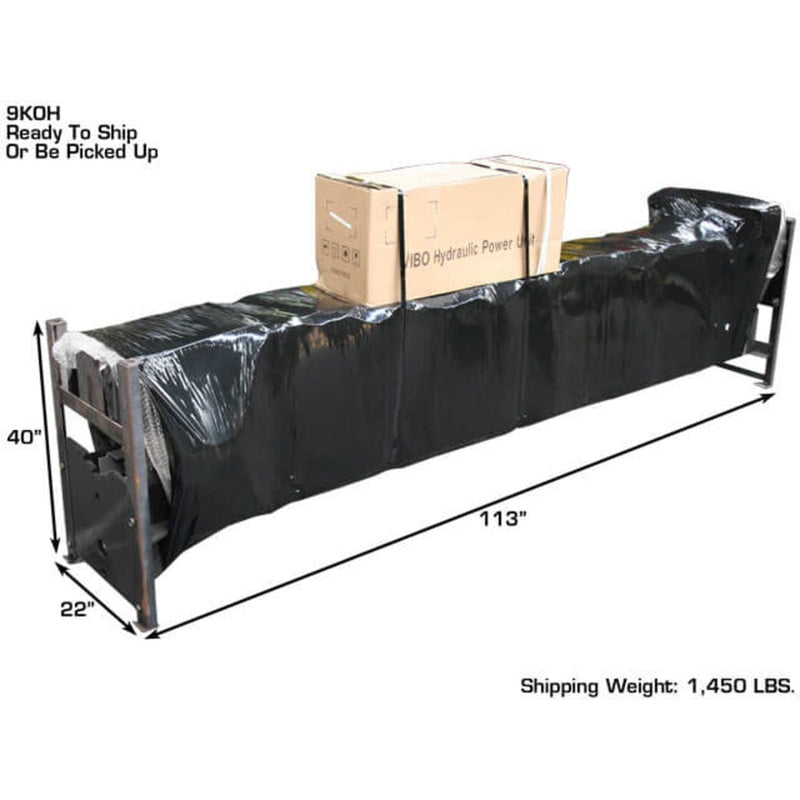

Shipping Weight: 1,450 lbs.
-
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)

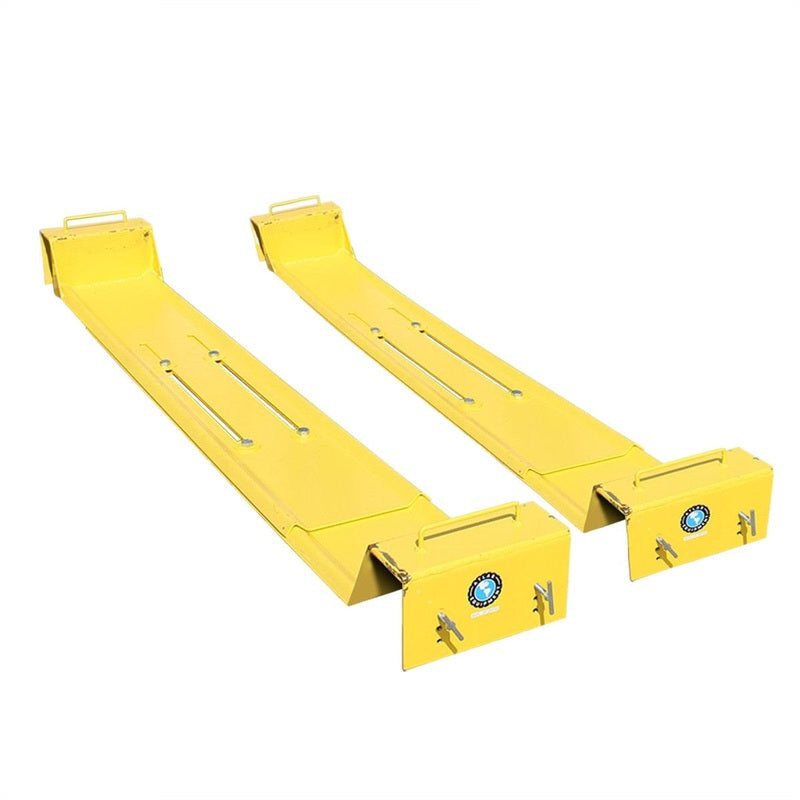

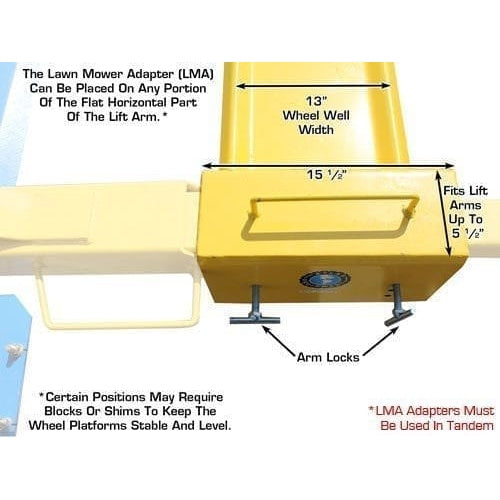

Atlas® Lawn Mower Adapter (LMA)
-
“Lawn Mower” adapter kit for 2-post lifts
-
Includes four plates and all mounting hardware
-
Adjustable to fit various sizes and brands (may not be compatible with all lifts)
-
Supports up to 5,000 lbs. (capacity varies by lift and wheelbase)
-
Adjustable along lift arms for different wheelbase configurations
-
Leveling blocks may be required for certain applications
Specifications
| Atlas® 9KOHX 2-Post Lift | Details |
|---|---|
| Capacity | 9,000 lbs |

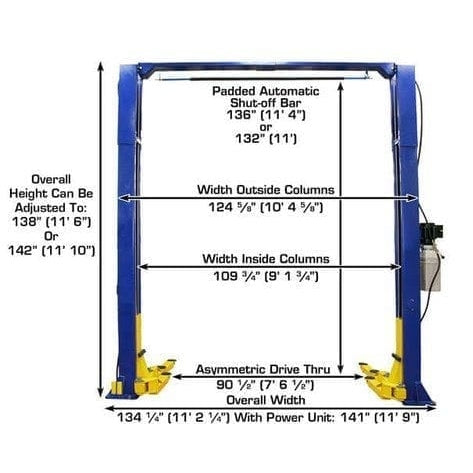

| Overall Height | 138″ (11′ 6″) or 142″ (11′ 10″) |
| Overall Floor Width | 134 ½″ (11′ 2 ½″) |
| Outside Column-to-Column | 124 ⅞″ (10′ 4 ⅞″) |

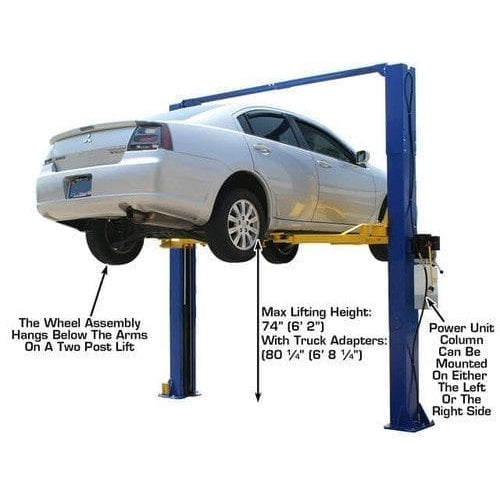

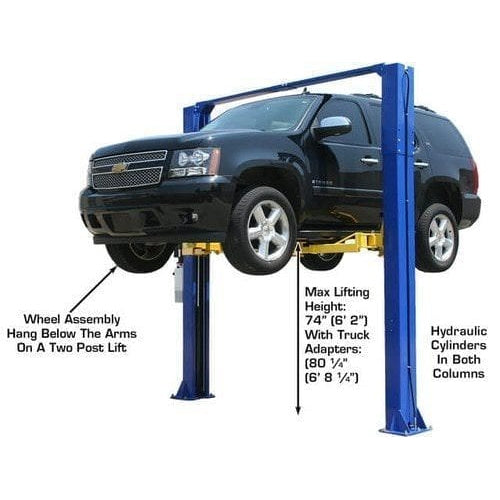

| Maximum Lift Height (Without Adapters) | 74 ½″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column | 110″ (9′ 2″) |

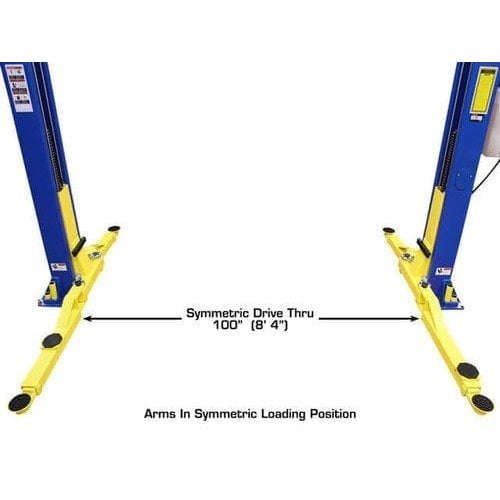

| Drive-Thru Clearance | 100″ (8′ 4″) Symmetric / 90 ½″ (7′ 6 ½″) Asymmetric |

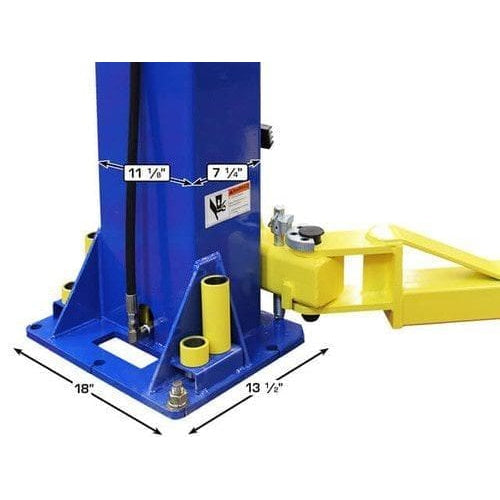

| Column Size | 7 ¼″ × 11″ |
| Column Steel Thickness | 5 mm |
| Base Plate | 14 ¼″ × 18″ |

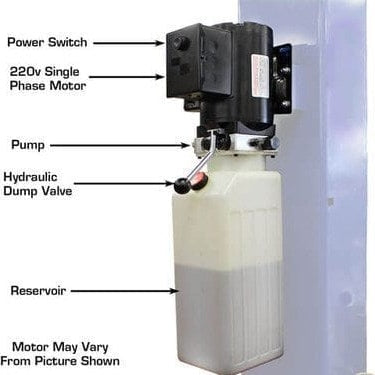

| Motor / Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 1,450 lbs |

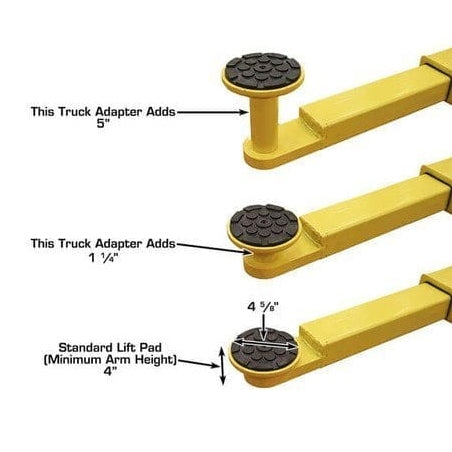

| Adapter Heights | Four each: 1.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Minimum Concrete Requirement | 4″ thick at 3,000 PSI rating |
| Atlas® Lawn Mower Adapter (LMA) | Details |
|---|---|
| Capacity | Up to 5,000 lbs* |

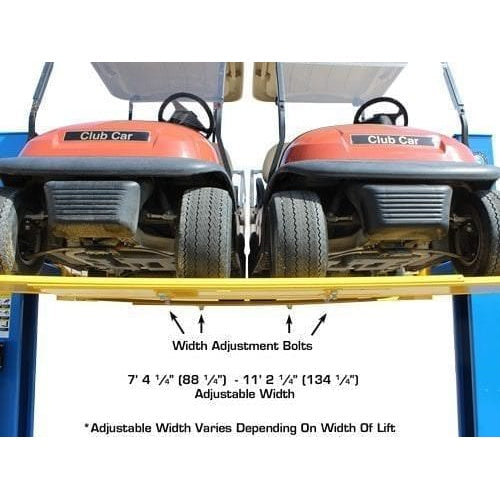

| Adjustable Width | 8′ 11″ |

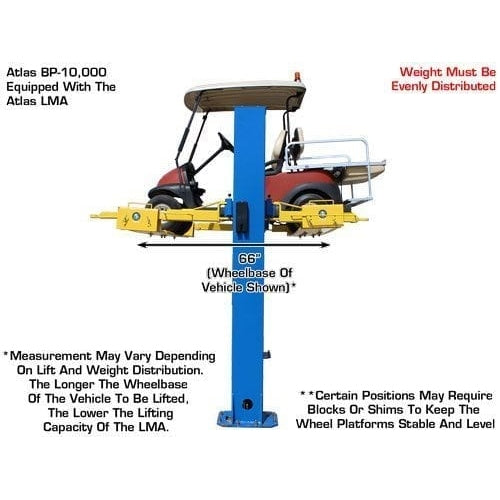

| Wheelbase Range | 32″ – 90″** |
| Wheel Well Width | 12″ |
| Steel Thickness | ¼″ (2 gauge) |

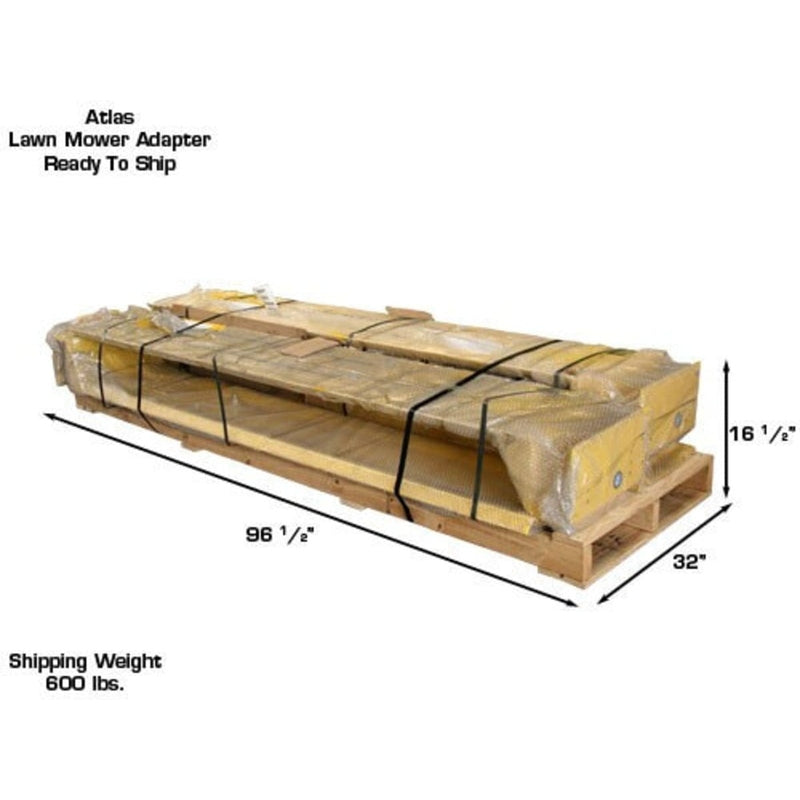

| Shipping Weight | 600 lbs |
| Composition | Two independent wheel platforms (lift not included) |
* Capacity may vary based on lift type and weight distribution.
** Longer wheelbases may require blocks or shims to maintain level positioning and stability.
Documents
Atlas® 9KOHX Cylinder Bleeding Procedure
(Do this immediately after installation)
