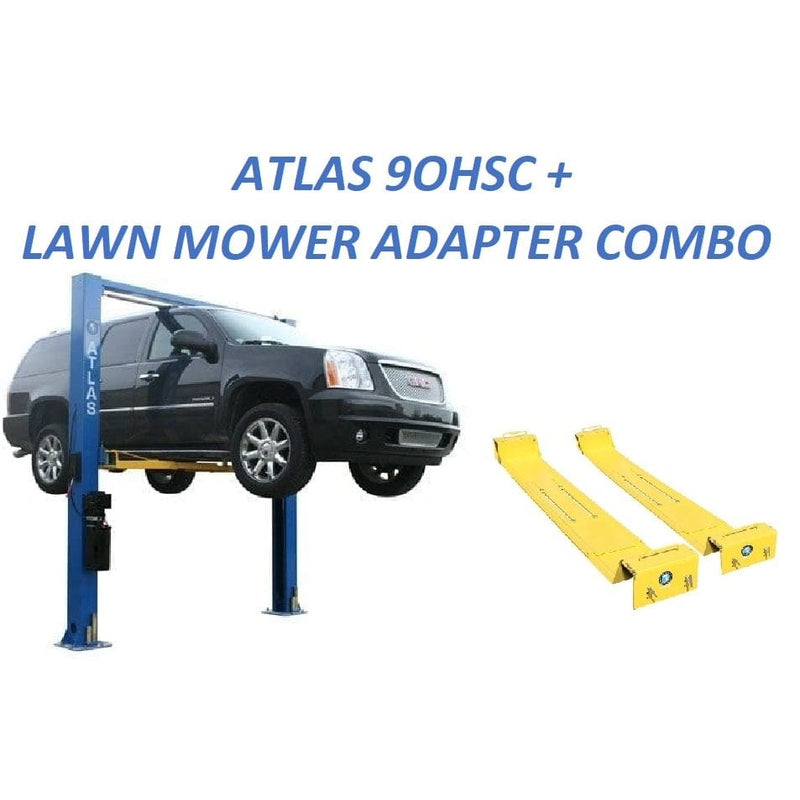

The Atlas® 9OHSC 2-Post Lift with Lawn Mower Adapter (LMA) Combo is an excellent choice for smaller commercial repair facilities or homeowners who want premium lifting capability at an affordable price. This true 9,000 lb. capacity overhead lift delivers the strength, reliability, and performance expected from Atlas® equipment.

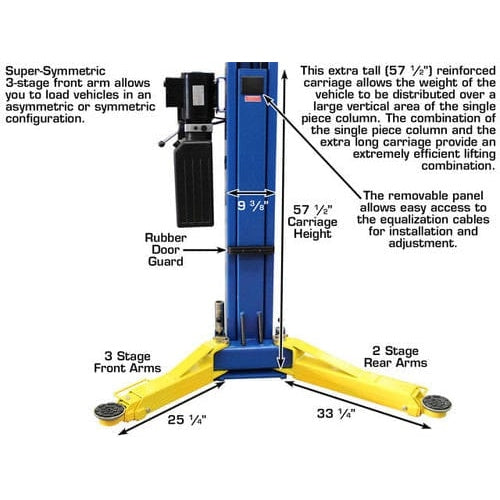

Engineered to handle everything from compact cars to full-size SUVs, the 9OHSC features a single-piece 11′ 10″ formed column and extra-long carriages that provide superior structural integrity and lifting stability. The solid one-piece column design ensures durability and long-term reliability, though it does require a minimum 12-foot ceiling height for installation.

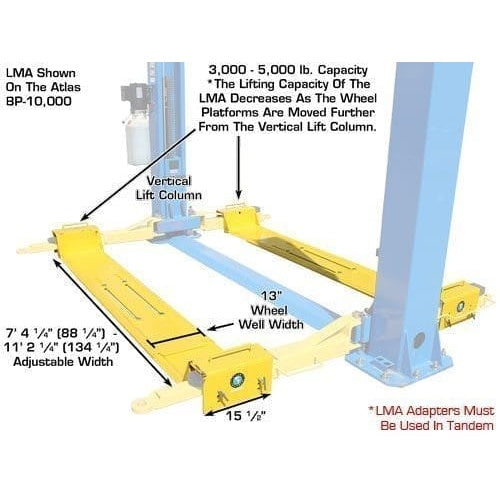

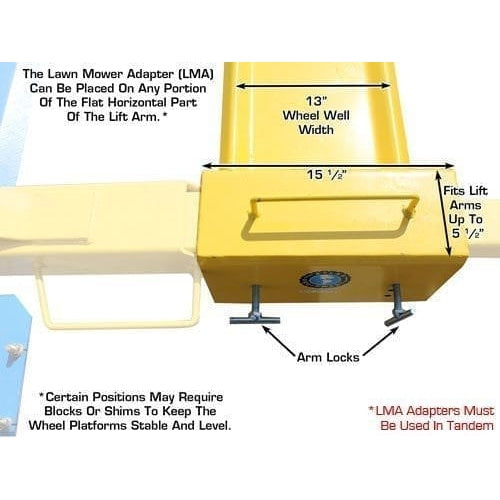

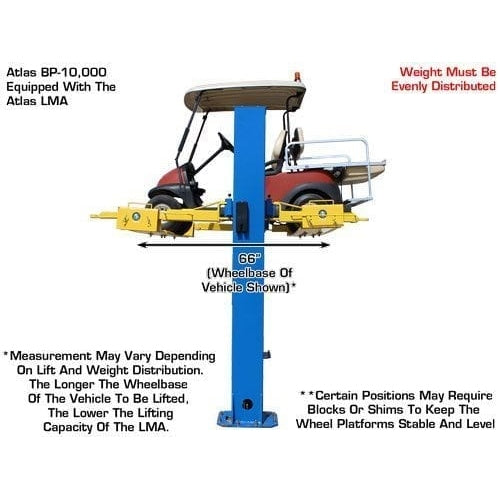

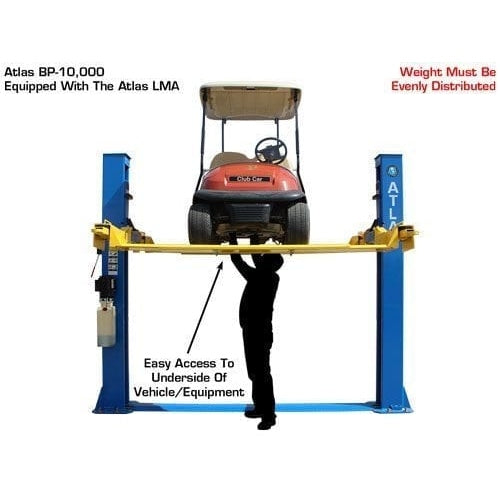

The package also includes the Atlas® Lawn Mower Adapter (LMA), which expands the lift’s functionality to accommodate ATVs, UTVs, and lawn mowers. The LMA adjusts along the lift arms to fit various wheelbases, with lifting capacity determined by adapter positioning and load balance (higher when the plates are closer to the columns).
Key Features
Atlas® 9OHSC 2-Post Lift
-
9,000 lb. lifting capacity
-
Overhead, open-floor design
-

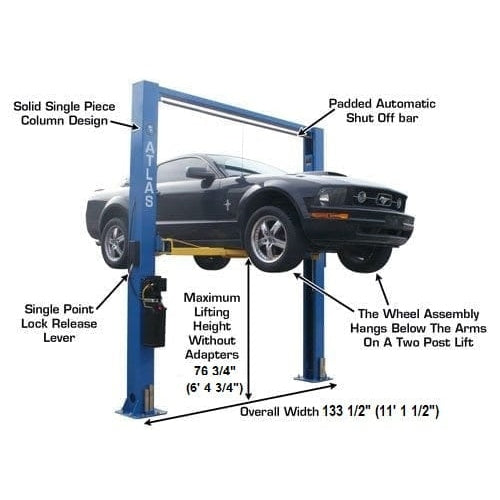

Single-piece column construction for maximum strength
-
Overall Height: 142″ (11′ 10″)
-

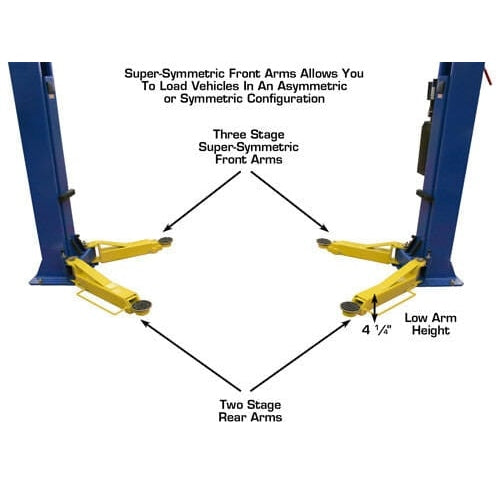

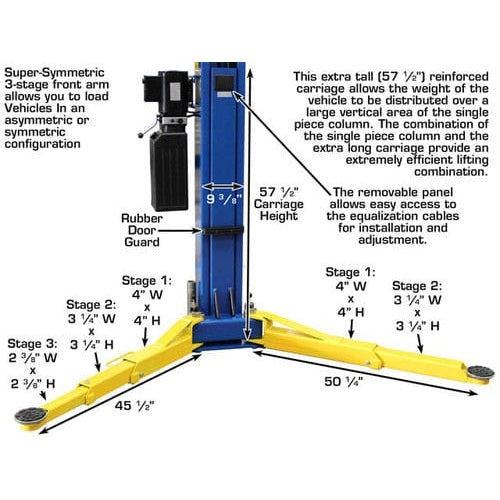

3-stage front arms / 2-stage rear arms for vehicle flexibility
-

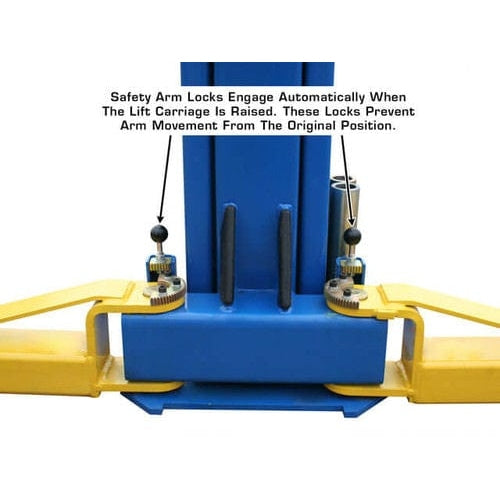

Automatic arm restraints
-

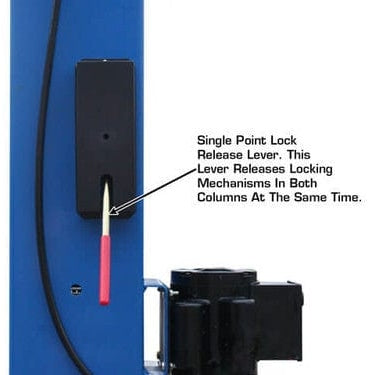

Single-point lock release system
-
Rubber carriage guards for added protection
-

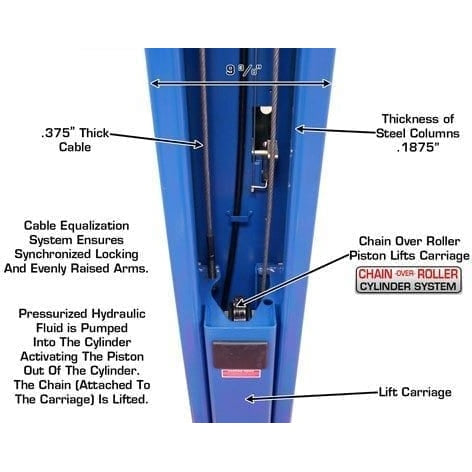

Dual hydraulic chain-drive cylinders
-

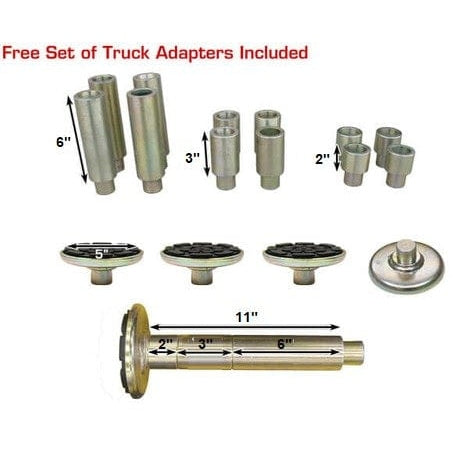

Includes 12-piece truck adapter set
-

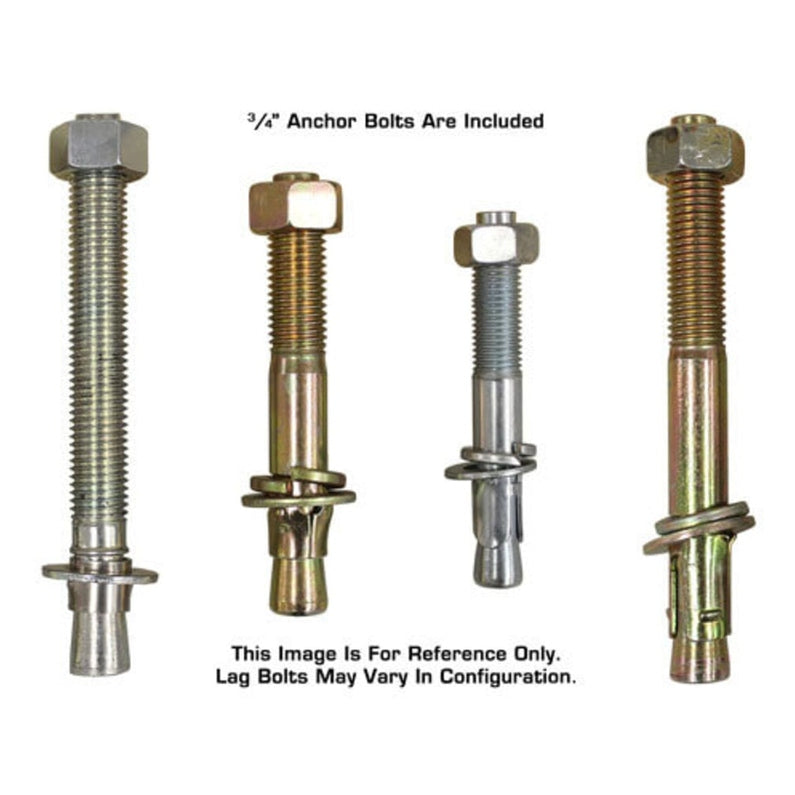

Mounting hardware included
-

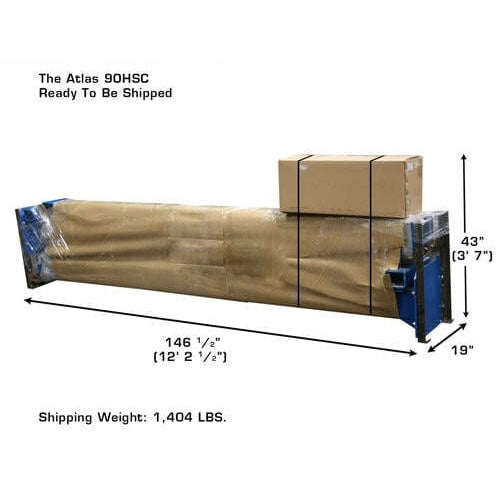

Shipping Weight: 1,430 lbs.
-
Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)
Atlas® Lawn Mower Adapter (LMA)
-
“Lawn Mower” adapter for 2-post lifts
-

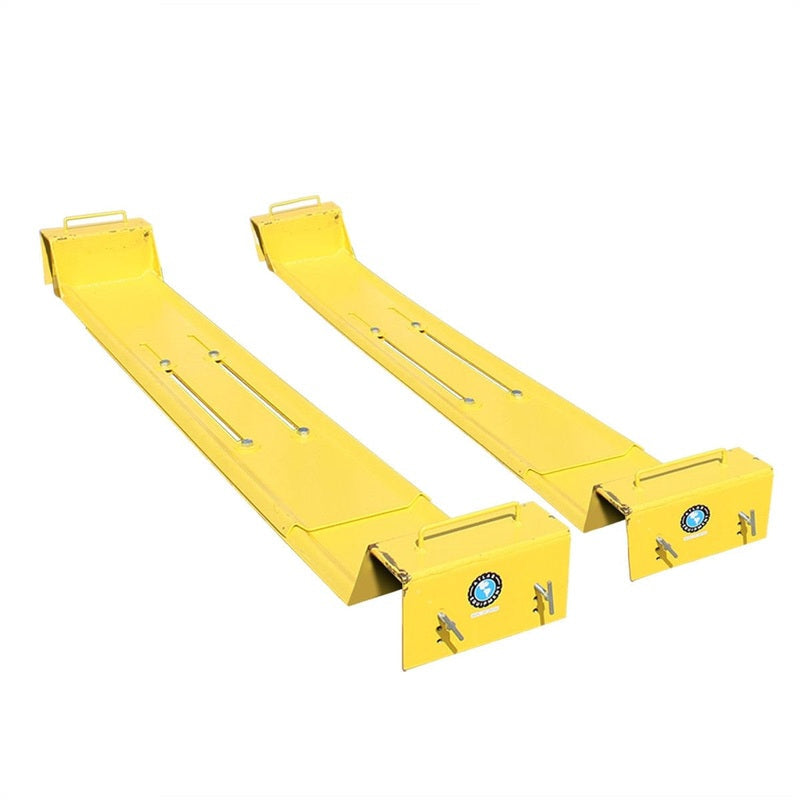

Includes four steel plates and all hardware
-
Adjustable to fit a variety of vehicle sizes and brands (compatibility may vary)
-
Supports up to 5,000 lbs. (capacity varies by lift and wheelbase)
-

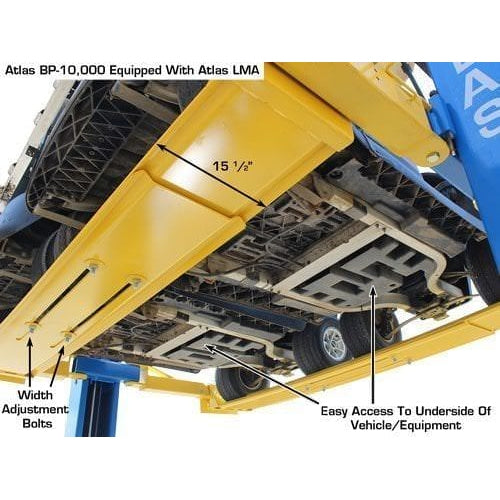

Adjustable along lift arms for different wheelbases
-
May require leveling blocks for proper alignment
Specifications
| Atlas® 9OHSC 2-Post Lift | Details |
|---|---|
| Capacity | 9,000 lbs |

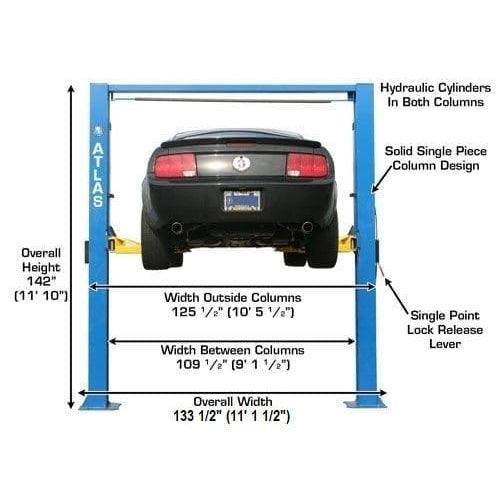

| Overall Height | 142″ (11′ 10″) |
| Overall Floor Width | 133 ½″ (11′ 1 ½″) |
| Outside Column-to-Column | 125 ½″ (10′ 5 ½″) |
| Maximum Lift Height (Without Adapters) | 76 ¾″ |

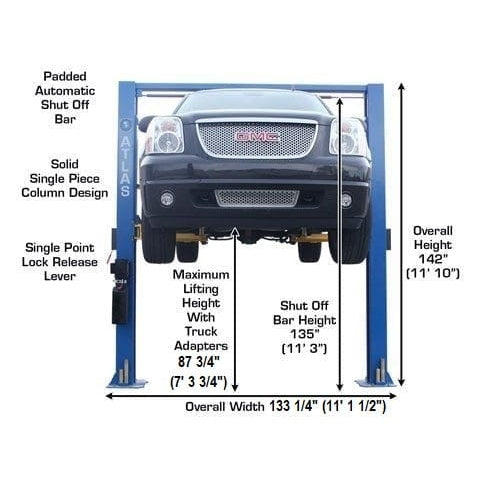

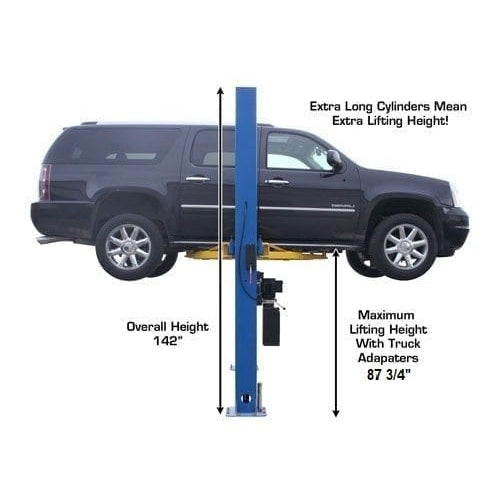

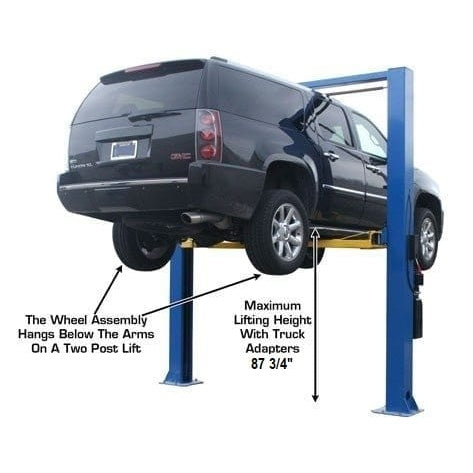

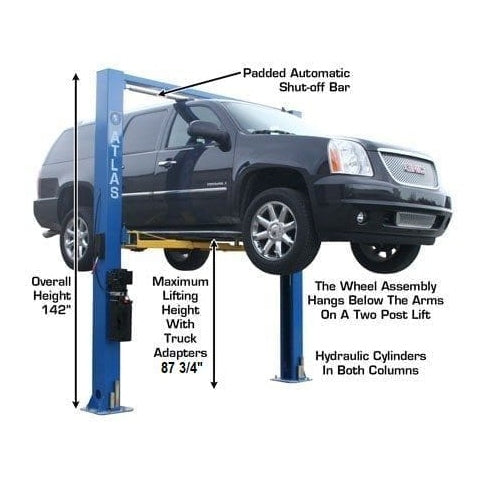

| Maximum Lift Height (With Adapters) | 87 ¾″ |
| Minimum Arm Height | 4″ |

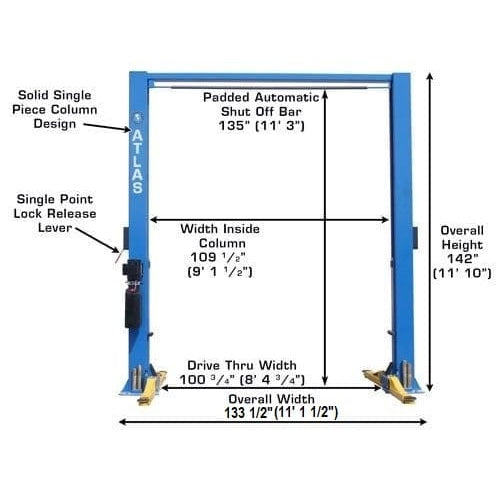

| Inside Column | 109 ½″ (9′ 1 ½″) |
| Drive-Thru Clearance | 100 ½″ (8′ 4 ½″) |

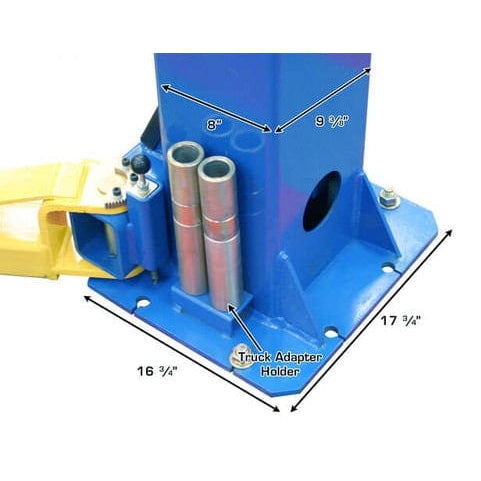

| Column Size | 8″ × 9 ⅜″ |
| Column Steel Thickness | 5 mm |
| Base Plate | 16 ¾″ × 17 ¾″ |
| Motor / Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 1,430 lbs |

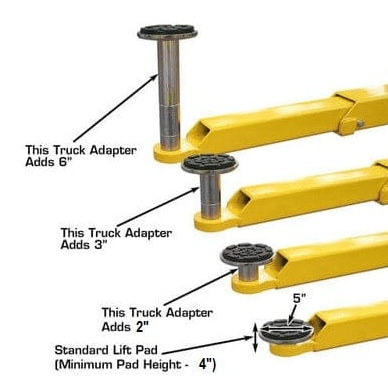

| Adapter Heights | Four each: 2″, 3″, 6″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Minimum Concrete Requirement | 4″ thick, 3,000 PSI rating |
| Atlas® Lawn Mower Adapter (LMA) | Details |
|---|---|
| Capacity | Up to 5,000 lbs* |

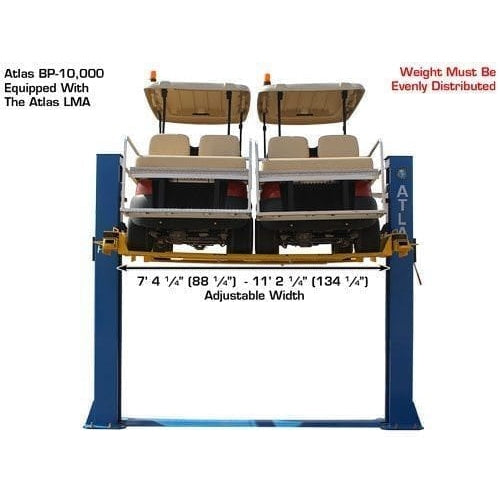

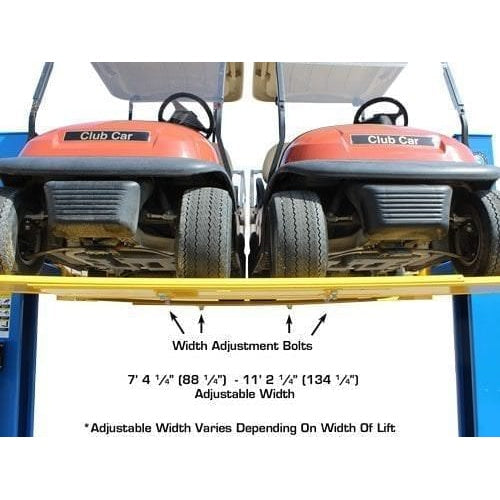

| Adjustable Width | 8′ 11″ |
| Wheelbase Range | 32″ – 90″** |
| Wheel Well Width | 12″ |
| Steel Thickness | ¼″ (2 gauge) |

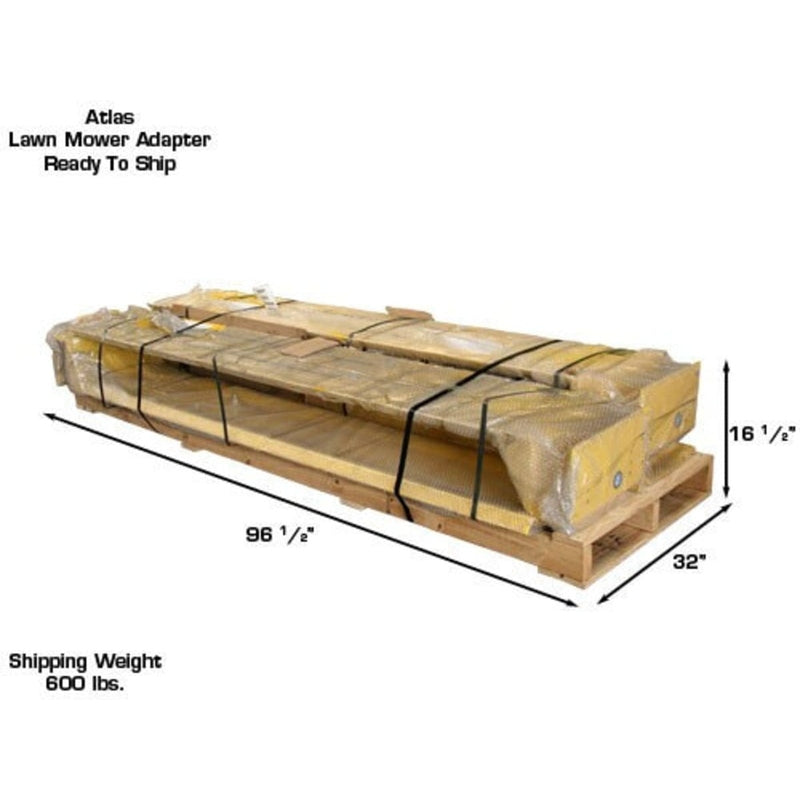

| Shipping Weight | 600 lbs |
| Composition | Two independent wheel platforms (lift not included) |
* Capacity may vary based on lift type and weight distribution.
** Longer wheelbases may require blocks or shims to maintain level and stable support.
