Atlas 9OHSC 9,000 lb Overhead 2-Post Lift

Save $700.00
Atlas Automotive EquipmentSKU: ATEATTD-9OHSC-SS
Price:
$3,299.00 $3,999.00

Why Shop with Us?

  • Free shipping and No Sales Tax* Certain products qualify for free shipping. No sales tax except for CT residents.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; your information is 100% secure.

Description

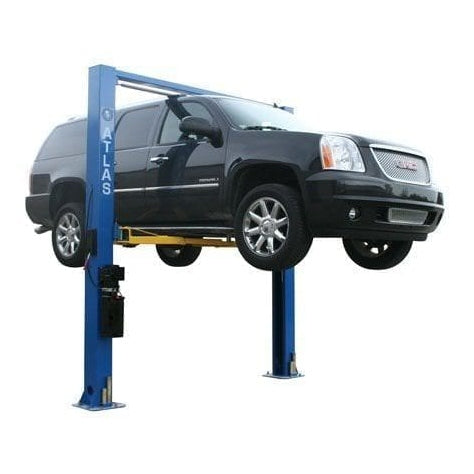

Atlas® 9OHSC – 9,000 lb. Capacity Overhead 2-Post Lift

The Atlas® 9OHSC is a true 9,000 lb. capacity two-post lift built for smaller commercial repair facilities and serious home enthusiasts who expect professional performance at exceptional value. Combining durability, precision, and affordability, this overhead clear-floor lift is ideal for servicing everything from compact Smart Cars to full-size SUVs and Suburbans.

Engineered with single-piece 11′ 10″ formed steel columns and extra-long carriages, the 9OHSC delivers superior column rigidity and arm support, ensuring reliable lifting for years of heavy use. The one-piece column design increases overall stability and structural strength while minimizing maintenance requirements.

This model’s overhead configuration provides a completely open floor workspace, allowing easy access beneath the vehicle. However, due to its full-height column design, a minimum 12-foot ceiling height is required for installation.

Durable, dependable, and designed for professional results, the Atlas® 9OHSC represents one of the best values in 9,000 lb. overhead lifts on the market today.

Key Features

  • 9,000 lb. Lifting Capacity

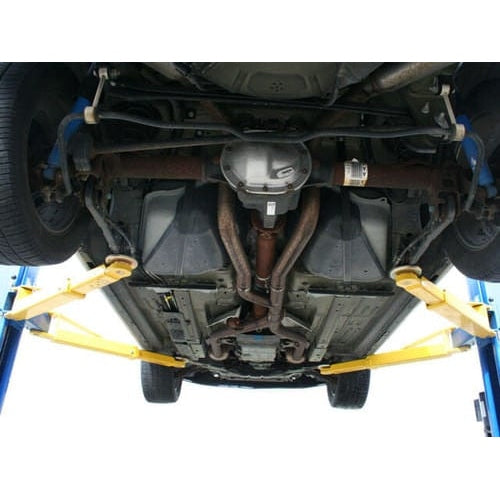

  • Overhead, Open-Floor Design for unrestricted workspace

  • Single-Piece Column Construction for maximum strength and rigidity

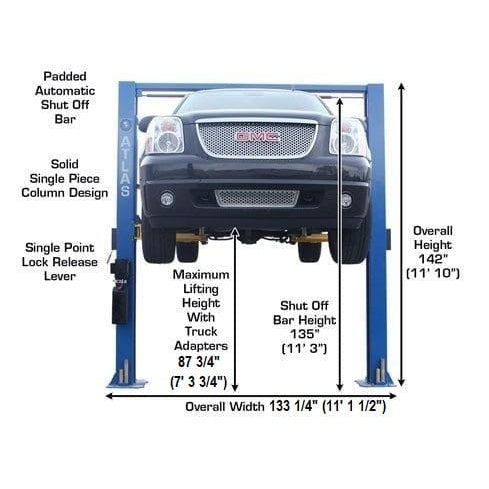

  • Overall Height: 142″ (11′ 10″)

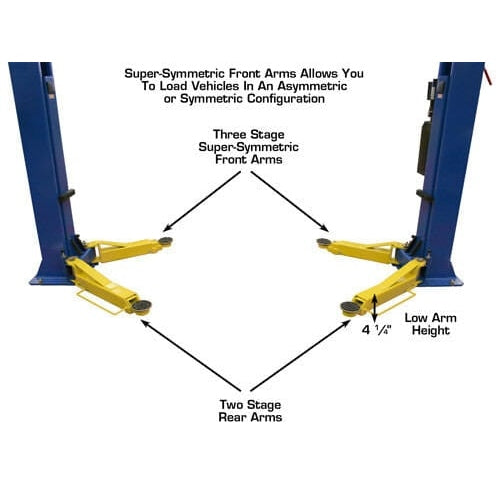

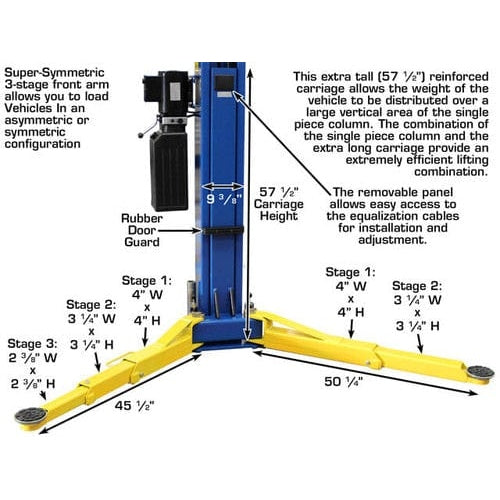

  • 3-Stage Front Arms / 2-Stage Rear Arms for versatile vehicle positioning

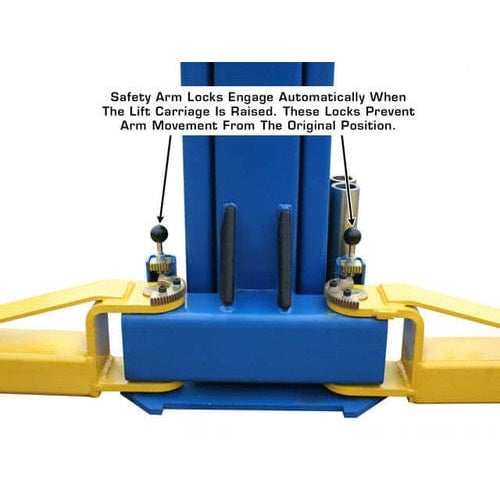

  • Automatic Arm Restraints for safe and secure lifting

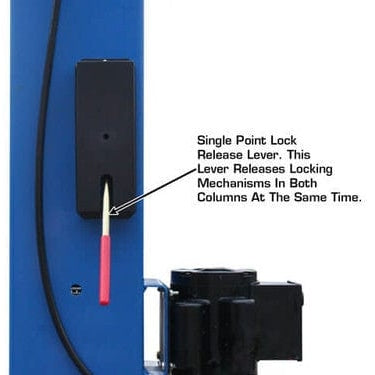

  • Single-Point Lock Release for simplified operation

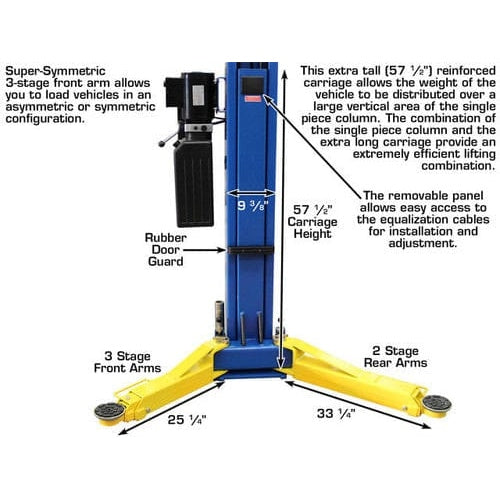

  • Rubber Door Guards on Carriages to prevent vehicle damage

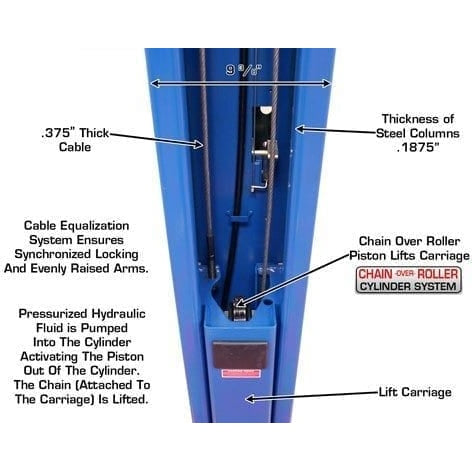

  • Dual Hydraulic Chain-Drive Cylinders for smooth, efficient operation

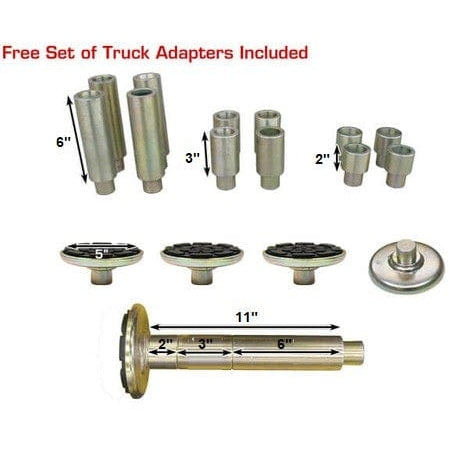

  • Free 12-Piece Truck Adapter Set (Included)

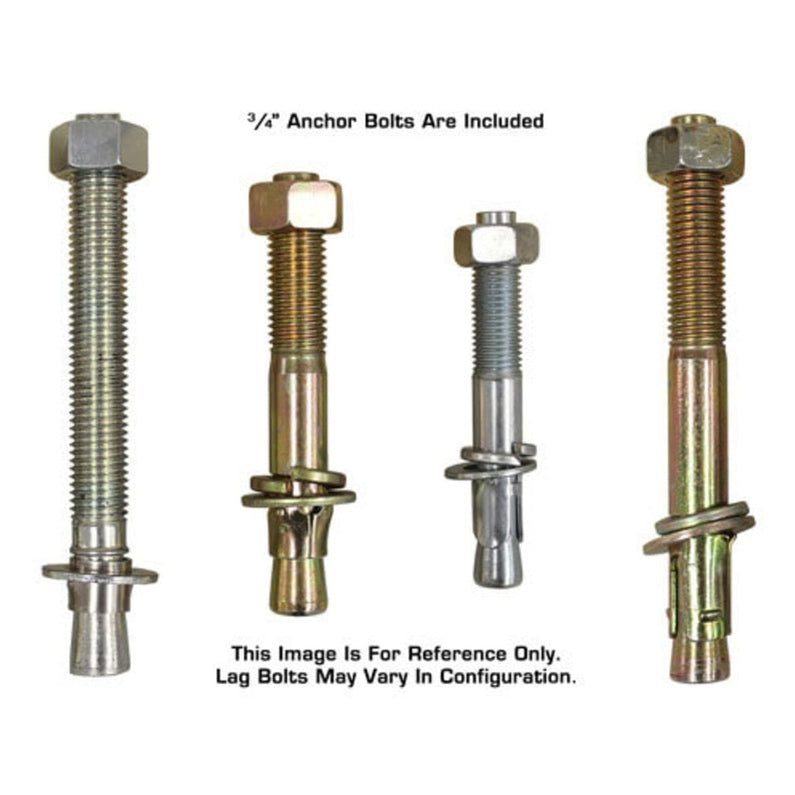

  • Mounting Hardware Included

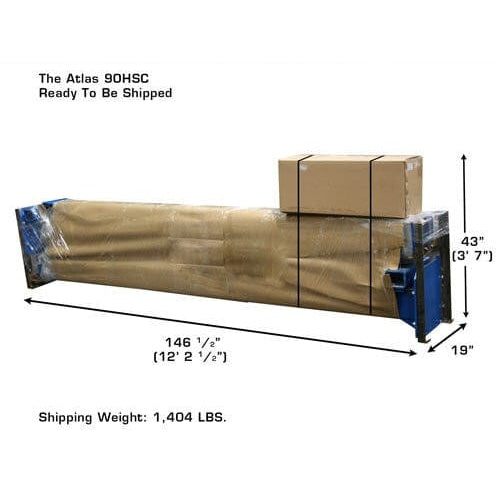

  • Shipping Weight: 1,430 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 9,000 lb.

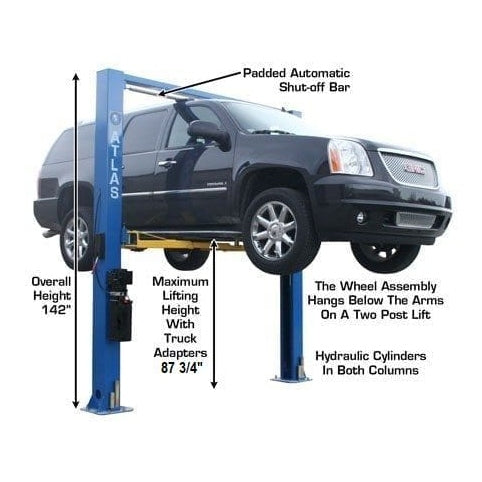

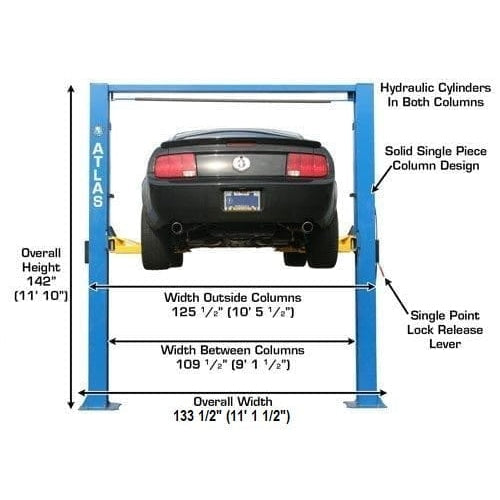

Overall Height 142″ (11′ 10″)
Overall Floor Width 133 ½″ (11′ 1 ½″)
Outside Column to Outside Column 125 ½″ (10′ 5 ½″)

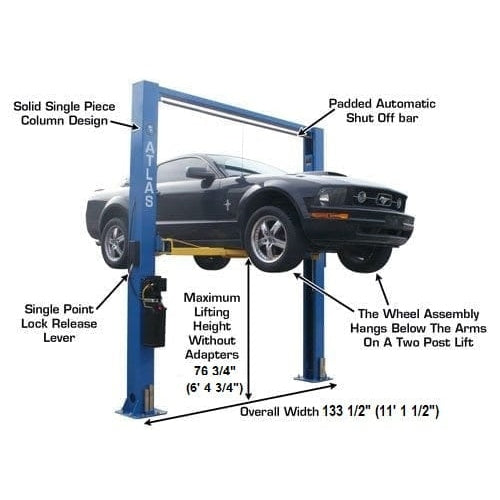

Maximum Lift Height (Without Adapters) 76 ¾″

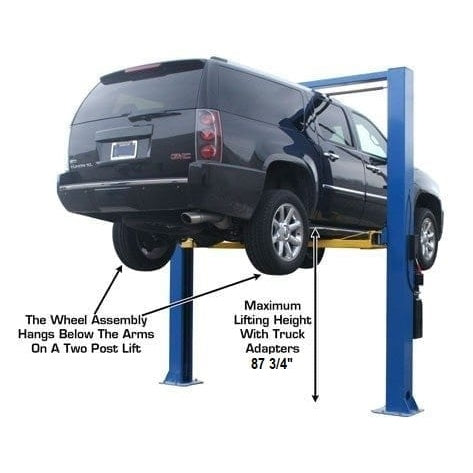

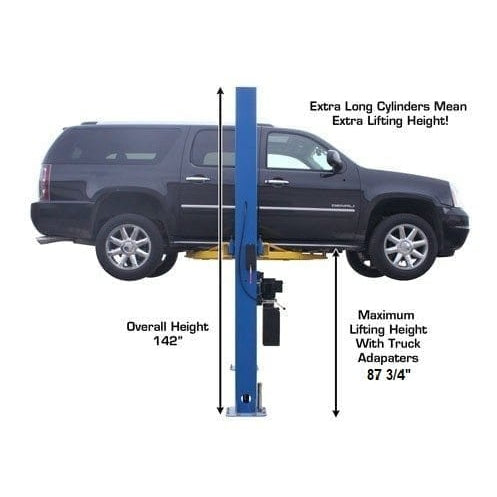

Maximum Lift Height (With Adapters) 87 ¾″
Minimum Arm Height 4″

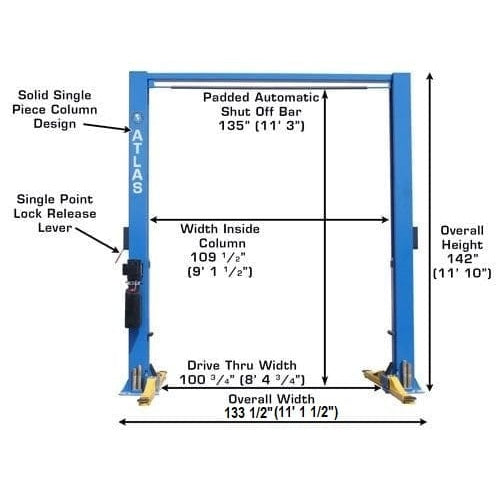

Inside Column Width 109 ½″ (9′ 1 ½″)
Drive-Through Clearance 100 ½″ (8′ 4 ½″)

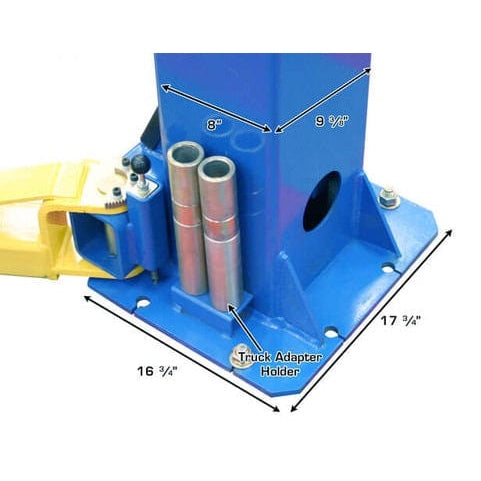

Column Size 8″ × 9 ⅜″
Column Steel Thickness 5 mm
Base Plate Dimensions 16 ¾″ × 17 ¾″
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 1,430 lb.

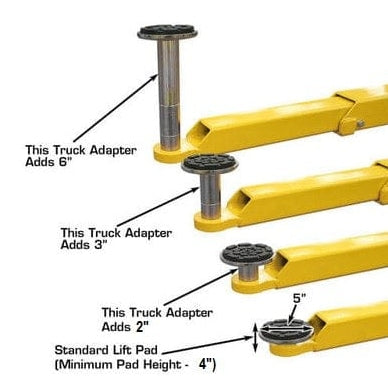

Adapter Heights Four each: 2″, 3″, 6″
Arm Hole/Adapter Peg Size 1.5″
Concrete Requirement Minimum 4″ thick slab rated at 3,000 PSI

Documents

Atlas ATTD-9OHSC-SS Manual

Atlas 9OHSC-SS Cylinder Bleeding Procedure(Do this immediately after installation)
