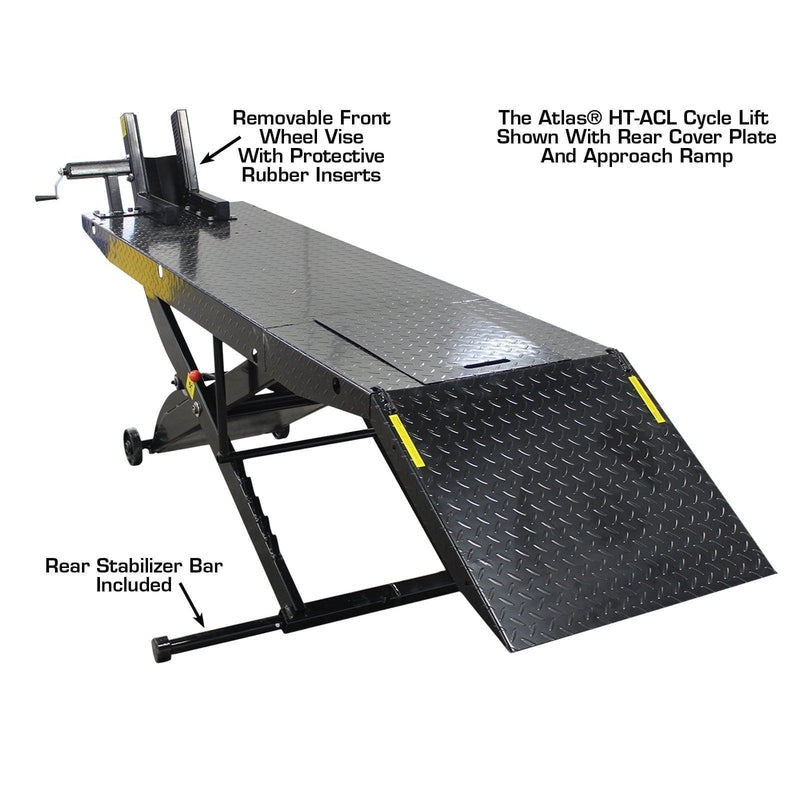

The Atlas® ACL is a professional-grade, air-operated motorcycle lift designed for both commercial service departments and home garages. Operating on 90–100 PSI of air pressure, this lift delivers smooth, consistent raising and lowering—ideal for professional technicians and enthusiasts who want shop-level performance in their own workspace.

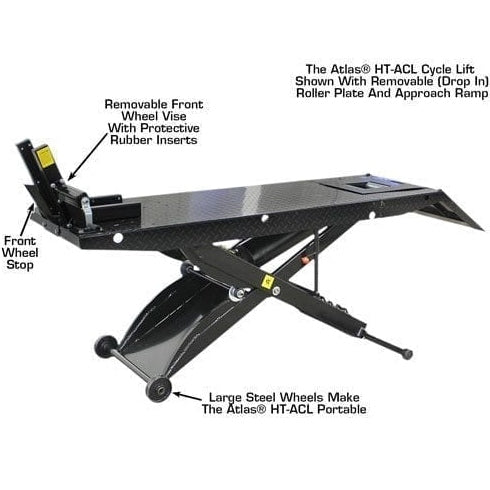

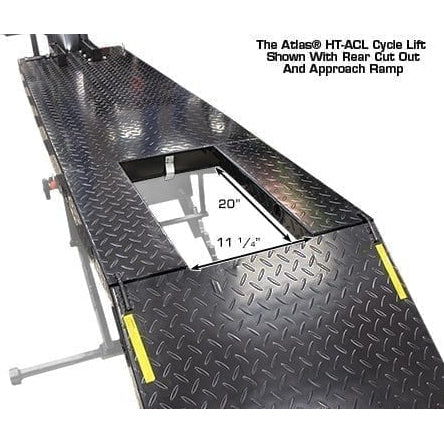

This complete lift package includes an adjustable padded front wheel vise and a heavy-duty air-operated foot valve for effortless control. A signature feature of the ACL is its removable rear plate, which allows greater access to the rear tire for maintenance and wheel removal. The removable plate can also be swapped with the included roller plate, enabling the rear wheel to spin freely for diagnostics, detailing, or performance testing.

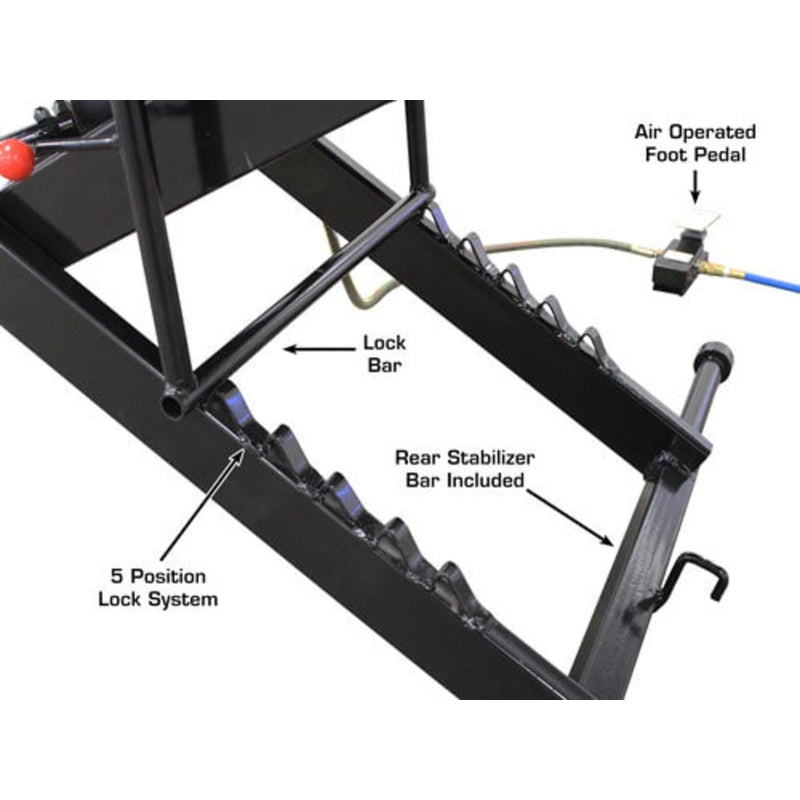

For enhanced safety and stability, the ACL comes standard with a stabilizing bar—a premium feature many competitors charge extra for. The stabilizing bar increases the lift’s footprint, ensuring a solid and secure platform while elevated.
For users who require additional workspace, the Atlas® ACL can be equipped with the ACL Side Extension Kit, expanding the platform width to 4 feet—perfect for lifting ATVs, UTVs, golf carts, lawnmowers, and other wide-track equipment.
Features
-
1,000 lb. lifting capacity
-
Air-operated system (external air supply required)
-
33" full lift height
-

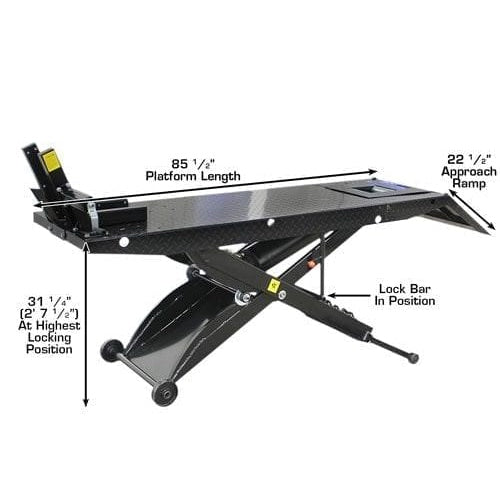

85½" table length
-
Durable diamond-plated surface for added traction
-

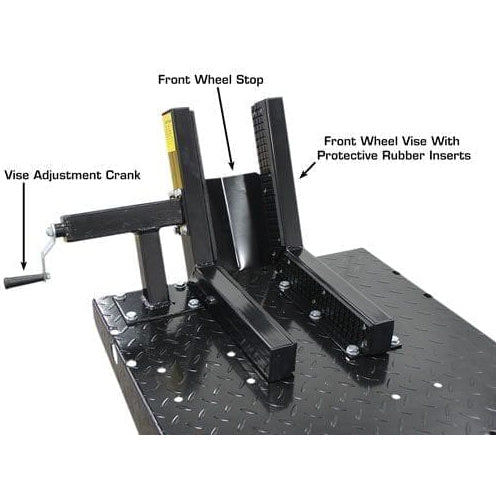

Adjustable front wheel vise included
-

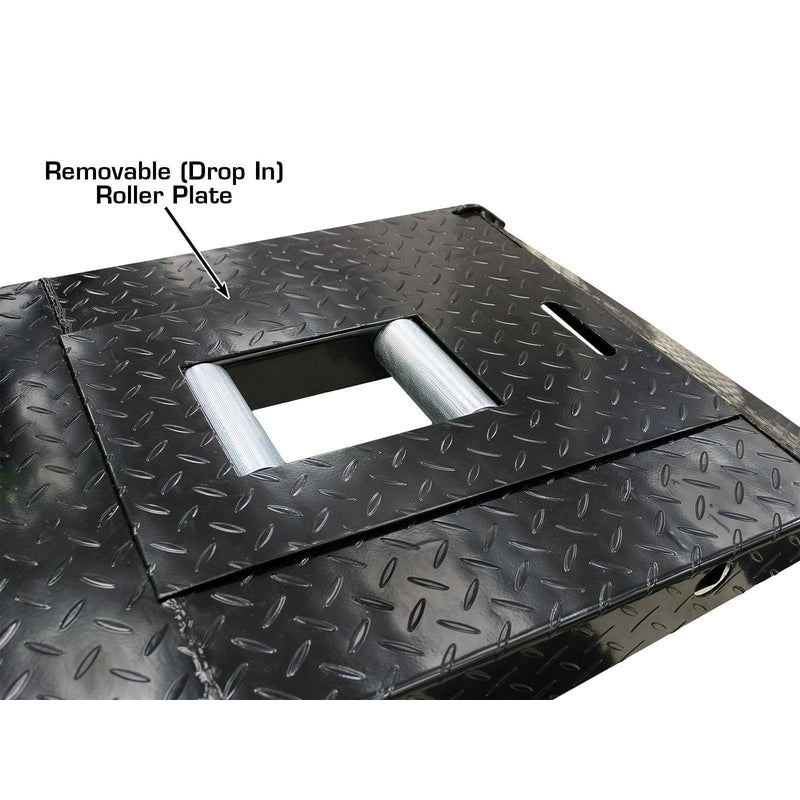

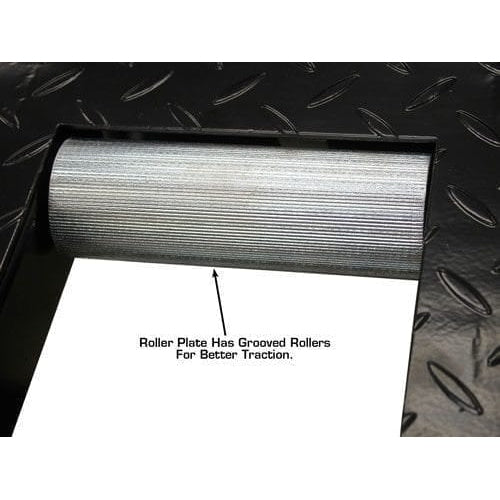

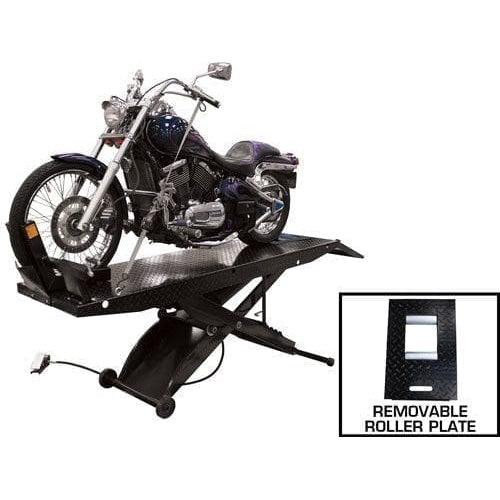

Removable rear roller plate for easy rear-wheel service and testing
-

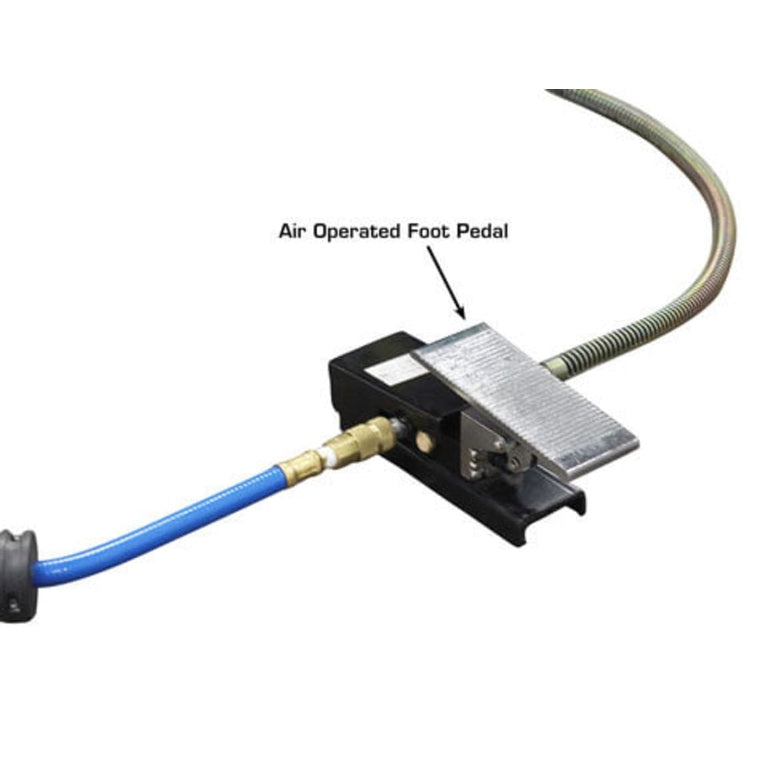

Foot pedal control for smooth raising and lowering
-

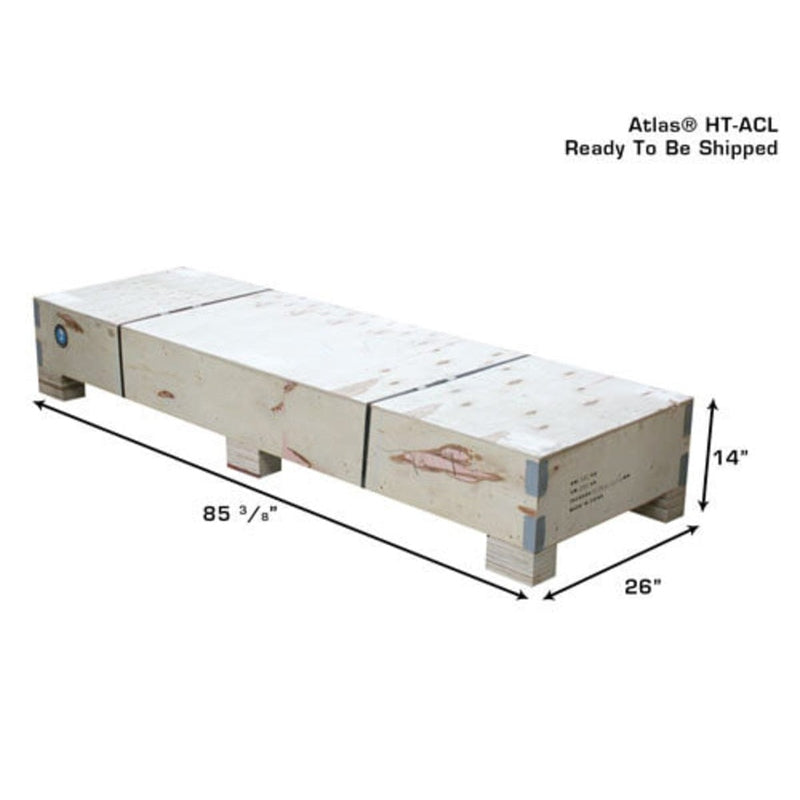

Shipping weight: 500 lbs
-
Warranty: 1-year parts only
Specifications
Atlas® ACL Motorcycle Lift
| Specification | Measurement |
|---|---|
| Weight Capacity | 1,000 lbs |
| Overall Length (with ramp) | 105½" (8' 9½") |
| Table Length (without ramp) | 85½" (7' 1½") |
| Table Width | 24" |
| Maximum Lift Height | 33" (2' 9") |
| Minimum Height (lowered) | 7¼" |
| Approach Ramp Length | 20" |
| Air Requirement | 90–100 PSI (external air supply required) |
| Shipping Weight | 500 lbs |
