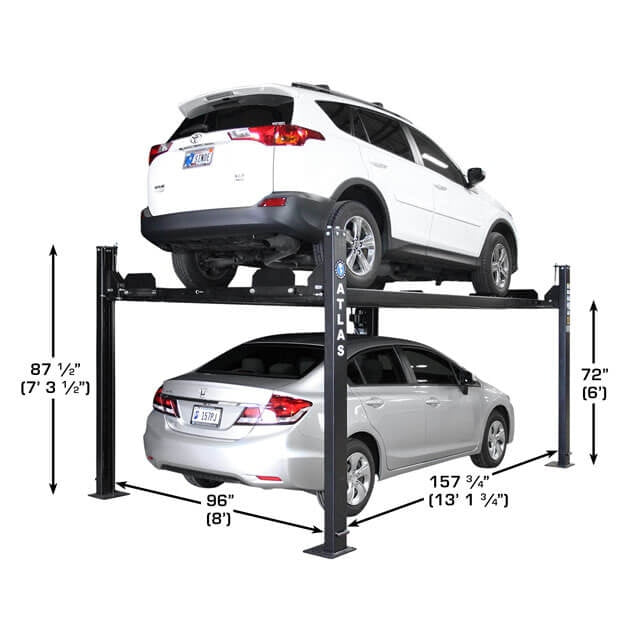

The Atlas® APEX8 is the ALI Certified version of the best-selling Atlas® Garage PRO8000—a proven and trusted 4-post hobbyist lift designed for customers who need more space without sacrificing quality or safety. Perfect for car enthusiasts, collectors, and homeowners with multiple vehicles, the APEX8 allows you to double your storage capacity by safely stacking most passenger cars.
Built for home garages and restoration environments, the APEX8 delivers professional-grade performance in a portable, easy-to-use format. While it shares the same trusted design as the Garage PRO8000, it’s nearly 200 lbs heavier than many comparable models on the market, offering increased structural strength and stability.
Each APEX8 includes a caster kit with polyurethane wheels, allowing the lift to be moved easily between bays or even outdoors. The caster kit installs or removes in just minutes, adding convenience without compromising safety or functionality.
With its robust construction, portability, and ALI Certification, the Atlas® APEX8 offers exceptional value for homeowners and hobbyists seeking professional-grade reliability and peace of mind.
This combo package also includes two Atlas® RJ35 sliding bridge jacks, ideal for lifting a vehicle’s wheels off the runways to perform tire, brake, and suspension work.
Note: The RJ35 sliding jacks are not ALI Certified; only the APEX8 lift is.
Features
APEX8 Lift
-
ALI Certified four-post lift
-
8,000 lb. lifting capacity
-
Free-standing, portable design
-
Durable powder-coated finish
-

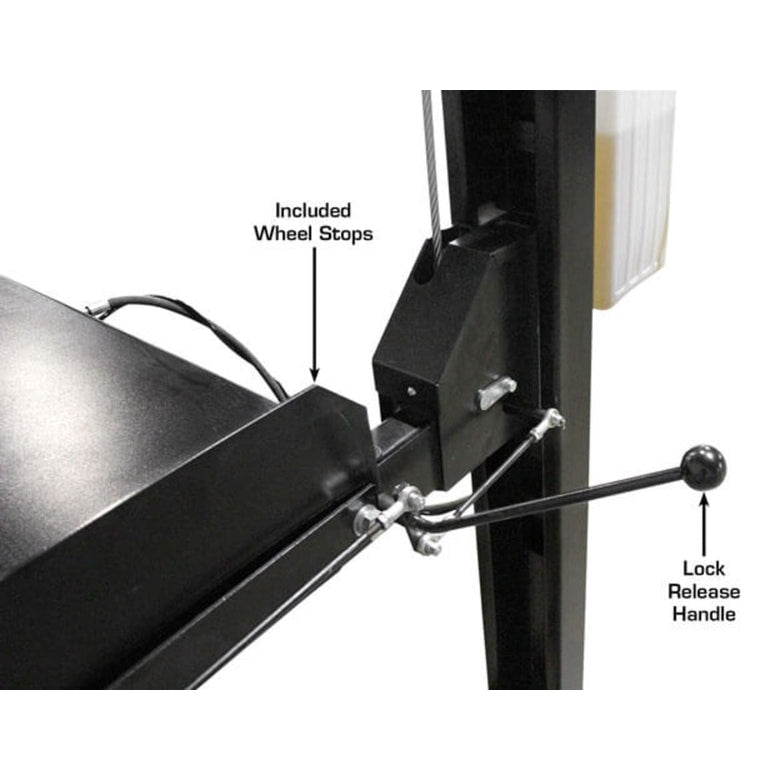

Single-point lock release for easy operation
-

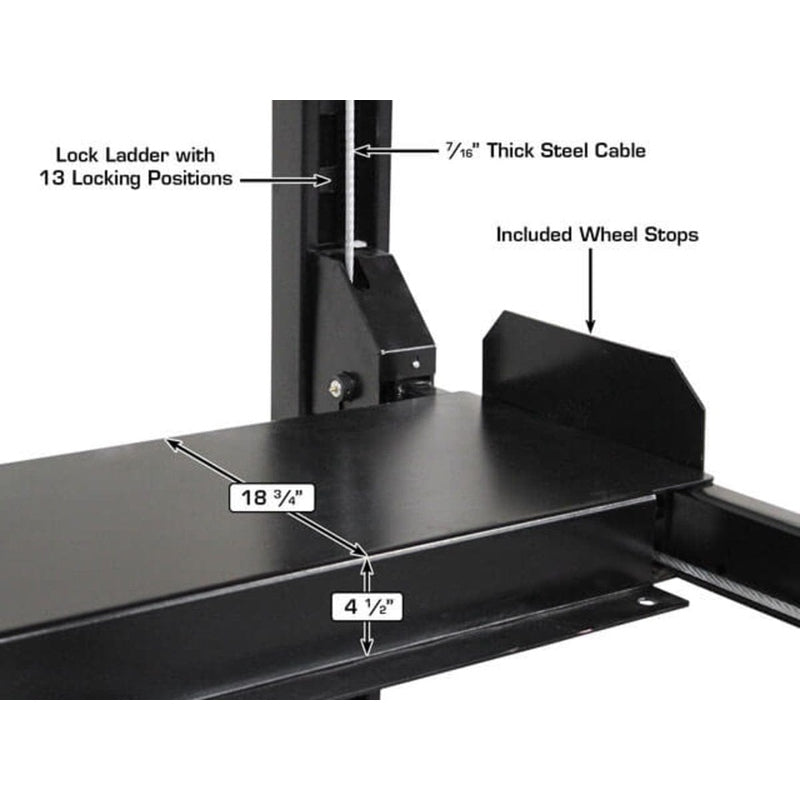

Lock-ladder design with double-lock safety system
-

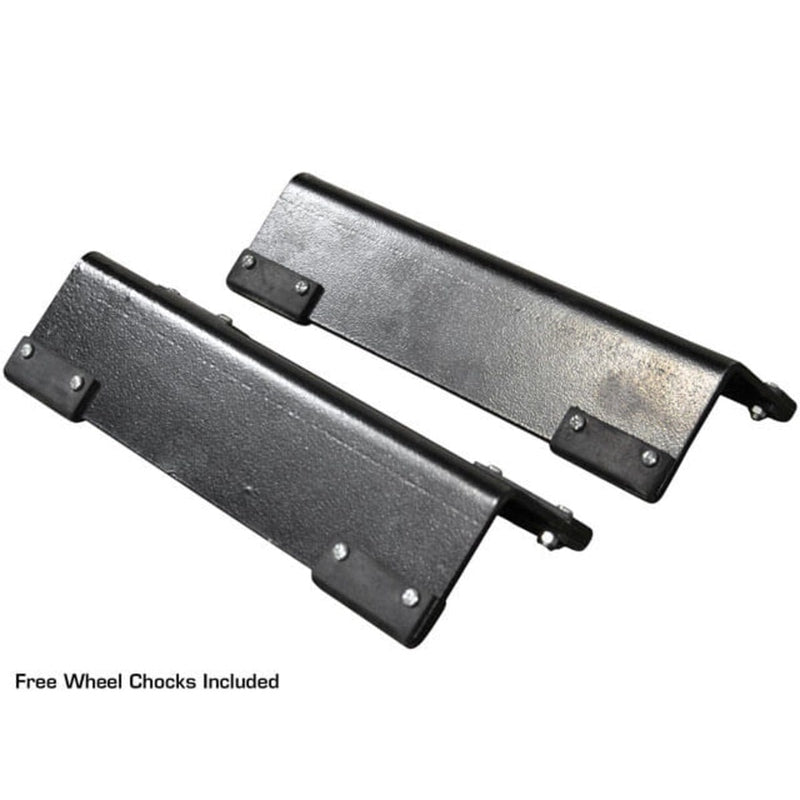

Includes steel approach ramps, wheel stops, and two rubber wheel chocks
-

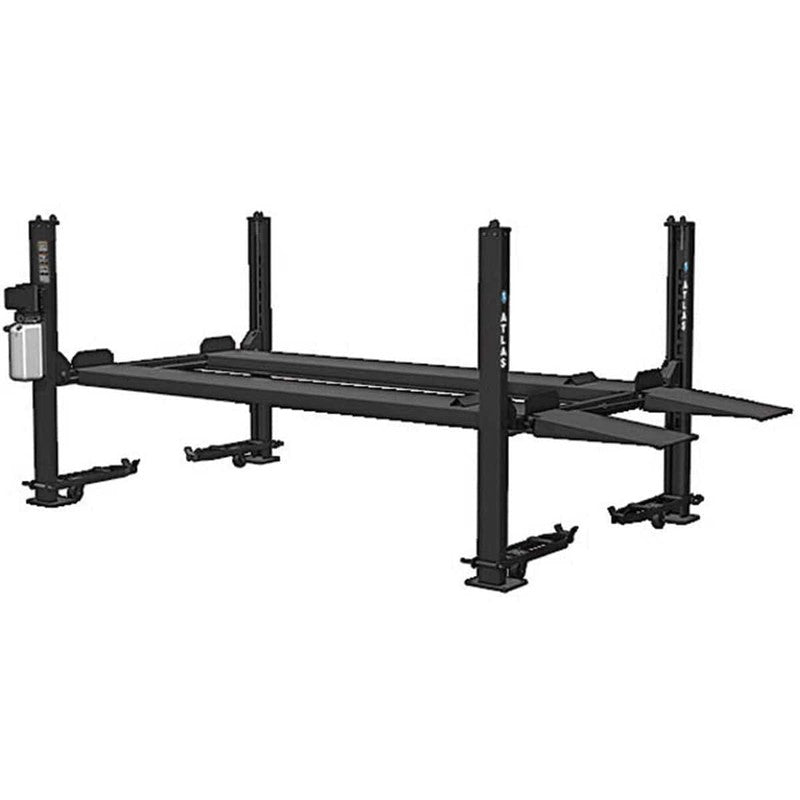

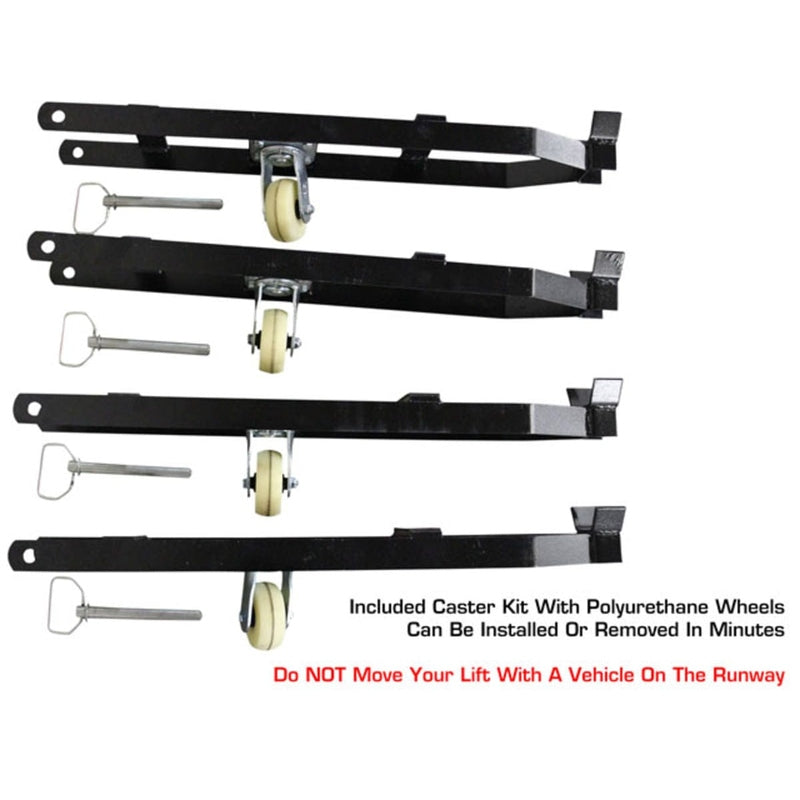

Includes caster kit with polyurethane wheels for portability
-
Optional anchor bolts available (sold separately)
-
Ideal for both vehicle storage and maintenance
-

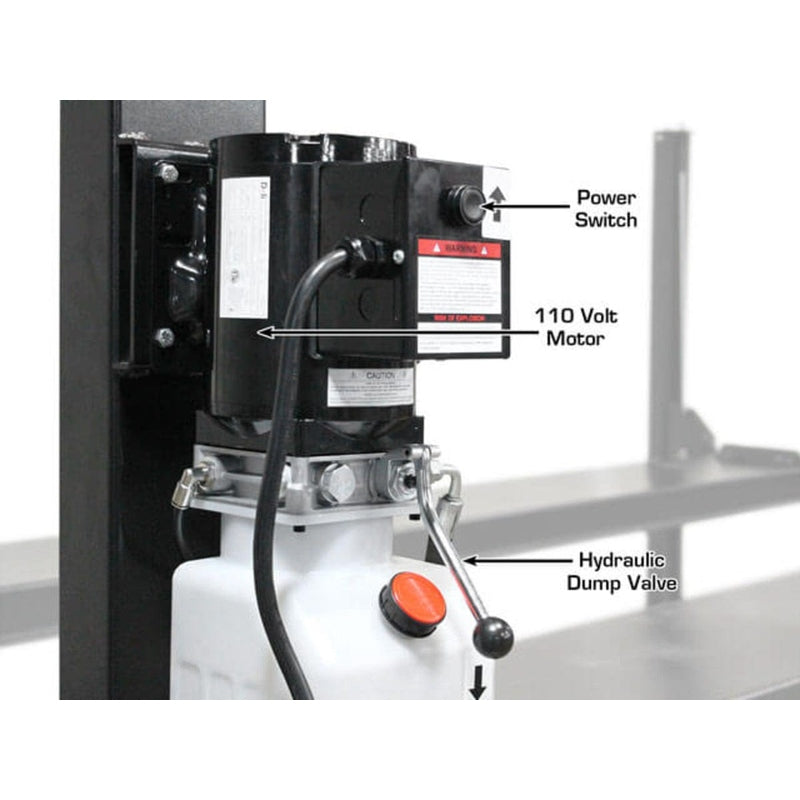

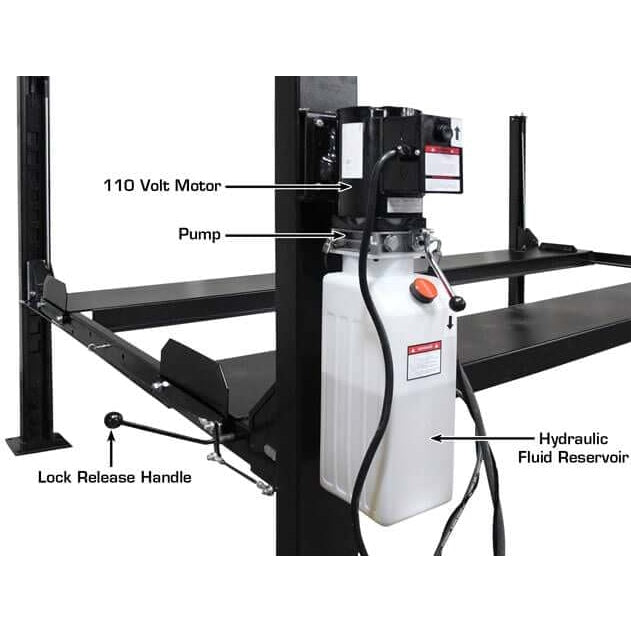

110V electric operation (30-amp breaker required)
-

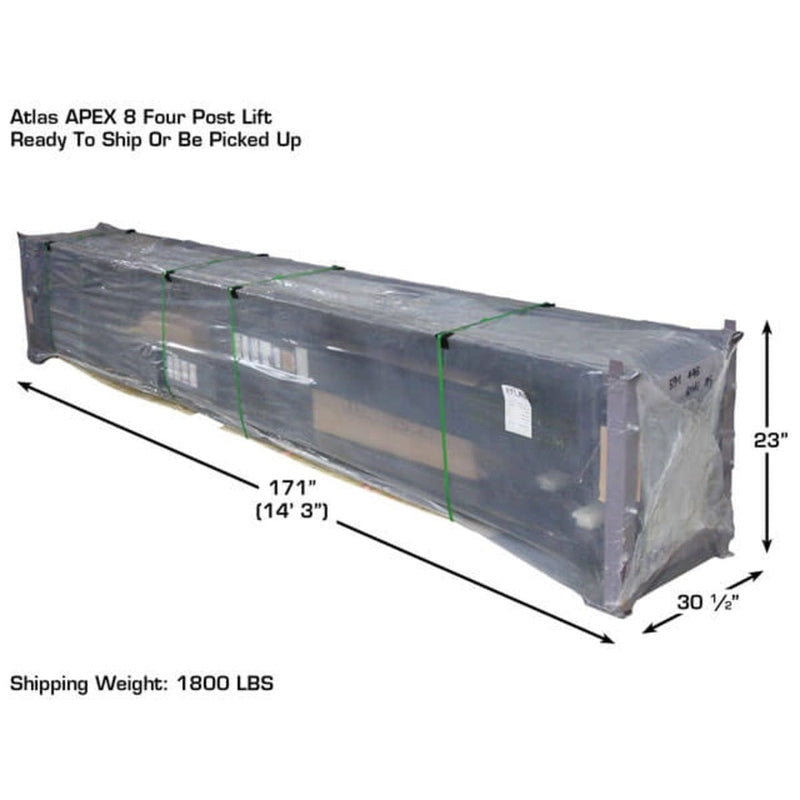

Shipping weight: 2,000 lbs
-
Warranty: 5-year structural / 2-year hydraulic (parts only)

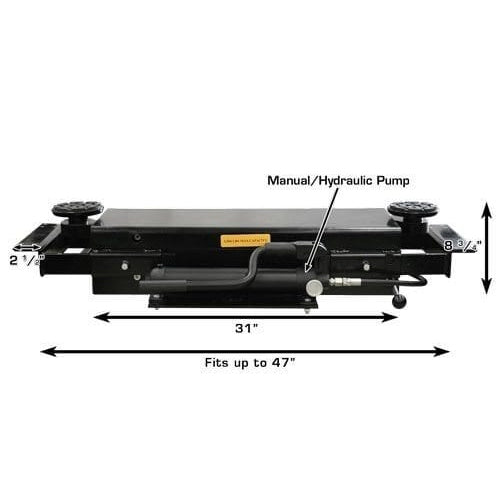

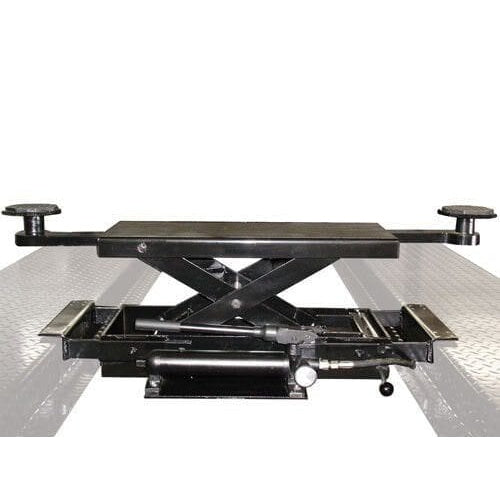

PROJACK35 Sliding Bridge Jack
-
3,500 lb. capacity
-

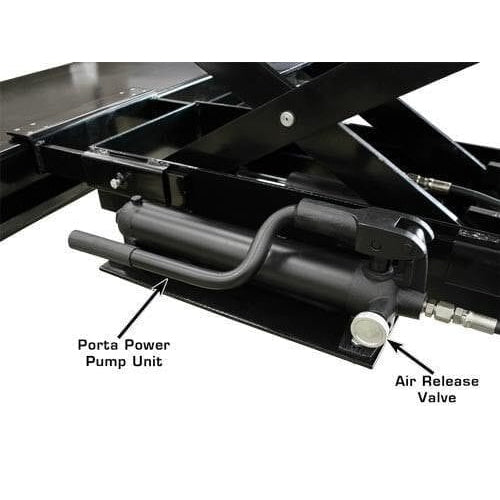

Manual hand-pump operation
-
Scissor mechanism for level lifting
-
Compact, low-profile design
-
Adjustable width fits a variety of 4-post lifts
-
Adjustable lift arms reach multiple lifting points
-
Multiple safety lock positions
-

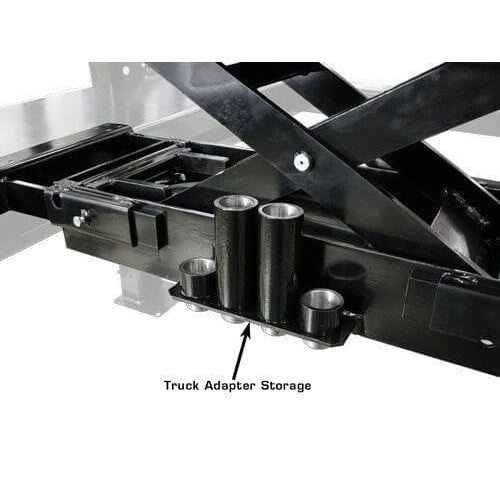

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

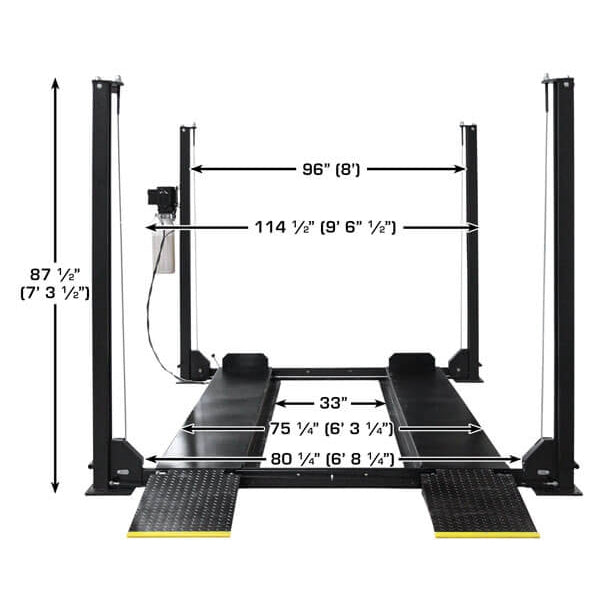

Atlas® APEX8
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |
| Lifting Height (to top of runway) | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |
| Height of Columns (including nuts) | 86⅝" (7' 2⅝") |

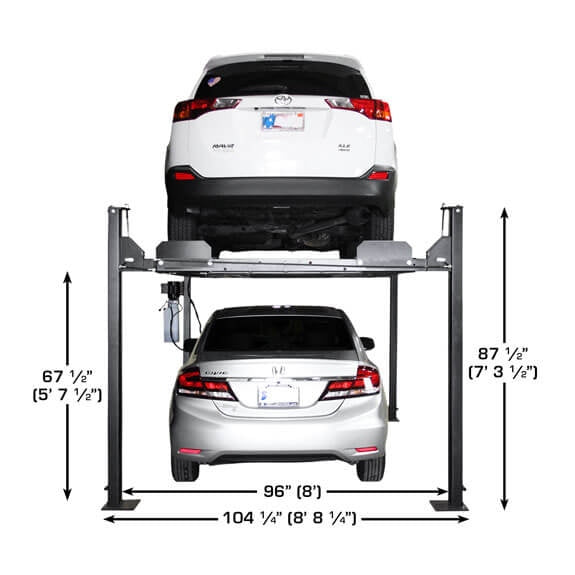

| Overall Width (w/o motor or casters) | 104" (8' 8") |
| Overall Width (w/ motor) | 114" (9' 6") |

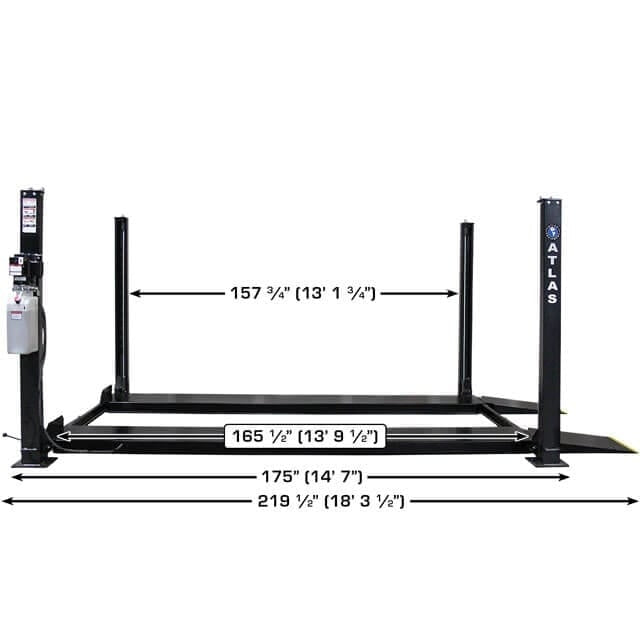

| Overall Length (w/o approach ramps, incl. lock release bar) | 186½" (15' 6½") |
| Overall Length (w/ approach ramps) | 207⅚" (17' 3⅚") |

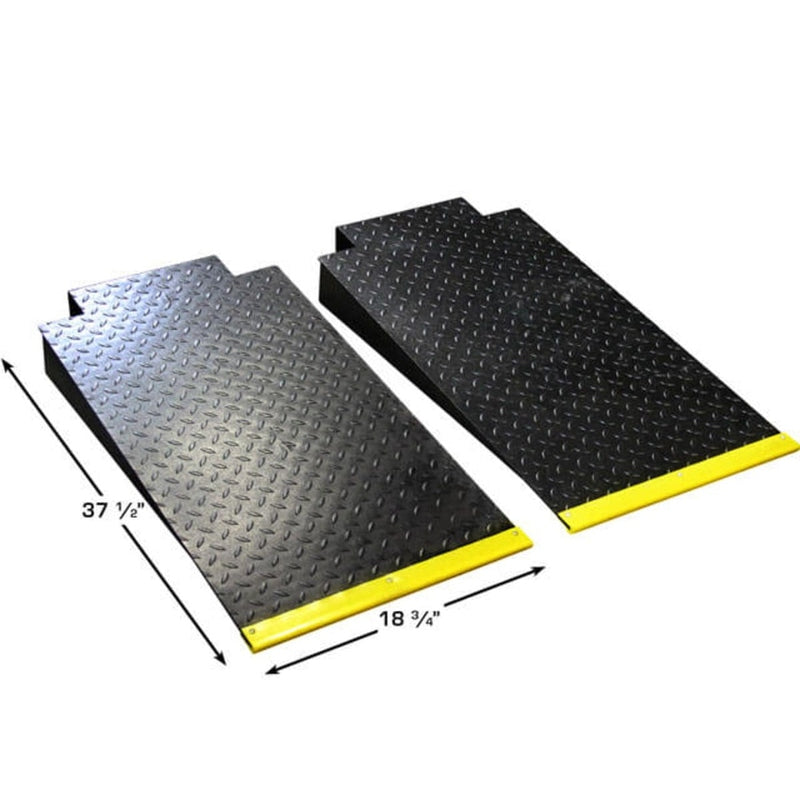

| Approach Ramps | 37½" (3' 1½") |

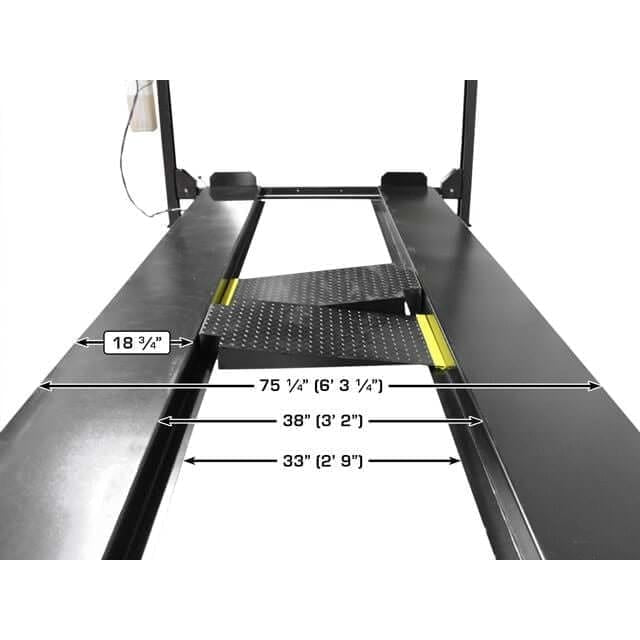

| Runway Width | 18⅔" |
| Runway Rail Width | 2½" |

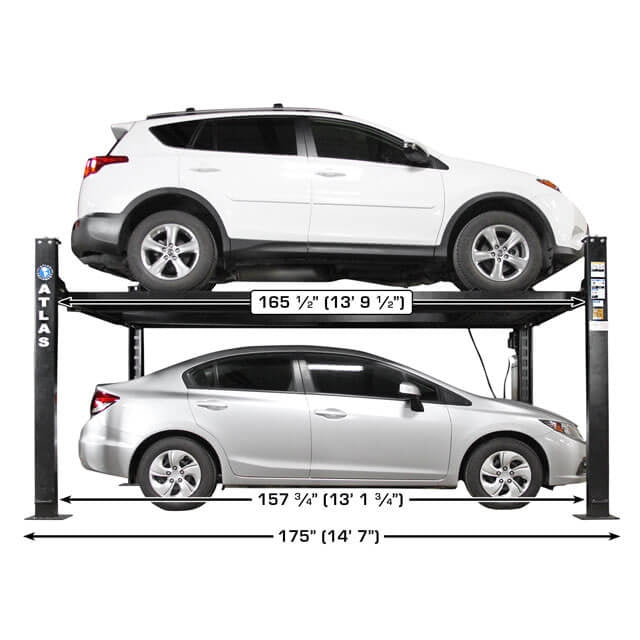

| Runway Length | 169½" (14' 1½") |
| Runway Thickness | 4⅓" |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 33" (2' 9") |
| Outside Runway to Outside Runway | 75¼" (6' 3¼") |
| Clearance Between Columns | 94" (7' 10") |
| Length Between Columns | 157⅓" (13' 1⅓") |
| Maximum Wheelbase | 154" (12' 9") |
| Drive-Through Width (outside of tires) | 80¼" (6' 8¼") |
| Motor / Electrical | 110V (requires 30-amp breaker) |
| Shipping Weight | 2,000 lbs |

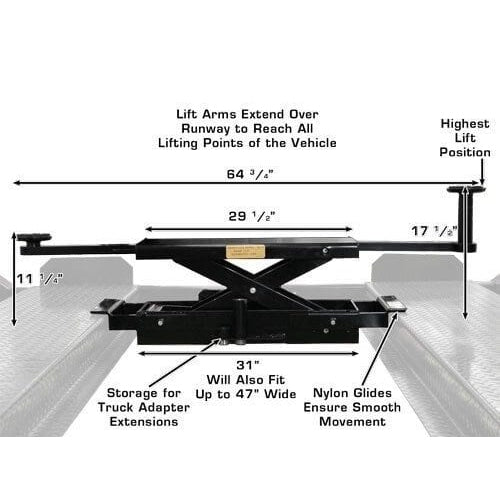

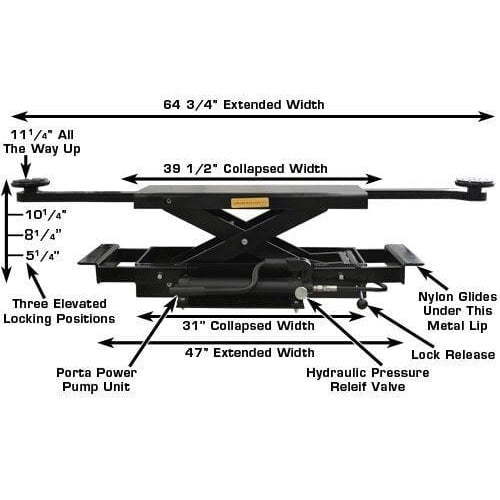

Atlas® RJ35 Sliding Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 3,500 lbs |
| Maximum Width | 64¾" (5' 4¾") |
| Minimum Width | 29½" (2' 5½") |
| Minimum Height (lift pad above runway) | 3½" (varies by lift) |
| Lift Pad Height (above arm) | 1⅜" |
| Maximum Raised Height (no adapters) | 11" |
| Maximum Raised Height (with adapters) | 17¼" |

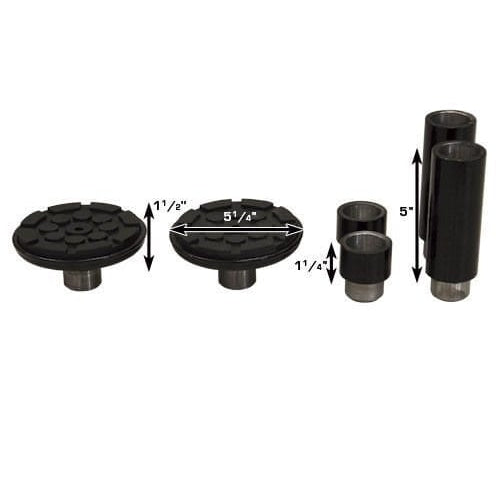

| Adapter Heights | (2) each – 1.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |

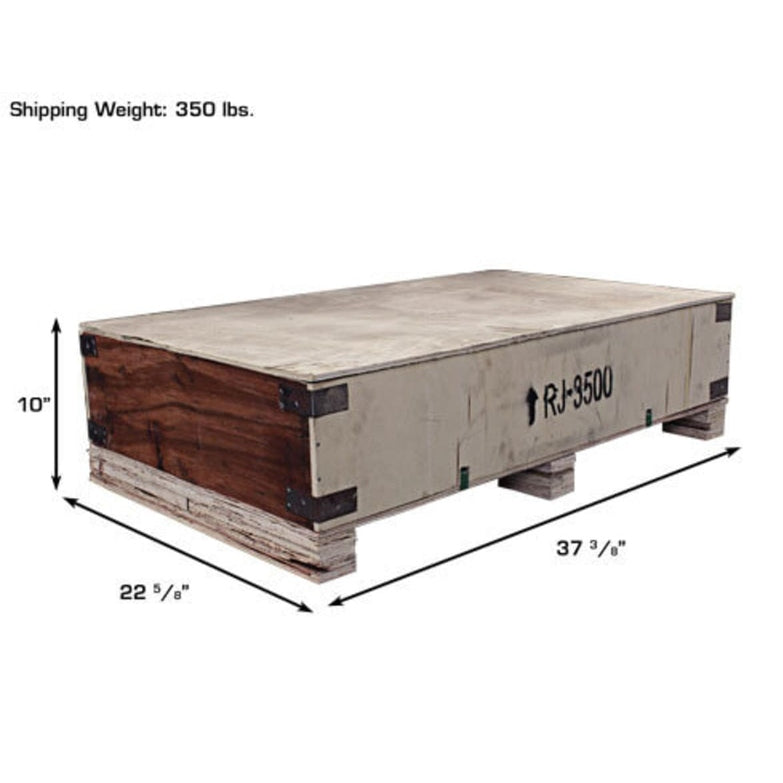

| Shipping Weight | 350 lbs |
