Description
The Atlas® APEX9 is an ALI Certified, heavy-duty four-post lift engineered for both professional and serious hobbyist use. With a true 9,000 lb. lifting capacity, this model combines commercial-grade performance with the versatility of a portable design.

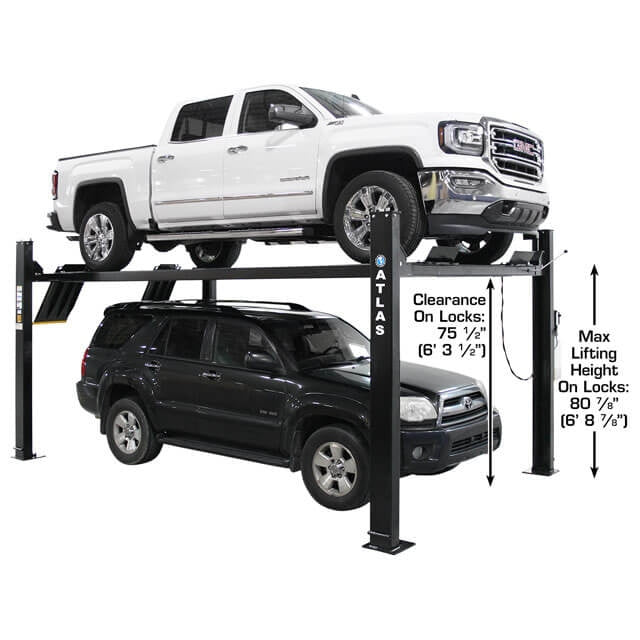

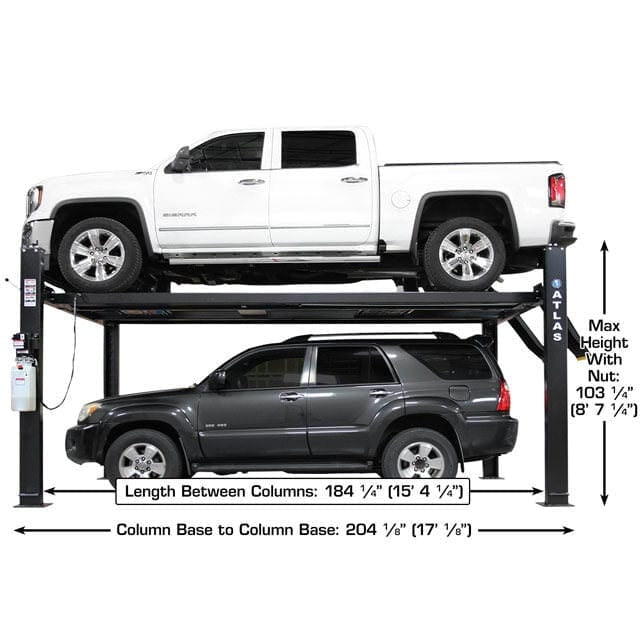

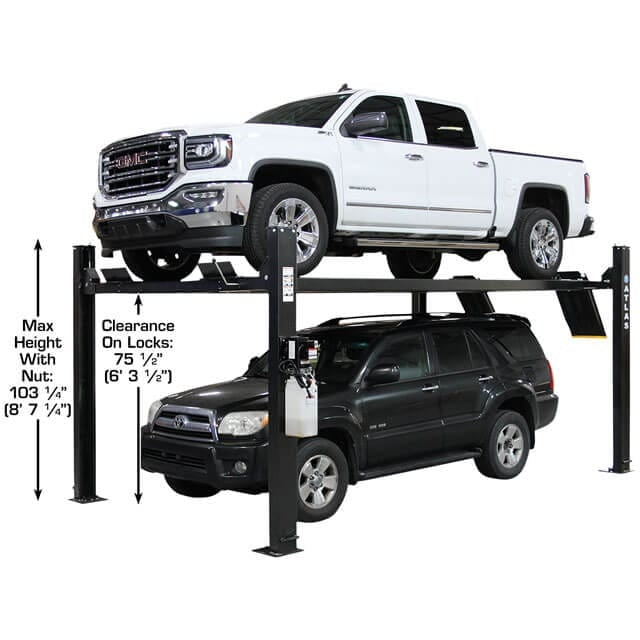

The APEX9 features extra-long, extra-wide, and extra-tall runways, allowing it to handle a wide range of vehicles — from compact cars and SUVs to extended-wheelbase trucks and even diesel duallys. Its additional lift height makes it possible to park smaller vehicles beneath larger ones, maximizing garage storage space.

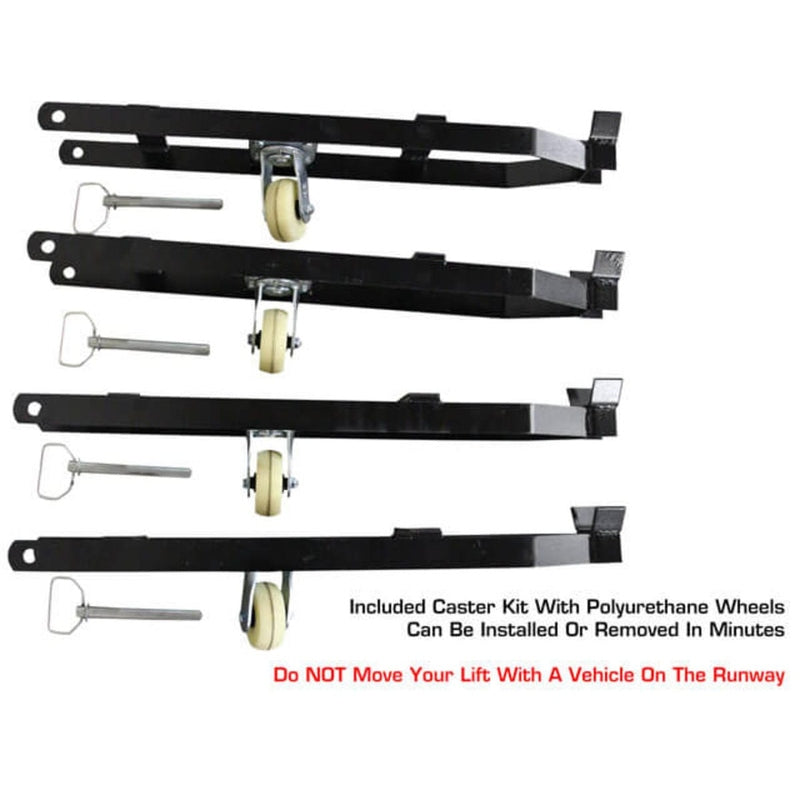

Built heavier than the Atlas® Garage PRO9000, the APEX9 ranks among the most robust portable hobbyist lifts on the market. It includes a range of premium features such as four plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels. The caster kit installs or removes within minutes, making the lift fully portable for use across multiple bays or even outdoors.
With its commercial-grade construction and ALI Certification, the Atlas® APEX9 is an ideal choice for automotive service centers and dedicated homeowners seeking a professional, portable four-post lift.
This combo package also includes two Atlas® RJ6 rolling bridge jacks, perfect for lifting vehicle wheels off the runways for tire, brake, and suspension service.
Note: The RJ6 jacks are not ALI Certified — only the APEX9 lift is.
Features
APEX9 Lift
-
ALI Certified lift
-
9,000 lb. lifting capacity
-
Heavy-duty, free-standing, and portable design
-
Extra tall, extra wide, and extra long configuration
-
Durable powder-coated finish
-
Diamond-plated runways for added traction
-

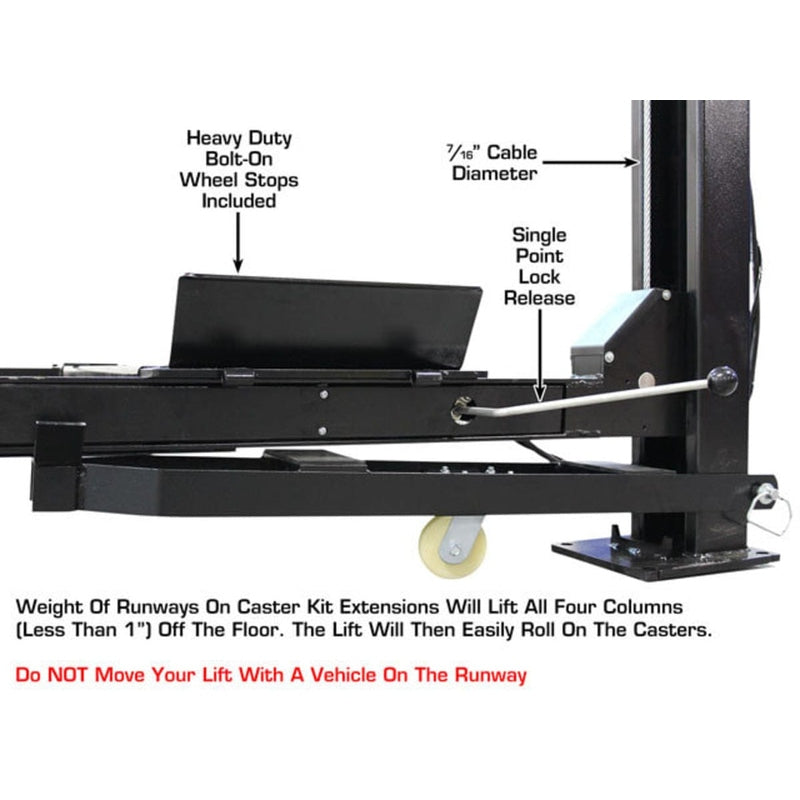

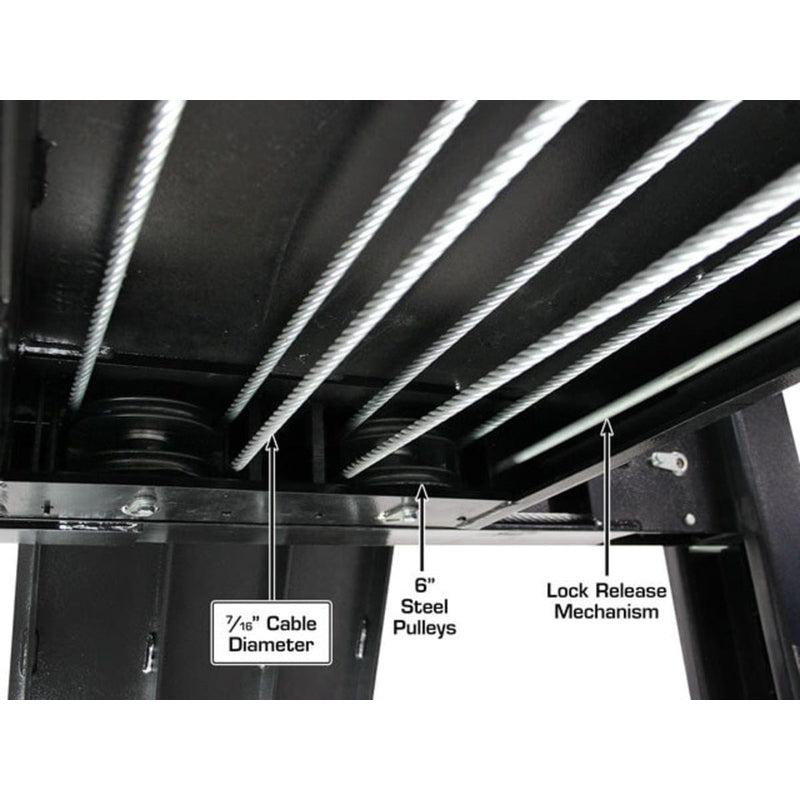

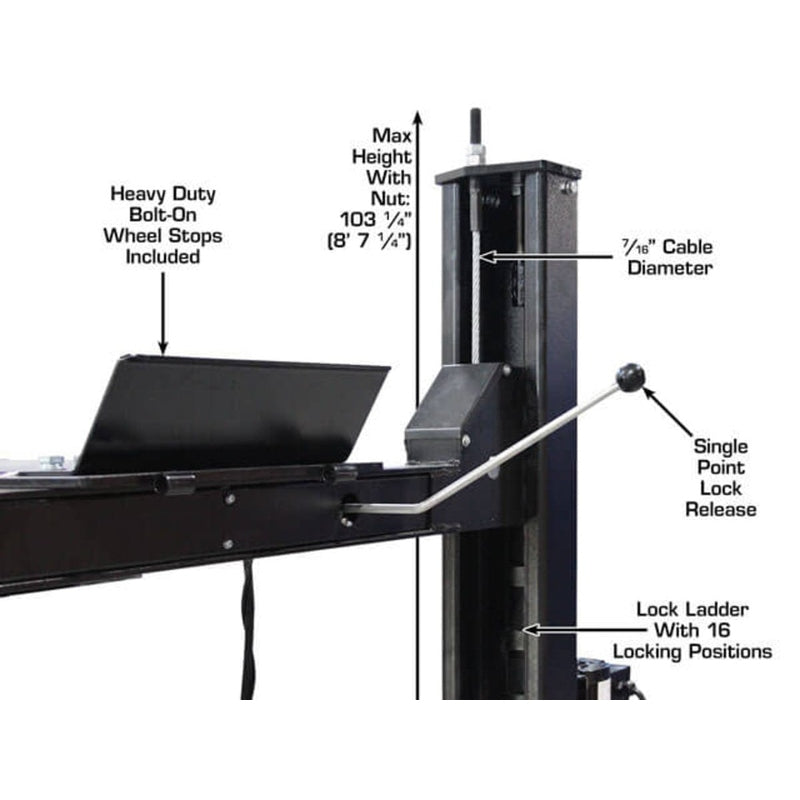

Single-point lock release system
-
Lock-ladder design with double-lock safety mechanism
-
Includes steel approach ramps and steel jack tray
-

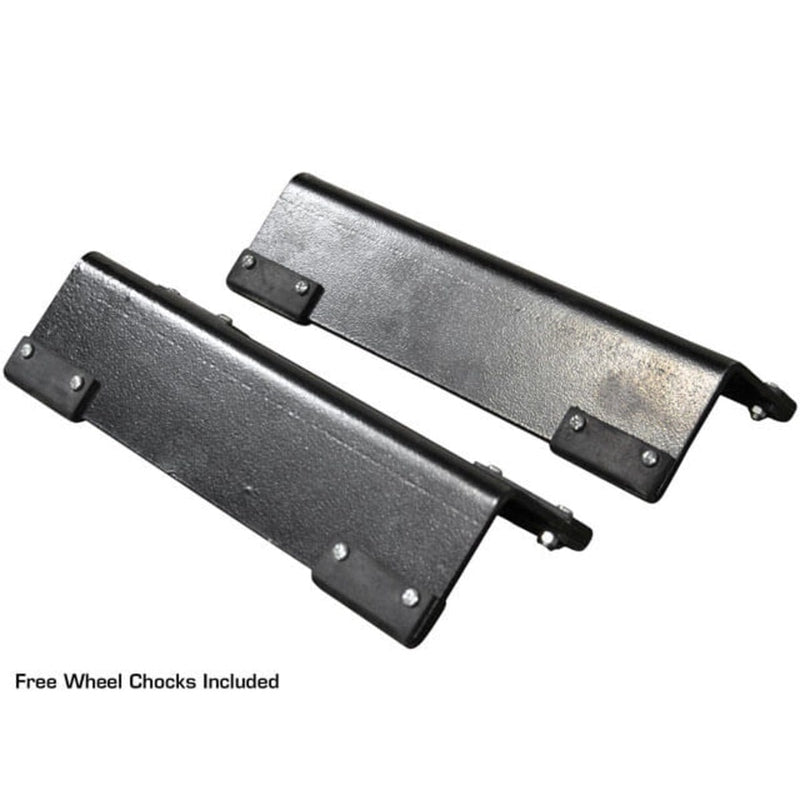

(4) plastic drip trays and (2) wheel chocks included
-

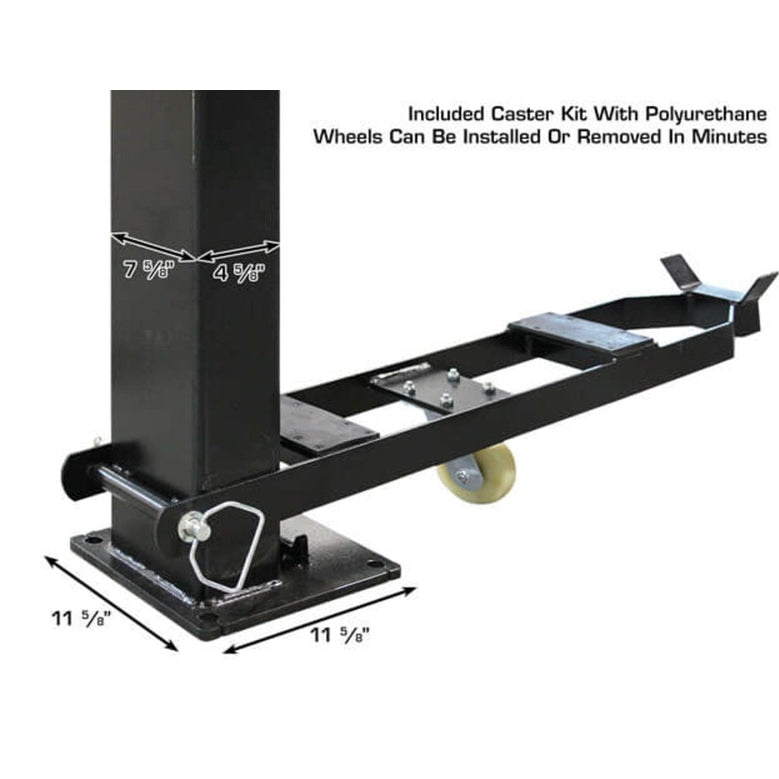

Optional caster kit with polyurethane wheels for portability
-
Anchor bolts available (sold separately)
-
Perfect for both vehicle storage and light-duty maintenance
-

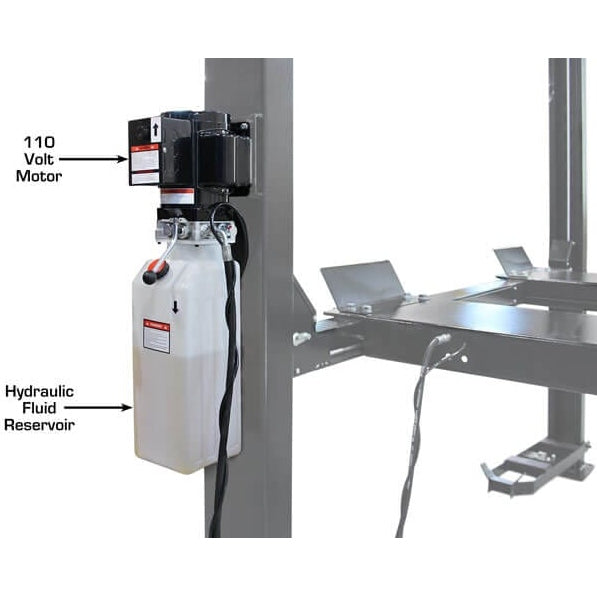

110V electric operation (30-amp breaker required)
-

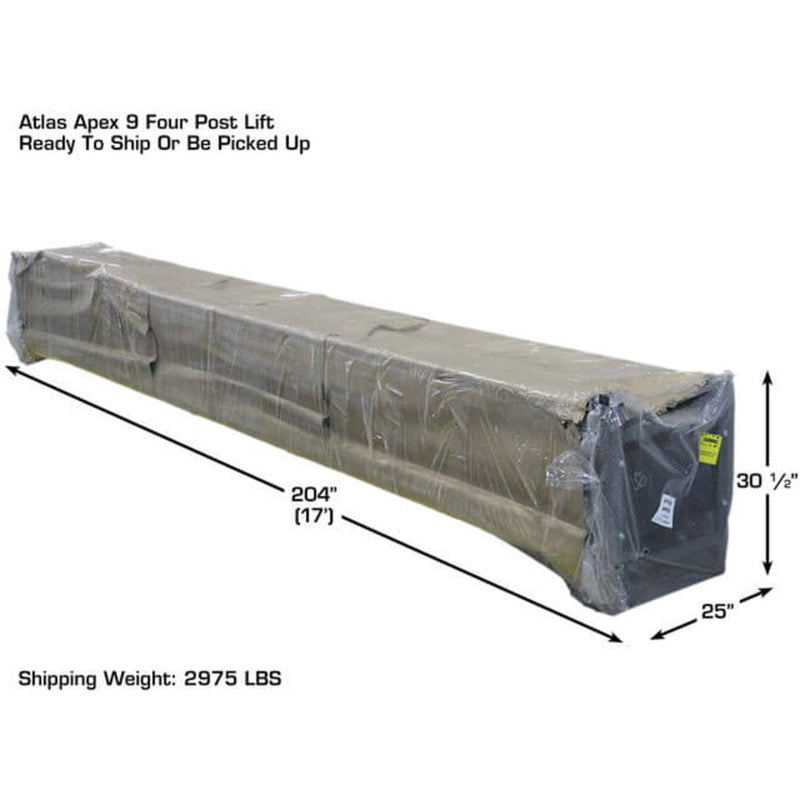

Shipping weight: 2,975 lbs
-
Warranty: 5-year structural / 2-year hydraulic (parts only)

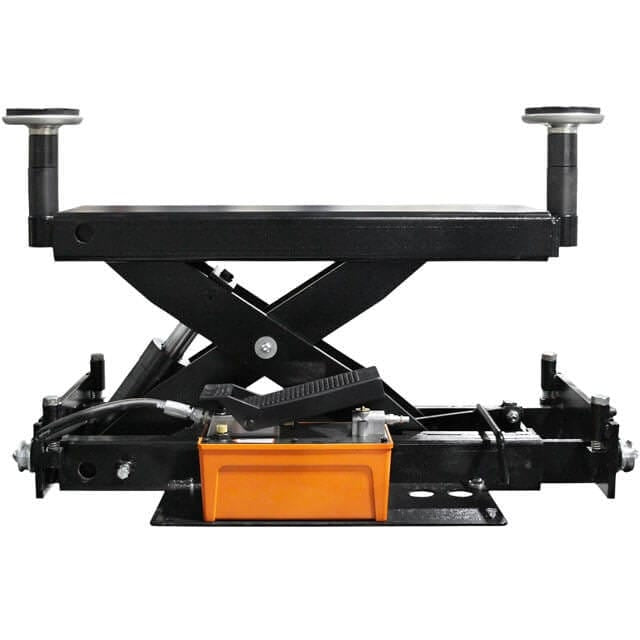

RJ6 Rolling Bridge Jack
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (requires external air supply)
-

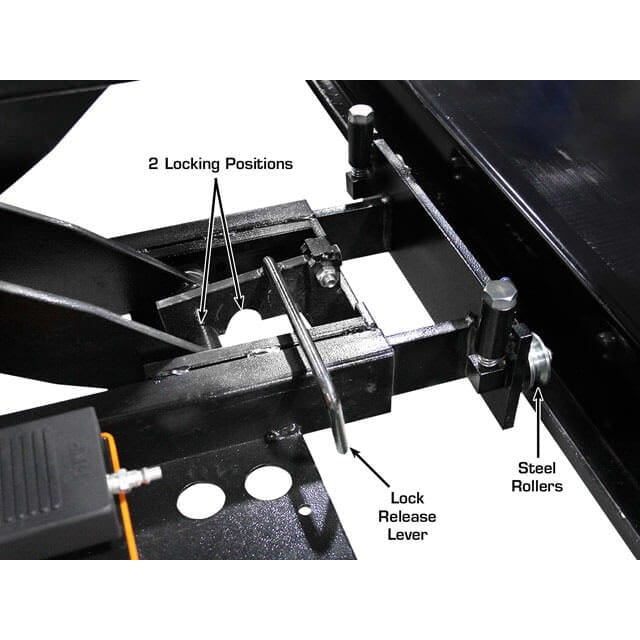

Multiple safety lock positions
-
Compact, low-profile design
-

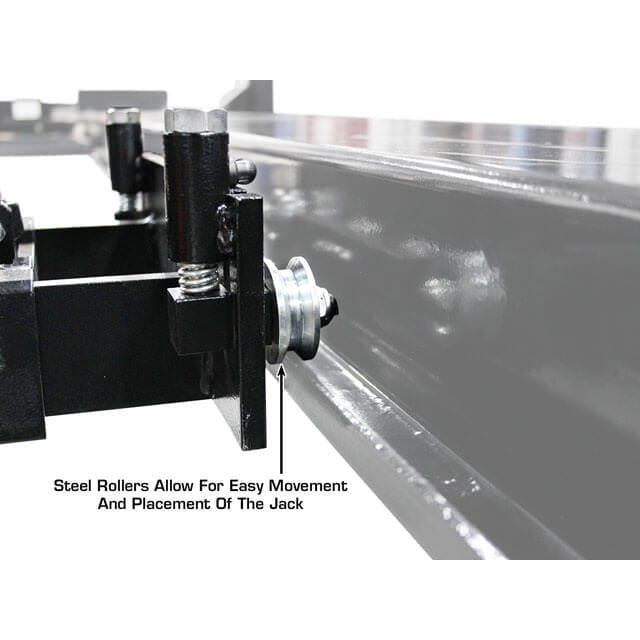

Smooth rolling action
-
Scissor mechanism for level, stable lifting
-
Durable powder-coated finish
-

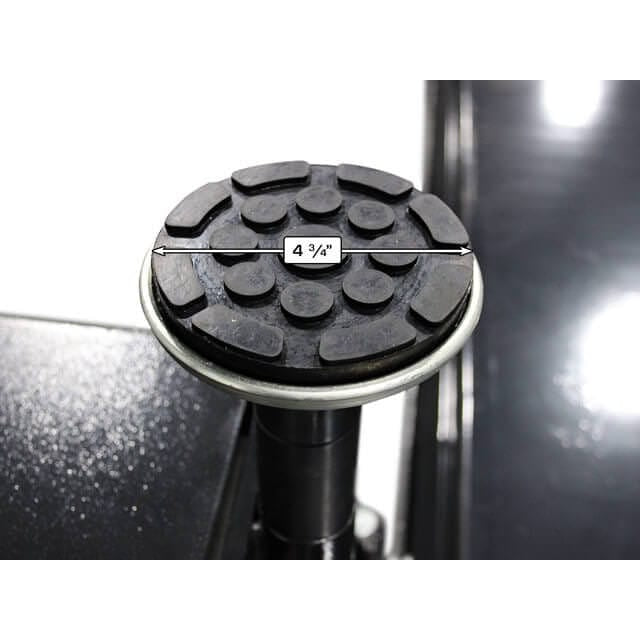

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications
Atlas® APEX9 Lift
| Specification | Measurement |
|---|---|
| Capacity | 9,000 lbs |
| Lifting Height (to top of runway) | 86" (7' 2") |
| Clearance Under Runways | 81¼" (6' 9¼") |
| Height of Columns | 99" (8' 3") |

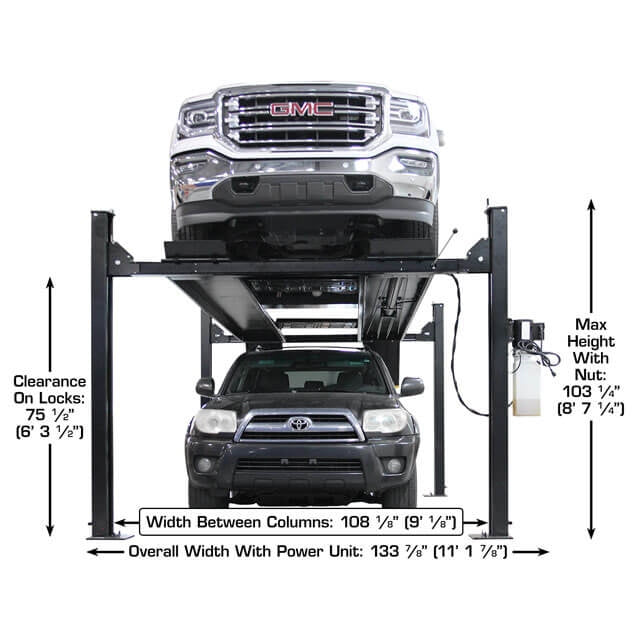

| Overall Width (w/o motor or casters) | 121⅞" (10' 1⅞") |
| Overall Width (w/ motor) | 133⅞" (11' 1⅞") |
| Overall Length (w/o approach ramps, incl. lock release bar) | 204" (17') |
| Overall Length (w/ approach ramps) | 227½" (18' 11½") |

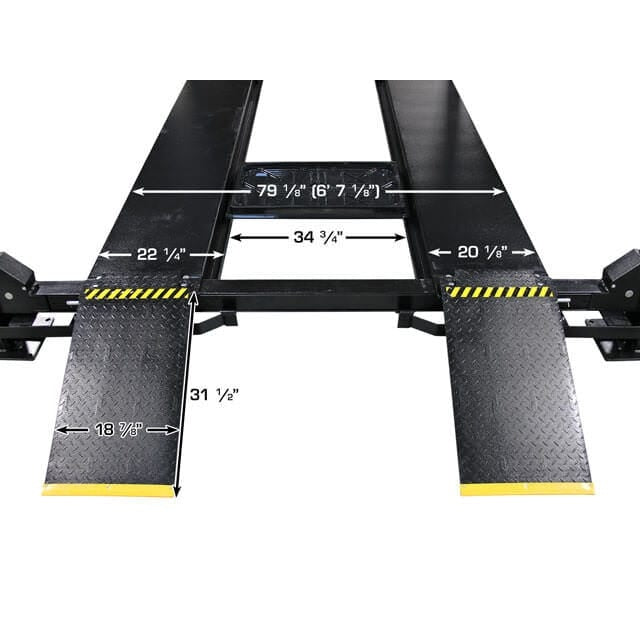

| Approach Ramps | 31½" |

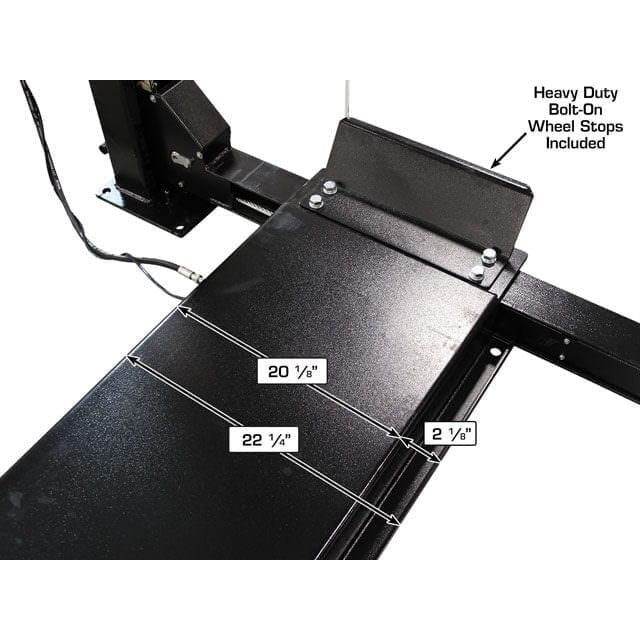

| Runway Width | 20⅛" |
| Runway Rail Width | 2" |
| Runway Length | 196½" (16' 4½") |
| Runway Thickness | 4¾" |
| Width Between Runways | 38⅞" (3' 2⅞") |
| Width Between Runway Rails | 34¾" (2' 10¾") |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 108⅛" (9' ⅛") |

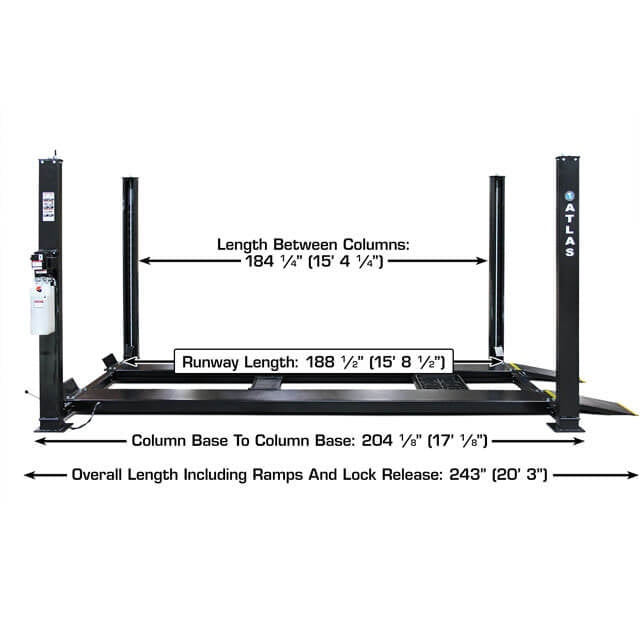

| Length Between Columns | 184¼" (15' 4¼") |
| Maximum Wheelbase | 184" (15' 4") |

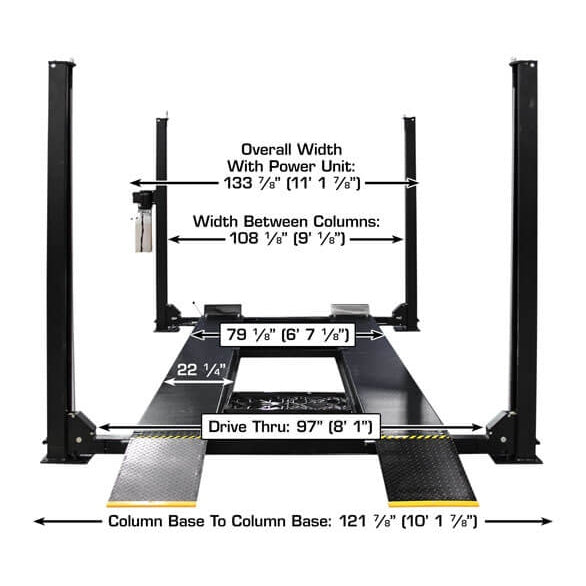

| Drive-Through Width (outside of tires) | 98⅝" (8' 2⅝") |
| Motor / Electrical | 110V (requires 30-amp breaker) |
| Shipping Weight | 2,975 lbs |
Atlas® RJ6 Rolling Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 6,000 lbs |

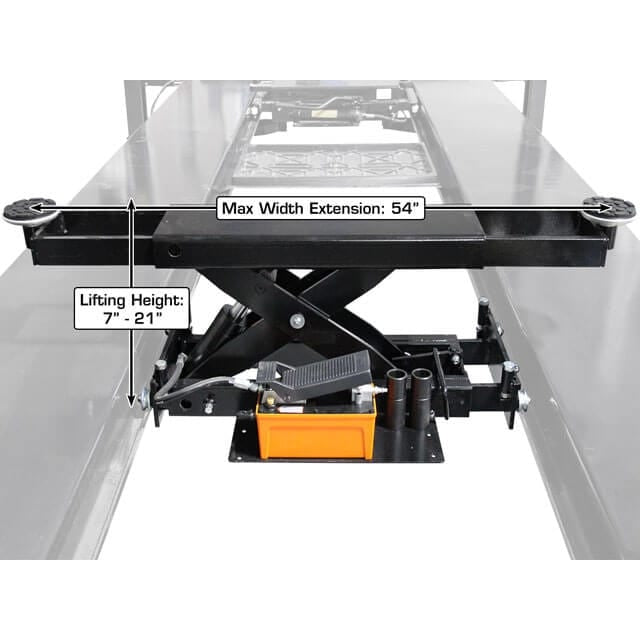

| Maximum Width | 55" (4' 7") |

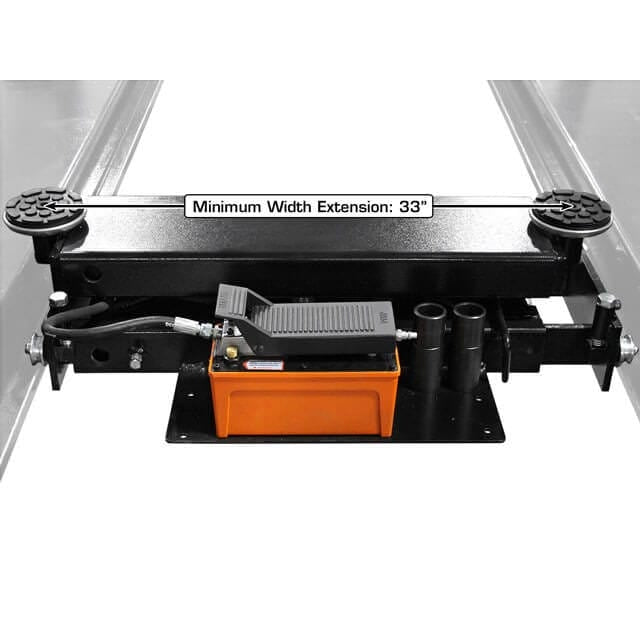

| Minimum Width | 35" (2' 11") |
| Runway Compatibility | 32" – 52" |

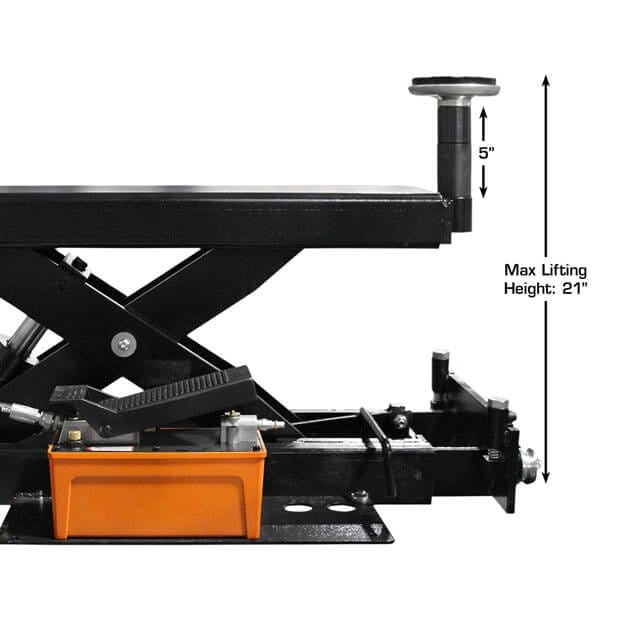

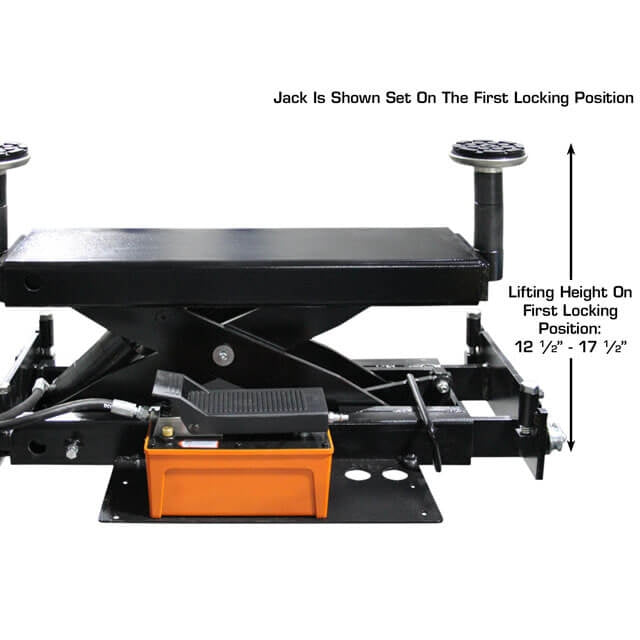

| Maximum Lifting Height (with adapters) | 21" (1' 9") |
| Air Requirement | 70–115 PSI |

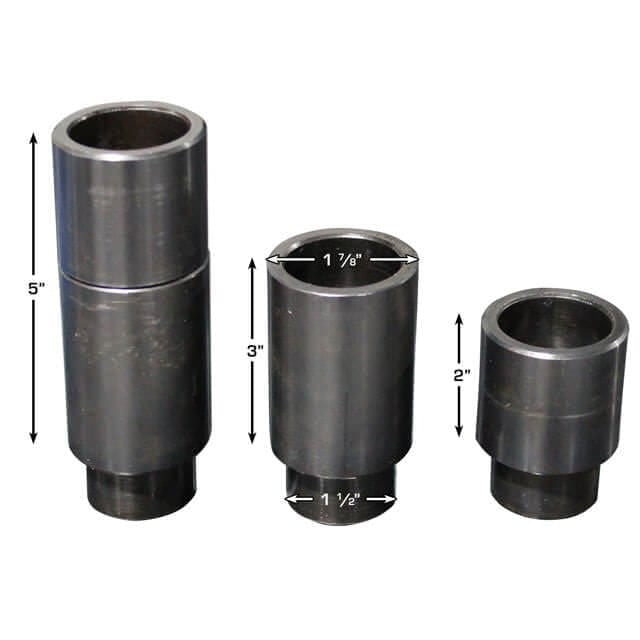

| Adapter Heights | (2) each – 2", 3" |
| Arm Hole / Adapter Peg Size | 1.5" |

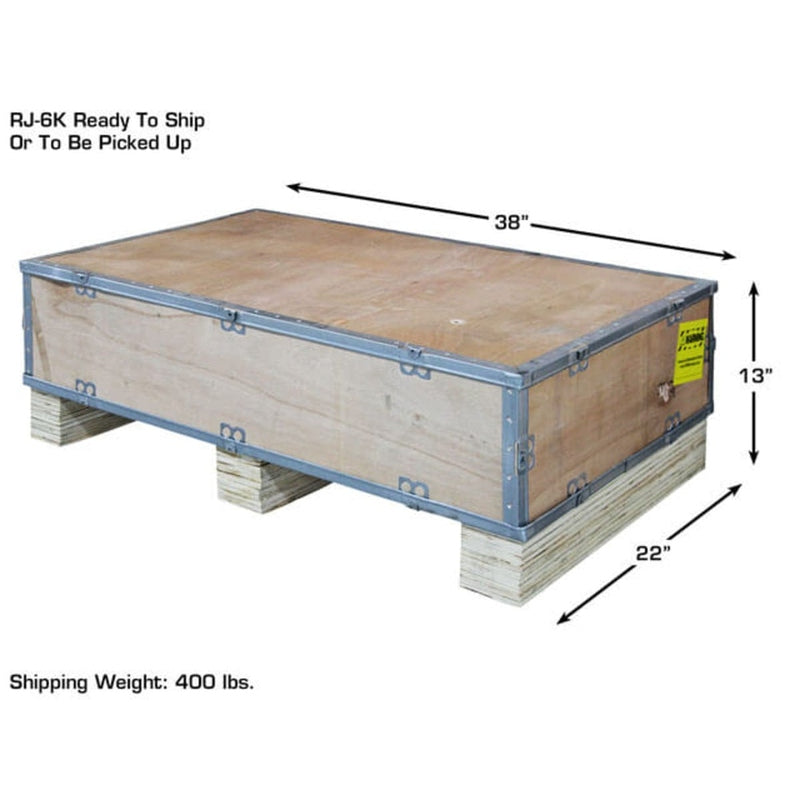

| Shipping Weight | 350 lbs |
