Atlas Apex 8 ALI Certified 8,000 lb 4-Post Lift

Atlas Automotive EquipmentSKU: ATEATTD-APEX8

At a Glance

  • Free-Standing Portable Design; Single-Point Lock Release; Caster Kit, Jack Tray, Drip Trays
  • Max Lifting Height: 72"
  • Drive-Thru Clearance: 80.25"
Price:
$5,199.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

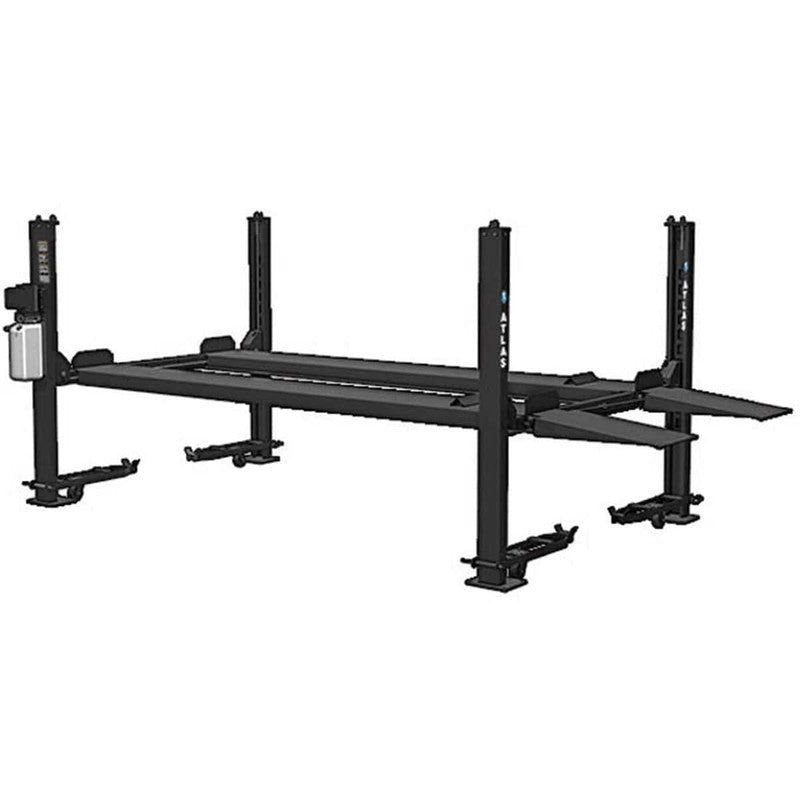

Atlas® APEX8 – ALI Certified 8,000 lb. Portable Hobbyist 4-Post Lift

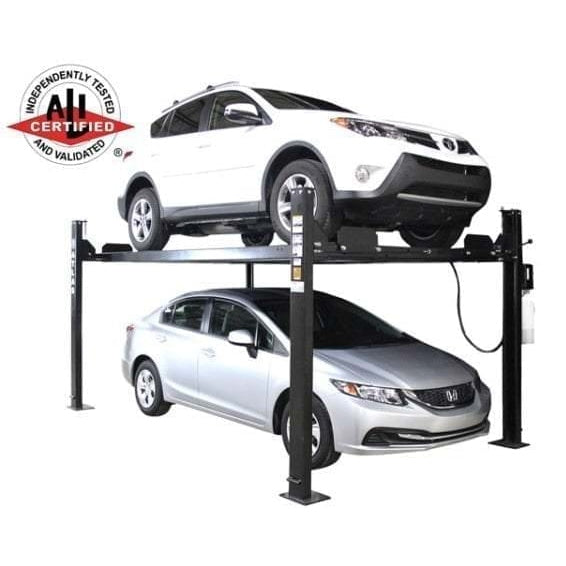

The Atlas® APEX8 is the ALI Certified version of the popular Atlas® Garage PRO8000, offering the same proven design with added assurance of compliance with the Automotive Lift Institute’s (ALI) safety and performance standards. Built for car enthusiasts, homeowners, and restoration shops, this lift is the perfect solution for those who need more parking space or want an efficient setup for vehicle maintenance and storage. With an 8,000 lb. lifting capacity, the APEX8 allows users to stack most passenger vehicles and effectively double their garage space.

Engineered specifically for non-commercial use, the APEX8 is ideal for private garages and light-duty restoration applications. It is not intended for high-frequency, commercial repair environments where the lift would be raised and lowered repeatedly throughout the day.

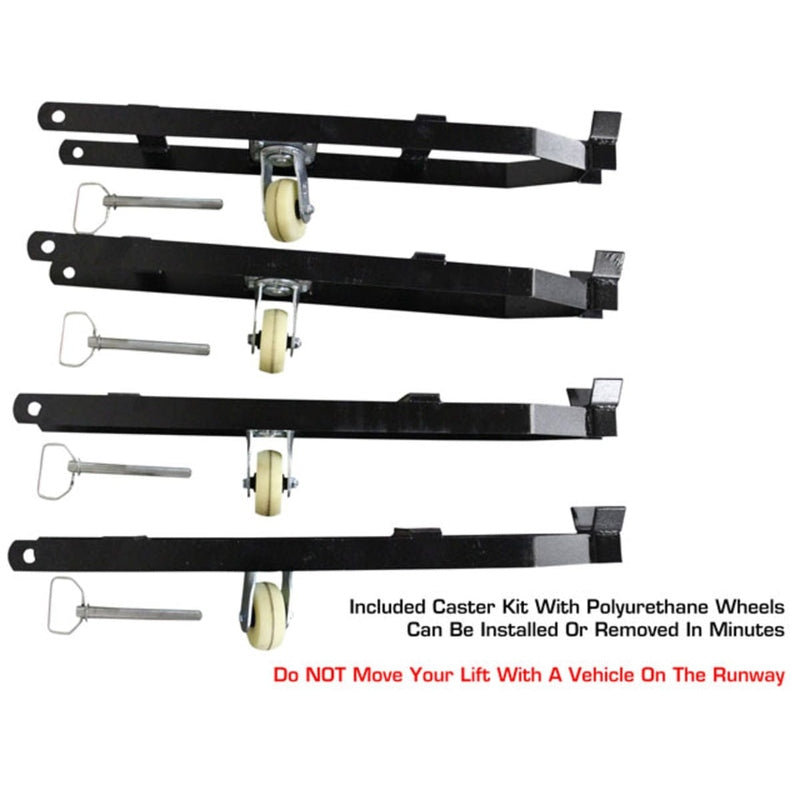

The APEX8 is nearly 200 lb. heavier than comparable hobbyist lifts, reflecting its robust build quality and enhanced stability. Each unit comes equipped with a caster kit featuring polyurethane wheels, which can be installed or removed in minutes, making the lift fully portable and easy to move between bays or even outdoors.

Combining heavy-duty construction, ALI certification, and outstanding portability, the Atlas® APEX8 delivers exceptional safety, reliability, and value — making it one of the best-performing 4-post hobbyist lifts in its class.

Many customers who purchase this model also add the Atlas® RJ35 rolling bridge jack for wheel-off service.

Key Features

  • ALI Certified Lift for proven safety and performance compliance

  • 8,000 lb. Lifting Capacity

  • Free-Standing, Portable Design

  • Durable Powder-Coated Finish

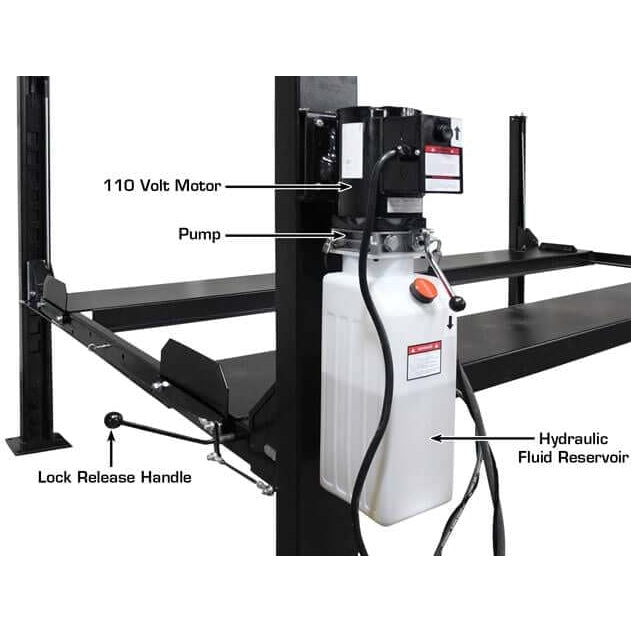

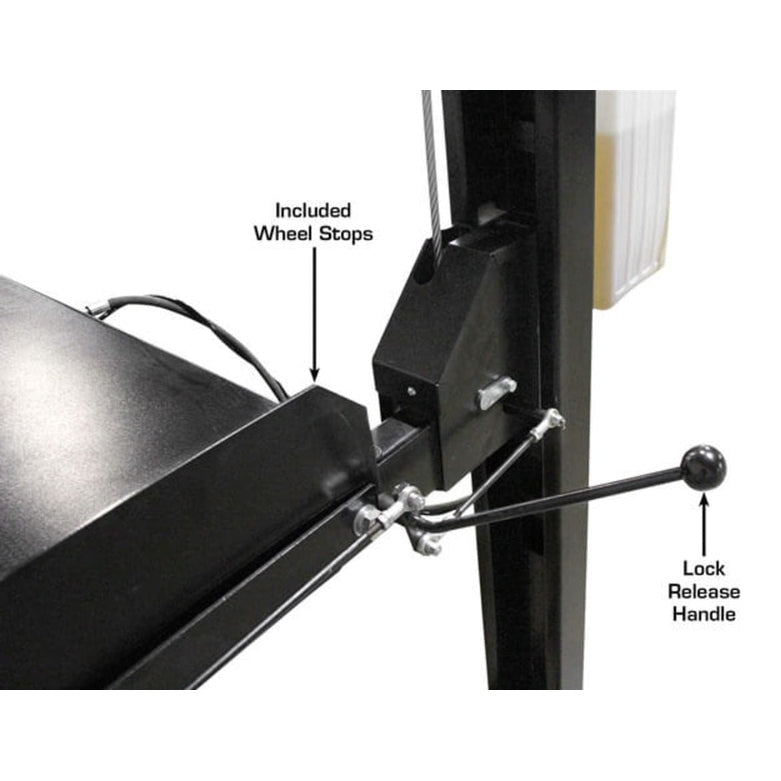

  • Single-Point Lock Release for easy operation

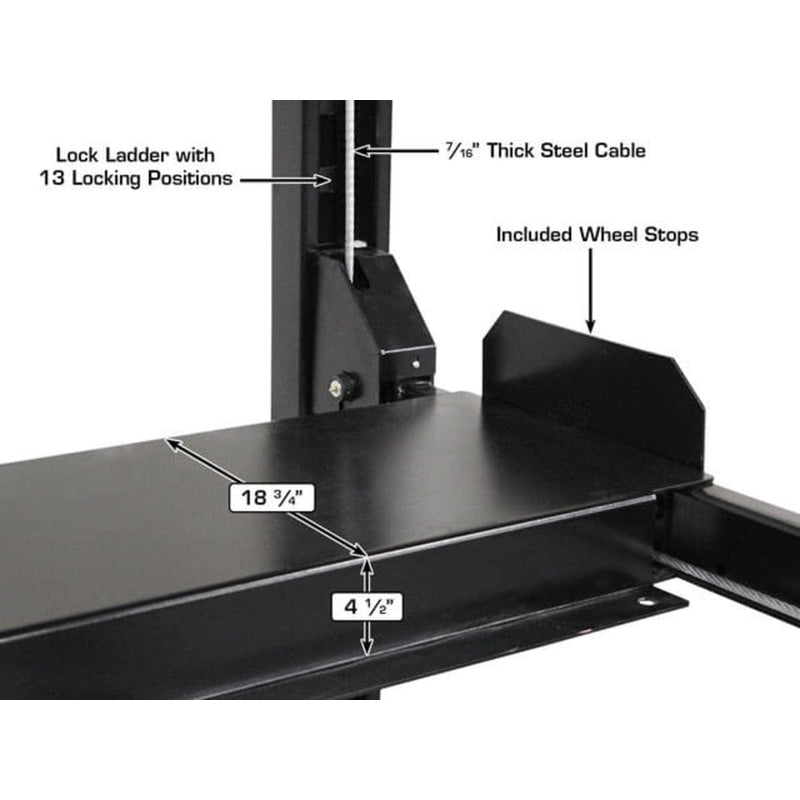

  • Lock Ladder Design with Dual Lock Safety System

  • Steel Approach Ramps (Included)

  • Wheel Stops (Included)

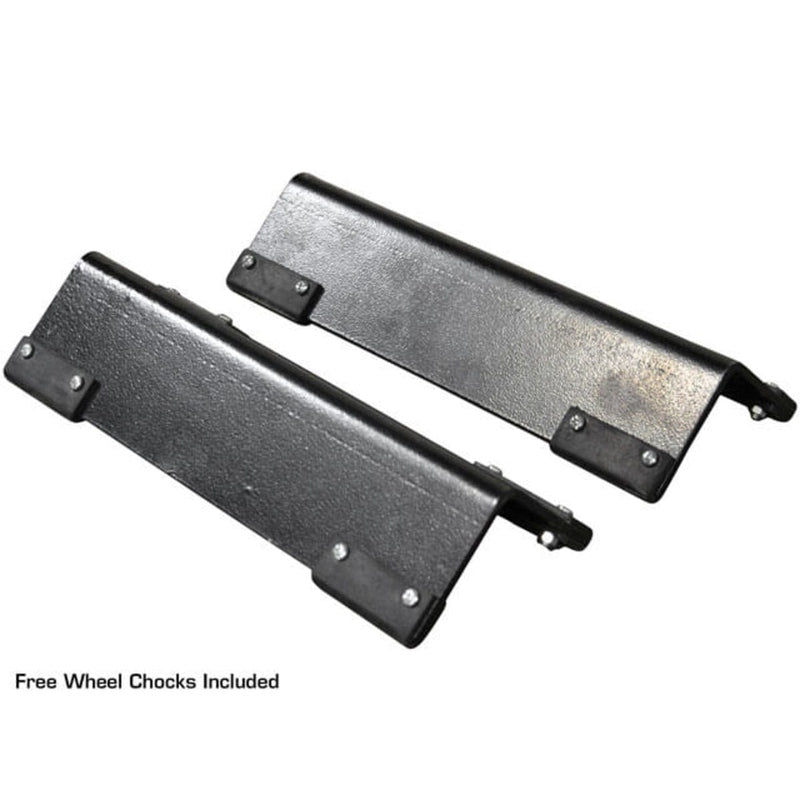

  • Two Rubber Wheel Chocks (Included)

  • Caster Kit with Polyurethane Wheels (Included) for mobility

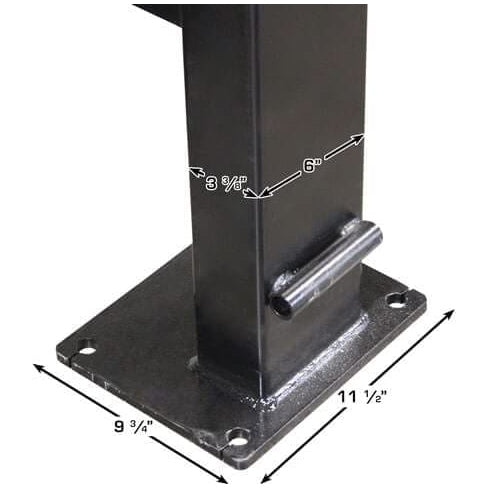

  • Anchor Bolts (Optional, Sold Separately)

  • Ideal for Storage or General Vehicle Maintenance

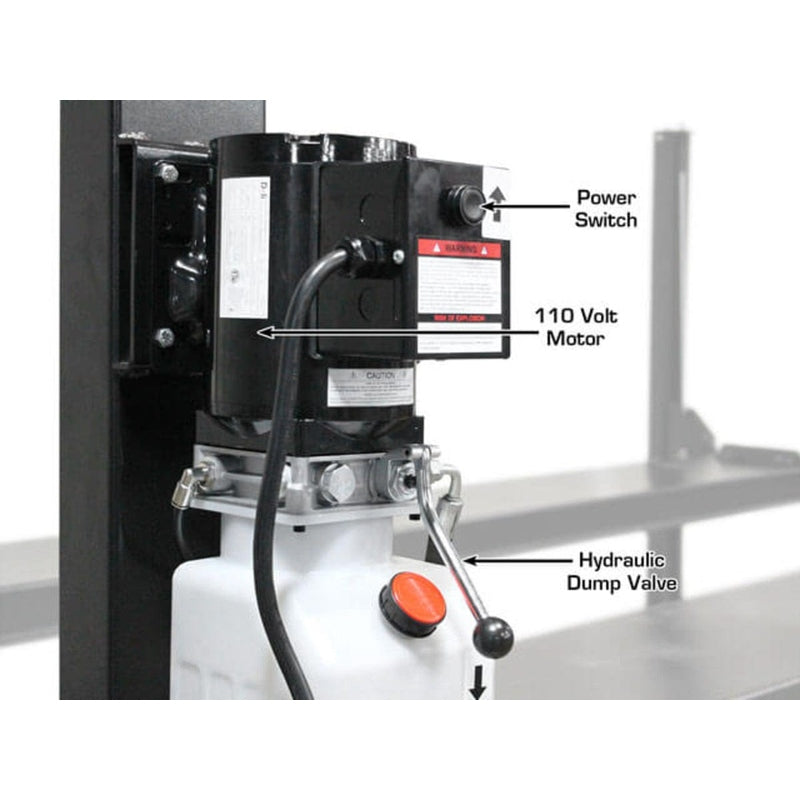

  • 110V Electric Operation (requires 30A breaker)

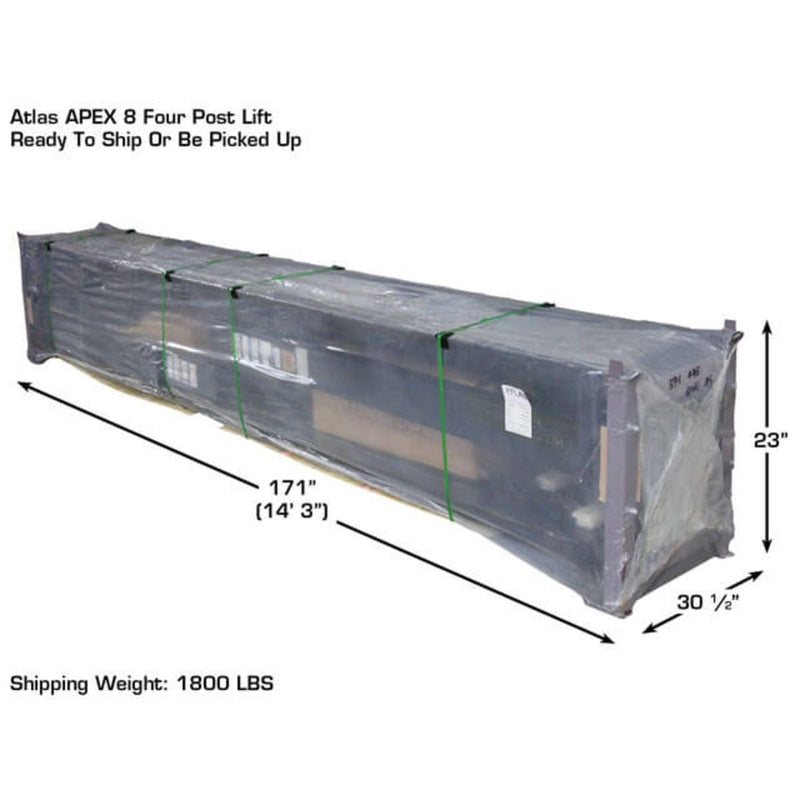

  • Shipping Weight: 2,000 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 8,000 lb.

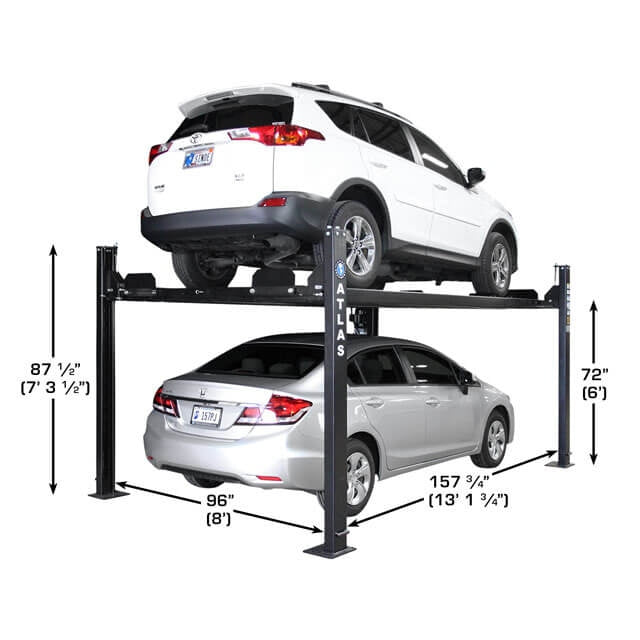

Lifting Height (to Top of Runway) 72" (6')

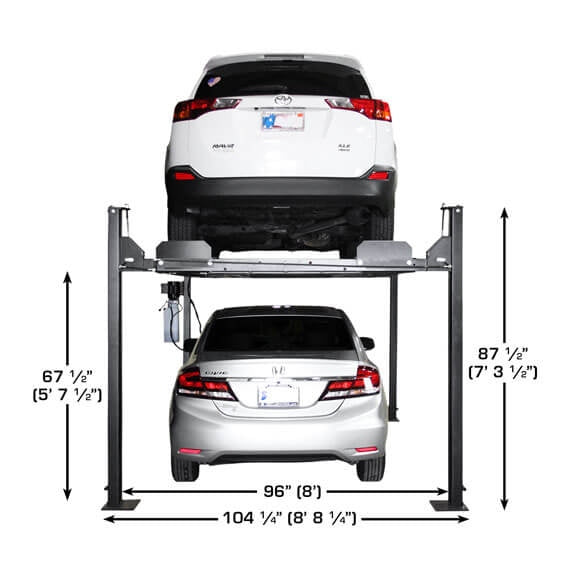

Clearance Under Runways 67" (5' 7")
Height of Columns (Including Nuts) 86 ⅝" (7' 2 ⅝")

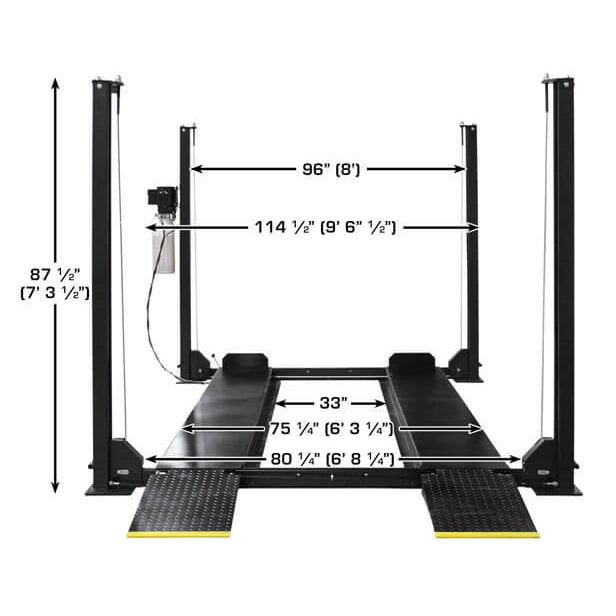

Overall Width (w/o Motor or Casters) 104" (8' 8")
Overall Width (w/ Motor) 114" (9' 6")

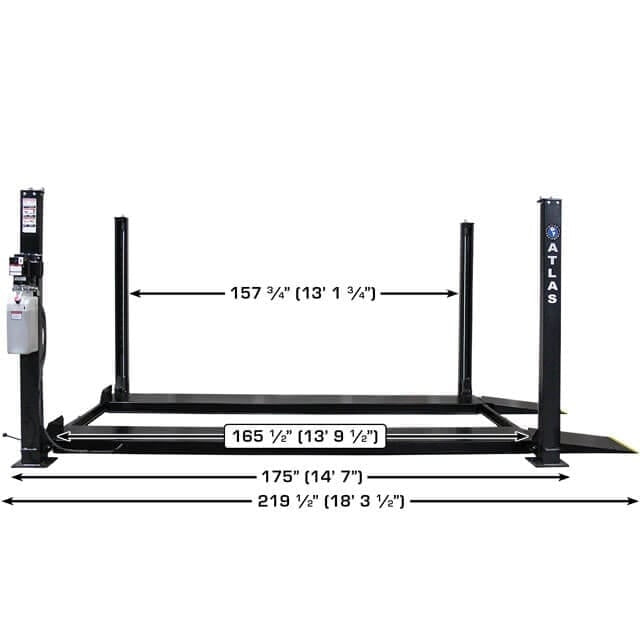

Overall Length (w/ Lock Release Bar, No Ramps) 186 ½" (15' 6 ½")
Overall Length (w/ Ramps) 207 ⅚" (17' 3 ⅚")

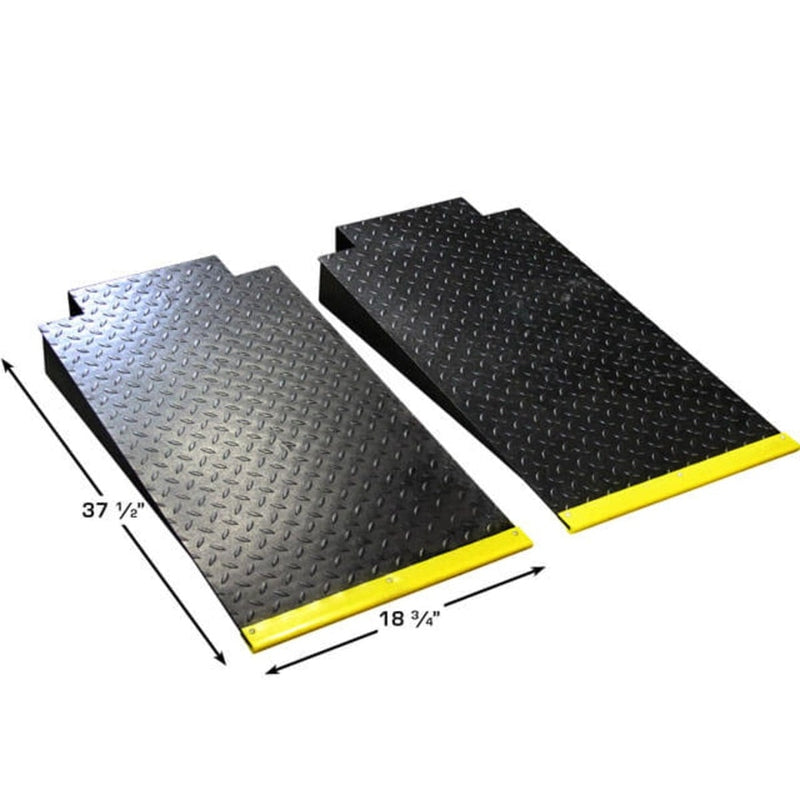

Approach Ramp Length 37 ½" (3' 1 ½")

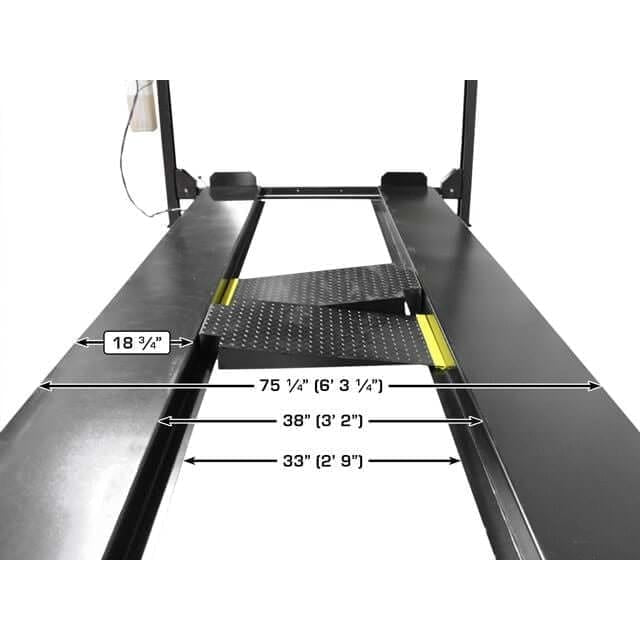

Runway Width 18 ⅔"
Runway Rail Width 2 ½"
Runway Length 169 ½" (14' 1 ½")
Runway Thickness 4 ⅓"
Width Between Runways 38" (3' 2")
Width Between Runway Rails 33" (2' 9")
Outside Runway to Outside Runway 75 ¼" (6' 3 ¼")
Clearance Between Columns 94" (7' 10")

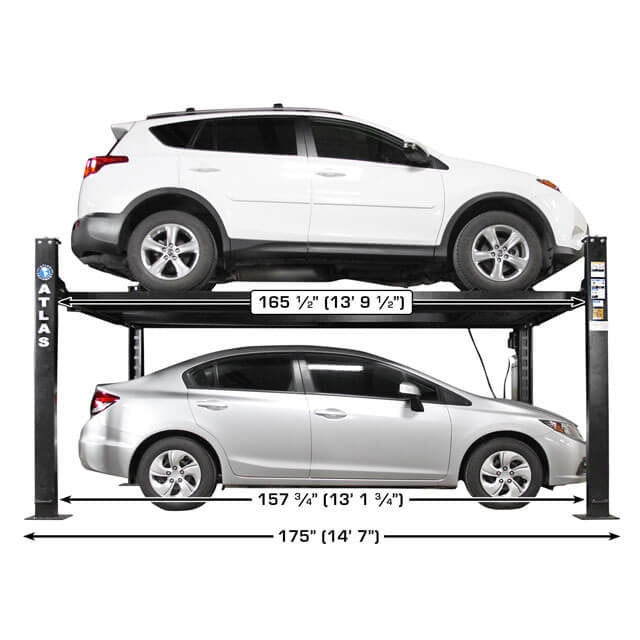

Length Between Columns 157 ⅓" (13' 1 ⅓")
Maximum Wheelbase 154" (12' 9")
Drive-Through Width (Outside of Tires) 80 ¼" (6' 8 ¼")
Electrical Requirement 110V, 30A Breaker Required
Shipping Weight 2,000 lb.

Documents

Atlas Apex 8 Manual
