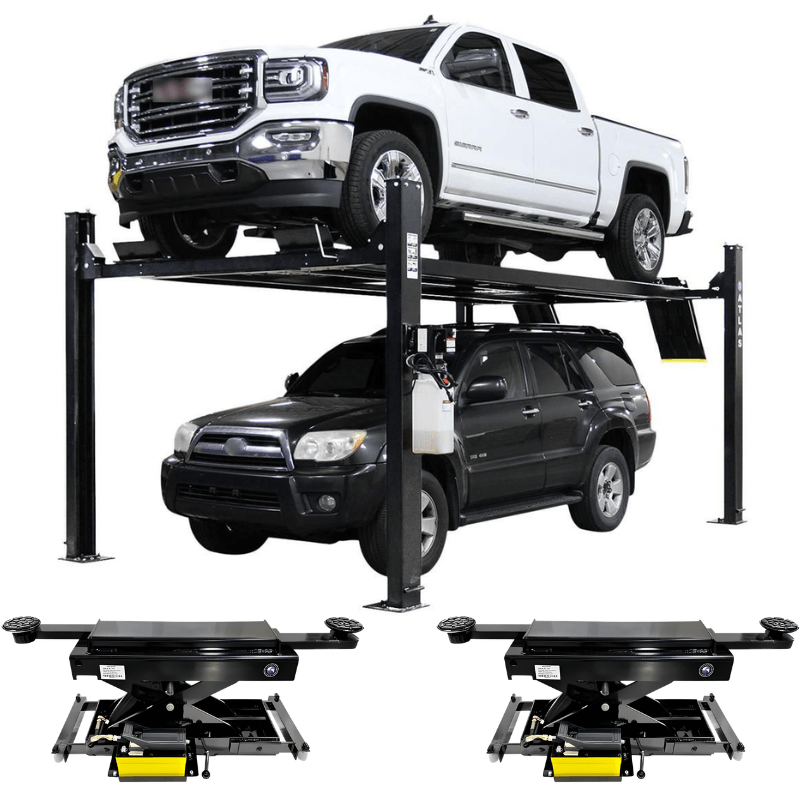

Atlas Apex 9 9,000 lb 4-Post Lift & RJ45A Rolling Bridge Jack Combo
The Atlas Apex 9 9,000 lb 4-Post Lift and RJ45A 4,500 lb Rolling Bridge Jack Combo combines vehicle storage capability with wheels-free service access in one heavy-duty package. Designed for professional automotive shops and well-equipped home garages, this combination provides the versatility needed to store, lift, and service a wide range of cars, SUVs, and light-duty trucks.

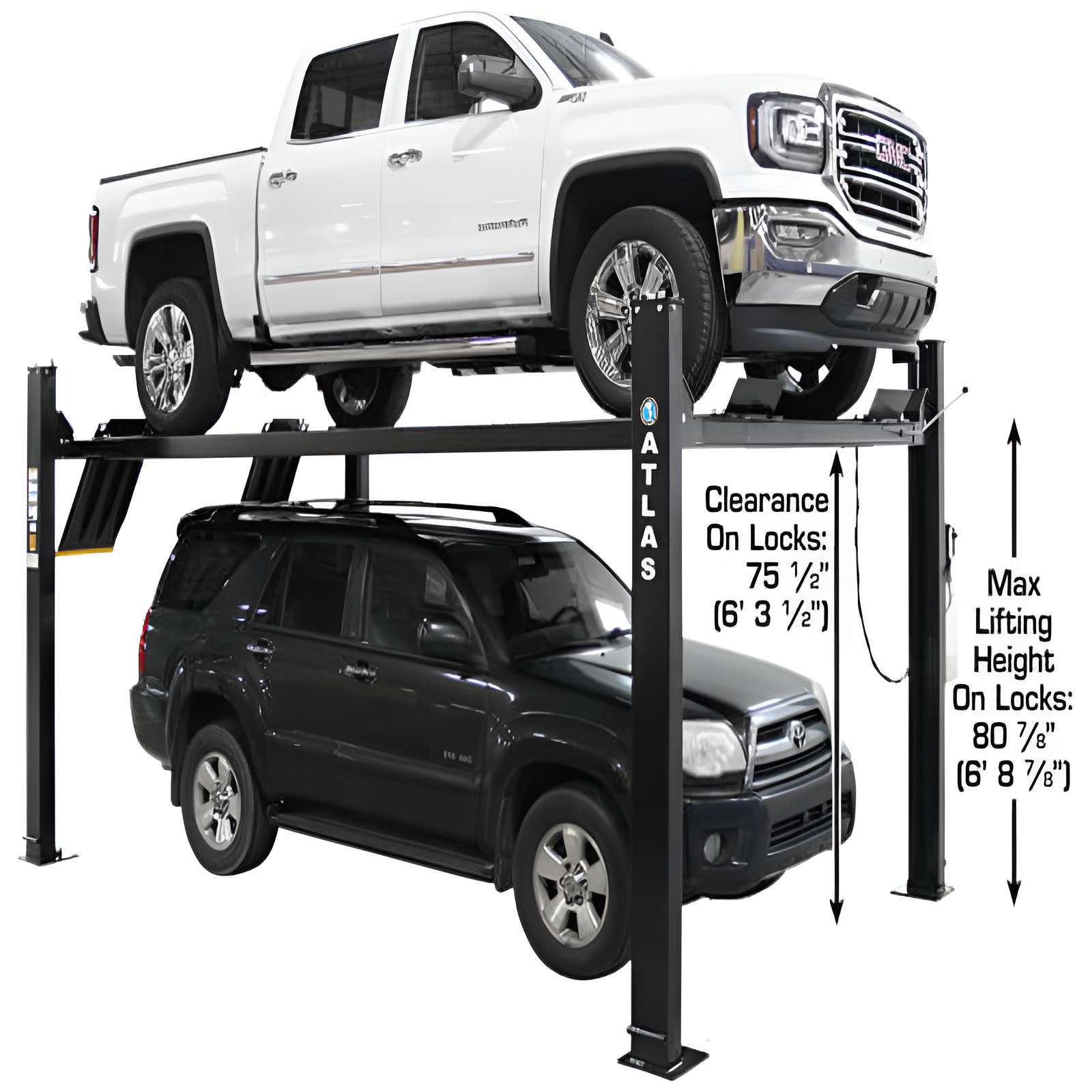

The Atlas Apex 9 features a 9,000 lb lifting capacity and an extra-tall, extra-wide, and extra-long design for accommodating larger vehicles. With a maximum runway height of 86" (7' 2") and 81-1/4" (6' 9-1/4") of clearance beneath the runways, the Apex 9 provides generous space for vehicle storage and undercarriage access.
Built for durability and convenient operation, the Apex 9 features diamond-plated runways, a single-point lock release, and a lock-ladder system with double-lock safety protection. Its freestanding design also provides greater installation flexibility, while the included approach ramps, jack tray, drip trays, and wheel chocks provide the essential accessories needed to put the lift to work.

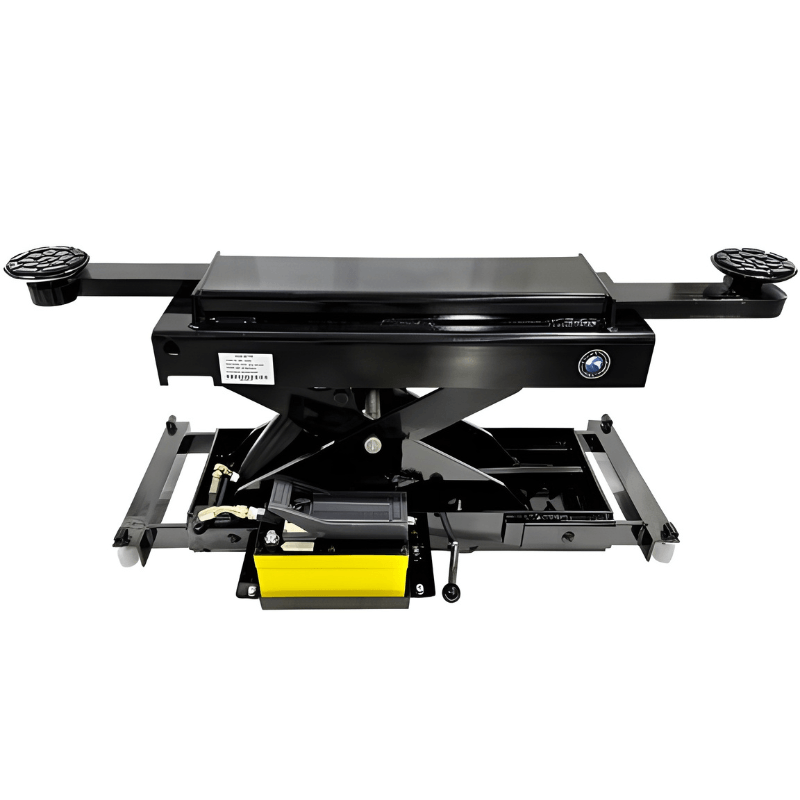

Paired with the lift is the Atlas RJ45A 4,500 lb Capacity Air/Hydraulic Rolling Bridge Jack, which adds wheels-free lifting capability to the Apex 9. The rolling jack travels along the lift runways and allows the vehicle to be raised by its lifting points, providing convenient access for brake, tire, suspension, and other service work.
The RJ45A uses an air/hydraulic lifting system requiring 70–115 PSI of shop air and features a heavy-duty scissor mechanism for smooth, level lifting. Multiple safety lock positions provide secure support at working height, while the included 4-piece truck adapter set provides additional versatility when servicing vehicles with higher lifting points.
Together, the Atlas Apex 9 and RJ45A create a versatile lifting system for vehicle storage and general automotive service, making this combination an excellent choice for garages that want both four-post lifting convenience and wheels-free service capability.
Atlas Apex 9 Specifications
- Lifting Capacity: 9,000 lbs
- Lifting Height – Top of Runway: 86" (7' 2")

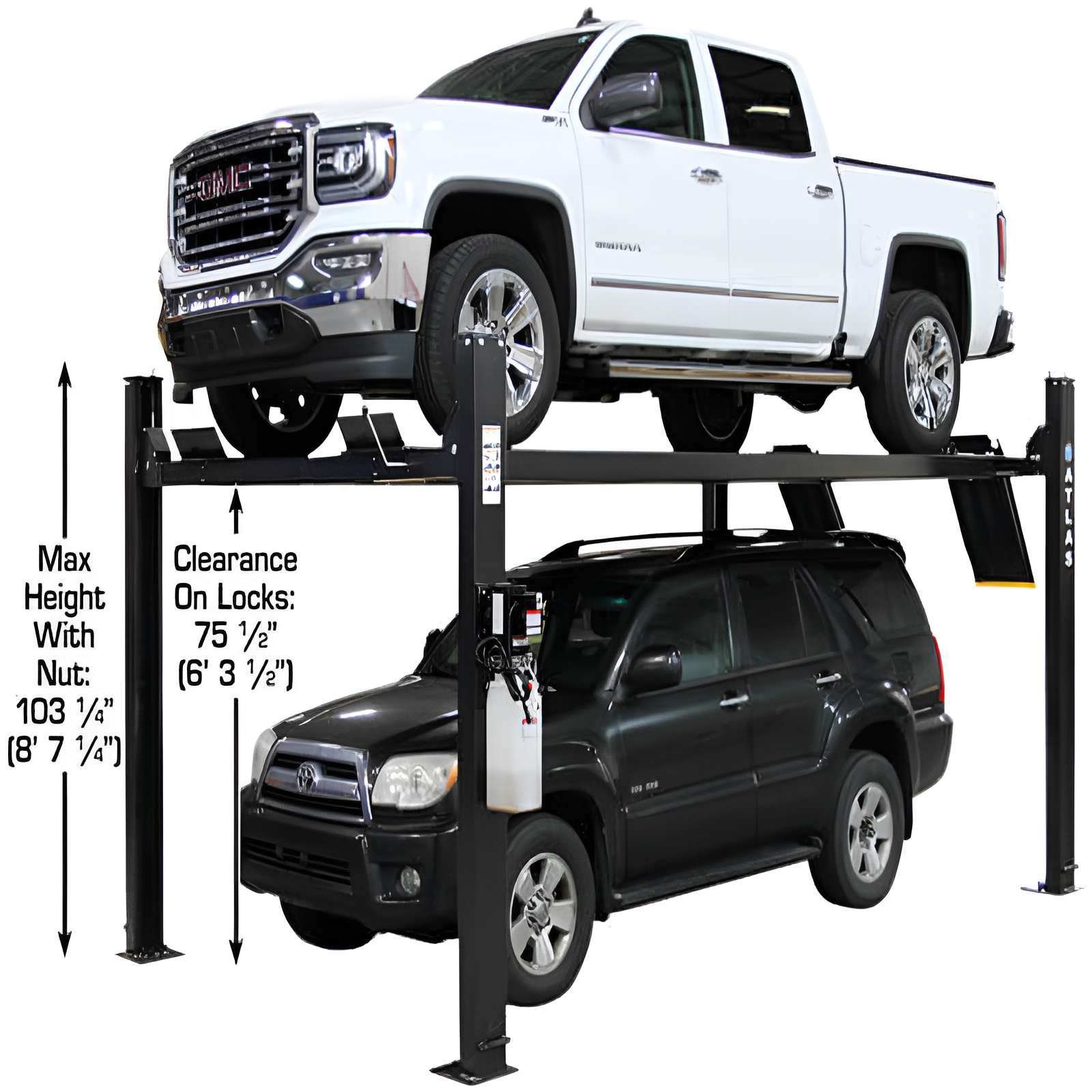

- Clearance Under Runways: 81-1/4" (6' 9-1/4")
- Column Height: 99" (8' 3")

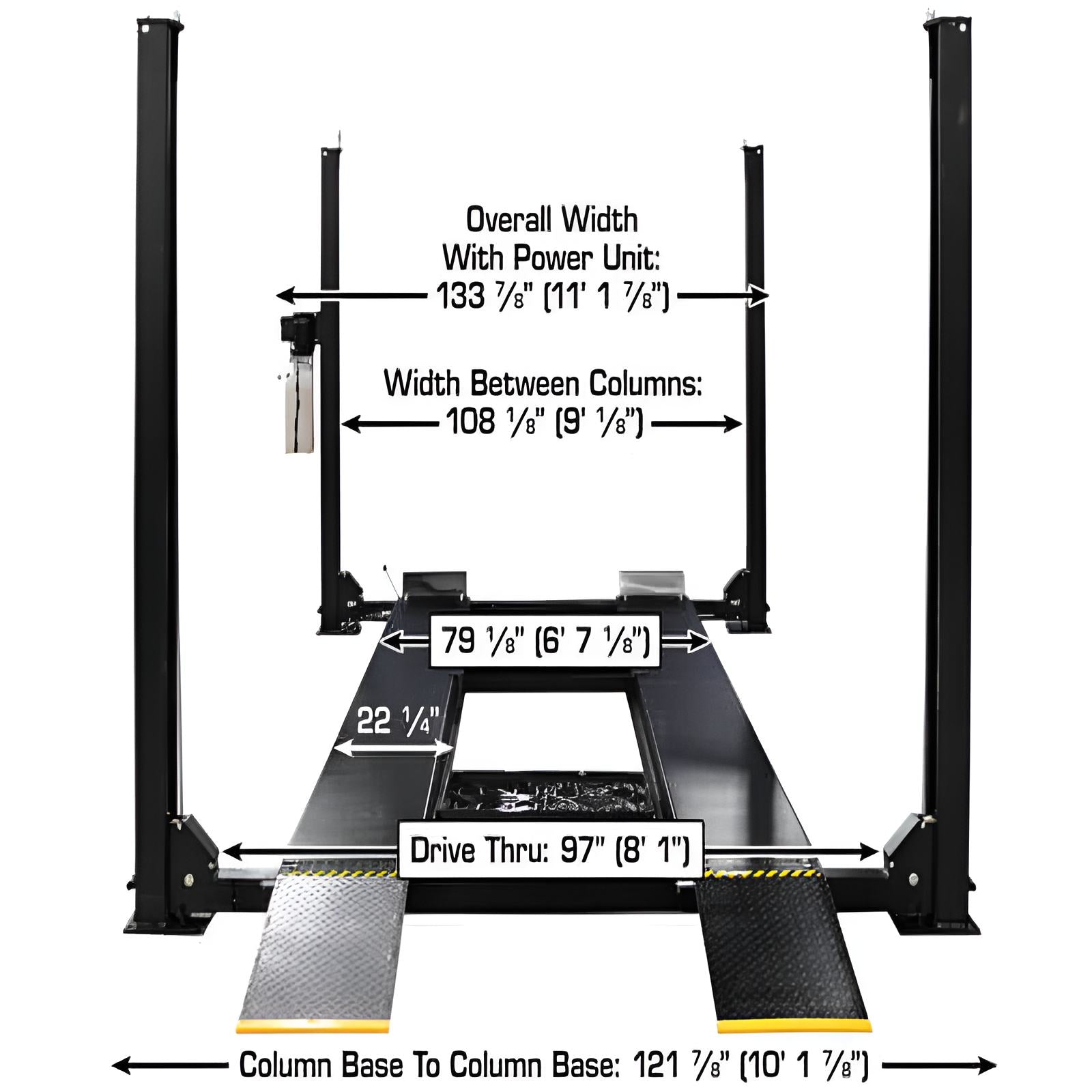

- Overall Width: 121-7/8" (10' 1-7/8")
- Overall Width with Motor: 133-7/8" (11' 1-7/8")
- Overall Length with Ramps: 227-1/2" (18' 11-1/2")
- Runway Length: 196-1/2" (16' 4-1/2")
- Runway Width: 20-1/8"
- Runway Thickness: 4-3/4"
- Width Between Runways: 38-7/8"
- Width Between Runway Rails: 34-3/4"
- Outside Runway to Outside Runway: 79" (6' 7")

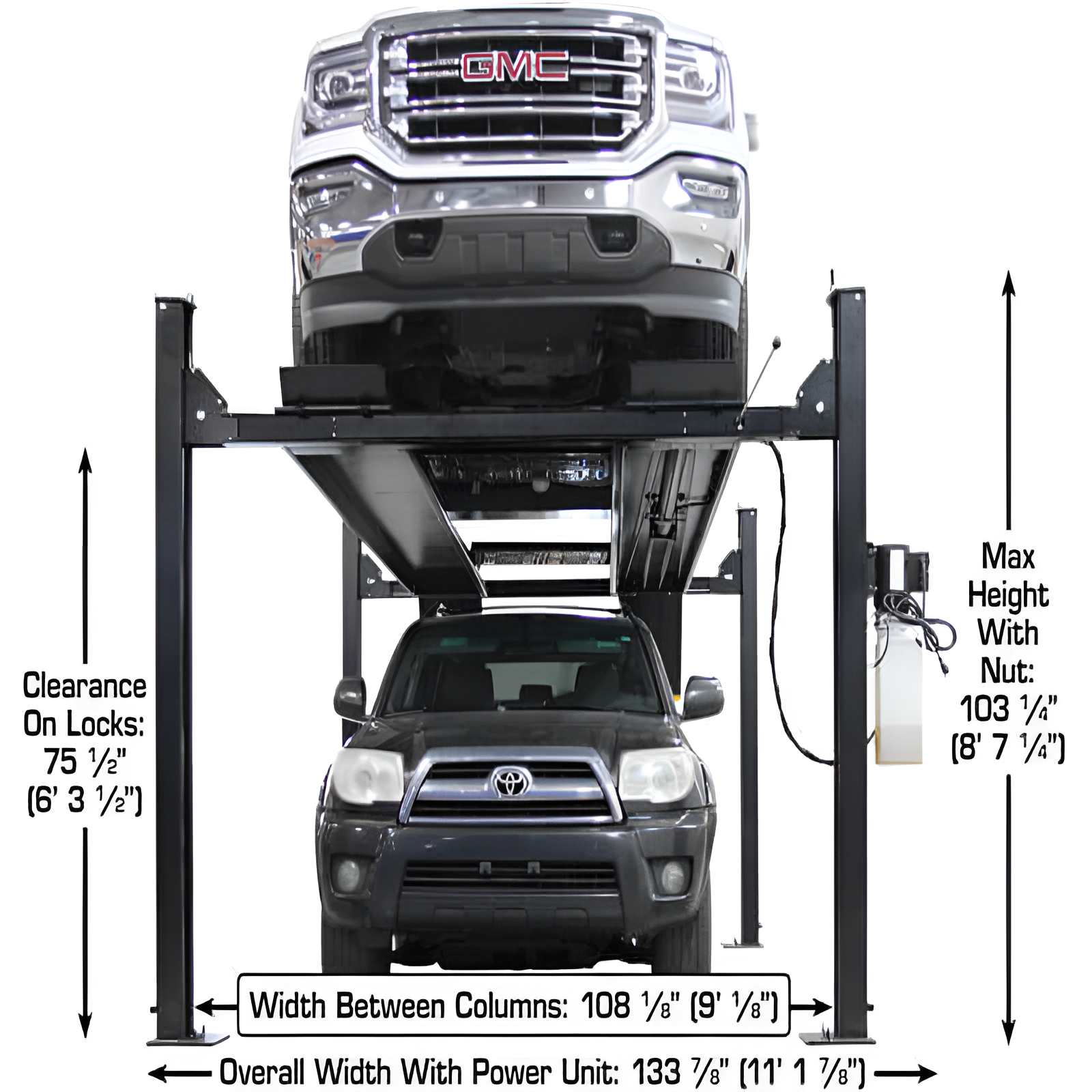

- Clearance Between Columns: 108-1/8" (9' 1/8")

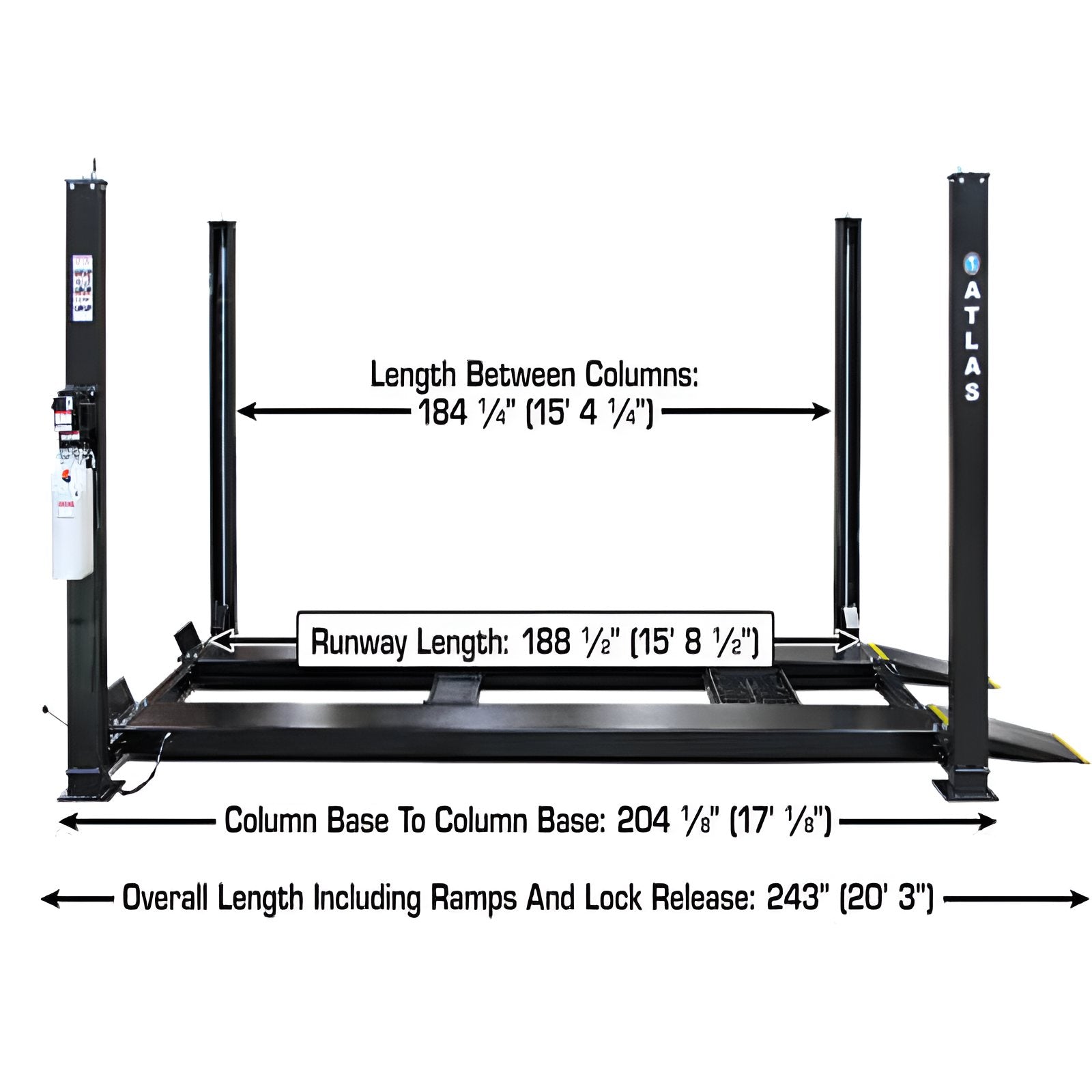

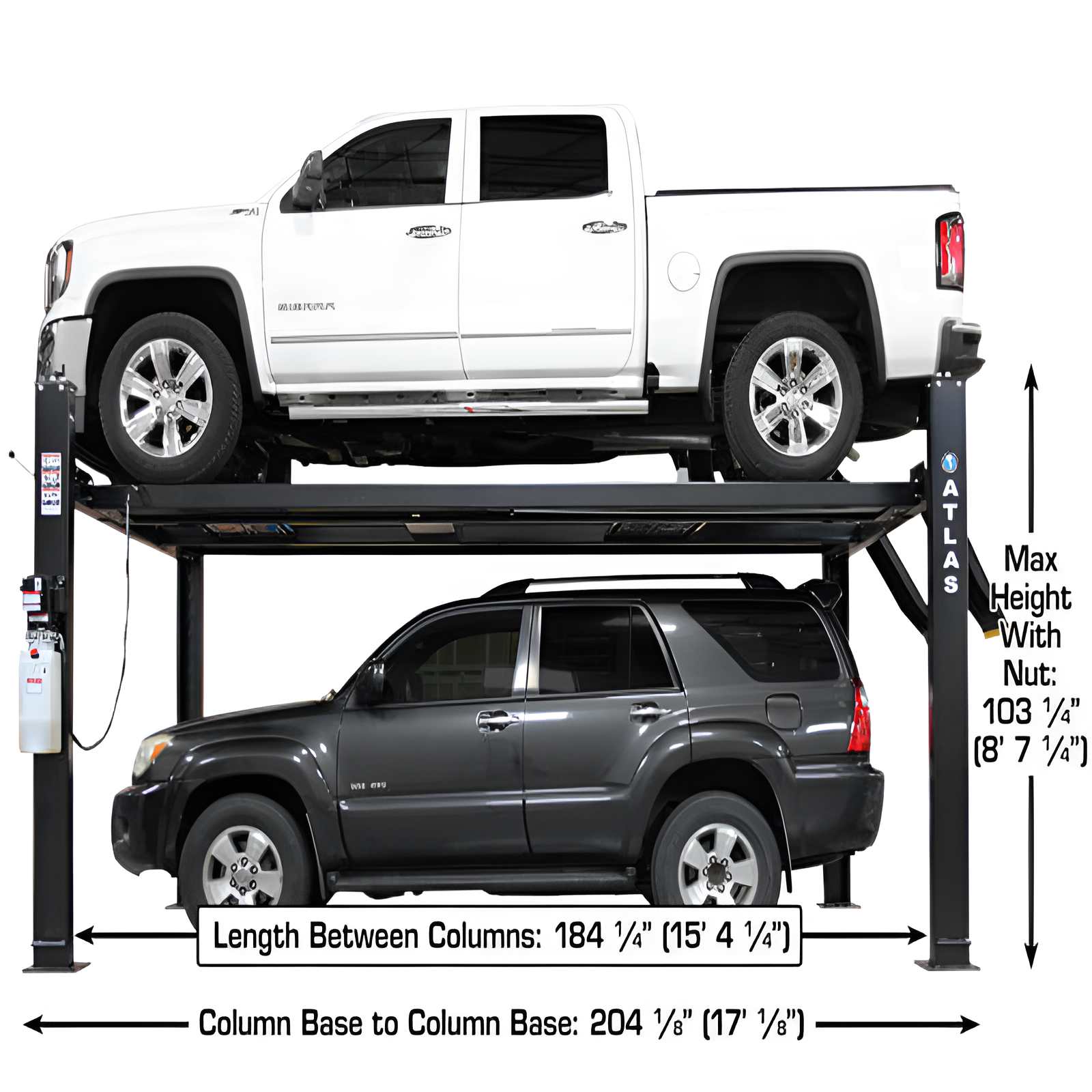

- Length Between Columns: 184-1/4" (15' 4-1/4")
- Drive-Through Clearance: 98-5/8" (8' 2-5/8")

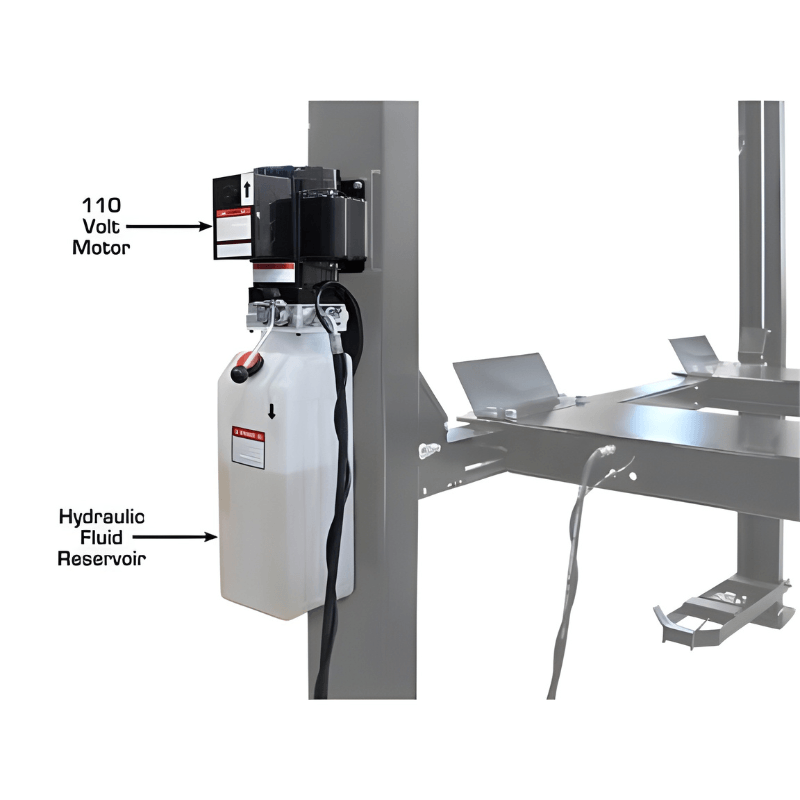

- Motor / Electrical Requirement: 110V / 30A Breaker Required
- Hydraulic Oil Requirement: 3–5 Gallons AW32 or AW46 – Not Included
- Concrete Requirement: Minimum 6" / 3,000 PSI
- Shipping Weight: 2,975 lbs
- Pallet Dimensions: 204"L x 25"W x 30-1/2"H

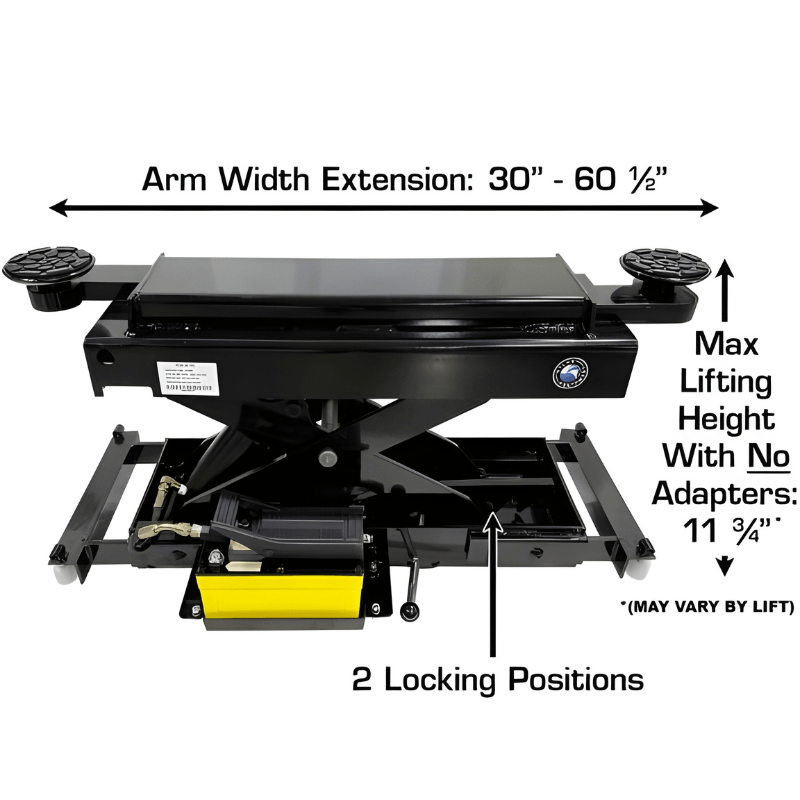

Atlas RJ45A Specifications
- Lifting Capacity: 4,500 lbs

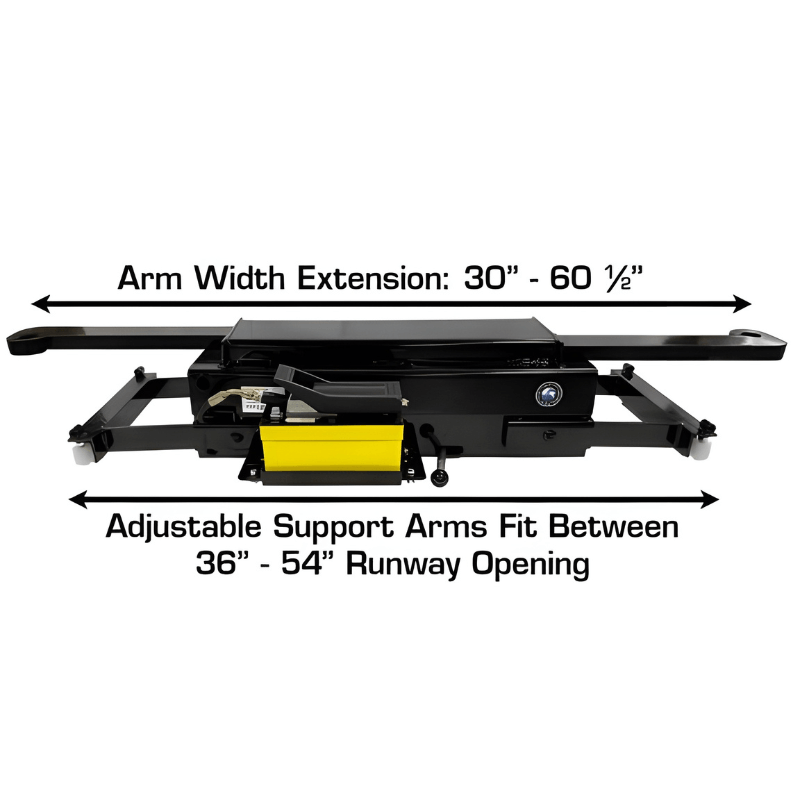

- Minimum Width – Roller Arms: 36"
- Maximum Width – Roller Arms: 54"
- Lift Arm Width – Center of Pad: 30" – 60-1/2"
- Air Requirement: 70–115 PSI
- Operation: Air/Hydraulic
- Arm Hole / Adapter Peg Size: 1-1/2"

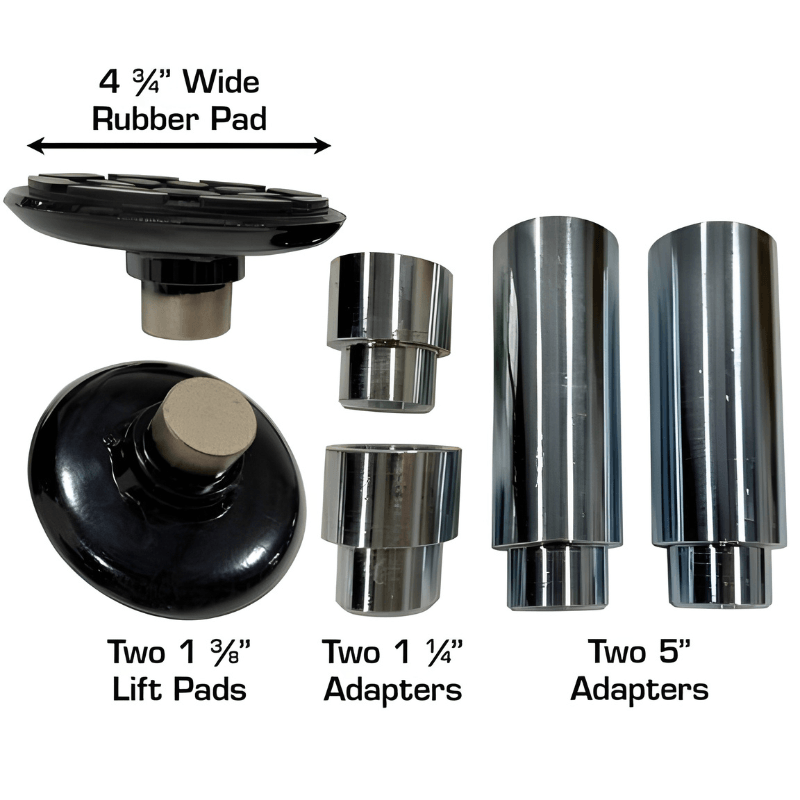

- Included Adapter Heights: 2 Each – 1-1/4" and 5"
- Shipping Weight: 380 lbs
Apex 9 Special Features

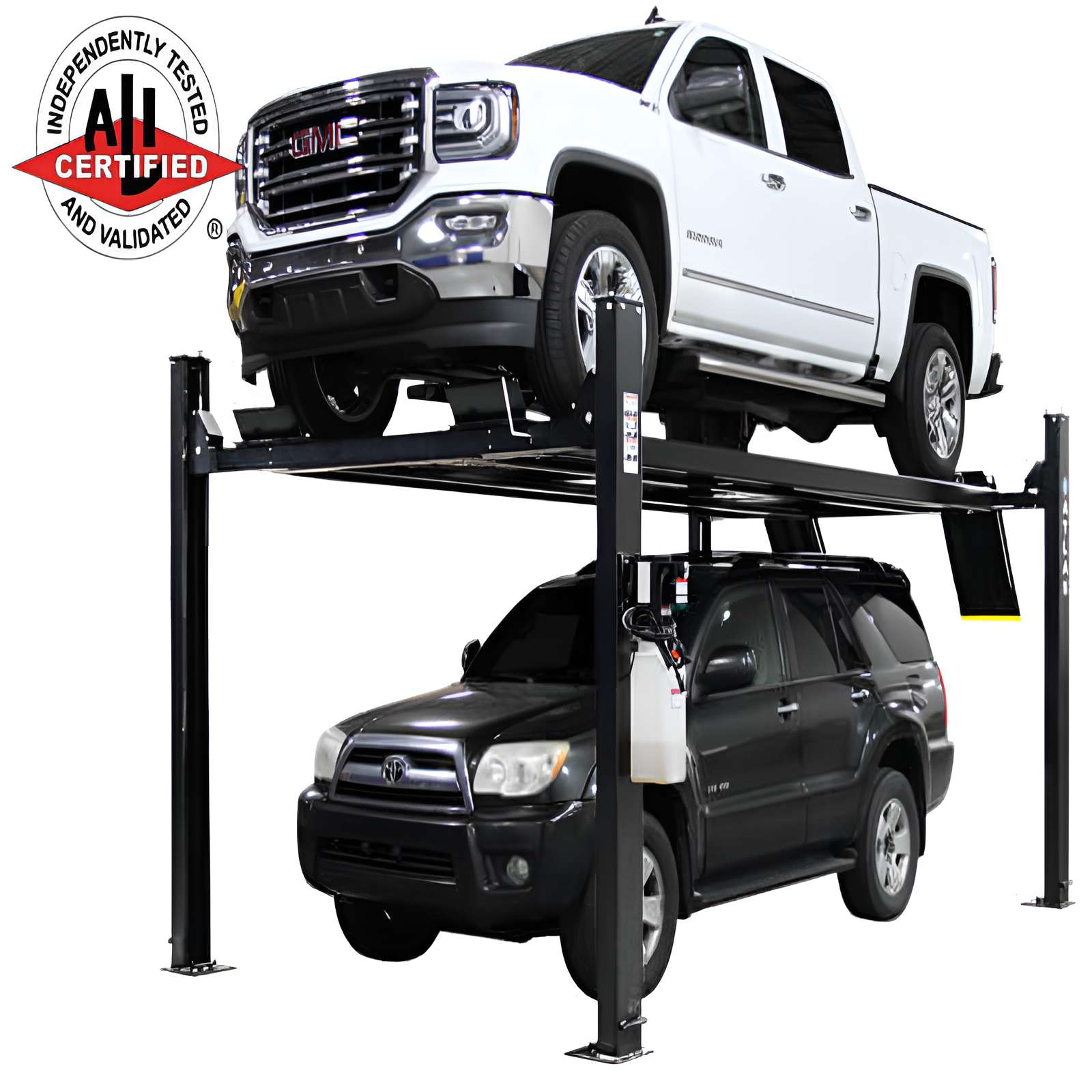

- ALI Certified
- Heavy-duty 9,000 lb lifting capacity
- Extra-tall, extra-wide, and extra-long configuration
- Freestanding design for flexible installation
- Portable capability when properly equipped
- Heavy-duty diamond-plated runways
- Durable powder-coated finish

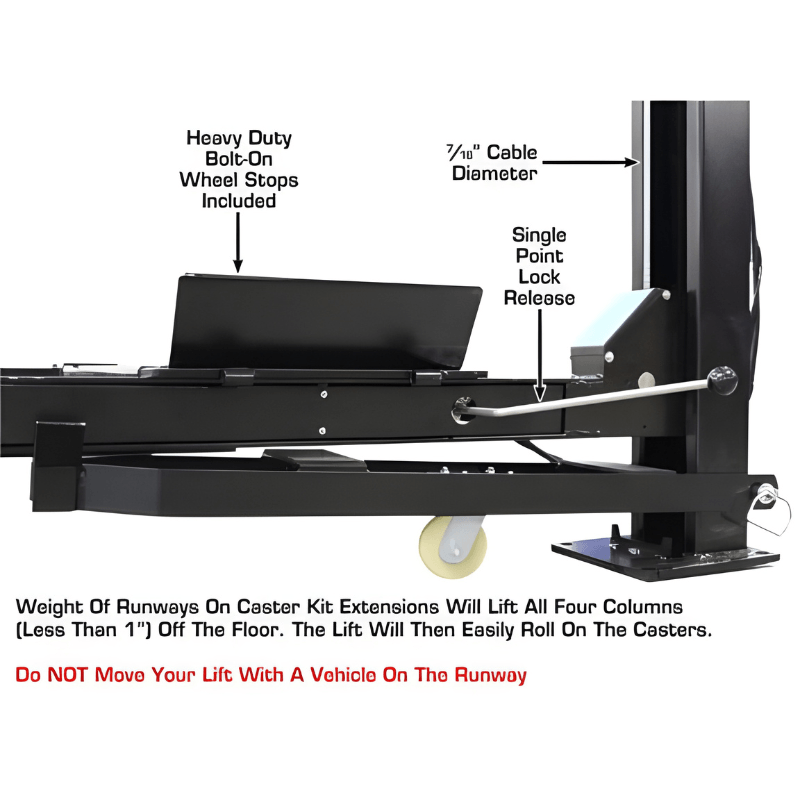

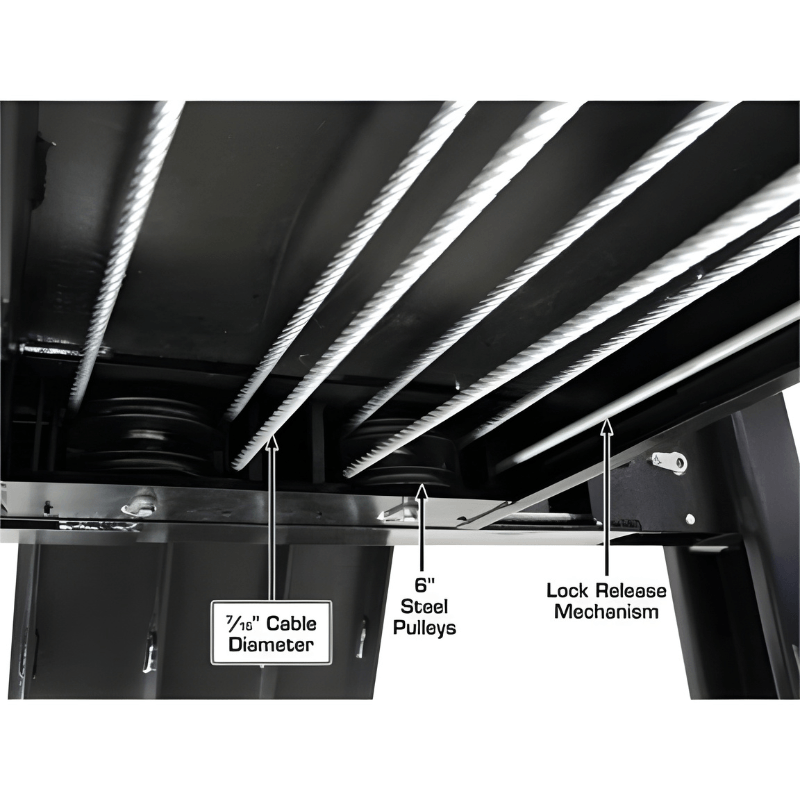

- Single-point lock release for convenient operation

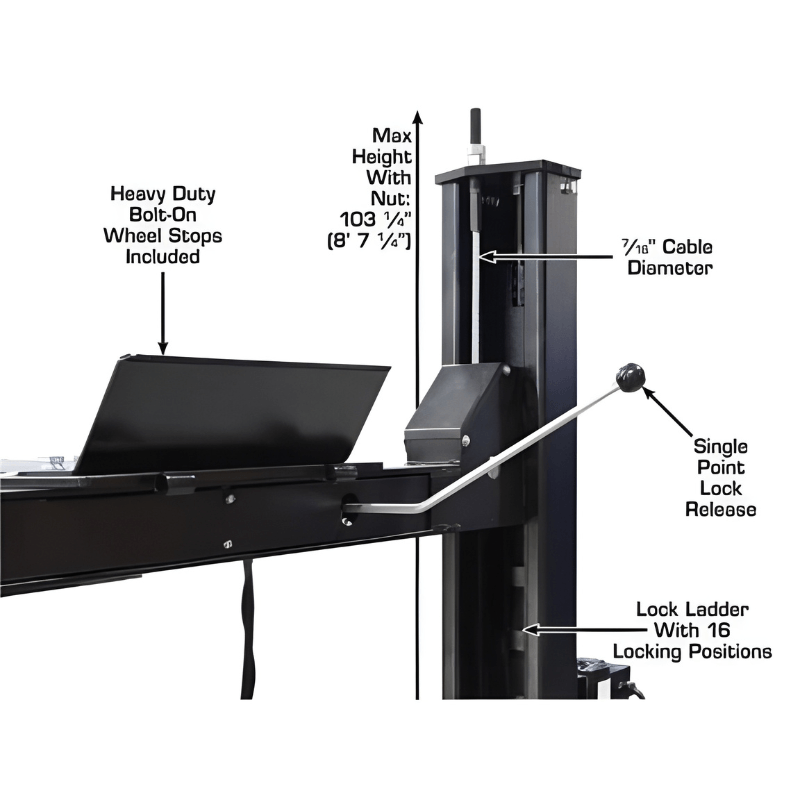

- Lock-ladder system with double-lock safety protection
- 110V electrical operation
- Requires a dedicated 30A breaker
- Suitable for vehicle storage and automotive service
- Designed to accommodate cars, SUVs, and light-duty trucks
- 5-Year Structural Warranty
- 2-Year Hydraulic Warranty – Parts Only
Included with the Apex 9
- Steel approach ramps
- Steel jack tray
- 4 plastic drip trays

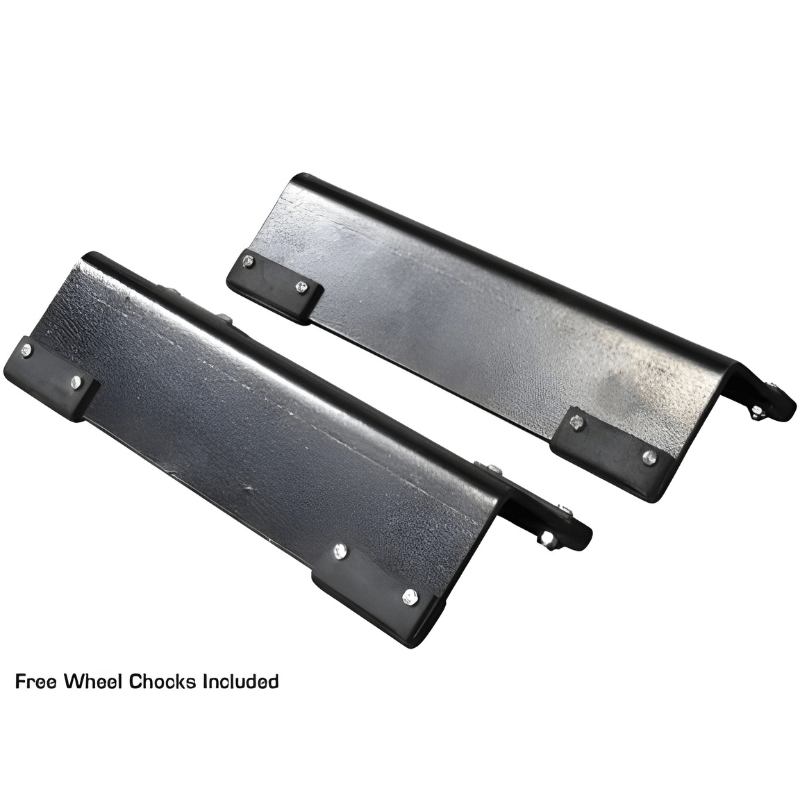

- 2 rubber wheel chocks
RJ45A Special Features
- Heavy-duty 4,500 lb lifting capacity
- Adds wheels-free service capability to the Apex 9
- Air/hydraulic operation for smooth, efficient lifting
- Requires 70–115 PSI external shop air

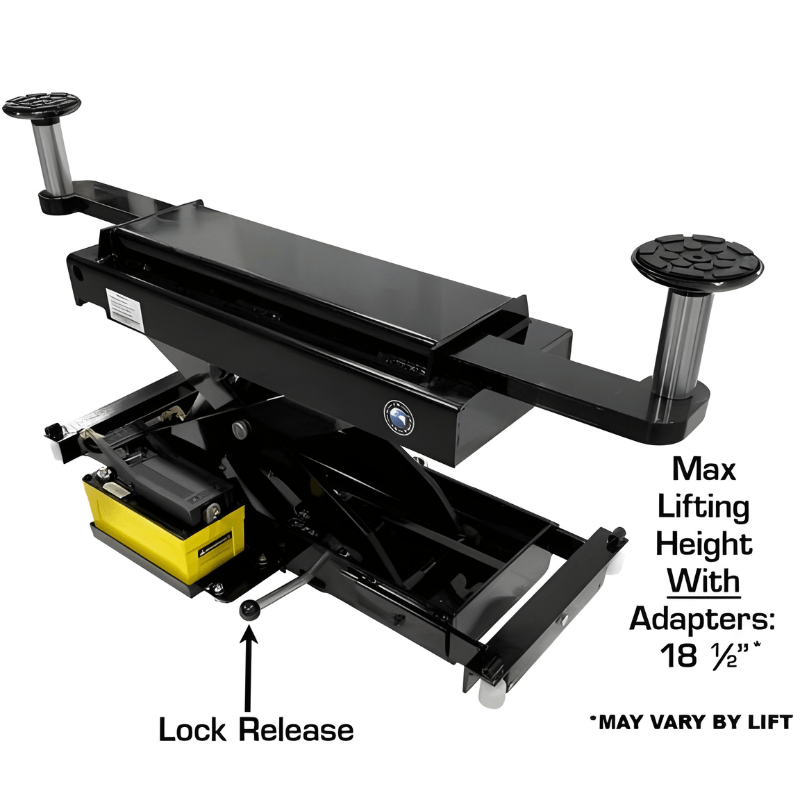

- Multiple safety lock positions for secure vehicle support
- Low-profile, compact construction

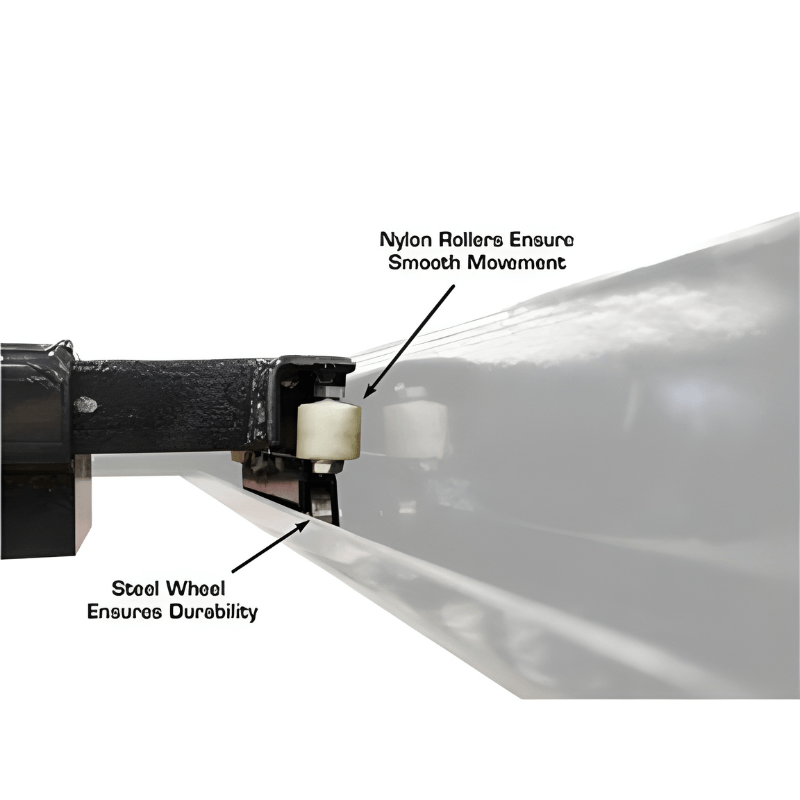

- Smooth rolling action for convenient positioning along the runways
- Heavy-duty scissor mechanism provides stable, level lifting

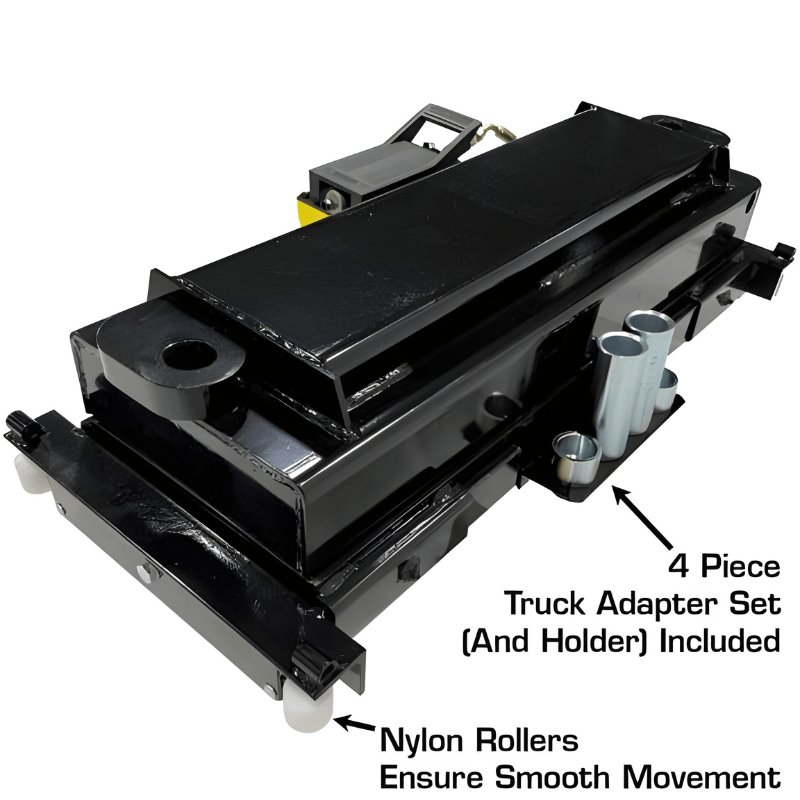

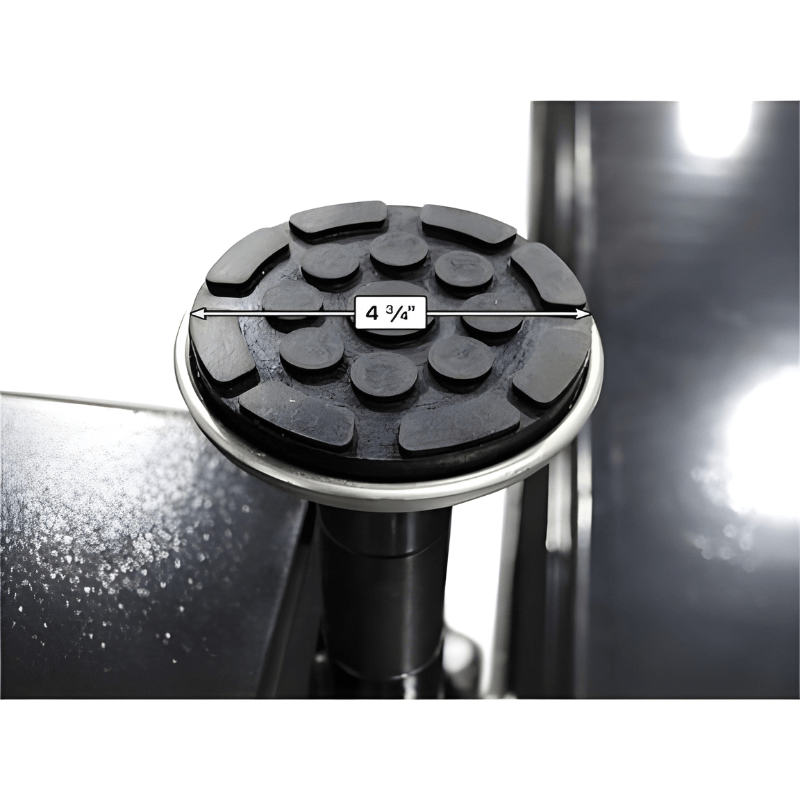

- Includes a 4-piece truck adapter set
- Ideal for brake, tire, suspension, and component service
- 1-Year Parts-Only Warranty
- External air supply is not included
Apex 9 & RJ45A Manual
Atlas Apex 9 4 Post Vehicle Storage Lifts Product Manual
Atlas Apex 9 & RJ45A Combo Optional Items – Sold Separately
Important Shipping Information
Due to the extra-large size of this product, it cannot be delivered to a freight terminal.
Warehouse Pickup Locations
Warehouse pickup is available with no shipping charge at select locations:
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
