Atlas Apex 9 ALI Certified 9,000 lb 4-Post Lift

Atlas Automotive EquipmentSKU: ATEAPEX9

At a Glance

  • Free-Standing Portable Design; Diamond-Plated Runways
  • Max Lifting Height: 86"
  • Drive-Thru Clearance: 98.63"
Price:
$6,999.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

Atlas® APEX9 – ALI Certified 9,000 lb. Heavy-Duty Hobbyist 4-Post Lift

The Atlas® APEX9 is a true 9,000 lb. capacity, ALI Certified four-post lift engineered for both hobbyist and light commercial use. Built with exceptional strength and precision, this model is extra-long, extra-wide, and extra-tall, making it capable of accommodating an impressive range of vehicles — from compact Smart Cars® to large diesel dually trucks.

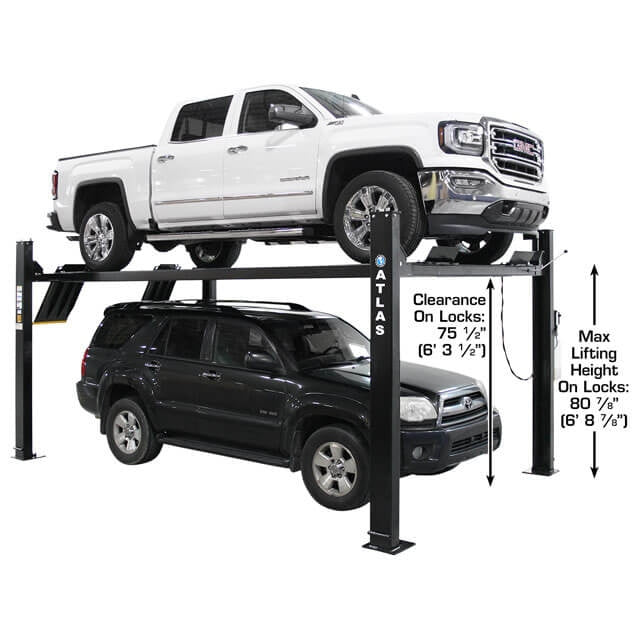

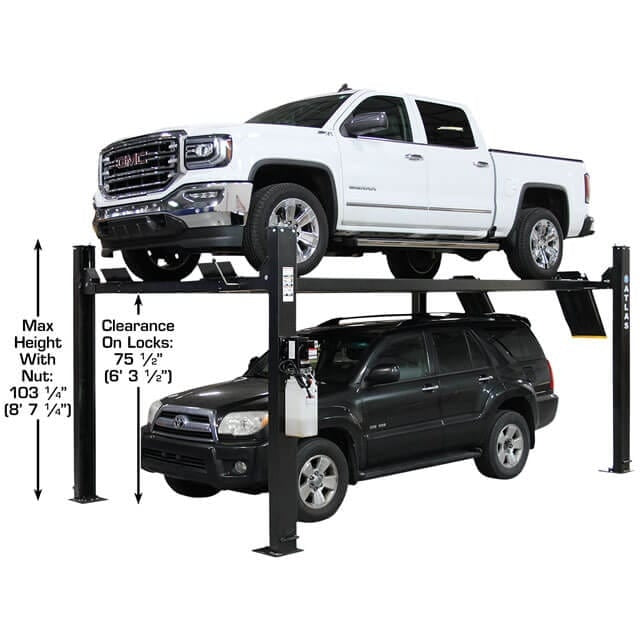

Its extended runway length easily supports vehicles with long wheelbases, while the increased width allows even wide-track or dual-rear-wheel trucks to drive on comfortably. The generous lift height provides enough clearance to park a second vehicle underneath, maximizing garage space and storage efficiency.

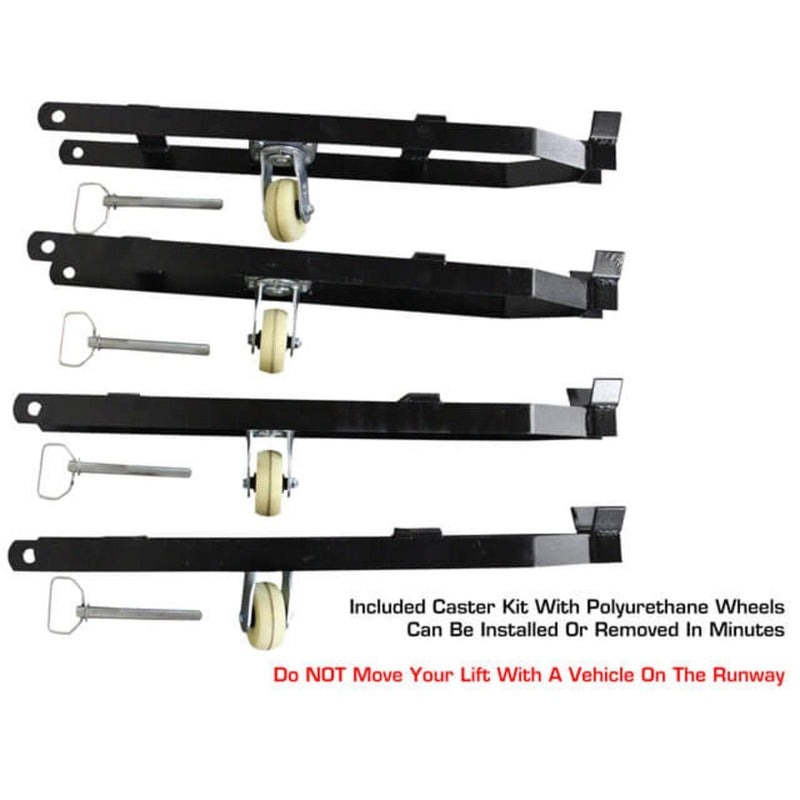

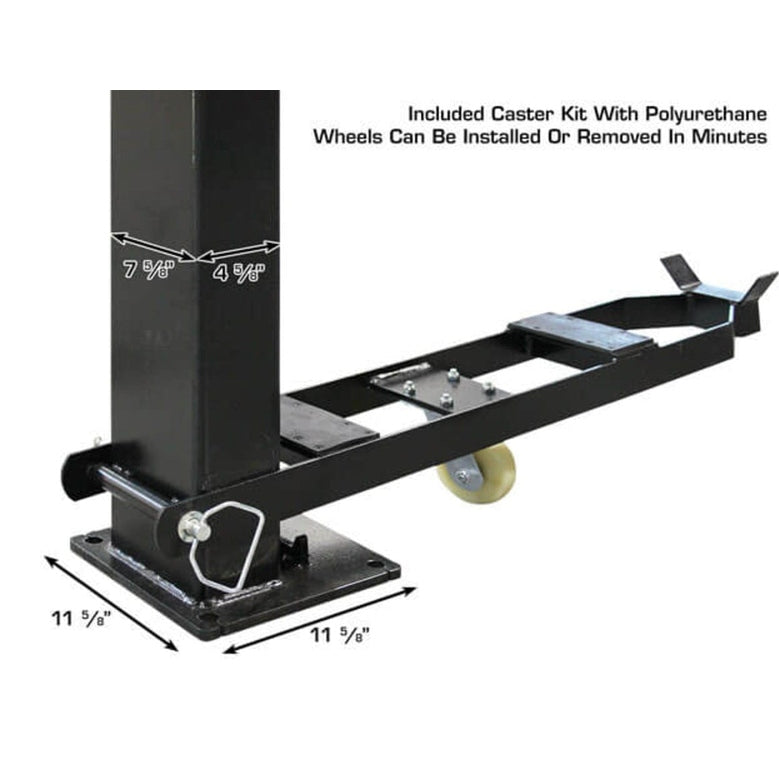

The APEX9 is heavier and more robust than the Atlas® Garage PRO9000, ranking among the heaviest portable hobbyist lifts on the market. Like the PRO9000, it includes a set of premium accessories — four plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels. The caster kit installs or removes in minutes, making the lift fully portable for easy repositioning between bays or even outdoor use.

For added functionality, the APEX9 features integrated runway tracks that allow the use of a rolling bridge jack (recommended: Atlas® RJ6BK, sold separately), enabling efficient wheel-off service work.

With its commercial-grade construction, ALI certification, and portable design, the Atlas® APEX9 is an ideal choice for professional service centers, serious car enthusiasts, or homeowners seeking a professional-quality lift with proven safety and durability.

Key Features

  • ALI Certified Lift for verified safety and performance

  • 9,000 lb. Lifting Capacity

  • Free-Standing, Portable Design

  • Heavy-Duty Construction built for long-term reliability

  • Extra Tall, Extra Wide, and Extra Long Configuration for greater versatility

  • Durable Powder-Coated Finish

  • Diamond-Plated Runways for superior traction

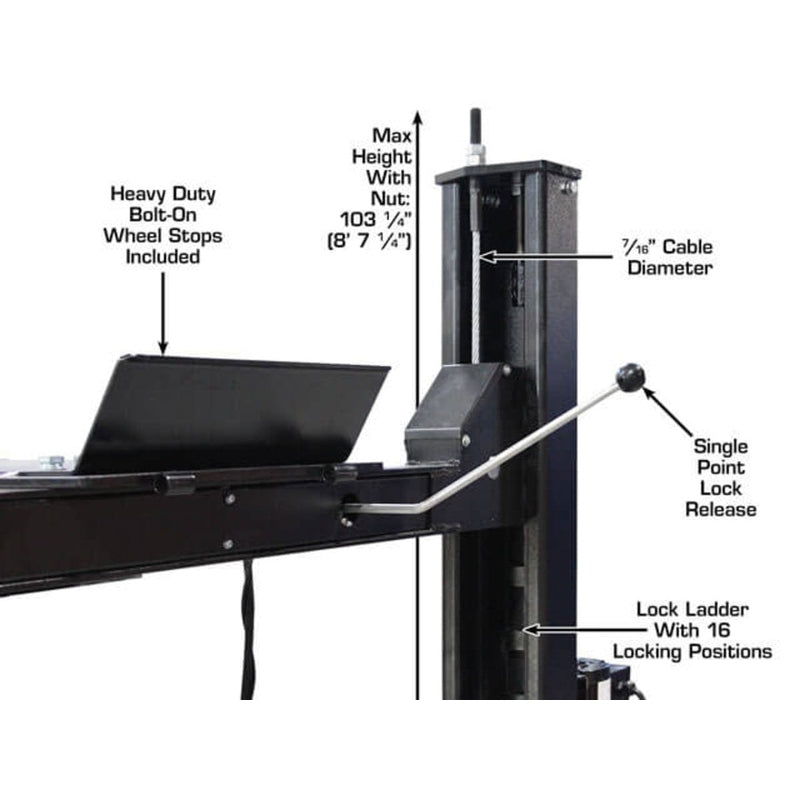

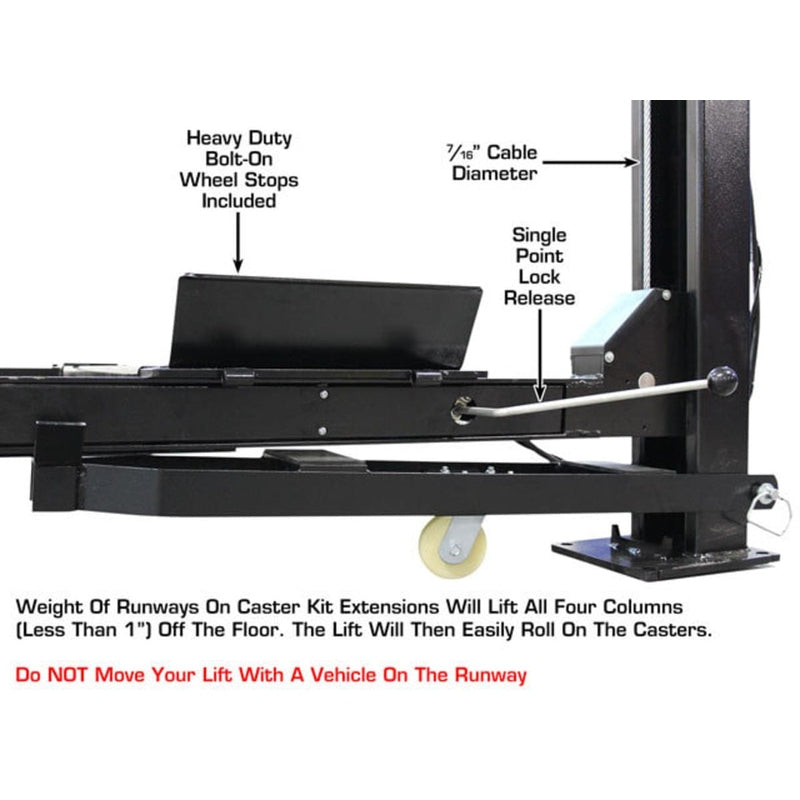

  • Single-Point Lock Release for simple and safe operation

  • Lock Ladder Design with Dual Lock Safety System

  • Steel Approach Ramps (Included)

  • Steel Jack Tray (Included)

  • Four Plastic Drip Trays (Included)

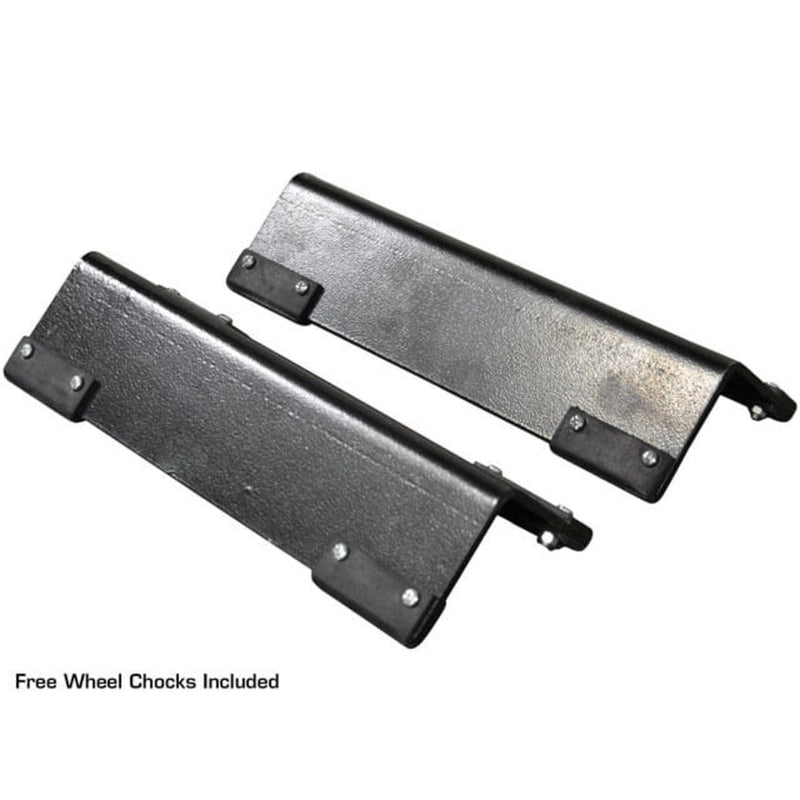

  • Two Rubber Wheel Chocks (Included)

  • Caster Kit with Polyurethane Wheels (Available) for mobility

  • Anchor Bolts (Optional, Sold Separately)

  • Ideal for Storage or Maintenance Applications

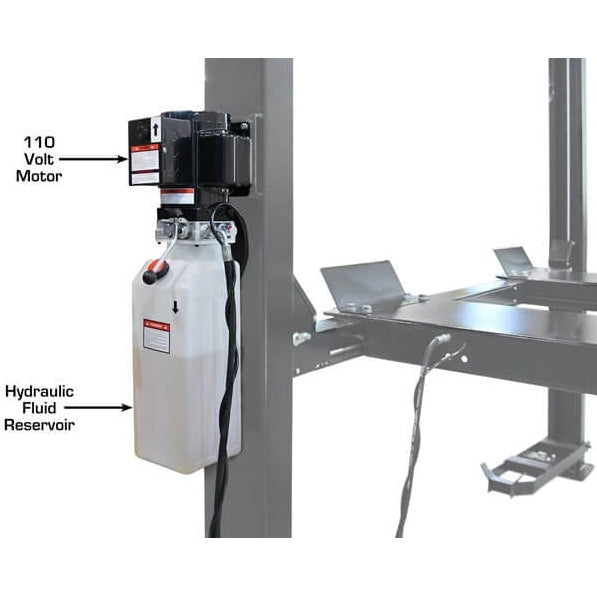

  • 110V Electric Operation (requires 30A breaker)

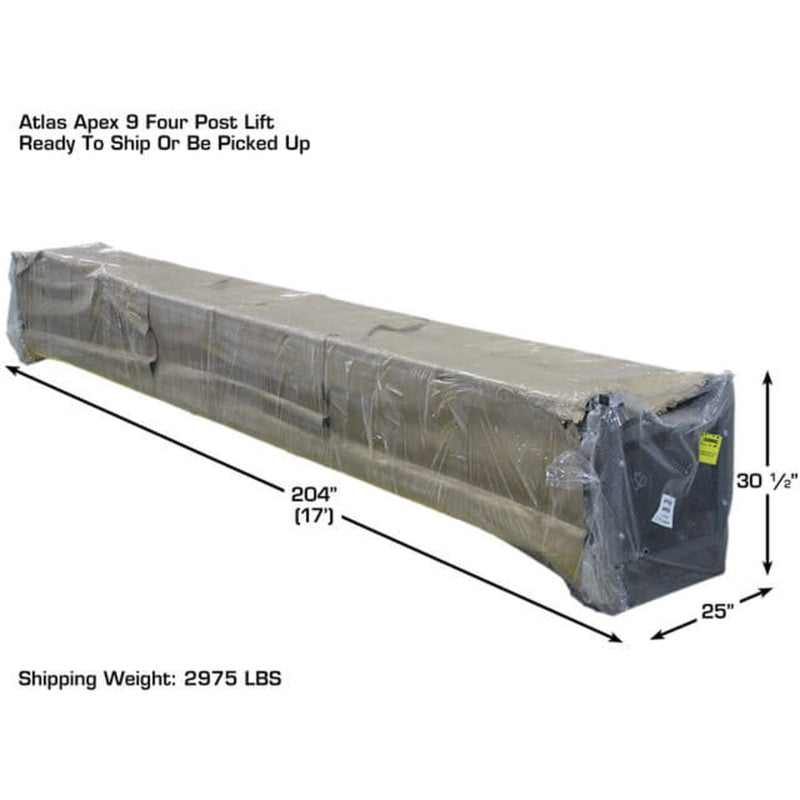

  • Shipping Weight: 2,975 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 9,000 lb.
Lifting Height (to Top of Runway) 86" (7' 2")
Clearance Under Runways 81 ¼" (6' 9 ¼")
Height of Columns 99" (8' 3")

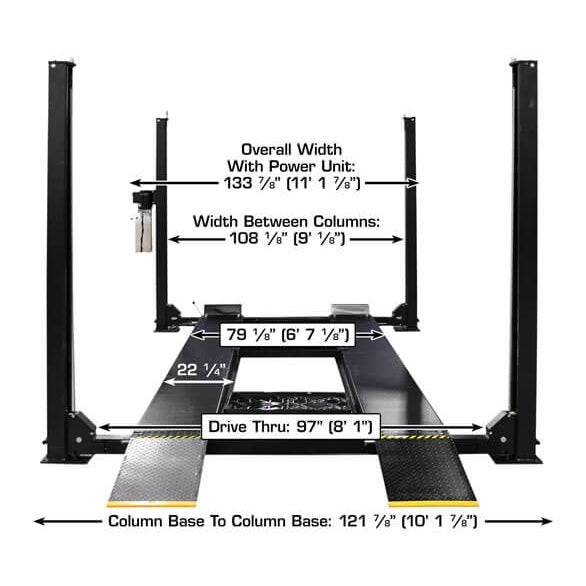

Overall Width (w/o Motor or Casters) 121 ⅞" (10' 1 ⅞")
Overall Width (w/ Motor) 133 ⅞" (11' 1 ⅞")
Overall Length (No Ramps, w/ Lock Release Bar) 204" (17')
Overall Length (w/ Approach Ramps) 227 ½" (18' 11 ½")

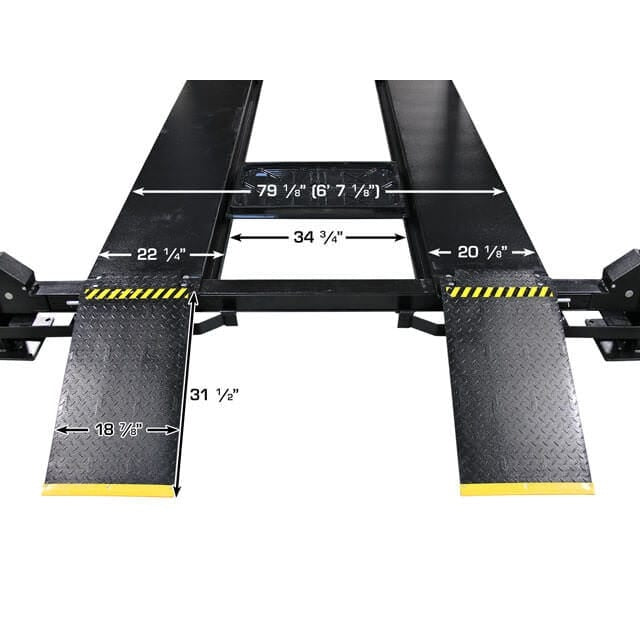

Approach Ramp Length 31 ½"

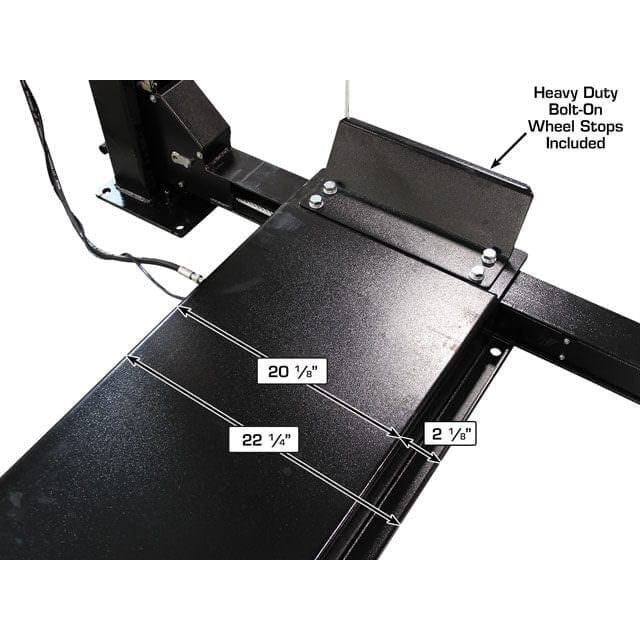

Runway Width 20 ⅛"
Runway Rail Width 2"

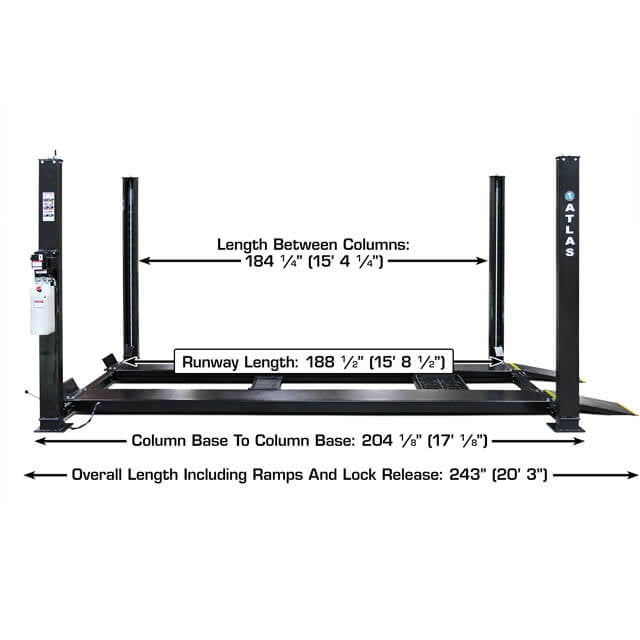

Runway Length 196 ½" (16' 4 ½")
Runway Thickness 4 ¾"
Width Between Runways 38 ⅞" (3' 2 ⅞")
Width Between Runway Rails 34 ¾" (2' 10 ¾")
Outside Runway to Outside Runway 79" (6' 7")

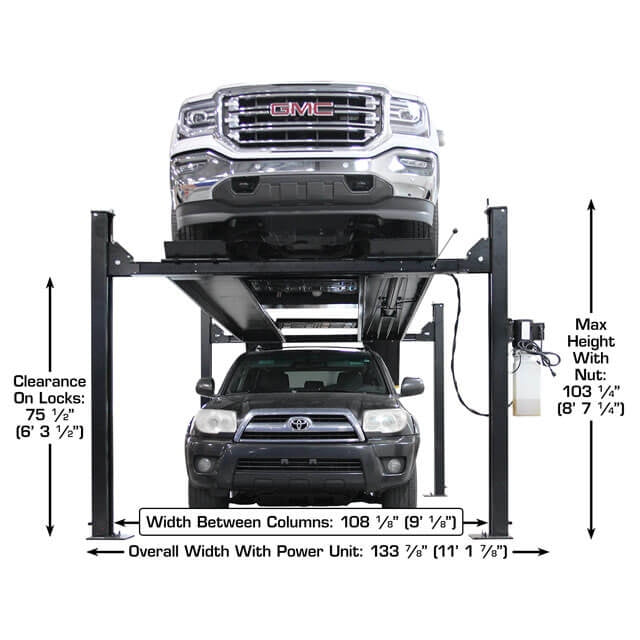

Clearance Between Columns 108 ⅛" (9' ⅛")

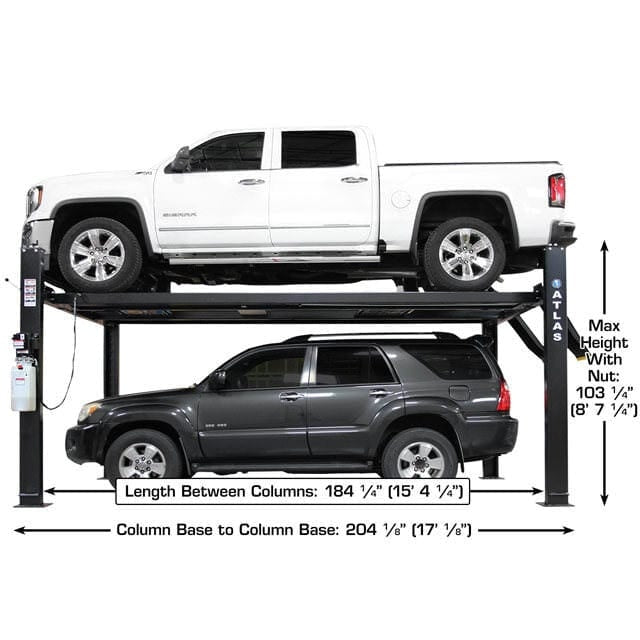

Length Between Columns 184 ¼" (15' 4 ¼")
Maximum Wheelbase 184" (15' 4")
Drive-Through Width (Outside of Tires) 98 ⅝" (8' 2 ⅝")
Electrical Requirement 110V, 30A Breaker Required
Shipping Weight 2,975 lb.

Manual

Atlas Apex 9 Manual
