Description
Atlas ATEATWB-MCXLTKT Extra Large Motorcycle Wheel Balancer Adapter Kit
Expand the capabilities of your compatible Atlas wheel balancer with the Atlas ATEATWB-MCXLTKT Extra Large Motorcycle Wheel Balancer Adapter Kit. Designed to convert compatible Atlas passenger car and light truck computer wheel balancers for motorcycle applications, this kit provides the components needed to properly mount and balance a wide range of motorcycle wheels.

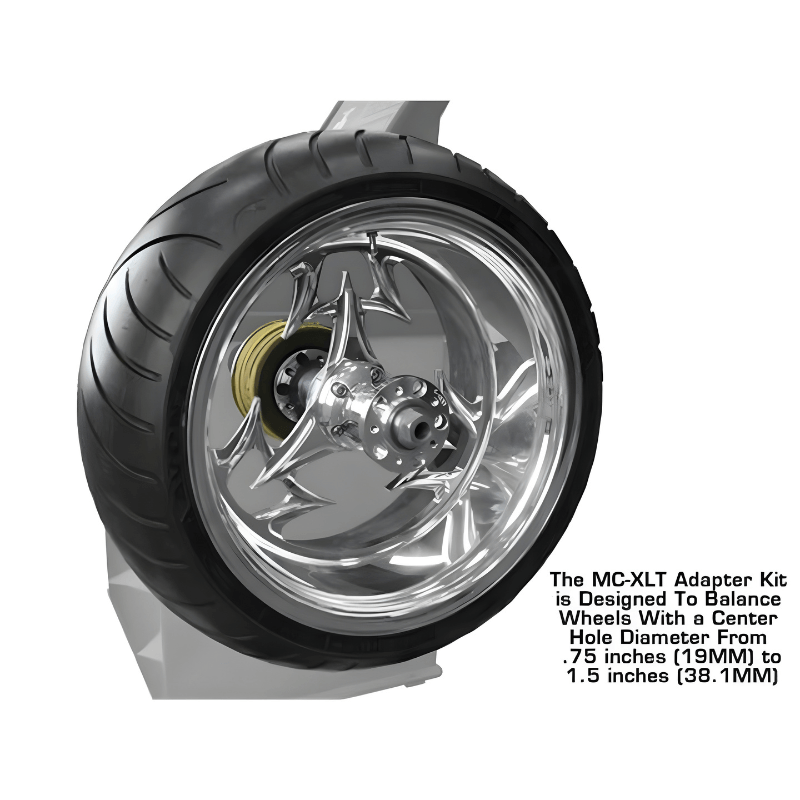

The ATEATWB-MCXLTKT features a 0.75" (19 mm) diameter, 12" long precision shaft and accommodates motorcycle wheels with center-hole diameters ranging from 0.75" (19 mm) to 1.5" (38.1 mm). The extra-long configuration allows technicians to balance motorcycle wheel hub assemblies measuring up to 11 inches wide.
For even wider motorcycle wheels, the kit can accommodate hub assemblies up to 13.75 inches wide when used with the optional XLT Extension Nut, providing additional flexibility for specialty and extra-wide motorcycle wheel applications.

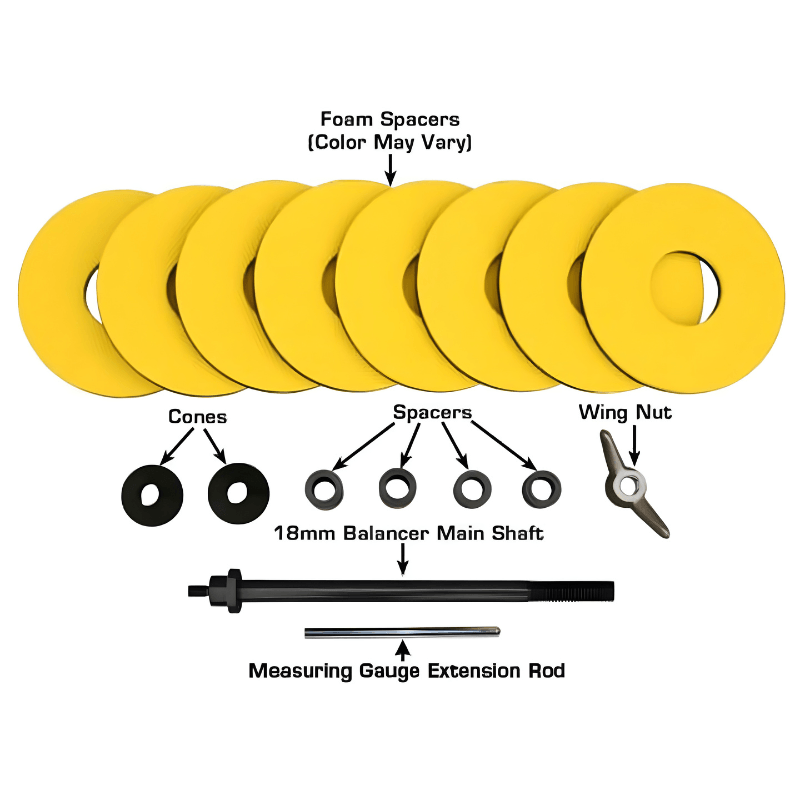

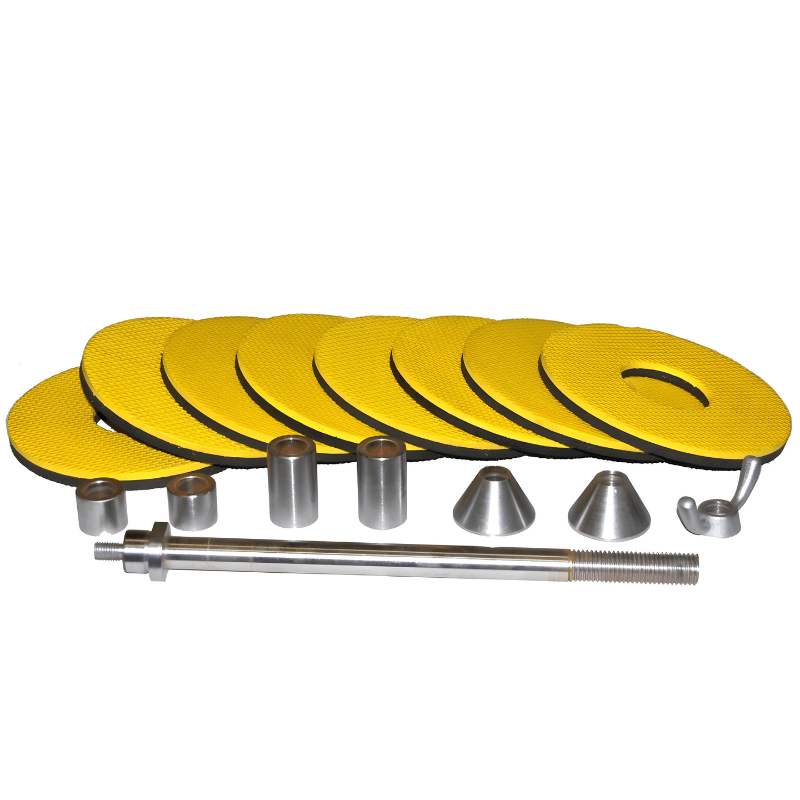

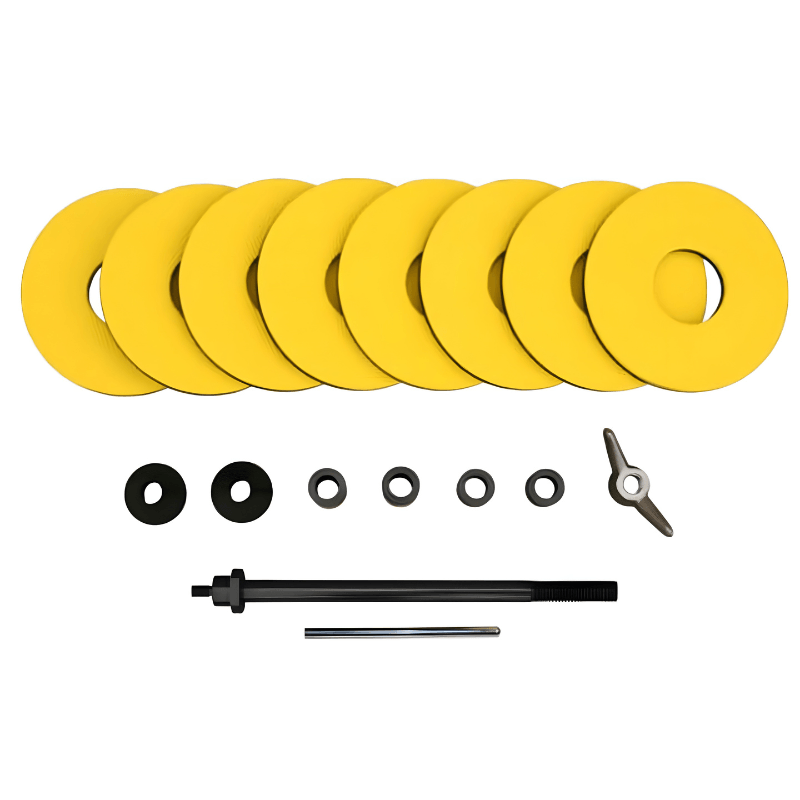

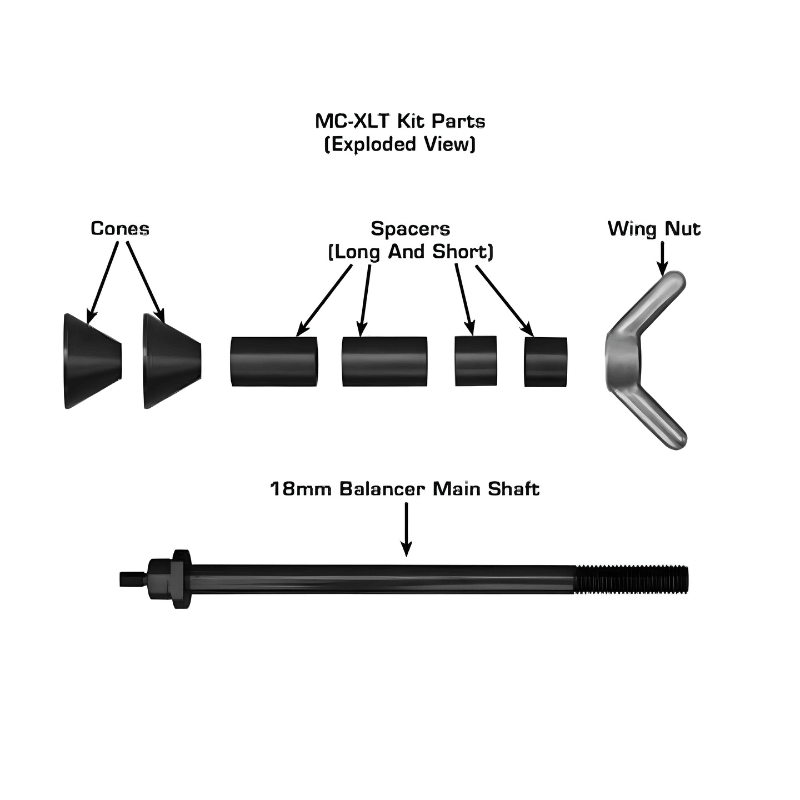

The complete kit includes multiple precision cones and spacers, foam spacers, a balanced wing nut, and a measuring gauge extension rod to help properly position and secure the wheel during balancing. Installation is quick and straightforward, allowing a compatible Atlas automotive wheel balancer to be converted for motorcycle wheel service in approximately 60 seconds.
Ideal for motorcycle repair shops, powersports dealerships, tire centers, and professional service facilities, the ATEATWB-MCXLTKT provides a convenient way to expand motorcycle wheel-balancing capabilities without requiring a dedicated balancer for every application.
For the broadest range of motorcycle wheel compatibility, Atlas recommends using the Extra Large Motorcycle Adapter Kit together with the Standard Motorcycle Adapter Kit.
ATEATWB-MCXLTKT Specifications
- Brand: Atlas
- Part Number: ATEATWB-MCXLTKT
- Product Type: Extra Large Motorcycle Wheel Balancer Adapter Kit
- Shaft Diameter: 0.75" (19 mm)
- Shaft Length: 12"
- Wheel Hub Capacity: Up to 11" Wide
- Maximum Hub Capacity with Optional XLT Extension Nut: Up to 13.75" Wide
- Center Hole Compatibility: 0.75"–1.5" (19 mm–38.1 mm)
- Shipping Weight: 5 lbs
ATEATWB-MCXLTKT Special Features
- Genuine Atlas Automotive Equipment motorcycle wheel balancer accessory
- Converts compatible Atlas automotive wheel balancers for motorcycle wheel balancing
- Designed for extra-wide motorcycle wheel and hub assemblies
- Features a 0.75" (19 mm) diameter x 12" long precision shaft
- Accommodates wheel center holes from 0.75" to 1.5" (19 mm to 38.1 mm)
- Handles motorcycle hub assemblies up to 11" wide
- Accommodates hub assemblies up to 13.75" wide with the optional XLT Extension Nut
- Includes multiple precision cones for different wheel configurations
- Includes spacers for proper wheel positioning
- Foam spacers provide additional wheel support
- Balanced wing nut helps securely mount the wheel to the shaft
- Includes a measuring gauge extension rod
- Installs on compatible Atlas wheel balancers in approximately 60 seconds
- Allows shops to expand motorcycle service capabilities using a compatible automotive wheel balancer
- Ideal for motorcycle shops, powersports dealerships, tire centers, and professional service facilities
Recommended Setup
For maximum motorcycle wheel compatibility, Atlas recommends using the ATEATWB-MCXLTKT Extra Large Motorcycle Adapter Kit together with the Standard Motorcycle Adapter Kit.
The optional XLT Extension Nut is required when balancing compatible motorcycle hub assemblies wider than 11 inches and up to 13.75 inches.
Atlas ATEATWB-MCXLTKT Manual
