Atlas ATECED6561-2 LED Light Kit for 4-Post Lifts - 15' Long

Atlas ATECED6561-2 Magnetic LED Light Kit for 4-Post Lifts

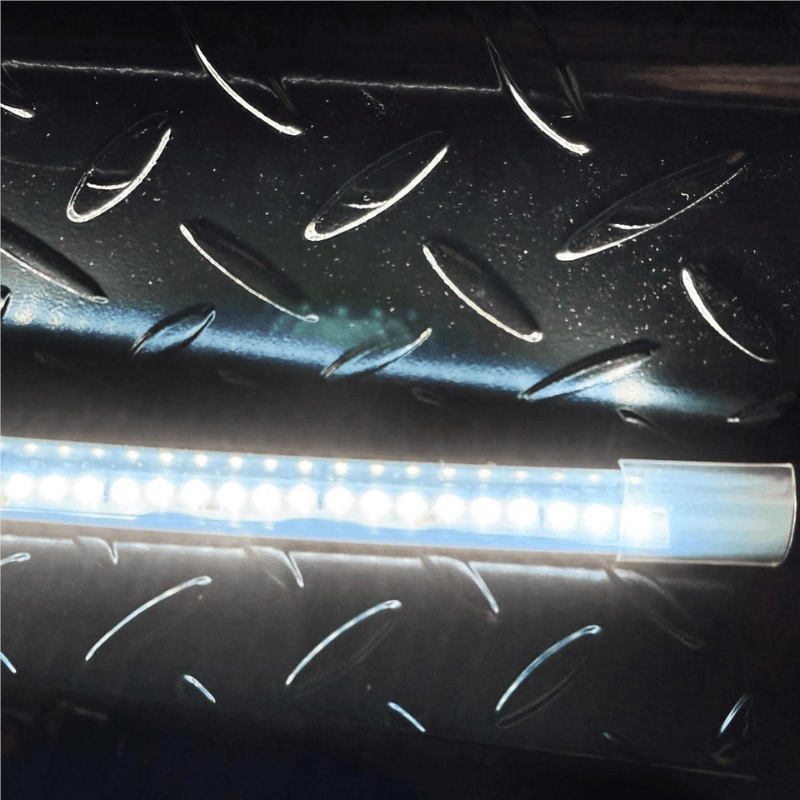

Improve visibility underneath your four-post vehicle lift with the Atlas ATECED6561-2 Magnetic LED Light Kit. Designed specifically for four-post lifts, this kit includes two full-length LED light strips that mount directly to the lift runways, providing bright, consistent illumination for inspections, maintenance, and repair work.

Each LED strip measures 15 feet (180") long and produces up to 3,600 lumens of bright, cool-white illumination. A wide 120-degree viewing angle helps distribute light evenly beneath the vehicle, reducing dark areas and making it easier to see suspension, drivetrain, exhaust, and other undercarriage components while working.

The LEDs produce a 6000K–7000K color temperature, delivering crisp, high-visibility lighting well suited for detailed automotive service. Powered by a standard 110V electrical supply, the kit also includes a 10-foot (120") power cord for convenient connection within the shop or garage.

Installation is quick and straightforward thanks to the integrated magnetic mounting system. A total of 48 magnets securely attach the LED strips to compatible steel lift surfaces without requiring drilling, permanent modifications, or complicated mounting hardware. This also makes the lights easy to position or remove when necessary.

Whether used in a professional automotive service facility or a home garage, the Atlas ATECED6561-2 provides a simple and effective way to improve under-vehicle visibility while working on a four-post lift.

ATECED6561-2 Specifications

• Brand: Atlas

• Part Number: ATECED6561-2

• Product Type: Magnetic LED Lift Light Kit

• Application: 4-Post Vehicle Lifts

• Quantity: Two (2) LED Light Strips

• Mounting Style: Magnetic

• Power Supply: 110V

• Light Strip Length – Each: 15 ft (180")

• Power Cord Length: 10 ft (120")

• Maximum Brightness: 3,600 Lumens

• LED Viewing Angle: 120°

• Color Temperature: 6000K–7000K

• Integrated Magnets: 48

• Shipping Weight: 10 lbs

• Product Weight: 30 lbs

ATECED6561-2 Special Features

• Genuine Atlas Automotive Equipment lift accessory

• Designed specifically for four-post vehicle lifts

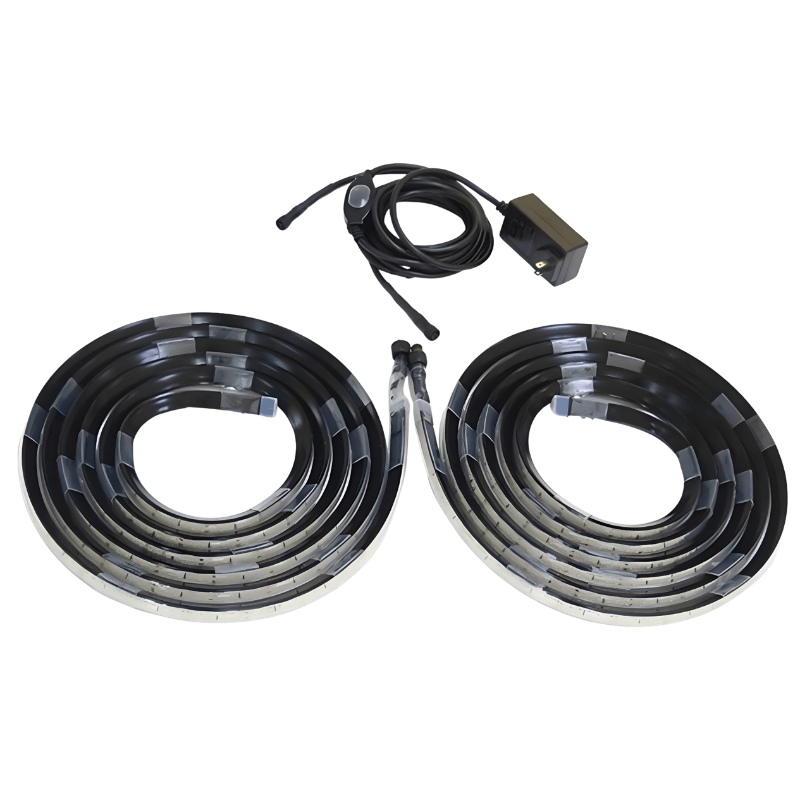

• Includes two 15-foot LED light strips

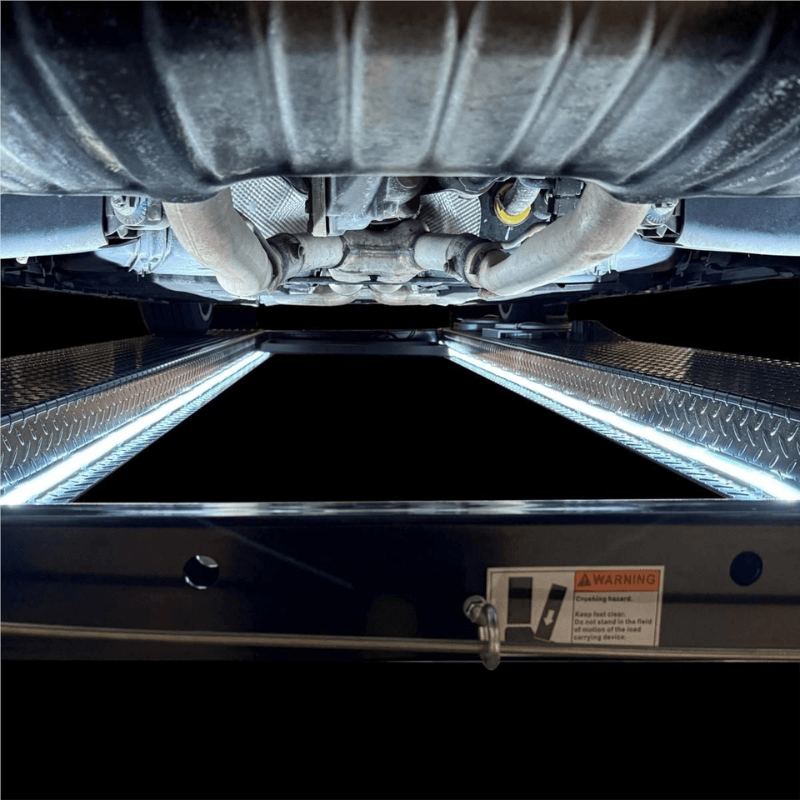

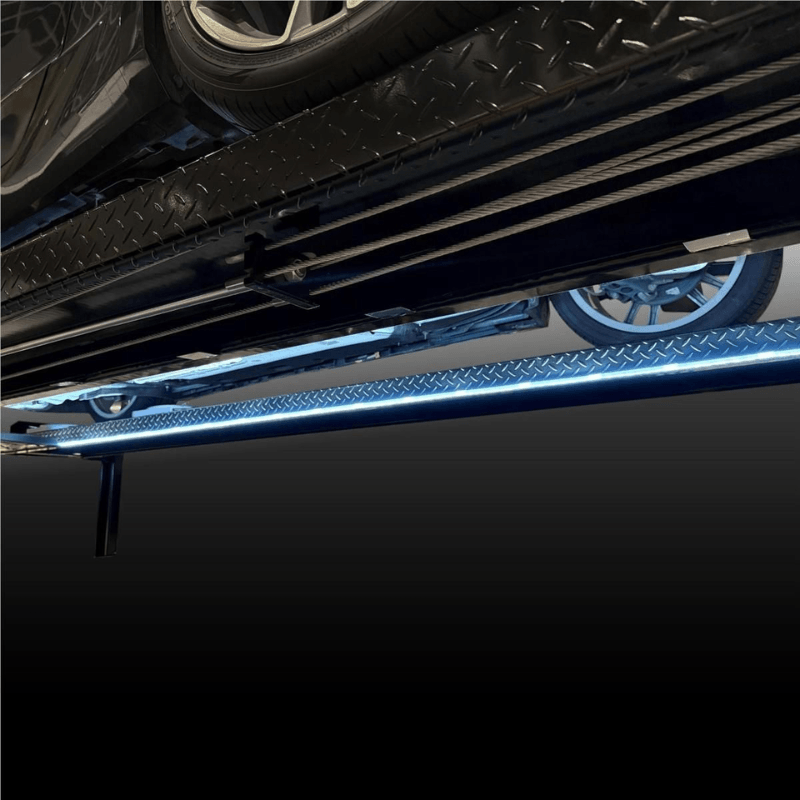

• Provides illumination along both lift runways

• Produces up to 3,600 lumens of bright LED lighting

• Cool-white 6000K–7000K color temperature

• Wide 120-degree viewing angle provides broad, even light distribution

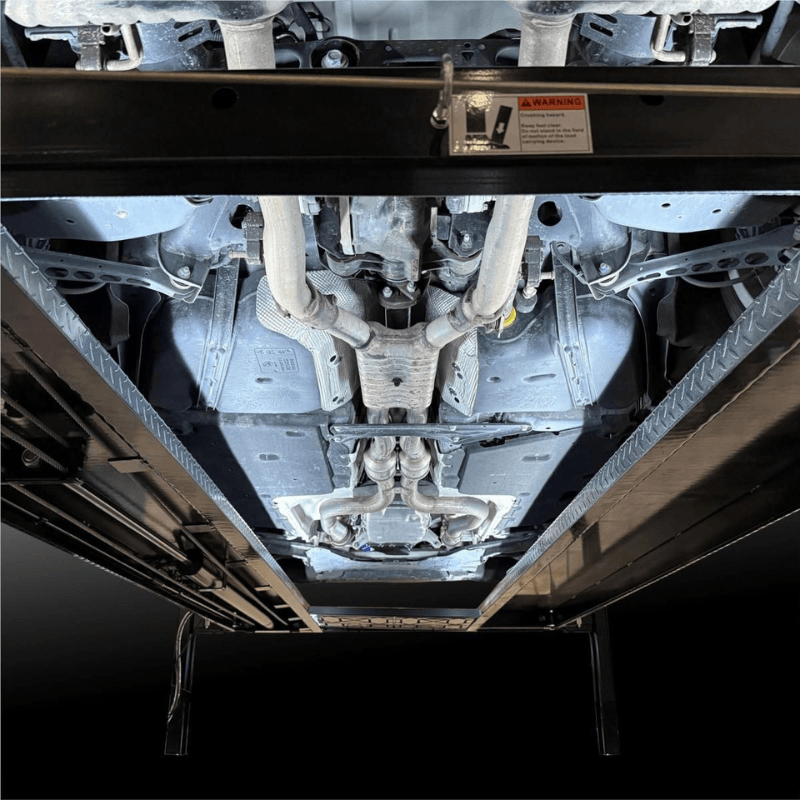

• Helps illuminate undercarriage components during service and inspection

• Uses 48 integrated magnets for secure attachment

• Magnetic installation eliminates the need for drilling or permanent lift modifications

• Easy to install, reposition, and remove when necessary

• Operates from a standard 110V power supply

• Includes a 10-foot power cord for convenient electrical connection

• Ideal for automotive maintenance, inspection, repair, and detailing

• Suitable for professional automotive shops and home garages

Ideal for Under-Vehicle Service

The Atlas ATECED6561-2 helps provide better visibility when performing:

• Brake and suspension inspections

• Exhaust system service

• Drivetrain inspections

• Fluid and leak checks

• Undercarriage maintenance

• General automotive repairs

• Vehicle detailing and inspection work

Important Installation Note

The magnetic mounting system requires a compatible ferrous steel mounting surface for proper attachment. Verify that your four-post lift provides suitable magnetic mounting locations before installation.

Route the power cord and LED wiring away from moving lift components, pinch points, sharp edges, and other areas where the wiring could become damaged during lift operation.
