Atlas ATEXH-FP8 8-Piece Floor Panel Set for 4-Post Lifts

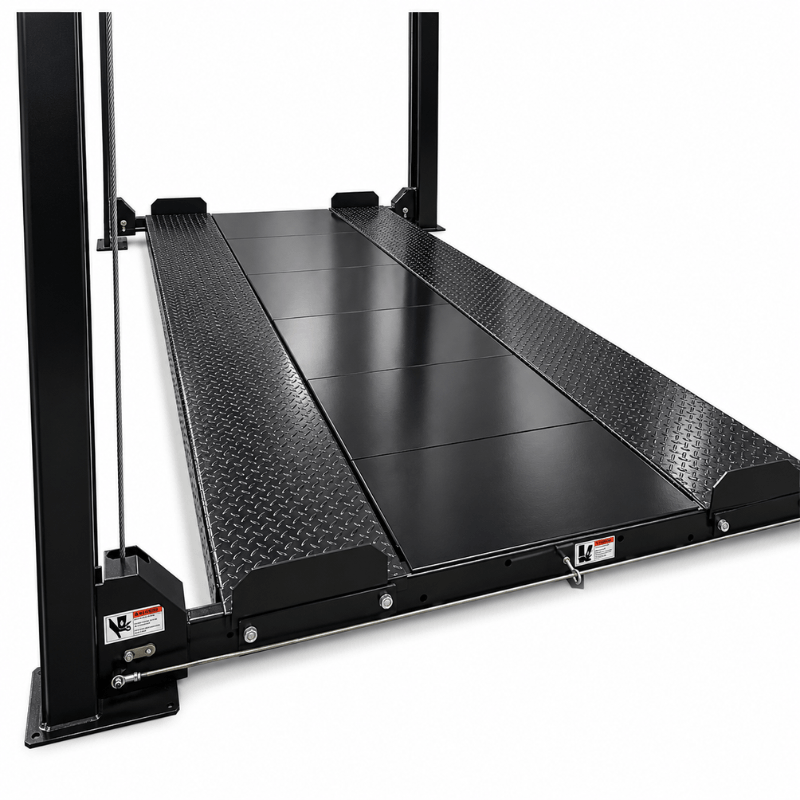

Maximize the storage potential of your four-post lift with the Atlas ATEXH-FP8 8-Piece Floor Panel Set. Designed for compatible 8,000 lb Atlas four-post lifts, this complete panel kit fills the open space between the lift runways, creating a convenient elevated storage platform for tools, tires, automotive parts, seasonal equipment, and other garage items.
By covering the gap between the runways, the FP8 allows otherwise unused space above a parked vehicle to become functional storage space. This makes the kit particularly useful for home garages, automotive shops, restoration facilities, and other areas where maximizing available floor space is important.
The complete set includes six middle panels and two end panels for a total of eight pieces. Each panel section is rated for up to 400 lbs and measures 37.25" W x 19.5" D x 4" H. The individual steel-panel design also makes the sections easier to handle and position during installation.
Designed primarily for compatible Atlas PRO8000-series four-post lifts, the ATEXH-FP8 is also compatible with the Atlas APEX8. The panels may fit certain other four-post lift brands or models with matching dimensions; however, proper fitment should always be verified before purchasing.
ATEXH-FP8 Floor Panel Specifications
-
Brand: Atlas
-
Model / Part Number: ATEXH-FP8
-
Product Type: Floor Panel Set
-
Total Panel Quantity: 8 Pieces
-
Configuration: 6 Middle Panels & 2 End Panels
-
Capacity Per Panel Section: 400 lbs
-

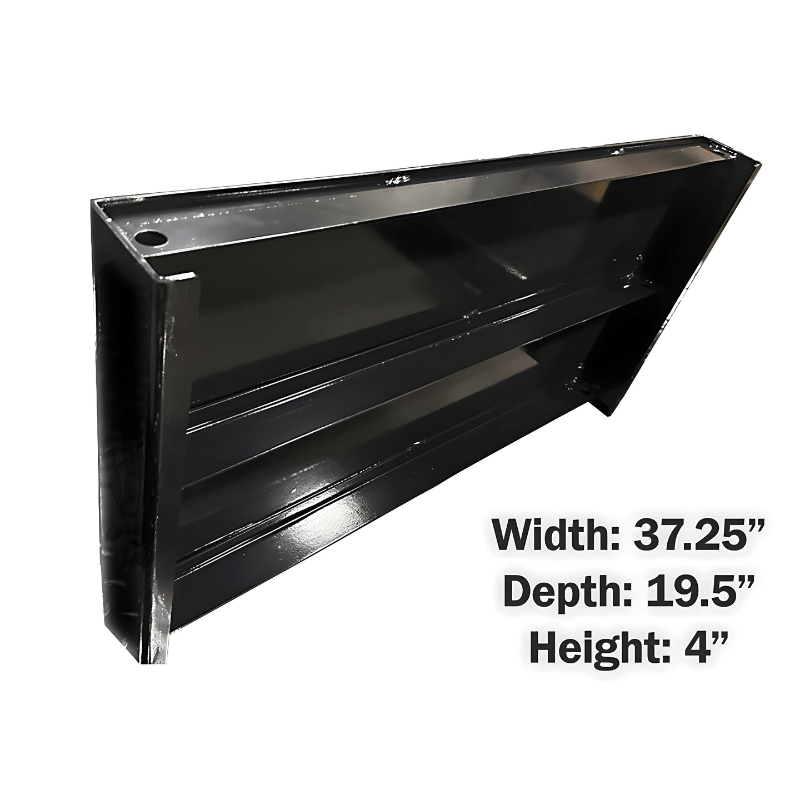

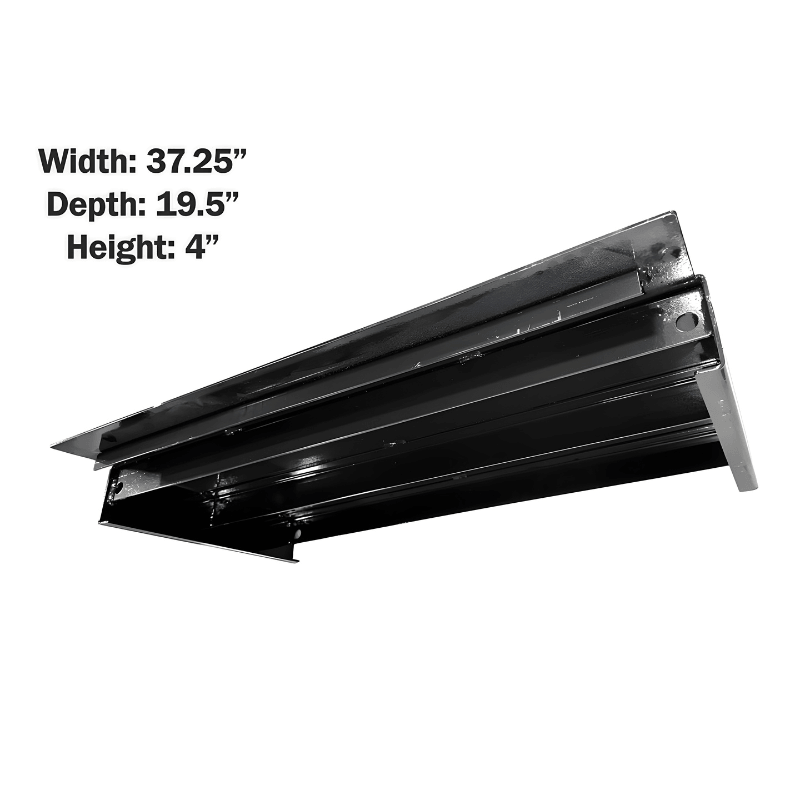

Panel Dimensions: 37.25" W x 19.5" D x 4" H
-

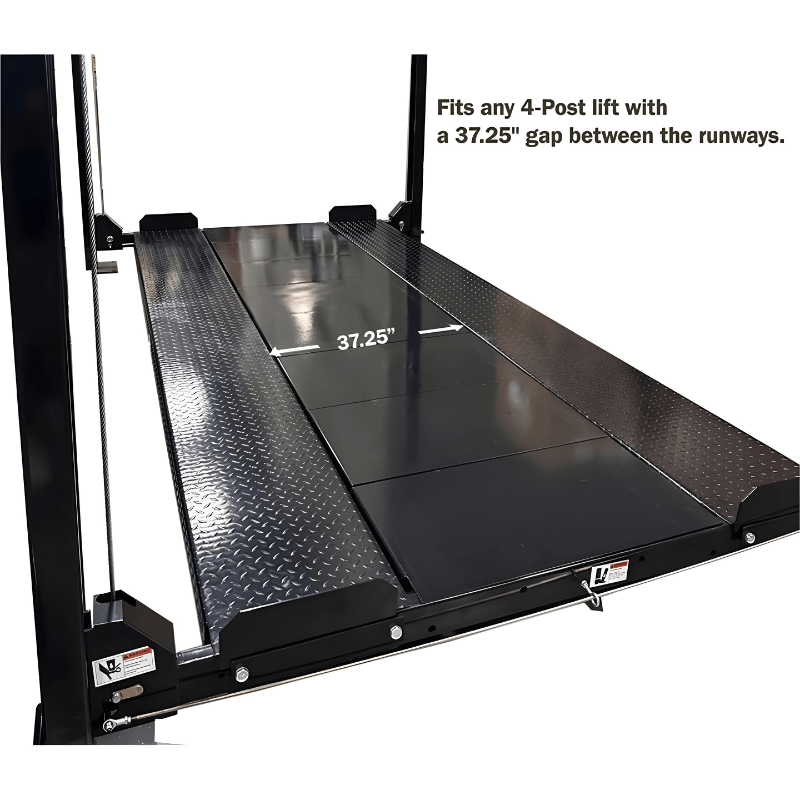

Application: Covers the open space between four-post lift runways
-
Compatible Lift Capacity: 8,000 lbs
-

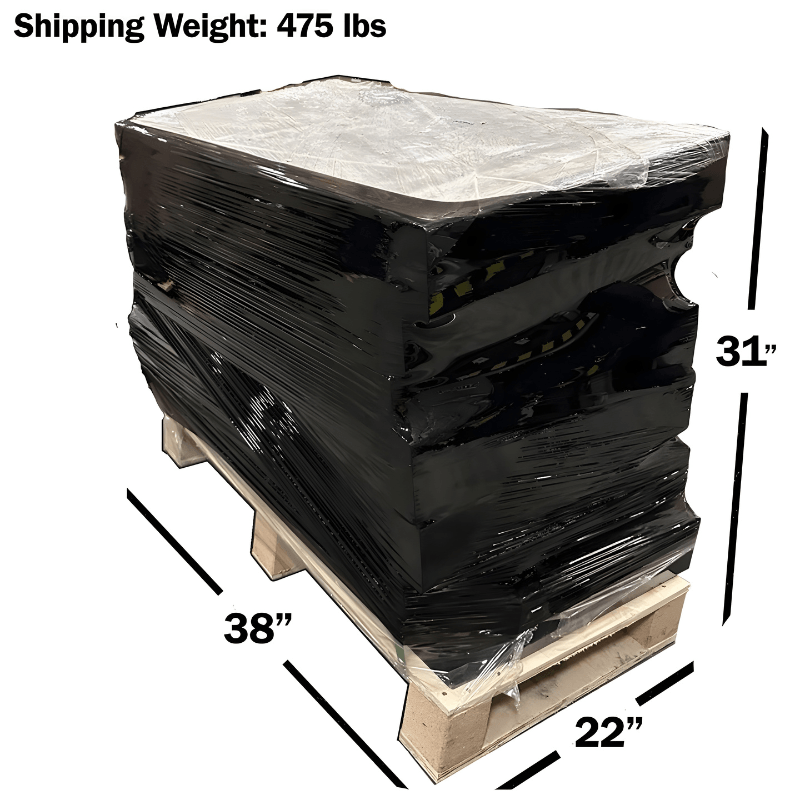

Shipping Weight: 475 lbs
-
Pallet Dimensions: 38" x 22" x 31"
ATEXH-FP8 Special Features
-
Complete 8-piece floor panel set
-
Includes six middle panels and two end panels
-
Fills the open space between compatible four-post lift runways
-
Creates additional elevated garage storage space
-
400 lb capacity per panel section
-
Individual panel design allows for easier handling and installation
-
Helps maximize available storage space in garages and shops
-
Allows additional storage above a vehicle parked underneath the lift
-
Ideal for storing tires, tools, automotive parts, and seasonal equipment
-
Individual replacement panels are available
-
Designed for compatible Atlas 8,000 lb four-post lifts
-
May fit other lift brands and models with compatible dimensions
Compatible Lift Models
Manual
Coming Soon
Important Compatibility Note
The Atlas ATEXH-FP8 Floor Panel Set is designed for compatible Atlas 8,000 lb four-post lifts. Although the panels may fit certain other lift brands and models, compatibility is not guaranteed. Verify the runway spacing and required panel dimensions before ordering.
Always observe the specified 400 lb capacity per panel section and follow the manufacturer's instructions regarding proper installation, load placement, and use.
