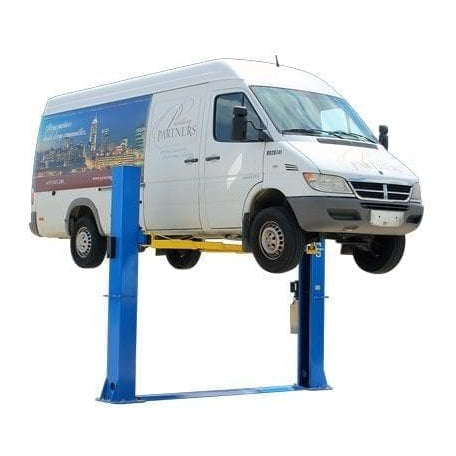

Atlas® BP10000X – 10,000 lb. Capacity Commercial-Grade Baseplate 2-Post Lift
The Atlas® BP10000X is a commercial-grade baseplate two-post lift engineered for shops and garages with limited ceiling height that still need the capability to lift heavy vehicles. With its 10,000 lb. lifting capacity, this model is perfect for handling everything from compact cars and SUVs to one-ton dually trucks, all while fitting comfortably under ceilings as low as 11 feet.
Built for strength and longevity, the BP10000X features oversized columns reinforced with a welded center support gusset for added structural rigidity. Its single-point lock release system provides simple and efficient operation, while the baseplate design ensures smooth lifting performance without the need for an overhead beam.
Whether you’re outfitting a professional repair facility or a home workshop, the Atlas® BP10000X delivers heavy-duty performance and versatility in a low-clearance setup—making it one of the best value lifts in its class.
Features
-
10,000 lb. Lifting Capacity
-
Commercial-Grade Construction for demanding shop environments
-
Baseplate, Open-Top Design — ideal for low-ceiling garages
-
Overall Height: 111 ⅞″ (9′ 3 ⅞″)
-

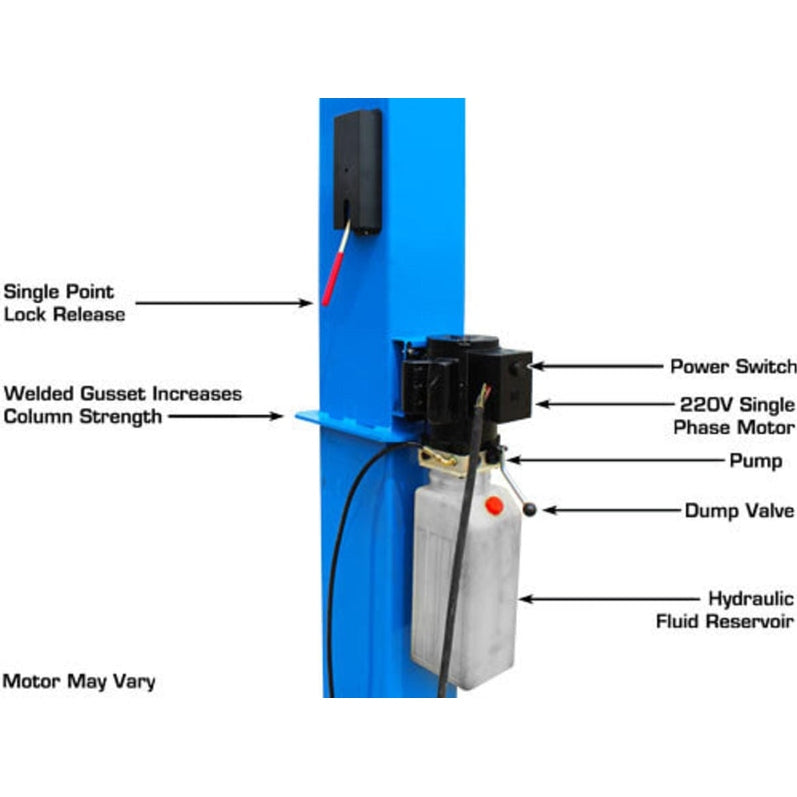

Single-Point Lock Release System allows both columns to disengage simultaneously for convenient operation
-

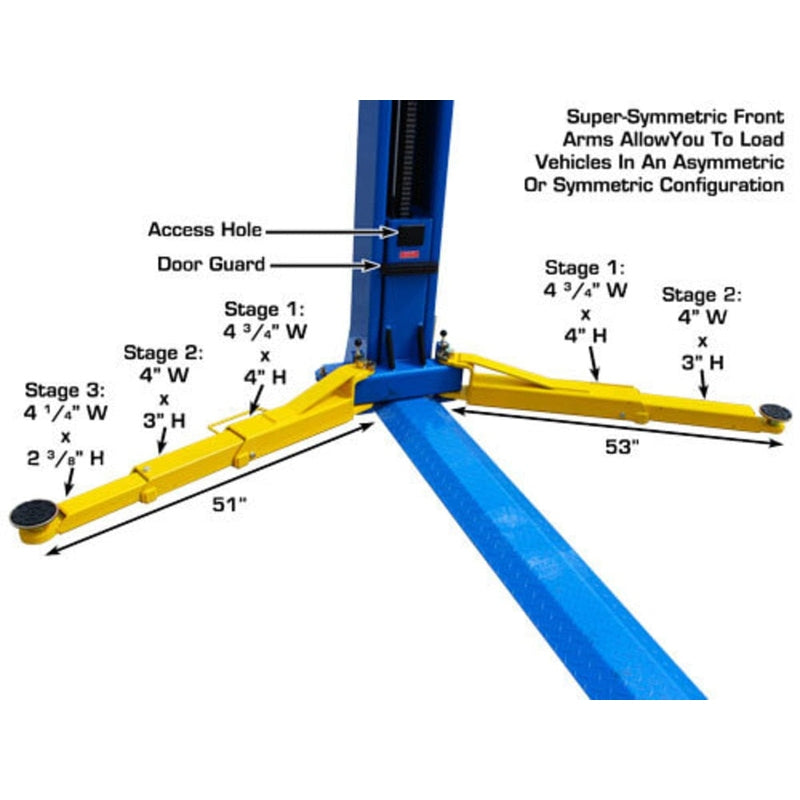

Super-Symmetric Arm Design accommodates a wide range of vehicles
-

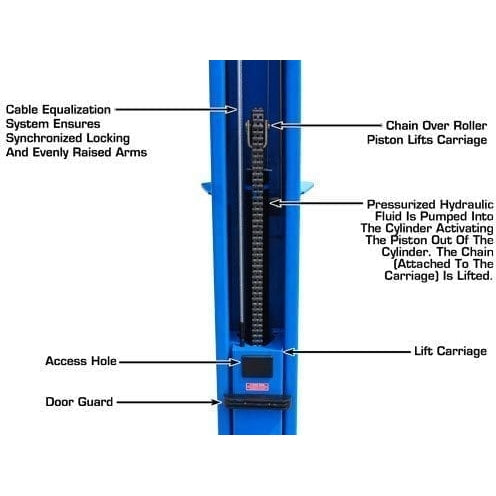

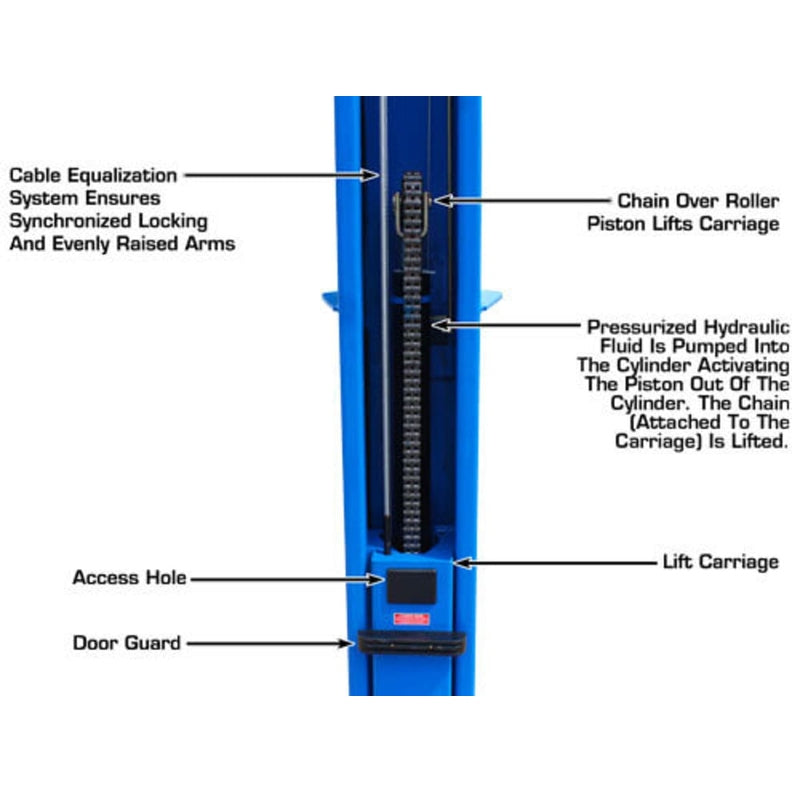

Dual Hydraulic Chain-Drive Cylinders built to ANSI standards for durability and smooth lifting performance
-
Welded Reinforcement Gussets add strength and rigidity to the oversized columns
-

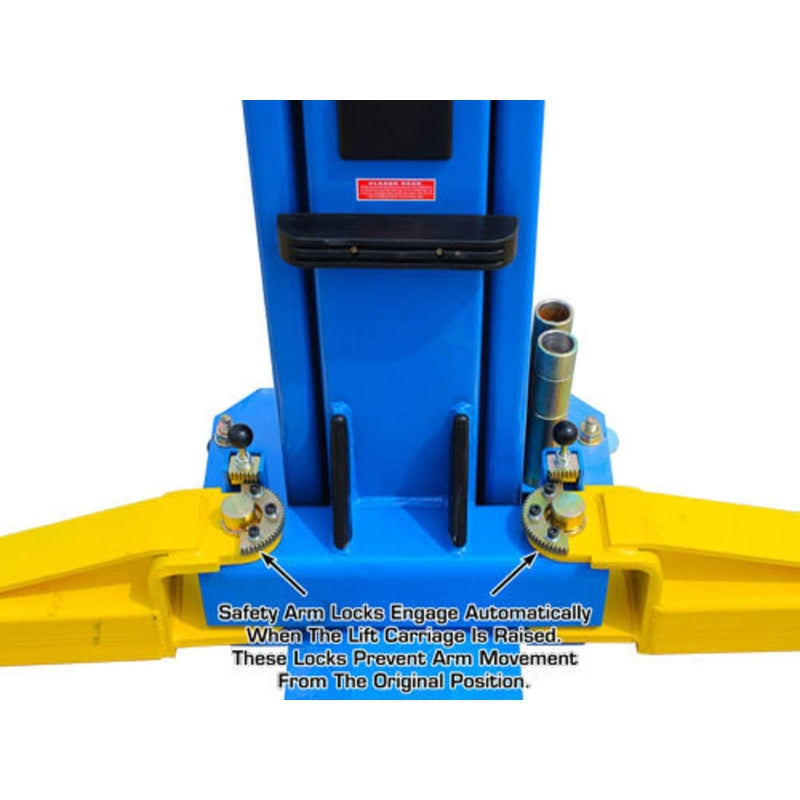

Automatic Arm Restraints ensure secure vehicle lifting
-
Durable Powder-Coated Finish for long-lasting protection
-

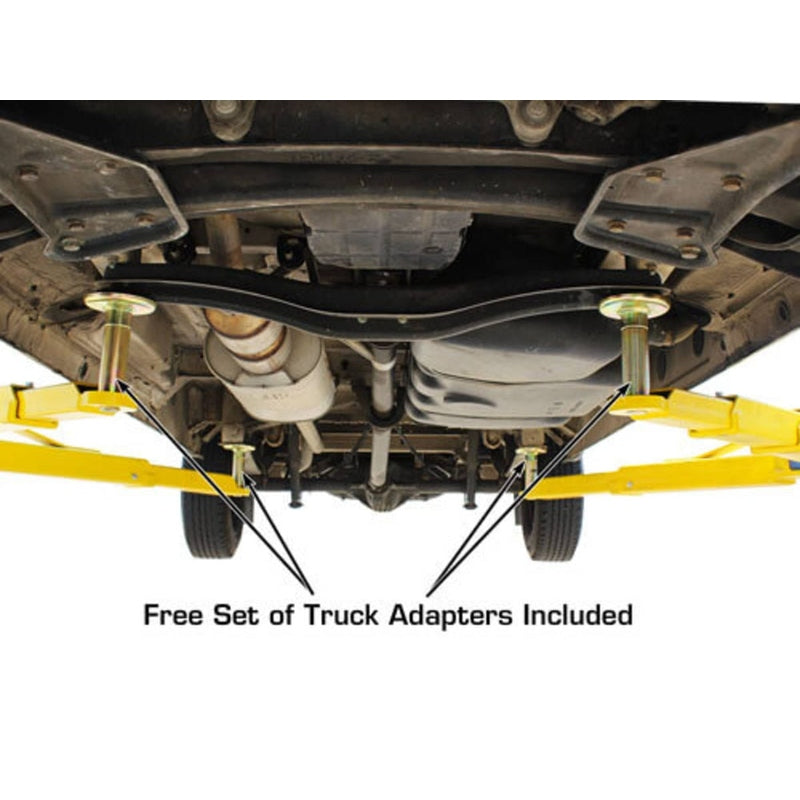

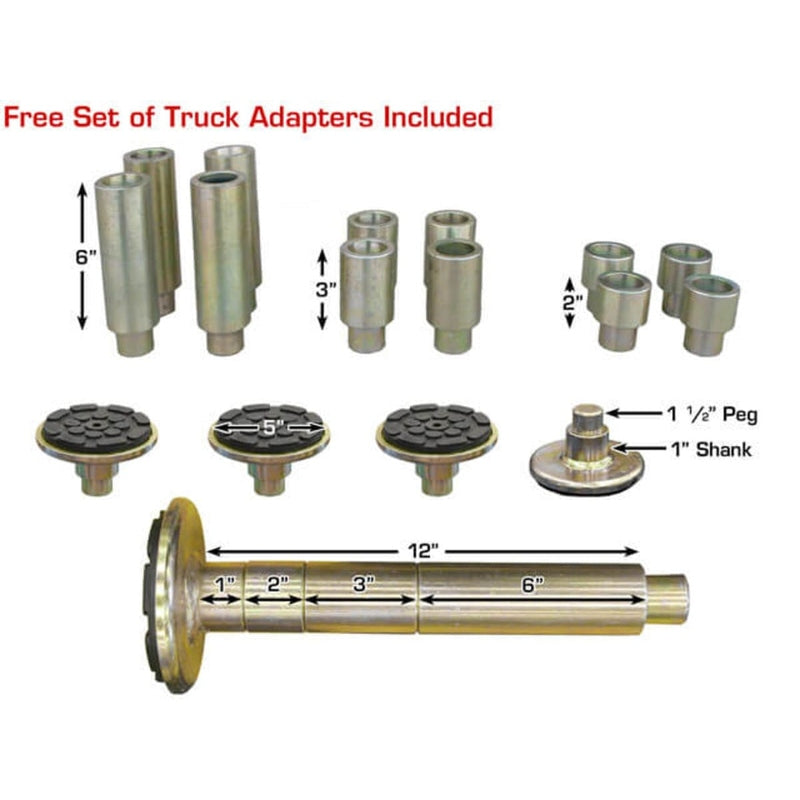

Includes Free 12-Piece Truck Adapter Set
-

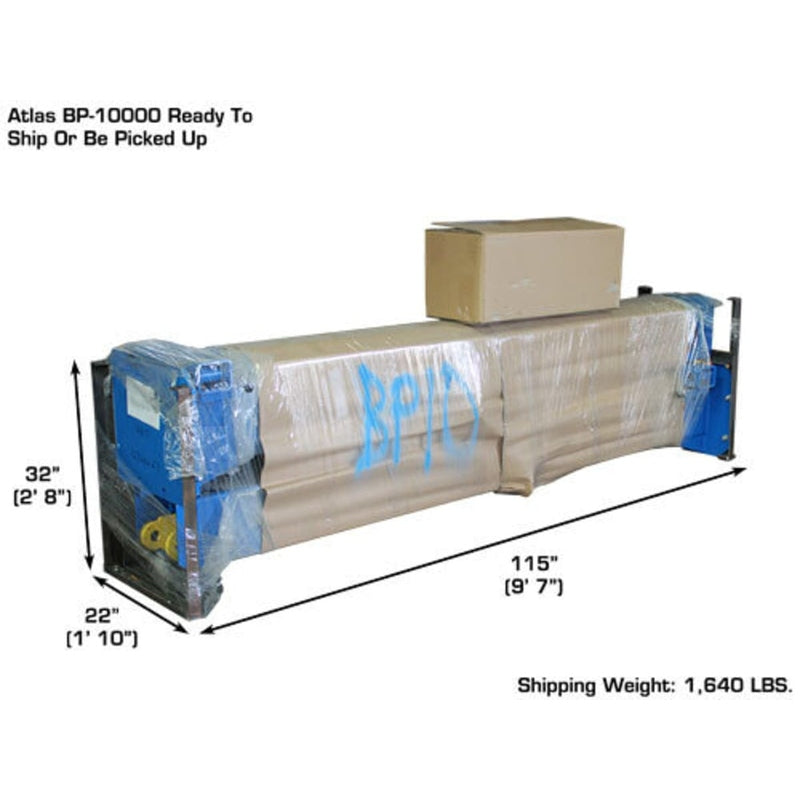

Shipping Weight: 1,640 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 10,000 lb. |

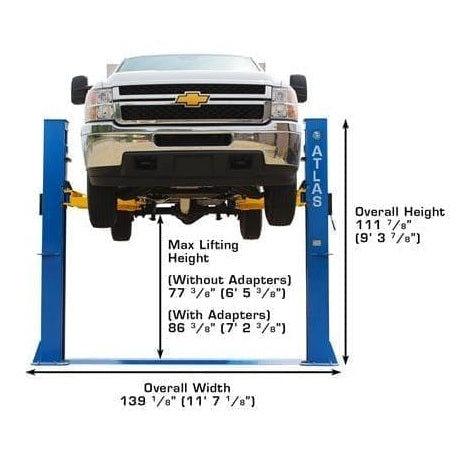

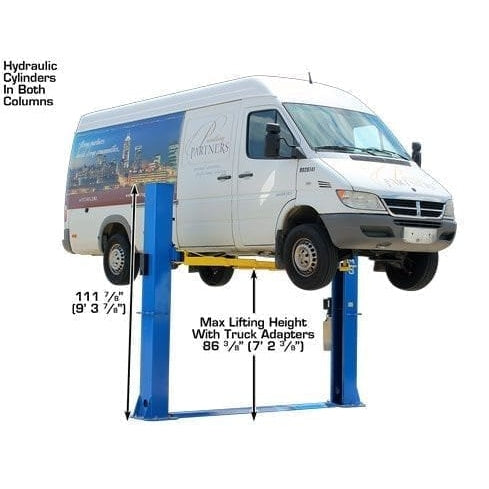

| Overall Height | 111 ⅞″ (9′ 3 ⅞″) |

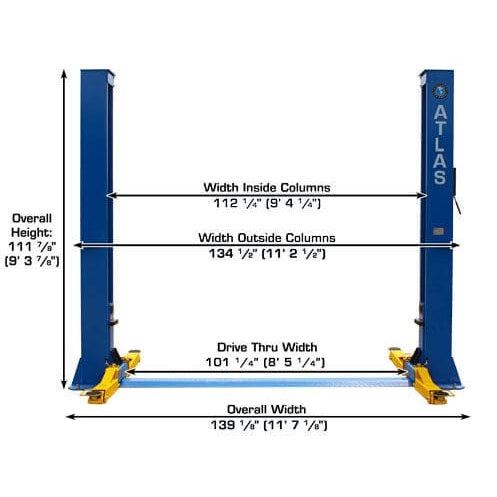

| Overall Floor Width | 139 ⅛″ (11′ 7 ⅛″) |
| Outside Column to Outside Column | 134 ½″ (11′ 2 ½″) |

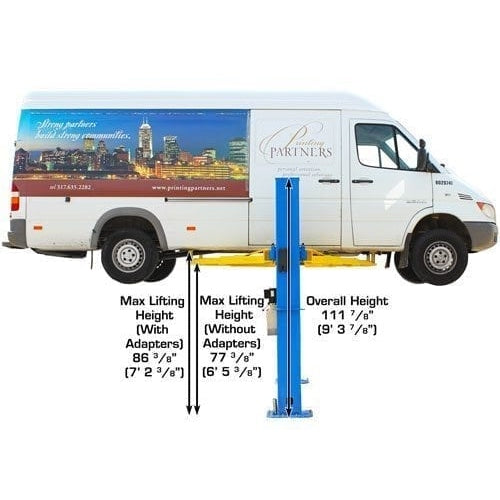

| Maximum Lift Height (Without Adapters) | 77 ⅜″ |
| Maximum Lift Height (With Adapters) | 86 ⅜″ |
| Minimum Arm Height | 4″ |

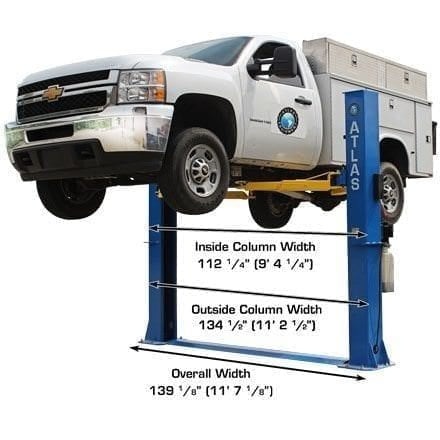

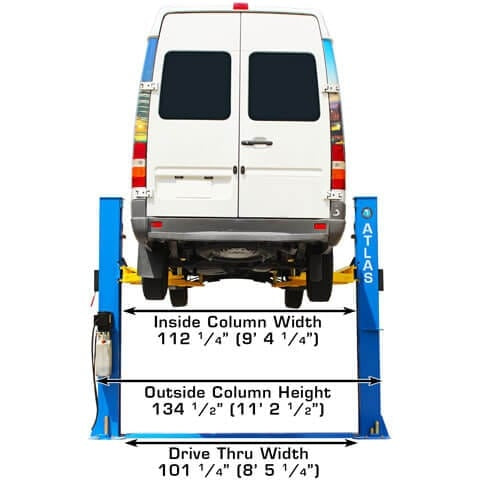

| Inside Column Width | 112 ¼″ (9′ 4 ¼″) |
| Drive-Through Clearance | 101 ¼″ (8′ 5 ¼″) |

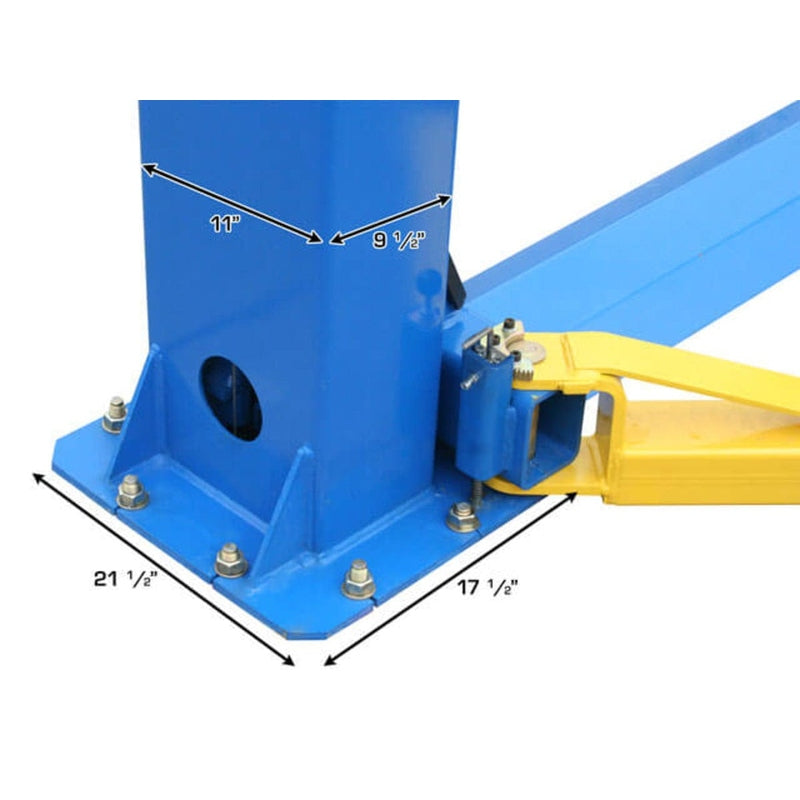

| Column Size | 9 ½″ × 11″ |
| Column Steel Thickness | 6 mm |

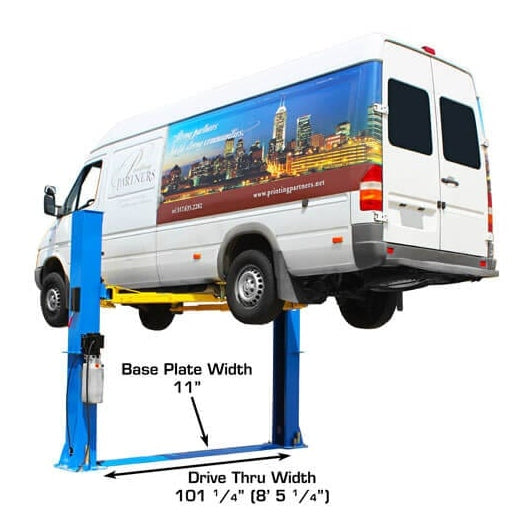

| Base Plate Dimensions | 17 ½″ × 21 ½″ |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 1,640 lb. |

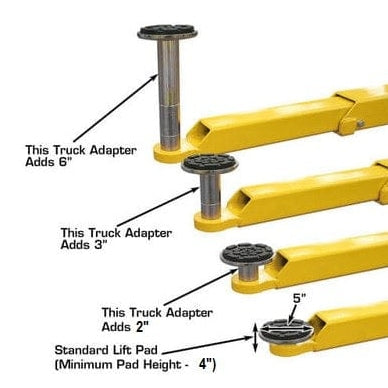

| Adapter Heights | Four each: 2″, 3″, 6″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 4″ thick slab rated at 3,000 PSI |
