Description
The Atlas® BP8000 2-Post Lift with Lawn Mower Adapter (LMA) Combo is a versatile lifting solution designed for both professional and home garages with limited ceiling height. With an overall column height of just 108 inches (9 feet), the BP8000 can be installed in spaces with ceilings as low as 9′ 3″, making it ideal for compact workshops and hobby garages.

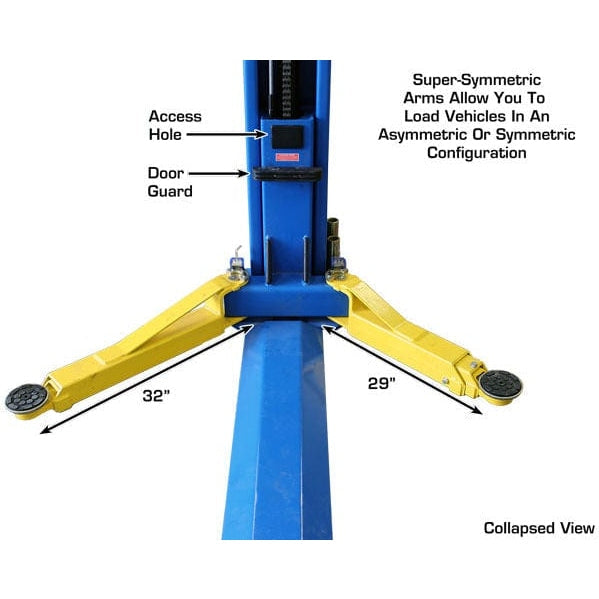

Despite its low-profile design, the BP8000 offers many of the same premium features found on larger, commercial-grade lifts, including a single-point lock release, Super-Symmetric arms, and a 12-piece truck adapter set.

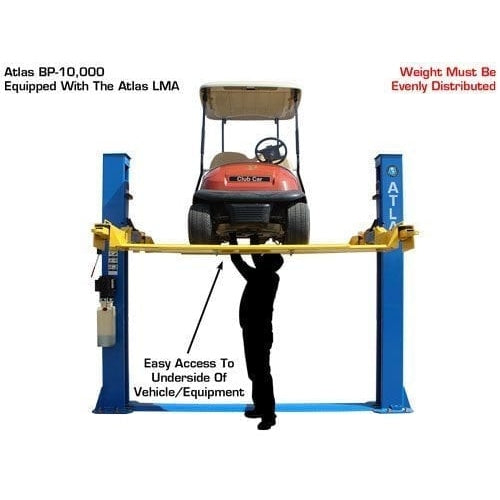

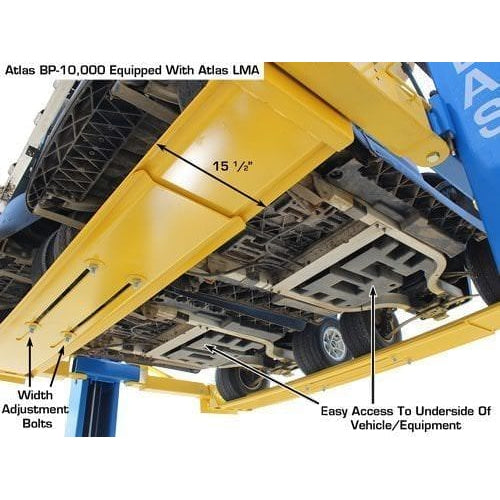

This combo package also includes the Atlas® Lawn Mower Adapter (LMA), which expands the lift’s capabilities to safely handle ATVs, UTVs, and lawn mowers. The LMA is fully adjustable along the length of the lift arms to accommodate different wheelbase configurations. Its lifting capacity varies depending on adapter positioning and vehicle balance, with higher capacity achieved when plates are positioned closer to the columns.
Key Features
BP8000 2-Post Lift
-
8,000 lb. lifting capacity
-
Hobbyist-grade design (not intended for heavy commercial use)
-
Baseplate, open-top style configuration for low ceilings
-

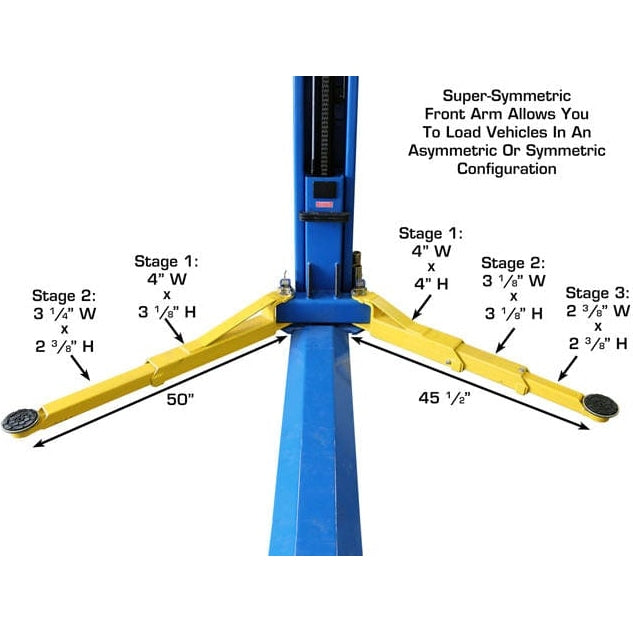

3-stage front arms and 2-stage rear arms for flexible reach
-

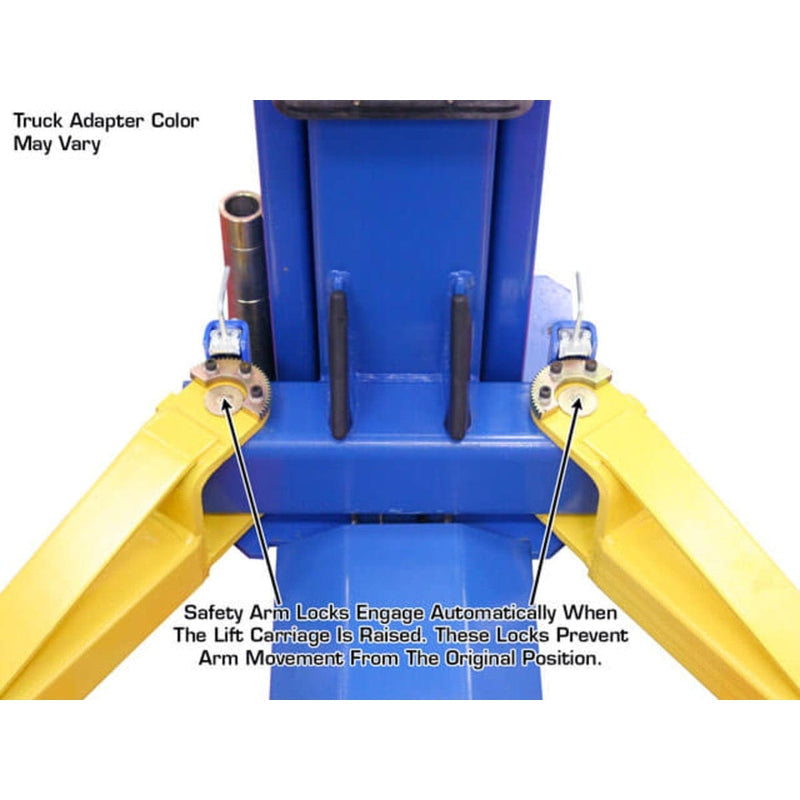

Automatic arm restraints for safety
-

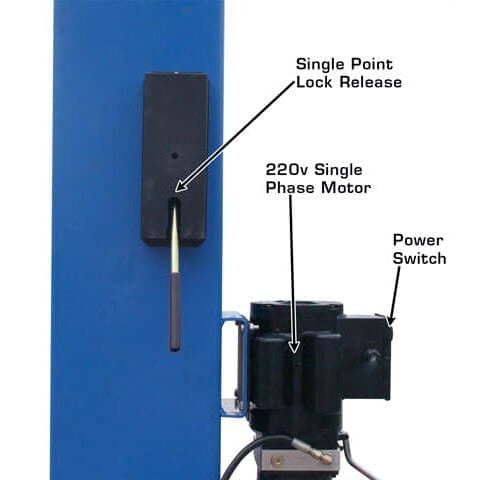

Single-point lock release for easy operation
-
Dual safety lock system
-

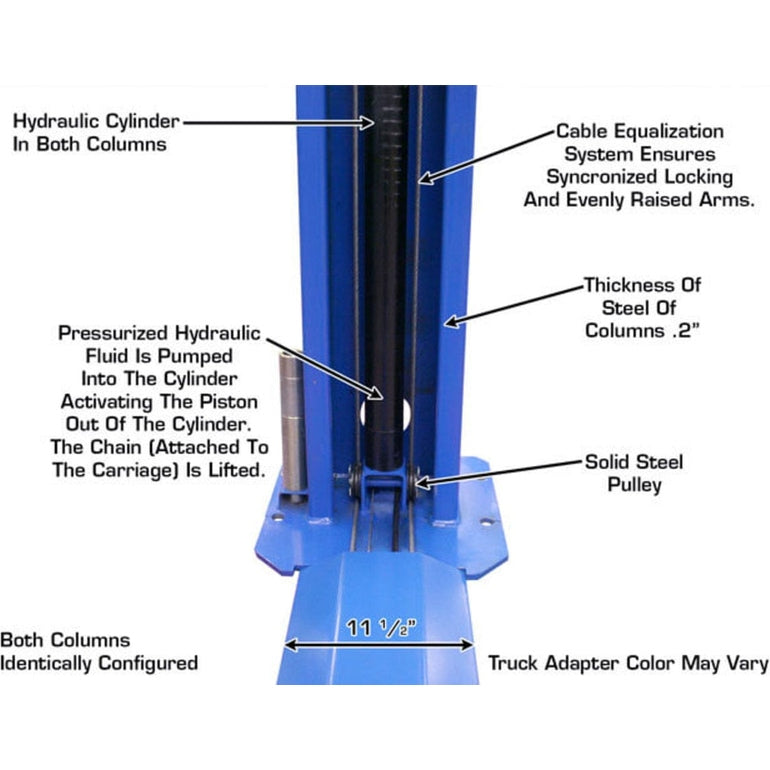

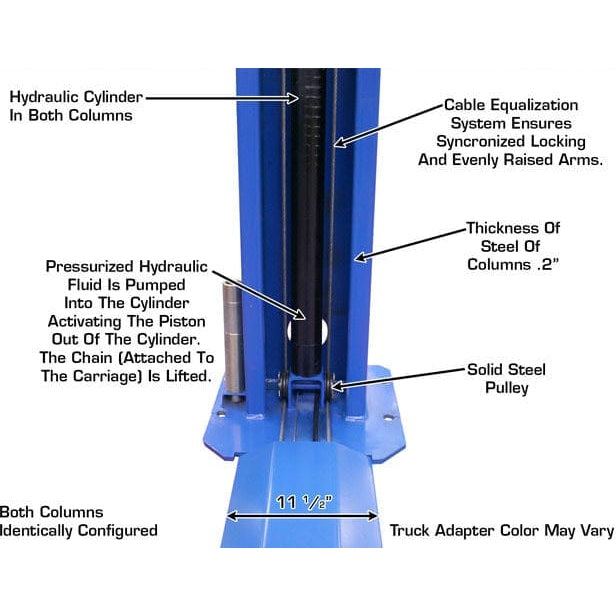

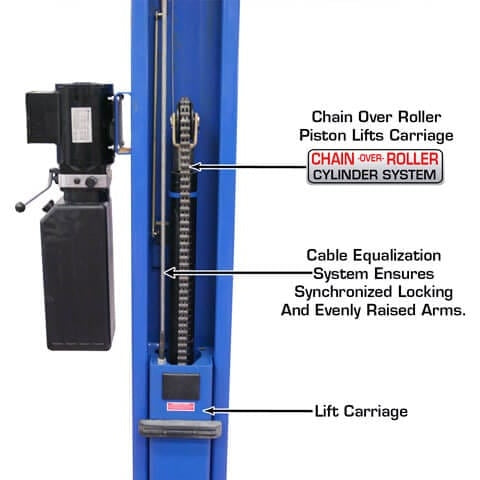

Dual hydraulic chain-drive cylinders
-

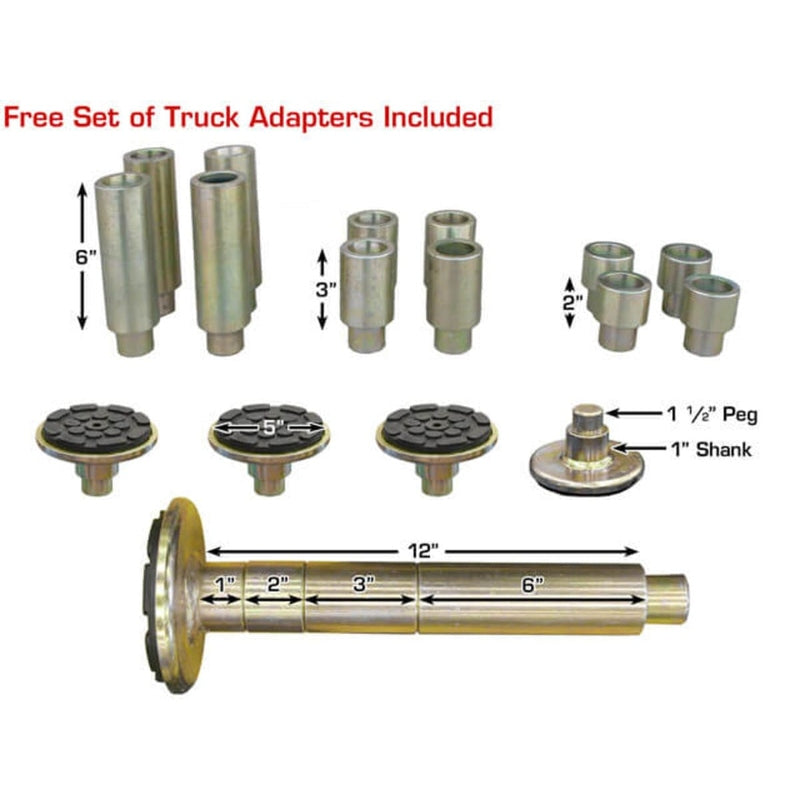

Includes 12-piece truck adapter set
-
Mounting hardware included
-
Shipping Weight: 1,300 lbs
-
Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)

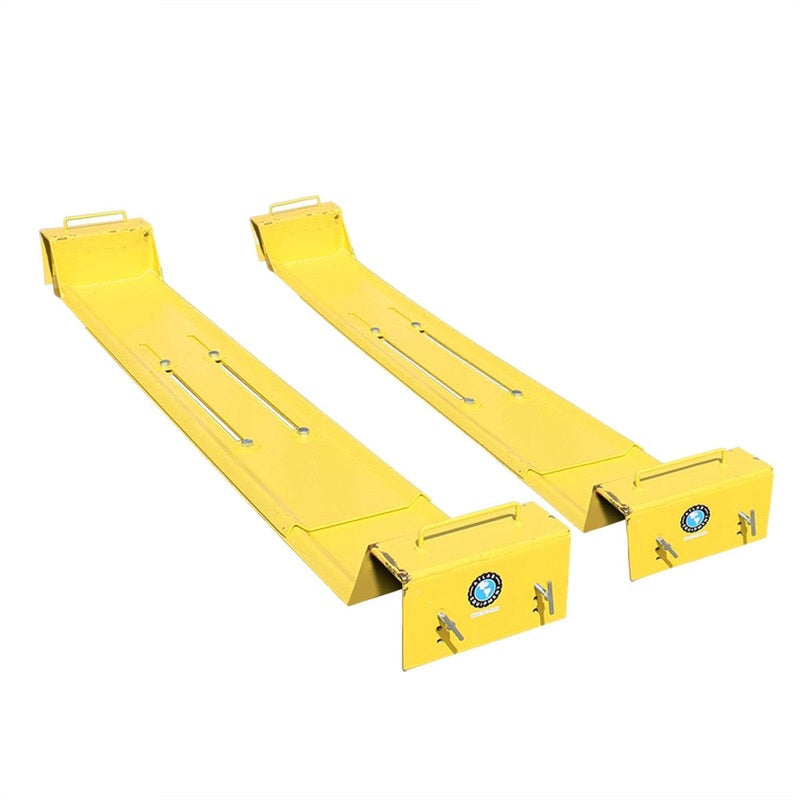

Lawn Mower Adapter (LMA)
-
“Lawn Mower” adapter for 2-post lifts
-
Includes four heavy-duty steel plates and all mounting hardware
-
Adjustable to fit various vehicle sizes and lift brands (may not work with all models)
-
Supports up to 5,000 lbs. (capacity varies by lift and wheelbase)
-

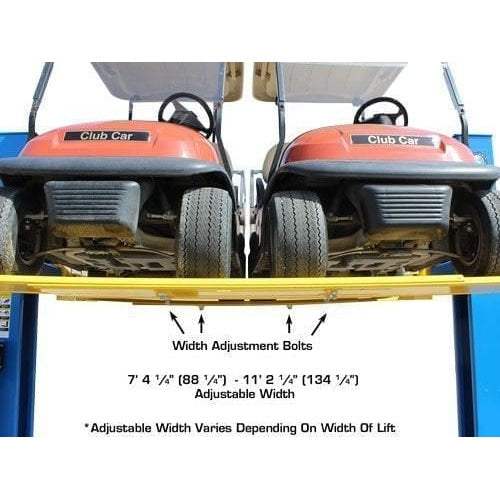

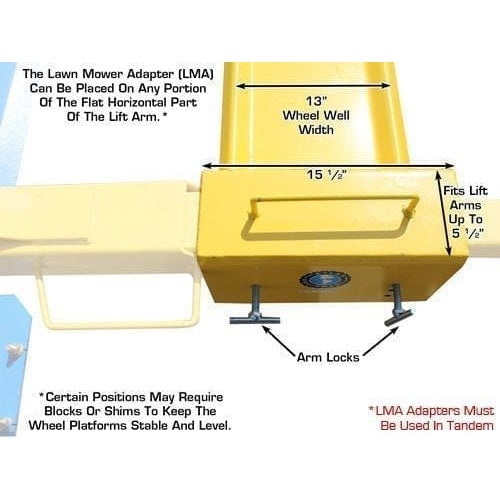

Adjustable along the length of lift arms for flexible positioning
-
Leveling blocks may be required for certain setups
Specifications
| Atlas® BP8000 2-Post Lift | Details |
|---|---|
| Capacity | 8,000 lbs |

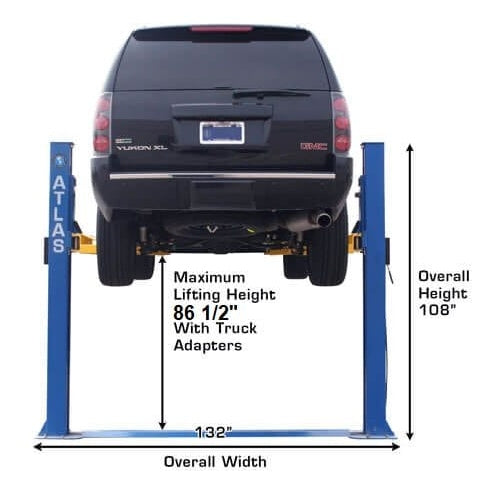

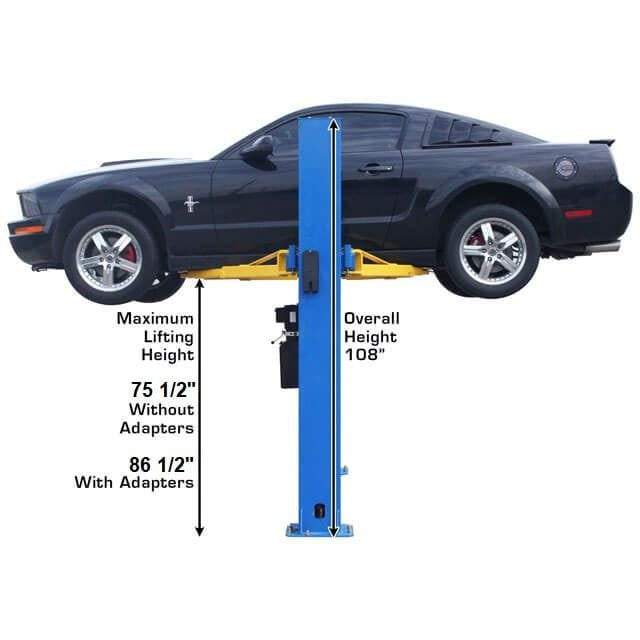

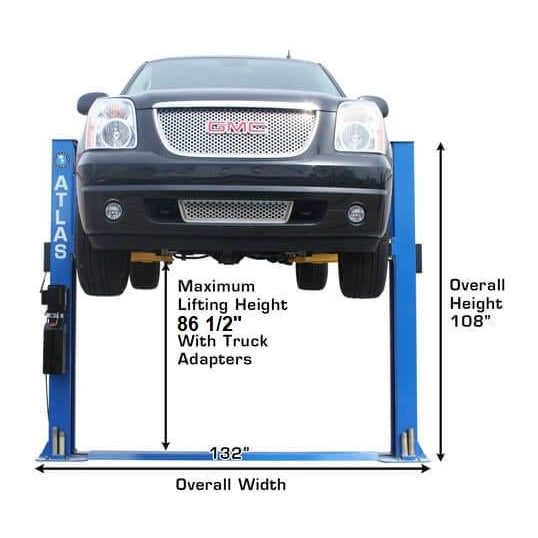

| Overall Height | 108″ (9′) |

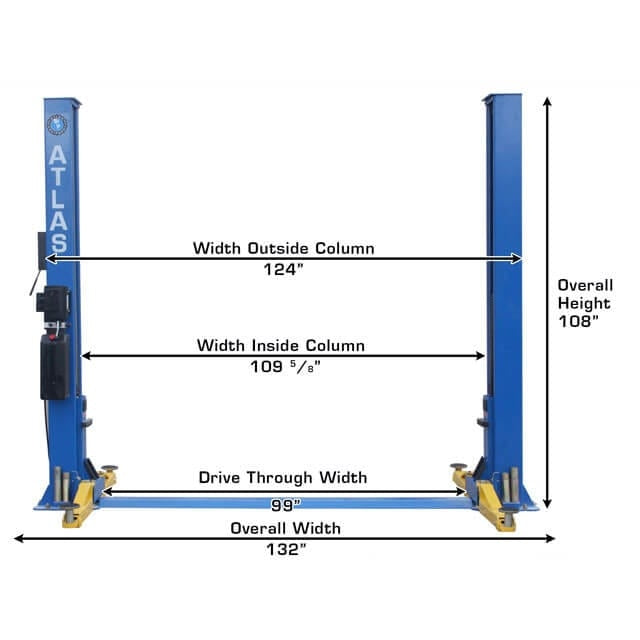

| Overall Floor Width | 132″ (11′) |

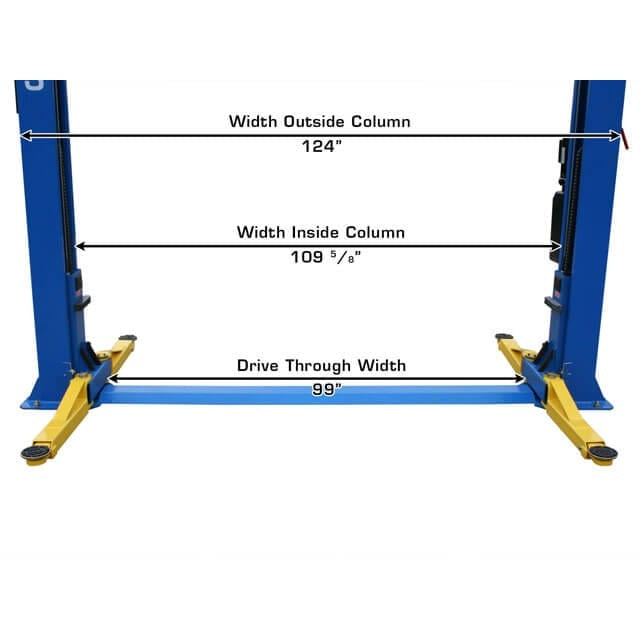

| Outside Column to Outside Column | 124″ (10′ 4″) |

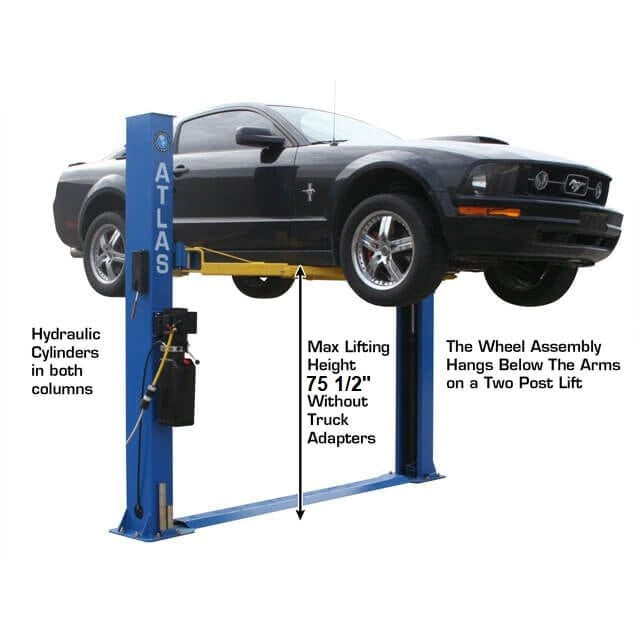

| Maximum Lift Height (Without Adapters) | 75 ½″ |

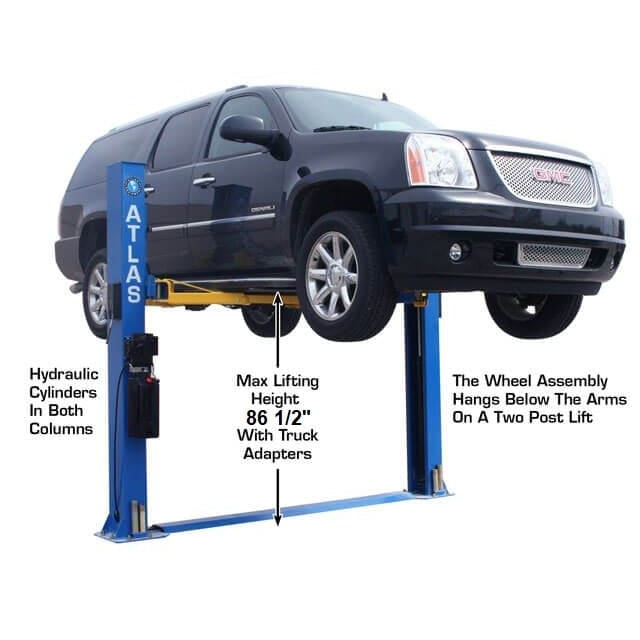

| Maximum Lift Height (With Adapters) | 86 ½″ |
| Minimum Arm Height | 4″ |
| Inside Column | 109 ⅛″ (9′ 1 ⅛″) |

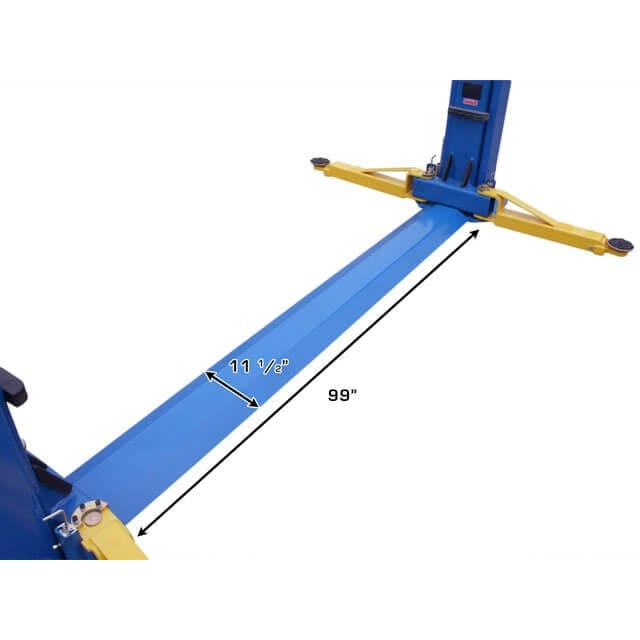

| Drive-Thru Clearance | 99″ (8′ 3″) |

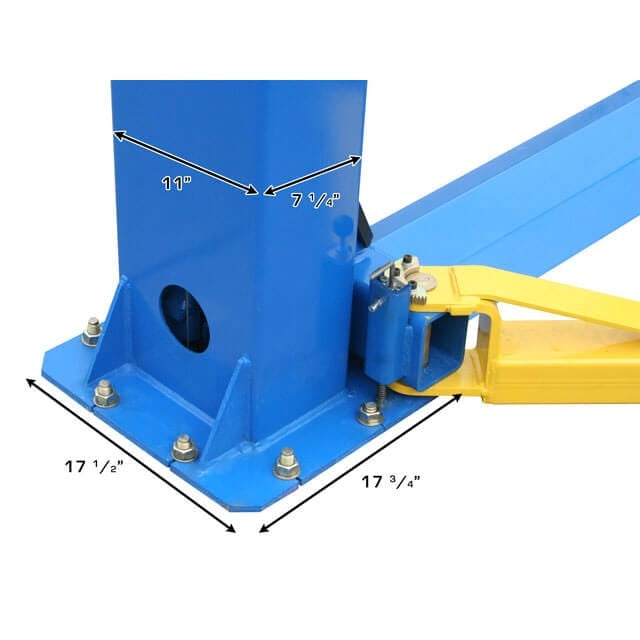

| Column Size | 7 ¼″ × 11″ |
| Column Steel Thickness | 6 mm |

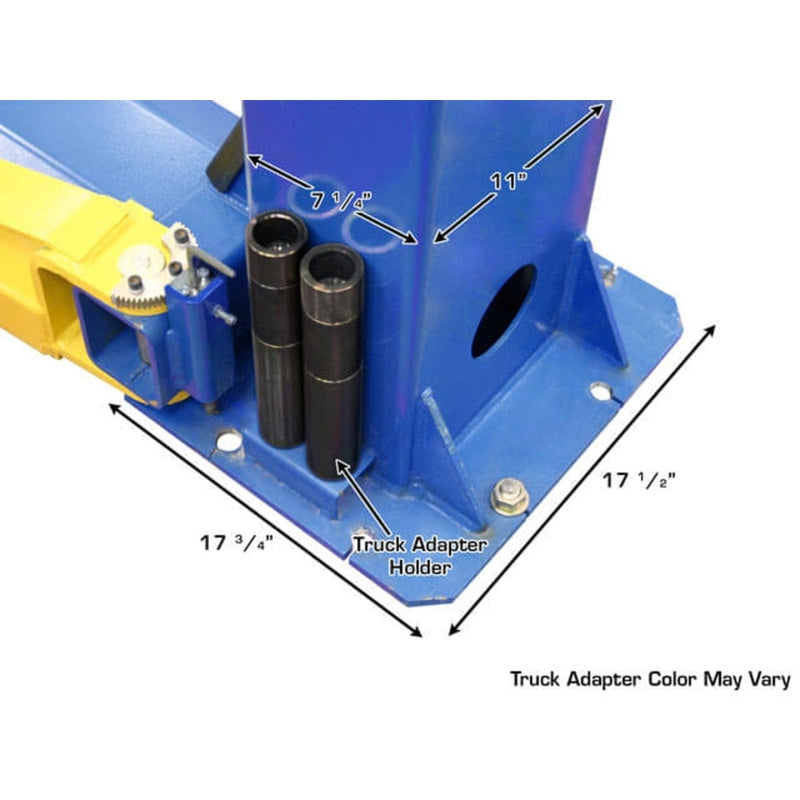

| Base Plate | 17 ½″ × 17 ¾″ |

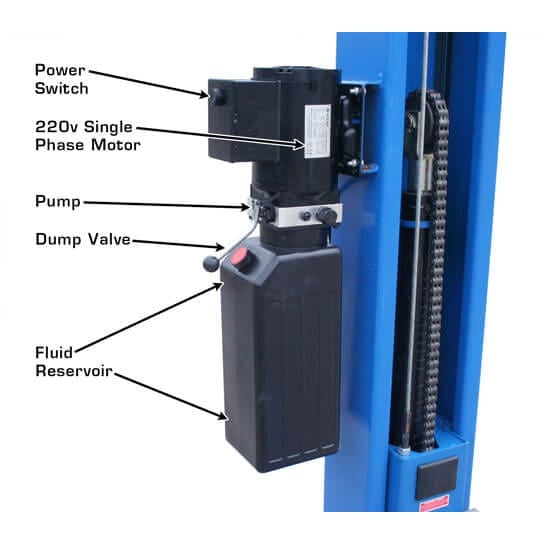

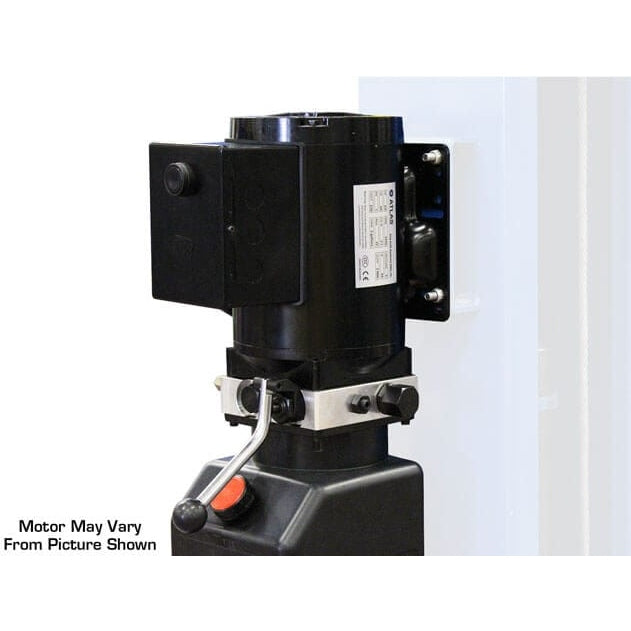

| Motor / Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |

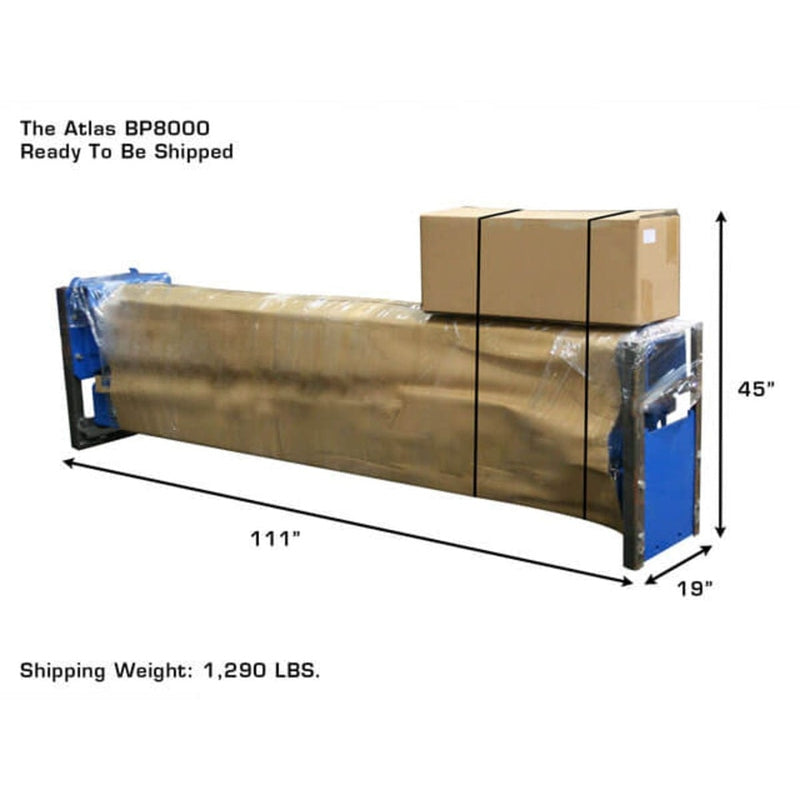

| Shipping Weight | 1,300 lbs |

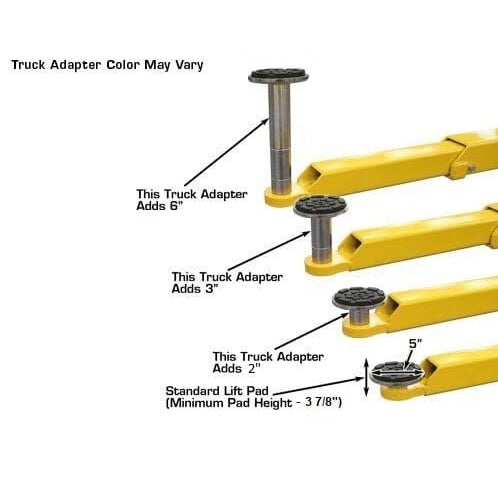

| Adapter Heights | Four each: 2″, 3″, 6″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Minimum Concrete Requirement | 4″ thick at 3,000 PSI rating |
| Atlas® Lawn Mower Adapter (LMA) | Details |
|---|---|
| Capacity | Up to 5,000 lbs* |

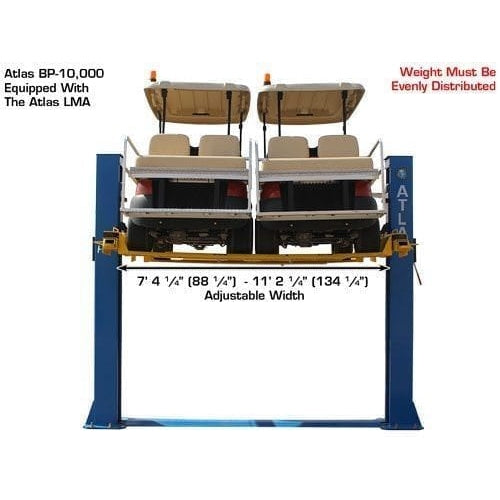

| Adjustable Width | 8′ 11″ |

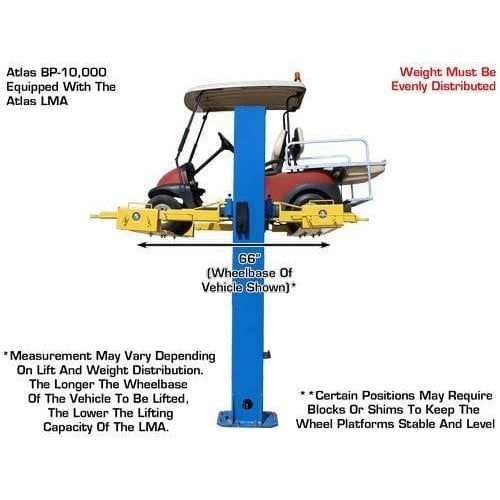

| Wheelbase Range | 32″ – 90″** |
| Wheel Well Width | 12″ |
| Steel Thickness | ¼″ (2 gauge) |

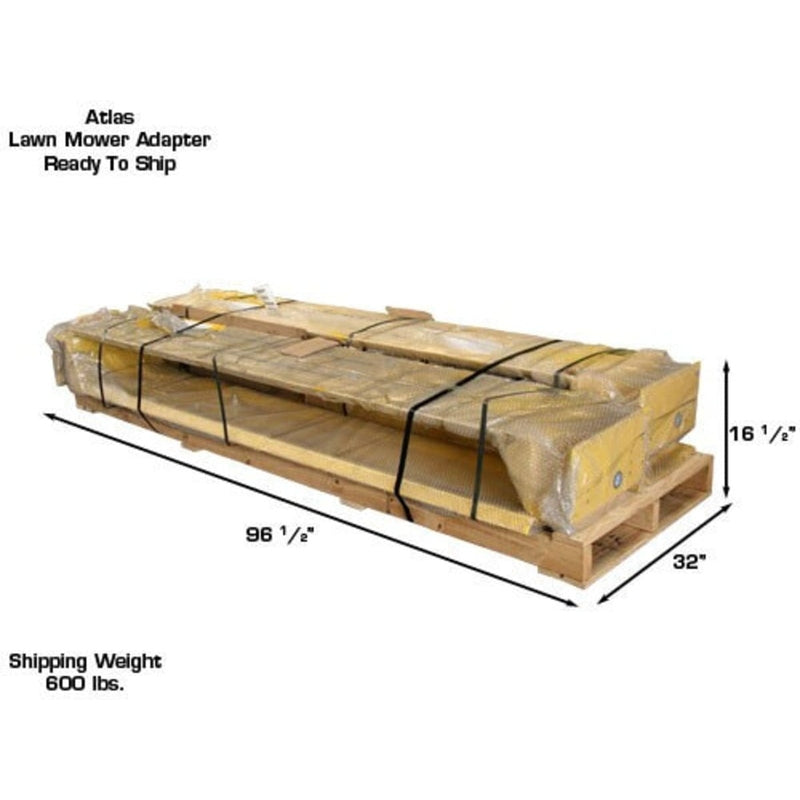

| Shipping Weight | 600 lbs |
| Composition | Two independent wheel platforms (lift not included) |
* Capacity may vary depending on lift model and weight distribution.
** Longer wheelbases may require blocks or shims to maintain stability and level lifting.
Documents
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
