Description

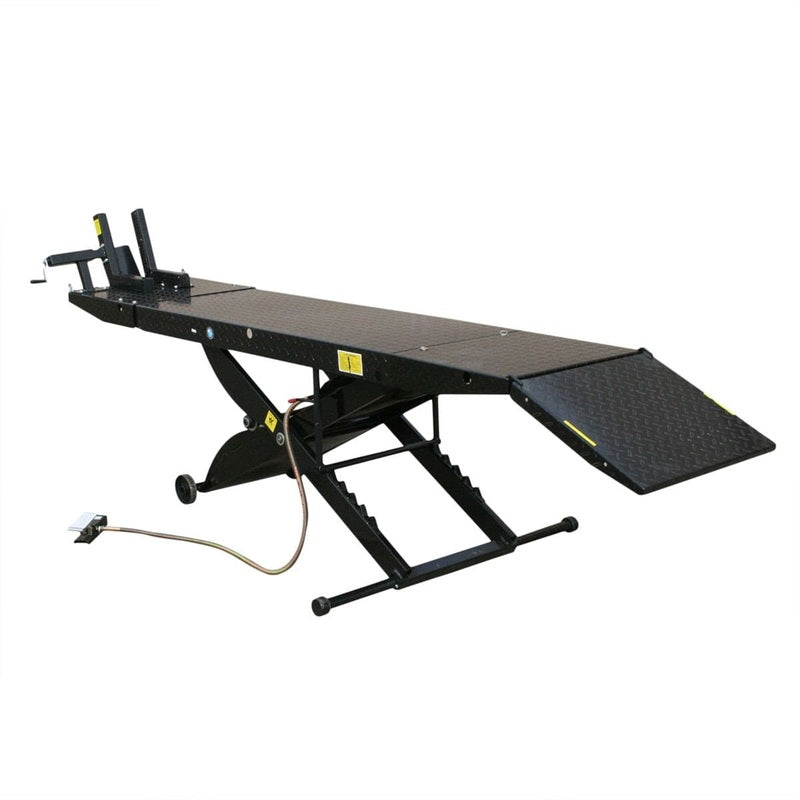

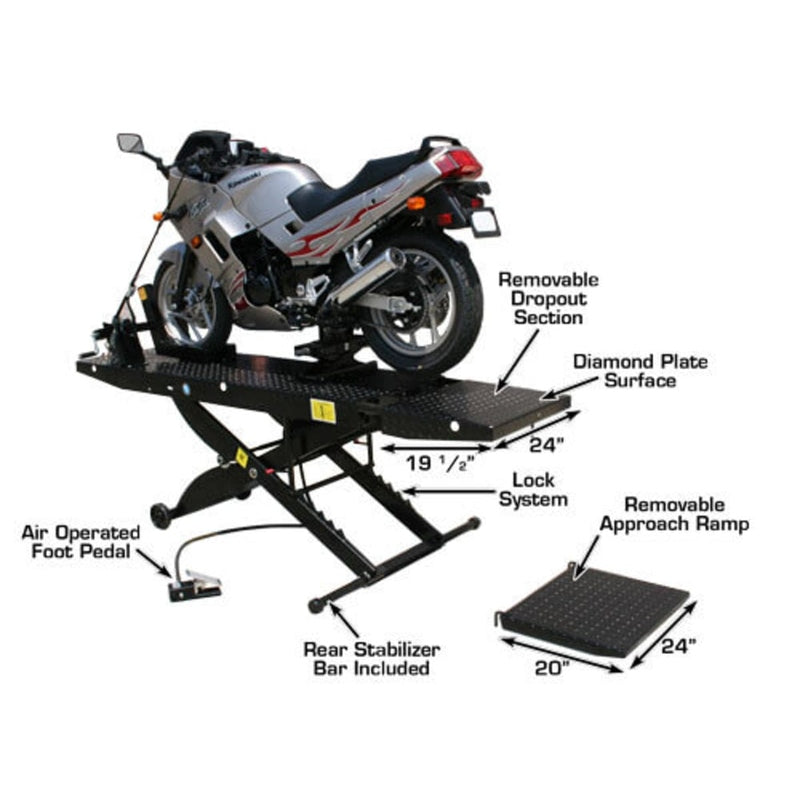

The Atlas® Air-Operated Cyclelift is engineered to deliver professional-grade performance for both motorcycle service departments and enthusiasts who want a dependable, shop-quality lift in their own garage. Built for strength and convenience, it features one of the longest standard platforms in the industry—a 93-inch heavy-gauge diamond-plated deck with an additional 20-inch removable approach ramp, providing ample space for even the longest motorcycles.

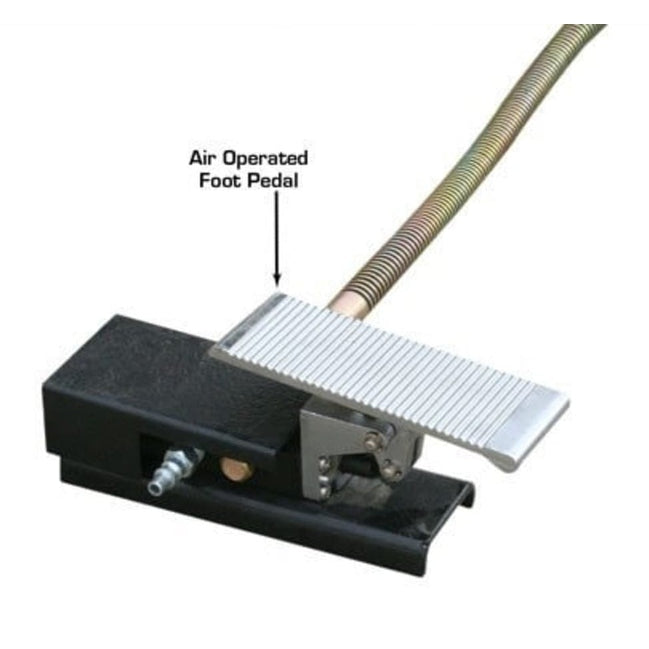

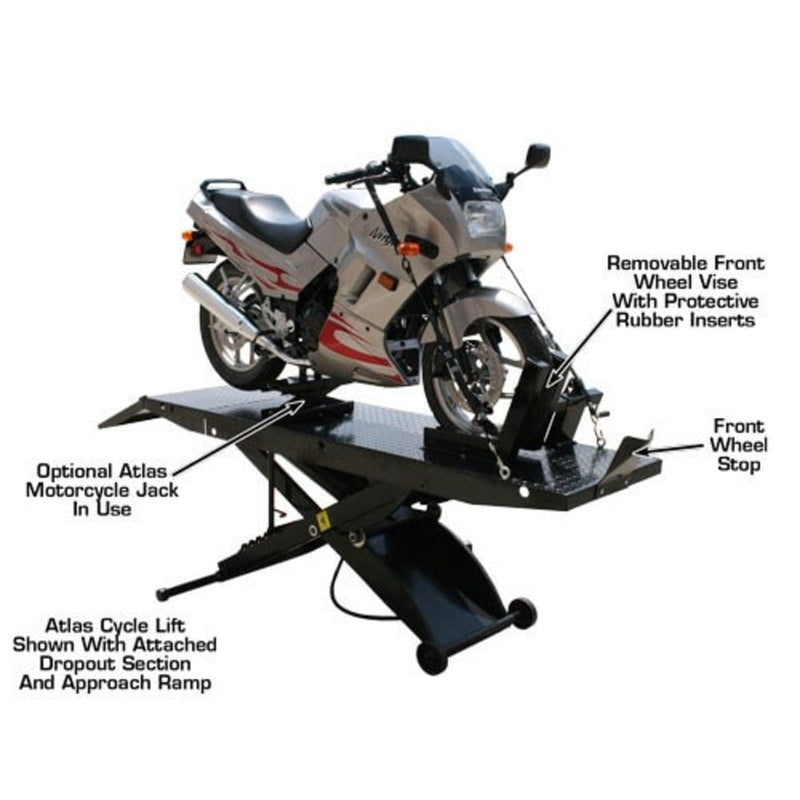

Powered by a high-quality air-operated hydraulic system, the Cyclelift operates smoothly at 90–100 PSI of air pressure, allowing effortless lifting and lowering. The package includes an adjustable padded front wheel vise and a heavy-duty foot pedal control, making operation simple and precise.

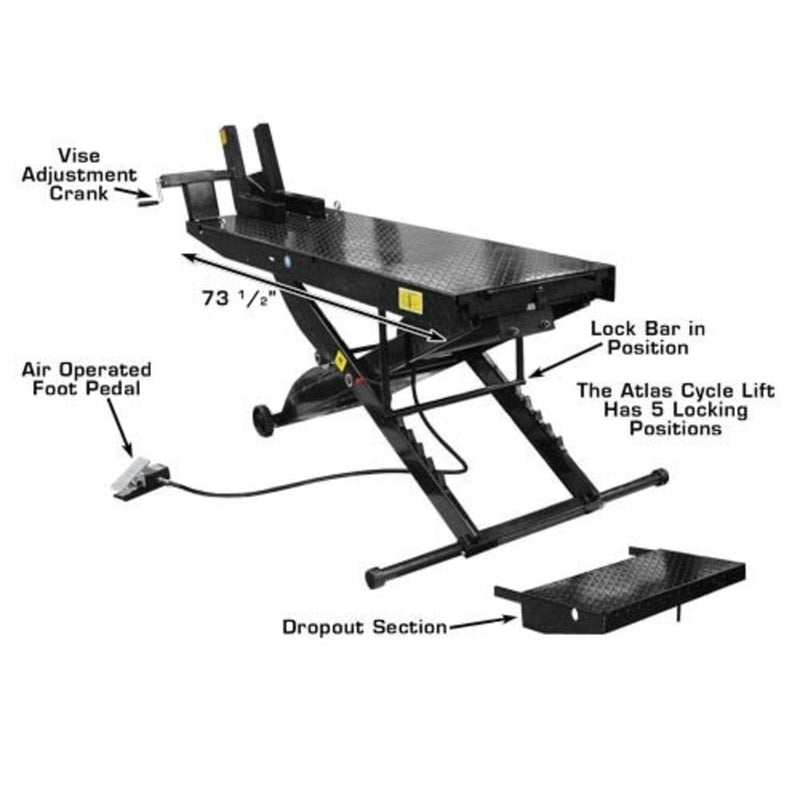

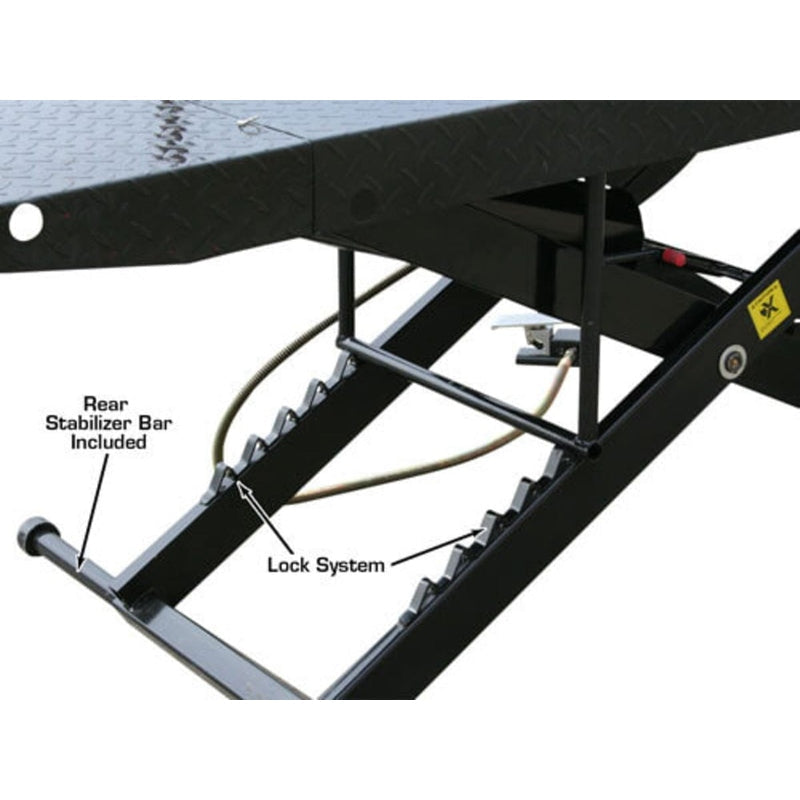

The lift also includes a stabilizing bar (standard), which increases the platform’s footprint for added safety and stability while elevated—a premium feature many competing brands charge extra for.

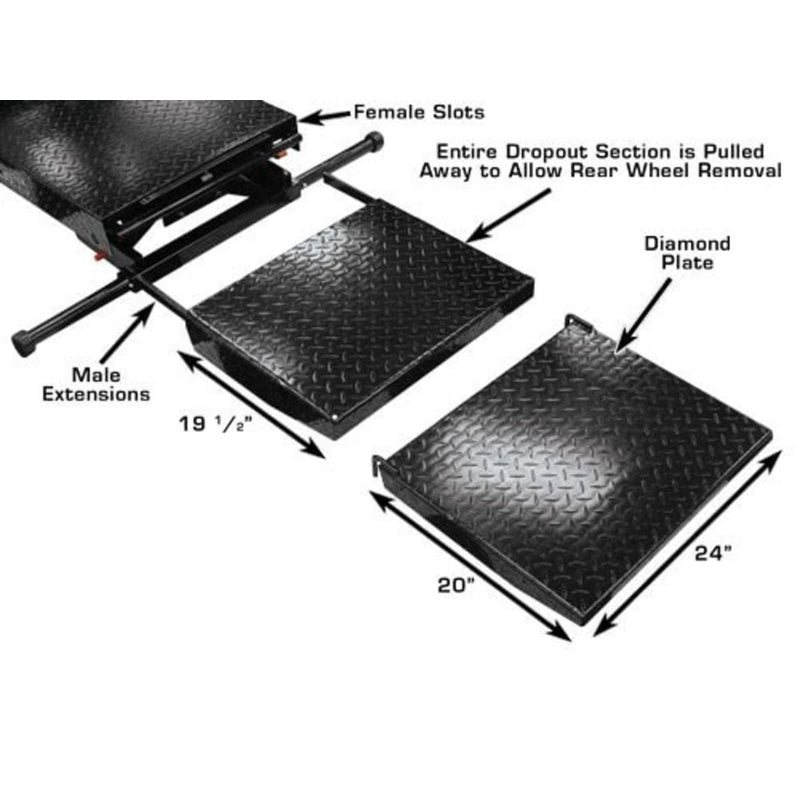

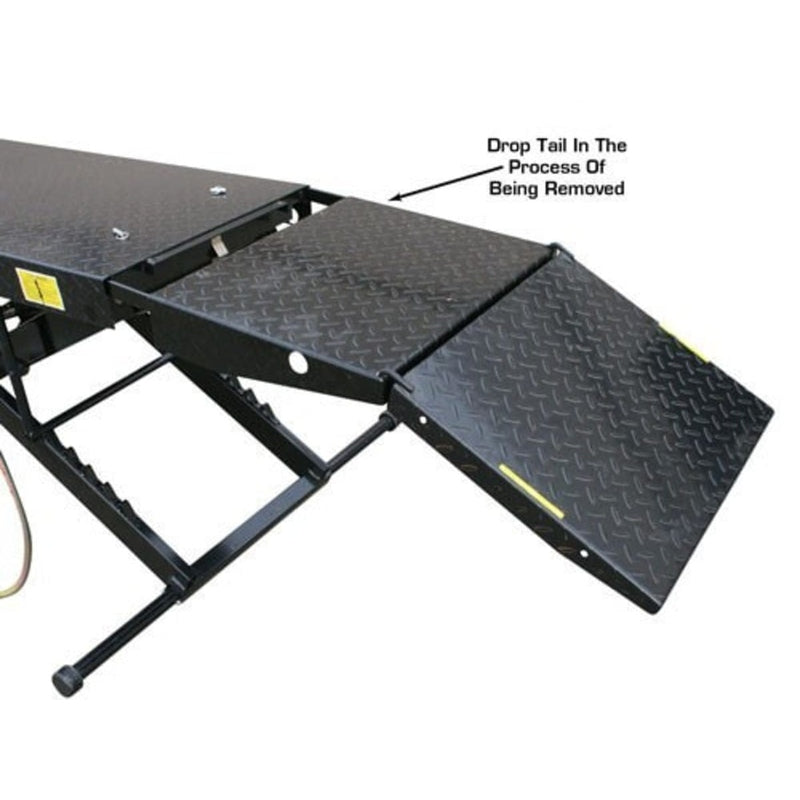

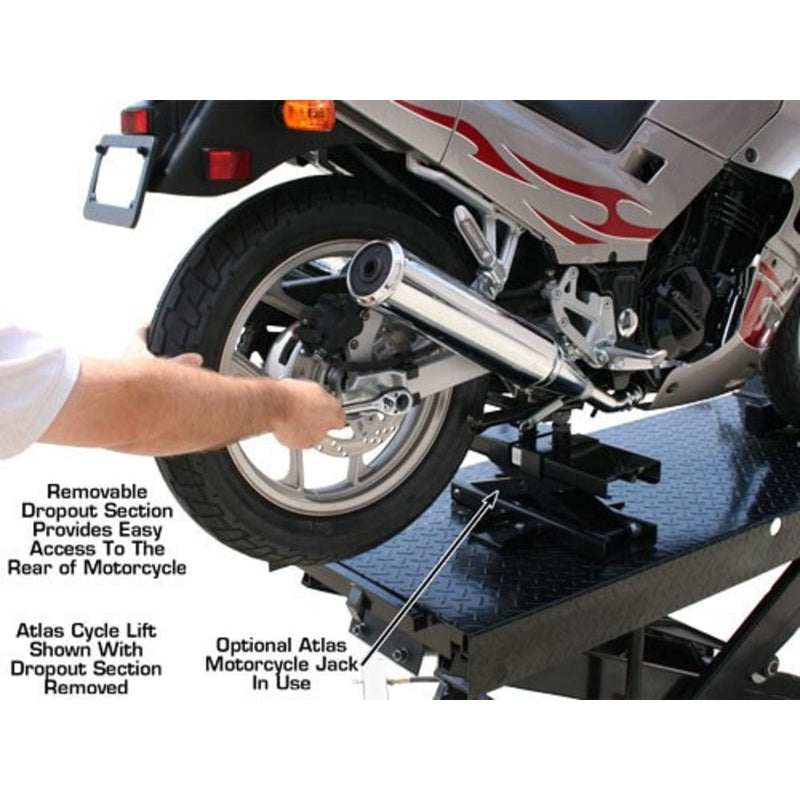

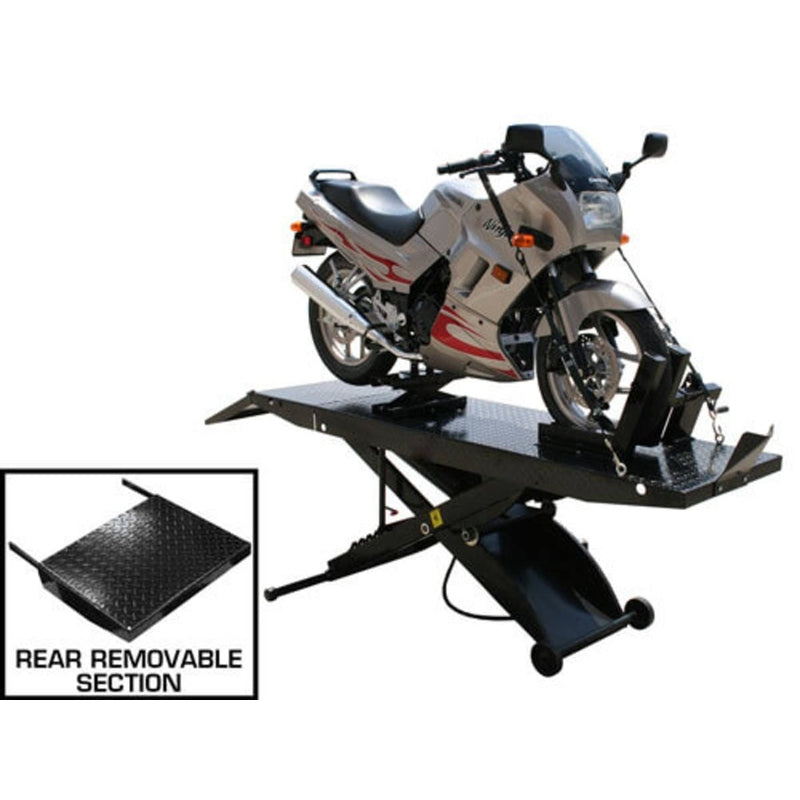

A 19½-inch removable rear section allows easy wheel and tire service. With this rear plate removed, the entire width of the platform opens up, letting even large-diameter wheels drop straight down from the axle for quick removal or replacement.
For additional versatility, the Atlas® Cyclelift can be equipped with the optional Side Extension Kit, expanding the platform width to 4 feet. This upgrade makes the lift suitable for ATVs, UTVs, golf carts, lawnmowers, and other wide-track vehicles.
Durable, functional, and adaptable, the Atlas® Cyclelift is a reliable choice for any shop or serious hobbyist looking to service motorcycles and more with confidence.
Features
-
1,000 lb. lifting capacity
-
Air-operated system (external air supply required)
-
33" full lift height
-
93" table length
-
Durable diamond-plated surface for improved traction and longevity
-

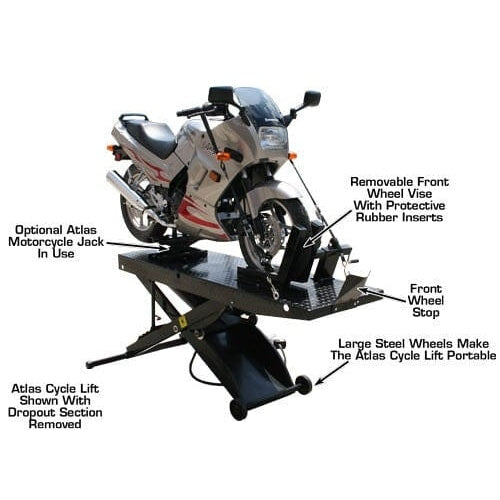

Adjustable front wheel vise included
-
Removable rear section for easy wheel and tire removal
-
Foot pedal control for smooth, hands-free lifting and lowering
-

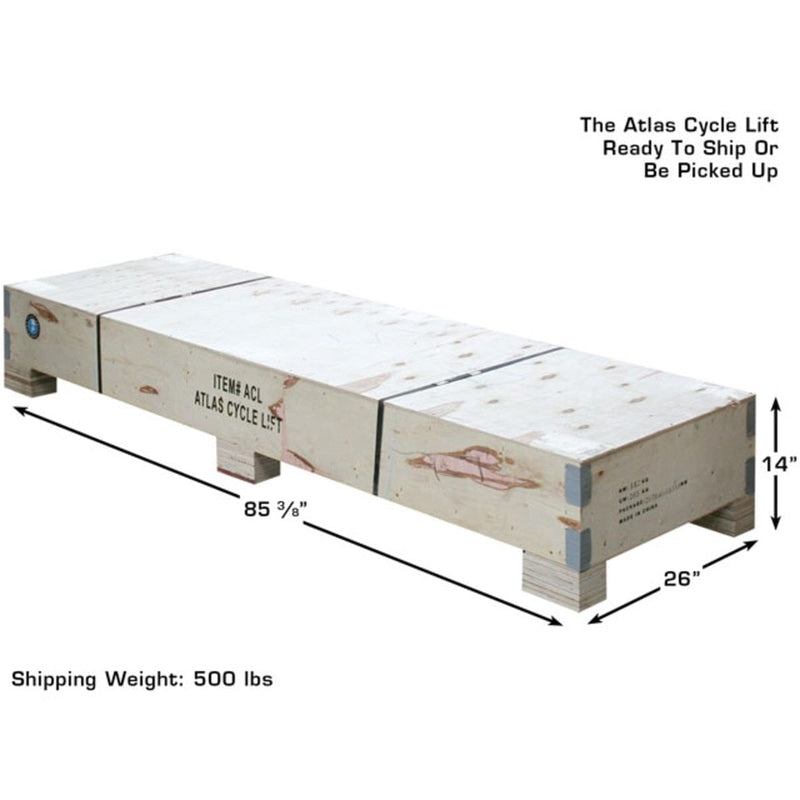

Shipping weight: 500 lbs
-
Warranty: 1-year parts only
Specifications
Atlas® Cyclelift Motorcycle Lift
| Specification | Measurement |
|---|---|
| Weight Capacity | 1,000 lbs |

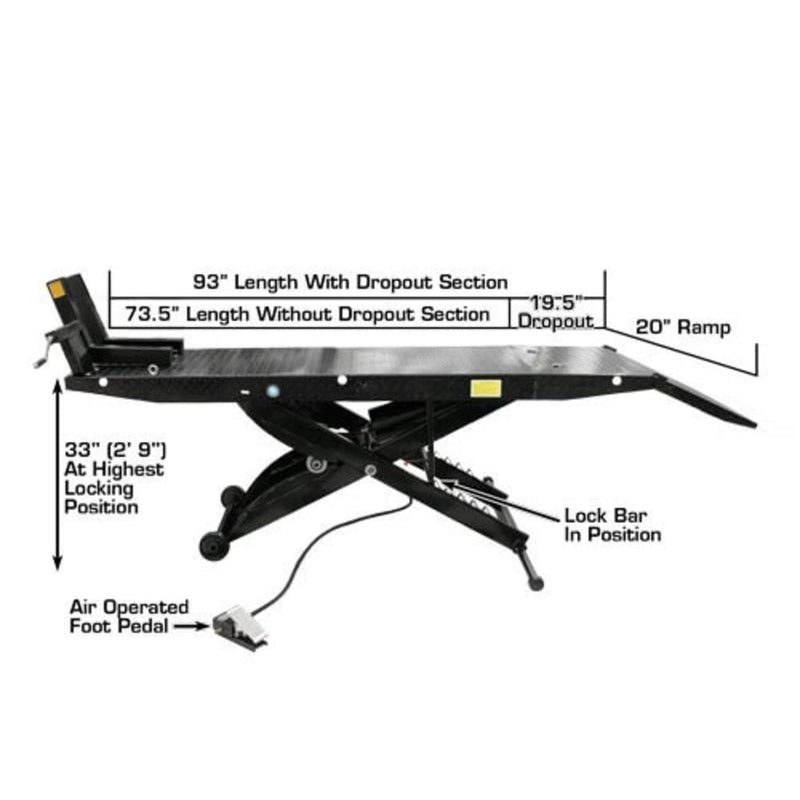

| Overall Length (with ramp) | 113" (9' 5") |
| Table Length (without ramp) | 93" (7' 9") |
| Table Width | 24" |
| Maximum Lift Height | 33" (2' 9") |
| Minimum Height (lowered) | 7¼" |
| Approach Ramp Length | 20" |

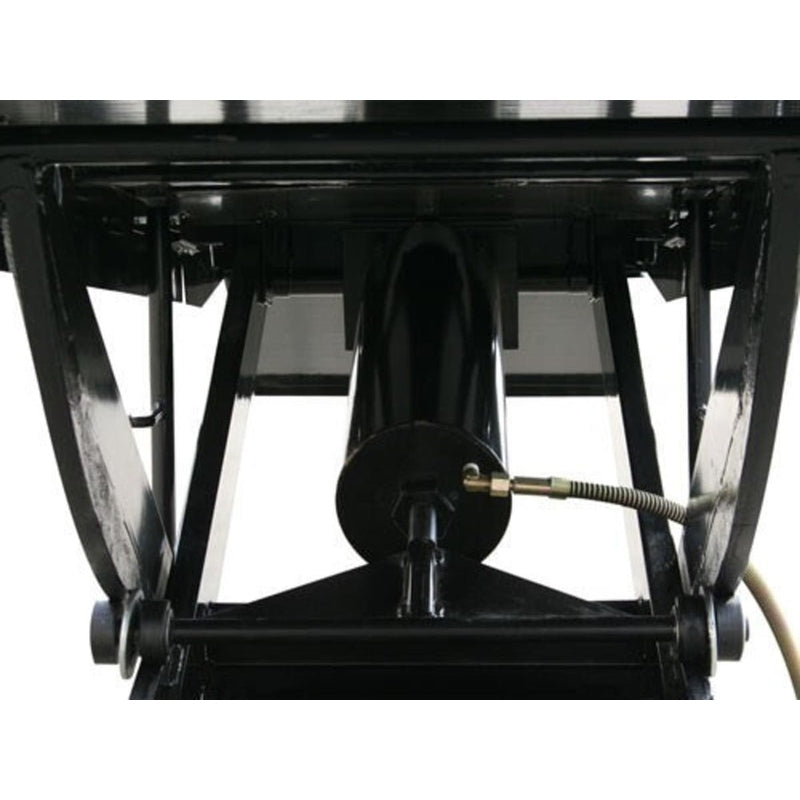

| Hydraulic Cylinder Size | 7" (internal size: 6") |
| Air Requirement | 90–100 PSI (external air supply required) |
| Shipping Weight | 500 lbs |
