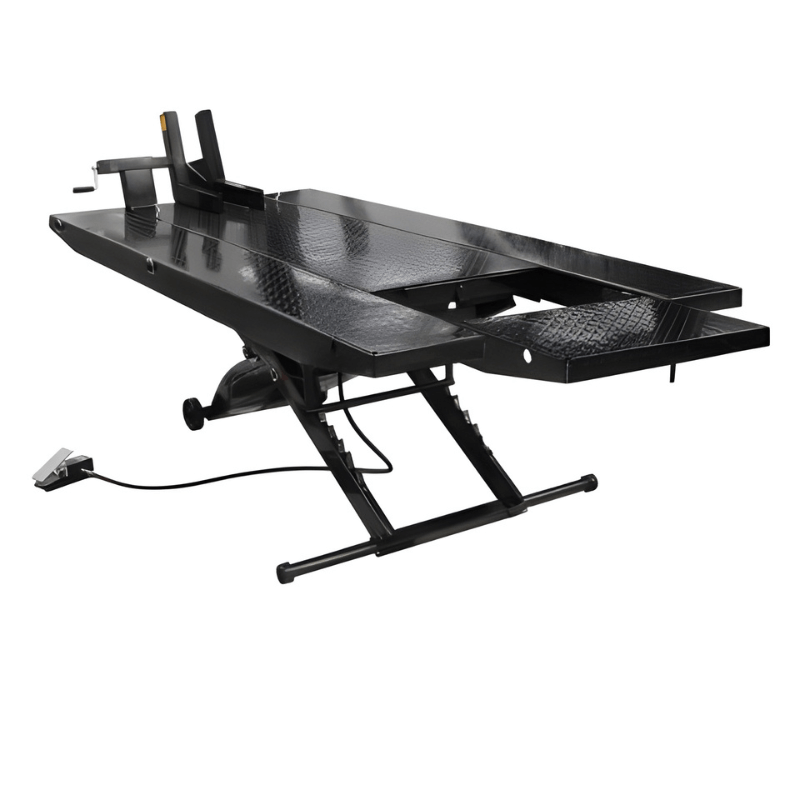

Atlas Cyclelift XLT Motorcycle/ATV Lift

Atlas Cyclelift XLT 1,000 lb Motorcycle & ATV Lift

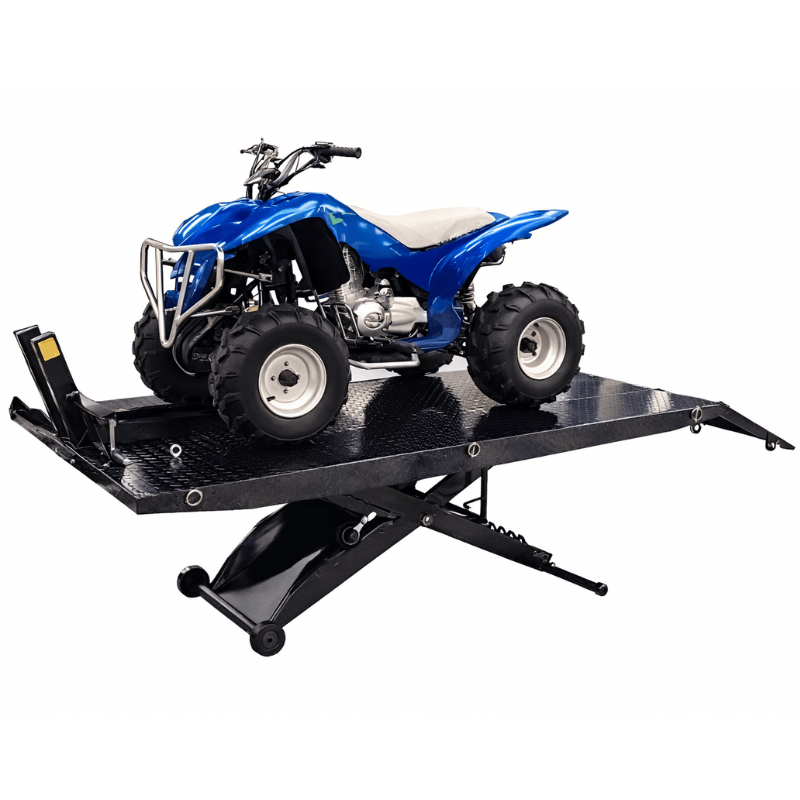

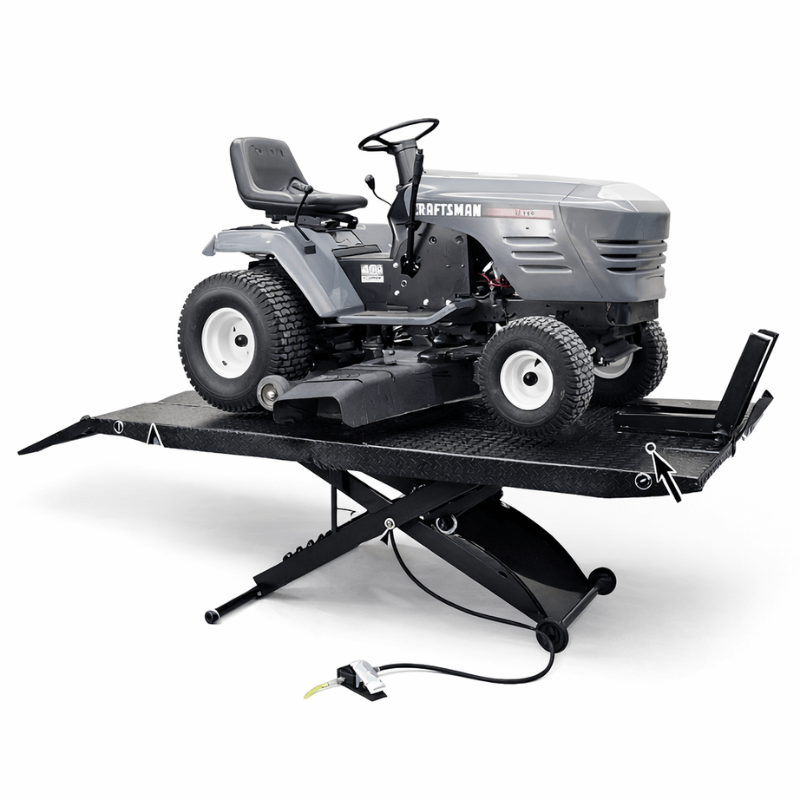

Upgrade your garage or service shop with the Atlas Cyclelift XLT Motorcycle & ATV Lift, a versatile air-operated lift designed for motorcycles, ATVs, lawn equipment, and other recreational vehicles. With a 1,000 lb lifting capacity and an expanded 48-inch-wide platform, the Cyclelift XLT provides the additional working space needed to safely accommodate a variety of two-wheel and four-wheel applications.

The Cyclelift XLT combines the standard Atlas Cyclelift with a side extension kit, increasing the table width to 48 inches. This wider platform makes the lift especially useful for ATVs, while still providing the functionality needed for motorcycle service and maintenance. A stabilizing bar provides additional stability when working with wider vehicles and equipment.

Powered by an external compressed-air supply of 90–100 PSI, the Cyclelift XLT raises vehicles to a maximum working height of 33 inches, providing technicians with more comfortable access for maintenance, repairs, tire service, and other procedures. A foot-pedal control allows convenient lift operation while keeping the technician's hands free.

The 93-inch-long diamond-plate platform provides a durable work surface, while the removable rear section simplifies rear-wheel service. A front wheel vise is included to help secure motorcycles during maintenance, and the removable 20-inch approach ramp makes loading and unloading straightforward.

For added convenience, the Cyclelift XLT also includes a wheeled dolly to assist with moving the lift when needed. Whether you're servicing motorcycles, ATVs, or other compatible recreational equipment, this lift provides the capacity, working area, and features needed for professional shops and serious home garages.

Cyclelift XLT Specifications

• Brand: Atlas

• Model: Cyclelift XLT

• Product Type: Motorcycle & ATV Lift

• Weight Capacity: 1,000 lbs.

• Length with Ramp: 113" (9' 5")

• Length without Ramp: 93" (7' 9")

• Table Width: 48" (4') with Side Extensions Installed

• Maximum Lift Height: 33" (2' 9")

• Fully Lowered Height: 7 1/4"

• Removable Approach Ramp: 20"

• Operating System: Air Powered

• Air Requirements: 90–100 PSI

• Shipping Weight: 700 lbs.

• Warranty: 1-Year Parts-Only Warranty

Cyclelift XLT Special Features

• 1,000 lb lifting capacity

• Designed for motorcycles, ATVs, and compatible recreational equipment

• Combines the standard Atlas Cyclelift with a side extension kit

• Side extensions increase the table width to 48 inches

• 93-inch extended table length provides ample working space

• Raises vehicles to a maximum working height of 33 inches

• Durable diamond-plate platform surface

• Air-operated lifting system for convenient operation

• Requires an external 90–100 PSI compressed-air supply

• Stabilizing bar provides additional support for wider applications

• Removable rear platform section simplifies wheel removal and service

• Foot-pedal control included for convenient hands-free operation

• Front wheel vise included for securing motorcycles

• Wheeled dolly included to assist with moving the lift

• Removable 20-inch approach ramp for loading and unloading

• Suitable for professional powersports shops, repair facilities, and home garages

• Backed by a 1-year parts-only warranty

Included Equipment

• Side Extension Kit

• Stabilizing Bar

• Front Wheel Vise

• Foot Pedal Control

• Wheeled Dolly

• Removable Approach Ramp

• Removable Rear Platform Section

Optional Accessory – Sold Separately

• Motorcycle Lift Chopper Extension

Cyclelift XLT Manual

Motorcycle/ATV Lift Cyclelift XLT Lift Product Manual

Cyclelift XLT Manual Image

Atlas Cyclelift XLT Manual
