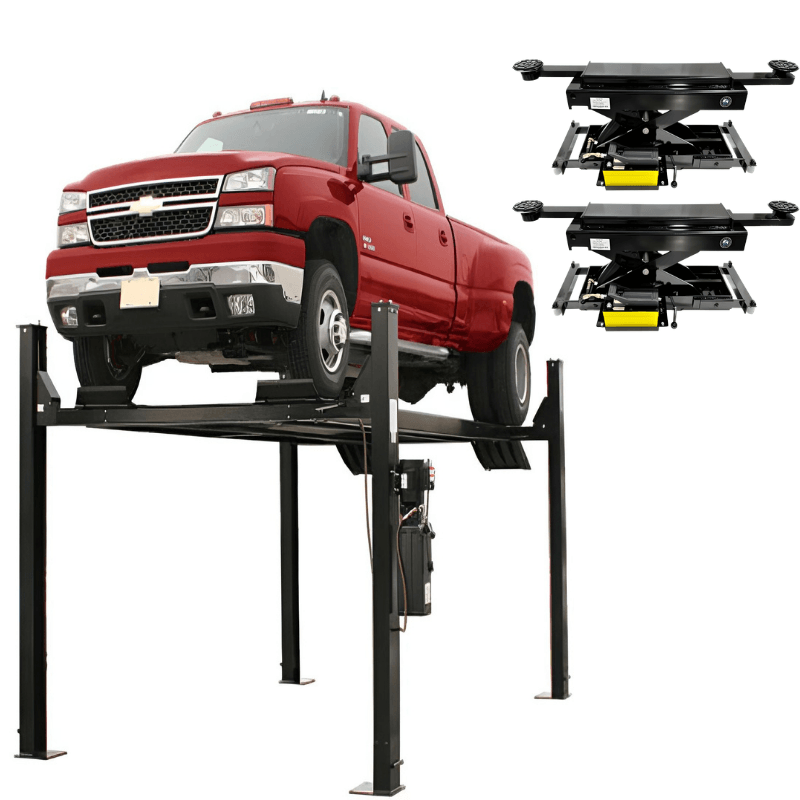

Atlas Garage PRO9000 9,000 lb 4-Post Lift & RJ45A Rolling Bridge Jack Combo
The Atlas Garage PRO9000 9,000 lb 4-Post Lift and RJ45A 4,500 lb Rolling Bridge Jack Combo combines heavy-duty vehicle lifting, storage, and wheels-free service capability in one versatile package. Designed for professional automotive shops, service centers, and well-equipped home garages, this combination provides the size and capacity needed to accommodate everything from passenger cars and SUVs to pickups and larger vehicles, including diesel dually trucks.
The Atlas Garage PRO9000 features a 9,000 lb lifting capacity along with an extra-tall, extra-wide, and extra-long design. Its 199-1/2" runways provide generous support for vehicles with longer wheelbases, while a maximum lifting height of 85" (7' 1") provides up to 80-1/4" (6' 8-1/4") of clearance beneath the runways.
Built with flexibility in mind, the PRO9000 features a freestanding and portable design that does not require permanent anchoring for normal operation. The included caster kit allows the unloaded lift to be repositioned when necessary, making it an excellent option for garages where floor space needs can change over time.

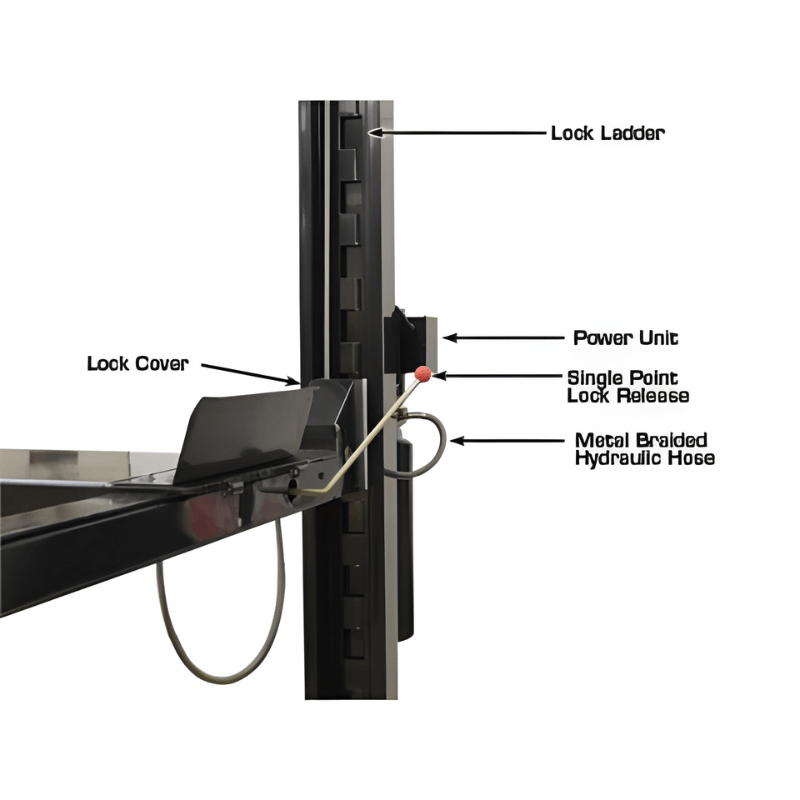

For convenient and secure operation, the PRO9000 incorporates a single-point lock release, lock-ladder system, and double-lock safety design. Steel approach ramps provide easy drive-on access, while the included steel jack tray, plastic drip trays, and rubber wheel chocks add convenience for vehicle storage and general service applications.

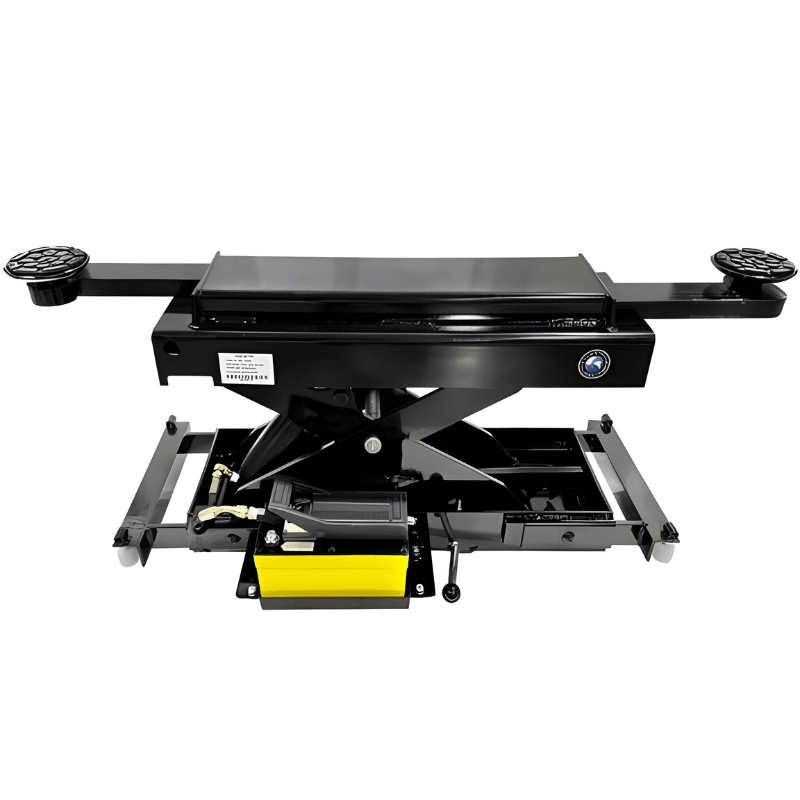

The included Atlas RJ45A 4,500 lb Air/Hydraulic Rolling Bridge Jack expands the capabilities of the PRO9000 by providing wheels-free lifting directly from the runways. This allows technicians to raise the vehicle by its lifting points for easier access to wheels, brakes, suspension components, and other areas that cannot be serviced while the tires remain supported by the lift.
Powered by 70–115 PSI shop air, the RJ45A uses an air/hydraulic system and heavy-duty scissor mechanism for smooth, level lifting. Multiple mechanical safety lock positions provide secure support at working height, while the included 4-piece truck adapter set provides additional versatility when servicing larger vehicles.
Together, the Atlas Garage PRO9000 and RJ45A Rolling Bridge Jack create a complete four-post lifting system for vehicle storage, maintenance, and repair.

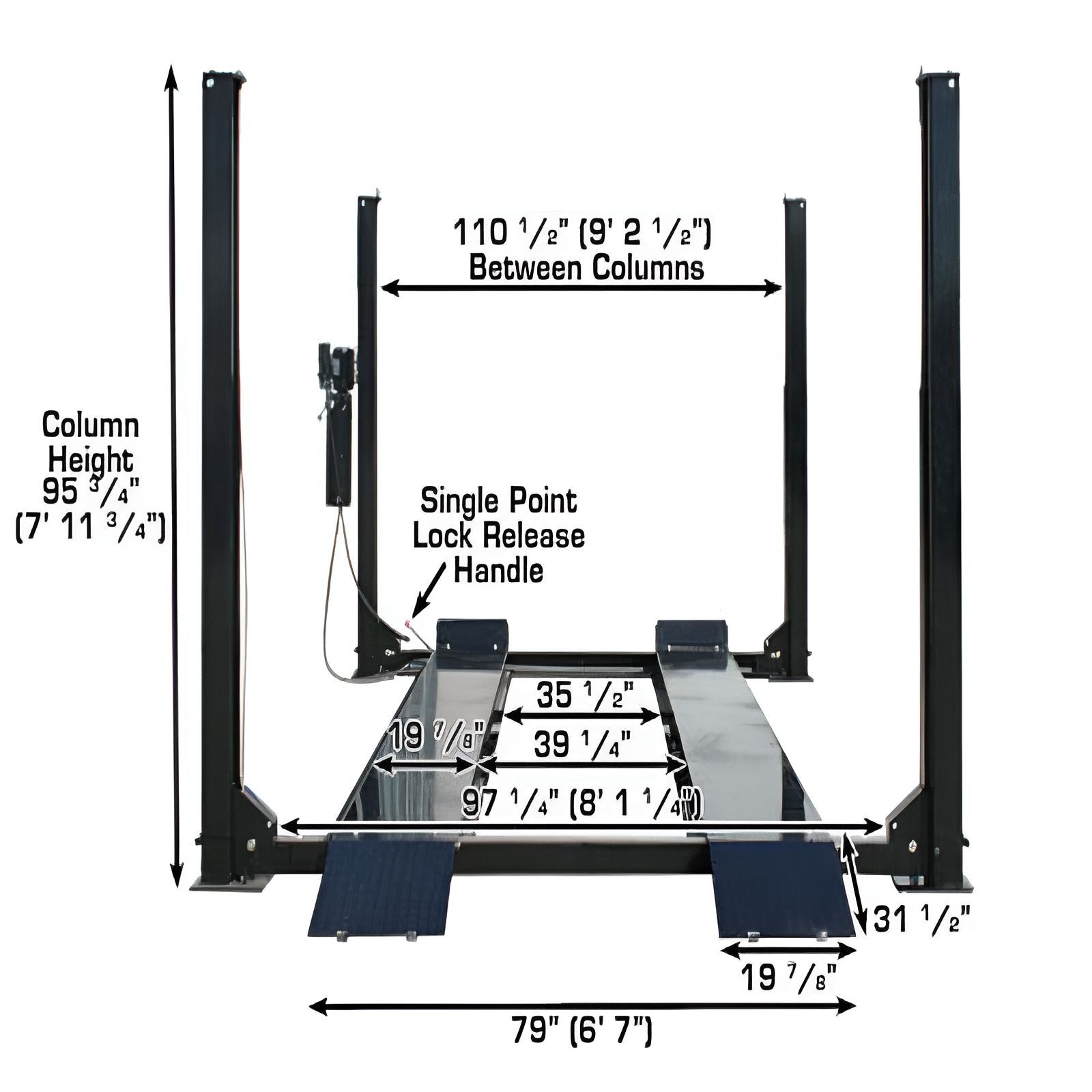

Atlas Garage PRO9000 Specifications
- Lifting Capacity: 9,000 lbs

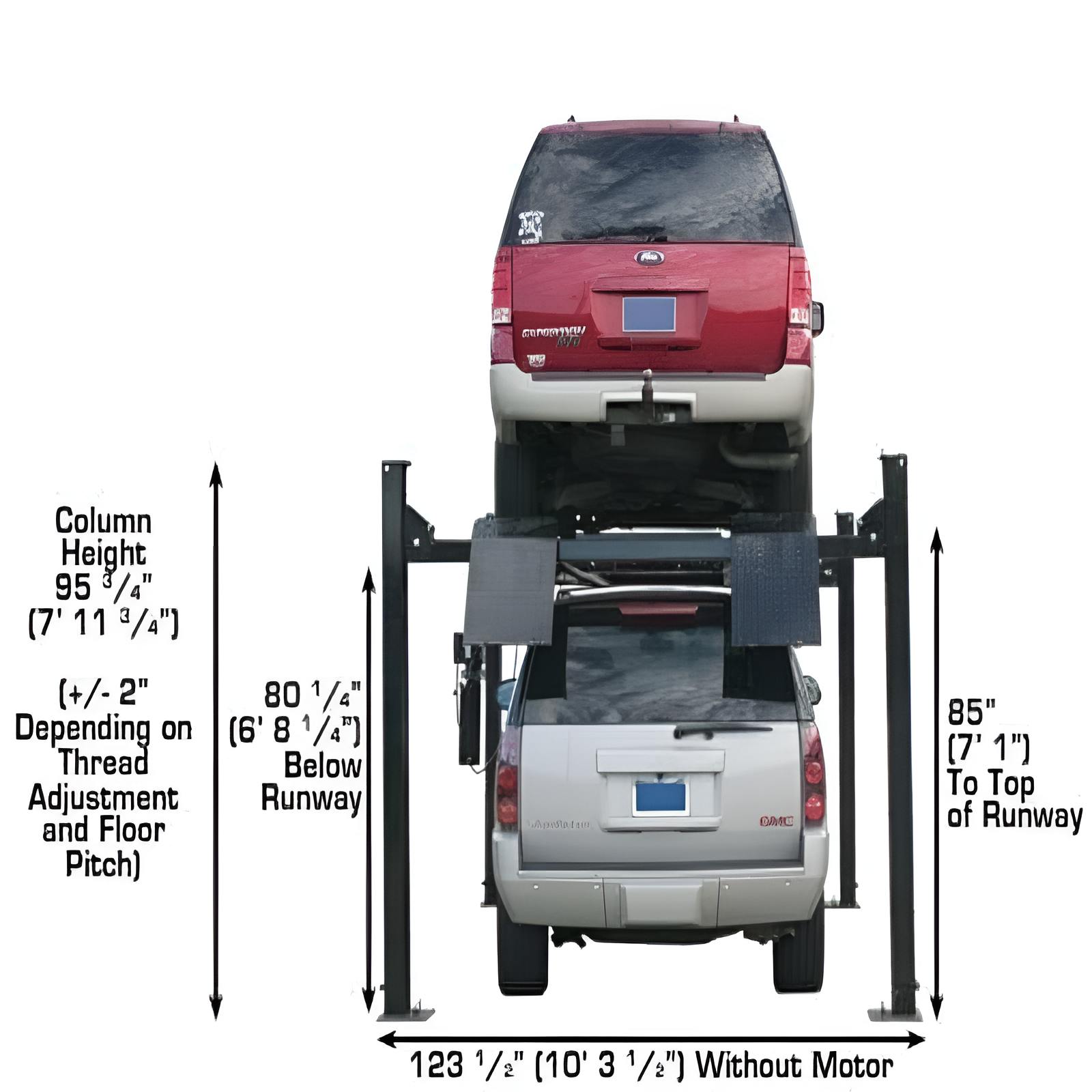

- Lifting Height – Top of Runway: 85" (7' 1")

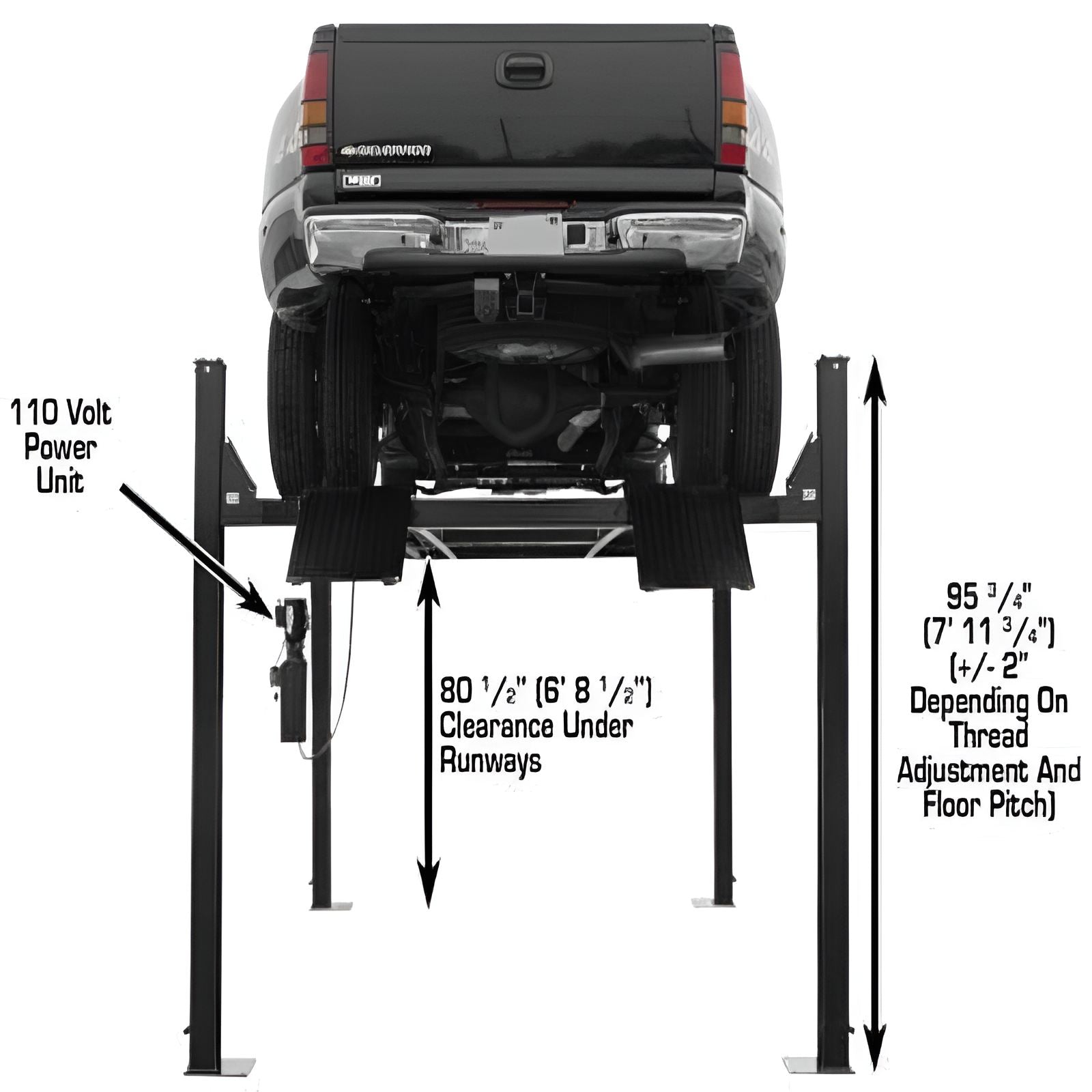

- Clearance Under Runways: 80-1/4" (6' 8-1/4")

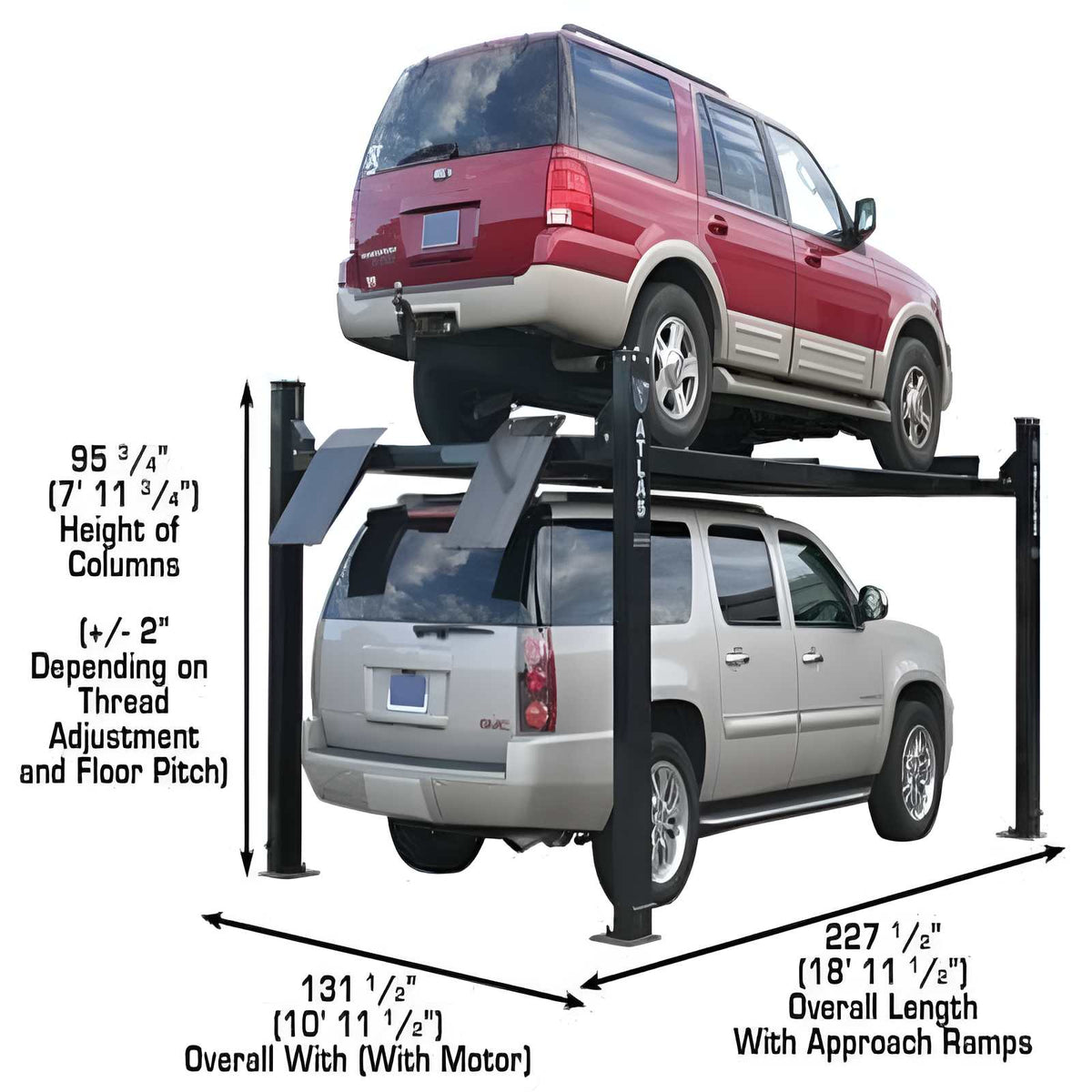

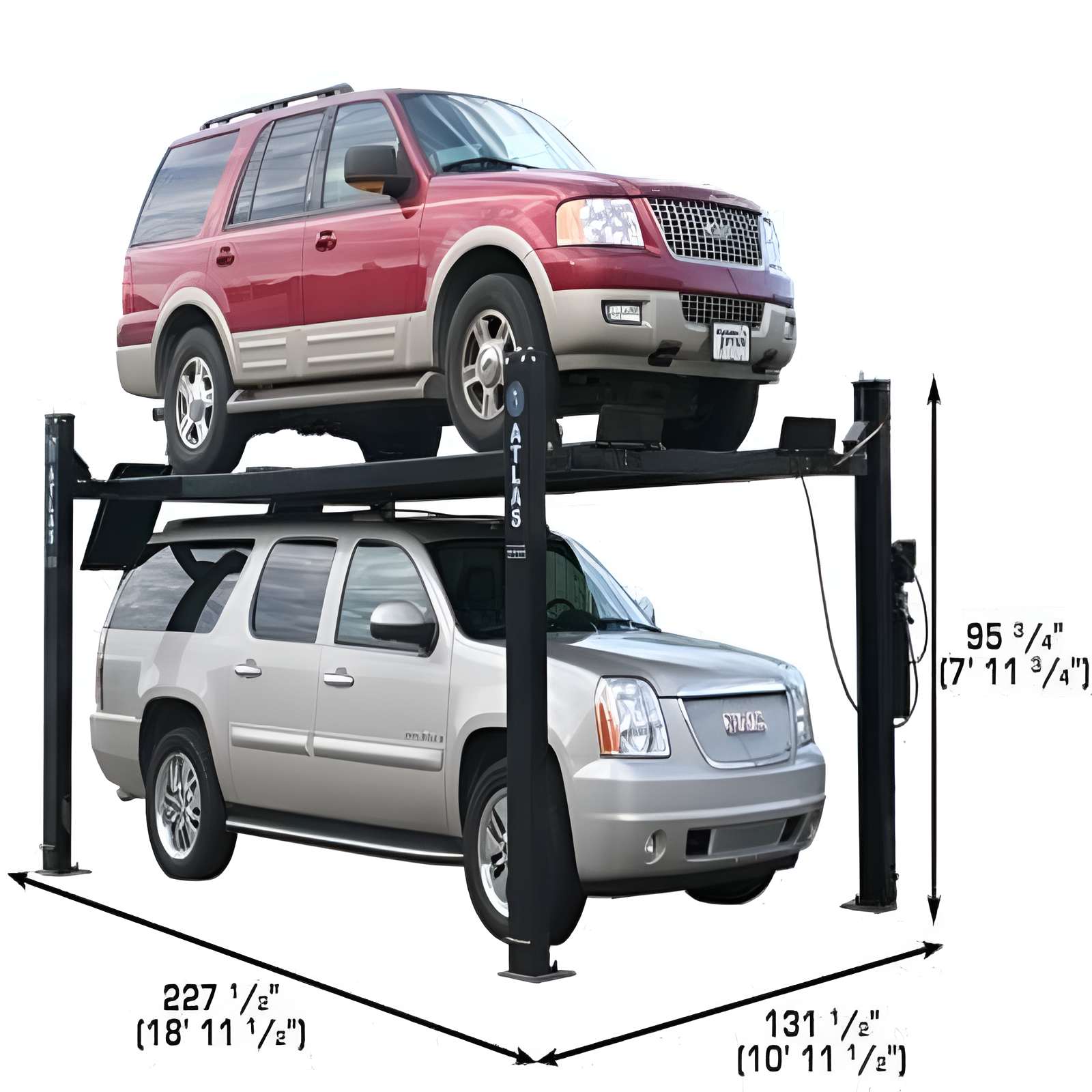

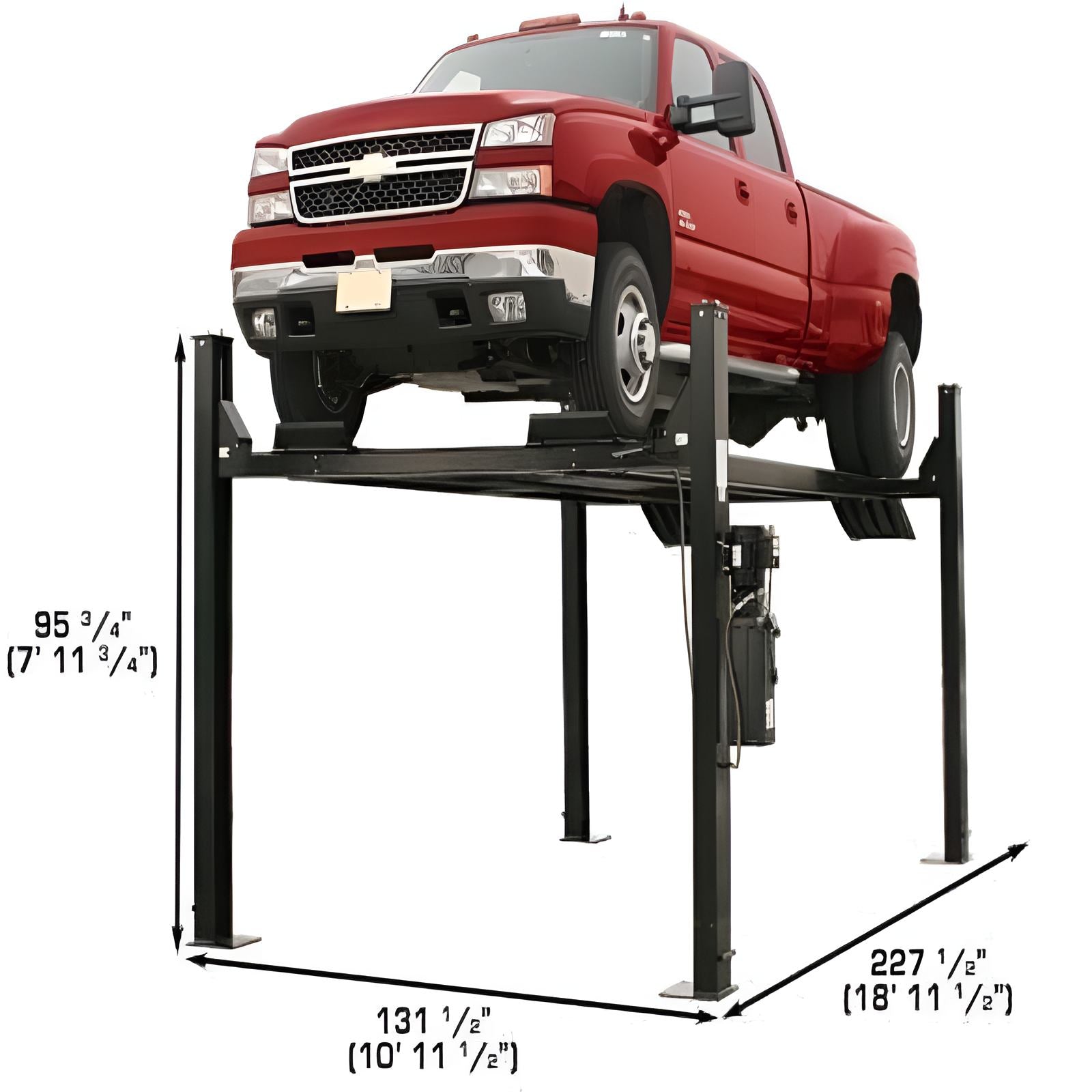

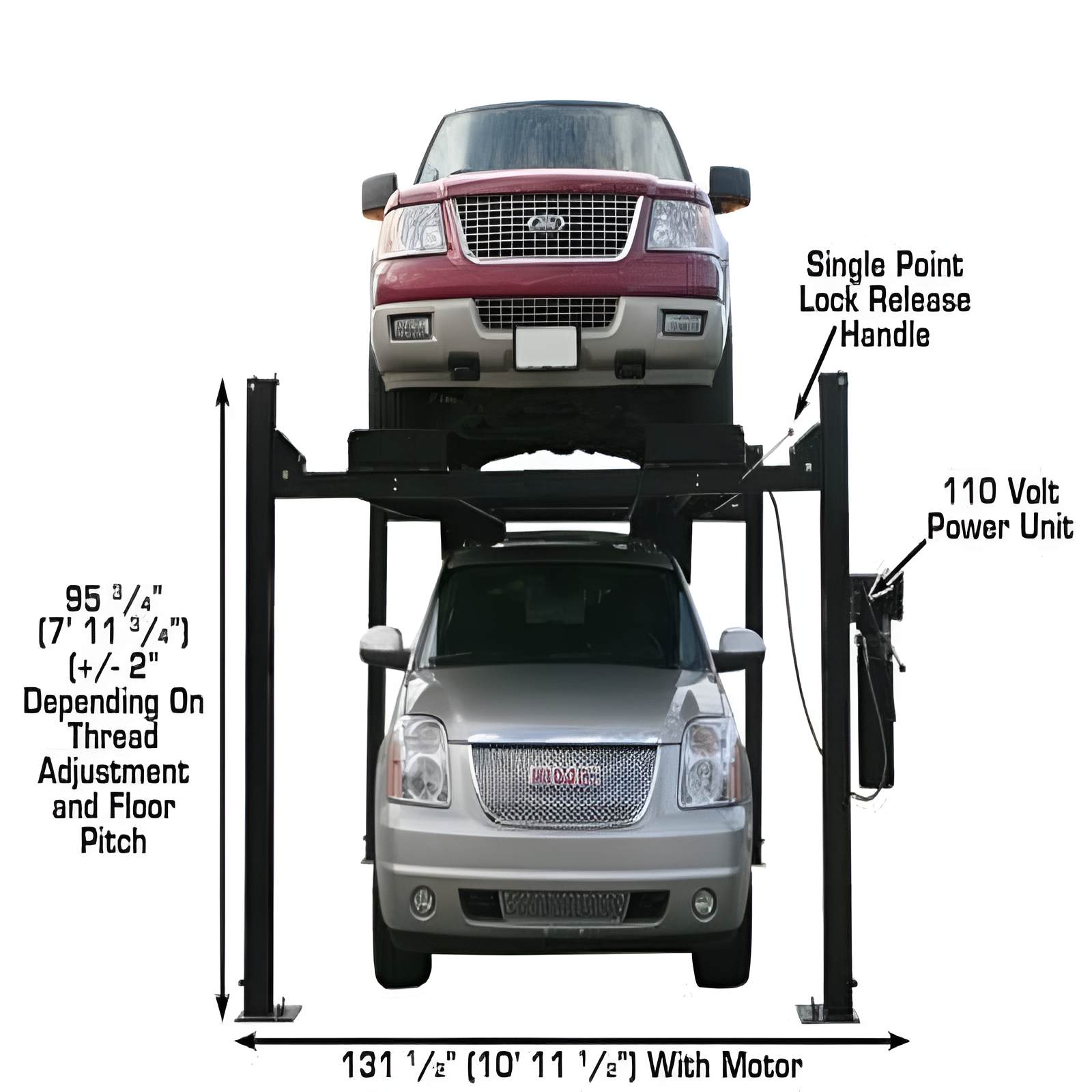

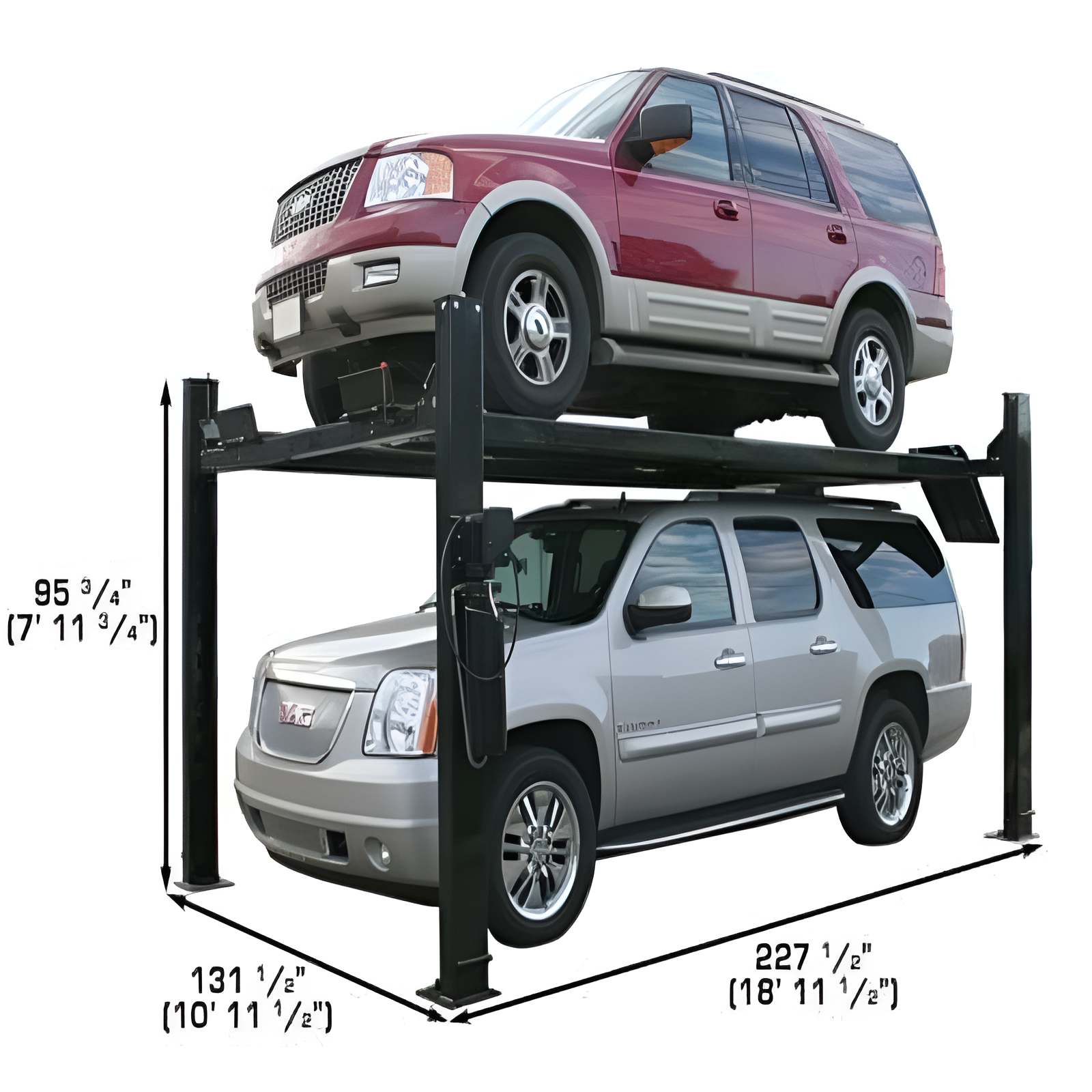

- Column Height: 95-3/4" (7' 11-3/4")
- Overall Width – Without Motor: 123-1/2" (10' 3-1/2")
- Overall Width – With Motor: 131-1/2" (10' 11-1/2")

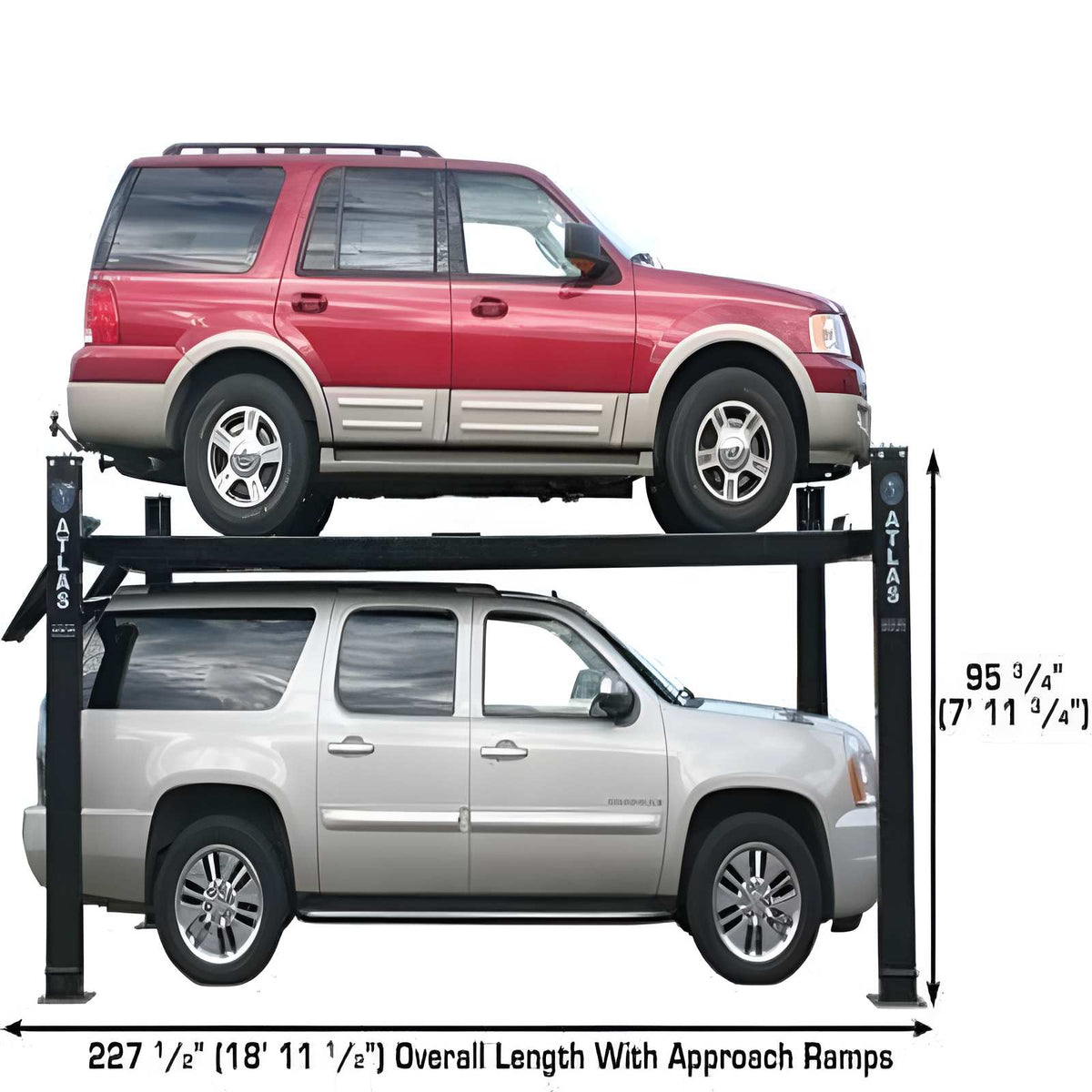

- Overall Length with Approach Ramps: 227-1/2" (18' 11-1/2")

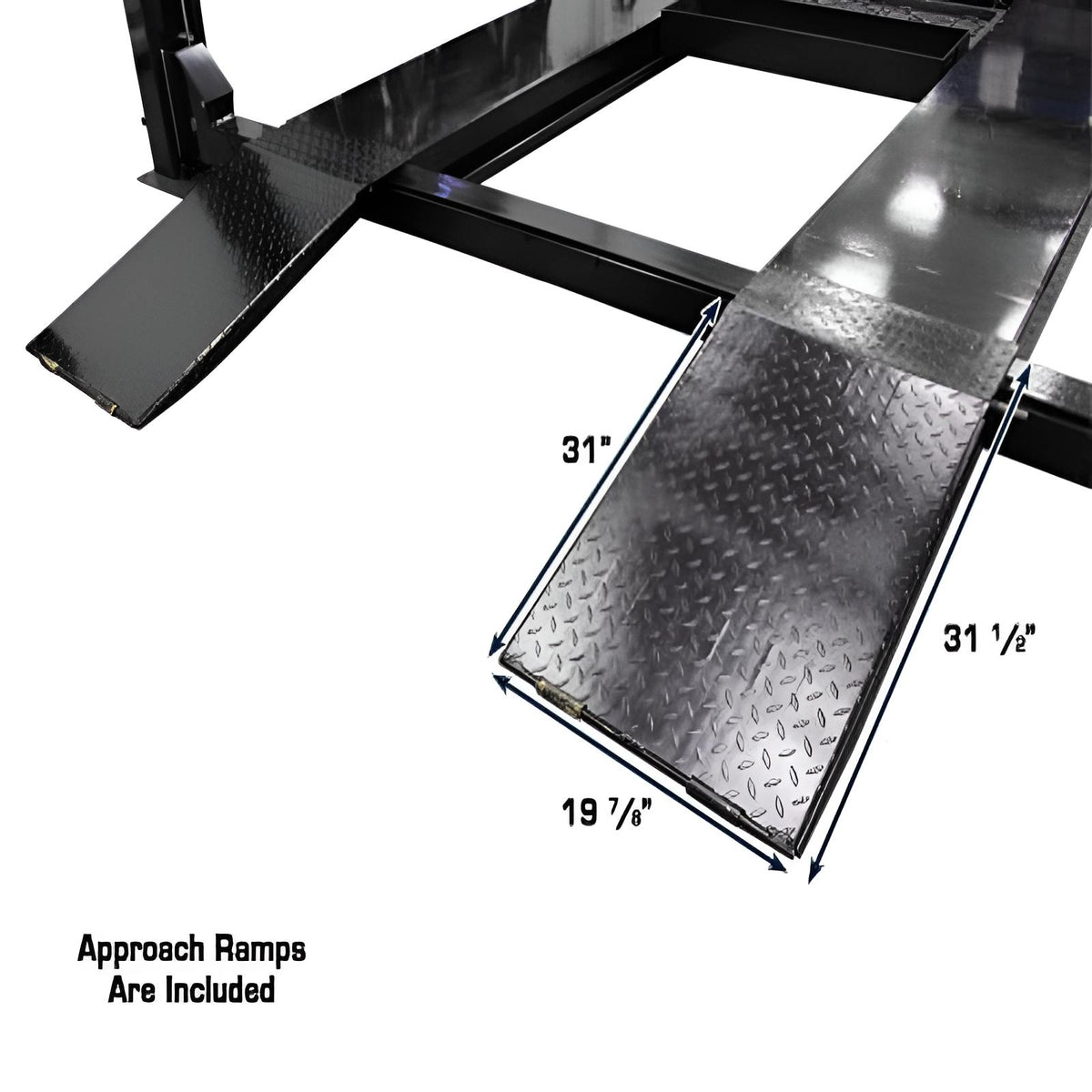

- Approach Ramp Length: 31" (2' 7")
- Runway Width with Rails: 21-1/4"
- Runway Driving Surface Width: 20"
- Runway Length: 199-1/2" (16' 7-1/2")
- Runway Thickness: 4-3/4"
- Width Between Runways: 39-1/4" (3' 3-1/4")
- Width Between Runway Rails: 35-1/2" (2' 11-1/2")
- Outside Runway to Outside Runway: 79" (6' 7")
- Clearance Between Columns: 110-1/2" (9' 2-1/2")

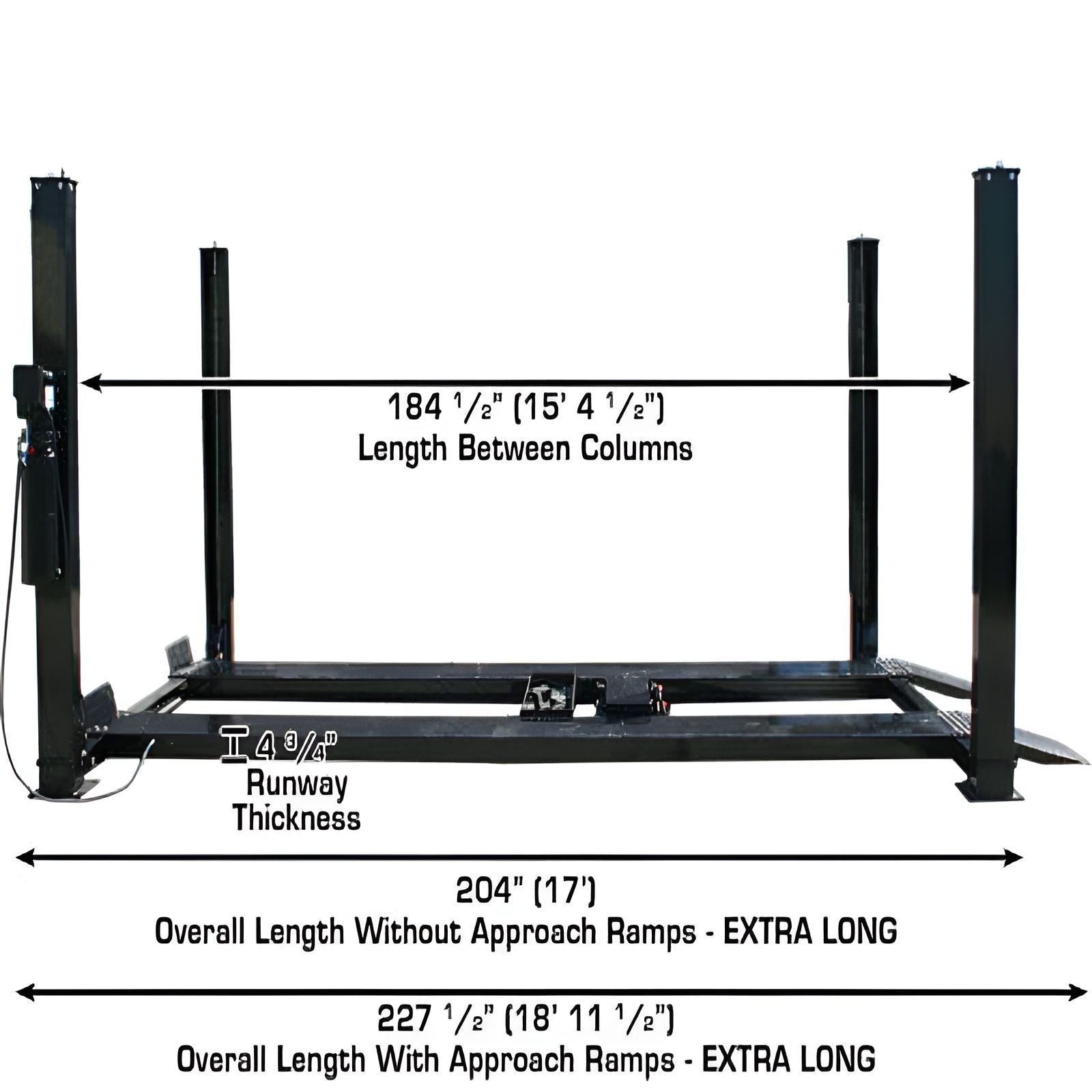

- Length Between Columns: 184-1/2" (15' 4-1/2")
- Maximum Wheelbase: 187" (15' 7")
- Drive-Through Clearance: 97-1/4" (8' 1-1/4")
- Motor / Electrical Requirement: 110V / 30A Breaker Required
- Concrete Requirement: Minimum 4" / 3,000 PSI

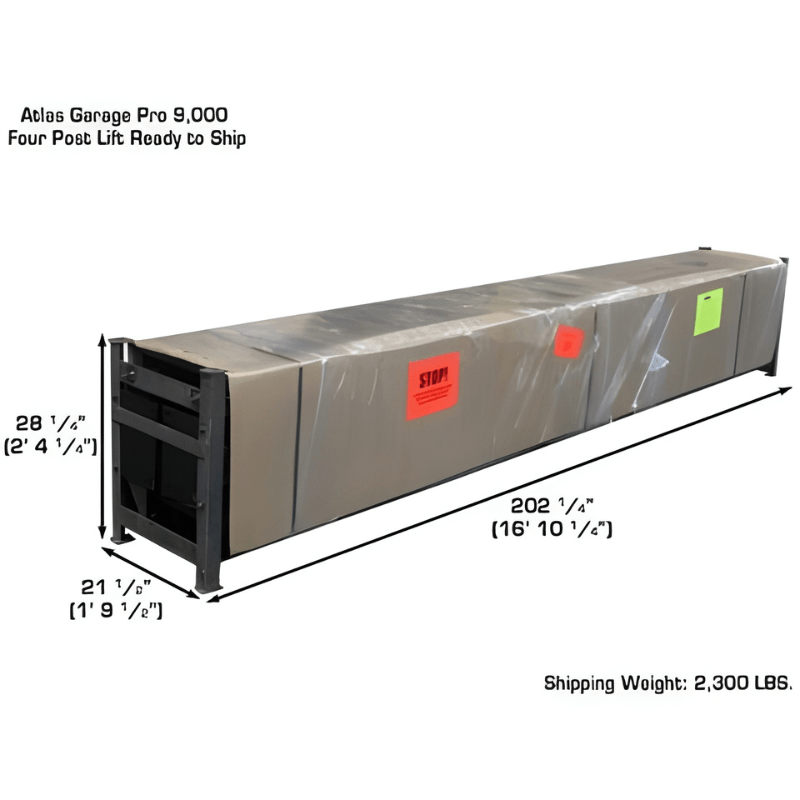

- Shipping Dimensions: 202-1/4" x 21-1/2" x 28-1/4"
- Shipping Weight: 2,300 lbs

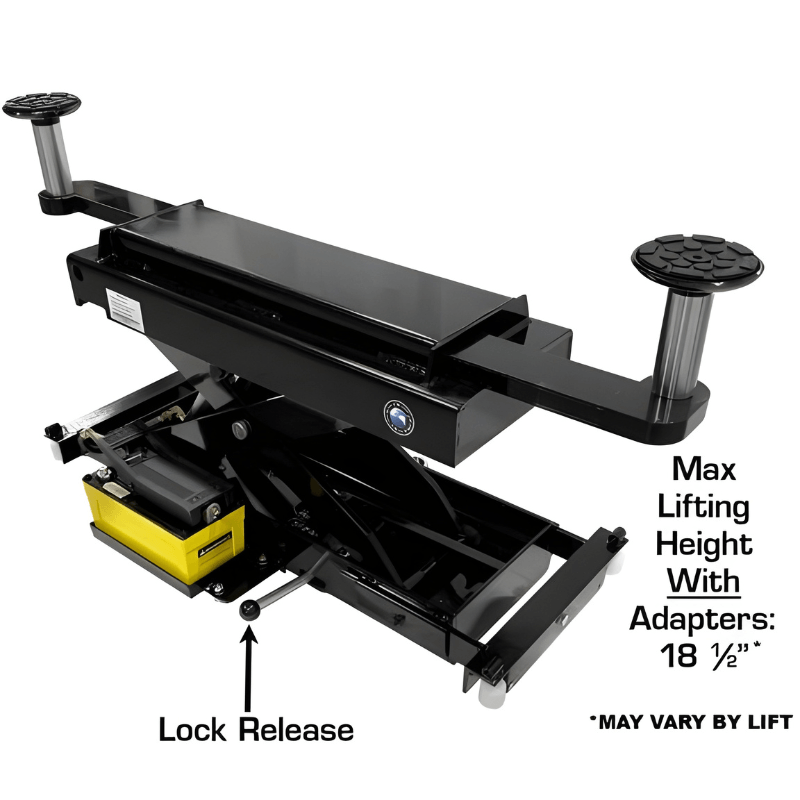

Atlas RJ45A Specifications
- Lifting Capacity: 4,500 lbs

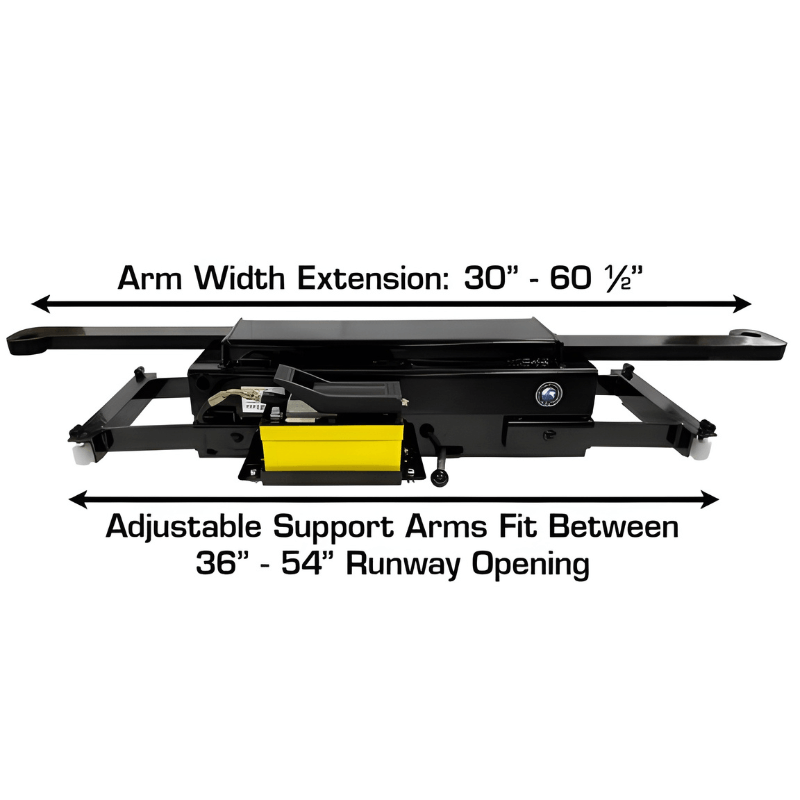

- Minimum Width – Roller Arms: 36"
- Maximum Width – Roller Arms: 54"

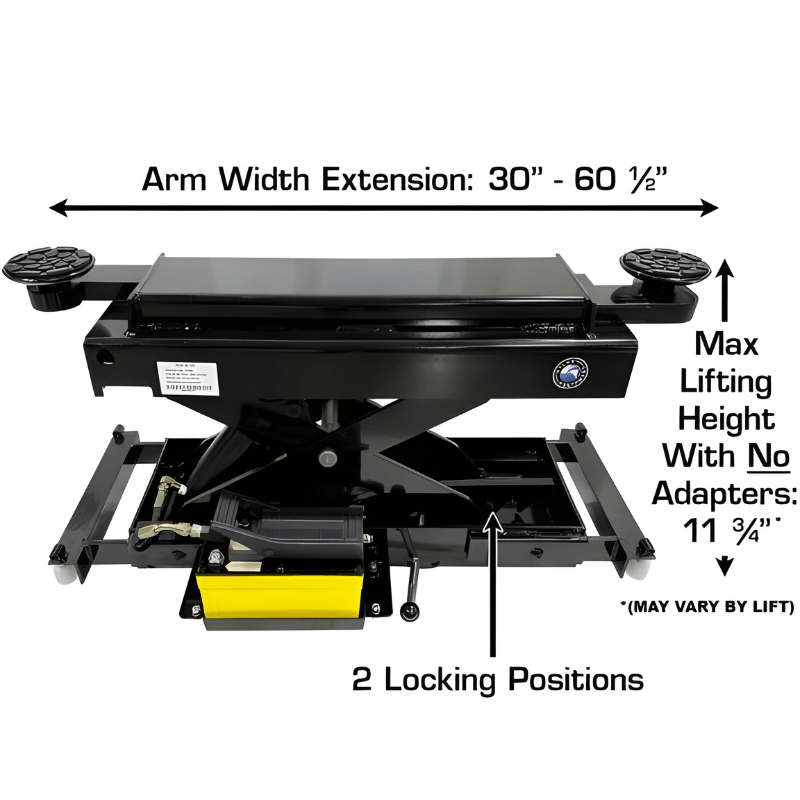

- Lift Arm Width – Center of Pad: 30" – 60-1/2"
- Air Requirement: 70–115 PSI
- Operation: Air/Hydraulic
- Arm Hole / Adapter Peg Size: 1-1/2"

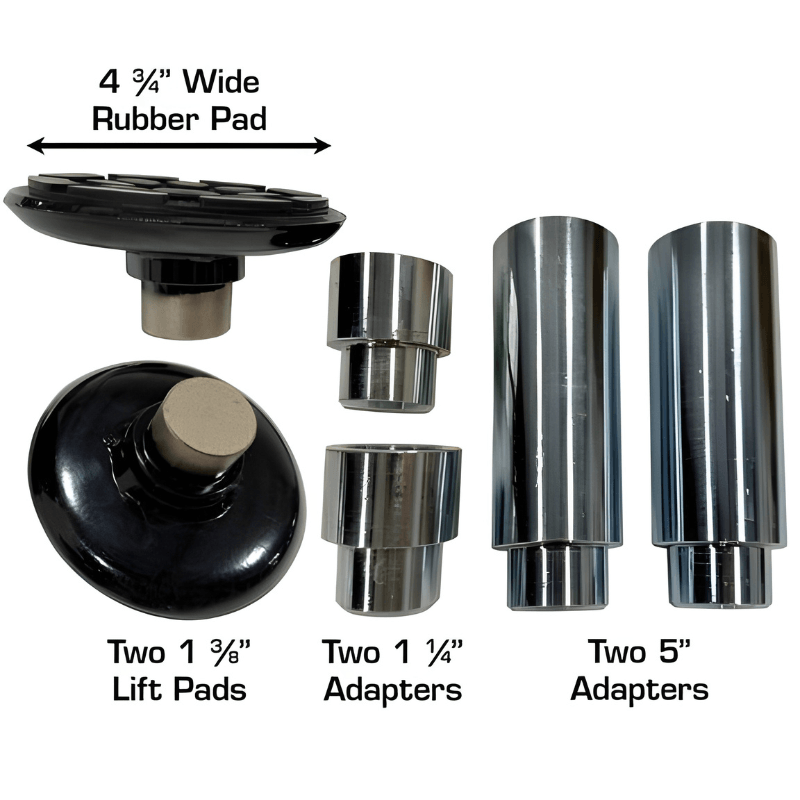

- Included Adapter Heights: 2 Each – 1-1/4" and 5"

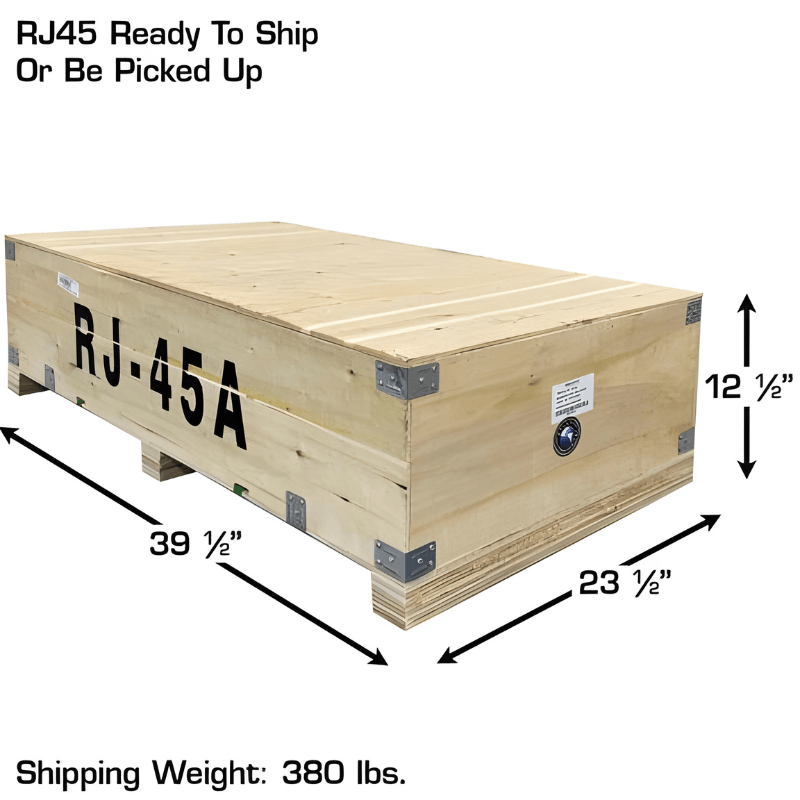

- Shipping Weight: 380 lbs
Garage PRO9000 Special Features
- Heavy-duty 9,000 lb lifting capacity
- Extra-tall, extra-wide, and extra-long configuration
- Accommodates a wide variety of cars, SUVs, pickups, and larger vehicles

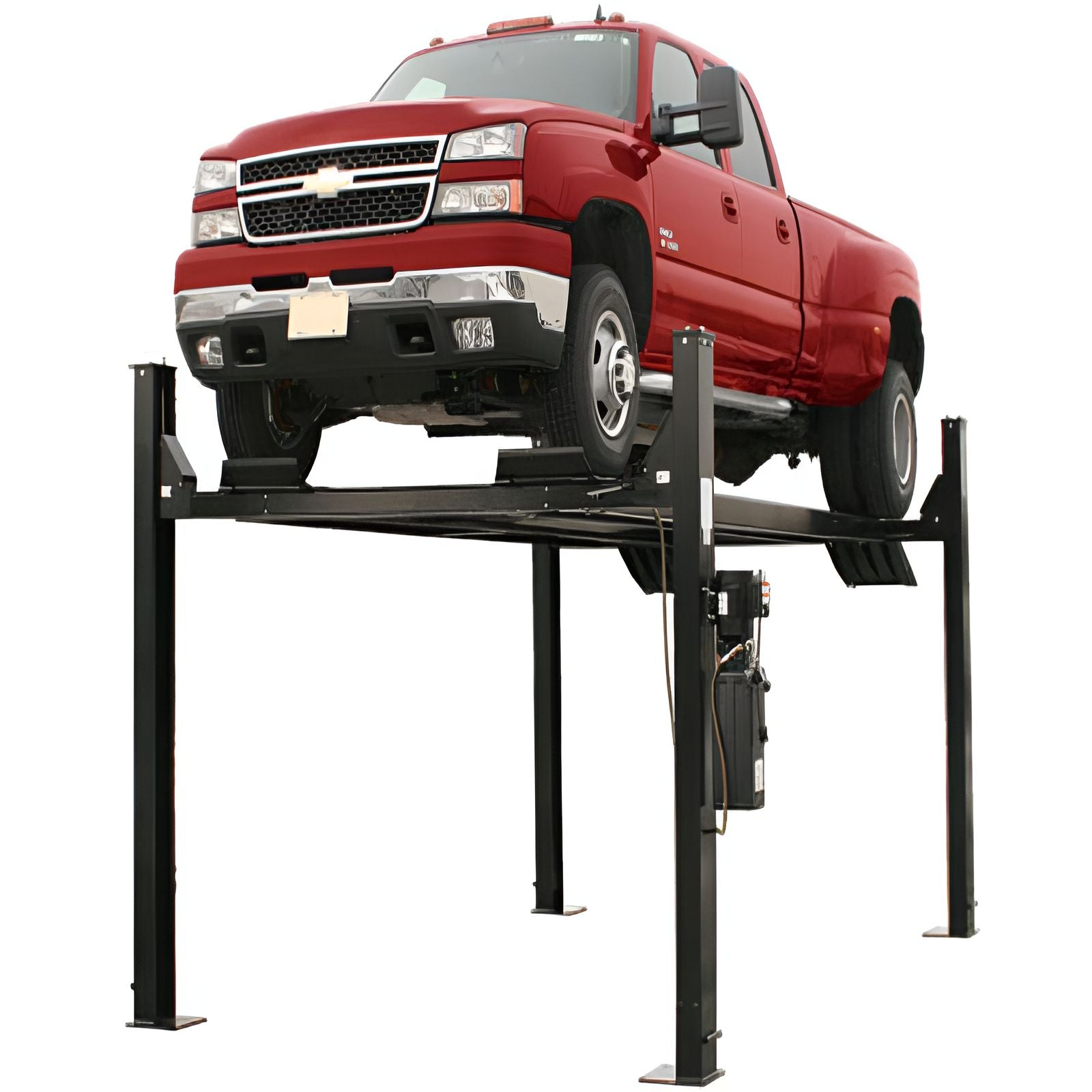

- Suitable for large trucks, including compatible diesel dually applications
- Extra-long 199-1/2" runways
- Maximum wheelbase capacity of 187 inches
- Up to 80-1/4" of clearance beneath the runways
- Freestanding design does not require permanent anchoring for normal operation
- Portable design allows the unloaded lift to be repositioned when properly equipped
- Single-point lock release for convenient operation

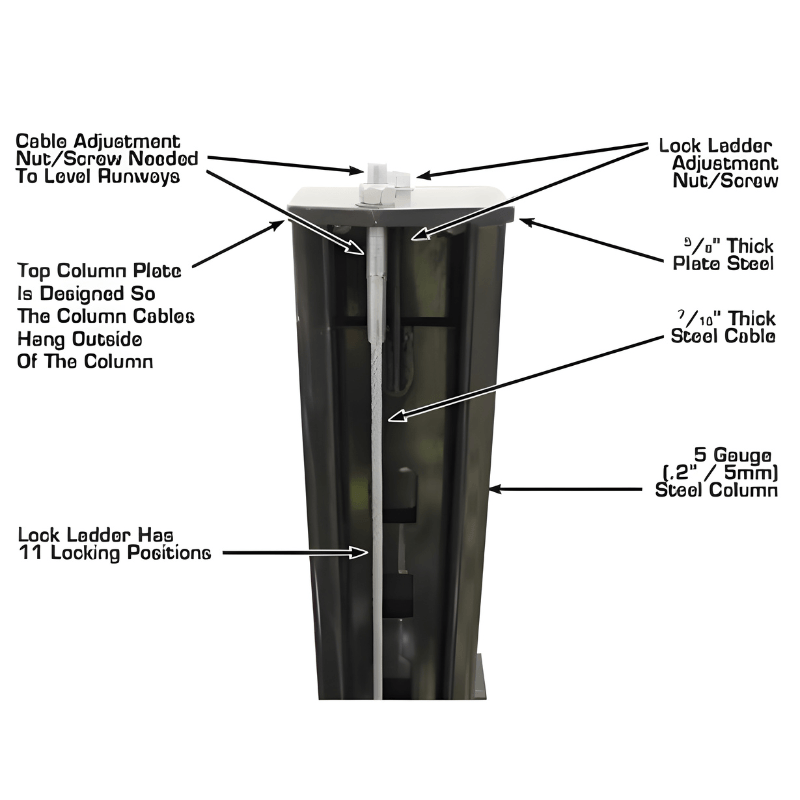

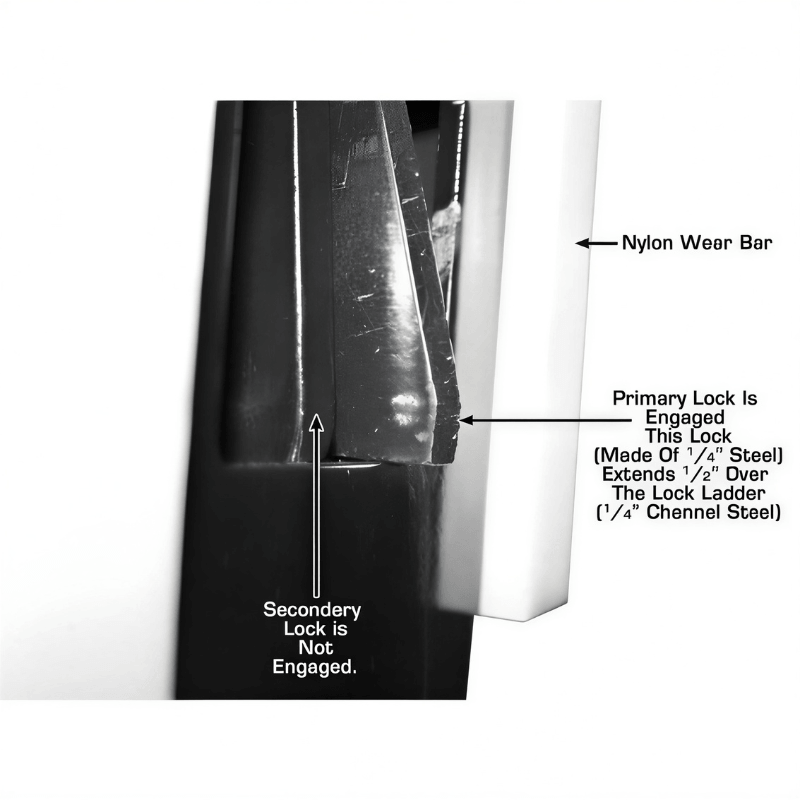

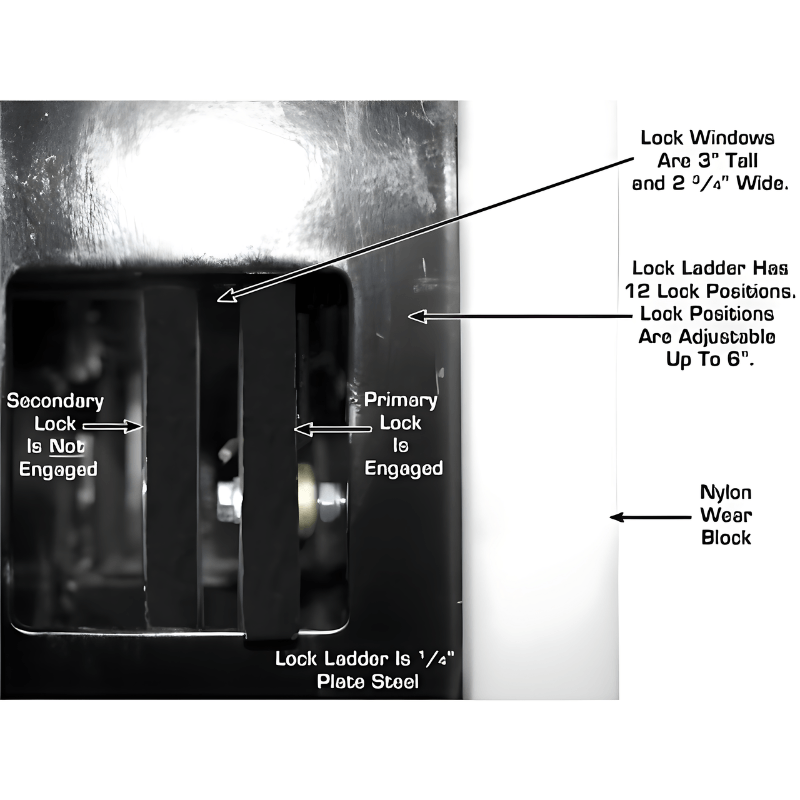

- Lock-ladder system for secure positioning
- Double-lock safety system for additional protection

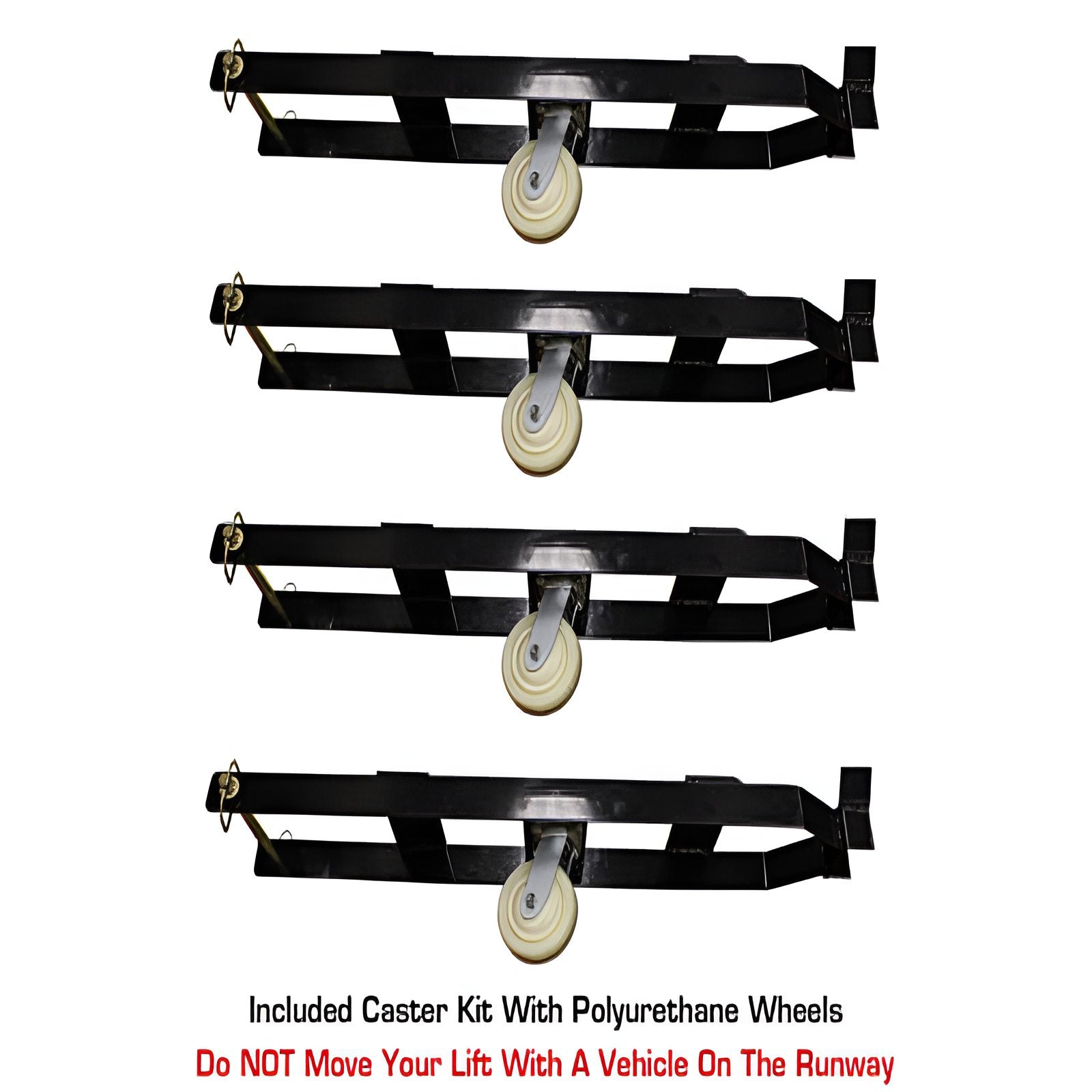

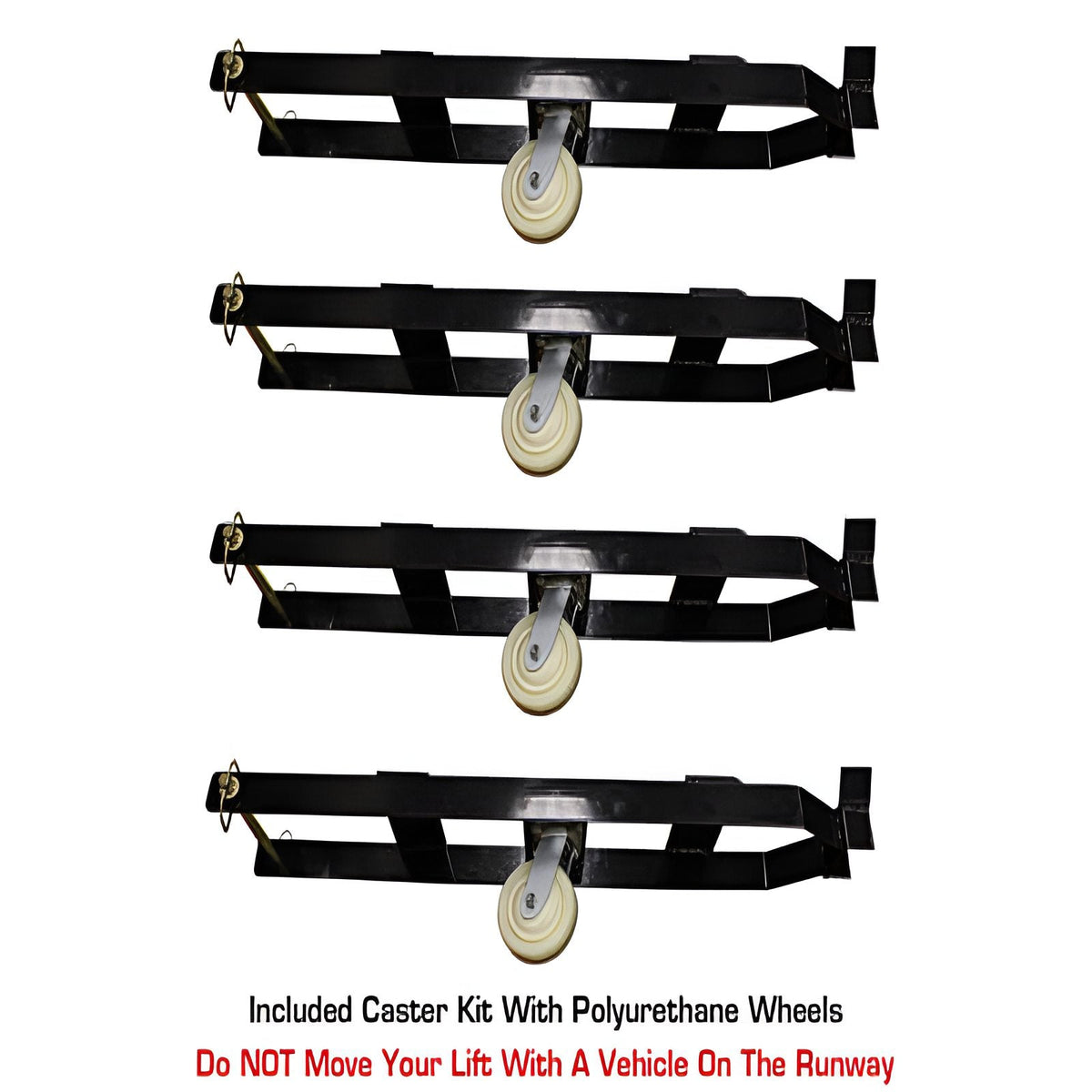

- Included caster kit with polyurethane wheels for easier repositioning
- Steel approach ramps for convenient drive-on access

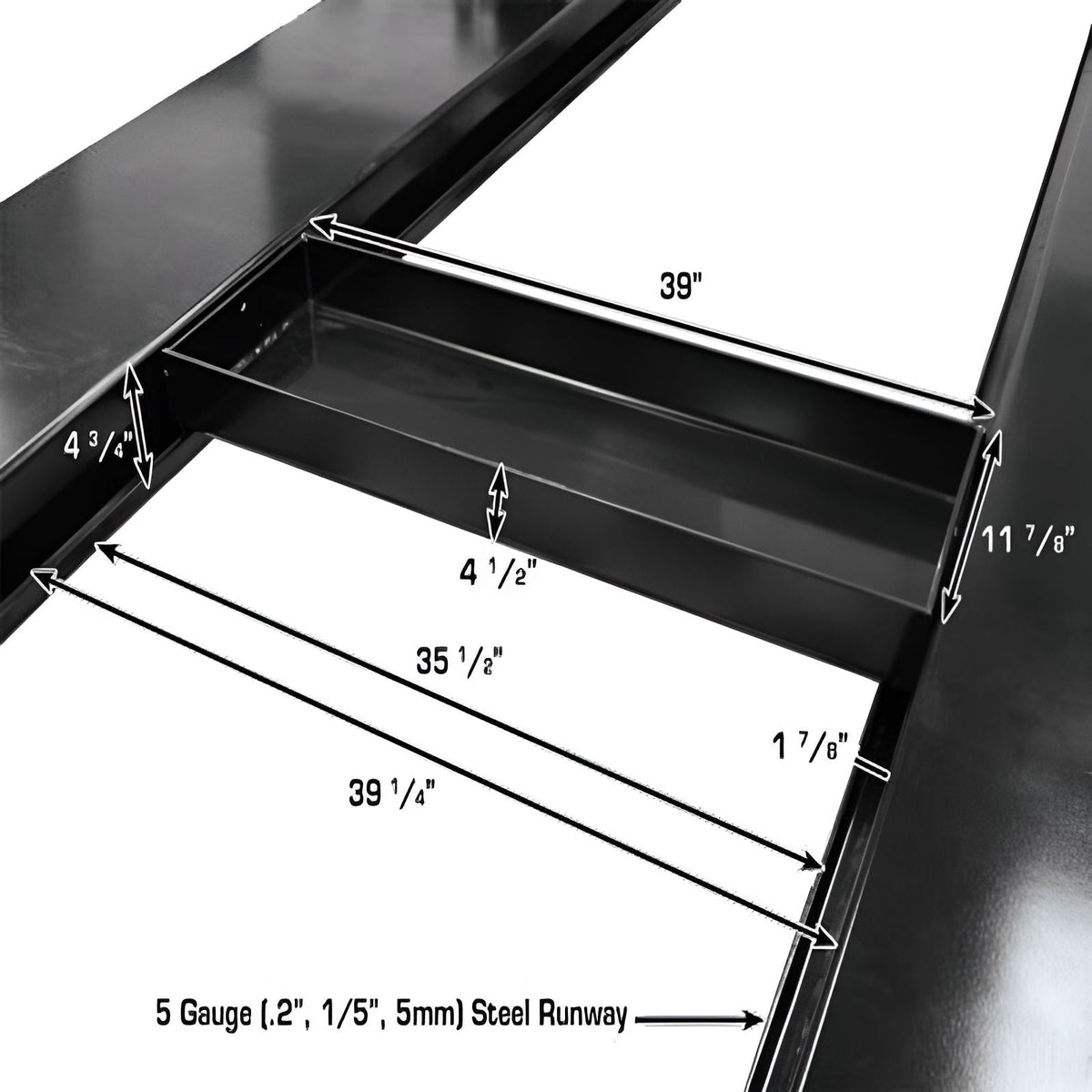

- Steel jack tray included for additional service versatility
- Plastic drip trays help protect vehicles and floors during stacked storage
- Ideal for vehicle storage, maintenance, and general automotive service
Included with the Garage PRO9000
- Steel approach ramps
- Caster kit with polyurethane wheels

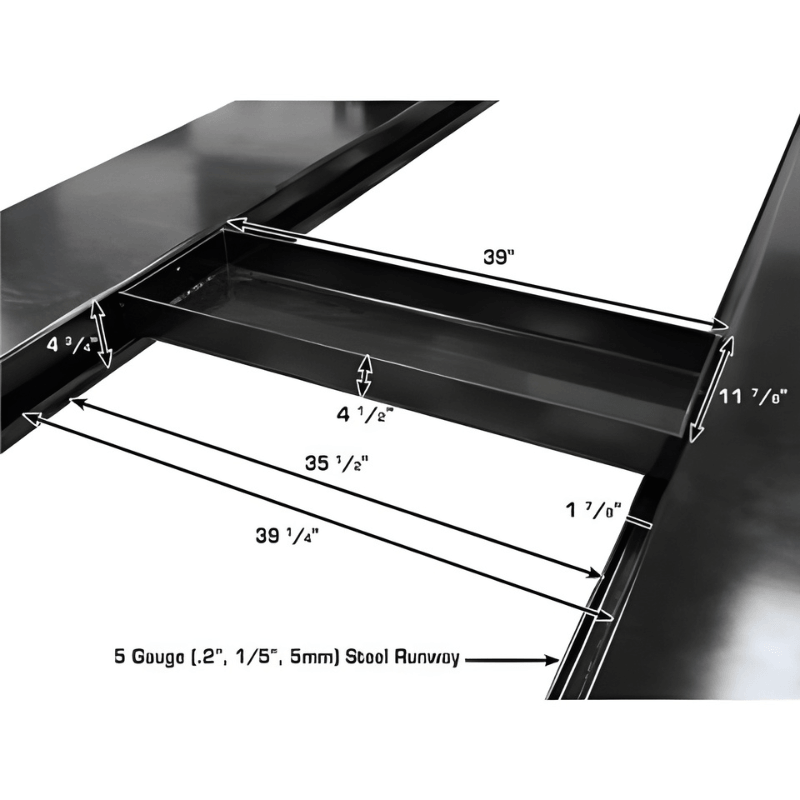

- Steel jack tray
- Plastic drip trays

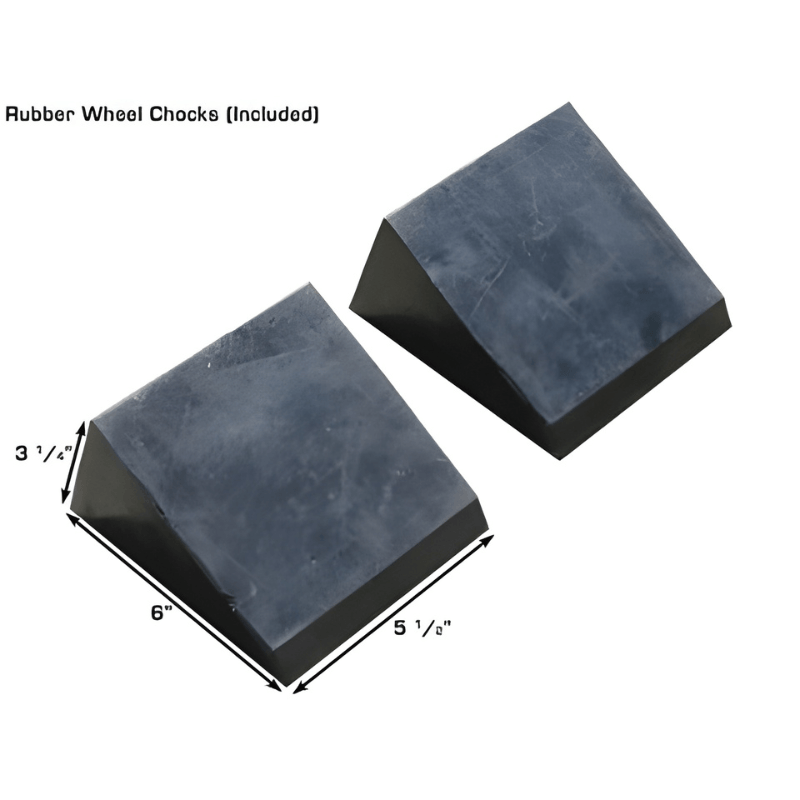

- Rubber wheel chocks
RJ45A Special Features
- Heavy-duty 4,500 lb lifting capacity
- Adds wheels-free service capability to the Garage PRO9000
- Air/hydraulic operation for smooth and efficient lifting
- Requires 70–115 PSI external shop air
- Multiple safety lock positions for secure vehicle support
- Heavy-duty scissor mechanism provides stable, level lifting

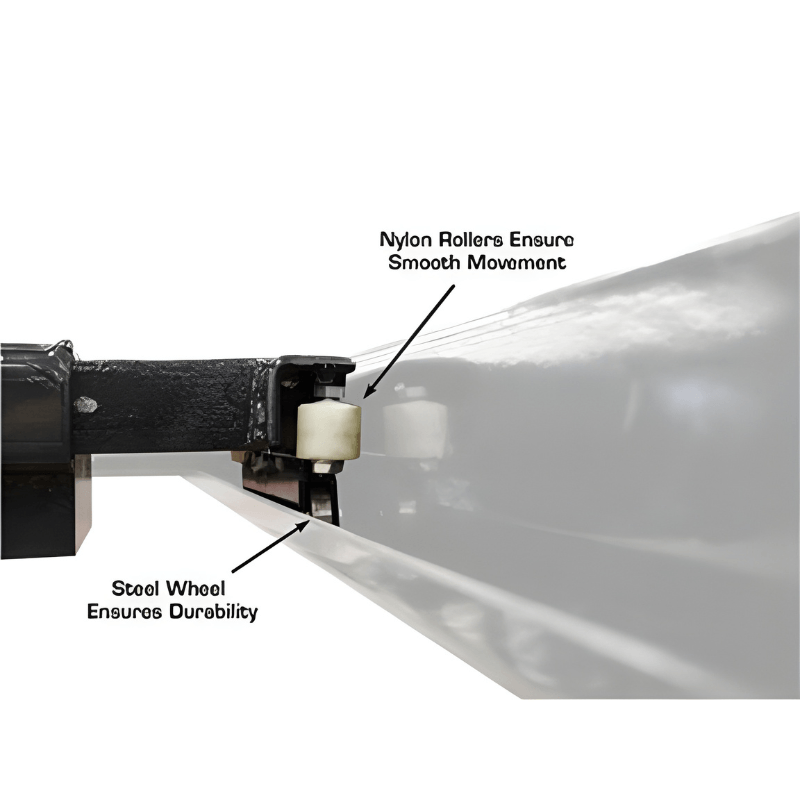

- Smooth rolling action for convenient positioning along the lift runways
- Compact, low-profile construction

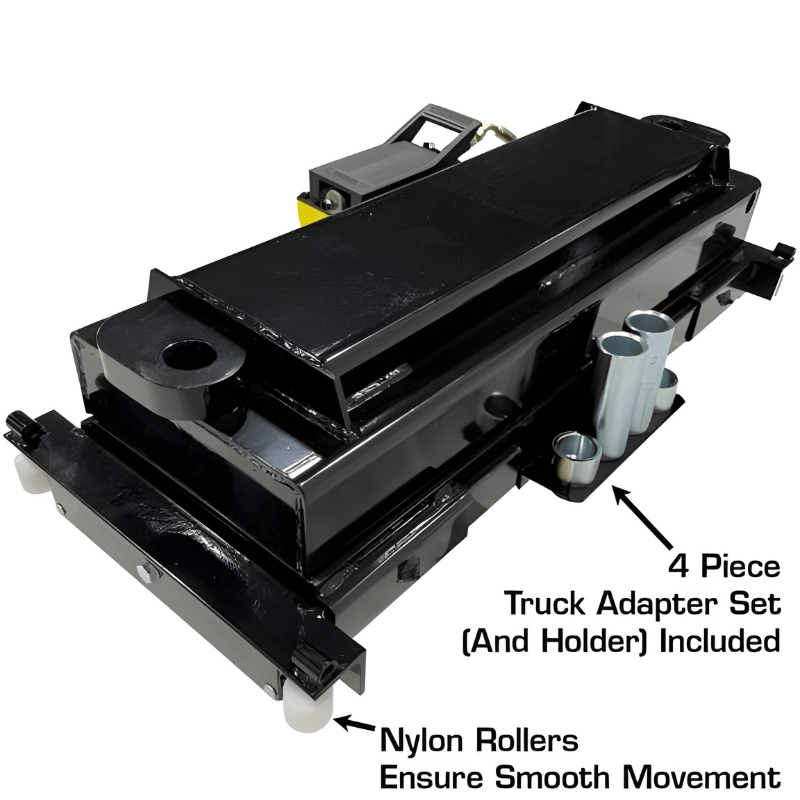

- Includes a 4-piece truck adapter set
- Ideal for tire, brake, suspension, and component service
- 1-Year Parts-Only Warranty
- External air supply is not included
Atlas PRO9000 + RJ45A Manual
Garage PRO9000 Optional Items – Sold Separately
Important Shipping Information
Due to the extra-large size of this product, it cannot be delivered to a freight terminal.
Warehouse Pickup Locations
Warehouse pickup is available with no shipping charge at select locations:
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
