Atlas Automotive EquipmentSKU: ATEXH-PRO8000

At a Glance

  • One steel jack tray; Caster kit with poly wheels
  • Max Lifting Height: 72"
  • Drive-Thru Clearance: 80.5"
Price:
$3,399.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

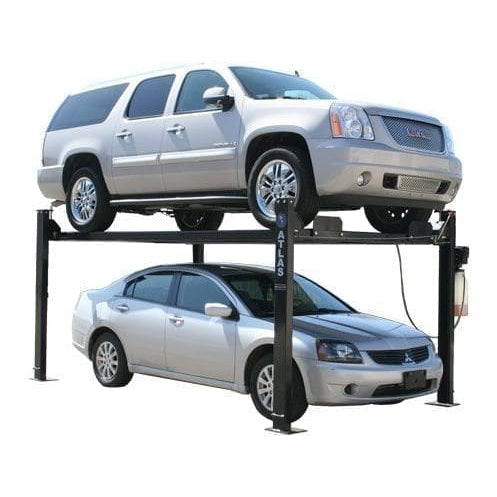

Atlas® Garage PRO8000 – 8,000 lb. Capacity Portable Hobbyist 4-Post Lift

The Atlas® Garage PRO8000 is the flagship of the Garage PRO series and one of the most popular 4-post hobbyist lifts on the market. Designed for car enthusiasts, collectors, and homeowners with limited space, this lift provides an easy way to double your parking or storage capacity by safely stacking most standard passenger vehicles.

Engineered with an 8,000 lb. lifting capacity, the Garage PRO8000 is built for durability and reliability. Like all lifts in the Atlas® Garage PRO lineup, it’s specifically intended for home garages and restoration shops, not for high-cycle commercial repair use where lifts are operated multiple times per day. For help choosing the best lift for your needs, our sales team is always available to assist.

Each Atlas® Garage PRO8000 comes fully equipped with valuable accessories:

  • Four plastic drip trays (included free)

  • One steel jack tray (included free)

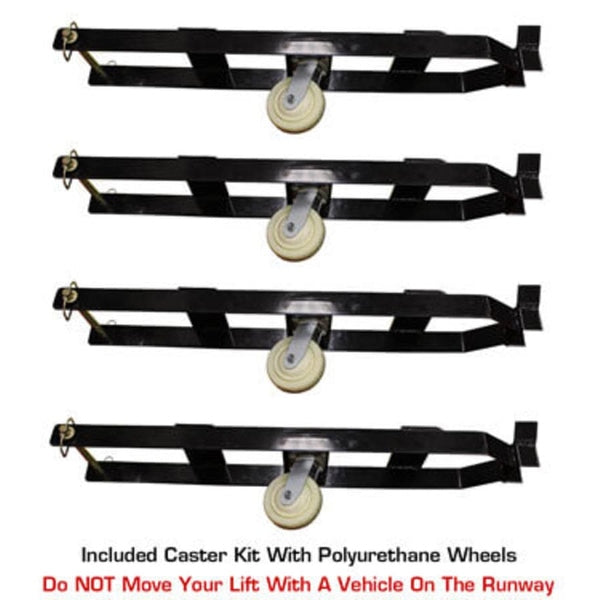

  • A caster kit with polyurethane wheels (included free)

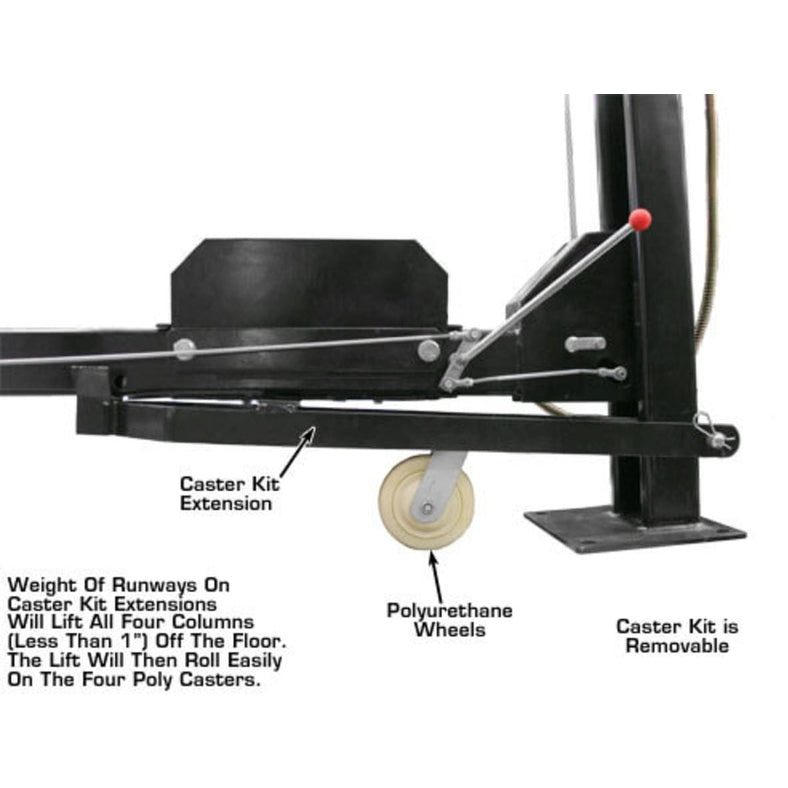

The caster kit installs or removes in minutes, making the lift fully portable and allowing it to be moved easily between bays—or even outdoors. This combination of versatility, quality, and value makes the Garage PRO8000 one of the best-performing and best-priced hobbyist lifts in its class.

Many customers who purchase this model also add the Atlas® RJ35 rolling bridge jack for wheel-off service capability.


Features (Rephrased for Clarity and Professional Presentation)

  • 8,000 lb. Lifting Capacity for a wide range of passenger vehicles

  • Free-Standing, Portable Design for flexible garage placement and mobility

  • Diamond-Plated Runways provide durable, non-slip traction

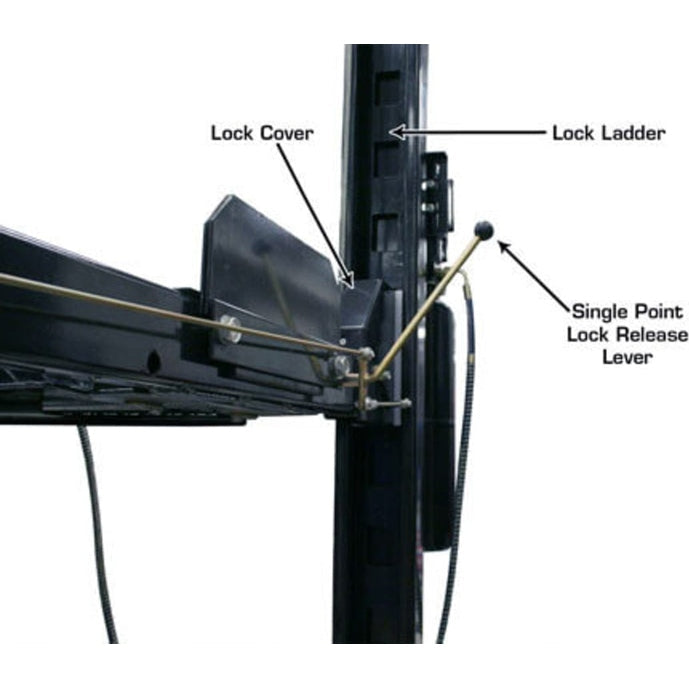

  • Single-Point Lock Release for simple and synchronized operation

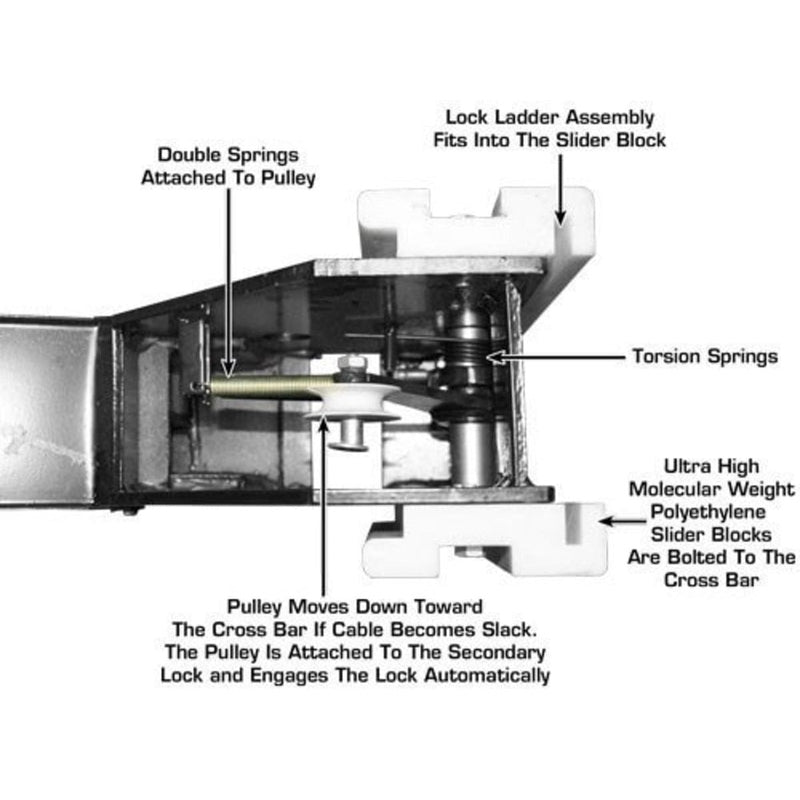

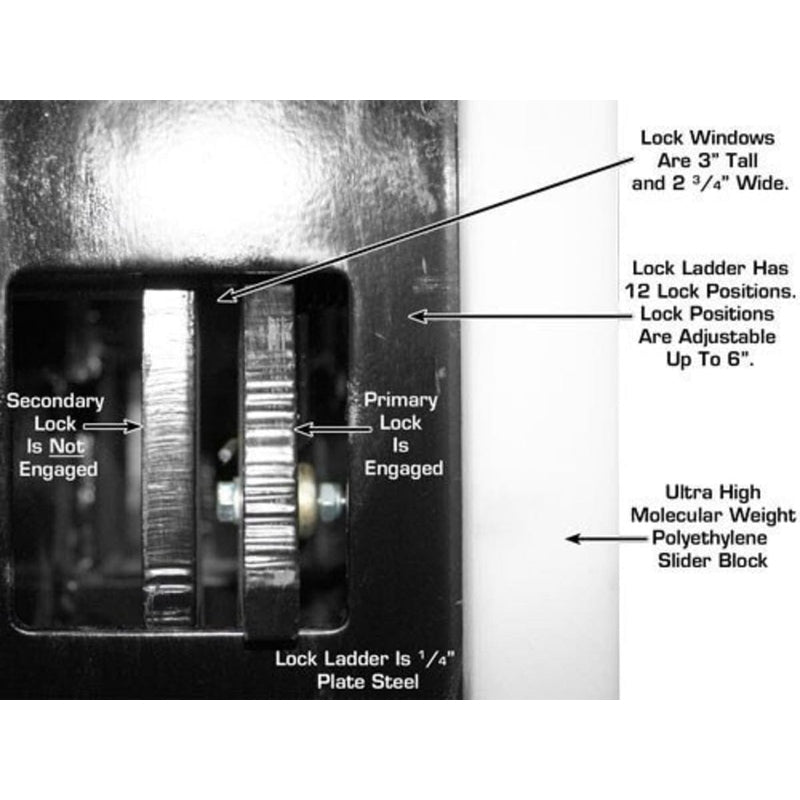

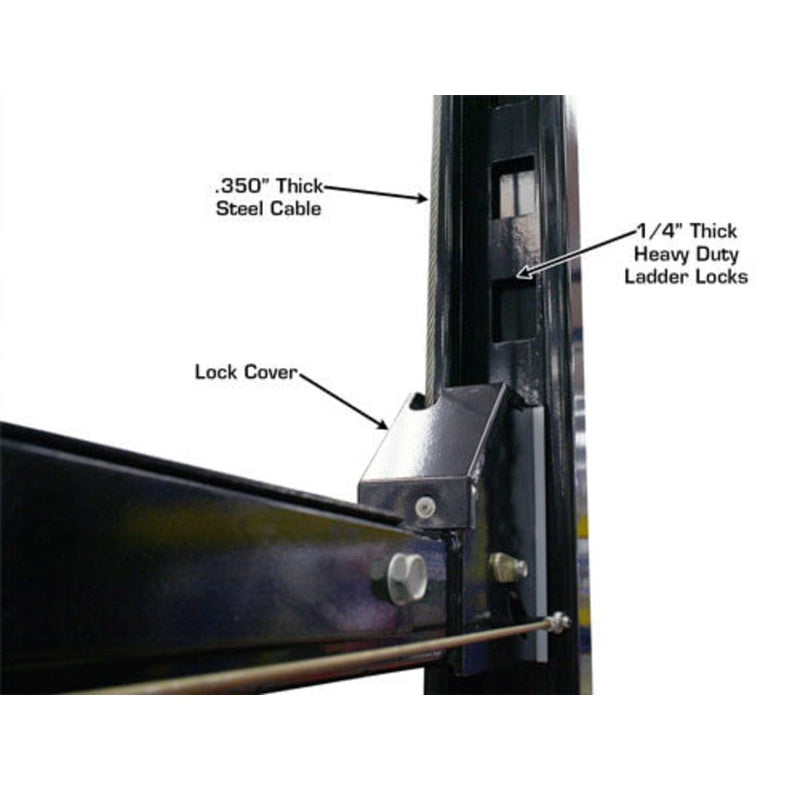

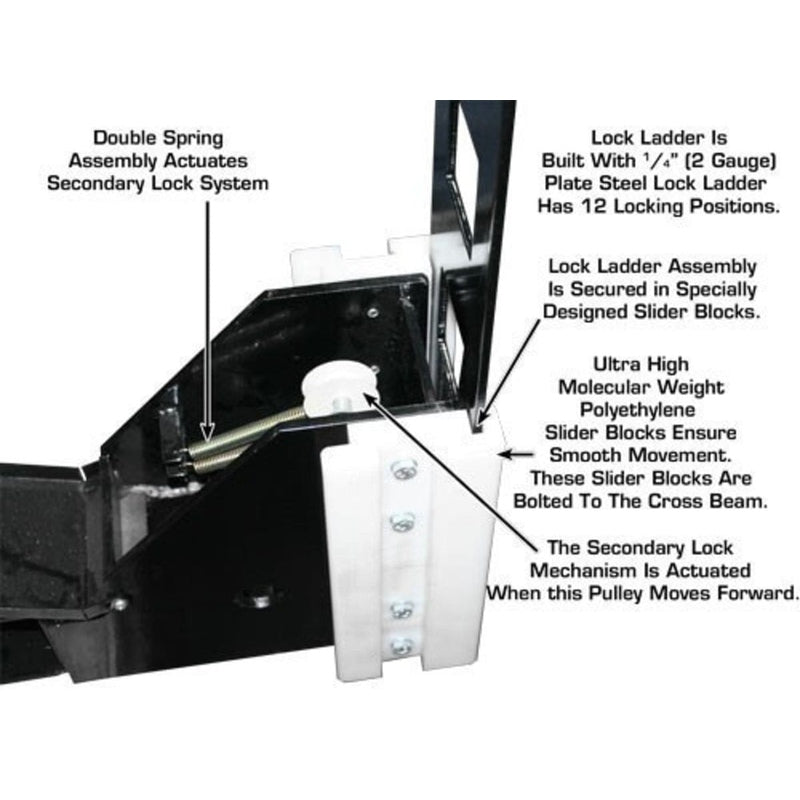

  • Lock Ladder Design ensures consistent leveling and secure positioning

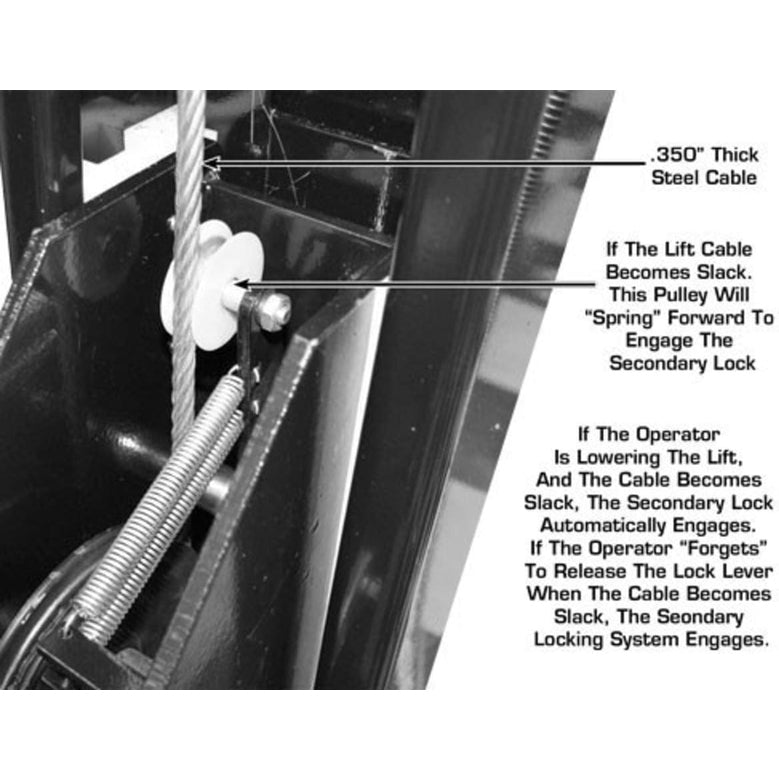

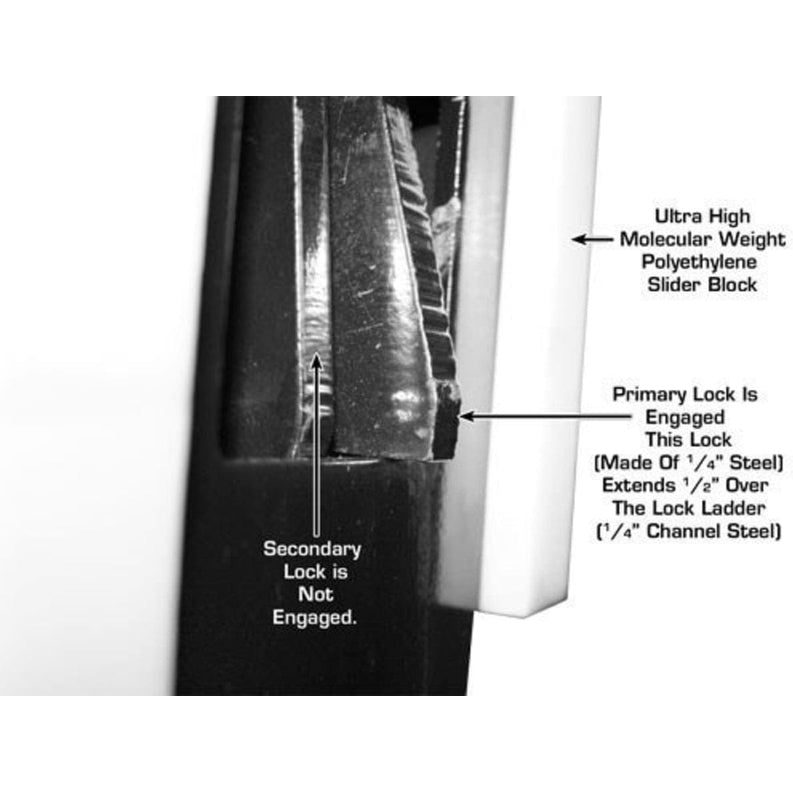

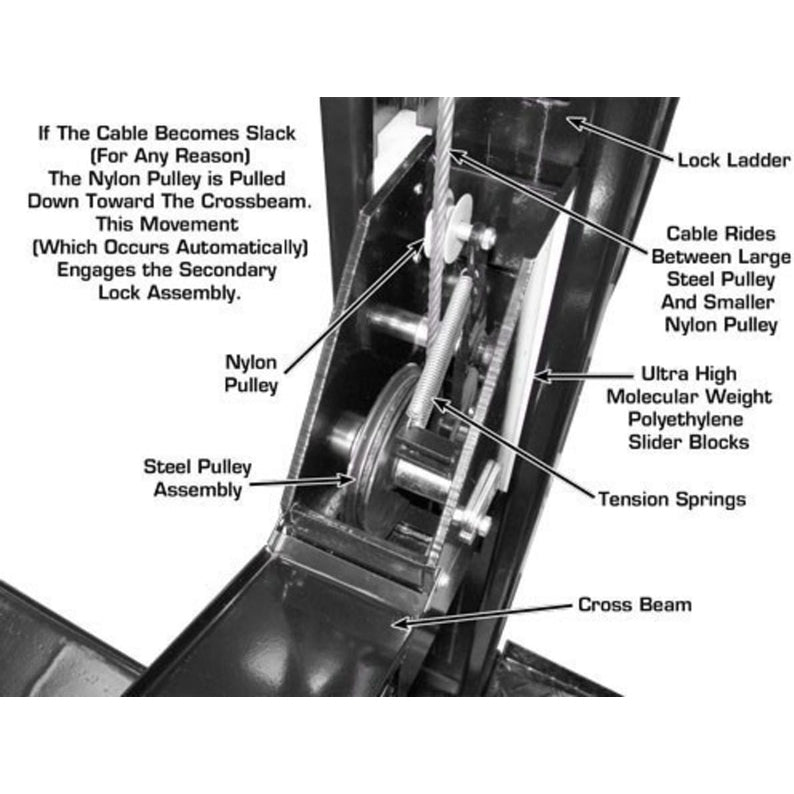

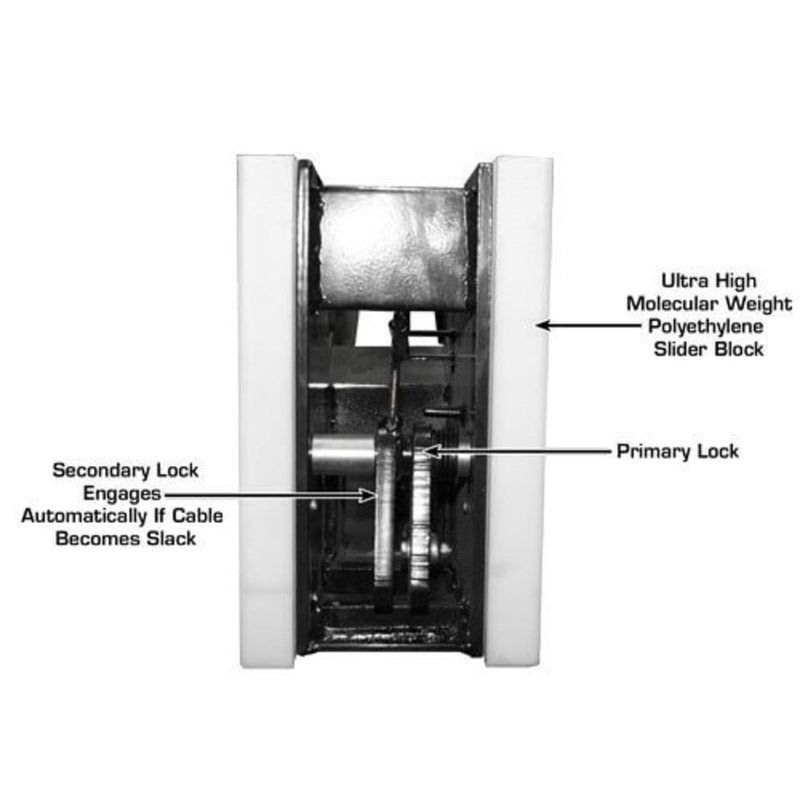

  • Dual Lock Safety System offers an extra layer of protection during lifting

  • Caster Kit with Polyurethane Wheels (Included) for easy portability between bays or outdoor use

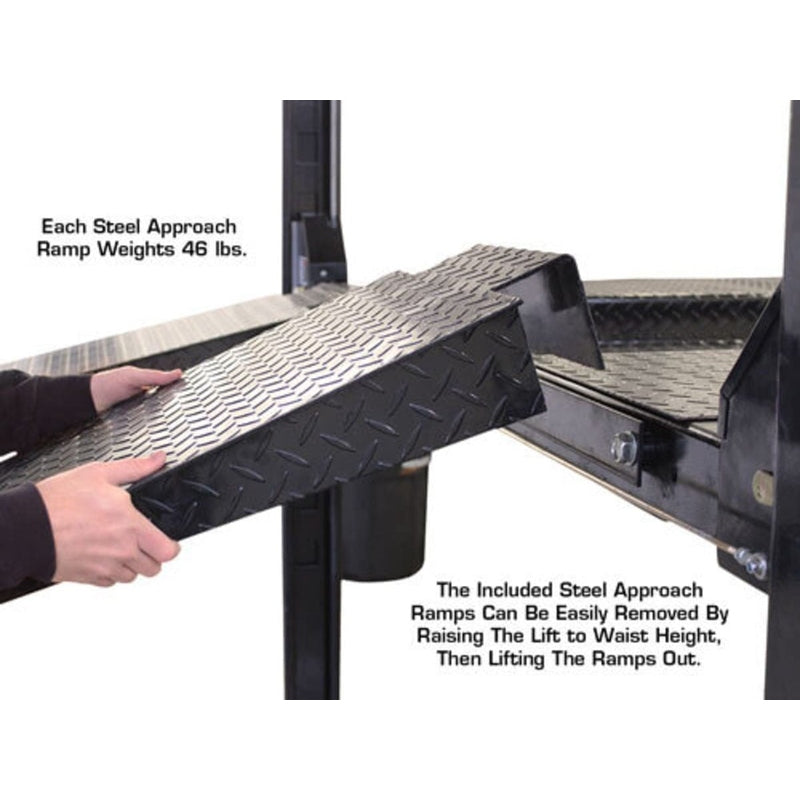

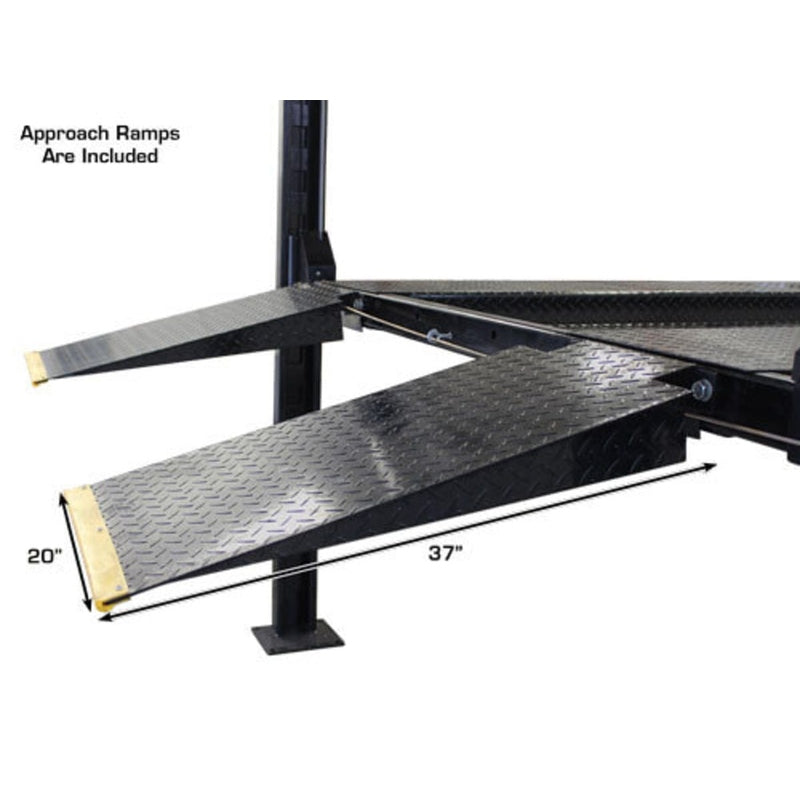

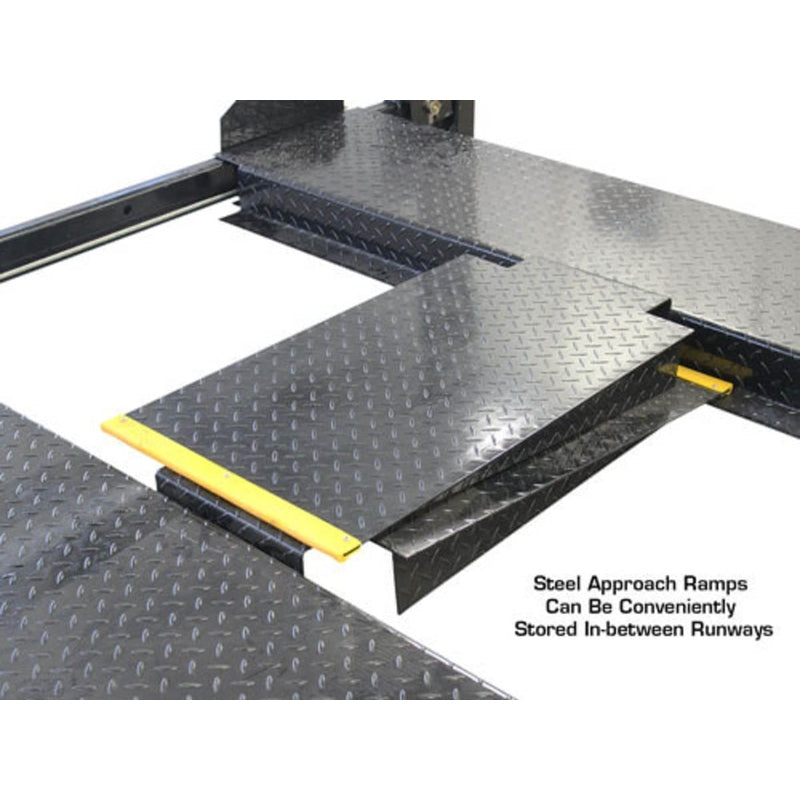

  • Steel Approach Ramps (Included) for smooth vehicle entry and exit

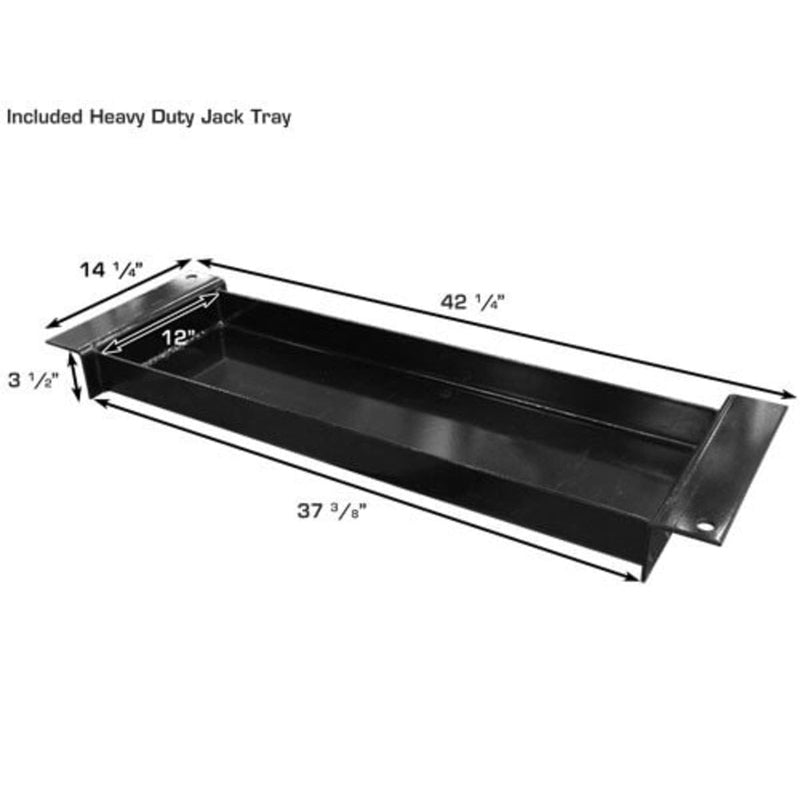

  • Steel Jack Tray (Included) for wheel-off service work

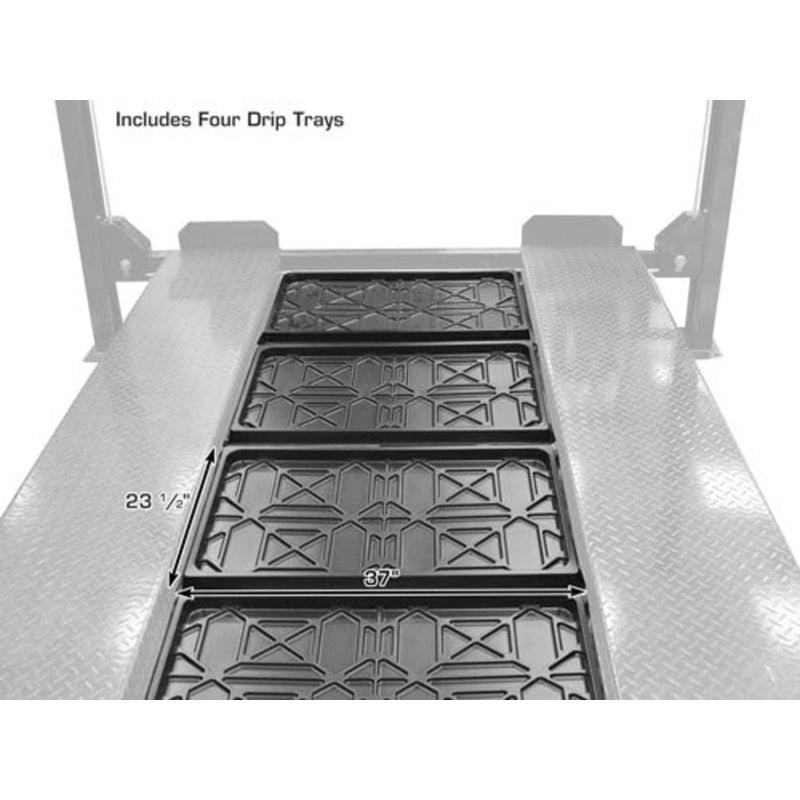

  • Four Plastic Drip Trays (Included) to protect floors from oil or fluid leaks

  • Four Wheel Stops (Included) for added safety and vehicle stability

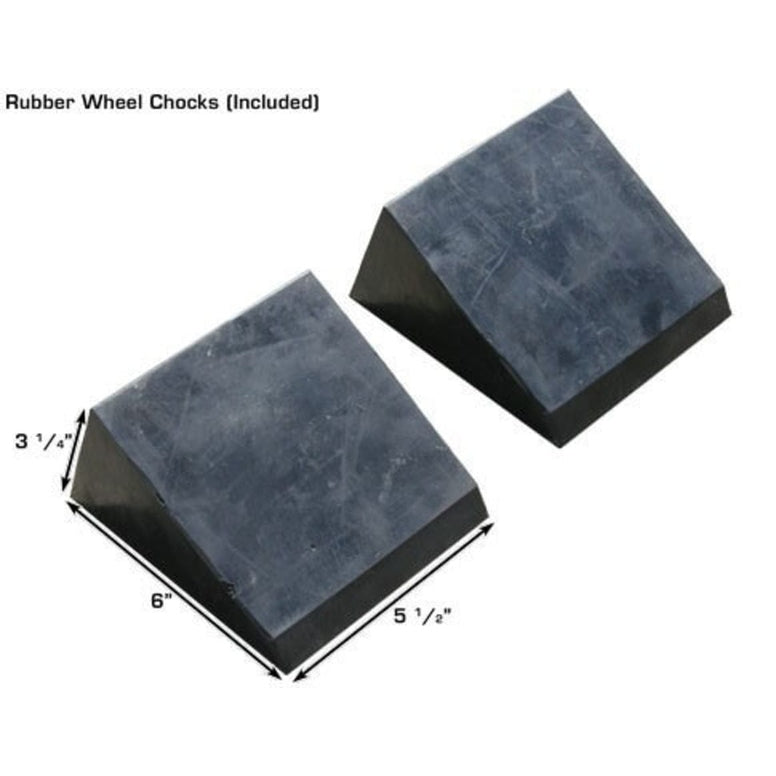

  • Two Rubber Wheel Chocks (Included) for secure vehicle positioning

  • Ideal for Vehicle Storage or Maintenance applications

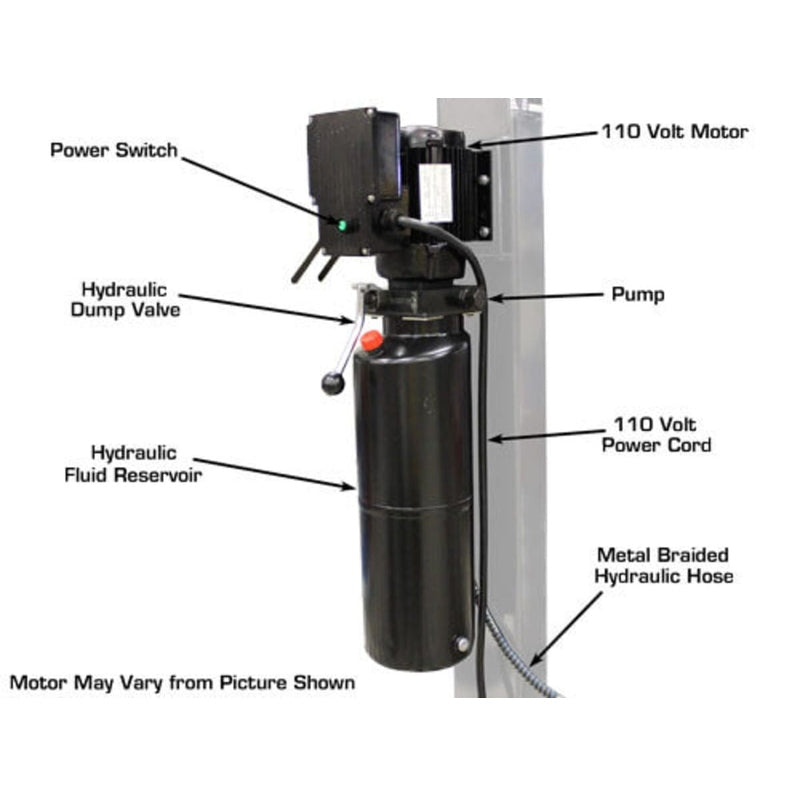

  • 110V Electric Operation (requires 30A breaker)

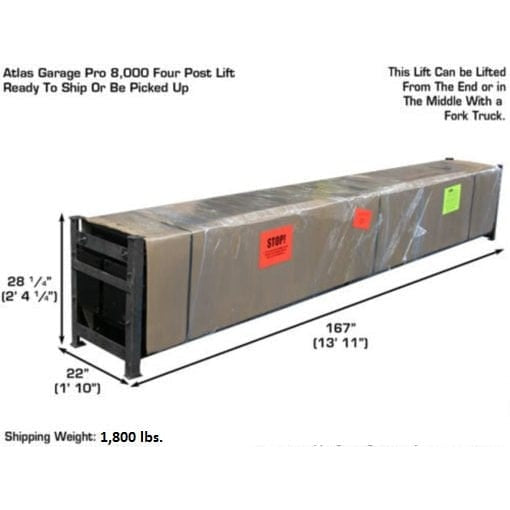

  • Shipping Weight: 1,800 lb.

  • Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)

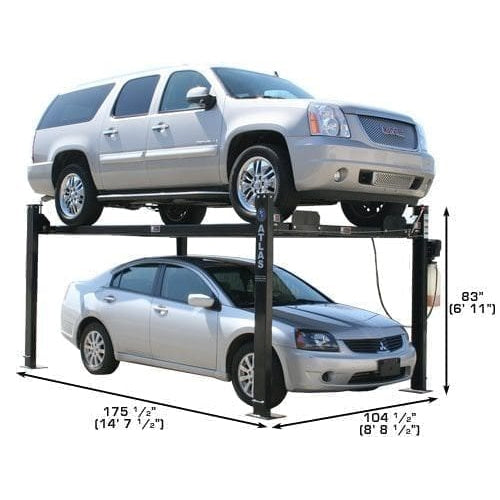

Specifications

Specification Measurement
Lifting Capacity 8,000 lb.

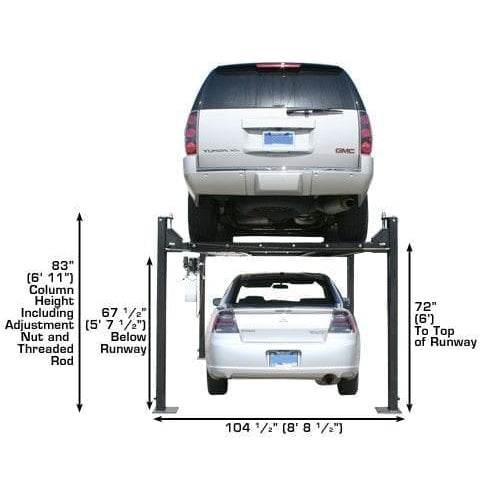

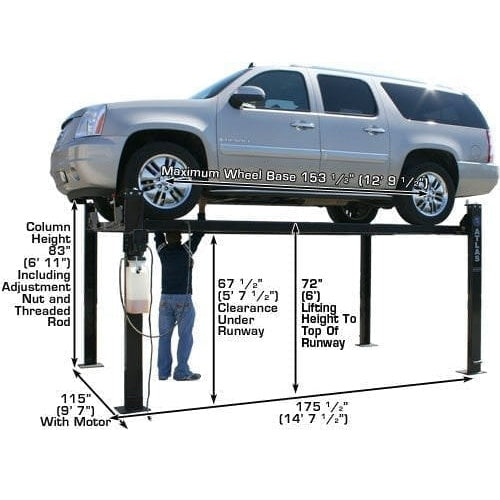

Lifting Height (to Top of Runway) 72" (6')
Clearance Under Runways 67" (5' 7")

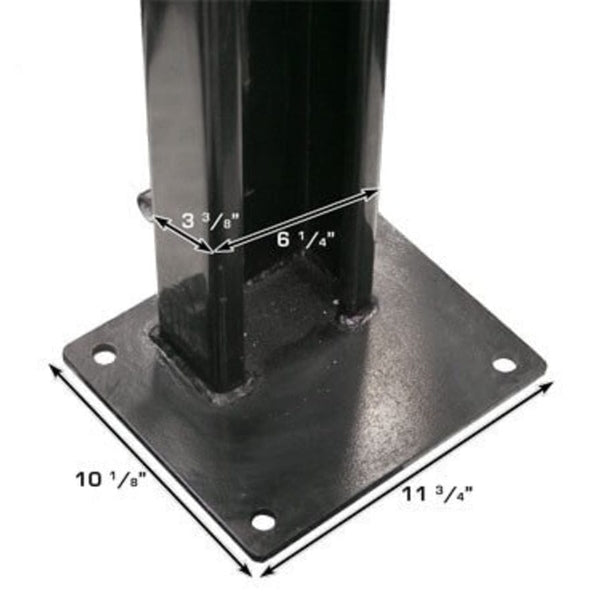

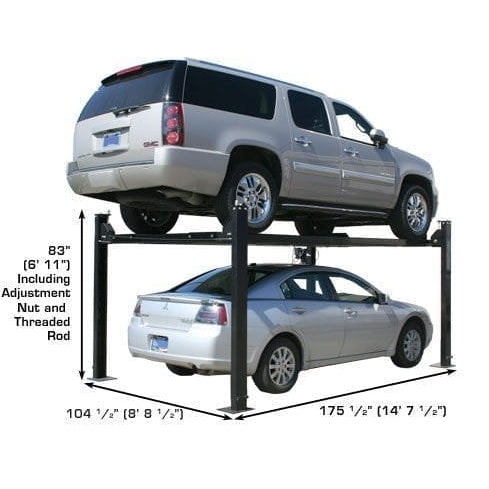

Height of Columns 83" (6' 11")
Overall Width (w/o Motor) 104 ½" (8' 8 ½")

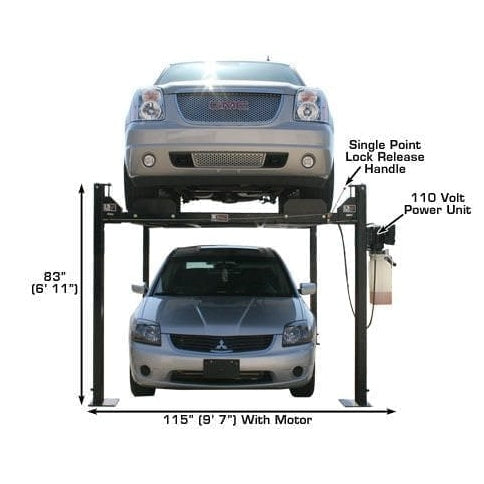

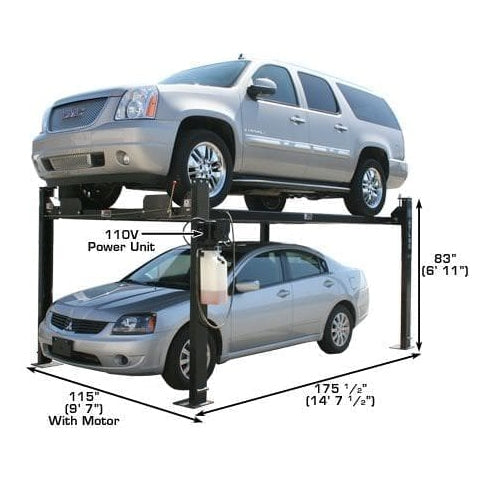

Overall Width (w/ Motor) 115" (9' 7")

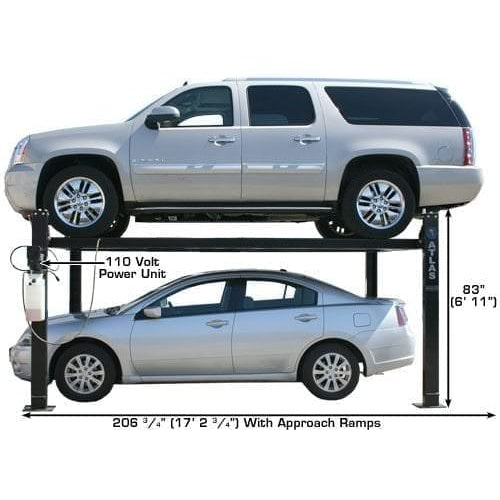

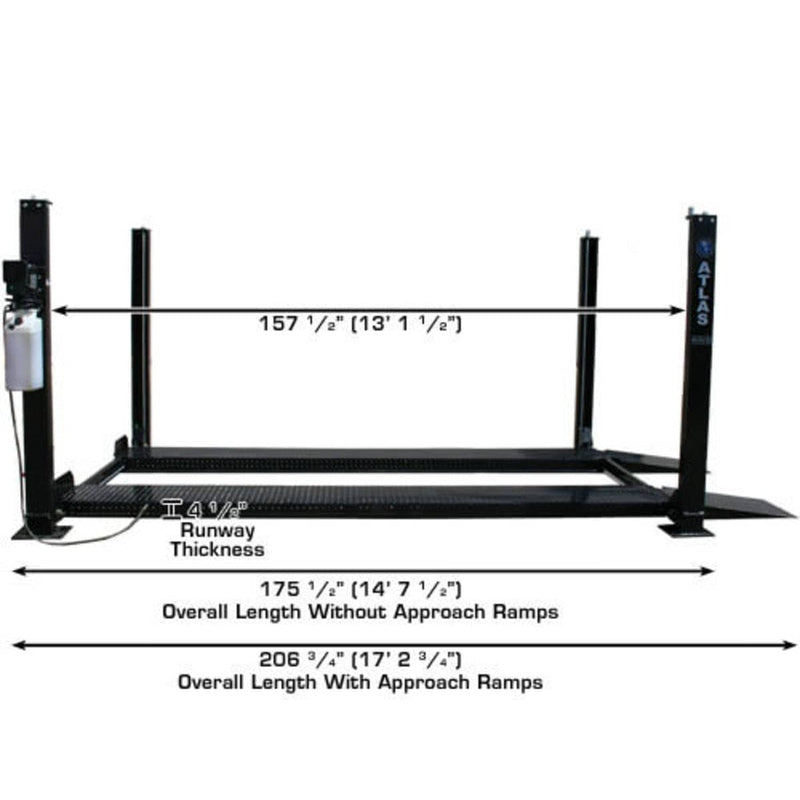

Overall Length (w/ Ramps) 206 ¾" (17' 2 ¾")
Approach Ramp Length 37" (3' 1")

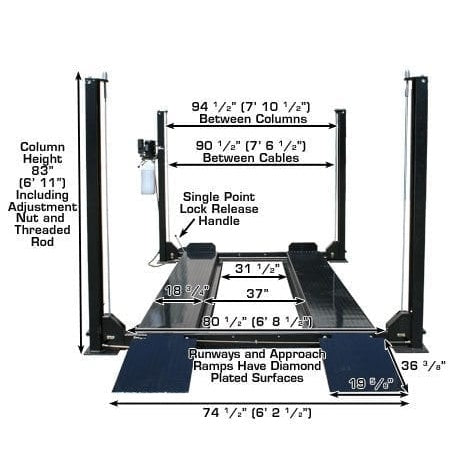

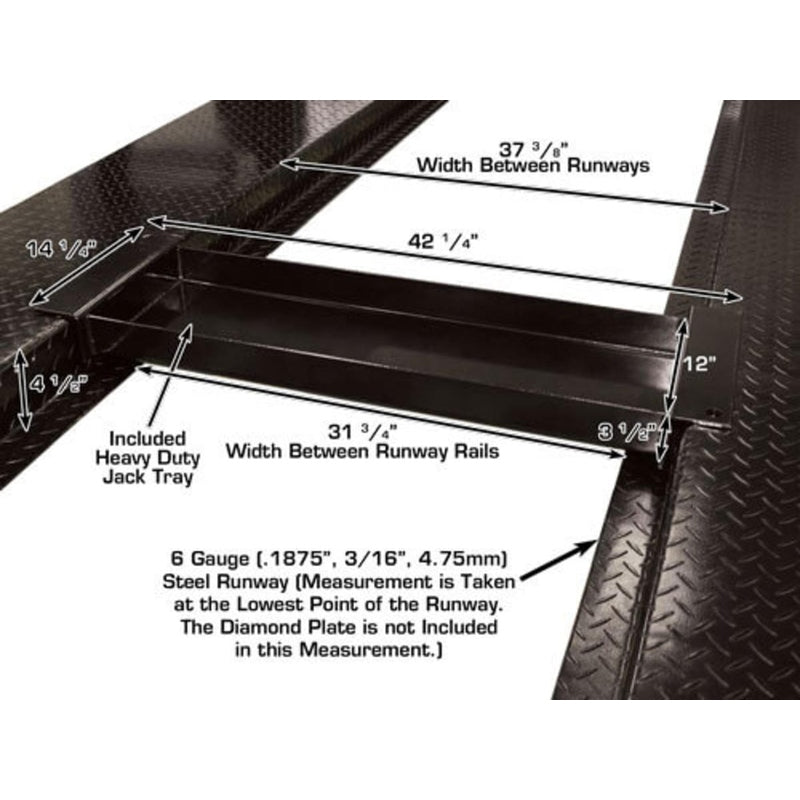

Runway Width 21 ½" (with rails) / 18 ¾" (driving surface)
Runway Length 165 ¾" (13' 9 ¾")
Runway Thickness 4 ½"
Width Between Runways 37" (3' 1")
Width Between Runway Rails 31 ½" (2' 7 ½")
Outside Runway to Outside Runway 74 ⅝" (6' 2 ⅝")
Clearance Between Columns 94 ½" (7' 10 ½")
Length Between Columns 157 ½" (13' 1 ½")
Maximum Wheelbase 153 ½" (12' 9 ½")
Drive-Through Width (Outside of Tires) 80 ½" (6' 8 ½")
Electrical Requirement 110V, 30A Breaker Required
Shipping Weight 1,800 lb.

Documents

Atlas® Garage PRO8000 Manual

Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
