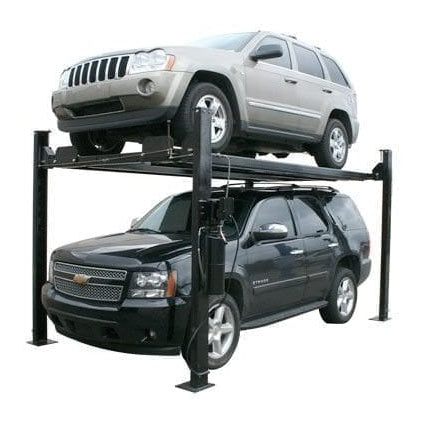

The Atlas® Garage PRO8000EXT is a true 8,000 lb. capacity, extra-tall four-post lift — one of the most popular models in the Atlas® Garage PRO lineup. Designed for hobbyists, collectors, and restoration enthusiasts, this lift blends the best features of the Atlas® Garage PRO8000 and Atlas® Garage PRO9000, offering superior height without the need for additional runway length.

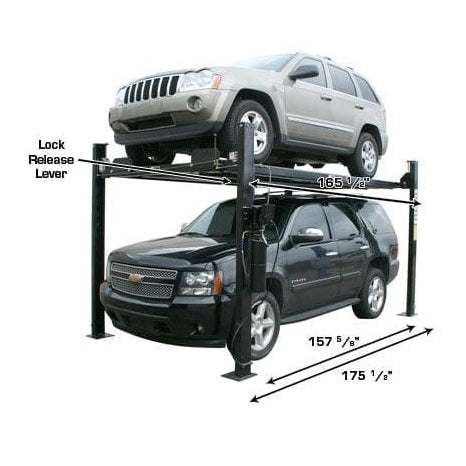

Many vehicle owners with SUVs or pickup trucks want a storage lift that provides increased lifting height to park taller vehicles beneath a raised platform. While some competitors’ “tall” lifts also require longer runways (which take up valuable garage space), the PRO8000EXT was specifically engineered to maximize vertical clearance while maintaining a compact footprint. It delivers 79 inches of clearance beneath the raised runways, making it ideal for stacking a standard vehicle above and parking a truck or SUV below.
If you want the lifting height of the Atlas® Garage PRO9000 but don’t require its extra width or extended runways, the Atlas® Garage PRO8000EXT is the perfect middle ground.
The Atlas® Garage PRO series (8,000 lb. capacity) is built for home garages, car enthusiasts, and restoration shops. These lifts are not designed for commercial repair environments where the lift would be operated multiple times per day. For help selecting the right model for your application, our sales team is available to assist.
Each Atlas® Garage PRO8000EXT includes:
-

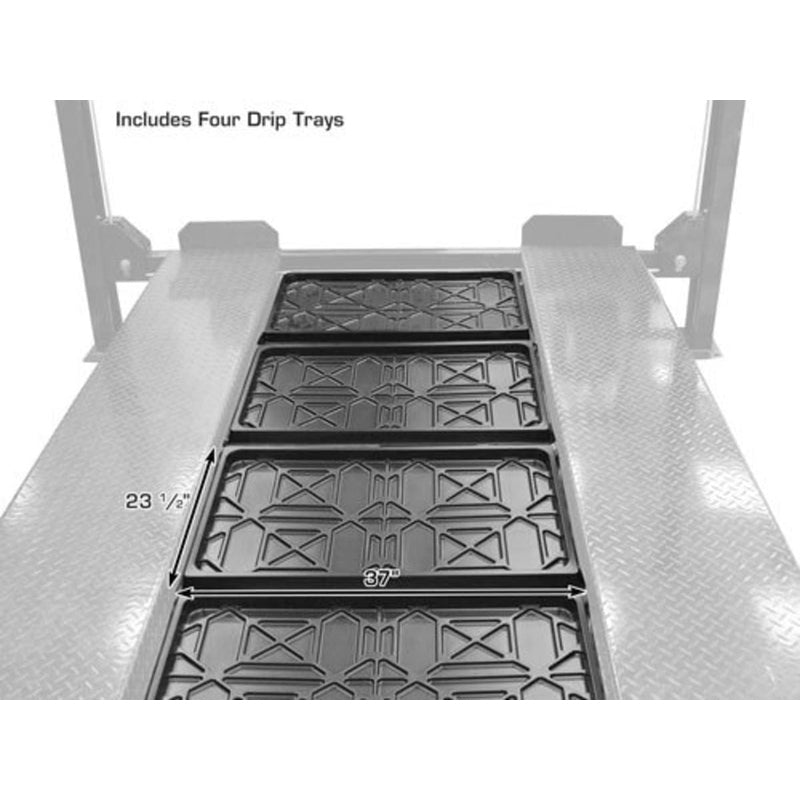

Four plastic drip trays (included free)
-

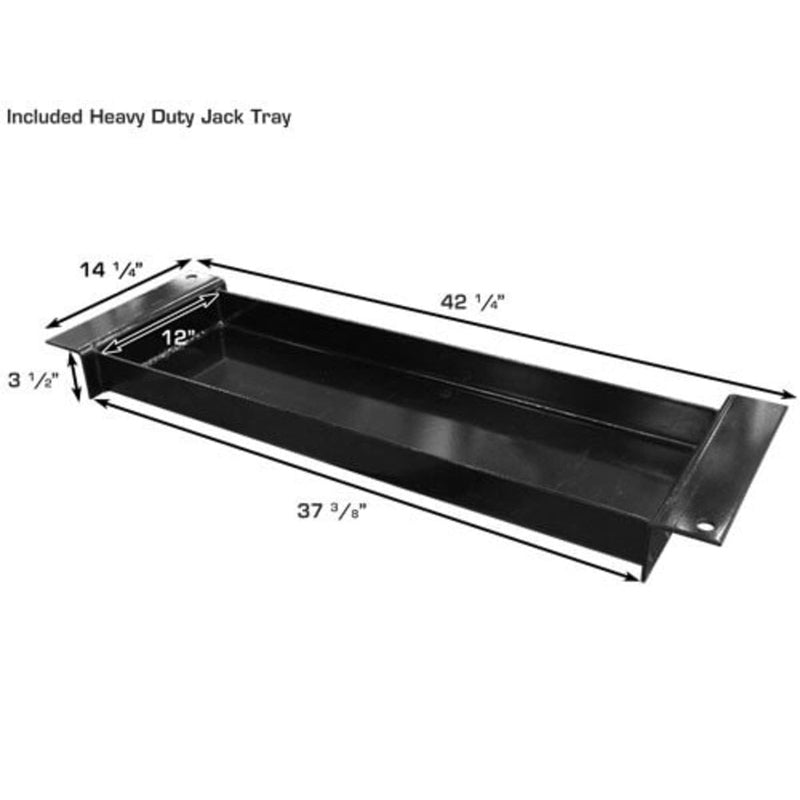

One steel jack tray (included free)
-

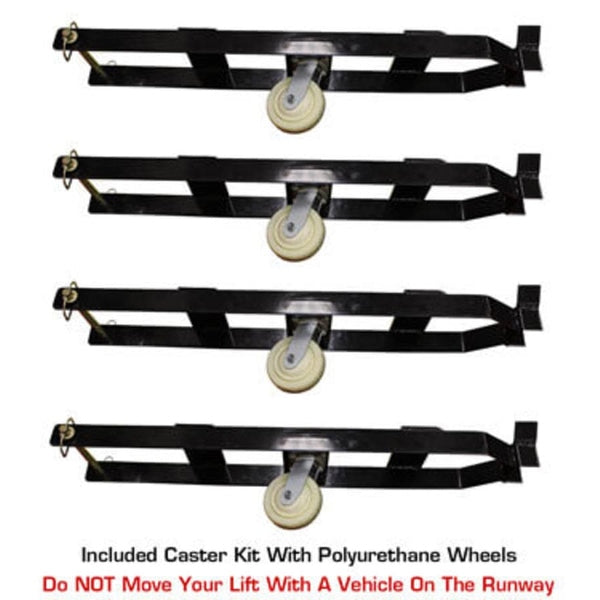

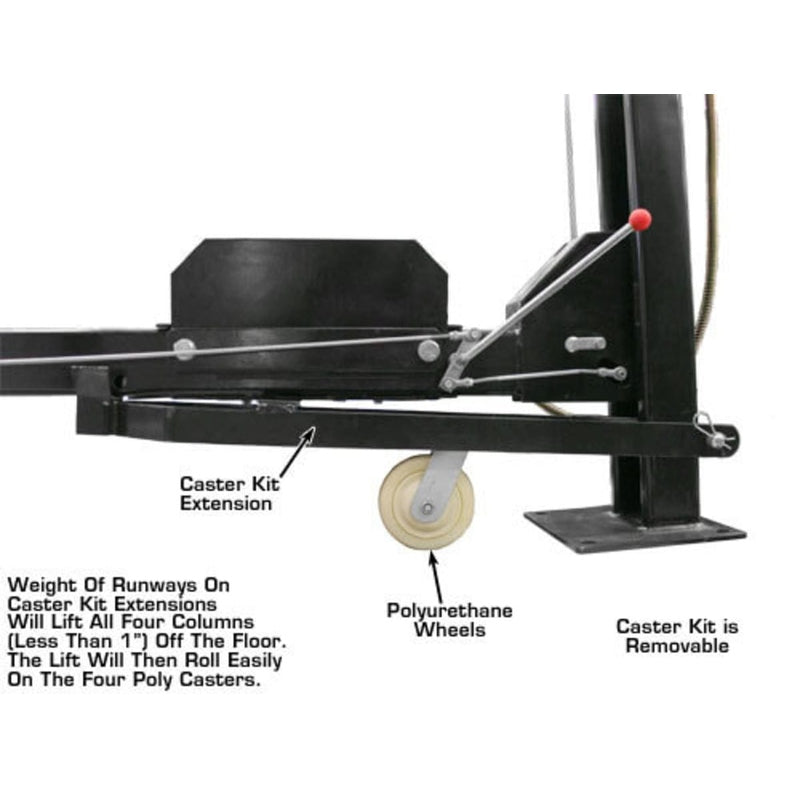

A caster kit with polyurethane wheels (included free)
The caster kit installs or removes in minutes, making the lift fully portable and easy to move between bays or even outdoors when necessary.
Many customers who purchase this model also add the Atlas® RJ35 rolling bridge jack for wheel-off services.
Key Features
-
8,000 lb. Lifting Capacity
-
Free-Standing, Portable Design
-
Extra-Tall Configuration for maximum storage versatility
-

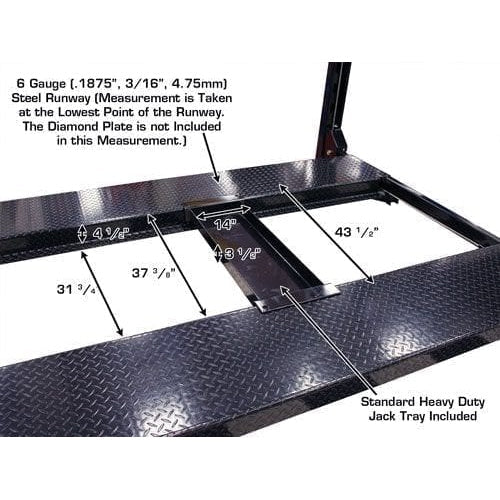

Diamond-Plated Runways for traction and durability
-

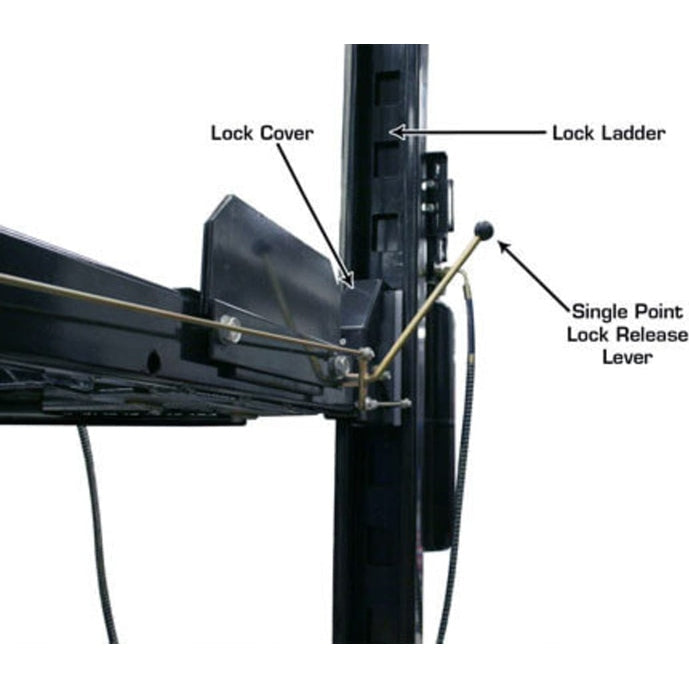

Single-Point Lock Release for quick, convenient operation
-

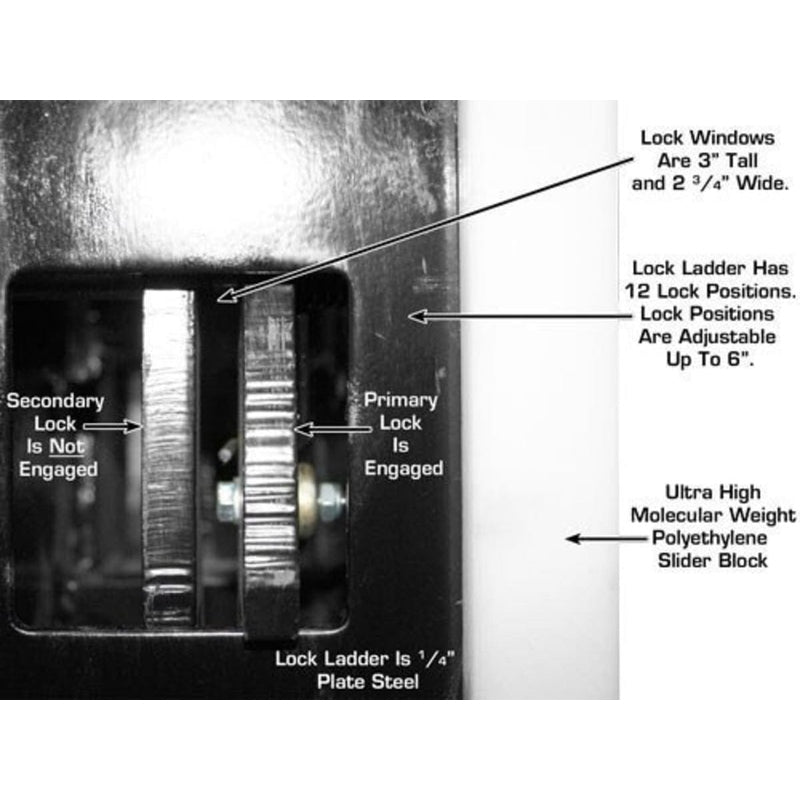

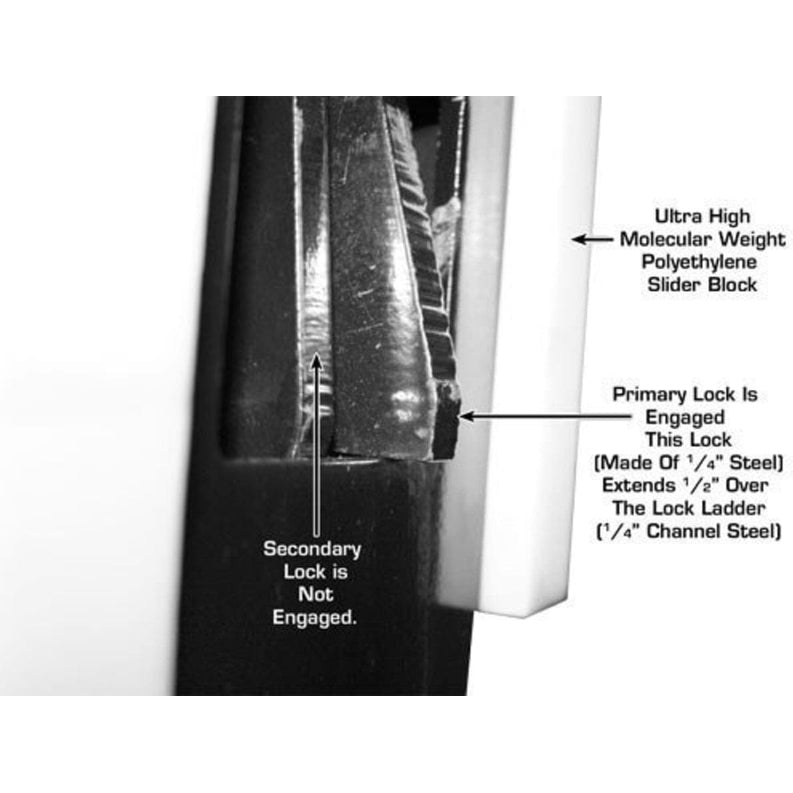

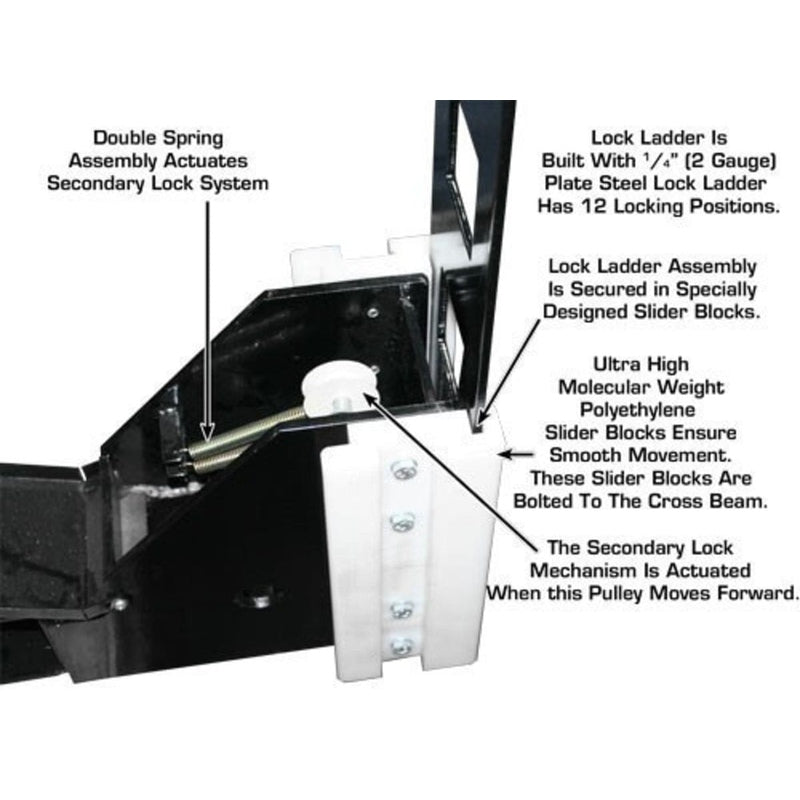

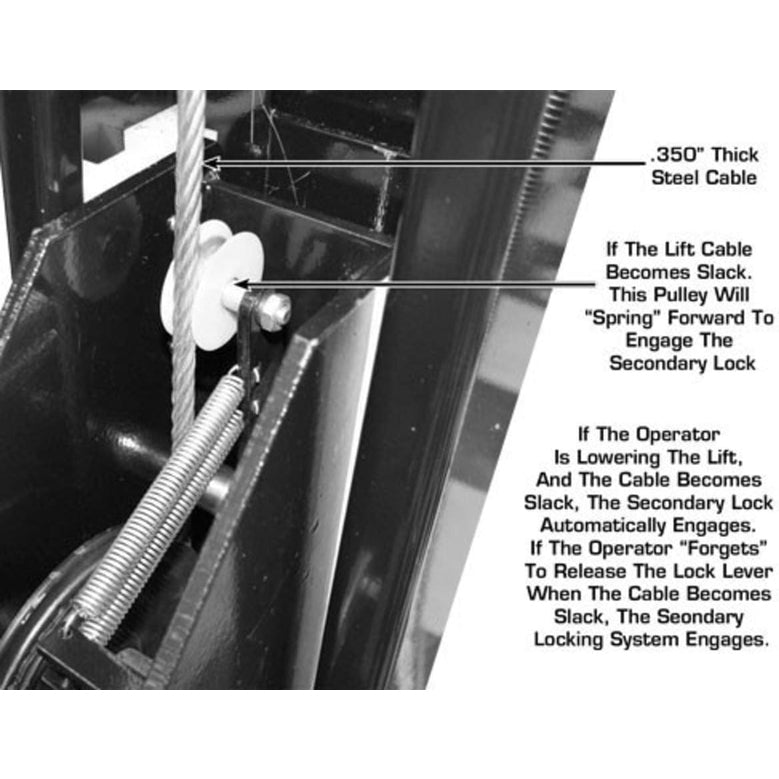

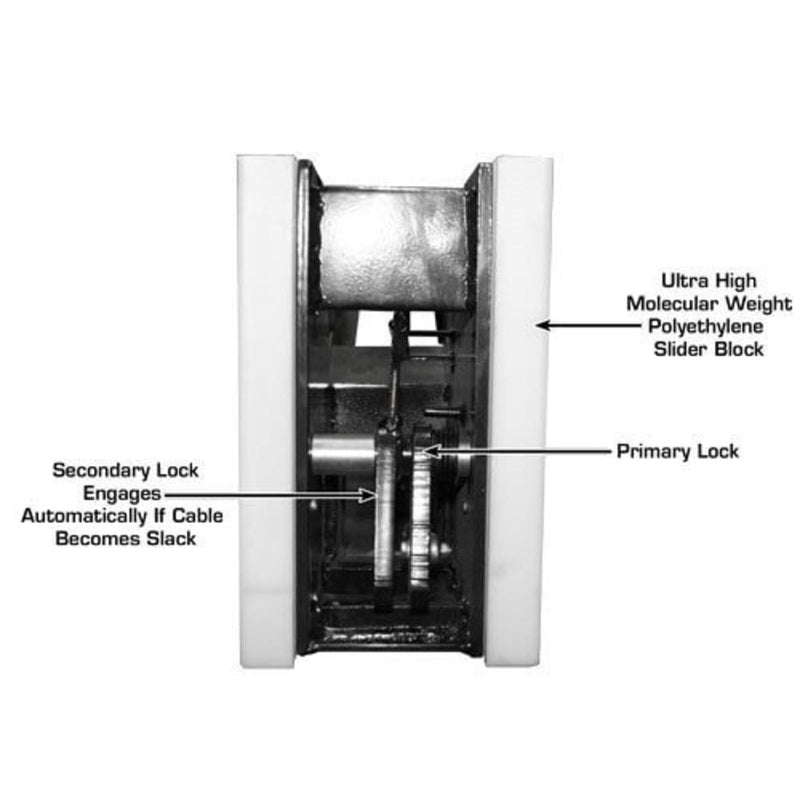

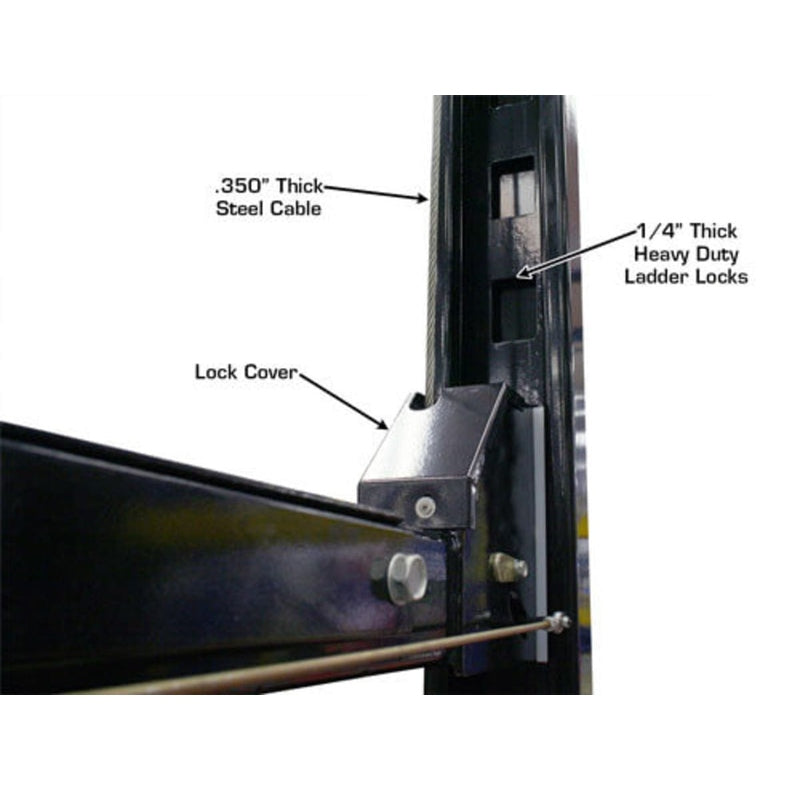

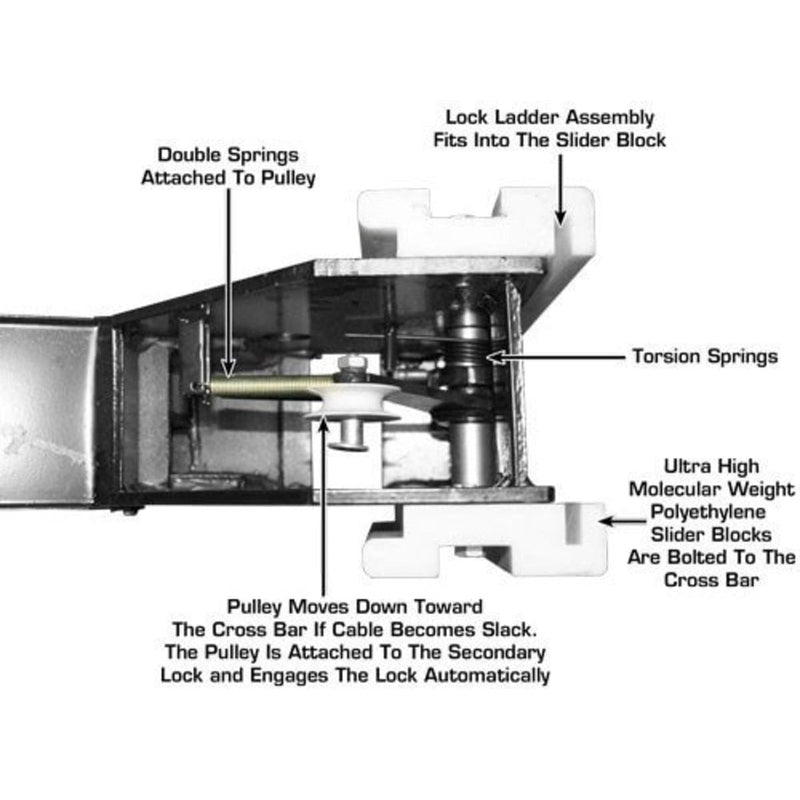

Lock Ladder Design with Double Lock Safety System
-
Caster Kit with Polyurethane Wheels (Included) for easy portability
-

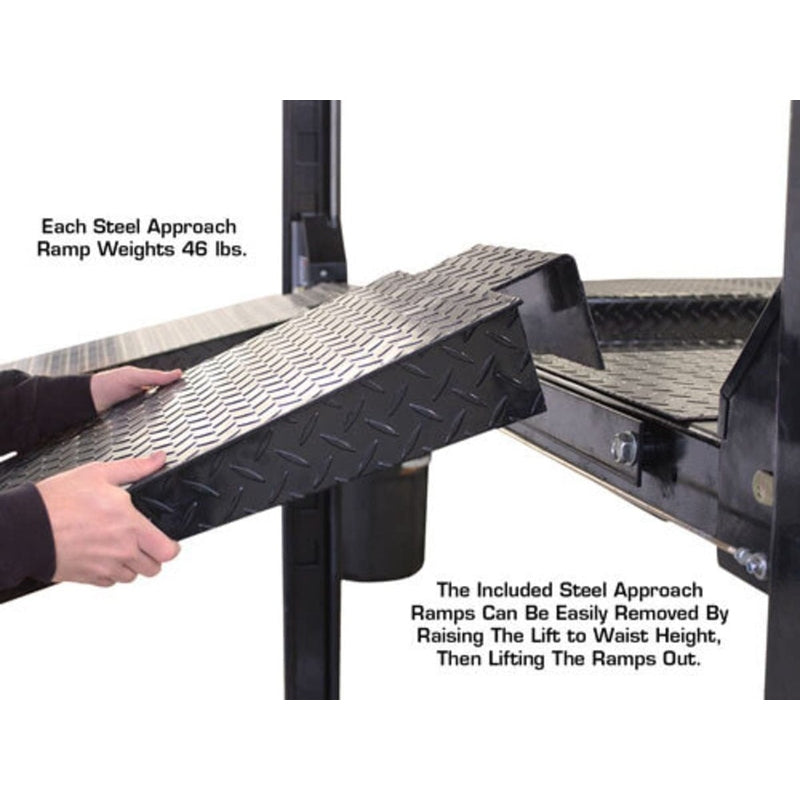

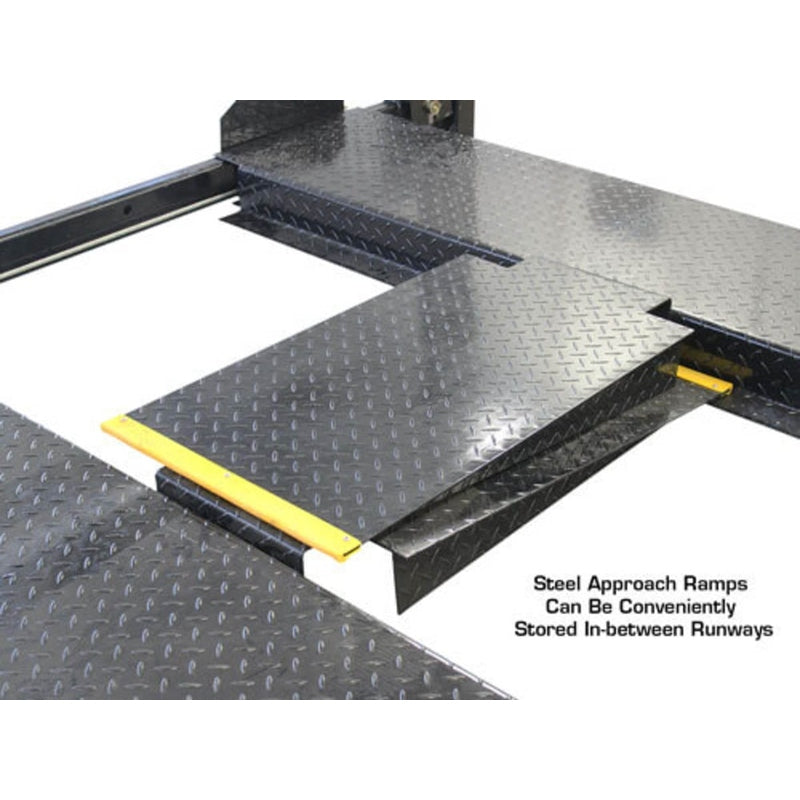

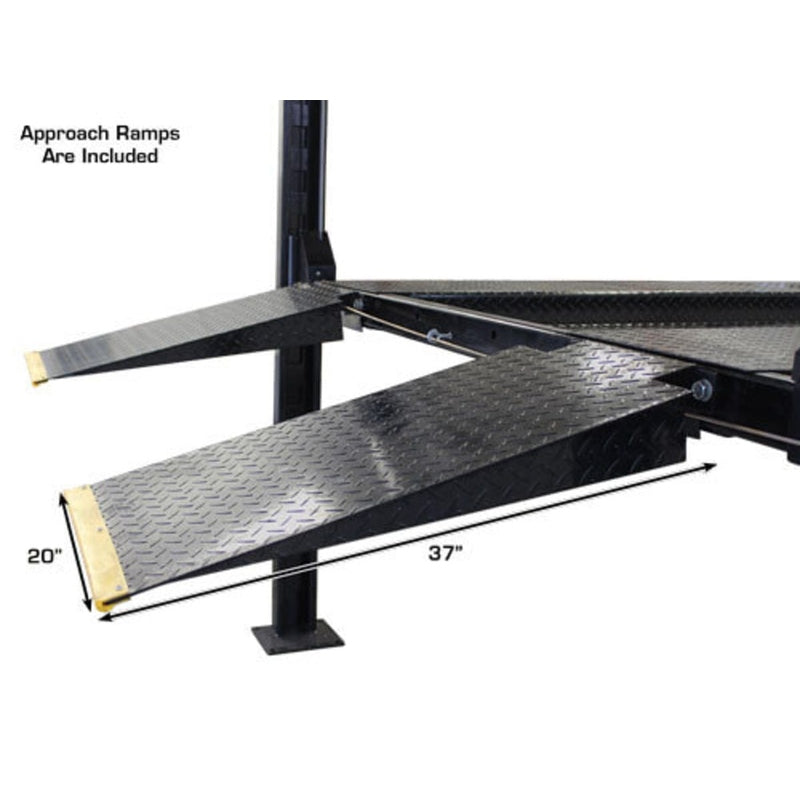

Steel Approach Ramps (Included)
-
Steel Jack Tray (Included)
-
Four Plastic Drip Trays (Included)
-
Four Wheel Stops (Included)
-

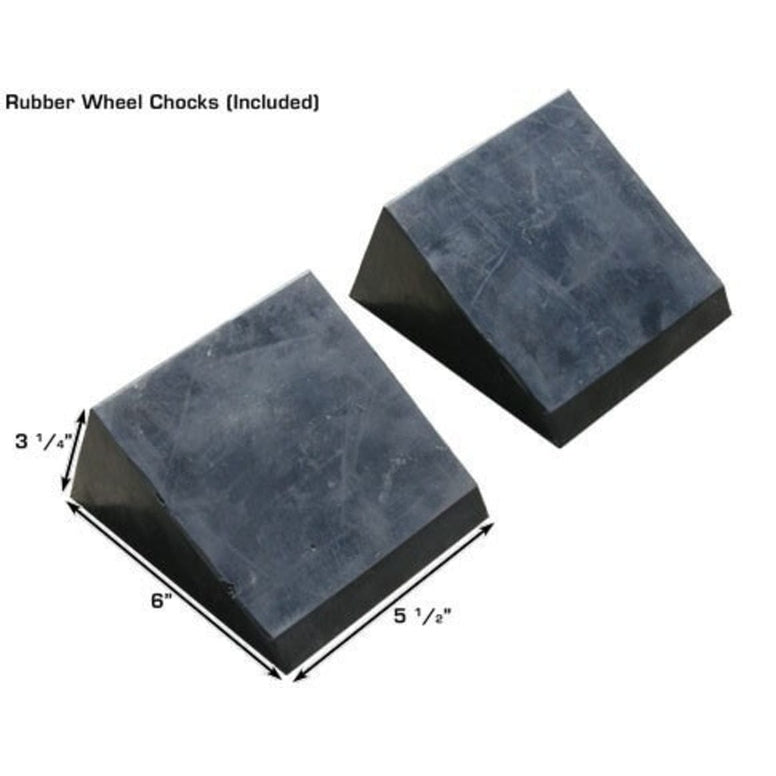

Two Rubber Wheel Chocks (Included)
-
Ideal for Storing or Working on Vehicles
-

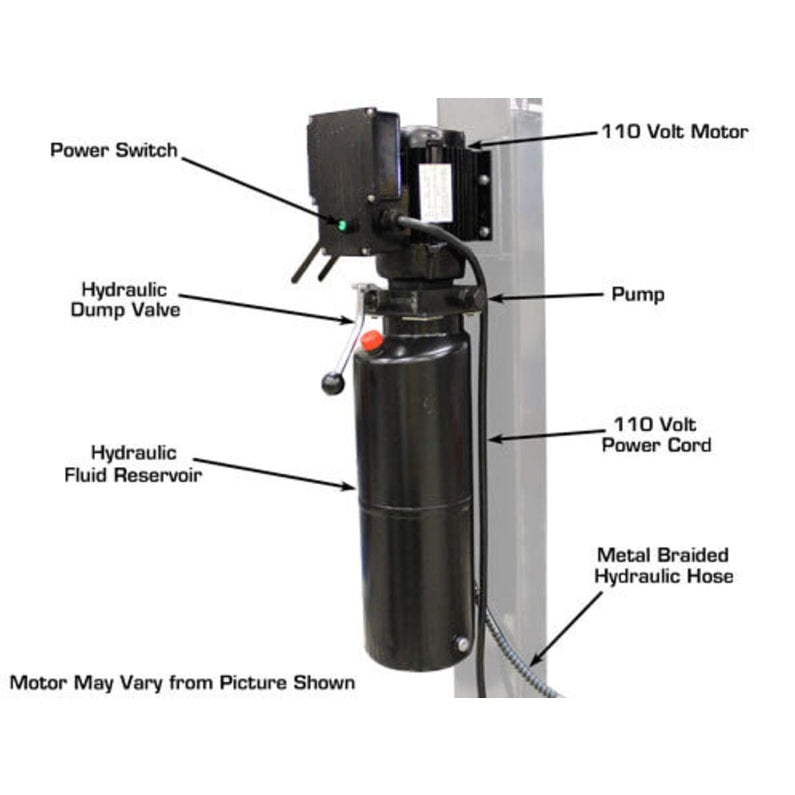

110V Electric Operation (requires 30A breaker)
-

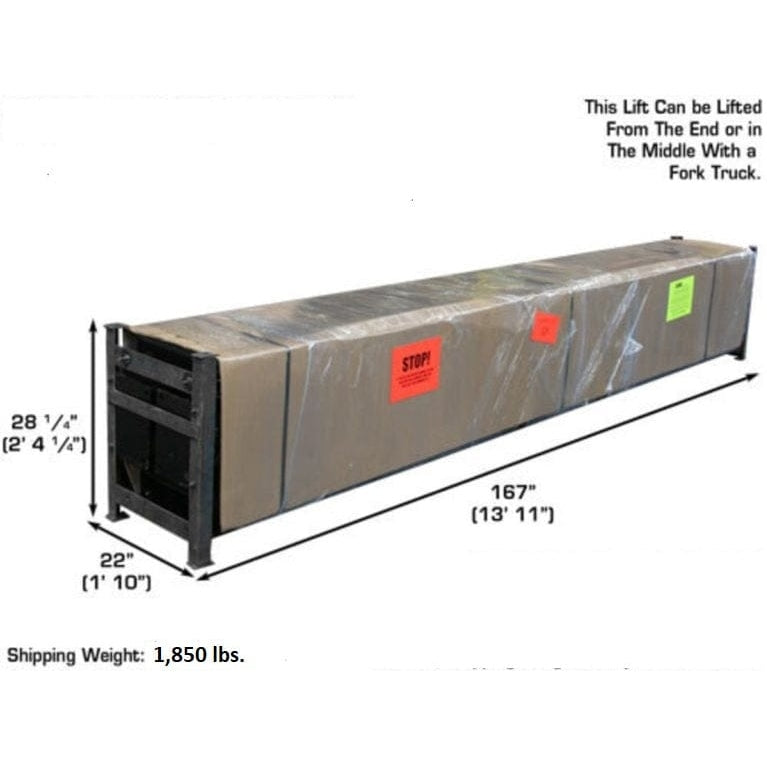

Shipping Weight: 1,850 lb.
-
Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lb. |

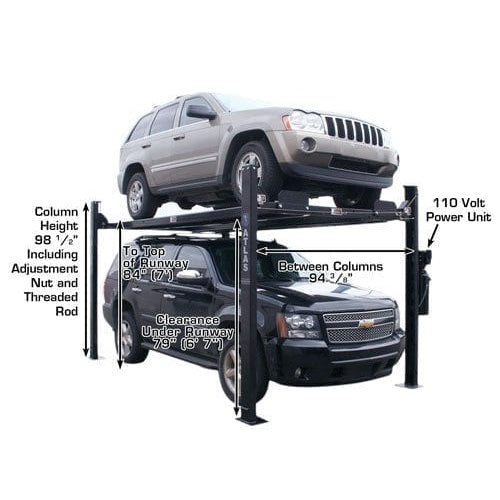

| Lifting Height (to Top of Runway) | 84 ¼" (7' ¼") |

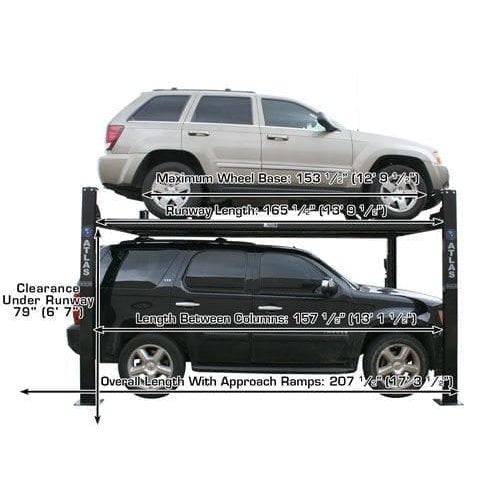

| Clearance Under Runways | 79" (6' 7") |

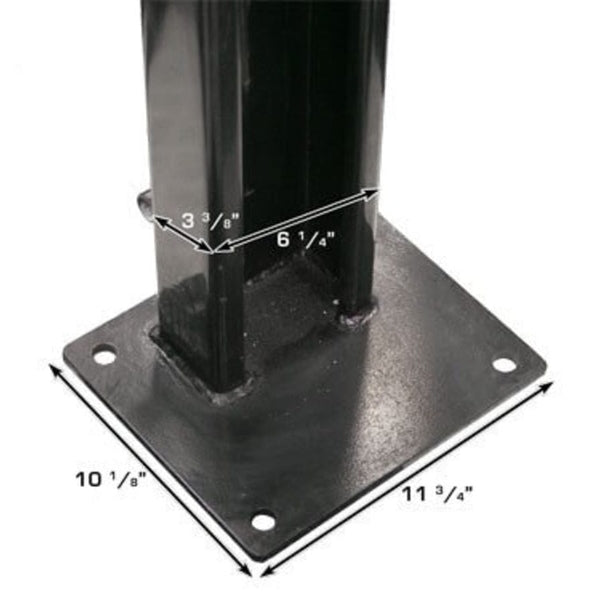

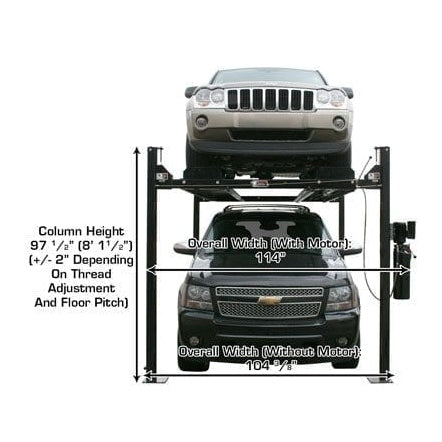

| Height of Columns | 98 ½" (8' 2 ½") |
| Overall Width (w/o Motor) | 104 ½" (8' 8 ½") |
| Overall Width (w/ Motor) | 115" (9' 7") |
| Overall Length (w/ Ramps) | 206 ¾" (17' 2 ¾") |
| Approach Ramp Length | 37" (3' 1") |
| Runway Length | 165 ¾" (13' 9 ¾") |

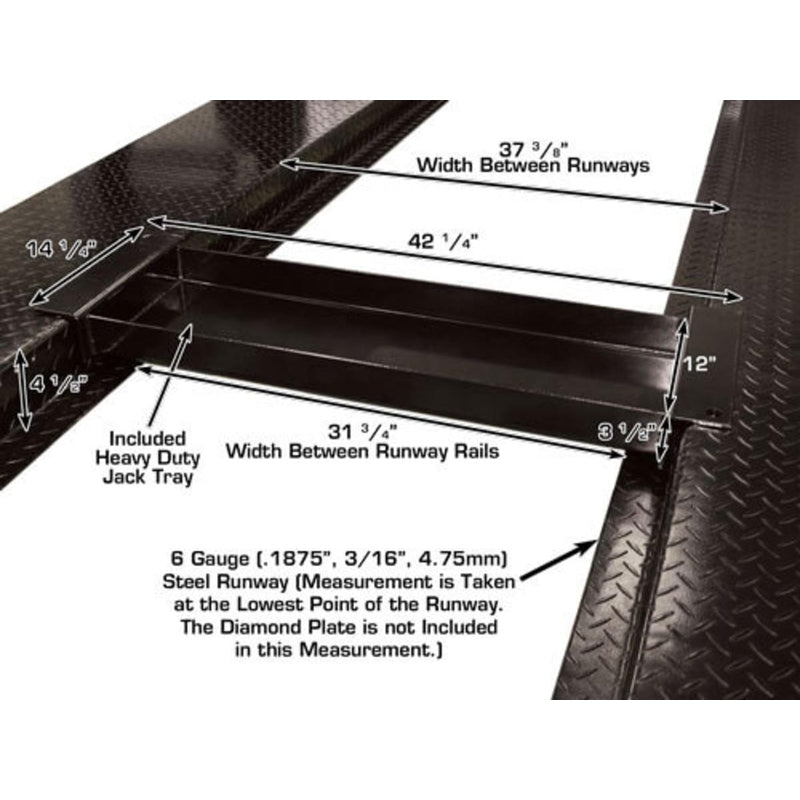

| Runway Width | 21 ¼" (with rails) / 18 ¾" (driving surface) |
| Runway Thickness | 4 ½" |

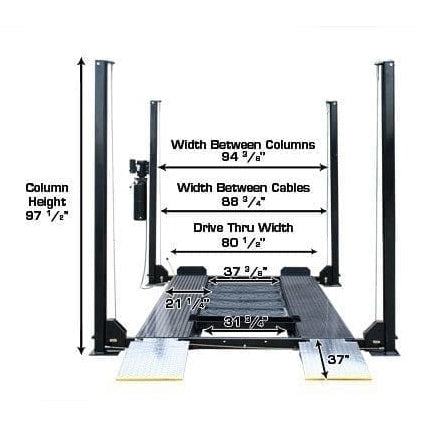

| Width Between Runways | 37" (3' 1") |
| Width Between Runway Rails | 31 ½" (2' 7 ½") |
| Outside Runway to Outside Runway | 74 ⅝" (6' 2 ⅝") |
| Clearance Between Columns | 94 ½" (7' 10 ½") |
| Length Between Columns | 157 ½" (13' 1 ½") |
| Maximum Wheelbase | 153 ½" (12' 9 ½") |
| Drive-Through Width (Outside of Tires) | 80 ½" (6' 8 ½") |
| Electrical Requirement | 110V, 30A Breaker Required |
| Shipping Weight | 1,850 lb. |
Documents
Atlas® Garage PRO8000EXT Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
