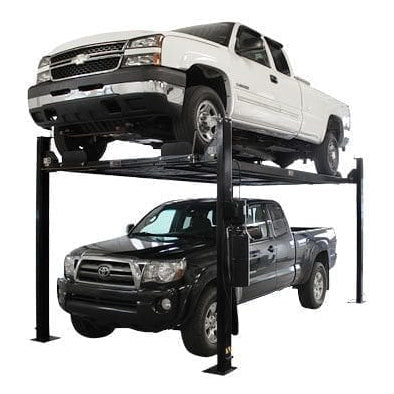

The Atlas® Garage PRO8000EXT-L builds on the popular PRO8000EXT model, offering even more size and versatility. This version is 20 inches longer and 3 inches wider than the PRO8000EXT — and when compared to the original PRO8000, it’s 20 inches longer, 3 inches wider, and 14 inches taller. These expanded dimensions provide greater lifting height and extended runway length, making it ideal for accommodating nearly all long-wheelbase pickup trucks.
Please note that dually trucks are too wide to fit between the column lock assemblies on this model. For dually compatibility, we recommend the Atlas® Garage PRO9000, which offers a wider runway configuration designed for those vehicles.
The Atlas® Garage PRO series of four-post lifts (8,000 lb. capacity) are engineered for home garages, car enthusiasts, and restoration shops. They are not intended for high-frequency commercial use, such as professional service centers where lifts are raised and lowered multiple times per day. If you’re unsure which model best fits your needs, our sales team can help guide you to the right choice.
As with other models in the Garage PRO lineup, the PRO8000EXT-L comes complete with several valuable accessories:
-
Four plastic drip trays (included free)
-

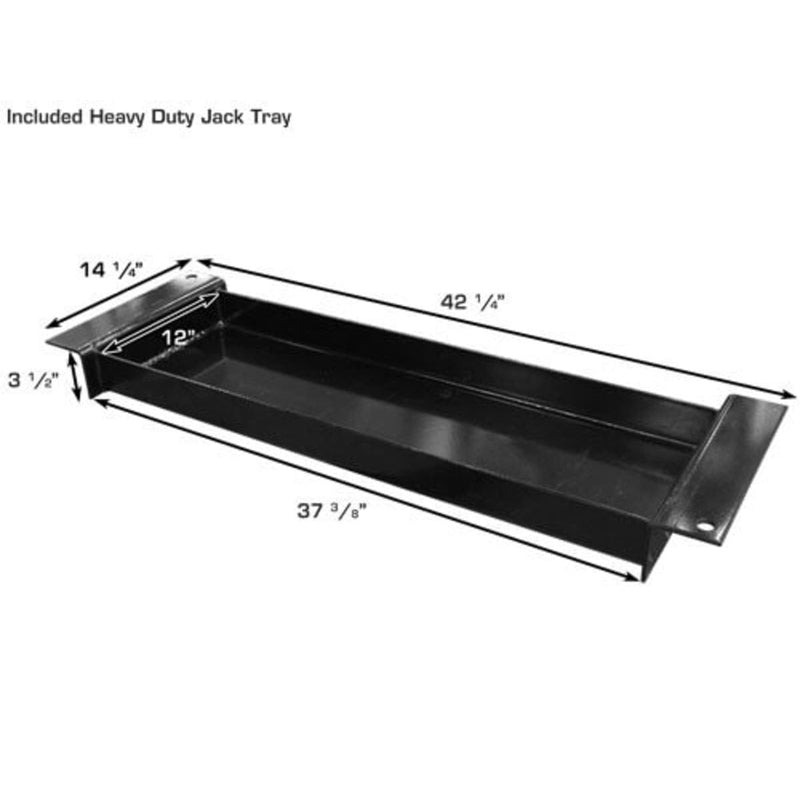

A steel jack tray (included free)
-
A caster kit with polyurethane wheels (included free)
The caster kit installs or removes in minutes, allowing the lift to be easily moved between bays or outdoors, offering true portability and flexibility.
Many customers who purchase this lift also choose to add the Atlas® RJ35 rolling bridge jack for convenient wheel-off service.
Features
-
8,000 lb. Lifting Capacity
-
Free-Standing, Portable Design for versatile placement and easy relocation
-
Extra-Tall and Extra-Long Configuration accommodates larger vehicles and increased storage height
-
Durable Diamond-Plated Runways for improved traction and long-term wear resistance
-

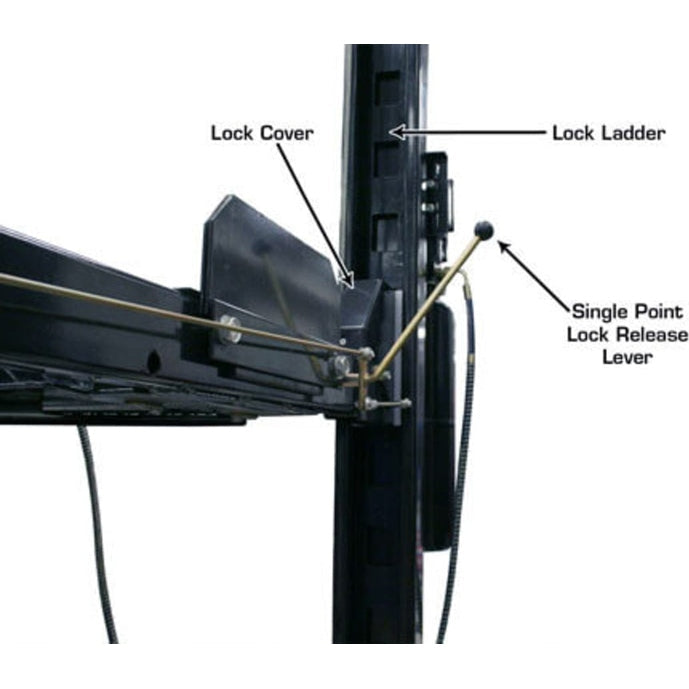

Single-Point Lock Release for quick and convenient operation
-

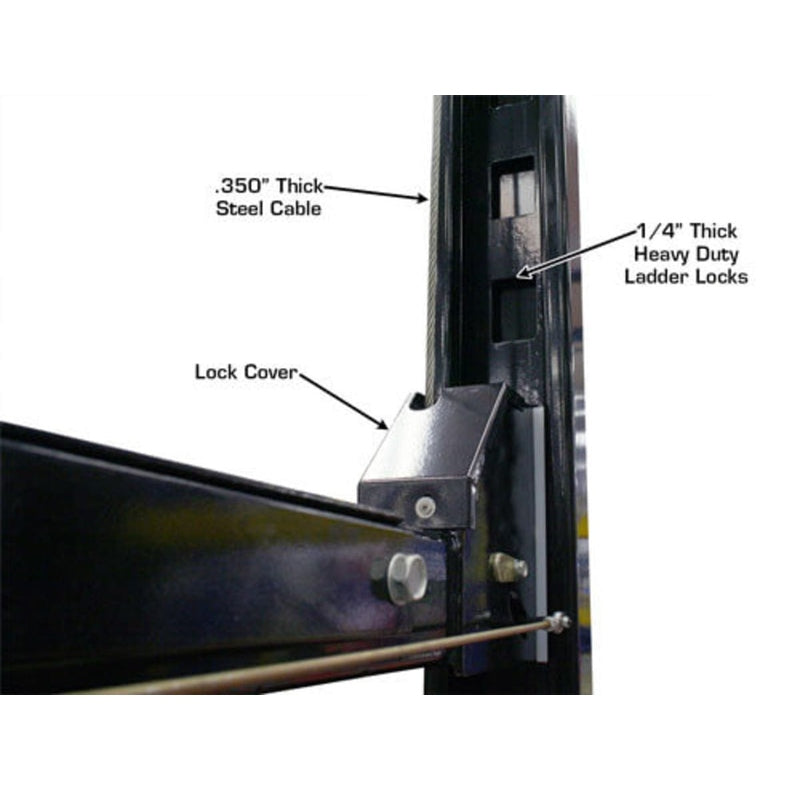

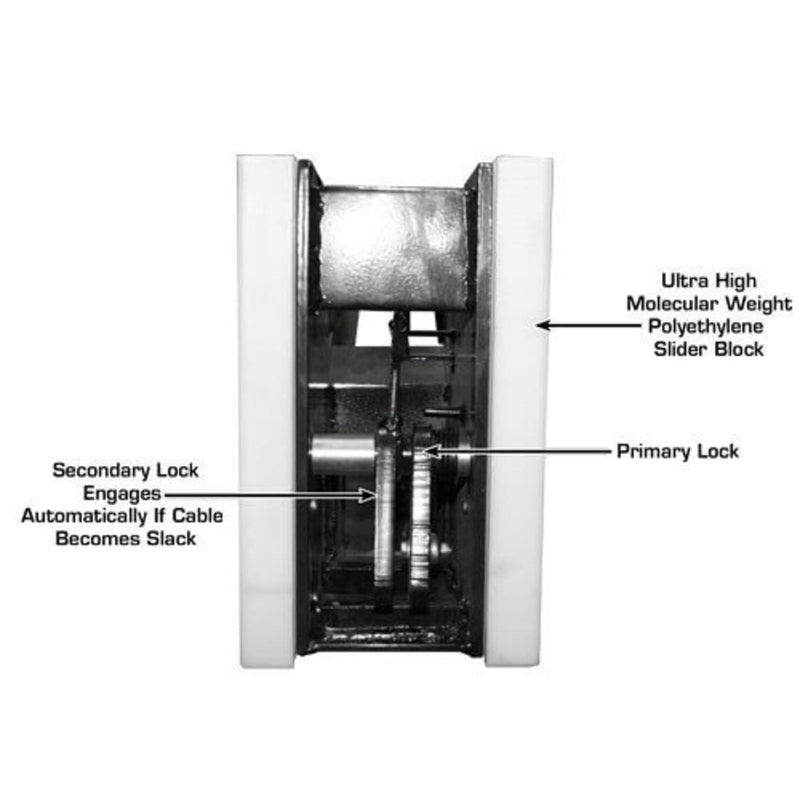

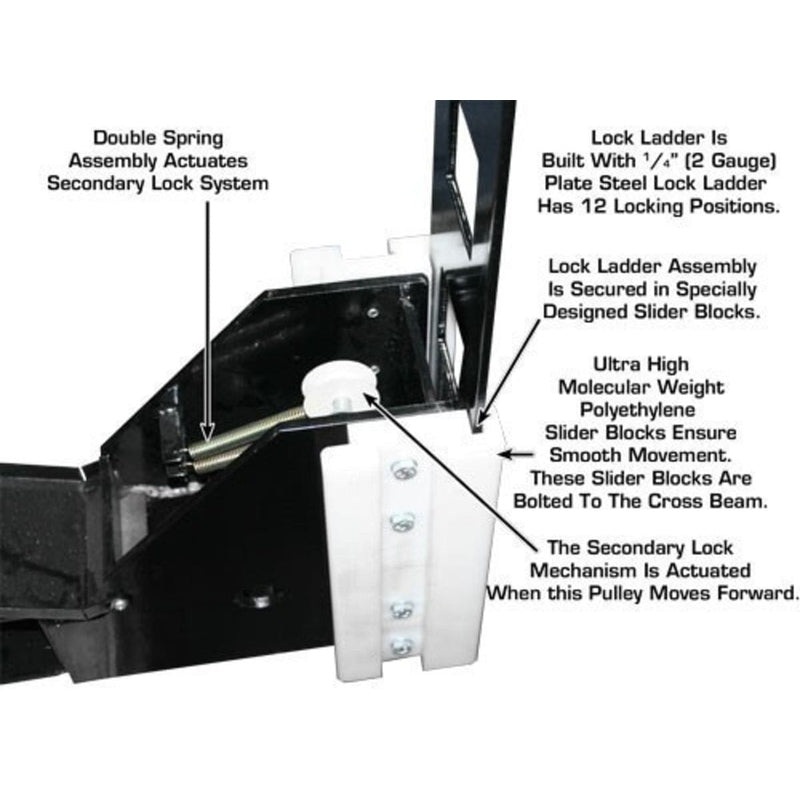

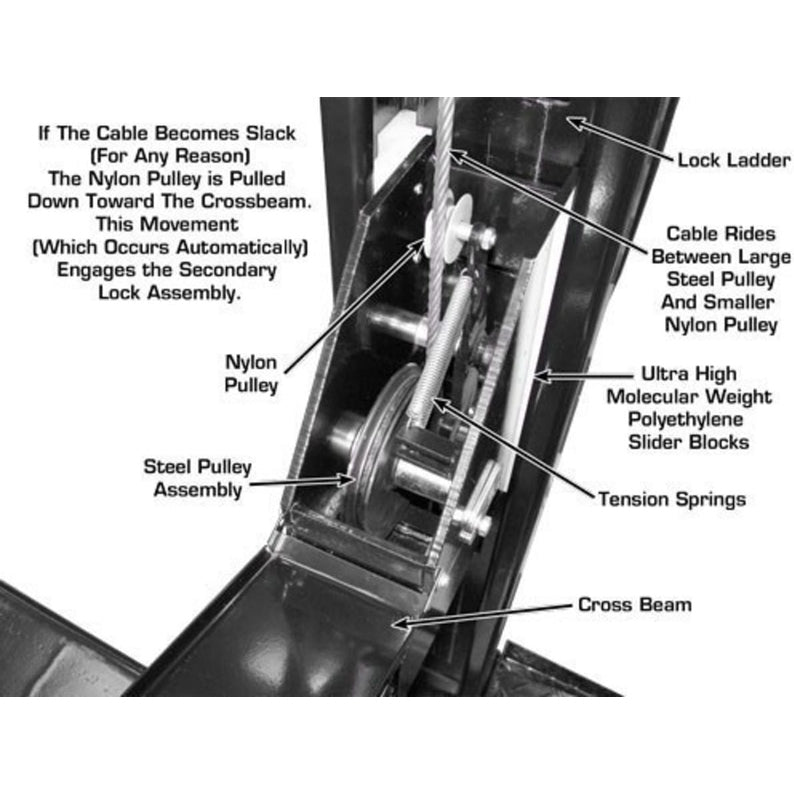

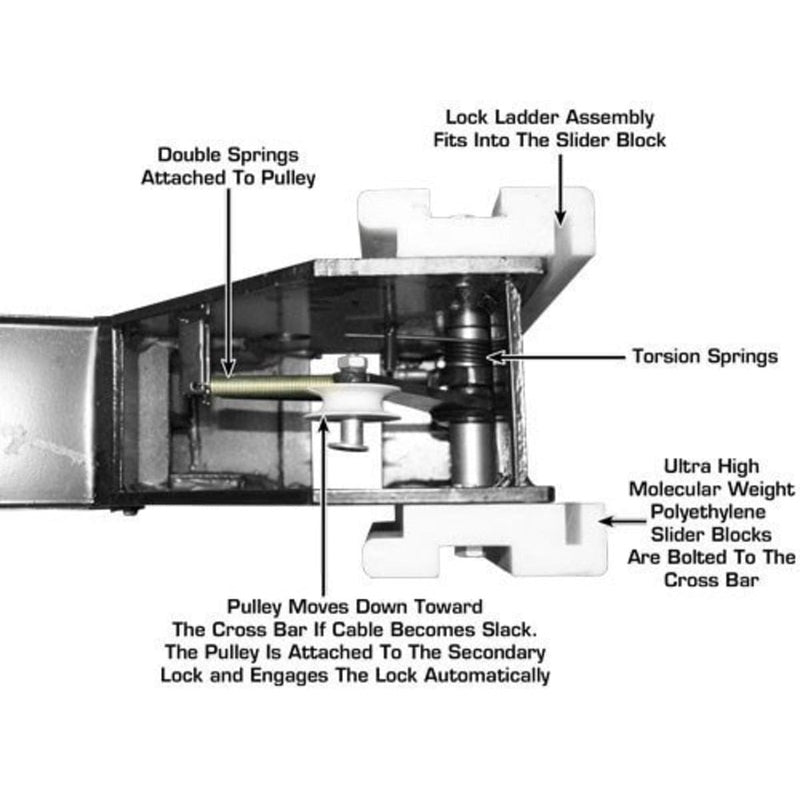

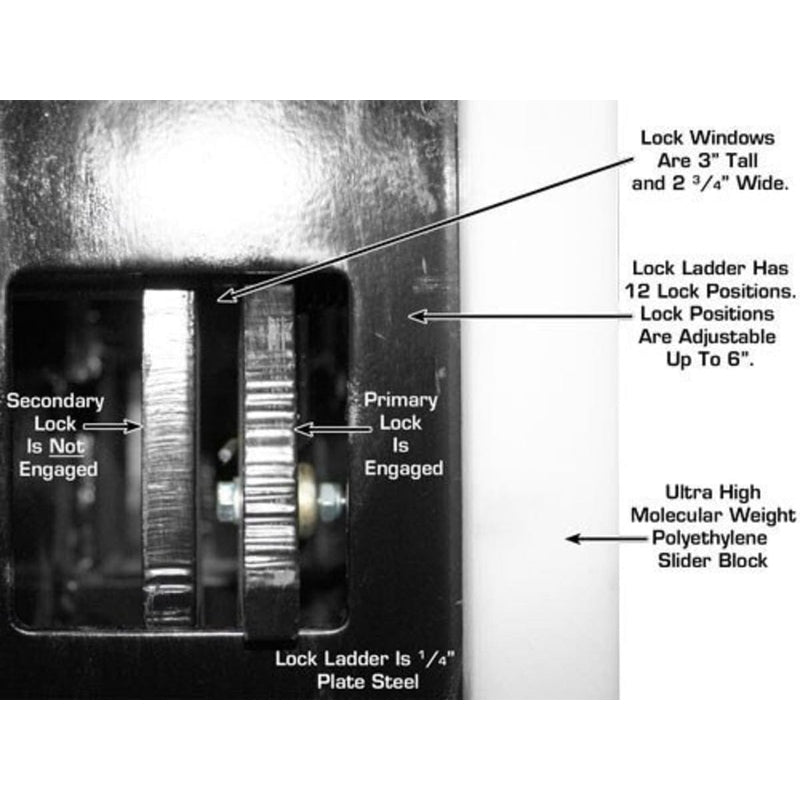

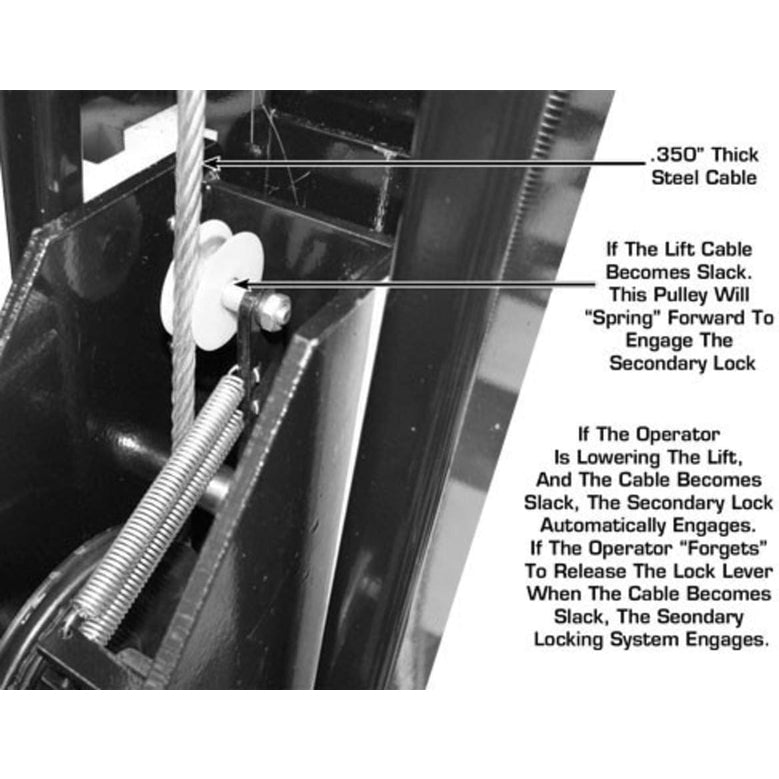

Lock Ladder Design with Dual Lock Safety System for added stability and protection
-

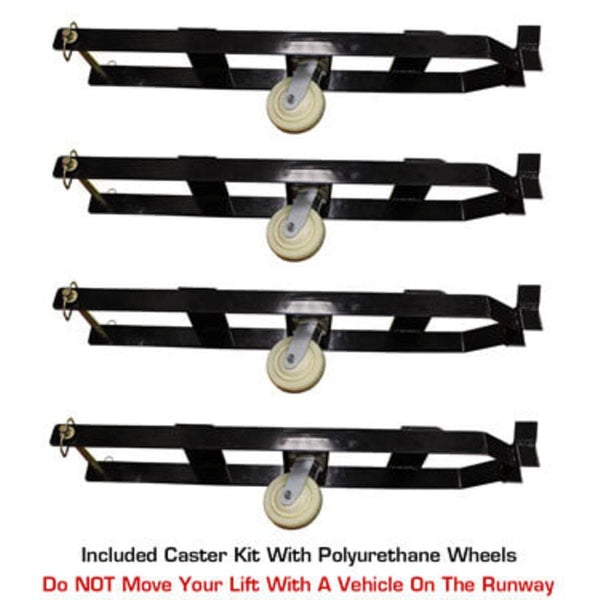

Caster Kit with Polyurethane Wheels (Included) for effortless mobility between bays or outdoor use
-

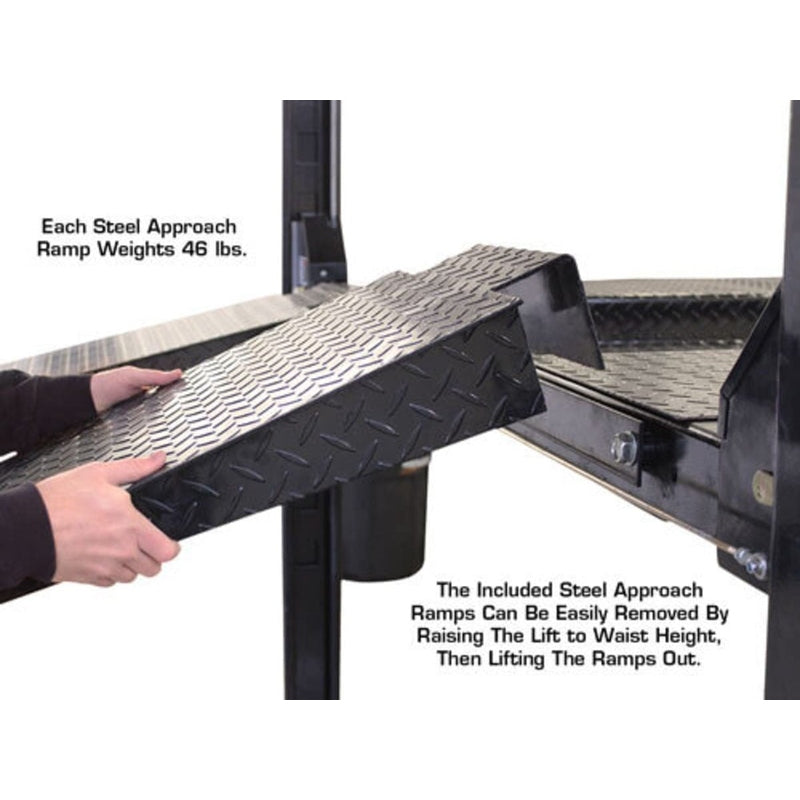

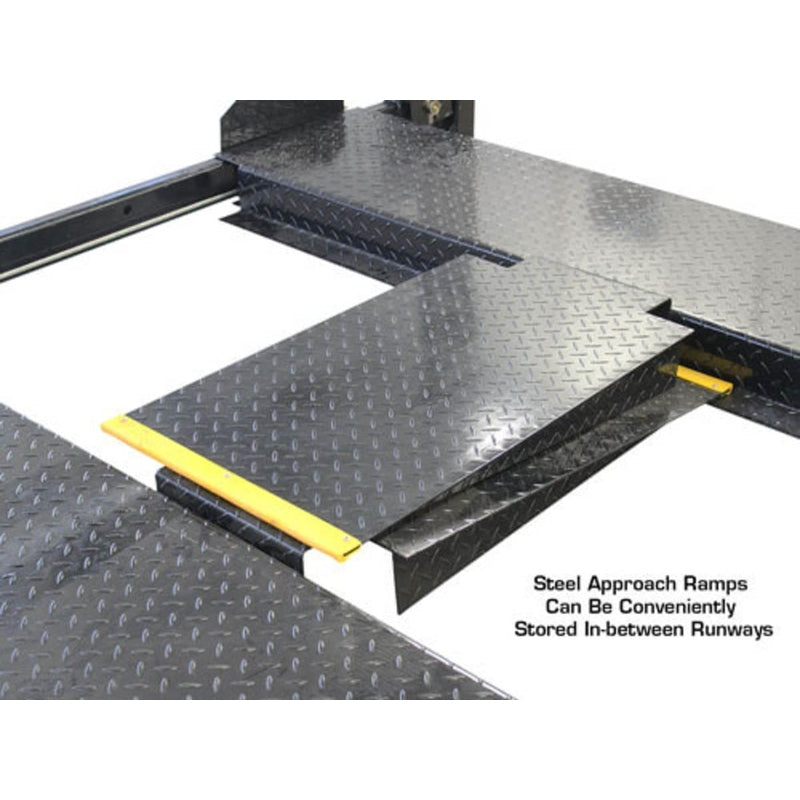

Steel Approach Ramps (Included) for smooth vehicle entry and exit
-
Steel Jack Tray (Included) for wheel-off maintenance and accessory use
-

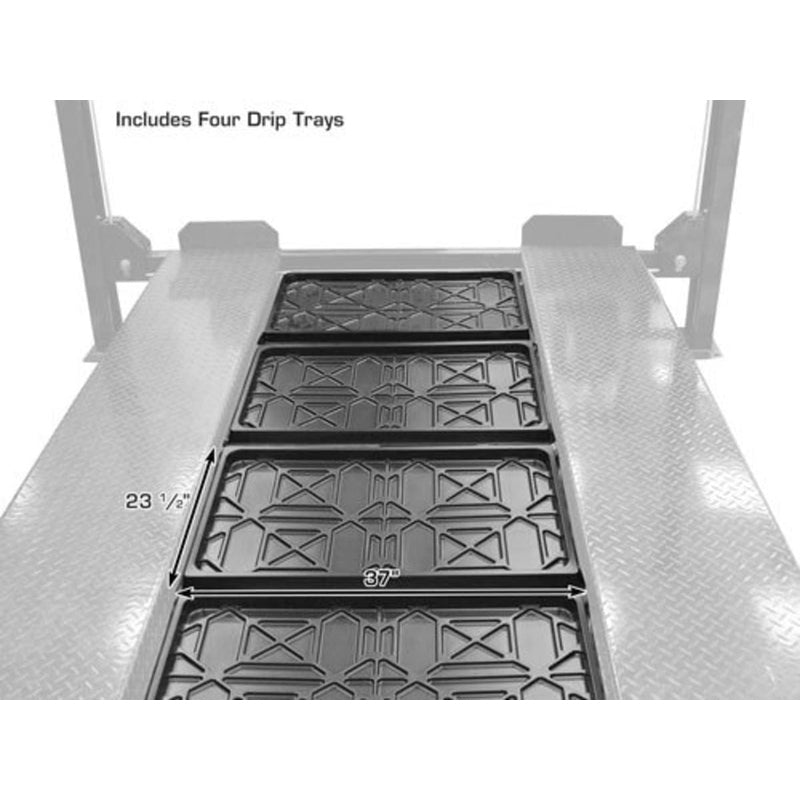

Four Plastic Drip Trays (Included) to catch fluid leaks and keep your garage floor clean
-
Four Wheel Stops (Included) for additional safety during parking or service
-

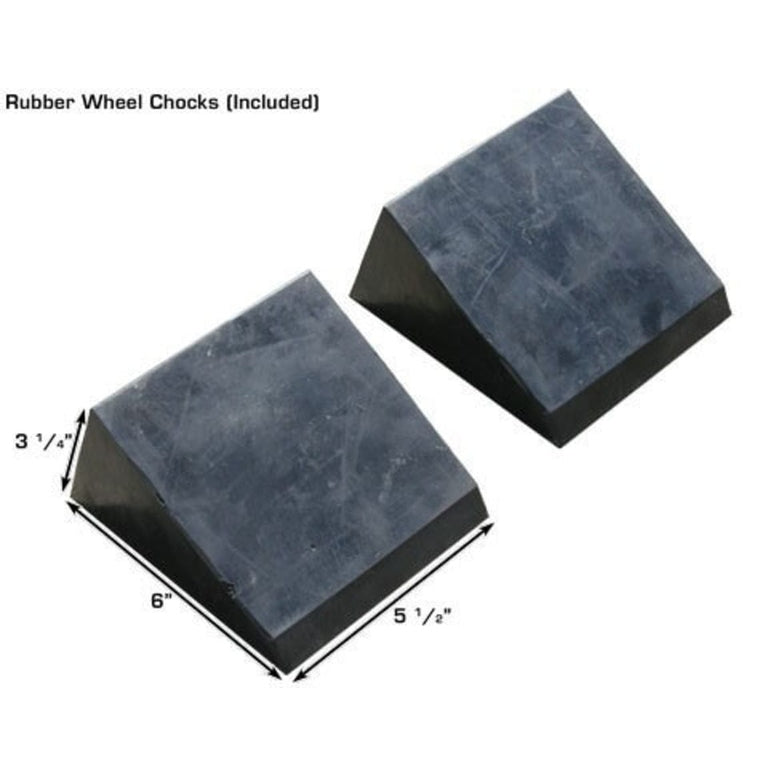

Two Rubber Wheel Chocks (Included) for secure vehicle positioning
-
Ideal for Both Vehicle Storage and Maintenance
-

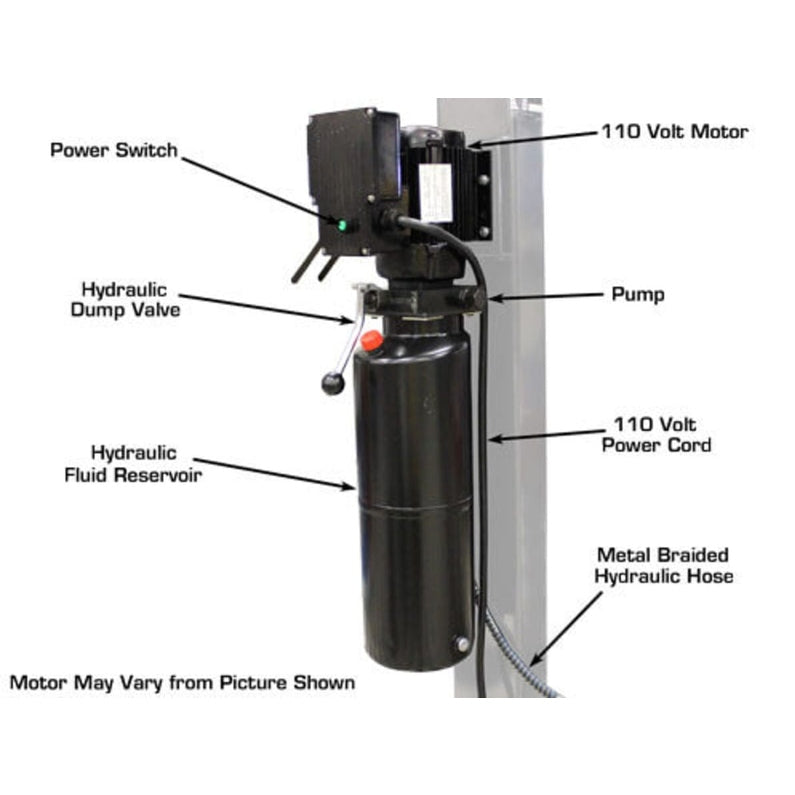

110V Electric Operation (requires 30A breaker)
-

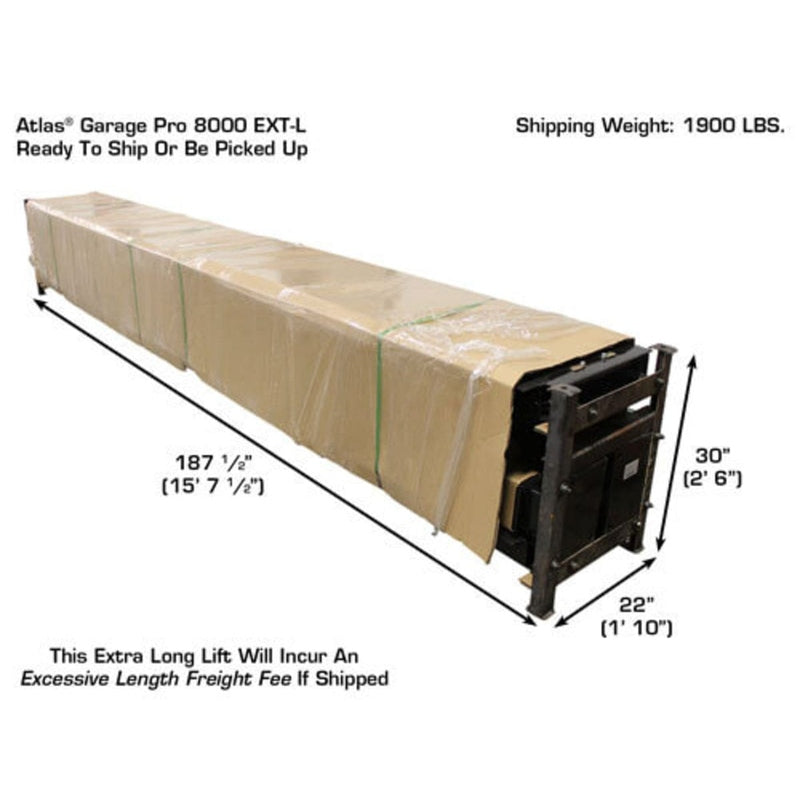

Shipping Weight: 1,900 lb.
-
Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 8,000 lb. |

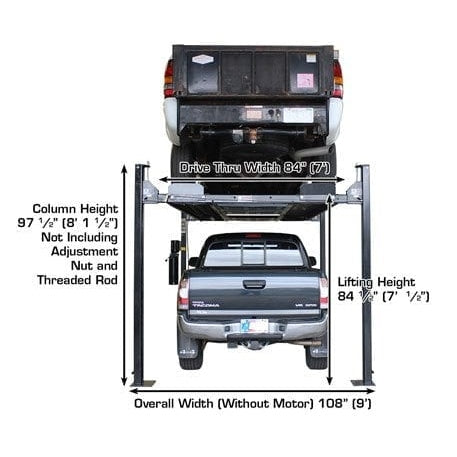

| Lifting Height (to Top of Runway) | 84" (7') |

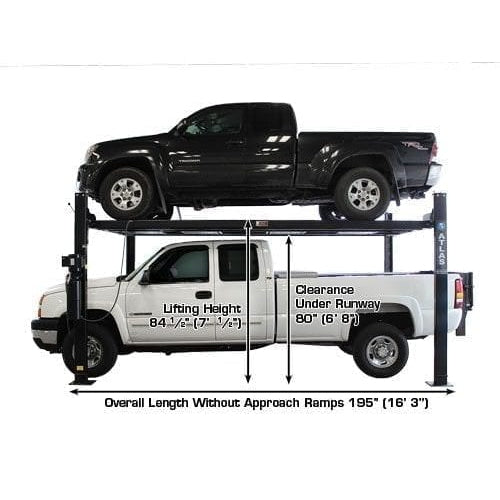

| Clearance Under Runways | 78 ½" (6' 6 ½") |
| Height of Columns | 98 ½" (8' 2 ½") |
| Overall Width (w/o Motor) | 108" (9') |

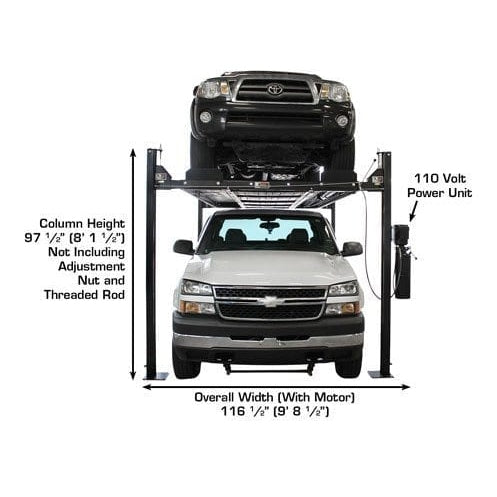

| Overall Width (w/ Motor) | 116 ½" (9' 8 ½") |
| Overall Length (w/ Ramps) | 222" (18' 6") |

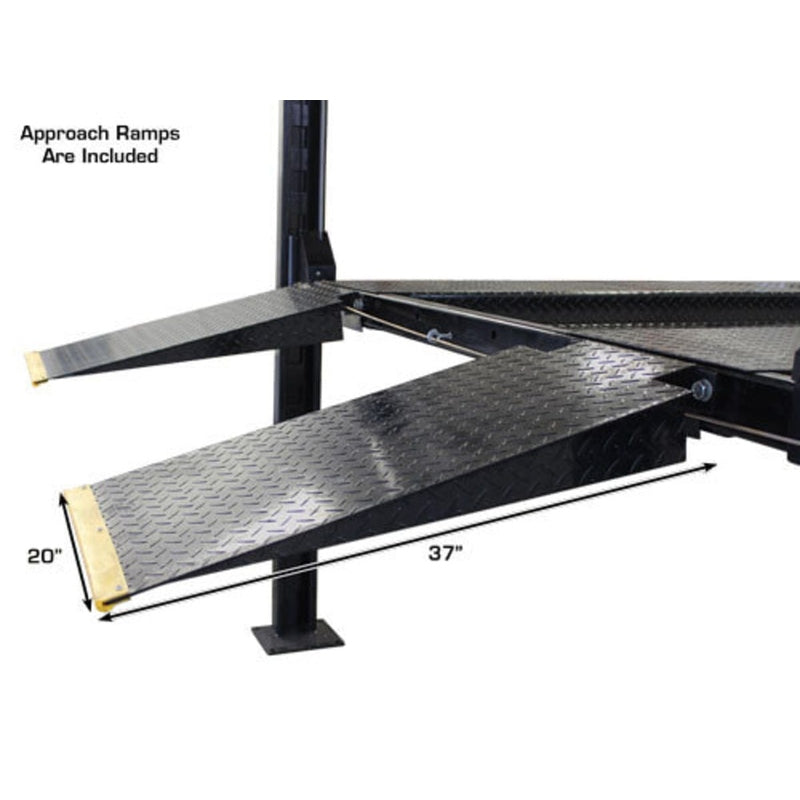

| Approach Ramp Length | 37" (3' 1") |

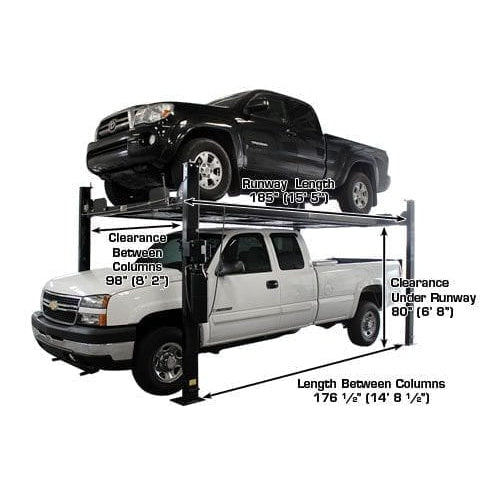

| Runway Length | 185" (15' 5") |
| Runway Width | 22" (with rails) / 18 ¾" (driving surface) |
| Runway Thickness | 4 ½" |

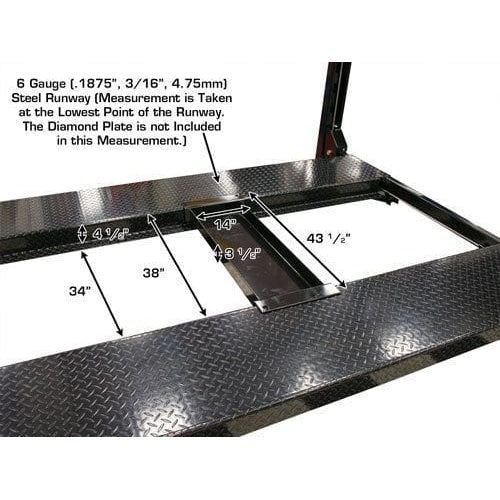

| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 34" (2' 10") |
| Outside Runway to Outside Runway | 77 ¾" (6' 5 ¾") |

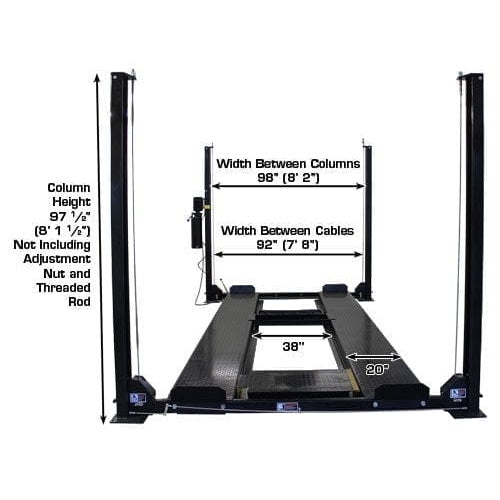

| Clearance Between Columns | 98" (8' 2") |

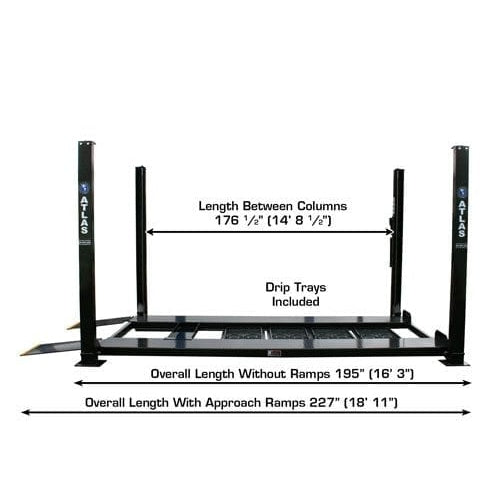

| Length Between Columns | 176 ½" (14' 8 ½") |

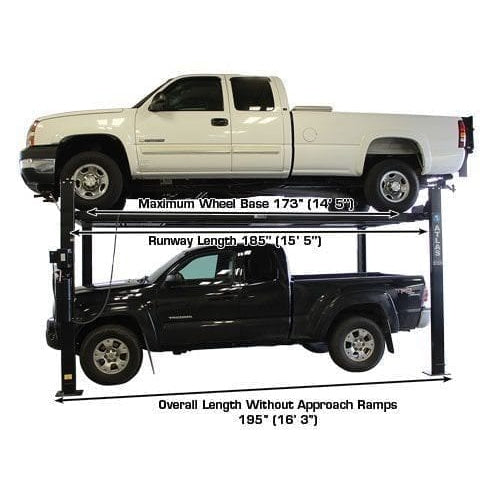

| Maximum Wheelbase | 173" (14' 5") |
| Drive-Through Width (Outside Tire to Outside Tire) | 84" (7') |
| Electrical Requirement | 110V (30A Breaker Required) |
| Shipping Weight | 1,900 lb. |
Documents
Atlas® Garage PRO8000EXT-L Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
