Atlas Automotive EquipmentSKU: ATEXH-PRO9000

At a Glance

  • Free-Standing & Portable; Dual Lock Safety System
  • Max Lifting Height: 85"
  • Drive-Thru Clearance: 97.25"
Price:
$4,899.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

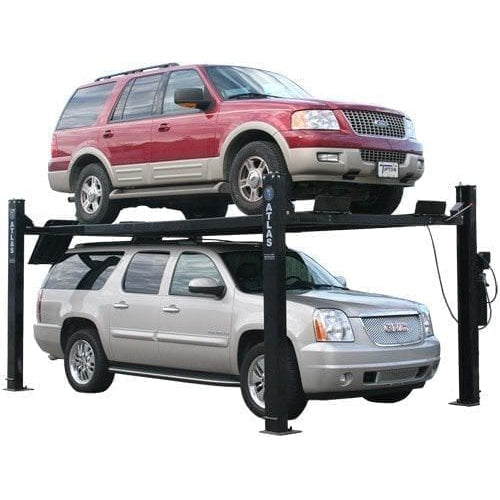

The Atlas® Garage PRO9000 is a heavy-duty, four-post lift designed for both serious hobbyists and professional applications. As the most powerful model in the Atlas® Garage PRO series, it offers a 9,000 lb. lifting capacity along with extra-long runways — among the longest of any portable 9,000 lb. lift available today. This extended length makes it ideal for accommodating vehicles with longer wheelbases, including full-size trucks and large SUVs.

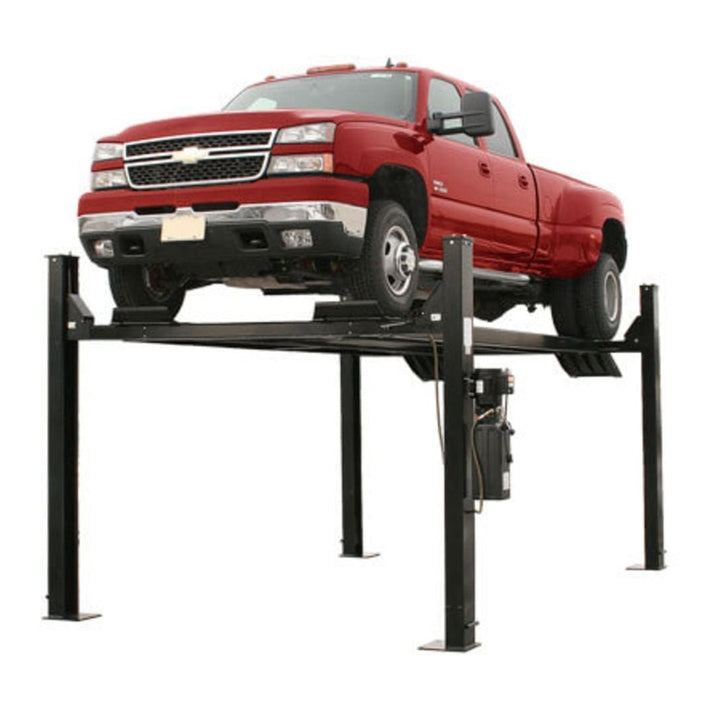

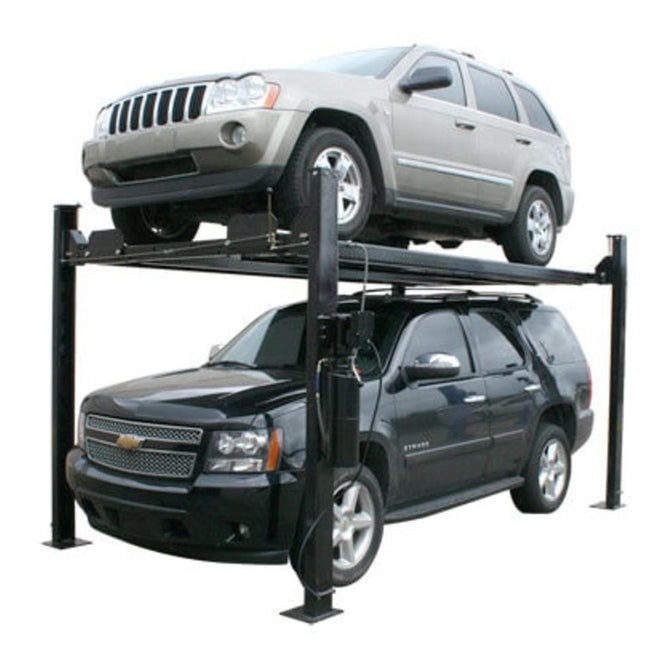

With its extra-wide and extra-tall configuration, the Garage PRO9000 can handle a broad range of vehicles — from compact cars and Smart Cars® to diesel dually pickups — allowing for flexible parking or service options both on and beneath the runways.

Weighing approximately 600 lb. more than the Atlas® Garage PRO8000, the PRO9000 stands out as one of the heaviest and most durable portable four-post lifts in its class. It incorporates a variety of features rarely found in other hobbyist lifts, including free plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels. The caster system installs or removes in minutes, providing true portability and allowing users to move the lift between bays or even outdoors when needed.

The Atlas® Garage PRO9000 is also the only model in the Garage PRO line equipped with integrated runway tracks, allowing compatibility with an optional rolling bridge jack (recommended: Atlas® RJ6BK, sold separately) for efficient wheel-off service.

Built to commercial-grade standards yet designed for easy use and portability, the Garage PRO9000 is an excellent choice for both professional service facilities and home garages seeking a dependable, high-capacity four-post lift at a competitive price.

Key Features

  • 9,000 lb. Lifting Capacity

  • Heavy-Duty, Commercial-Grade Design

  • Free-Standing & Portable

  • Extra Tall, Extra Wide, and Extra Long Runways

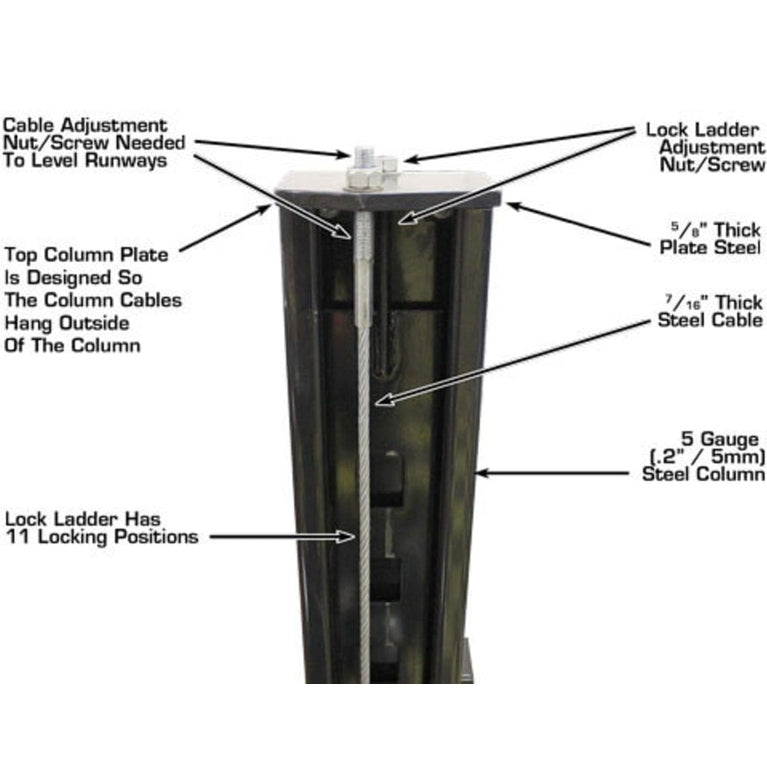

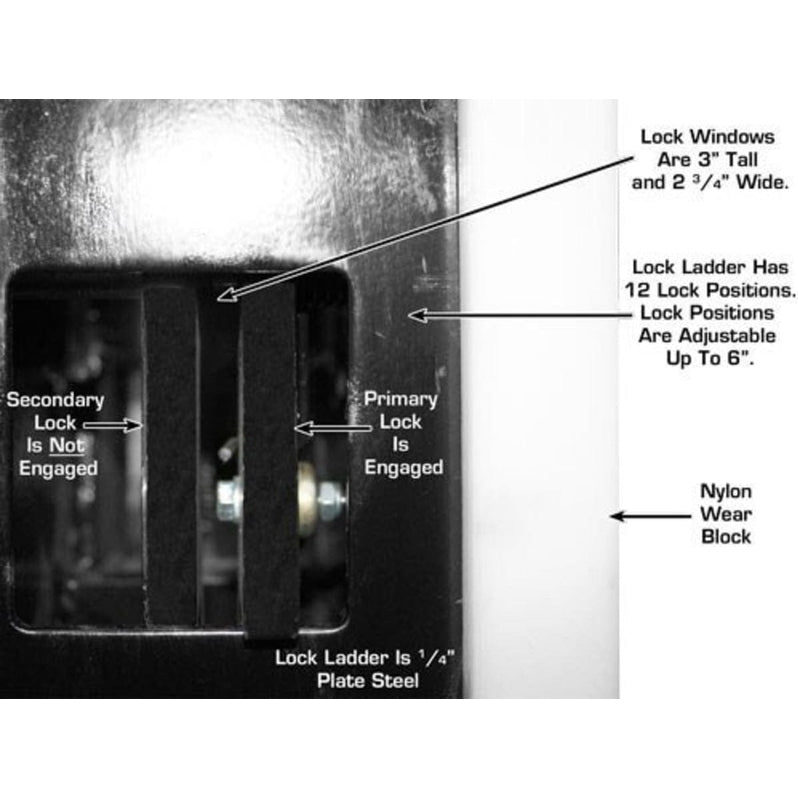

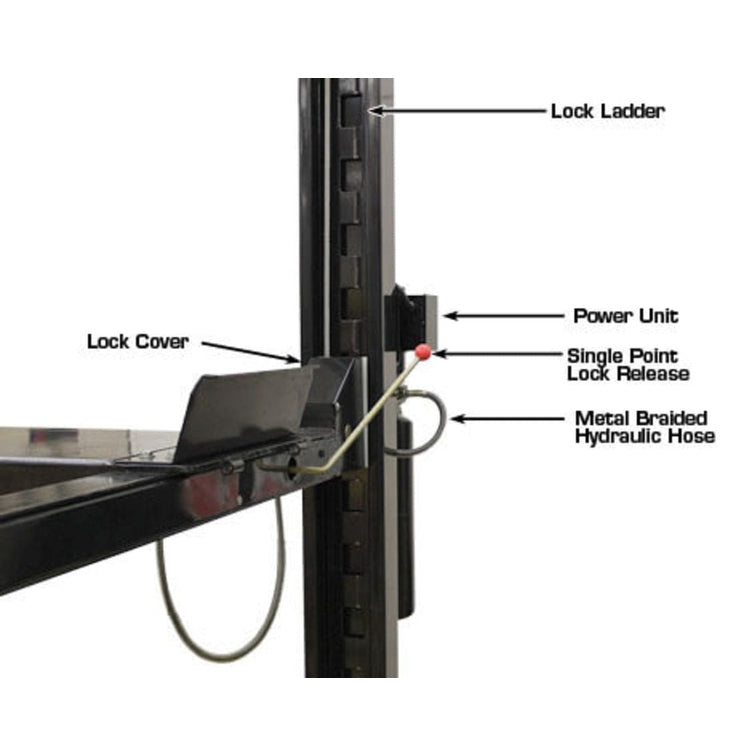

  • Single-Point Lock Release with Lock Ladder Design

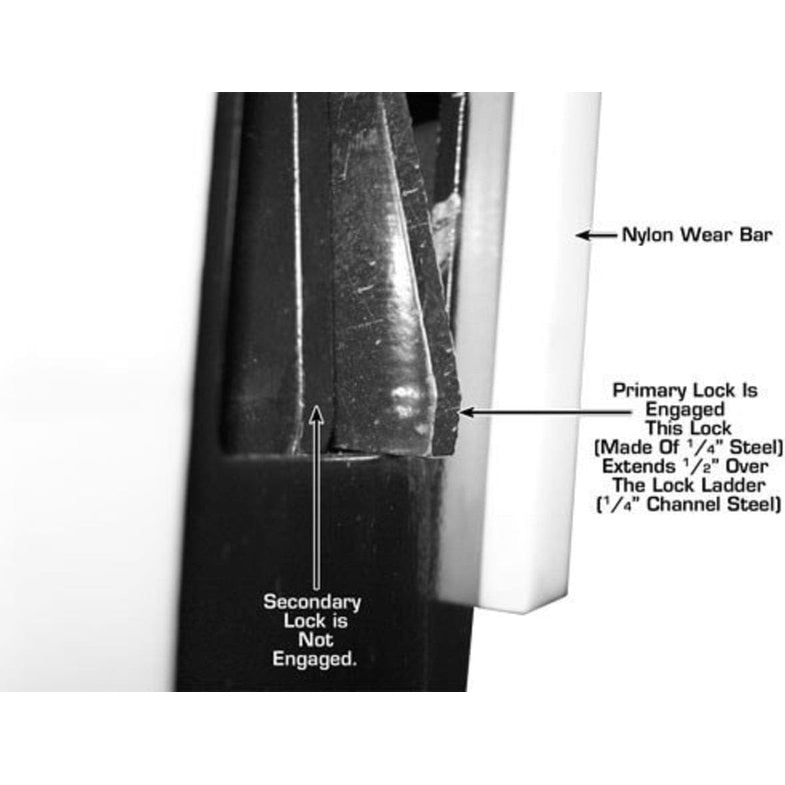

  • Dual Lock Safety System

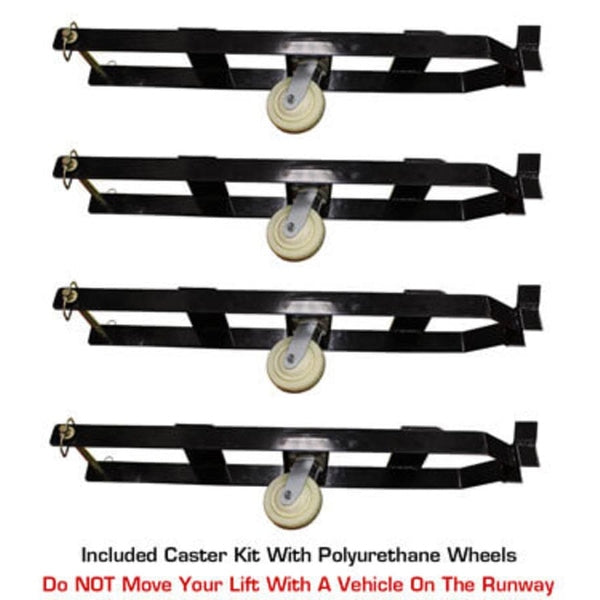

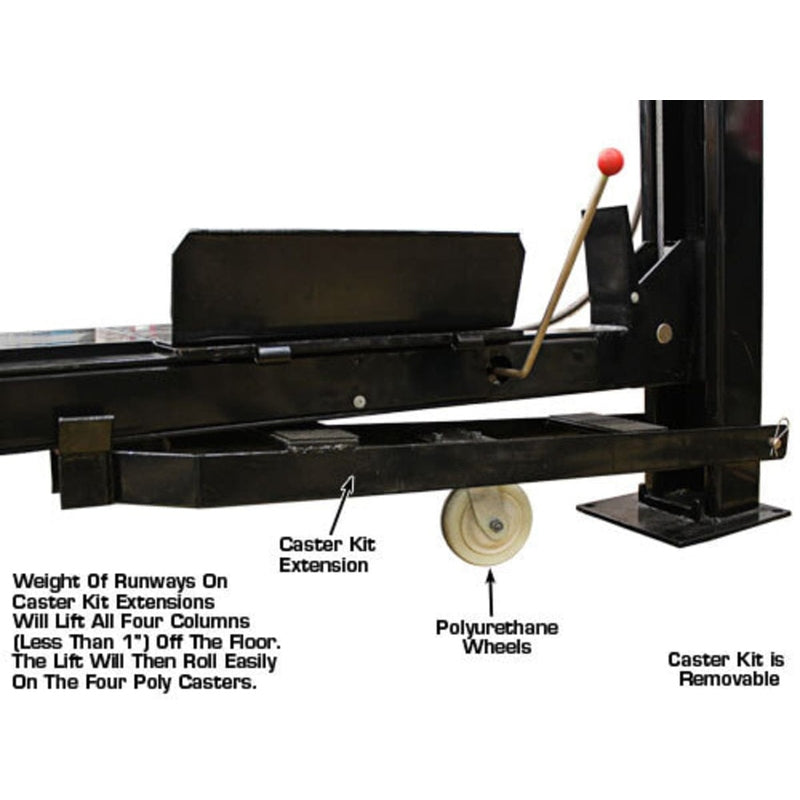

  • Caster Kit with Polyurethane Wheels (Included)

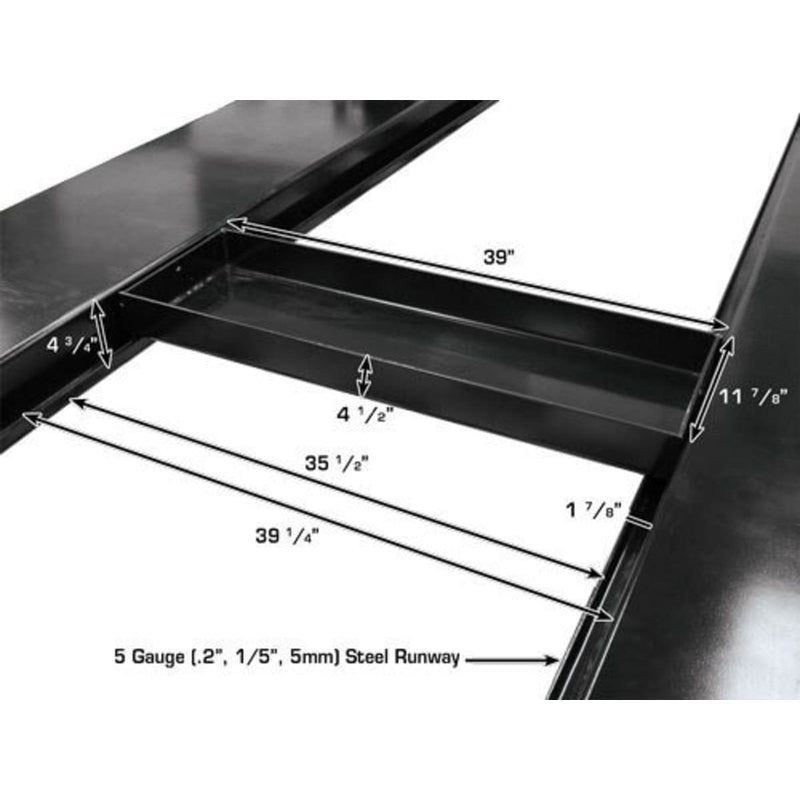

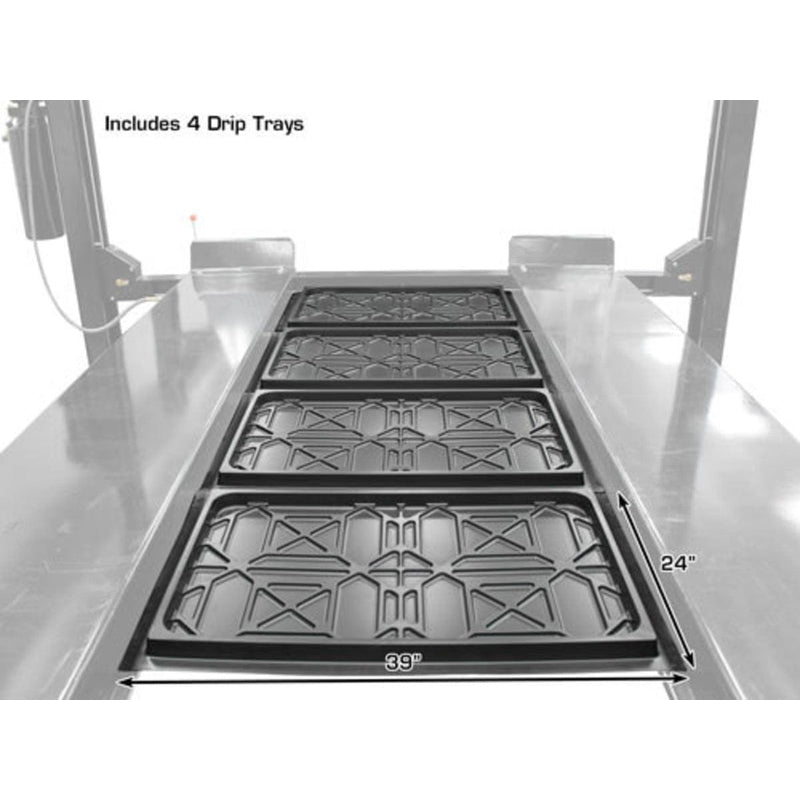

  • Steel Approach Ramps, Steel Jack Tray, and 4 Plastic Drip Trays (Included)

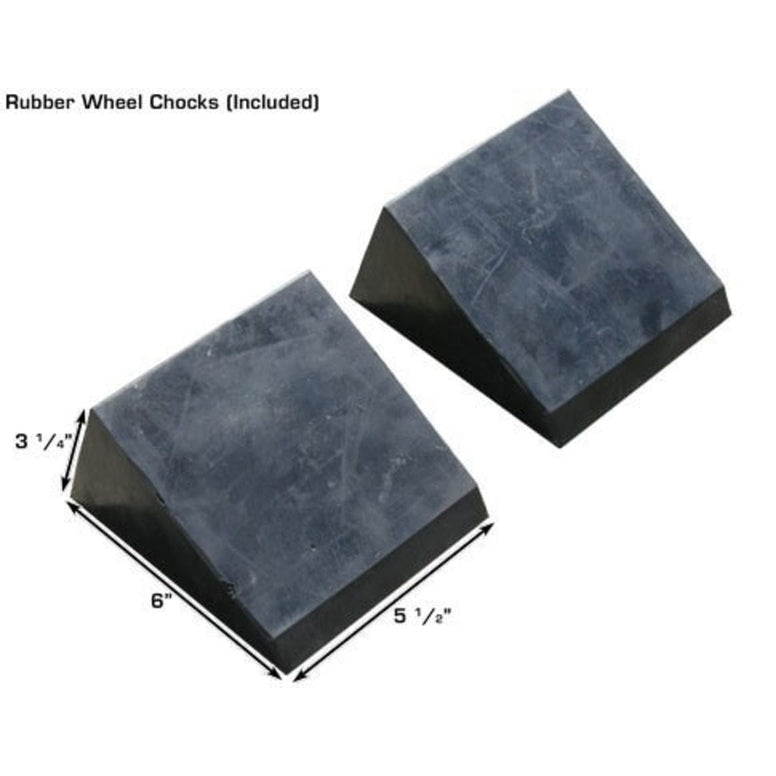

  • 2 Rubber Wheel Chocks Included

  • Perfect for Vehicle Storage or Maintenance

  • 110V Electric Operation (Requires 30A Breaker)

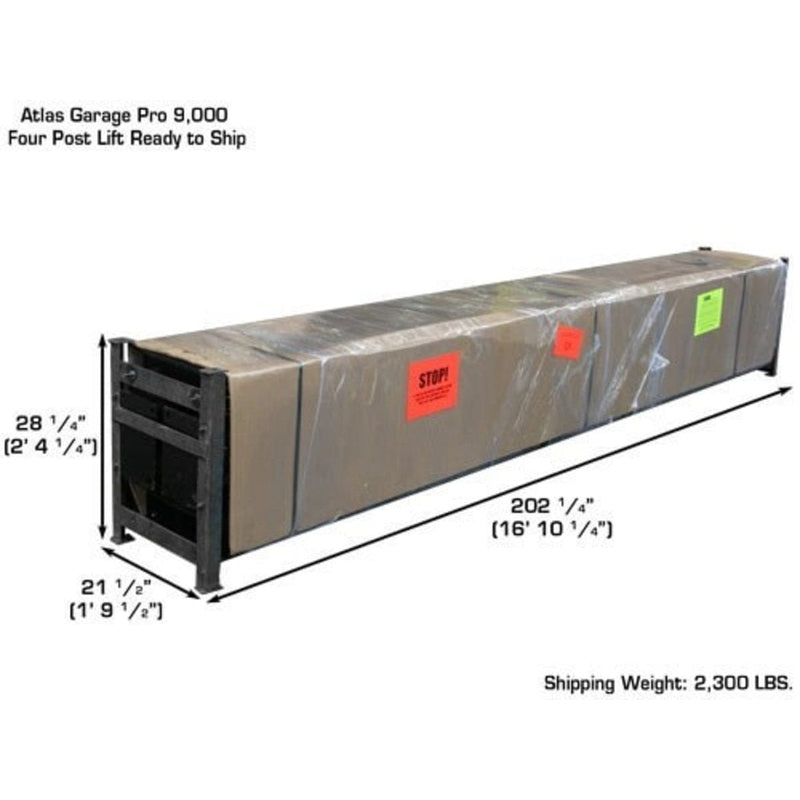

  • Shipping Weight: 2,300 lb.

  • Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Capacity 9,000 lb.

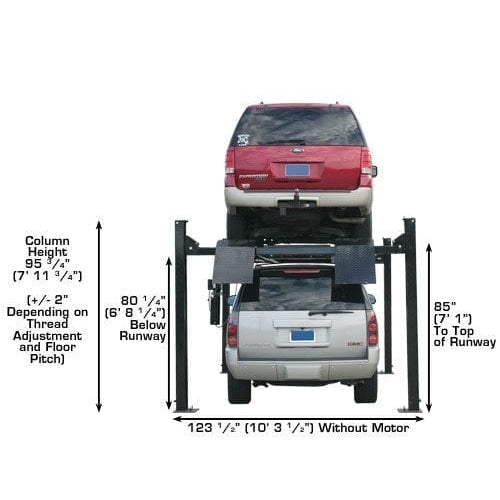

Lifting Height (to Top of Runway) 85" (7' 1")

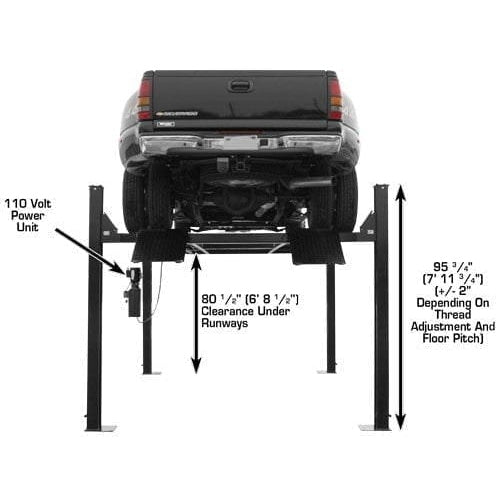

Clearance Under Runways 80 ¼" (6' 8 ¼")

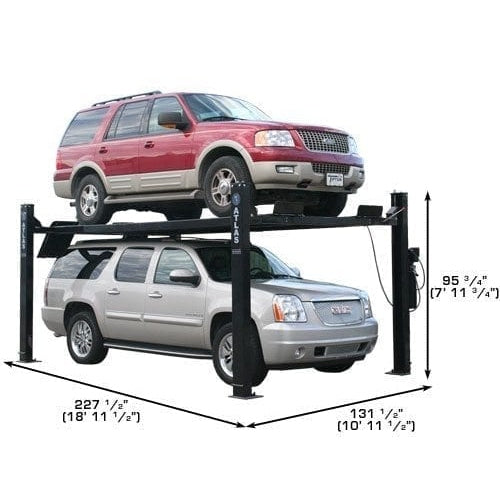

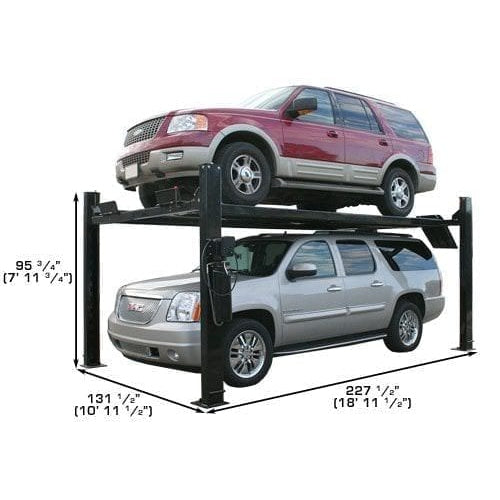

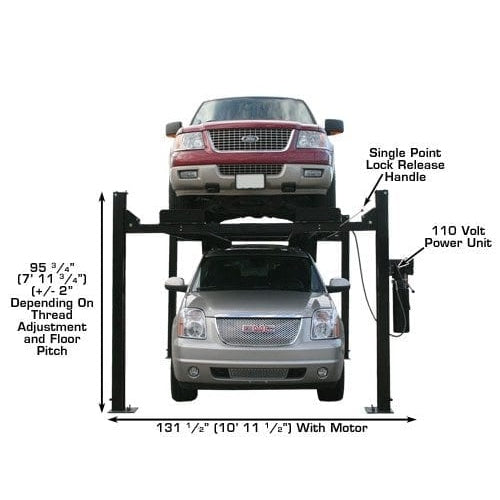

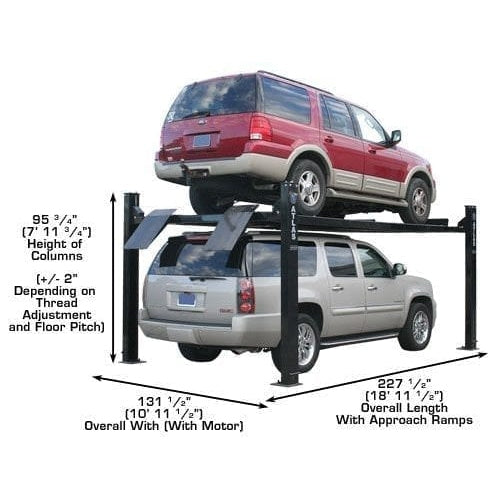

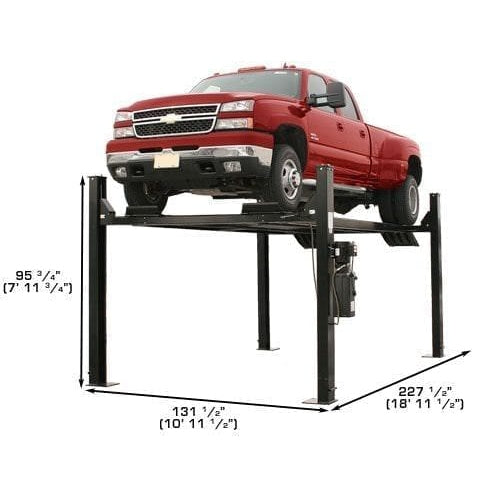

Height of Columns 95 ¾" (7' 11 ¾")
Overall Width (w/o Motor) 123 ½" (10' 3 ½")
Overall Width (w/ Motor) 131 ½" (10' 11 ½")

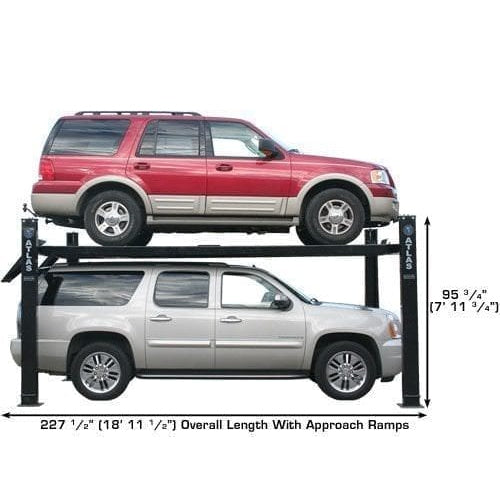

Overall Length (w/ Ramps) 227 ½" (18' 11 ½")

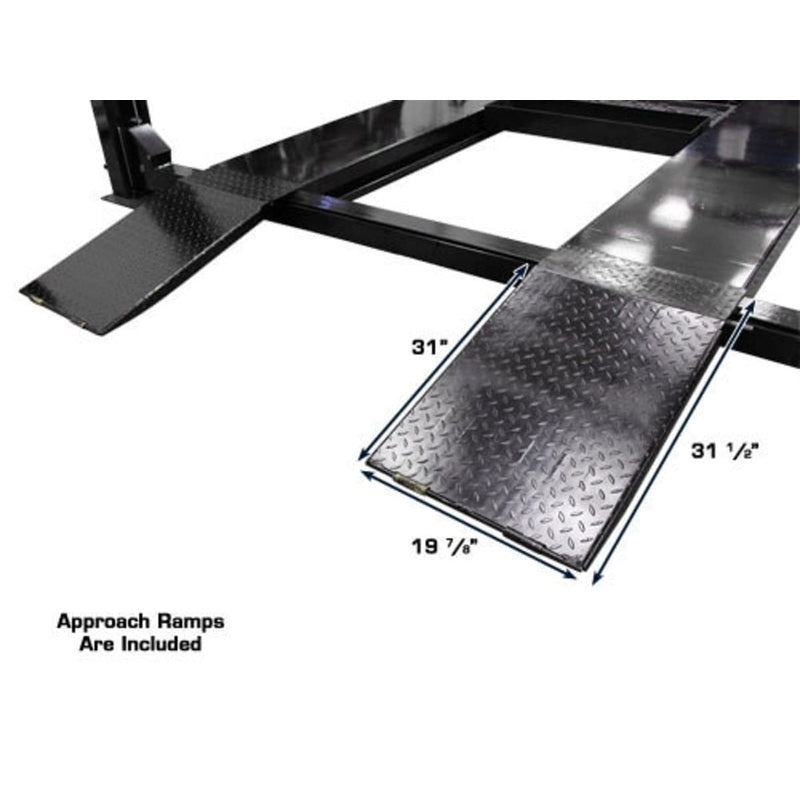

Approach Ramp Length 31" (2' 7")
Runway Length 199 ½" (16' 7 ½")
Runway Width 21 ¼" (with rails) / 20" (driving surface)
Runway Thickness 4 ¾"

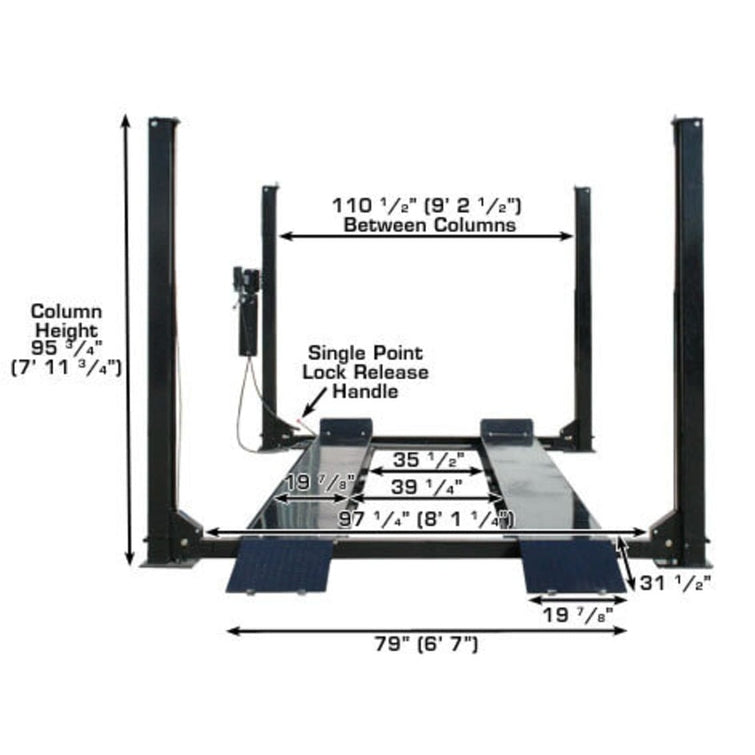

Width Between Runways 39 ¼" (3' 3 ¼")
Width Between Runway Rails 35 ½" (2' 11 ½")
Outside Runway to Outside Runway 79" (6' 7")
Clearance Between Columns 110 ½" (9' 2 ½")

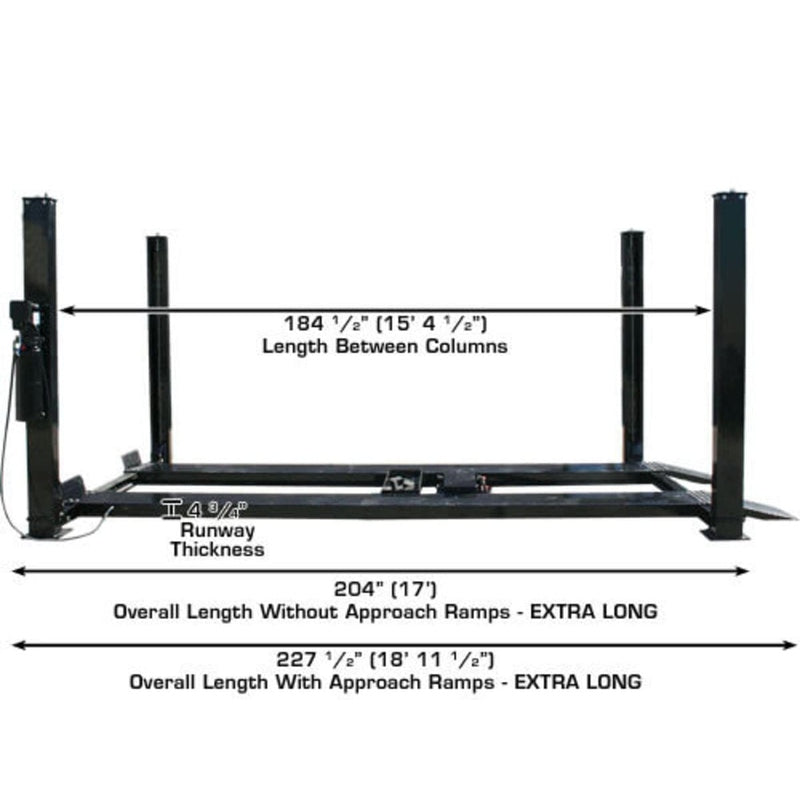

Length Between Columns 184 ½" (15' 4 ½")
Maximum Wheelbase 187" (15' 7")
Drive-Through Width 97 ¼" (8' 1 ¼")
Motor/Electrical Requirement 110V, 30A Breaker Required
Shipping Weight 2,300 lb.

Documents

Atlas® Garage PRO9000 Manual

Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
