Description
Description

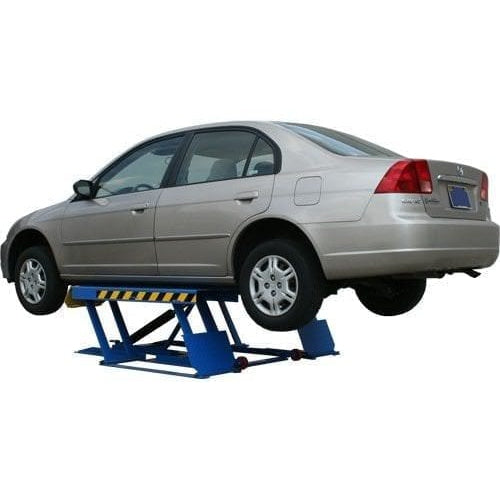

The Atlas® LR06 is a portable 6,000 lb. low-rise lift designed for quick, efficient vehicle lifting in any garage or service bay. Ideal for wheel service, detailing, and bodywork, the LR06 offers convenience, stability, and easy portability—making it a smart choice for both professional shops and home garages.
This lift features durable rubber lifting pads and multiple mechanical lock positions that automatically engage using a self-actuating lock bar, ensuring safe and secure operation at any height.

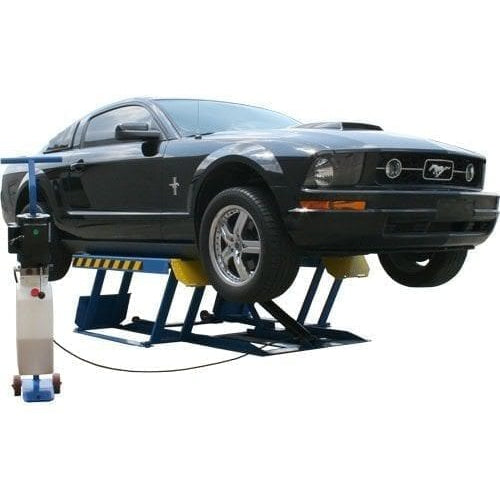

To operate, simply drive the vehicle over the lift, position the rubber blocks (if needed) under the correct lifting points, and press the control button to raise the vehicle to your desired working height. When lowering, depress the dump valve lever to gently bring the lift down to the next locking position for safe access.

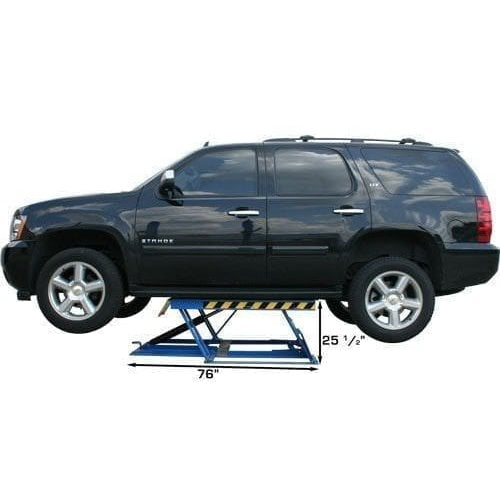

Built with a heavy-duty steel frame, the Atlas® LR06 provides rock-solid stability while maintaining a low-profile design that easily accommodates low-clearance vehicles. The horizontal cylinder configuration requires a small clearance (approximately 2–6 inches) between the lift surface and the vehicle’s lifting points for proper operation.

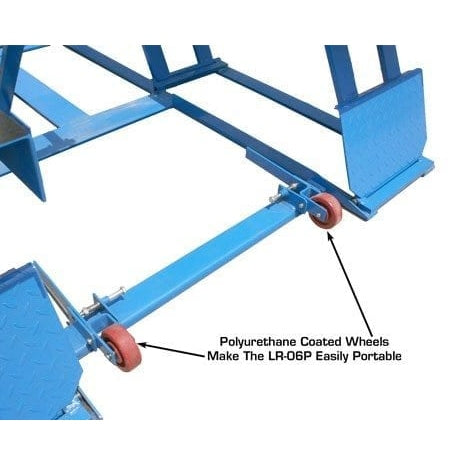

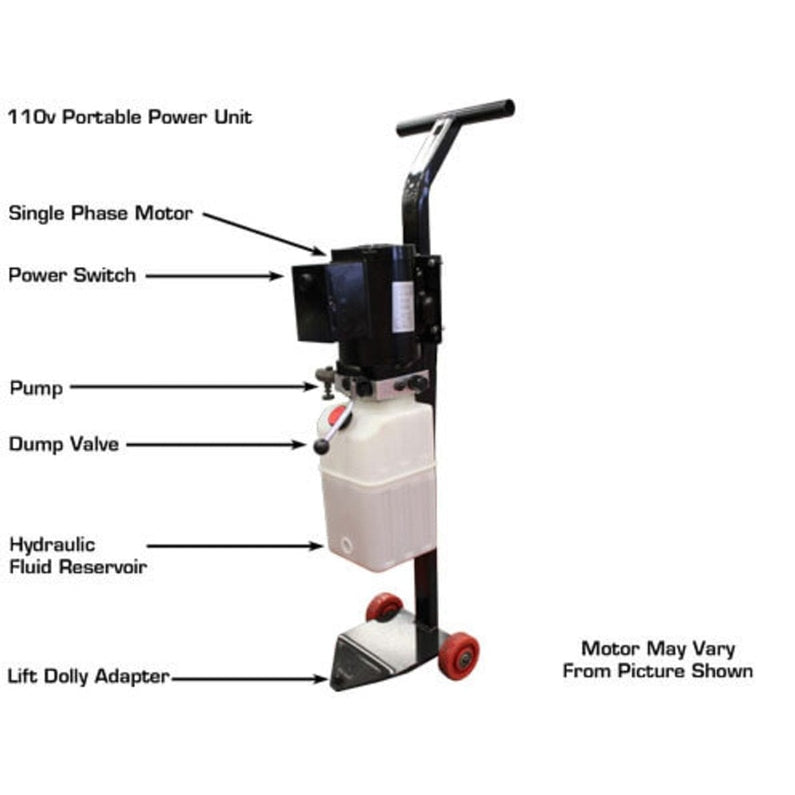

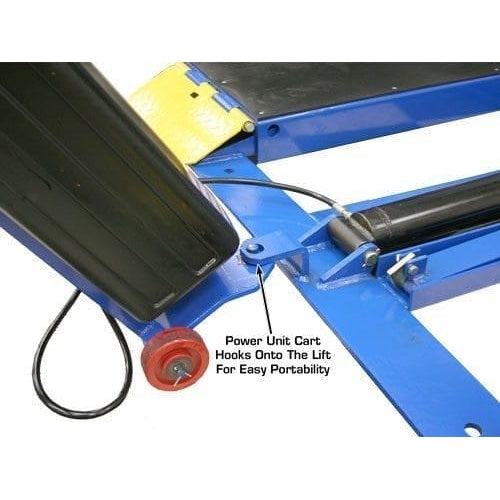

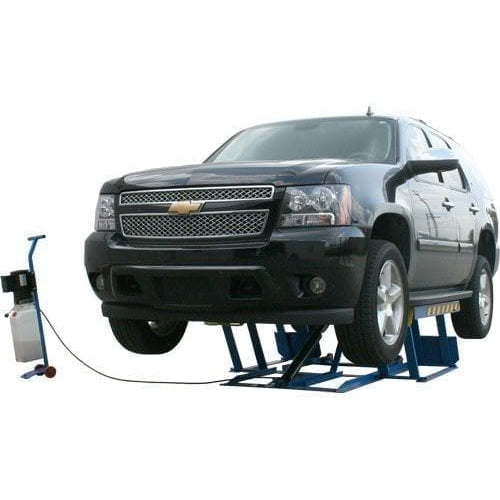

The LR06 is also highly portable, featuring a standard wheel kit and power unit stand that allow the lift to be easily rolled across any concrete surface—whether inside the garage or outside on an apron or driveway.
Durable, portable, and easy to use, the Atlas® LR06 is the perfect lift for shops and enthusiasts who need professional-grade functionality in a compact, mobile design.
Features
-
6,000 lb. lifting capacity
-
Fully portable design for flexible use inside or outside the shop
-

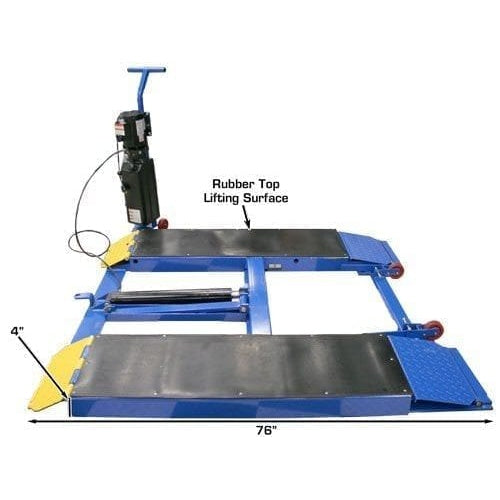

Low-profile 4" frame accommodates most low-clearance vehicles
-
Multi-position manual safety locks for secure operation at various working heights
-

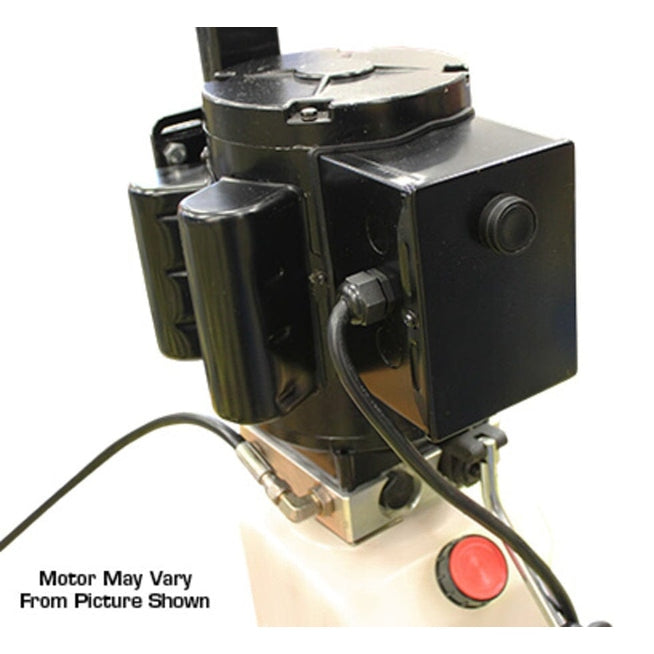

110V electric power unit for convenient plug-and-play operation
-
Heavy-duty steel construction for long-lasting durability
-

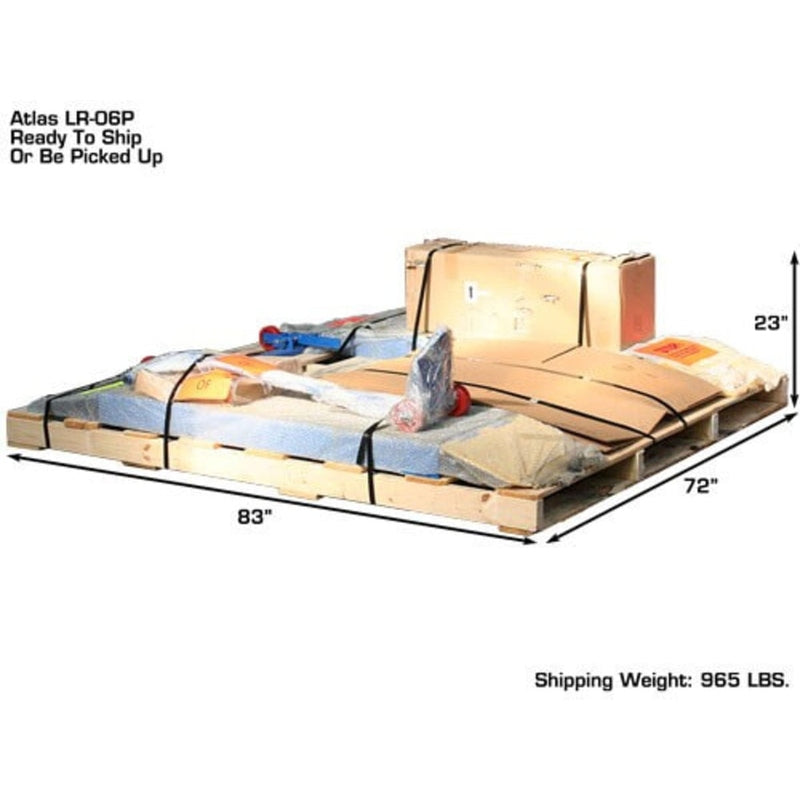

Shipping weight: 965 lbs
-
Warranty: 2-year structural / 1-year hydraulic (parts only)

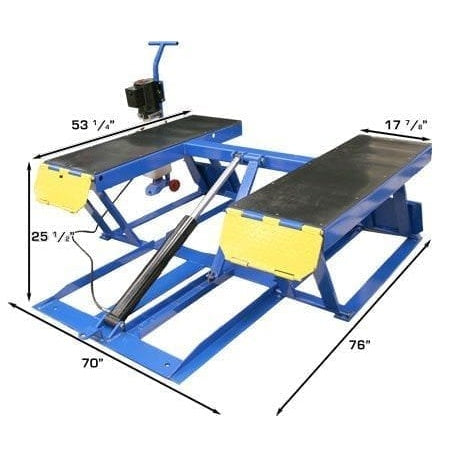

Specifications
Atlas® LR06 Portable Low-Rise Lift
| Specification | Measurement |
|---|---|
| Capacity | 6,000 lbs |
| Maximum Lifting Height | 24" (2') |
| Locking Position Heights | 12¼", 18½", and 22¼" |
| Overall Pad Length | 53¼" (4' 5¼") |
| Overall Width | 70" (5' 10") |
| Overall Length | 79¾" (6' 7¾") |
| Lowered Height | 4" |
| Motor / Electrical Requirement | 110V single-phase |
| Oil Requirement | 1.5–2 gallons AW32 or AW46 (not included) |
| Shipping Weight | 965 lbs |
