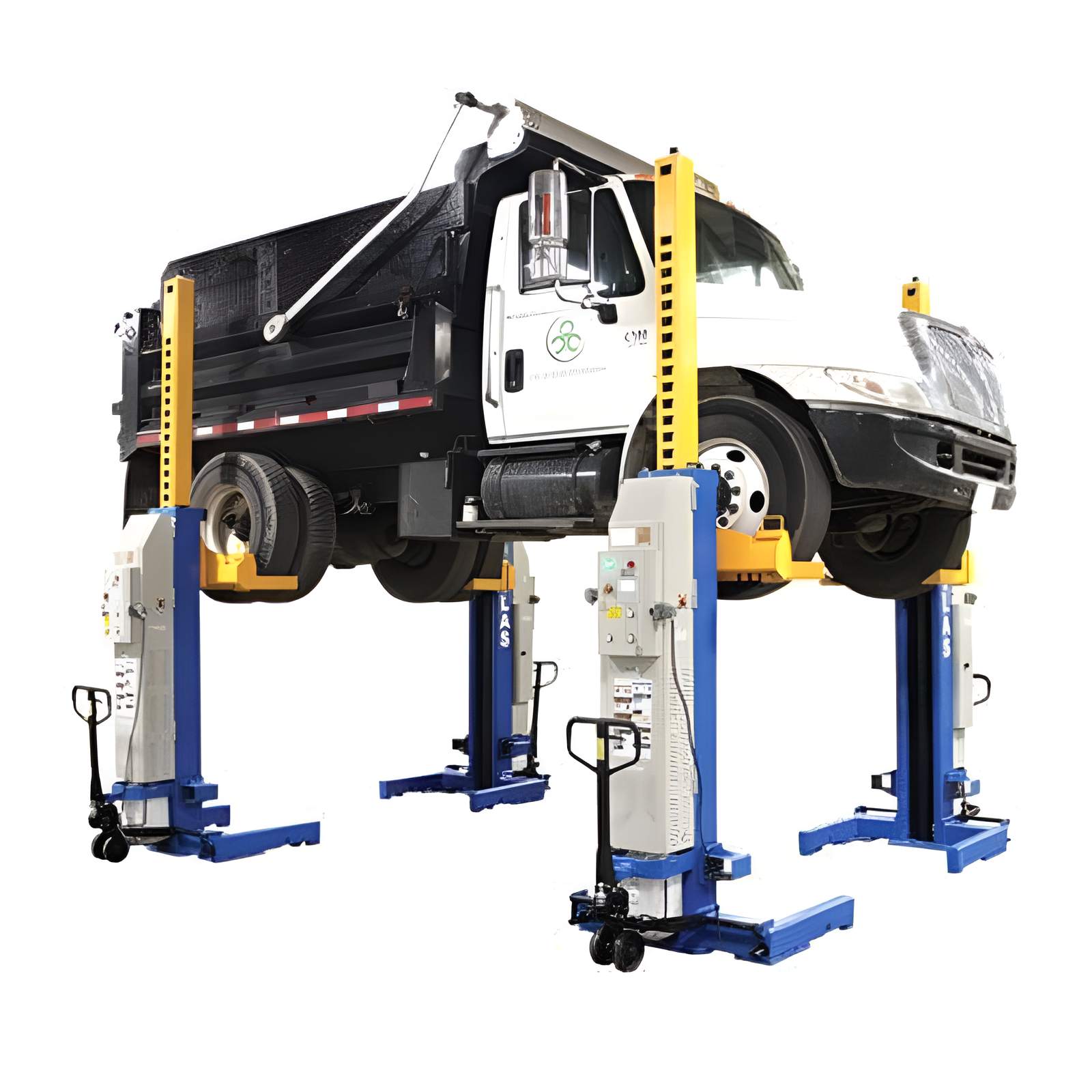

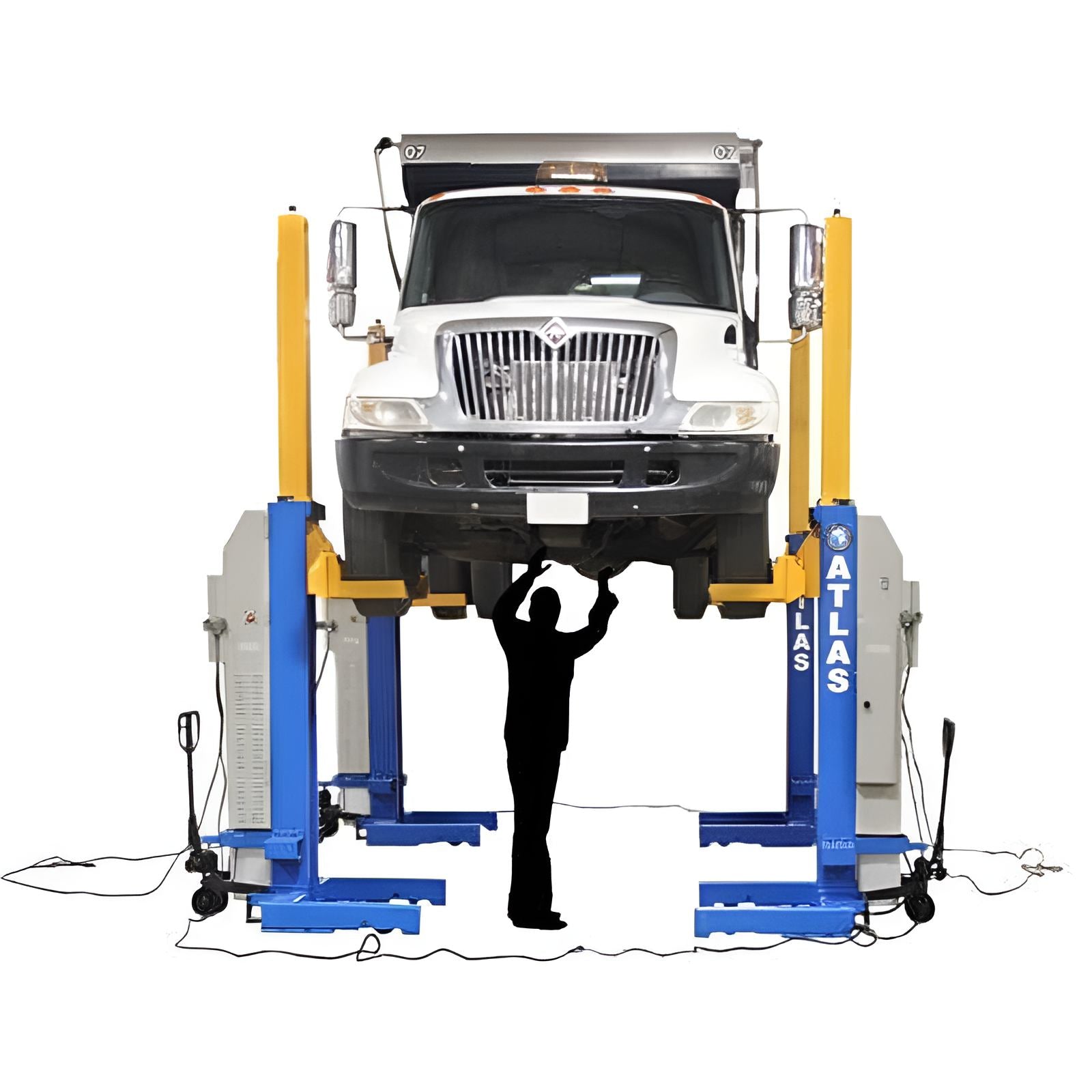

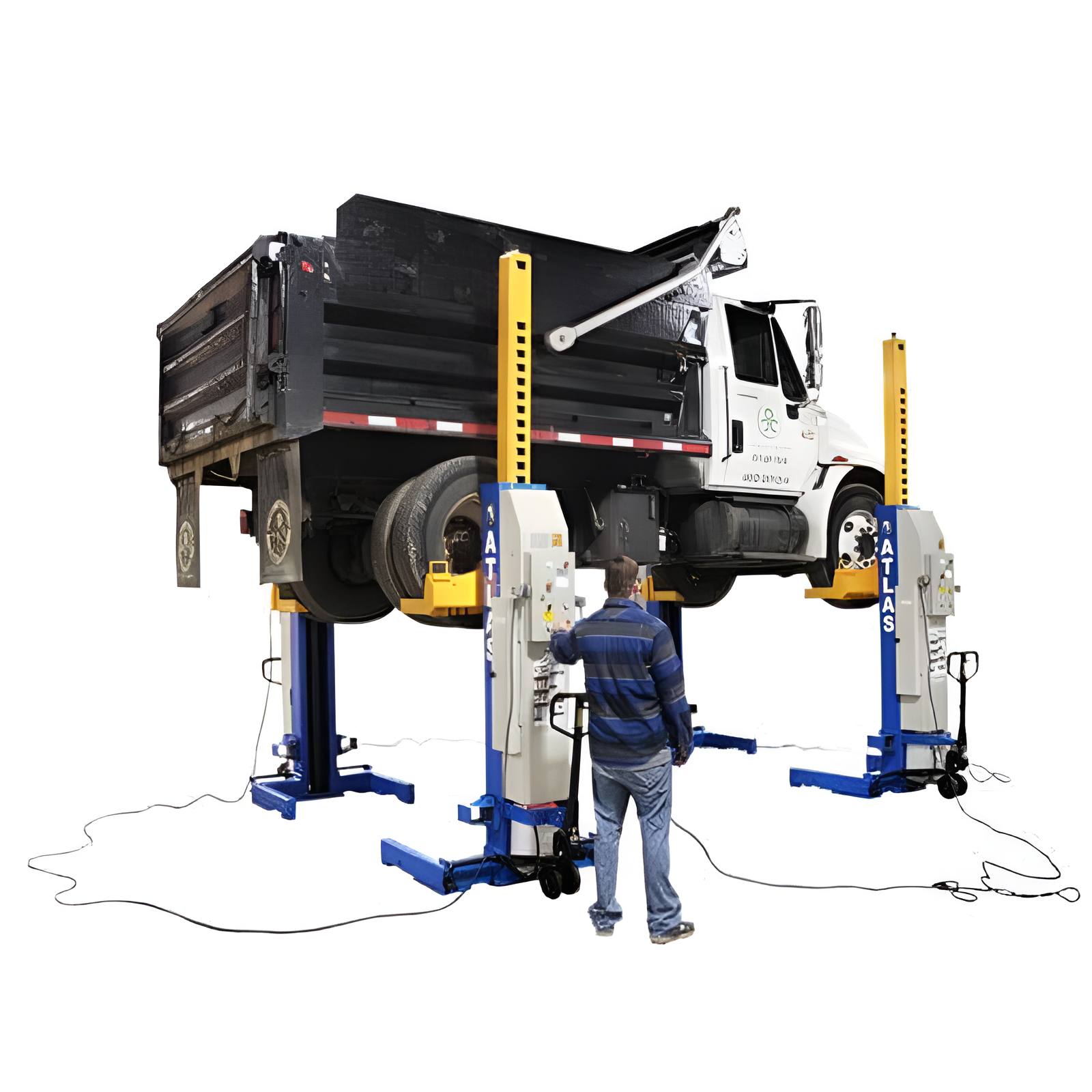

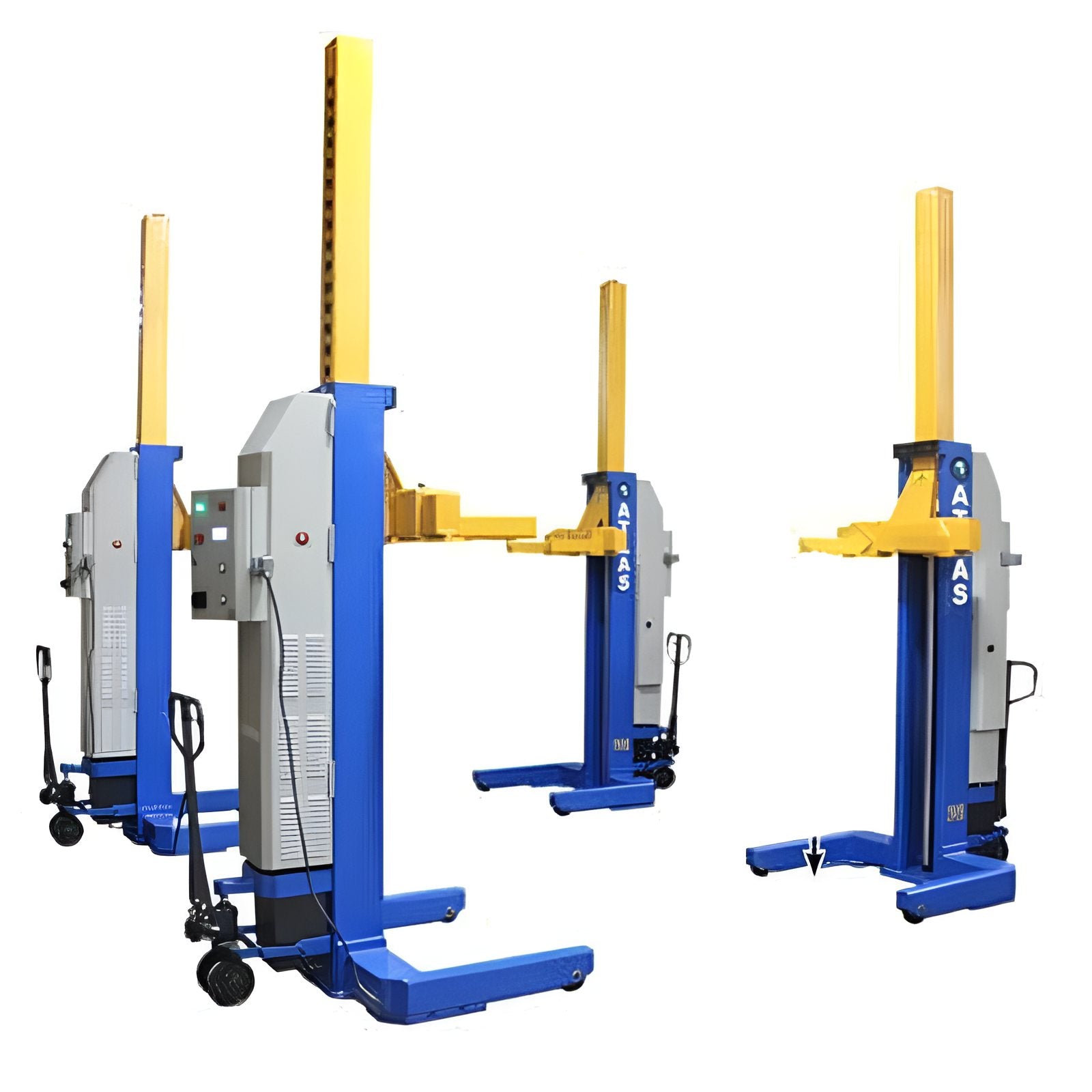

Atlas Maxima® ML-4030BC Mobile Column Lift
ALI Certified Mobile Column Lift for Heavy-Duty Truck & Fleet Service
The Atlas Maxima® ML-4030BC Mobile Column Lift is a professional-grade lifting solution designed for heavy-duty truck repair, fleet maintenance, transit facilities, and commercial service centers. Unlike traditional fixed lifts, this portable mobile column lift system allows technicians to lift vehicles wherever they are needed, maximizing valuable shop space and improving workflow efficiency. Each column provides an impressive 16,500-pound lifting capacity, giving the standard four-column configuration a total capacity of 66,000 pounds. The system can also be expanded to six columns (99,000 lbs) or eight columns (132,000 lbs) to accommodate even larger commercial vehicles.
Powered by a 2.2 kW 24V DC motor with dual rechargeable batteries in each column, the ML-4030BC delivers cordless, dependable lifting without requiring a permanent installation. An advanced electronic synchronization system keeps every column lifting evenly, while hydraulic flow control and mechanical safety locks provide redundant protection throughout the lifting process. Each column is equipped with an LCD display showing its exact lifting height, an emergency stop button, and adjustable wheel forks that accommodate tire diameters from 19 to 44 inches, making the system compatible with a wide variety of commercial vehicles.
Atlas ML-4030BC Specifications
| Specification | Details |
|---|---|
| Lifting Capacity (Per Column) | 16,500 lbs |
| Standard Configuration | 4 Columns (66,000 lbs Total Capacity) |
| Expandable Capacity | 6 Columns (99,000 lbs) or 8 Columns (132,000 lbs) |
| Maximum Lifting Height | 67" |
| Overall Height | 145" |
| Resting Height | 88.5" |
| Overall Width | 43.5" |
| Overall Length | 55.5" |
| Column Width | 13.25" |
| Tire Diameter Range | 19" – 44" |
| Motor | 2.2 kW, 24V DC with Dual Batteries per Column |
| Battery Charger Power | 110V |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI |
| Warranty | 2-Year Limited |
Shipping Information
- Shipping Weight (Per Column): 1,600 lbs
- Shipping Weight (Four Columns): 6,400 lbs
- Shipping Dimensions (Per Column): 49" L × 47" W × 89" H
Key Features
- ALI Certified to meet industry-recognized safety and performance standards
- 16,500 lb lifting capacity per column
- Standard four-column system provides 66,000 lbs of total lifting capacity

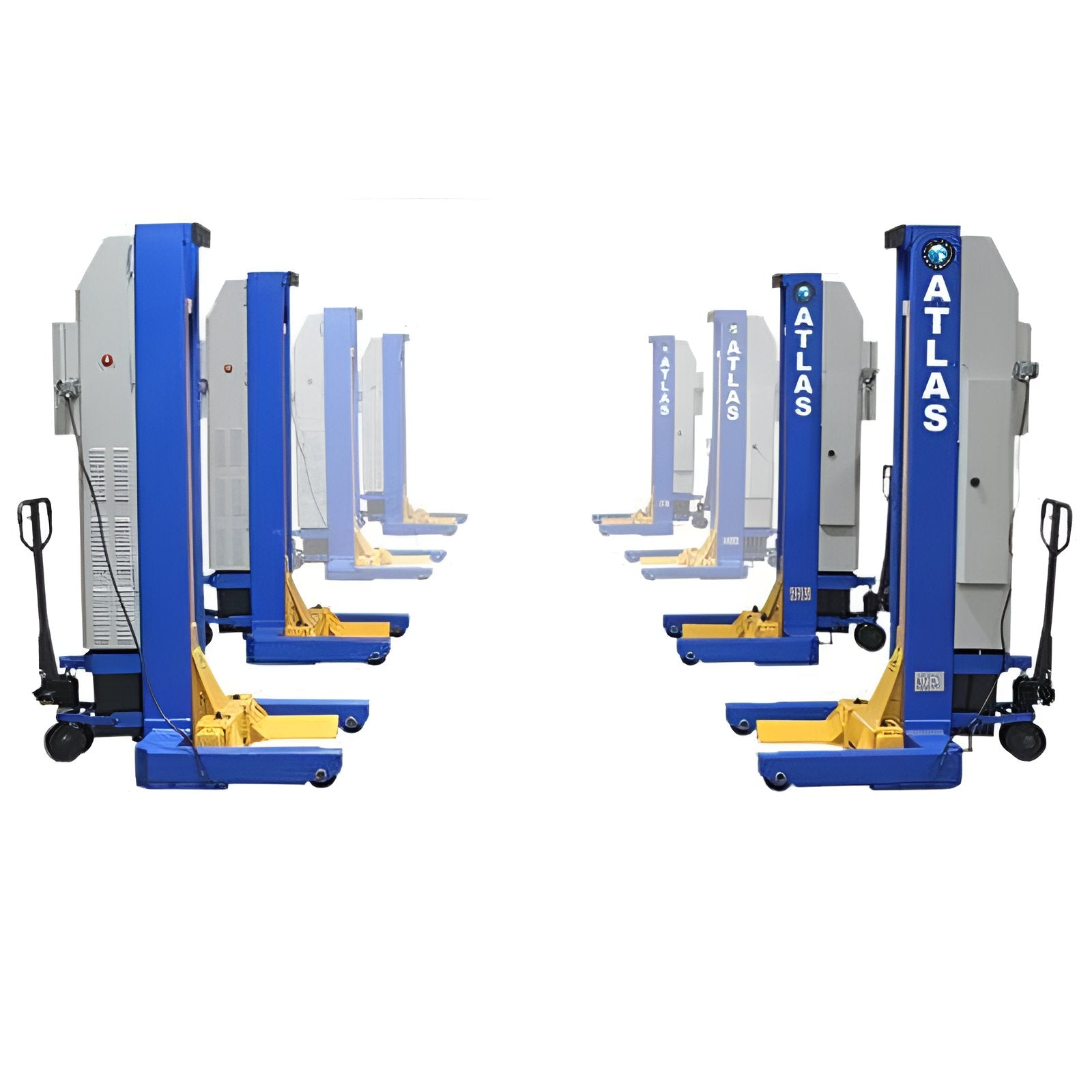

- Expandable to six or eight columns for lifting up to 132,000 lbs
- Portable column design maximizes shop flexibility and floor space
- Simultaneous synchronized lifting across all columns
- Electronic synchronization system ensures level lifting
- LCD display on each column shows real-time lifting height
- Dual safety system with hydraulic flow control and mechanical locking mechanisms
- Emergency stop button located on every column
- Adjustable wheel forks accommodate tire diameters from 19" to 44"
- Cordless operation with dual rechargeable batteries in every column
- Includes four 32-foot interconnecting cables
- Ideal for heavy-duty trucks, buses, RVs, municipal fleets, and commercial vehicles
Atlas 2-Year Limited Warranty
The Atlas Maxima® ML-4030BC is backed by a 2-Year Limited Warranty, providing added confidence and dependable support for professional heavy-duty lifting applications.
