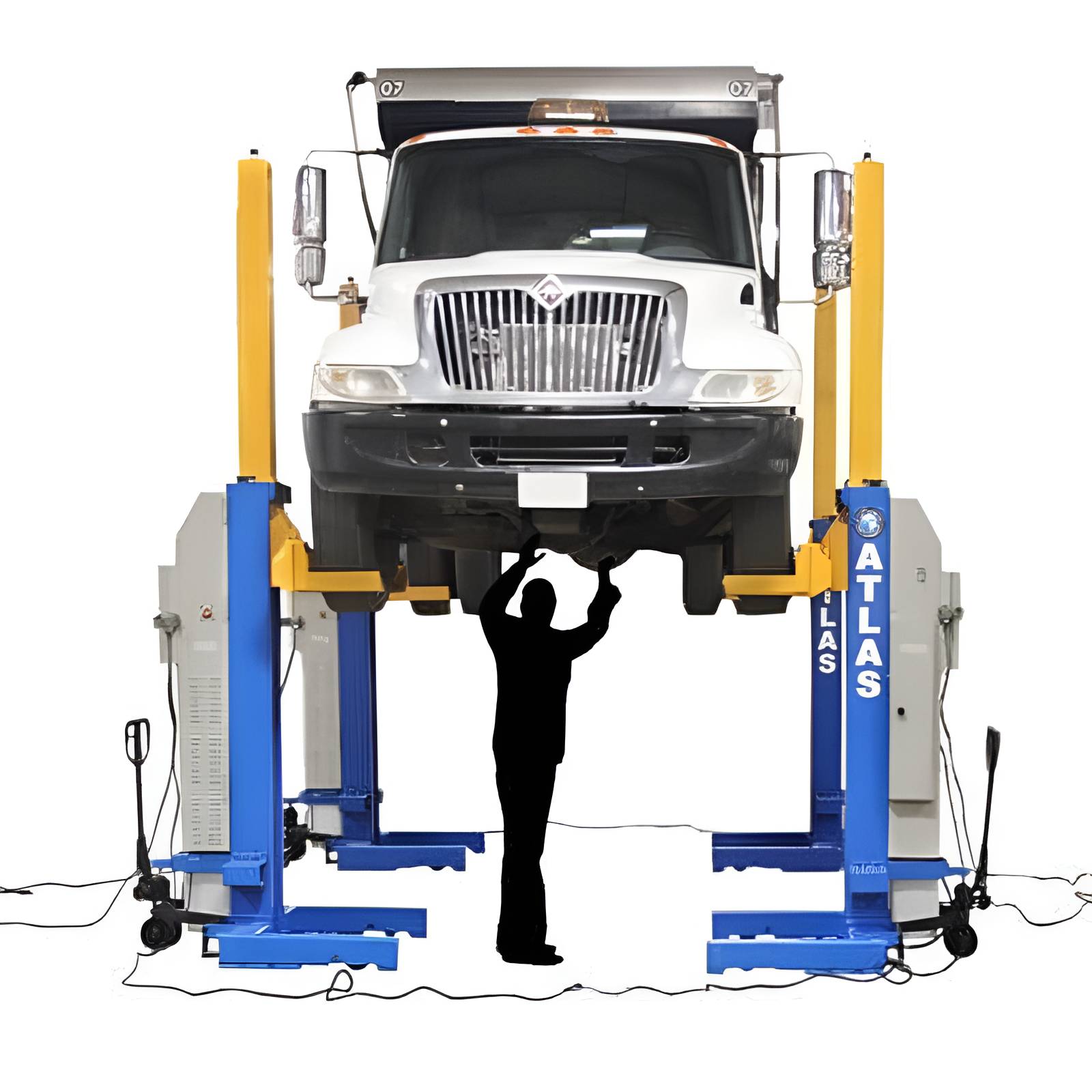

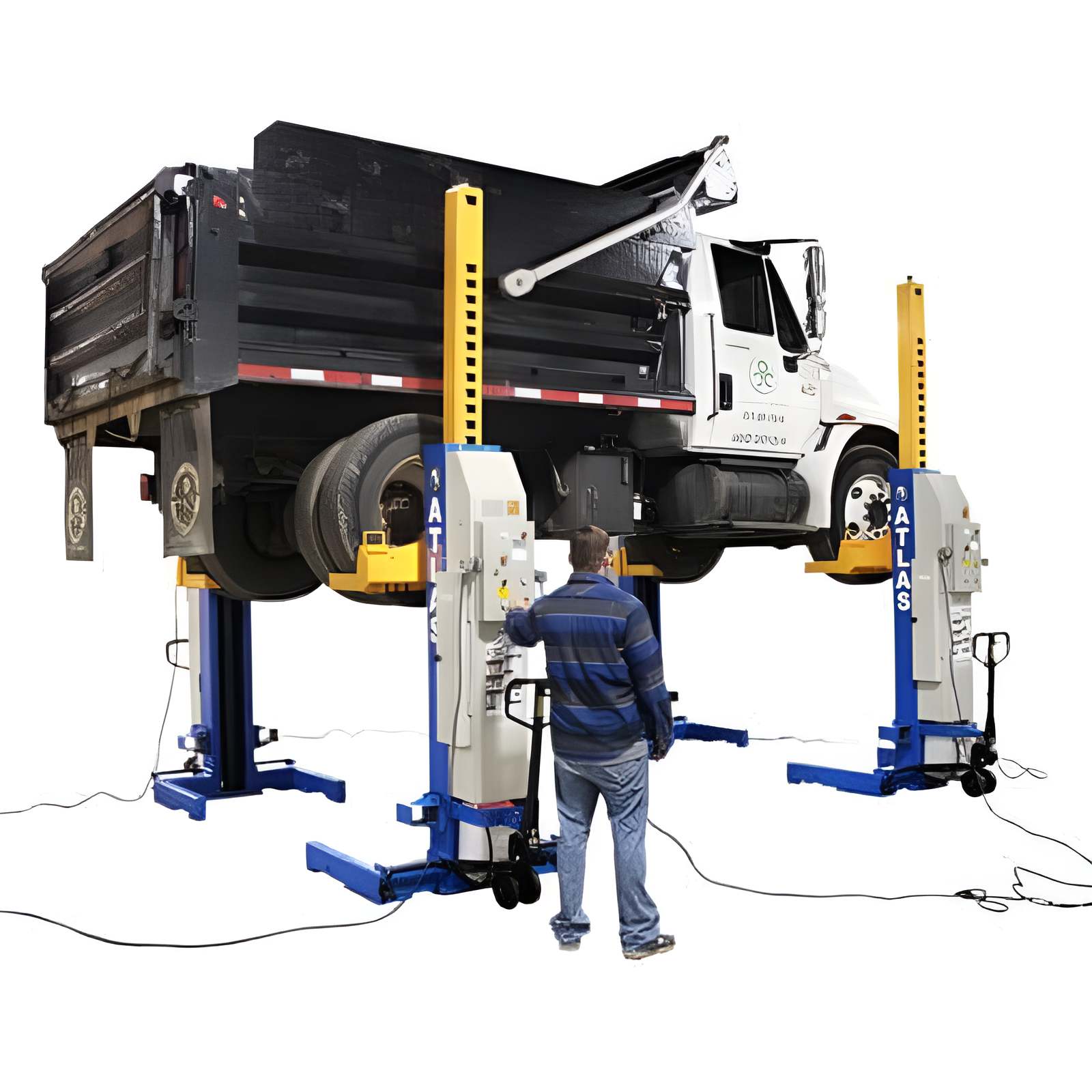

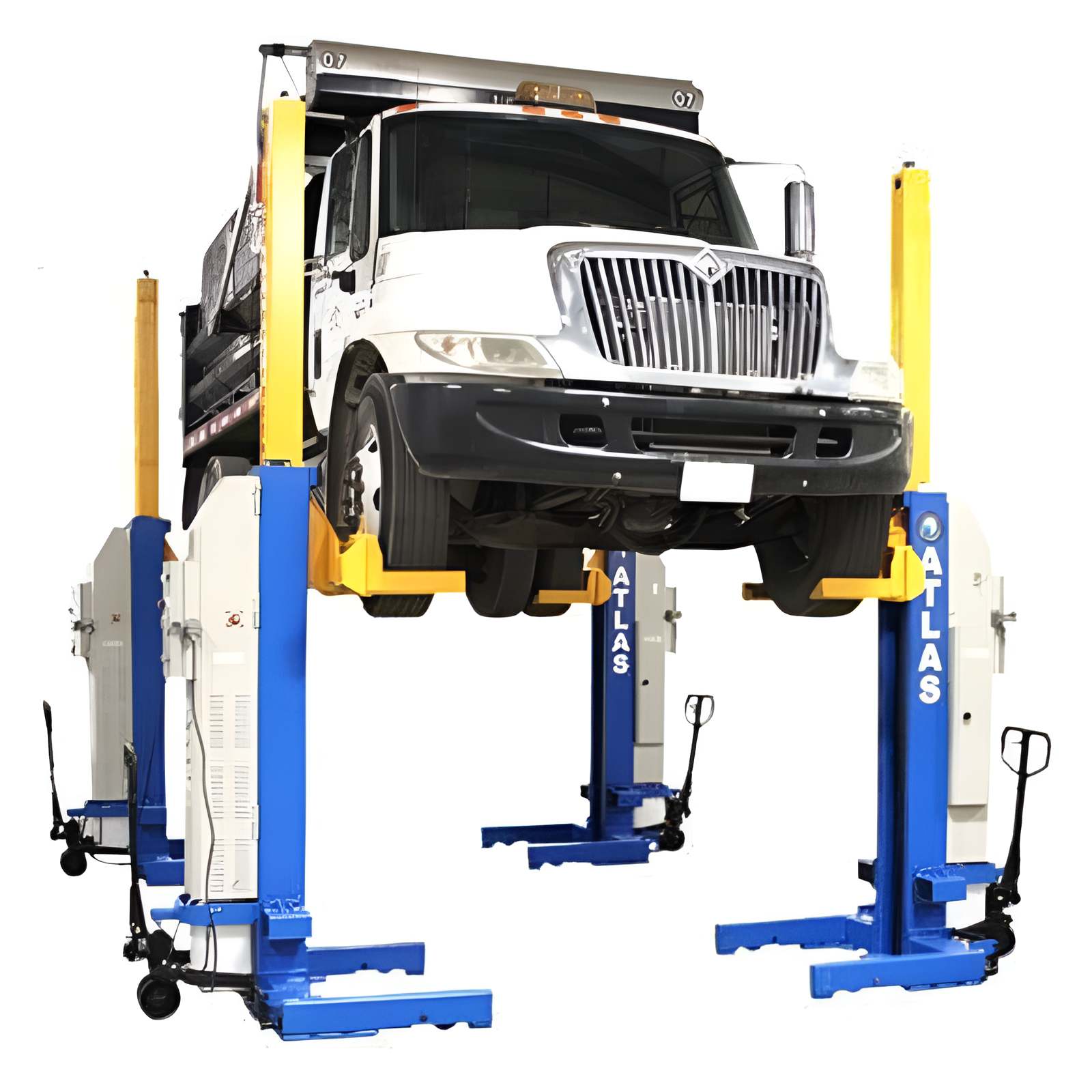

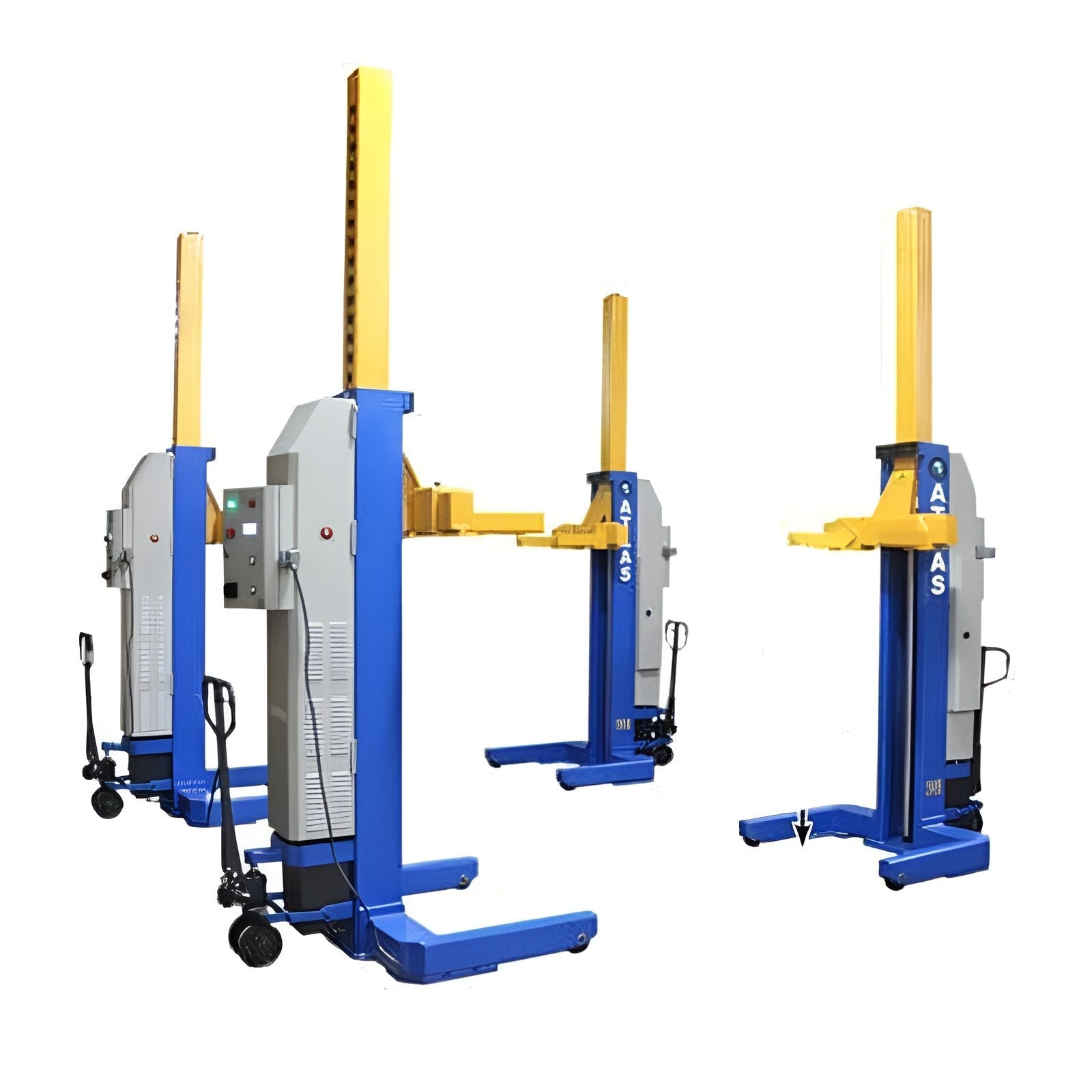

Atlas Maxima® ML-4034BC Mobile Column Lift
ALI Certified Mobile Column Lift for Heavy-Duty Truck & Fleet Maintenance
The Atlas Maxima® ML-4034BC Mobile Column Lift is engineered for professional repair facilities that service heavy-duty trucks, buses, RVs, and commercial fleet vehicles. Designed to maximize shop flexibility without the need for permanent lift installation, this ALI Certified mobile column lift system delivers an impressive 18,500-pound lifting capacity per column, providing a total capacity of 74,000 pounds in its standard four-column configuration. As your business grows, the system can be expanded to six columns (111,000 lbs) or eight columns (148,000 lbs) to accommodate even larger vehicles and specialized applications.
Each mobile column is powered by a 2.2 kW 24V DC motor with dual rechargeable batteries, allowing cordless operation and reliable performance throughout the workday. Integrated hydraulic pallet jack systems make positioning each column quick and easy, while an advanced electronic synchronization system ensures all columns lift evenly and safely. For added confidence, every column features an LCD display showing real-time lifting height, an emergency stop button, and adjustable wheel forks that accommodate tire diameters from 19 to 44 inches.
Built for demanding commercial environments, the ML-4034BC combines exceptional lifting capacity, portability, and industry-leading safety features to help improve shop productivity and maximize service capabilities.
Atlas ML-4034BC Specifications
| Specification | Details |
|---|---|
| Lifting Capacity (Per Column) | 18,500 lbs |
| Standard Configuration | 4 Columns (74,000 lbs Total Capacity) |
| Expandable Capacity | 6 Columns (111,000 lbs) or 8 Columns (148,000 lbs) |
| Maximum Lifting Height | 67" |
| Overall Height | 145" |
| Resting Height | 88.5" |
| Overall Width | 43.5" |
| Overall Length | 55.5" |
| Column Width | 13.25" |
| Tire Diameter Range | 19" – 44" |
| Motor | 2.2 kW, 24V DC with Dual Batteries per Column |
| Battery Charger Power | 110V |
| Concrete Requirement | Minimum 4" thick, 3,500 PSI |
| Warranty | 2-Year Limited |
Shipping Information
- Shipping Weight (Per Column): 1,700 lbs
- Shipping Weight (Four Columns): 6,800 lbs
- Shipping Dimensions (Per Column): 49" L × 47" W × 89" H
Key Features
- ALI Certified to meet industry-recognized safety and performance standards
- 18,500 lb lifting capacity per column
- Standard four-column configuration provides 74,000 lbs of total lifting capacity
- Expandable to six or eight columns for lifting capacities up to 148,000 lbs
- Portable mobile column design maximizes shop flexibility and workspace efficiency
- Simultaneous operation and electronic synchronization of all columns
- LCD display on each column provides real-time lifting height information
- Dual safety protection with hydraulic flow control and mechanical locking systems
- Emergency stop button on every column
- Adjustable wheel forks accommodate tire diameters from 19" to 44"
- Dual rechargeable battery system enables cordless operation
- Integrated hydraulic pallet jack system for easy positioning
- Includes four 32-foot interconnecting cables
- Ideal for servicing heavy-duty trucks, buses, motorhomes, municipal fleets, emergency vehicles, and commercial equipment
Atlas 2-Year Limited Warranty
The Atlas Maxima® ML-4034BC is backed by a 2-Year Limited Warranty, providing dependable coverage and peace of mind for professional heavy-duty lifting applications.
