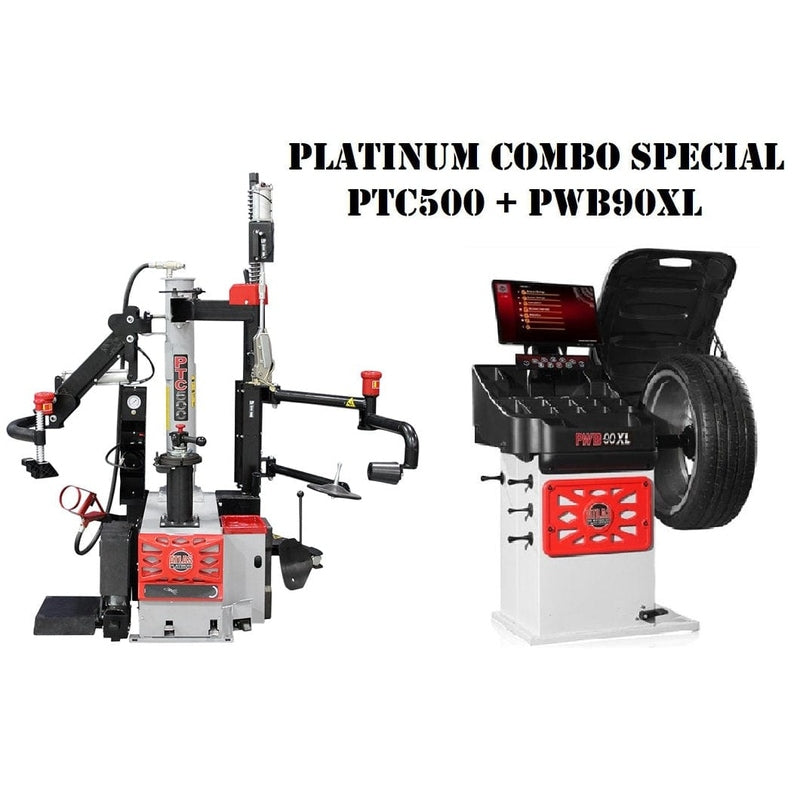

The Atlas® Platinum PTC500 & PWB90XL Combo Package delivers premium performance for high-volume tire shops and professional automotive centers that demand precision, speed, and effortless operation with luxury or high-end wheels. This advanced pairing includes the Atlas® Platinum PTC500 Center Post Tire Changer and the Atlas® Platinum PWB90XL Computerized Spin Balancer—both CE-certified and powered by standard 110V. Each machine is backed by the Atlas® Platinum 2-Year Parts-Only Warranty, ensuring lasting reliability and top-tier service support.
Features

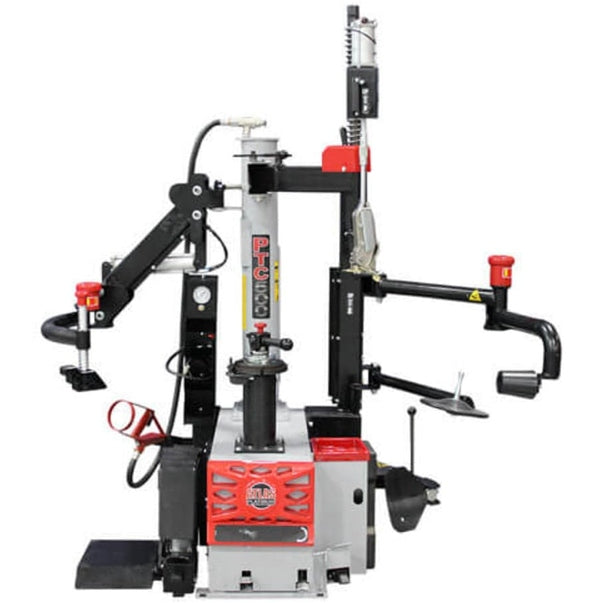

Atlas® Platinum PTC500 Tire Changer
-
Center Post Design: Provides superior clamping accuracy and safety for high-end and specialty wheels.
-

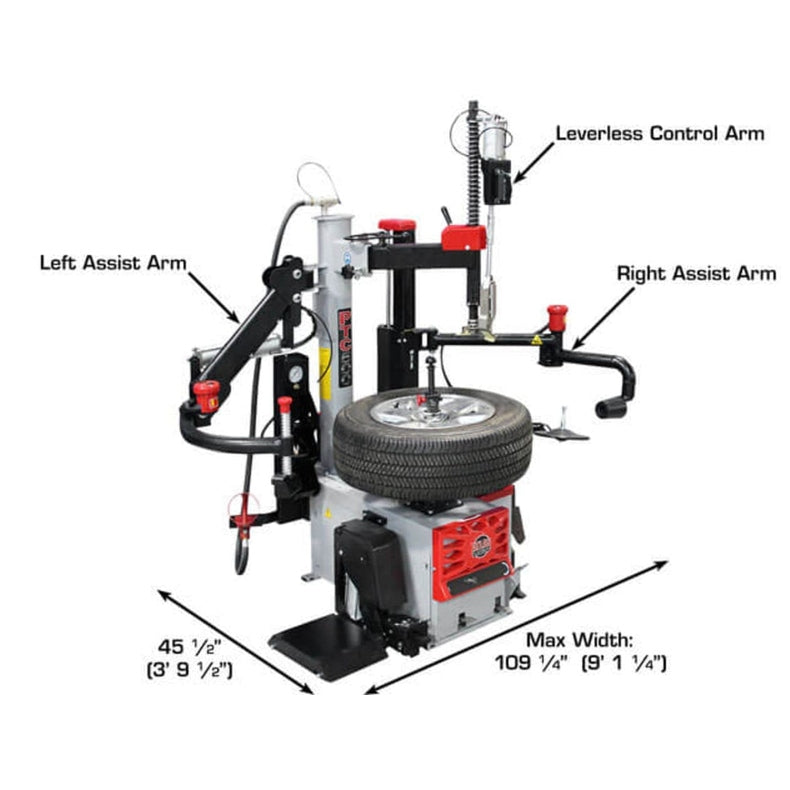

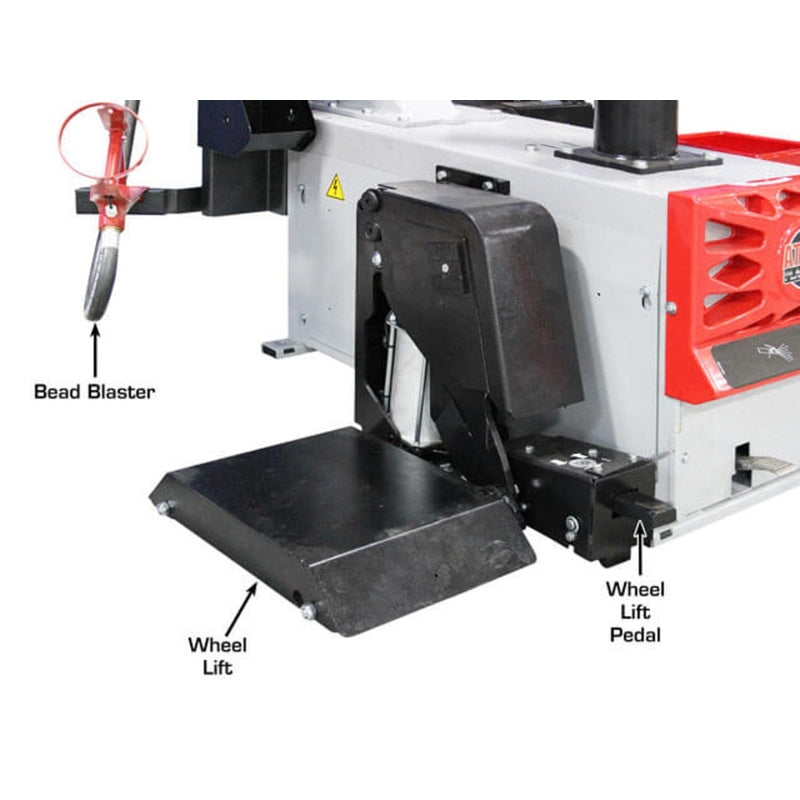

Dual Assist Arms & Wheel Lift: Simplifies handling of heavy or stiff tires, improving technician efficiency.
-

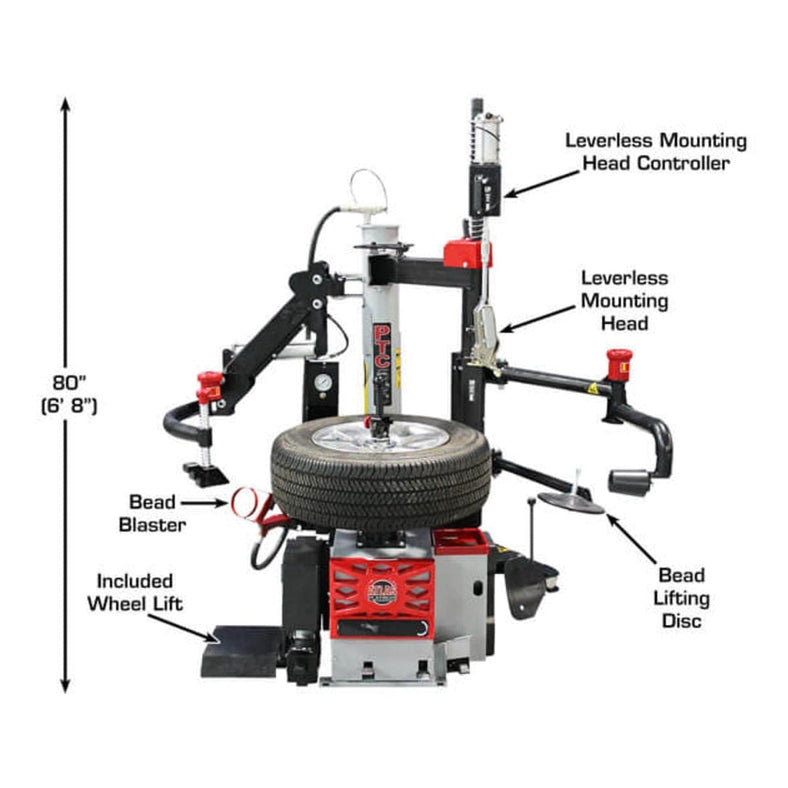

“Lever/No-Lever” System: Allows operators to change tires with or without a traditional tire bar for maximum flexibility.
-
“Smart Lock” Center-Post Mounting System: Ensures quick, secure wheel positioning with minimal effort.
-
Integrated Oiler, Filter, and Regulator: Maintains consistent air pressure and protects internal components (external air supply required).
-
Plastic Rim Protectors: Prevent rim scratches and surface damage.
-
Essential Accessories Included: Tire tool, lube bucket, and lube brush for convenient operation.
-

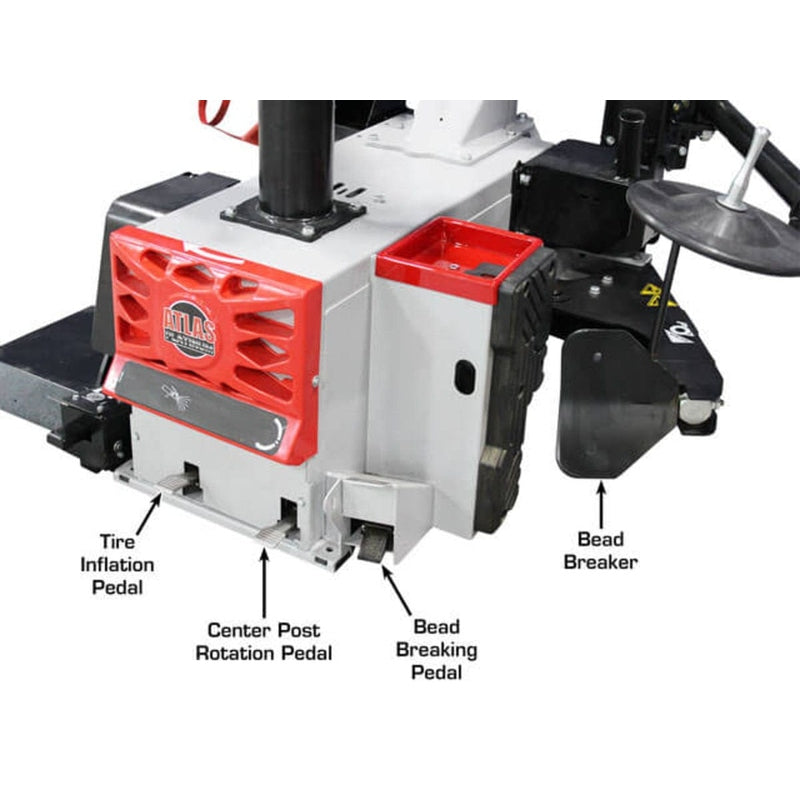

Inflation Box with Pressure Gauge: Enables precise tire inflation directly at the station.

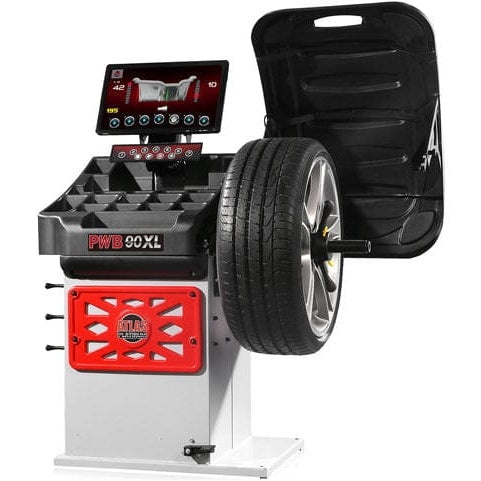

Atlas® Platinum PWB90XL Wheel Balancer
-
Computer-Controlled Spin Balancer: Delivers precise, consistent balancing for a wide range of wheels.
-

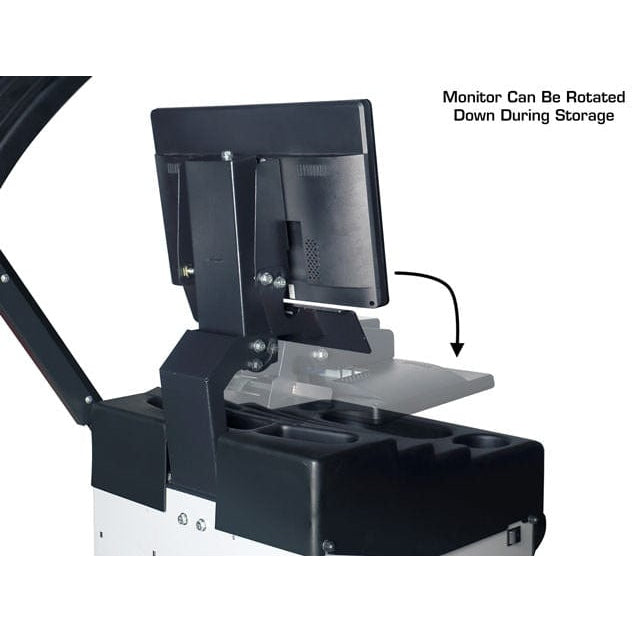

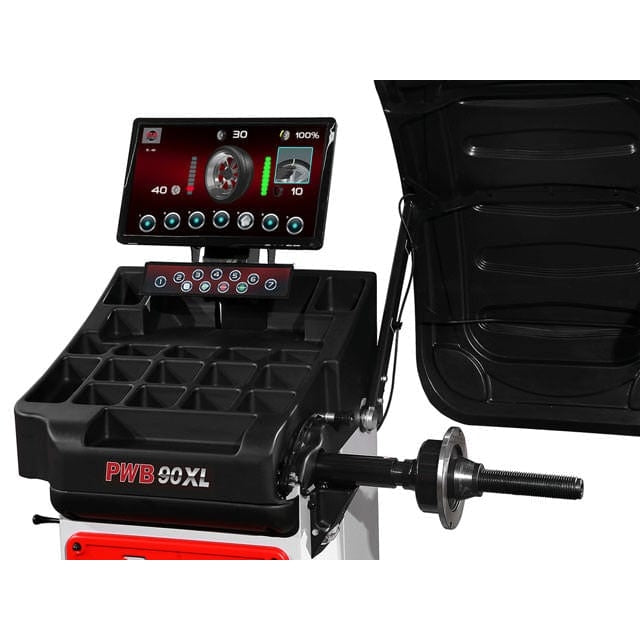

High-Resolution Video Display: Offers a clear, easy-to-read visual interface for enhanced accuracy.
-
Automatic 3D Data Entry: Automatically measures distance, diameter, and width for faster setup.
-

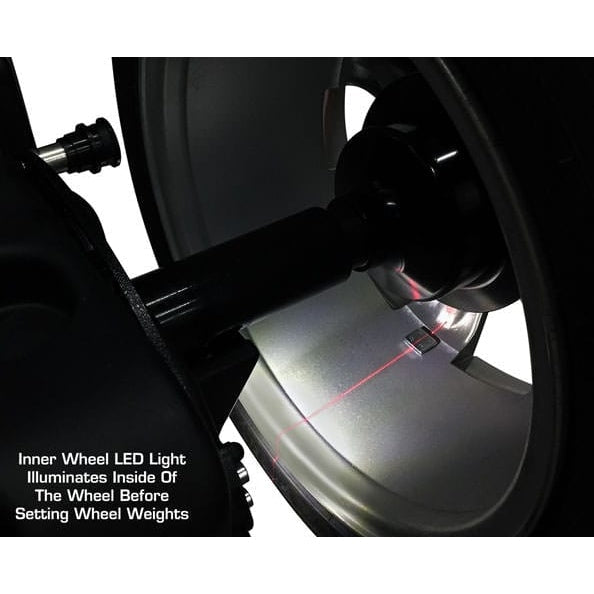

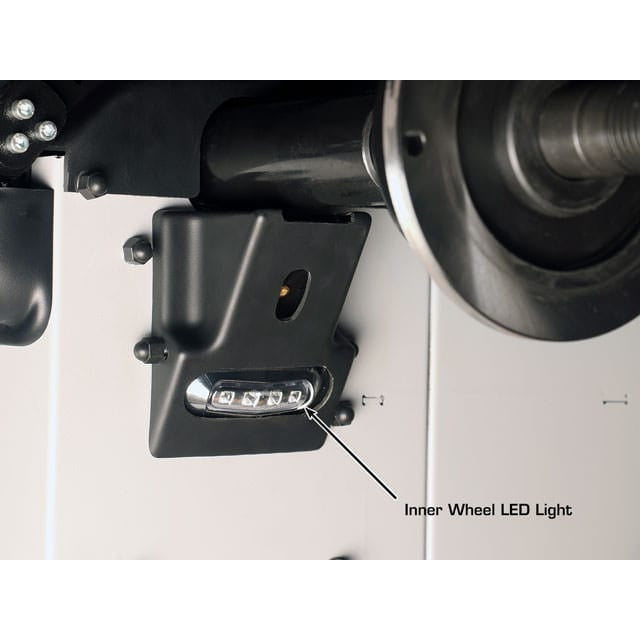

LED Work Light & Laser Guidance: Illuminates the work area and provides pinpoint accuracy for weight placement.
-
Advanced Balancing Functions: Includes Optimatch, FES (Split), and OPF (Opposite Position) features for fine-tuned balance results.
-
Self-Diagnosing & Self-Calibrating System: Ensures long-term reliability and ease of maintenance.
-
User-Friendly Display: Shows results in grams or ounces and in metric or imperial units.
-
Comprehensive Accessory Kit: Includes four centering cones, plastic quick-release nut, wheel weight pliers, and measuring calipers.
Specifications

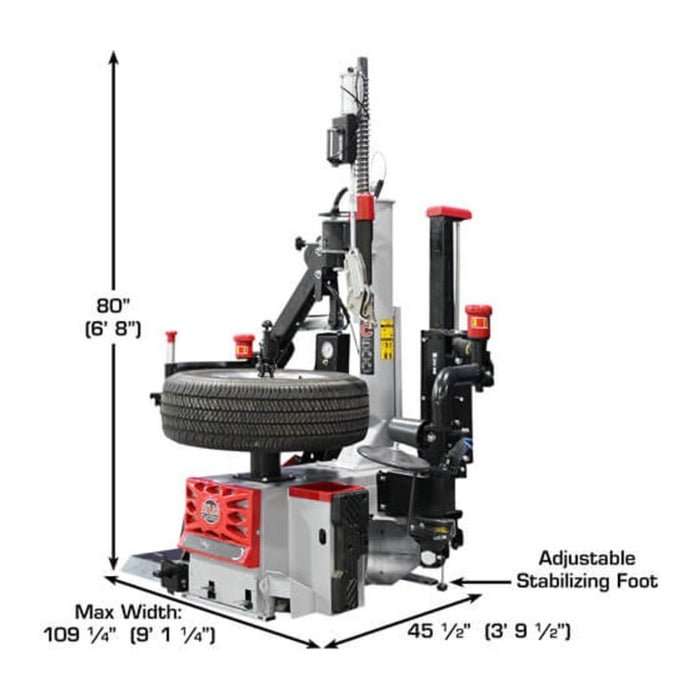

Atlas® Platinum PTC500 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |
| Clamping Range | 12″–30″ |
| Max Tire Diameter | 47″ |
| Max Wheel Width | 15″ |
| Turntable Speed | 7 RPM |
| Bead Breaker Force | 6,924 lbs |
| Air Requirement | 120–145 PSI |
| Operating Voltage | 110V |
| Shipping Weight | 885 lbs |
Atlas® Platinum PWB90XL Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 43″ |
| Rim Size Range | 10″–30″ |
| Rim Width | 1½″–20″ |
| Shaft Size | 40mm |
| Max Wheel Weight | 165 lbs |
| Balancing Speed | 130 RPM |
| Data Entry | Super Automatic 3D |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110V |
| Shipping Weight | 290 lbs |
The Atlas® Platinum PTC500 & PWB90XL Combo represents the pinnacle of precision and efficiency, combining cutting-edge technology with durable construction—perfect for professional shops handling performance, luxury, or custom wheels.
