Atlas Automotive EquipmentSKU: ATEAP-PVL10

At a Glance

  • ALI Certified; Symmetric or asymmetric install; Padded carriages
  • Max Lifting Height: 72.5"
  • Drive-Thru Clearance: 99.5"
Price:
$5,049.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

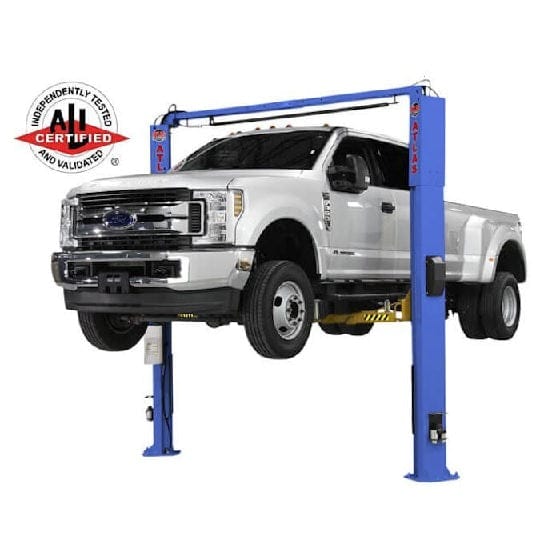

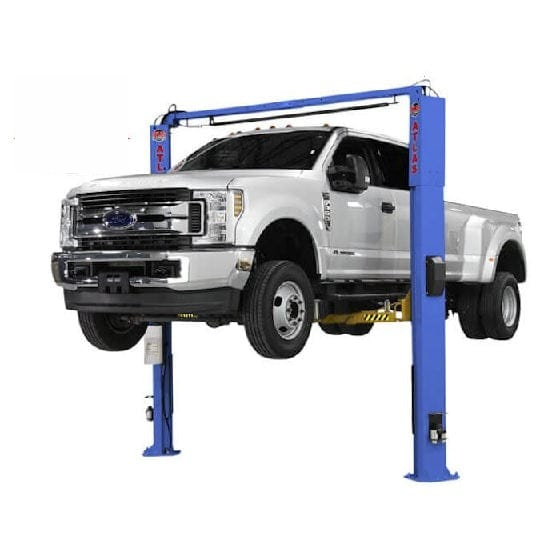

The Atlas® Platinum PVL10 is a 10,000 lb. capacity, ALI Certified, two-post commercial-grade lift designed to meet the needs of professional automotive service centers. Engineered with the durable Double S column design, this lift provides exceptional structural integrity and reliability — a design trusted by professionals around the world for more than two decades.

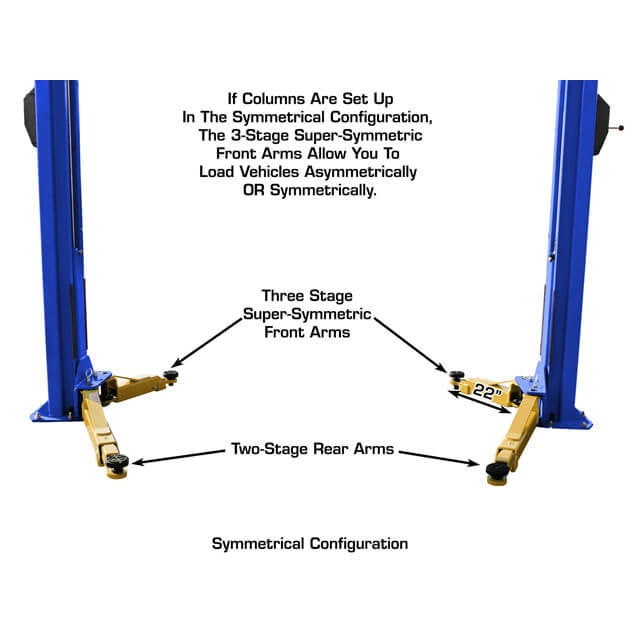

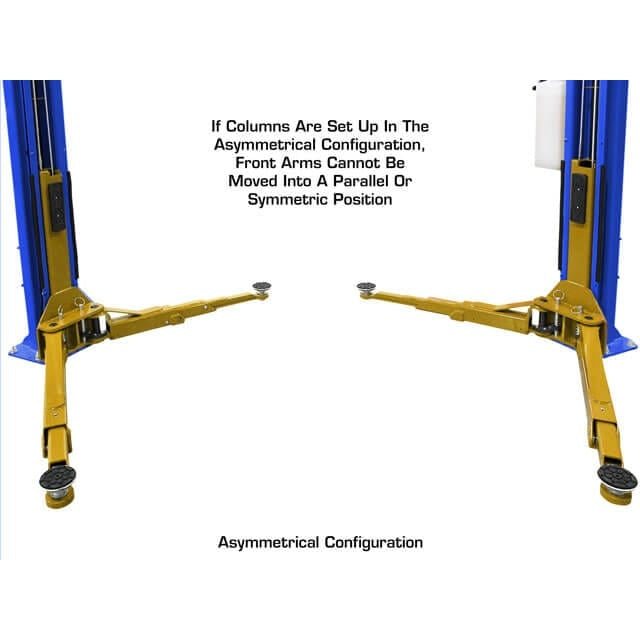

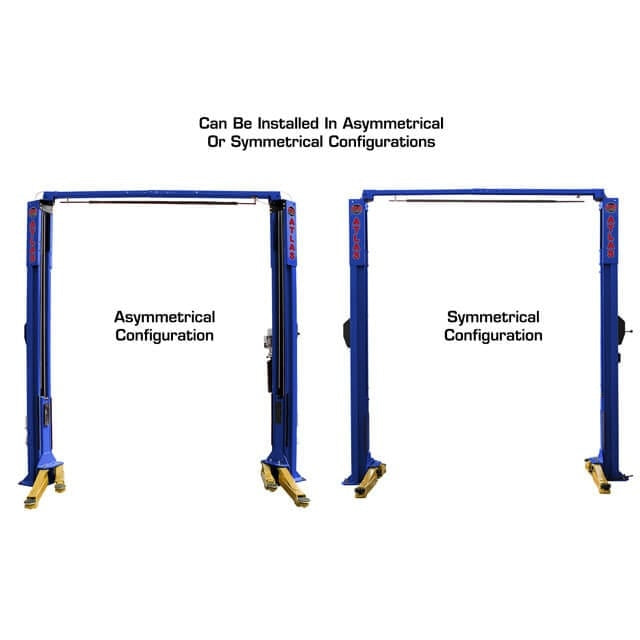

The PVL10 can be installed in either symmetric or asymmetric configurations. In the asymmetric setup, vehicle entry and exit are easier, reducing the risk of door contact with the column. The symmetric installation provides a wider space between columns, ideal for accommodating larger trucks and SUVs. Both configurations feature three-stage front arms, ensuring optimal vehicle reach and balanced lifting.

This model includes premium features such as double screw rubber/metal adapters with truck height extensions, padded carriages, rubber column guards, and a powder-coated finish for long-lasting protection. It also comes equipped with an ALLY Hydraulic AL2850 Power Unit, certified by MET Laboratories for compliance in the U.S. and Canada. The high-performance motor design minimizes heat buildup and maintains consistent torque throughout the lifting cycle.

The Atlas® Platinum PVL10 offers a combination of durability, flexibility, and safety, making it a top-tier choice for professional shops.

Key Features

  • ALI Certified two-post lift

  • 10,000 lb. lifting capacity

  • Reinforced Double “S” column design for enhanced strength

  • Can be installed symmetric or asymmetric

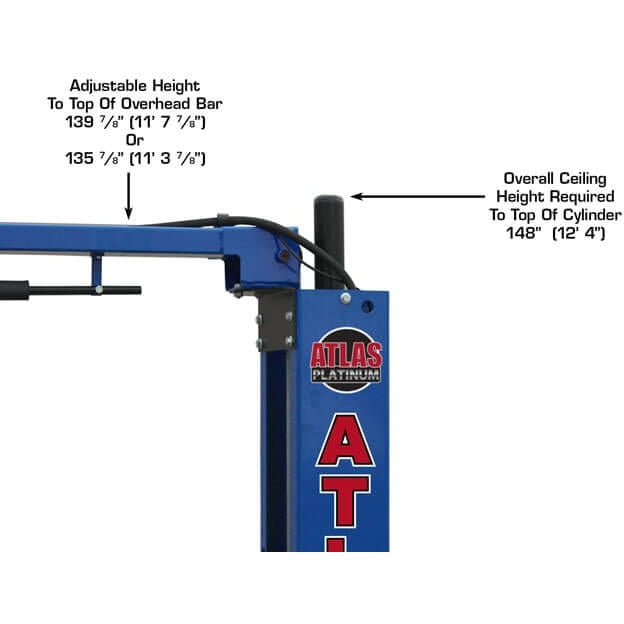

  • Overall Height: 139 ⅞″ (11′ 7 ⅞″) — Cylinder Height 12′ 4″

  • Optional Low Height: 135 ⅞″ (11′ 3 ⅞″) — Cylinder Height 12′ 4″ (requires optional cables)

  • Padded carriages and rubber column guards

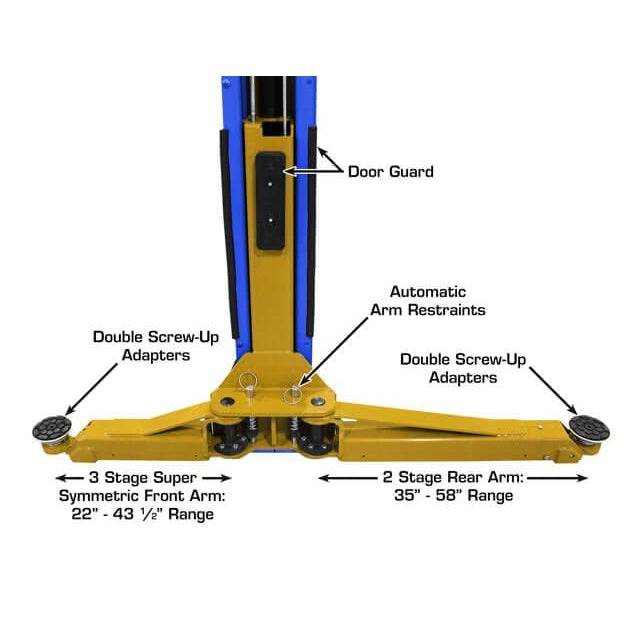

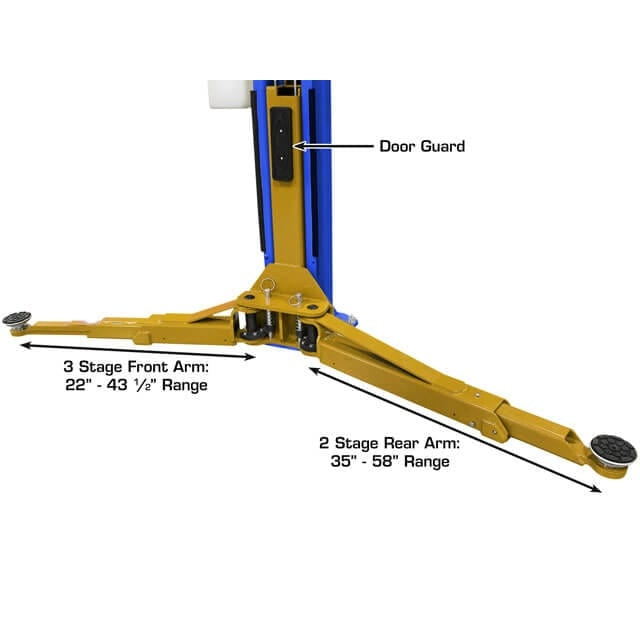

  • 3-stage front arms / 2-stage rear arms for greater reach

  • Single-point lock release for operator convenience

  • Durable powder-coated finish

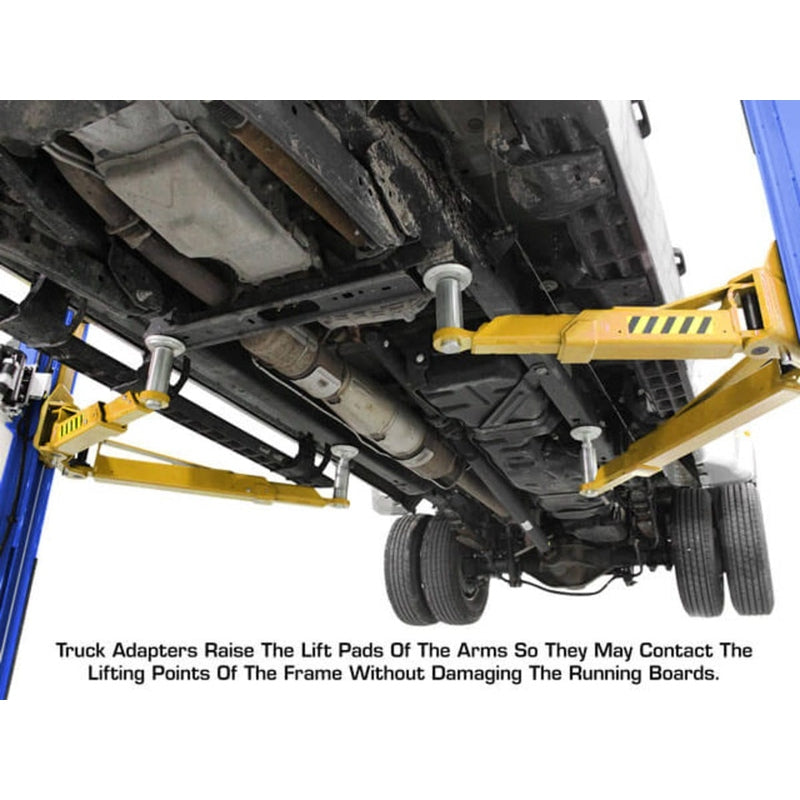

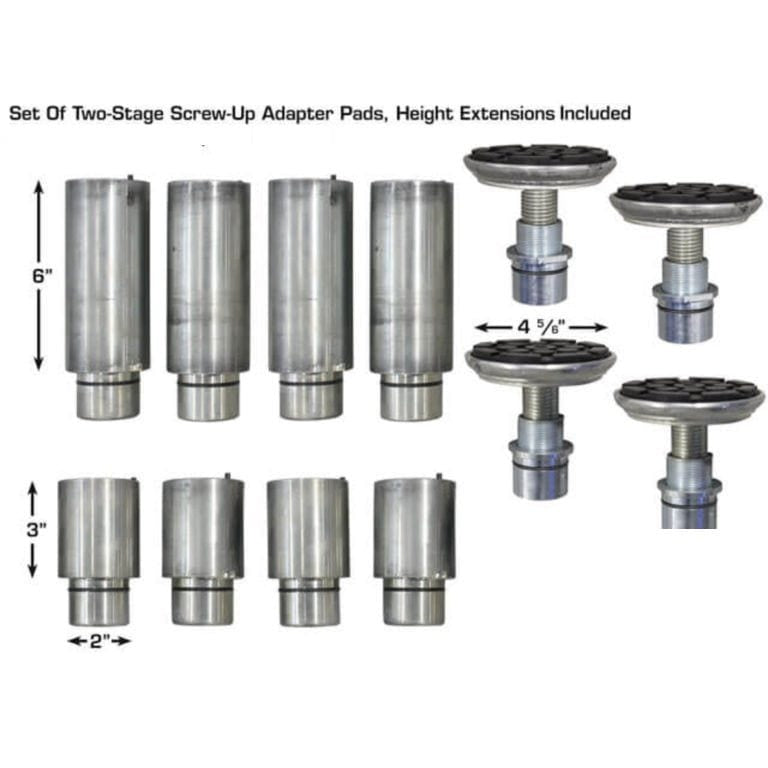

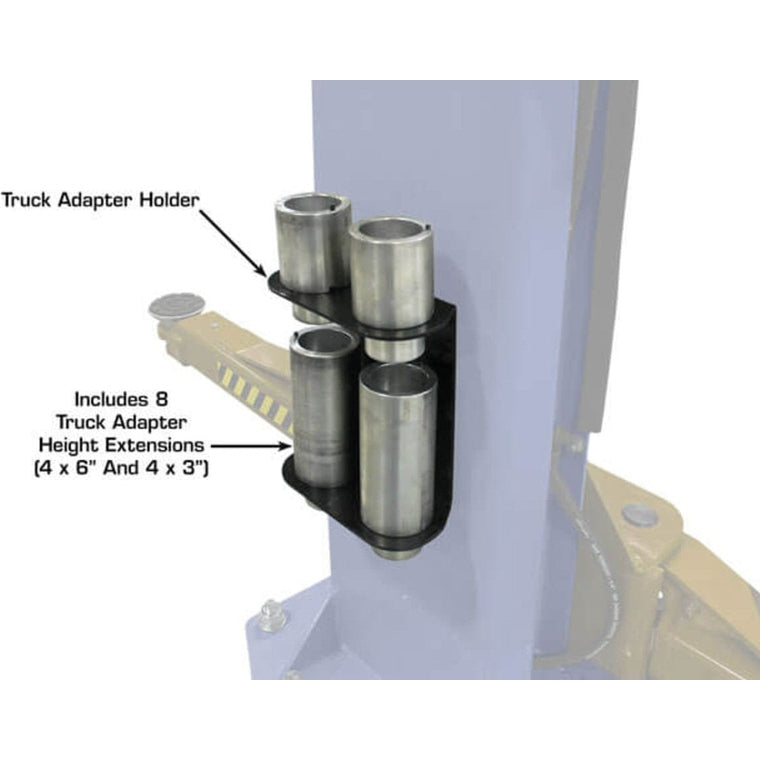

  • Includes double screw-up adapters and 8-piece truck adapter set

  • Mounting hardware included

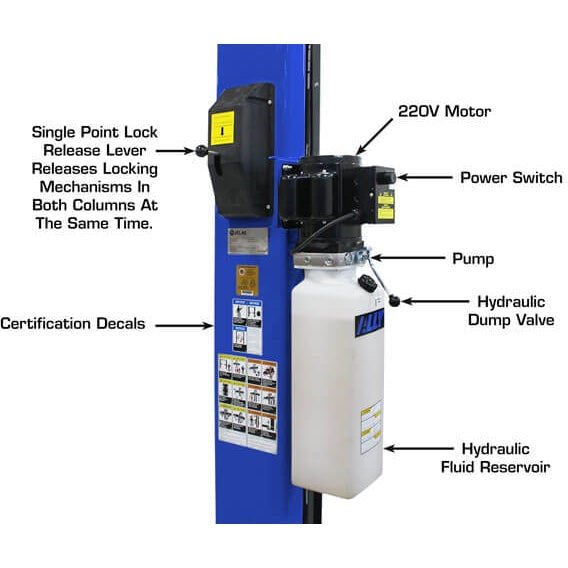

  • Equipped with premium ALLY AL2850 power unit

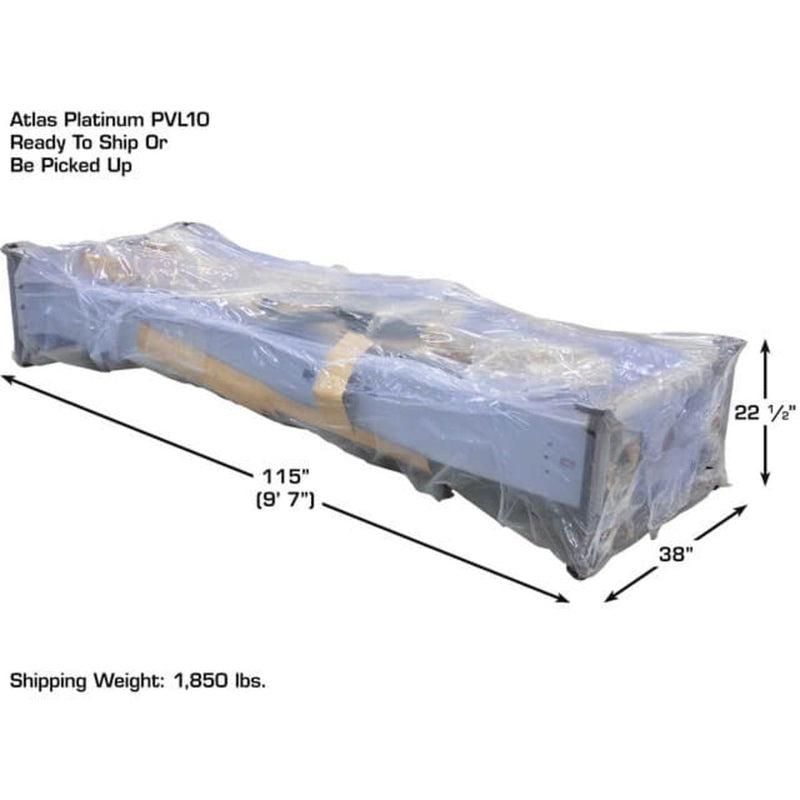

  • Shipping Weight: 1,850 lbs.

  • Warranty: 5-Year Structural / 2-Year Hydraulic / 2-Year Power Unit

Specifications

Specification Detail
Capacity 10,000 lbs

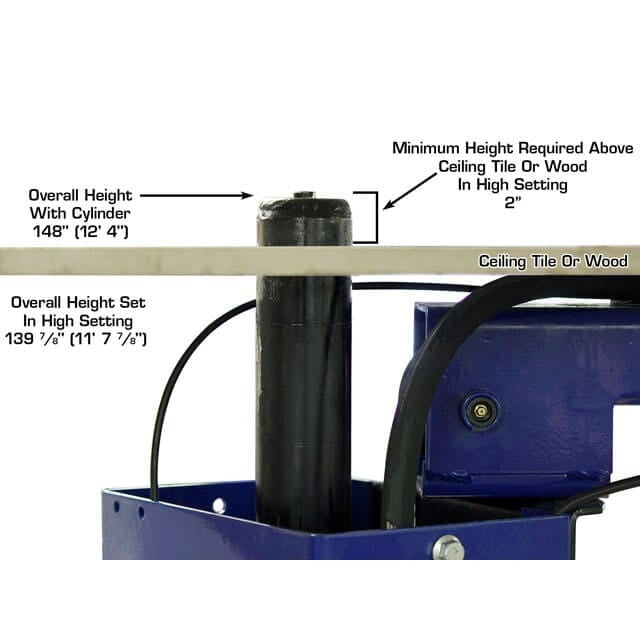

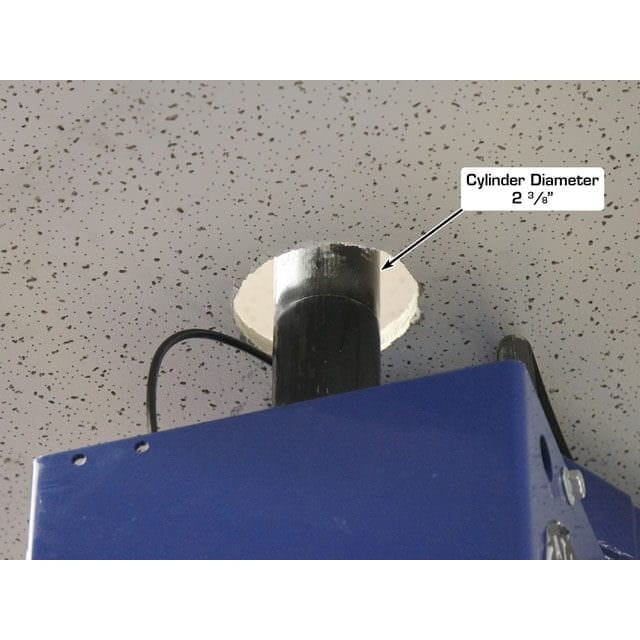

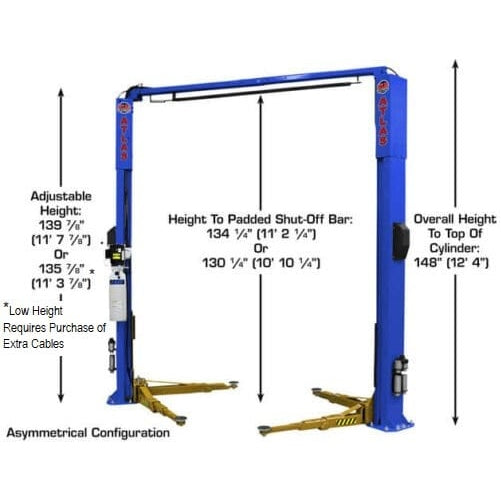

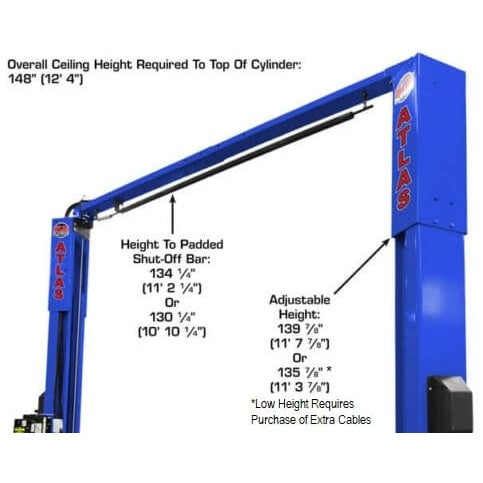

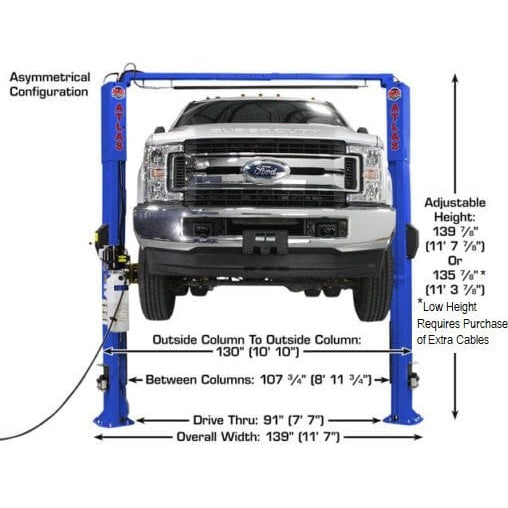

Overall Height 139 ⅞″ (11′ 7 ⅞″) – Cylinders Extend to 12′ 4″

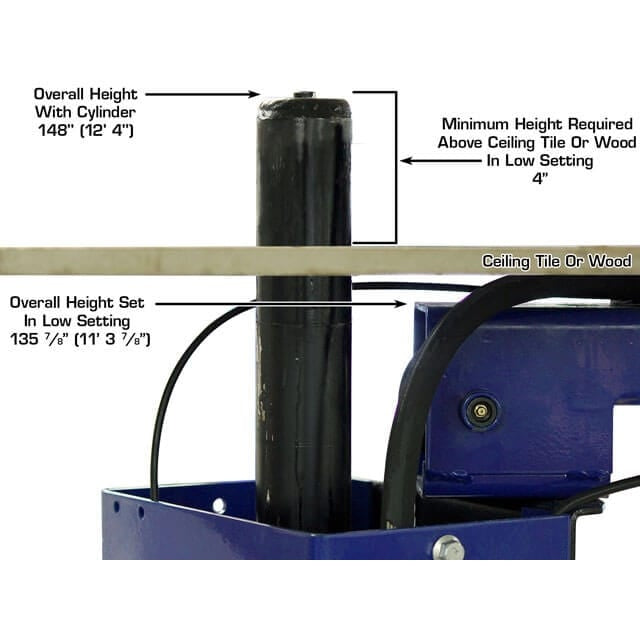

Special Low Height* 135 ⅞″ (11′ 3 ⅞″) – Cylinders Extend to 12′ 4″

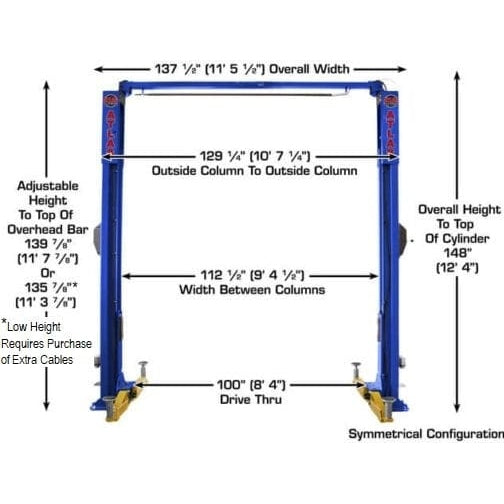

Overall Floor Width 139″ (Asymmetric) / 137 ½″ (Symmetric)
Outside Column-to-Column 130″ (Asymmetric) / 129 ¼″ (Symmetric)

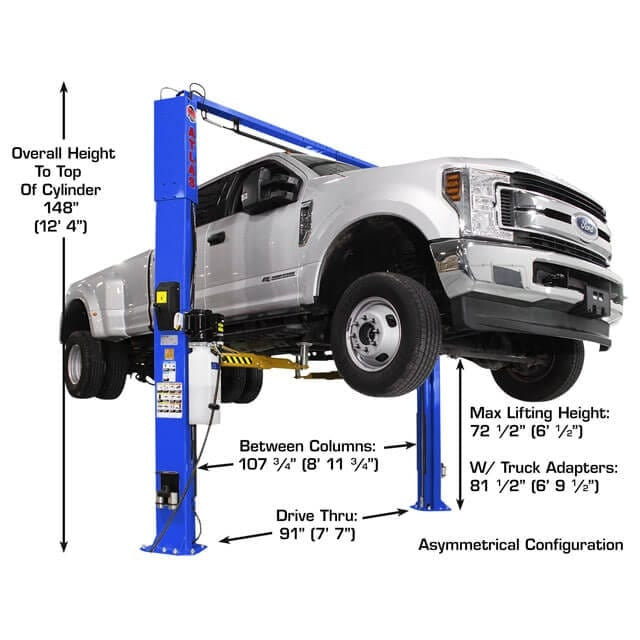

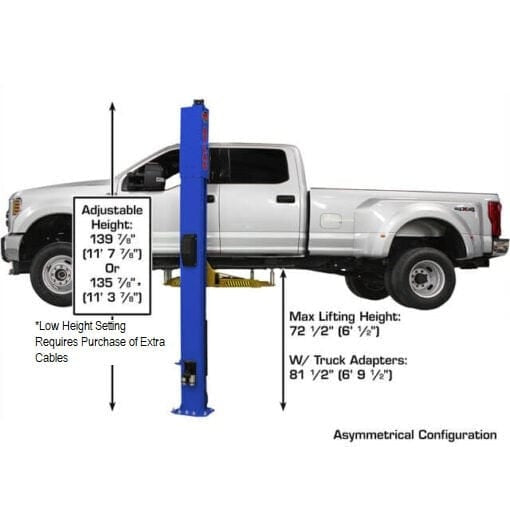

Maximum Lift Height (Without Adapters) 72 ½″
Maximum Lift Height (With Adapters) 81 ½″
Minimum Arm Height 4″
Inside Column 107 ¾″ (Asymmetric) / 112 ½″ (Symmetric)
Drive-Thru Clearance 91″ (Asymmetric) / 99 ½″ (Symmetric)

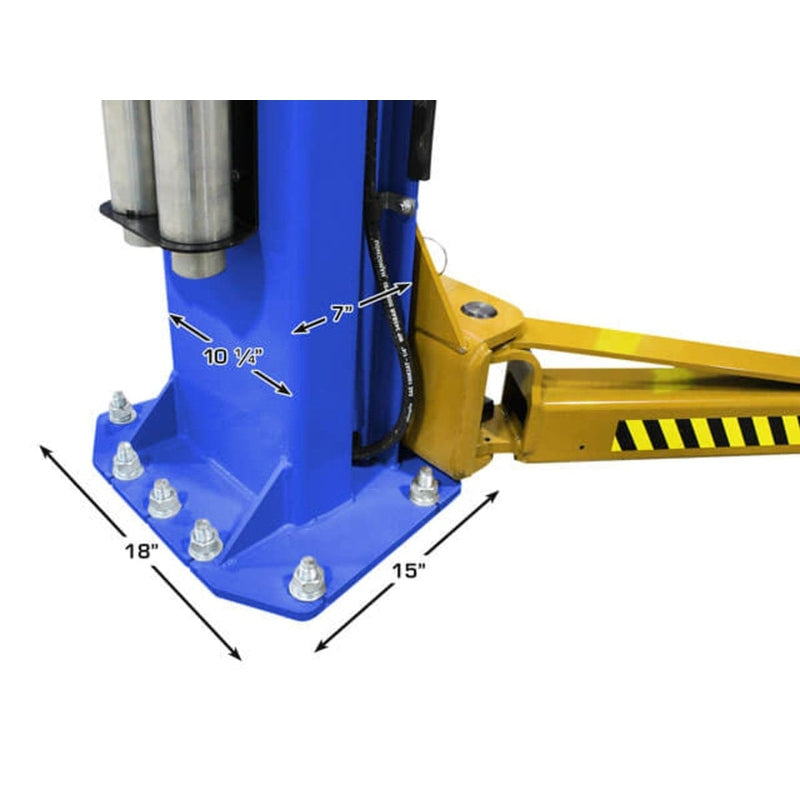

Column Size 7″ × 10 ¼″
Column Steel Thickness 6 mm
Base of Lift 15″ × 18″
Motor / Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32 or AW46 (not included)
Shipping Weight 1,850 lbs

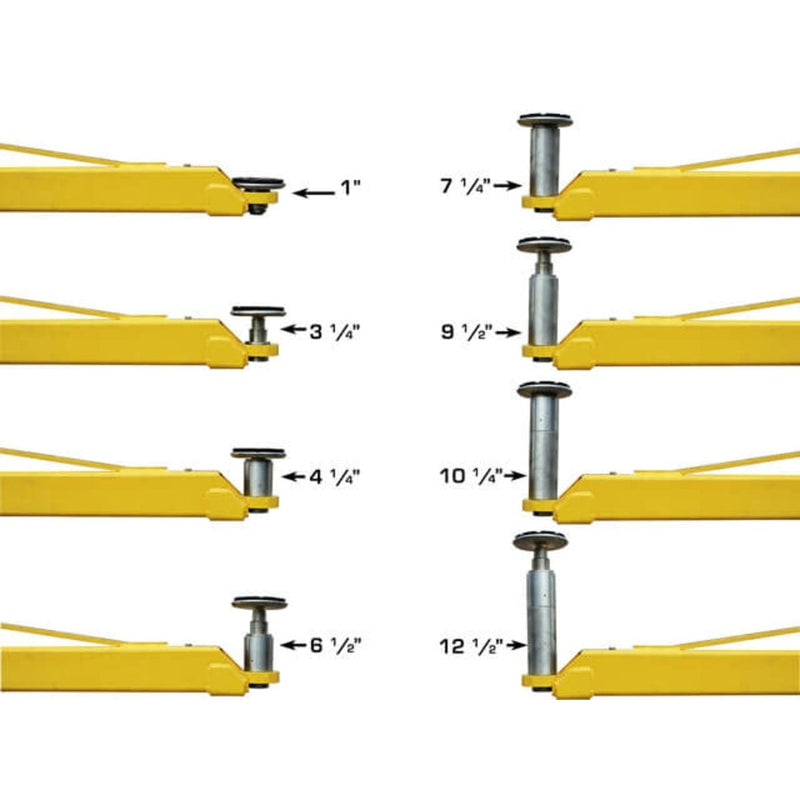

Adapter Heights Four at 3″, Four at 6″
Arm Hole / Adapter Peg Size 2″
Minimum Concrete Requirement 4″ thick at 3,000 PSI rating
Optional Low Height Requires purchase of extra cables (sold separately)
