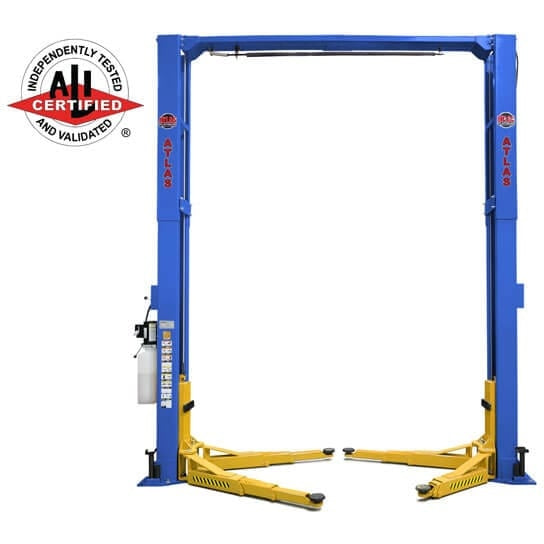

Atlas® Platinum PVL12 – ALI Certified 12,000 lb. Capacity Heavy-Duty 2-Post Lift
The Atlas® Platinum PVL12 is a commercial-grade, ALI Certified two-post lift engineered for professional automotive service centers that require power, precision, and reliability. With a 12,000 lb. lifting capacity, this heavy-duty model is designed to handle everything from passenger cars and SUVs to long-wheelbase trucks, vans, and box trucks.
The lift’s low pad height makes it suitable for smaller vehicles, while its extra-wide column spacing provides ample clearance for larger vehicles and those with extended side mirrors. Its taller column height accommodates high-roof vans and other oversized vehicles with ease, offering true versatility for multi-vehicle operations.
Built to exceed industry standards, the Atlas® Platinum PVL12 combines strength and functionality with ALI certification, ensuring it meets the most rigorous safety and performance requirements. It’s also backed by one of the best warranties in the industry, providing lasting peace of mind.
Powering the PVL12 is the ALLY Hydraulic AL2300 Power Unit, certified by MET Laboratories Inc. for electrical safety compliance in both the United States and Canada. The ALLY unit features extra heavy-duty armatures and enhanced silver-infused motor windings to reduce heat buildup and maintain consistent torque throughout the lift cycle. This premium power unit is protected by an industry-leading two-year limited warranty for added confidence.
Key Features
-
ALI Certified for safety and performance assurance
-
12,000 lb. Lifting Capacity
-
Heavy-Duty, Commercial-Grade Construction
-
Extra Tall & Extra Wide Design for maximum versatility
-
Adjustable Height Options: 165″ (13′ 9″) or 177″ (14′ 9″)
-

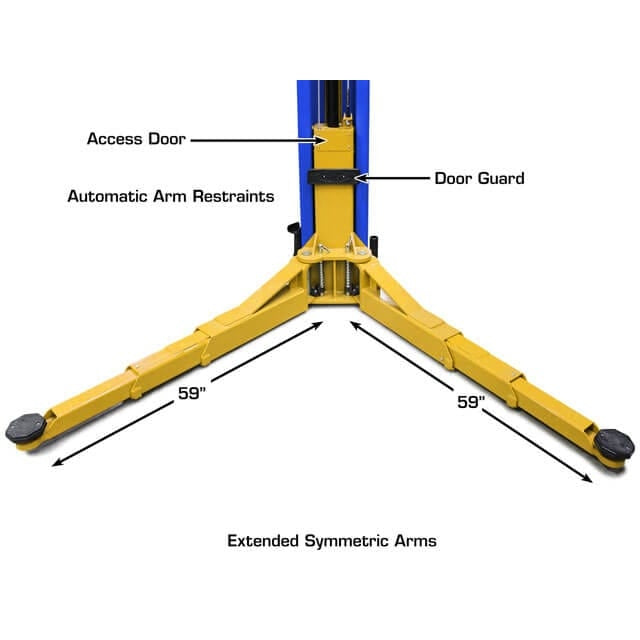

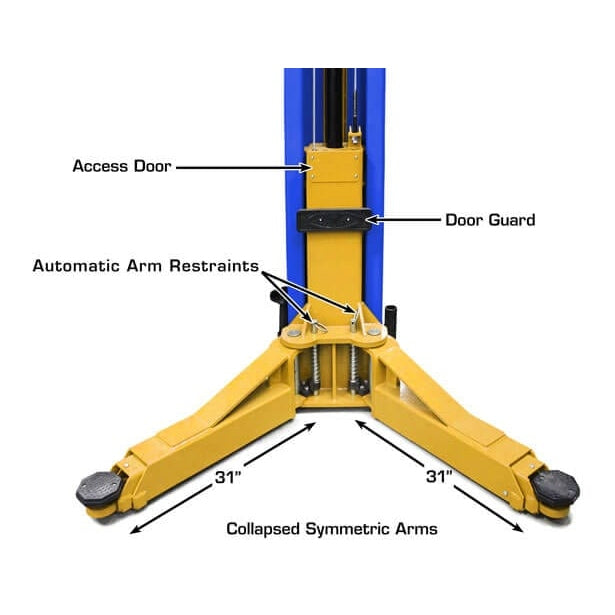

3-Stage Symmetric Arms for flexible vehicle positioning
-

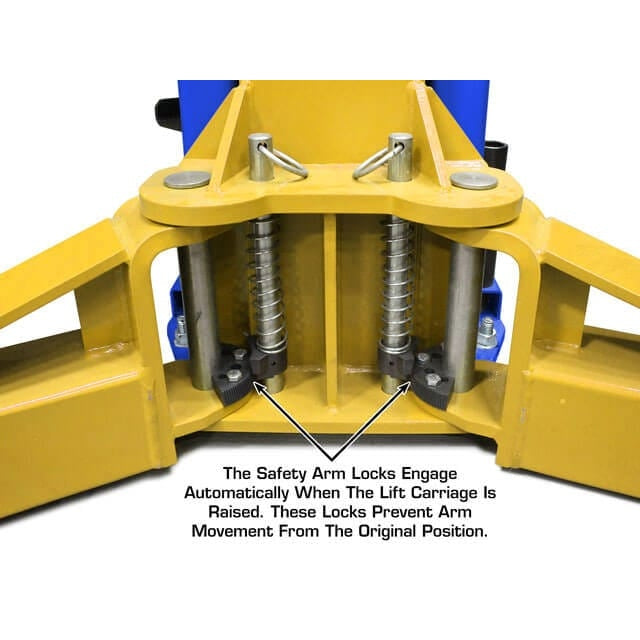

Automatic Arm Restraints for secure and stable operation
-
Padded Overhead Shut-Off Bar prevents vehicle roof contact
-
Thick Rubber Door Guards protect vehicle panels from damage
-
Single-Point Lock Release System for simple, efficient operation
-

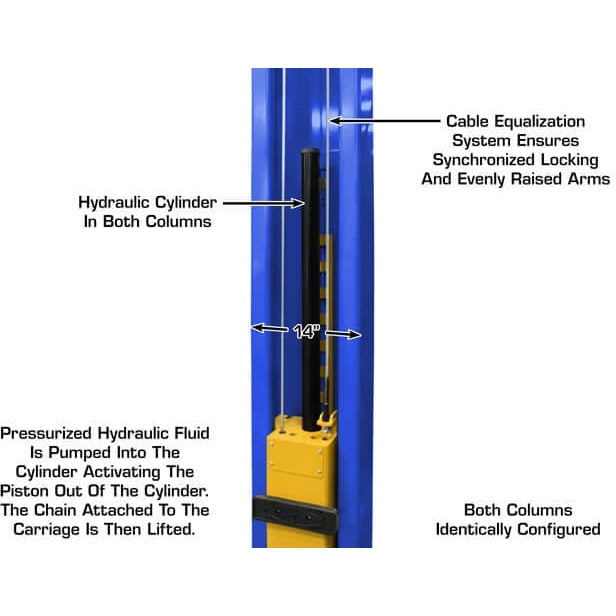

Direct-Drive Hydraulic Cylinders for smooth, consistent lifting
-
Durable Powder-Coated Finish
-
Free 8-Piece Truck Adapter Set (Included)
-
Mounting Hardware Included
-
Standard with Premium ALLY Hydraulic Power Unit
-

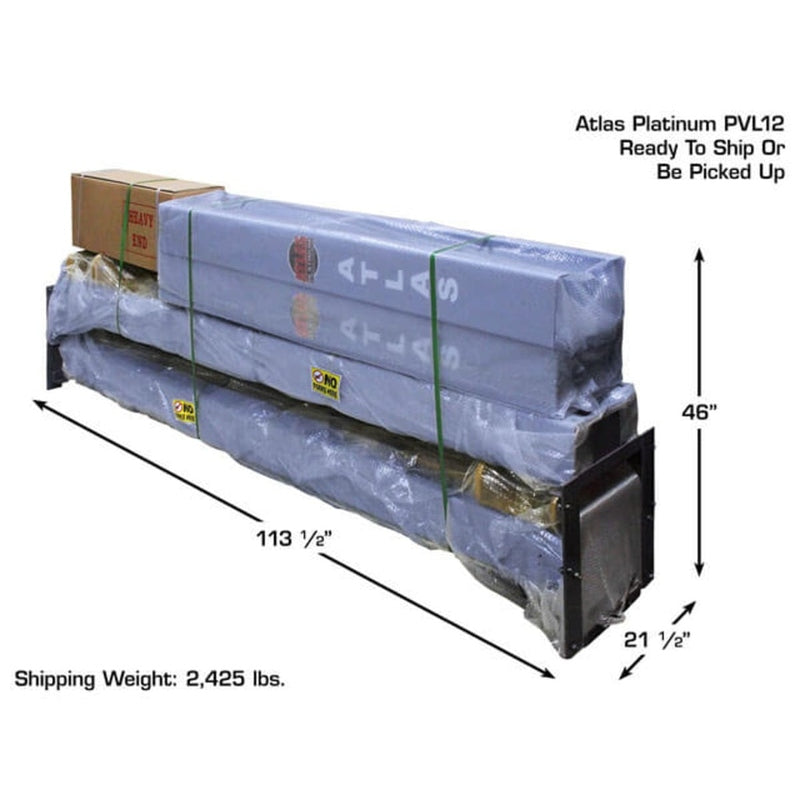

Shipping Weight: 2,425 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic | 2-Year Power Unit
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 12,000 lb. |

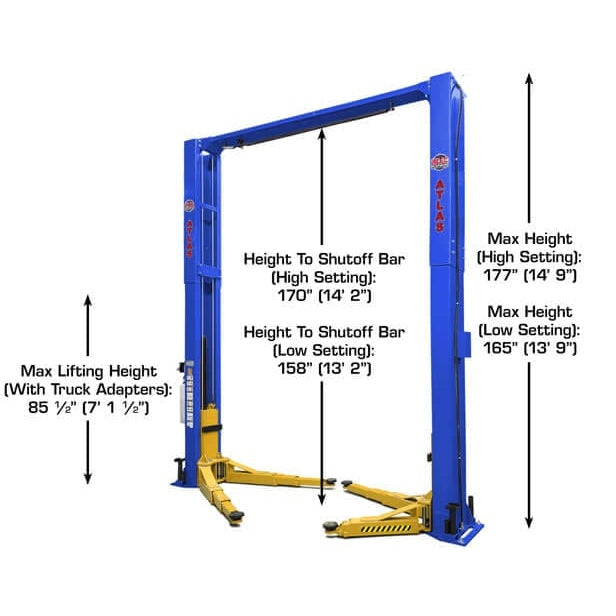

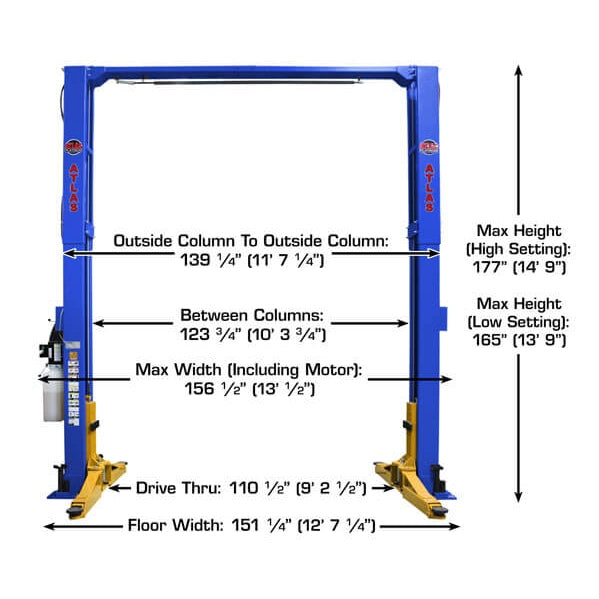

| Overall Height | 165″ (13′ 9″) or 177″ (14′ 9″) |
| Overall Floor Width | 150 ⅜″ (12′ 6 ⅜″) |
| Outside Column to Outside Column | 139 ⅛″ (11′ 7 ⅛″) |
| Maximum Lift Height (Without Adapters) | 73 ⅝″ |
| Maximum Lift Height (With Adapters) | 85 ½″ |
| Minimum Arm Height | 4 ½″ |
| Inside Column Width | 122 ⅝″ (10′ 2 ⅝″) |
| Drive-Through Clearance | 109 ⅝″ (9′ 1 ⅝″) |
| Column Size | 7 ½″ × 14 ½″ |
| Column Steel Thickness | 6 mm |

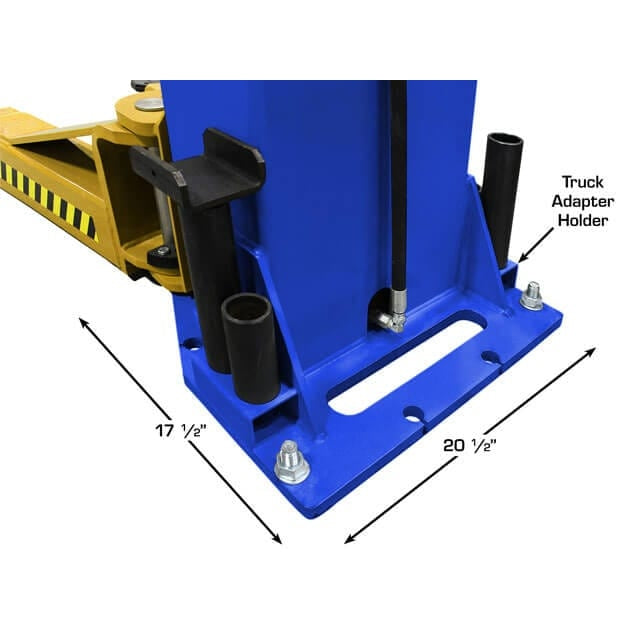

| Base Plate Dimensions | 17 ½″ × 20 ½″ |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,425 lb. |

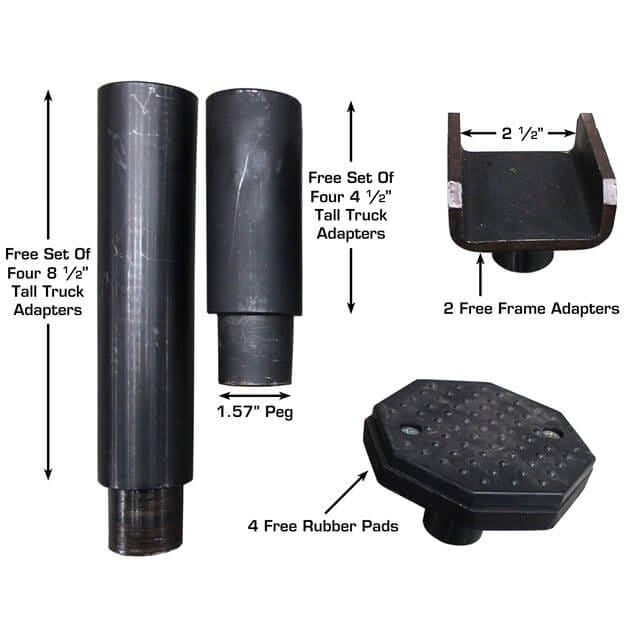

| Adapter Heights | Four each: 4.5″ and 8.5″ |
| Arm Hole/Adapter Peg Size | 1.57″ |
| Concrete Requirement | Minimum 6″ thick slab rated at 3,000 PSI |
