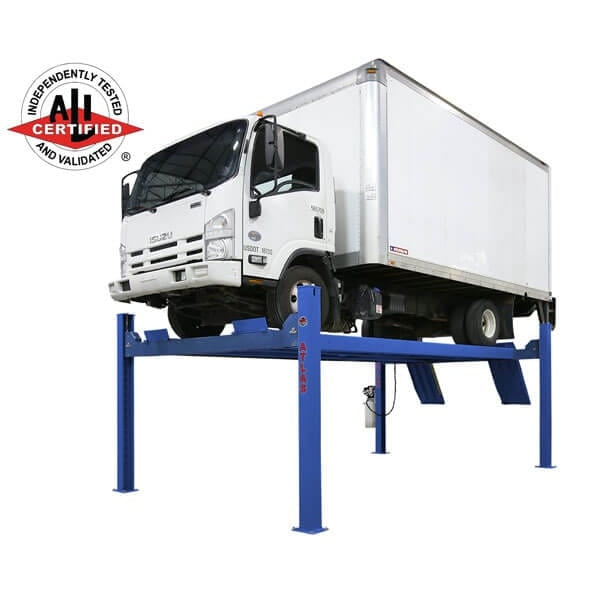

The Atlas® Platinum PVL14 is a heavy-duty, commercial-grade four-post lift engineered for professional automotive service facilities. With a 14,000 lb. lifting capacity, this ALI Certified lift is built to handle a wide range of vehicles — from passenger cars and SUVs to light- and medium-duty commercial trucks and vans.

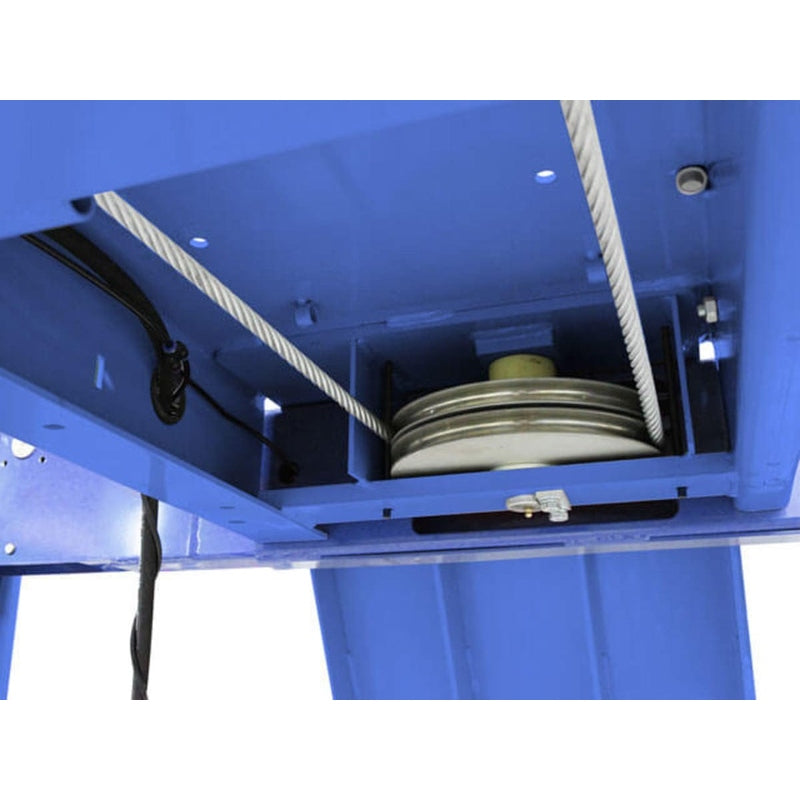

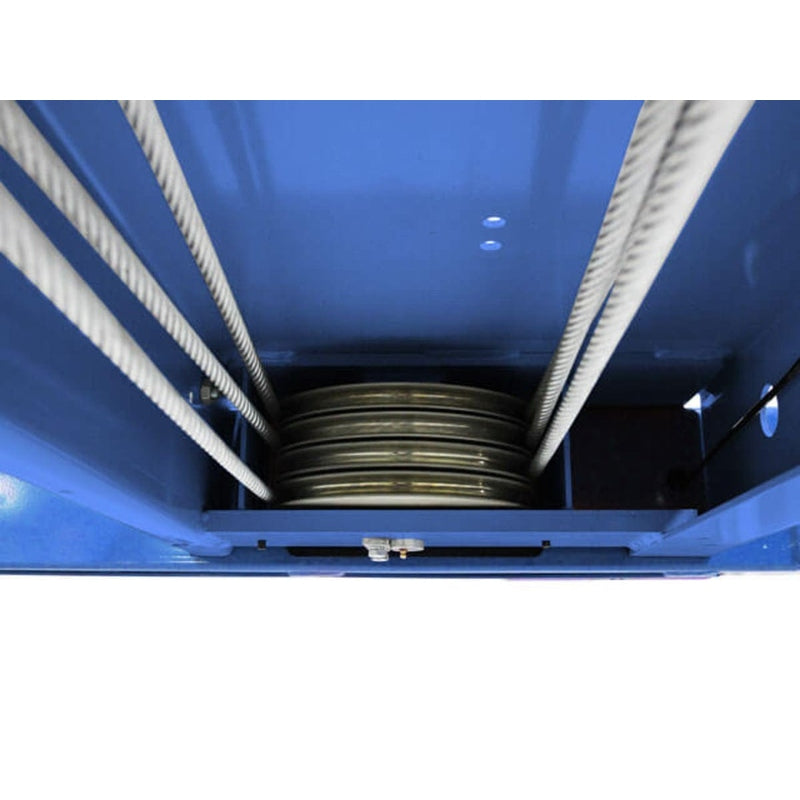

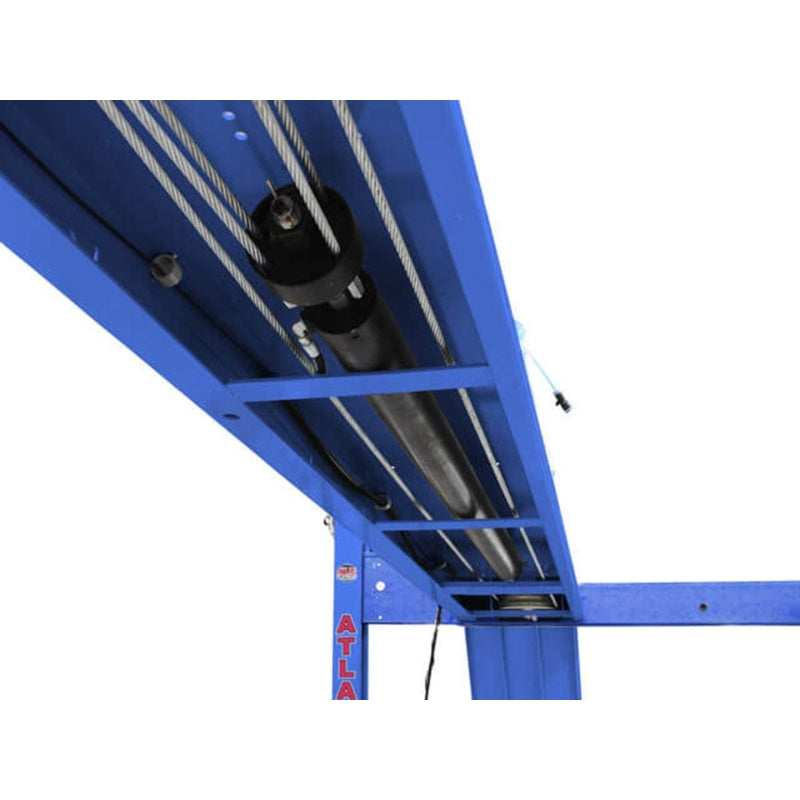

The PVL14 utilizes a high-strength cable system paired with a large hydraulic cylinder mounted beneath the runways, powered by a 220V single-phase power unit. This configuration delivers smooth, consistent lifting performance and improved leveling accuracy. Unlike older chain-lift systems with exposed cylinders — which are difficult to level and prone to causing vehicle door damage — the Platinum PVL14 provides a safer, more refined lifting experience.
Between the runways, integrated tracks accommodate optional rolling bridge jacks (recommended: Atlas® Platinum RJ7000, sold separately), allowing technicians to perform wheel-off services such as tire, brake, and suspension repairs.

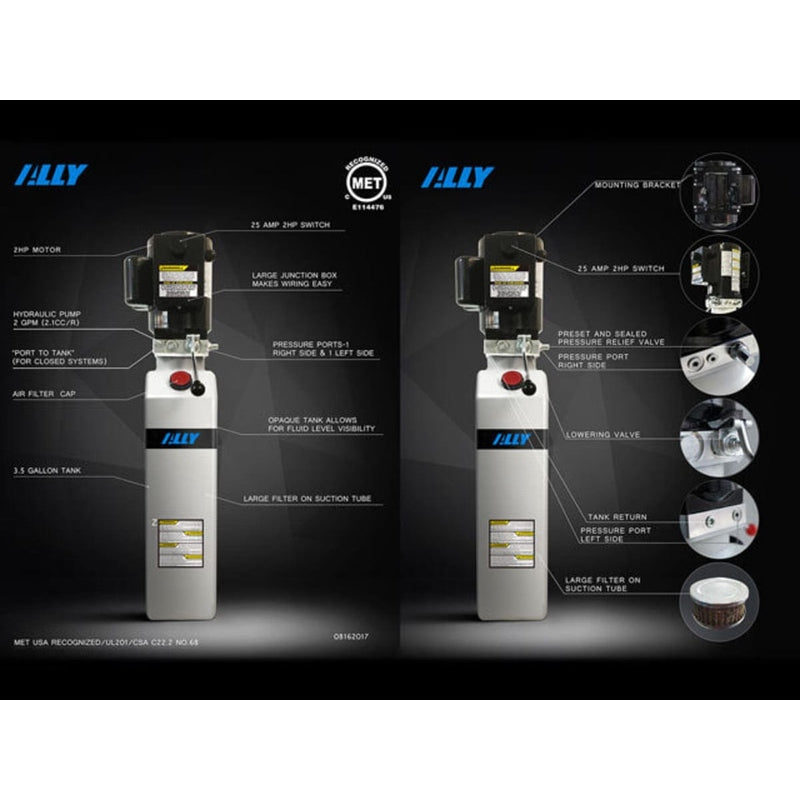

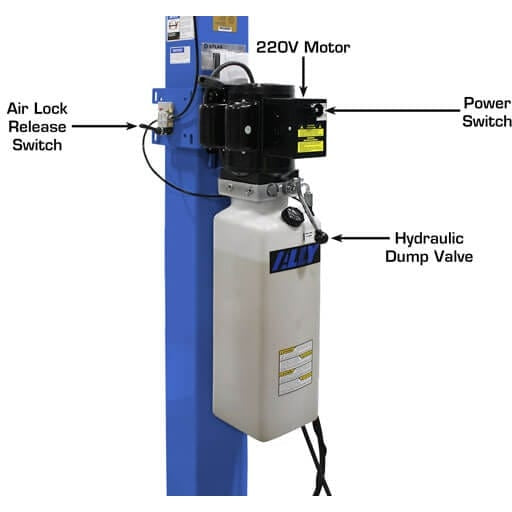

At its core, the lift is powered by the ALLY Hydraulic AL2650 Power Unit, a premium system certified by MET Laboratories Inc. for electrical safety in both the U.S. and Canada. The AL2650 features heavy-duty armatures and enhanced motor windings with increased silver content, significantly reducing heat generation while maintaining steady torque throughout the lift cycle. This unit comes backed by a two-year limited warranty, reflecting its superior engineering and reliability.
The Atlas® Platinum PVL14 is also supported by one of the industry’s best warranties and is finished in a high-quality powder coat for long-lasting durability — making it an ideal choice for professional shops seeking strength, precision, and long-term value.
Key Features
-
ALI Certified Lift
-
14,000 lb. Capacity
-
Heavy-Duty, Commercial-Grade Construction
-
Extra Tall, Wide, and Long for expanded versatility
-

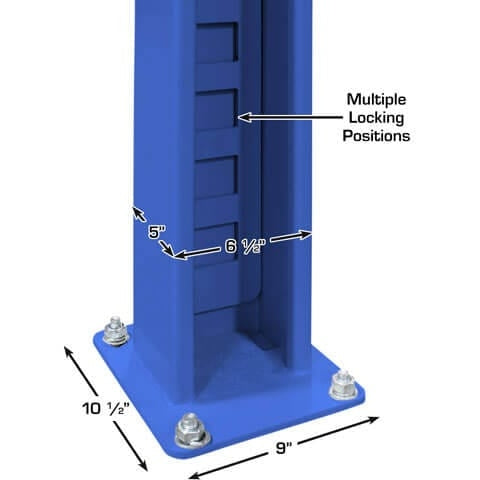

Adjustable Lock Ladder Design for fine leveling and safety
-
Dual Lock Safety System for added protection
-
Air-Operated Single-Point Lock Release (requires external air supply, 85–115 PSI)
-
Premium Powder-Coated Finish for durability and corrosion resistance
-
Steel Approach Ramps Included
-

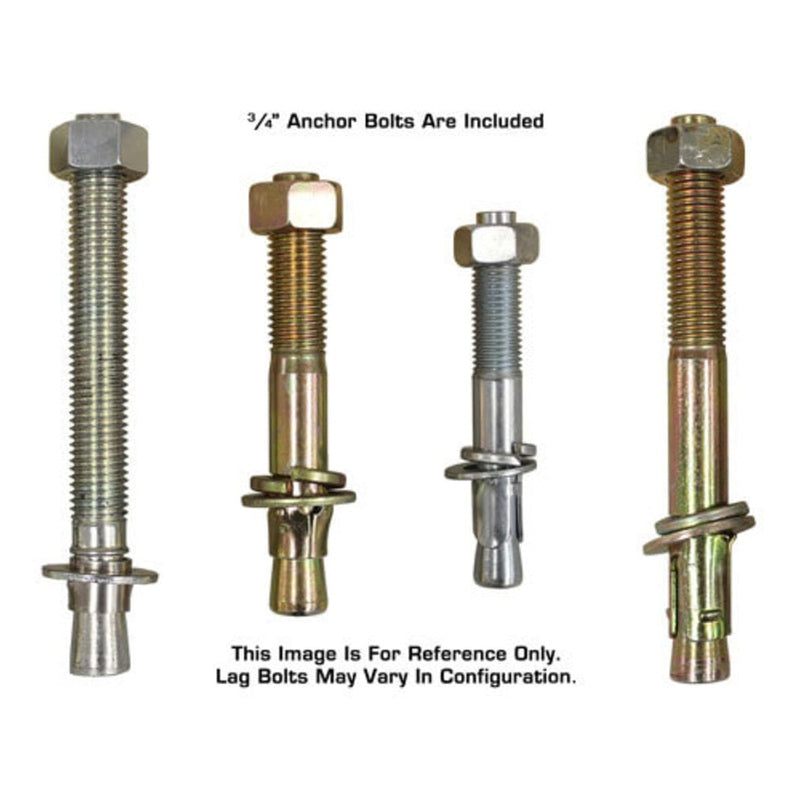

Mounting Hardware Included
-
Equipped with ALLY Hydraulic AL2650 Power Unit (220V / 1-Phase, 30A breaker recommended)
-
Shipping Weight: 2,800 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic | 2-Year Power Unit
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 14,000 lb. |

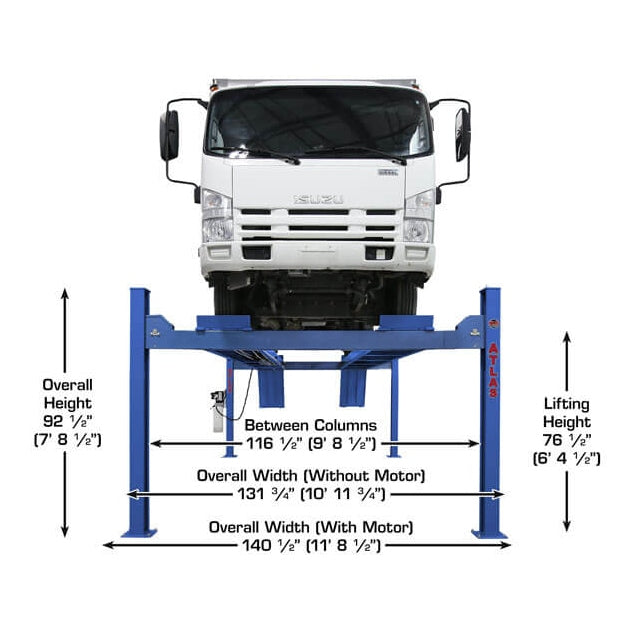

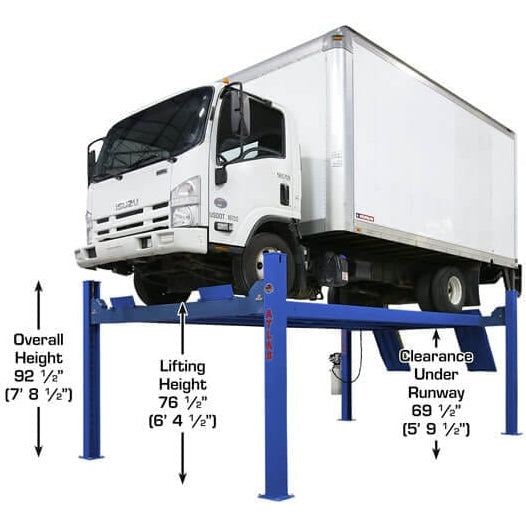

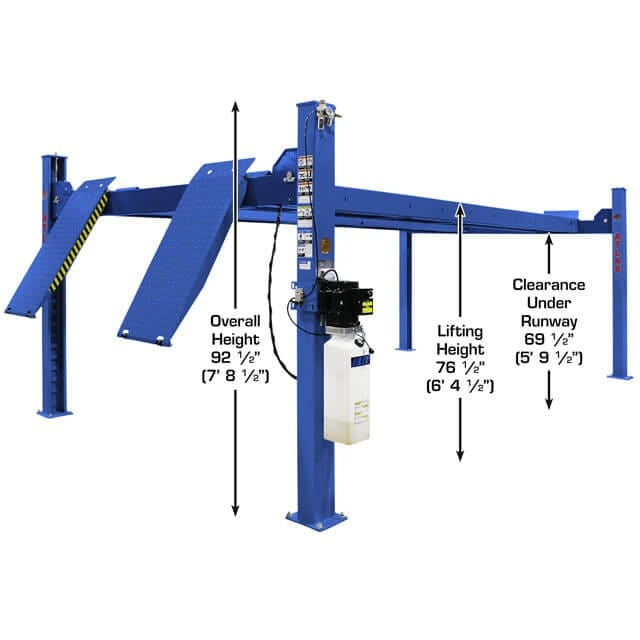

| Lifting Height | 76 ½" (6' 4 ½") |
| Overall Width (w/o Motor) | 131 ¾" (10' 11 ¾") |
| Overall Width (w/ Motor) | 140 ½" (11' 8 ½") |

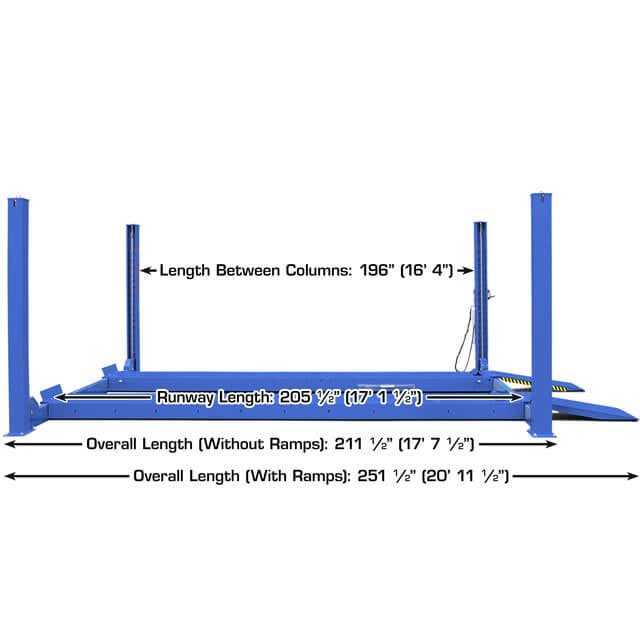

| Overall Length (w/ Ramps) | 251 ½" (20' 11 ½") |
| Length Between Columns | 196" (16' 4") |

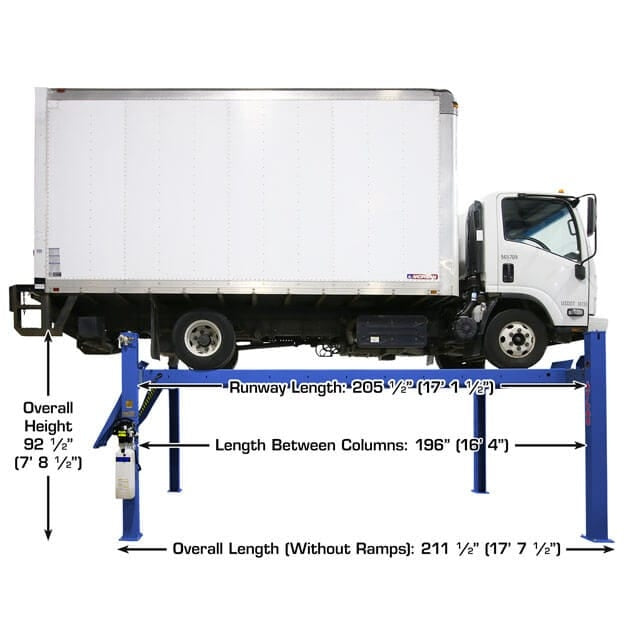

| Runway Length | 205 ½" (17' 1 ½") |

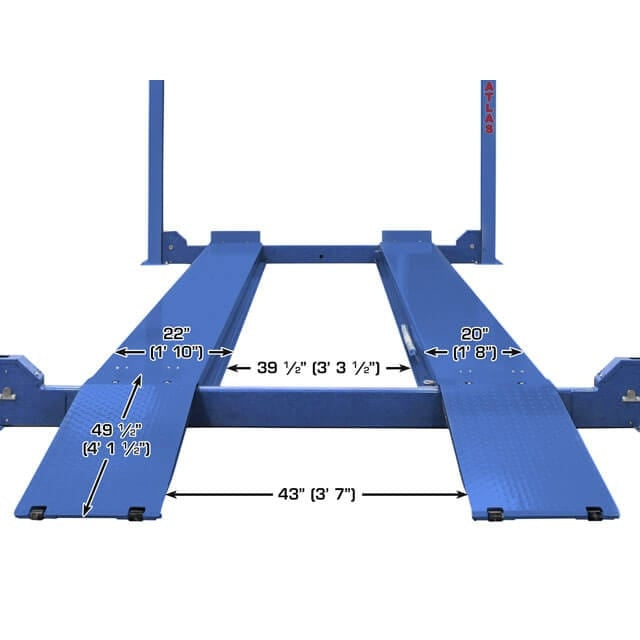

| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42 ¾" (39 ¼" with rail) |

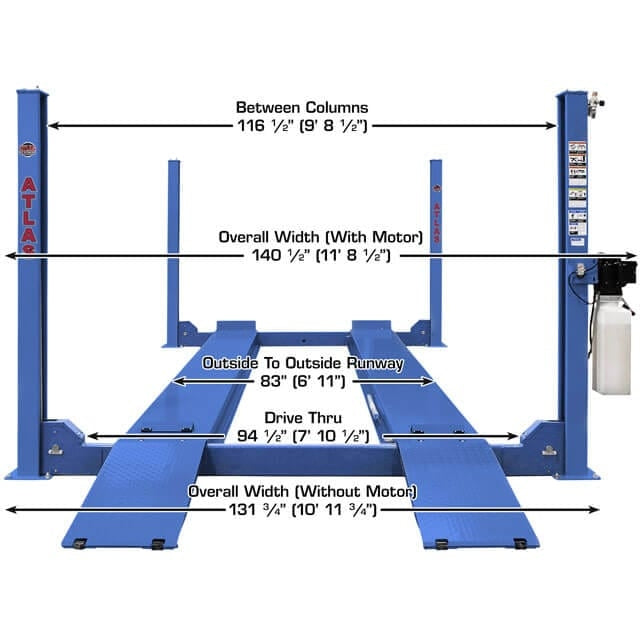

| Outside Runway to Outside Runway | 83 ⅛" (6' 11 ⅛") |
| Clearance Under Runways | 69 ½" (5' 9 ½") |
| Clearance Between Columns | 116 ⅜" (9' 8 ⅜") |
| Height of Columns | 92 ½" (7' 8 ½") |
| Maximum Wheelbase | 195" (16' 3") |
| Drive-Through Width | 94 ½" (7' 10 ½") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |

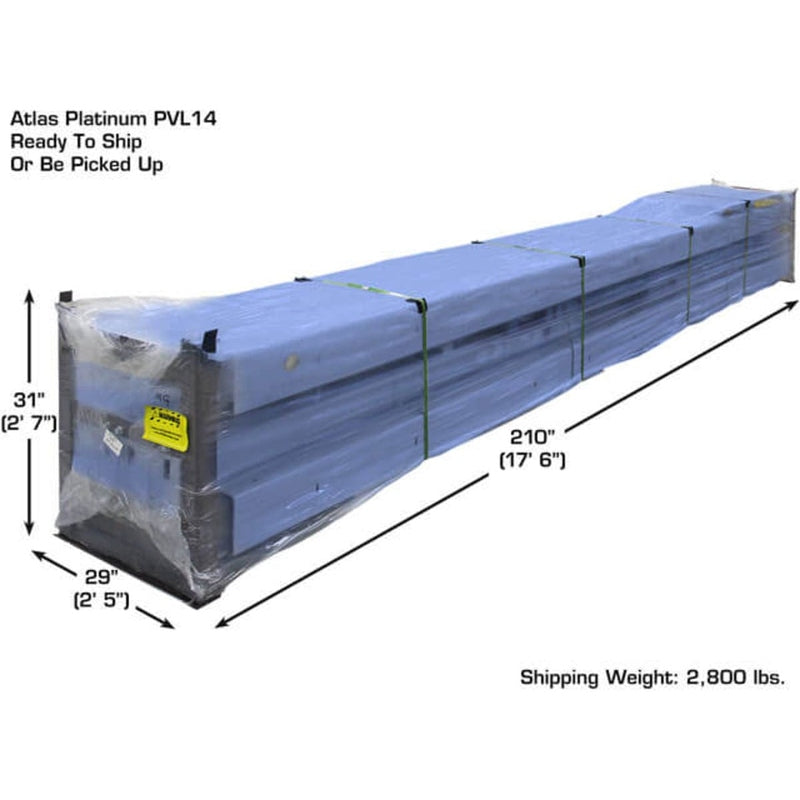

| Shipping Weight | 2,800 lb. |
| Concrete Requirement | Minimum 6" thickness at 3,000 PSI |
