Description

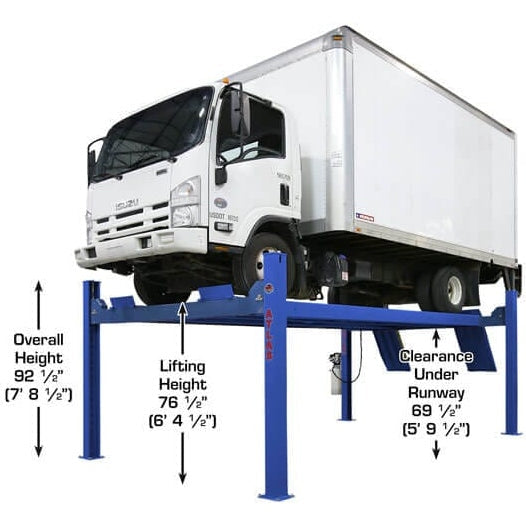

The Atlas® Platinum PVL14 is a heavy-duty, commercial-grade four-post lift engineered for professional automotive shops and service centers. Designed to deliver maximum strength, precision, and reliability, this lift can easily handle a wide range of cars, SUVs, vans, pickup trucks, and light- to medium-duty commercial vehicles.

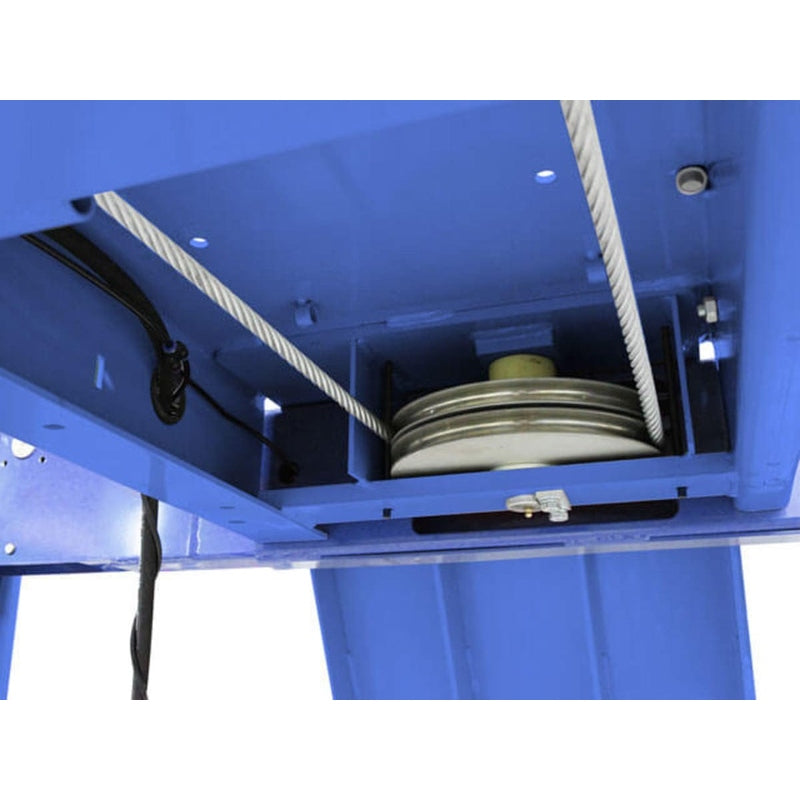

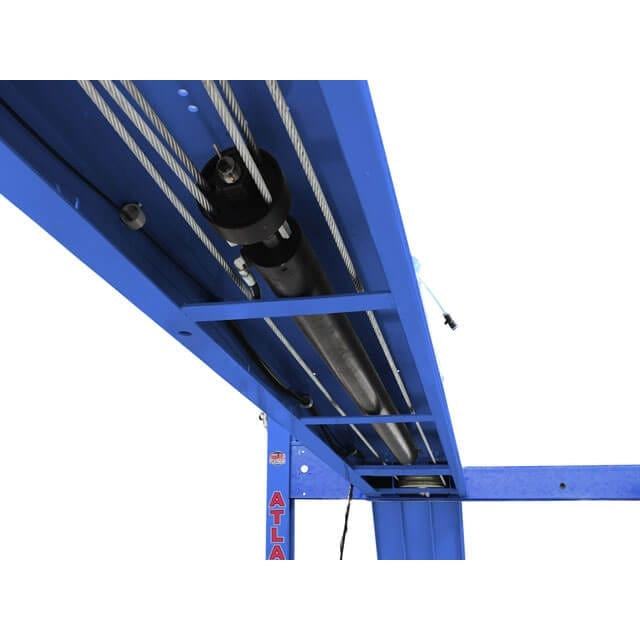

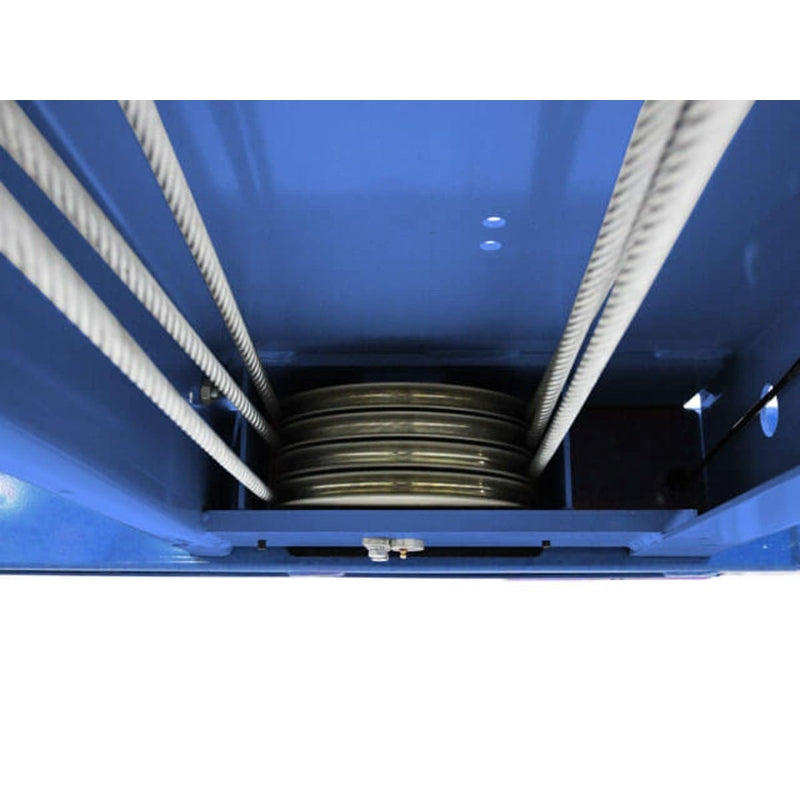

The PVL14 utilizes a high-strength cable system paired with an under-runway oversized hydraulic cylinder, powered by a 220V single-phase power unit for smooth, efficient lifting. Unlike older chain-driven systems with exposed hydraulic cylinders—which are prone to uneven lifting and door damage—the PVL14’s advanced design ensures stable performance and superior safety.
This model is ALI Certified (Automotive Lift Institute) and backed by one of the best warranties in the industry, providing professional-grade quality with peace of mind.

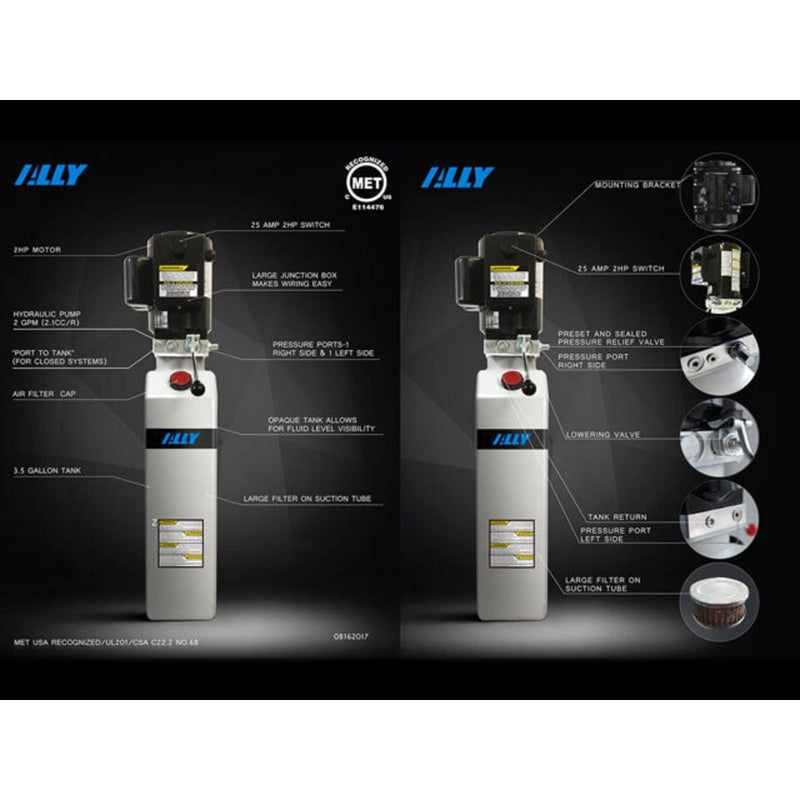

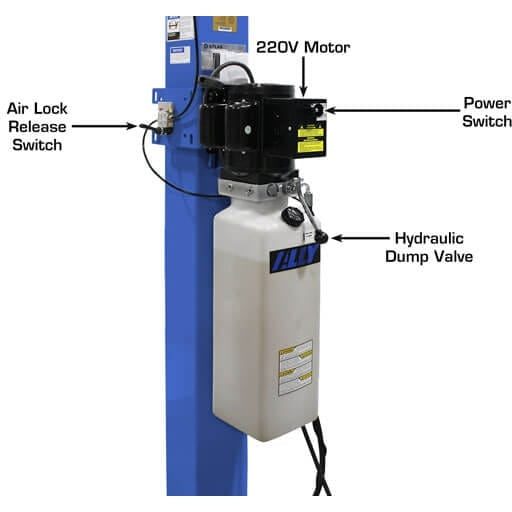

Each PVL14 lift includes the premium ALLY Hydraulic AL2650 power unit, MET Laboratories–certified for electrical compliance in the U.S. and Canada. This power unit features heavy-duty armatures, enhanced motor windings, and high-conductivity silver wiring, minimizing heat generation while maintaining consistent torque. It carries an industry-leading 2-year limited warranty.
This combo package also includes:
-
Two ALI Certified Atlas® Platinum RJ7000 rolling bridge jacks, ideal for raising vehicle wheels off the runways for tire and brake service.
-

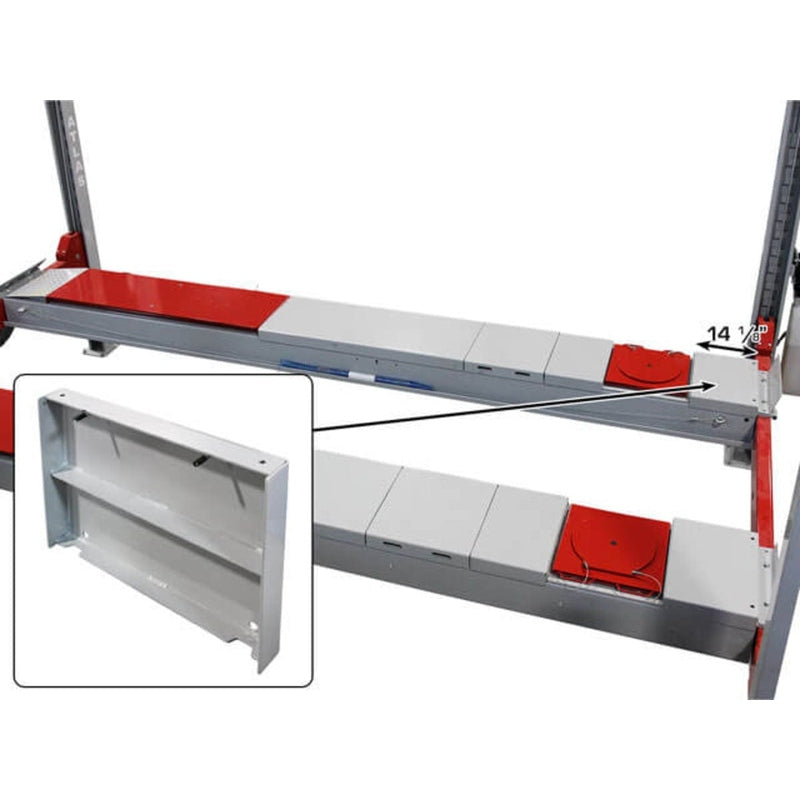

The ALI Certified Atlas® Platinum Bolt-On Alignment Kit, complete with slip plates, ramps, spacers, and turntables for professional alignment capability.
Features
PLATINUM PVL14 Lift
-
ALI Certified four-post lift
-
14,000 lb. lifting capacity
-
Heavy-duty, commercial-grade design
-
Extra tall, extra wide, and extra long configuration
-

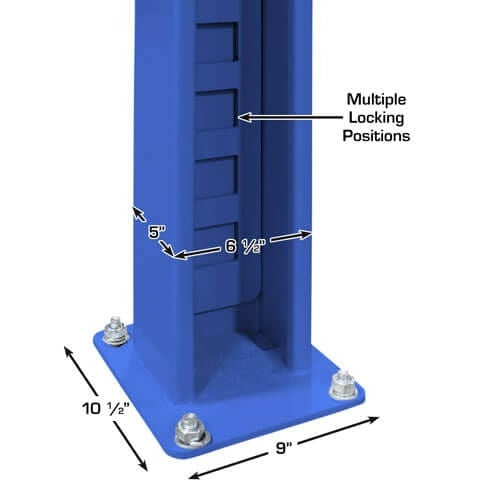

Adjustable lock-ladder system
-
Durable, high-quality powder-coated finish
-

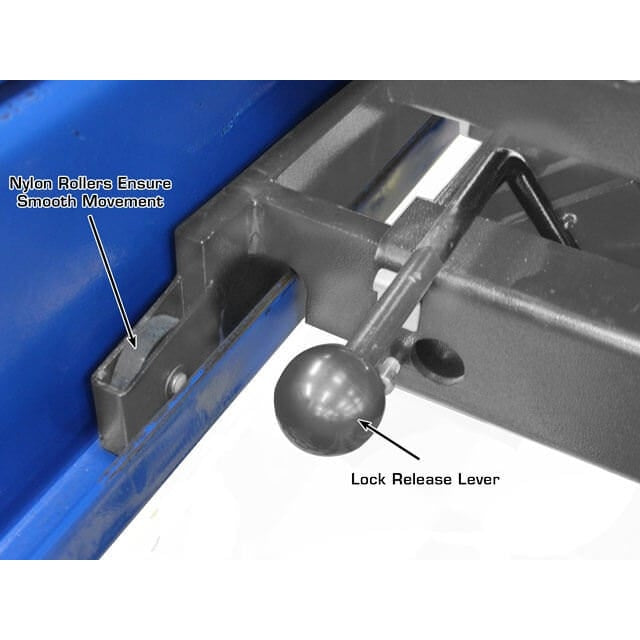

Air-operated single-point lock release (external air supply required)
-
Double-lock safety system
-

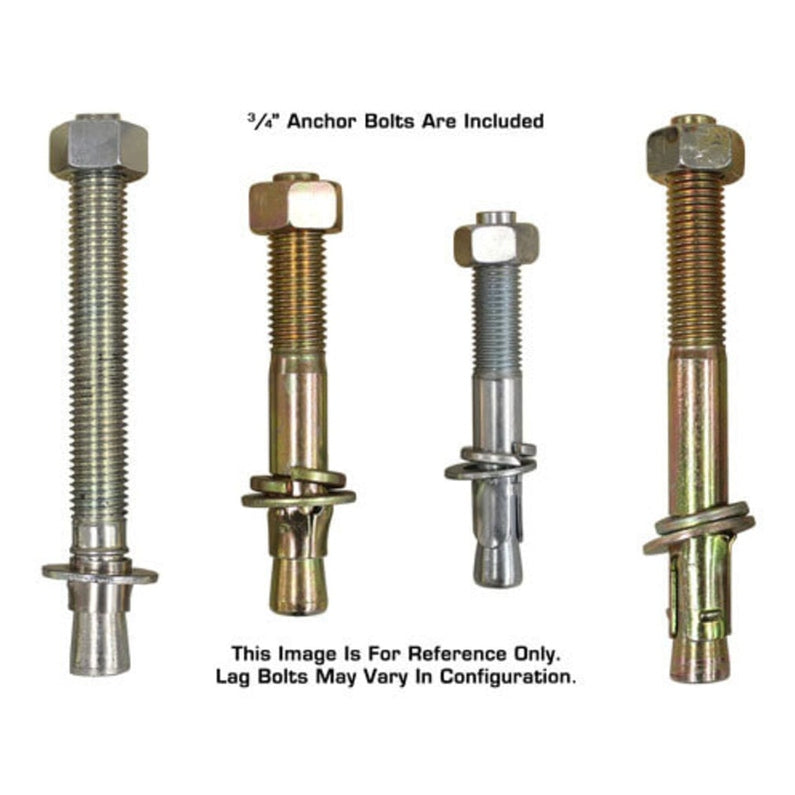

Includes steel approach ramps and mounting hardware
-
Equipped with ALLY Hydraulic AL2650 premium power unit
-
220V / single-phase electric operation (30-amp breaker required)
-

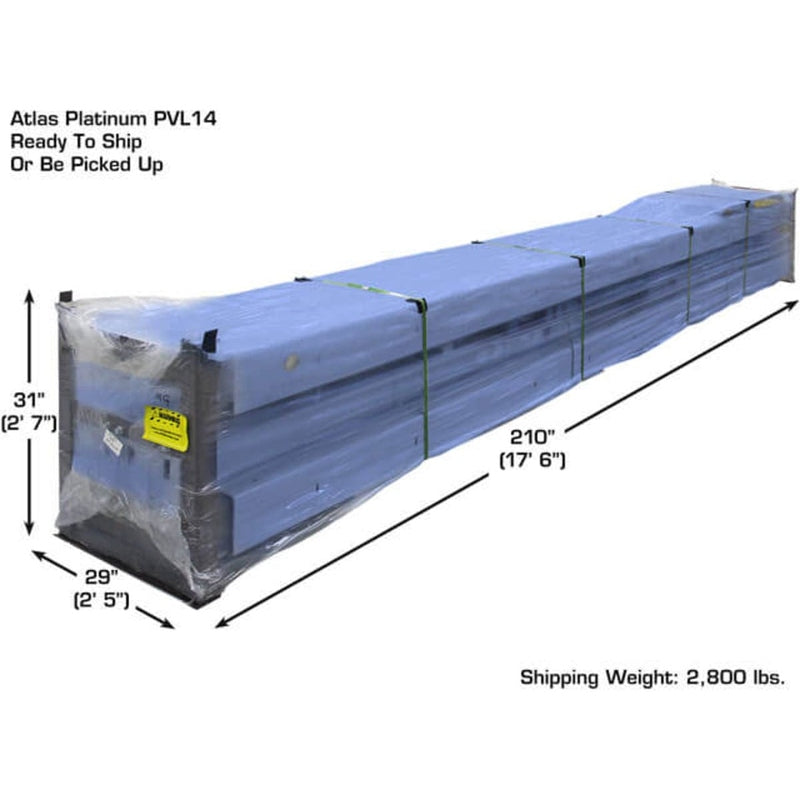

Shipping weight: 2,800 lbs
-
Warranty: 5 years structural / 2 years hydraulic / 2 years power unit

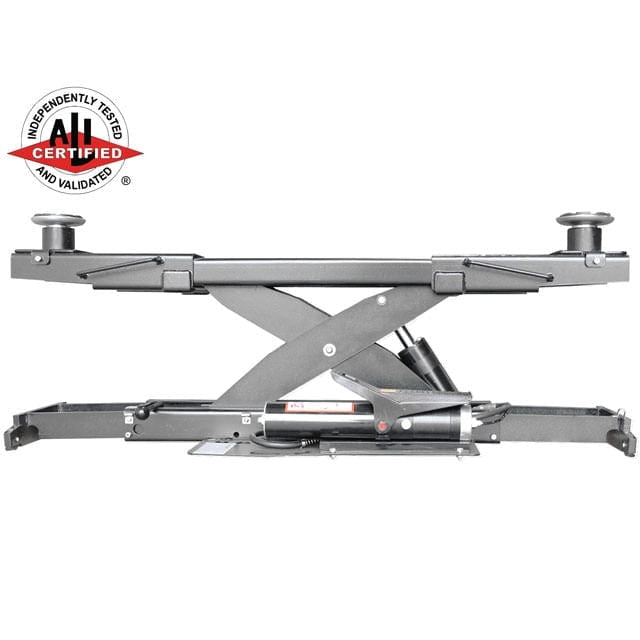

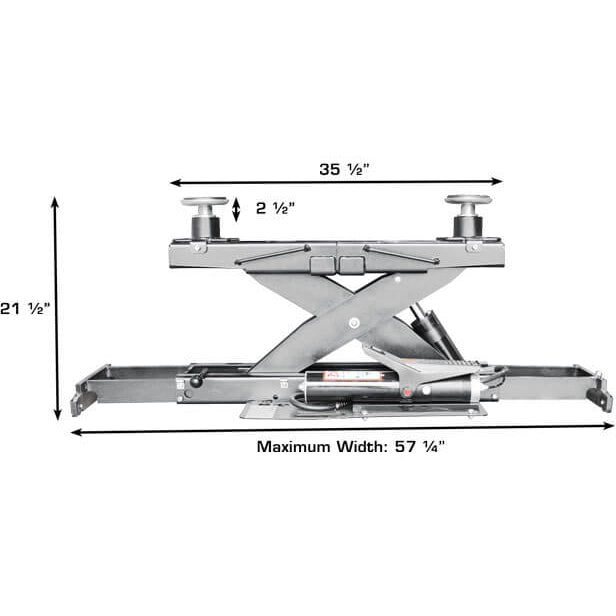

PLATINUM RJ7000 Rolling Bridge Jacks
-
7,000 lb. capacity per jack
-

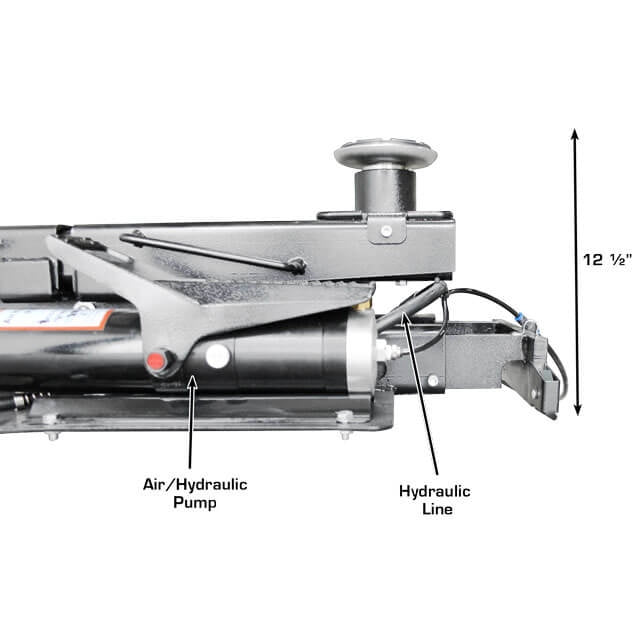

Air/hydraulic operation
-

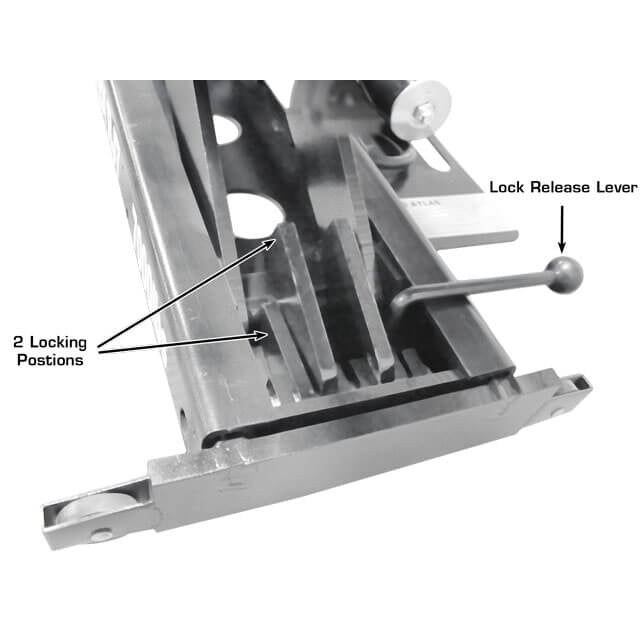

Two safety lock positions
-
Double screw-up adapters included
-
Compact, low-profile design
-
Smooth rolling, scissor-style lifting mechanism for level operation
-
Powder-coated finish for corrosion resistance
-
Shipping weight: 400 lbs
-
Warranty: 1-year parts only

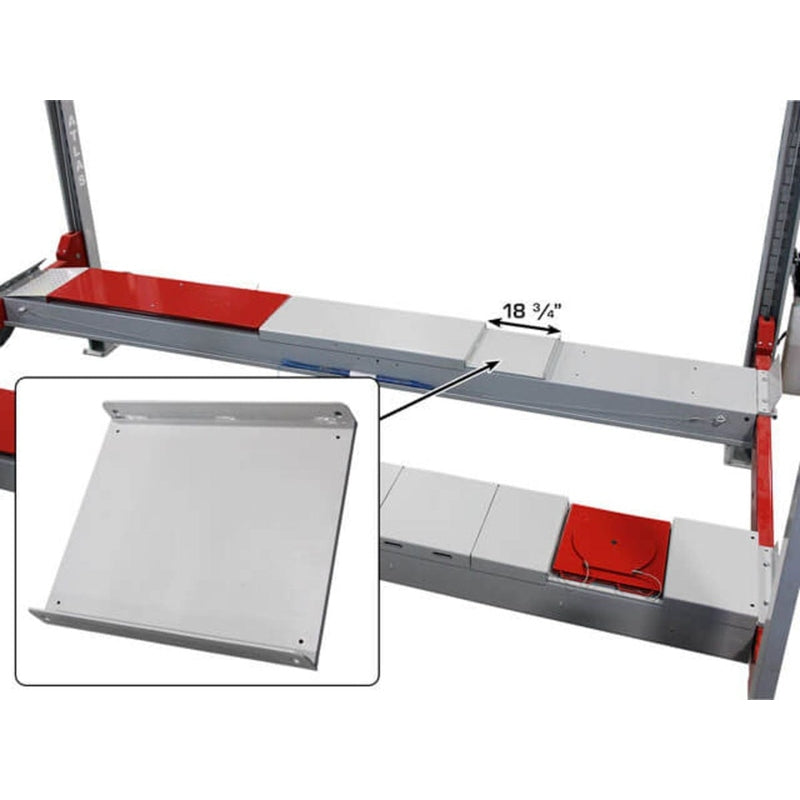

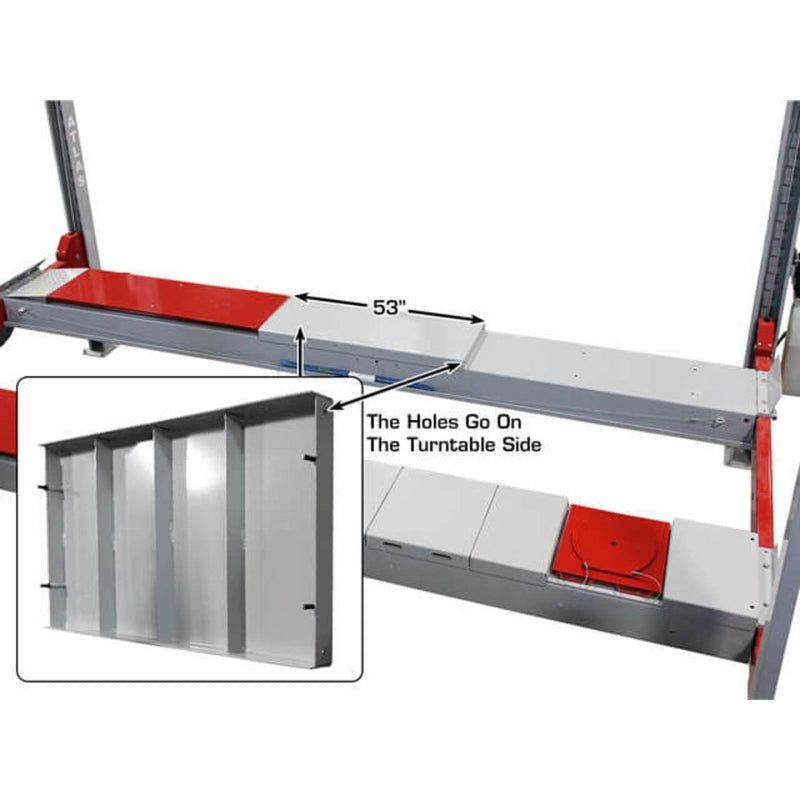

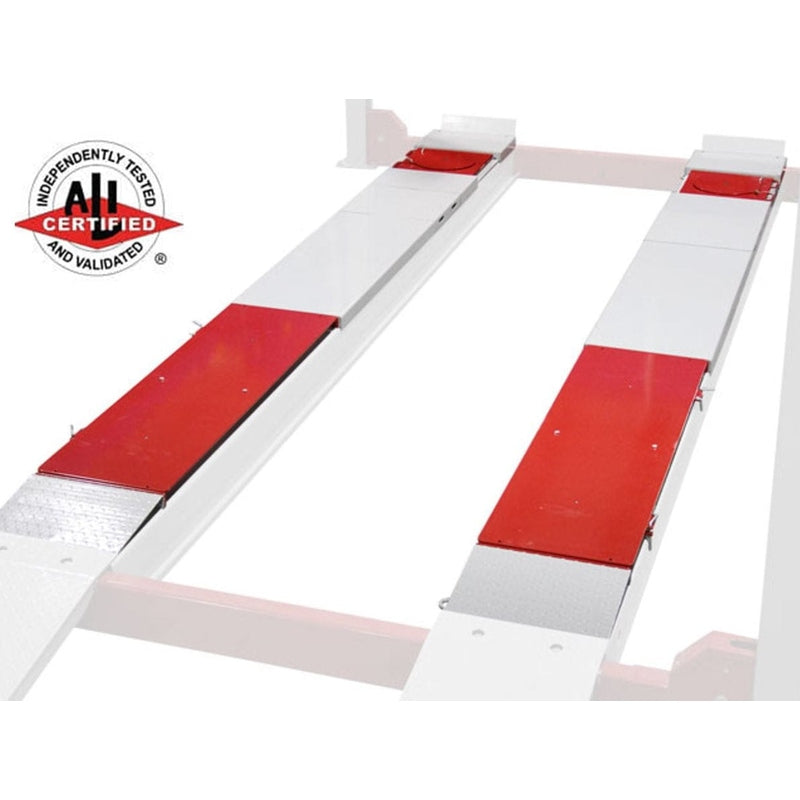

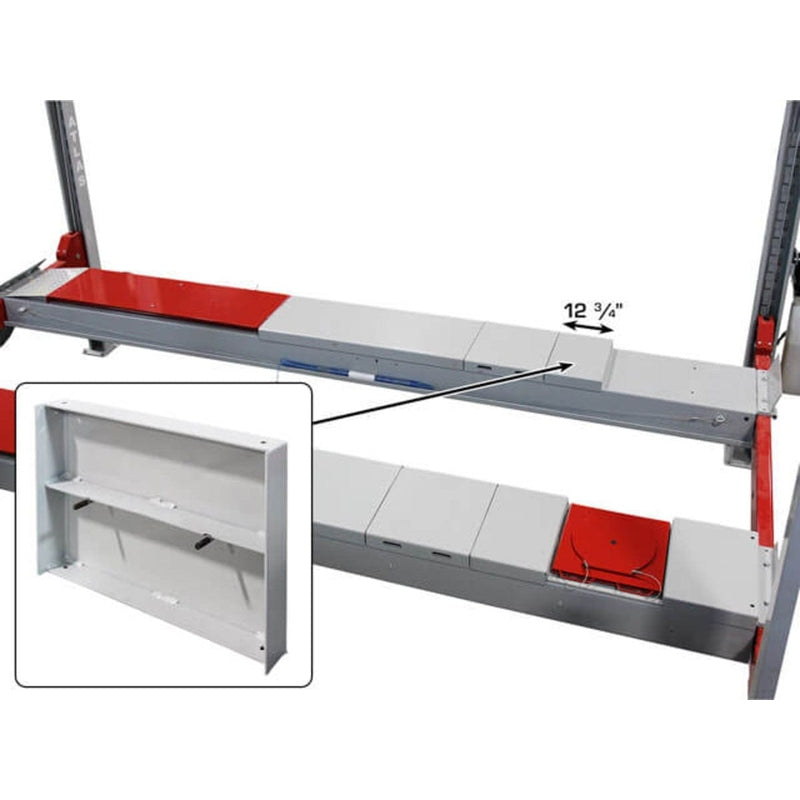

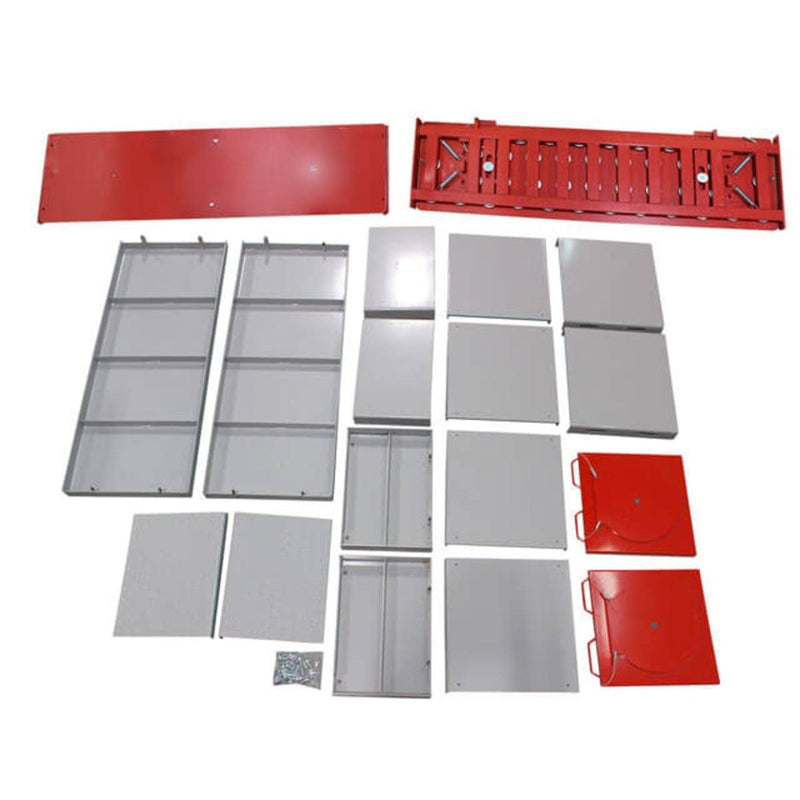

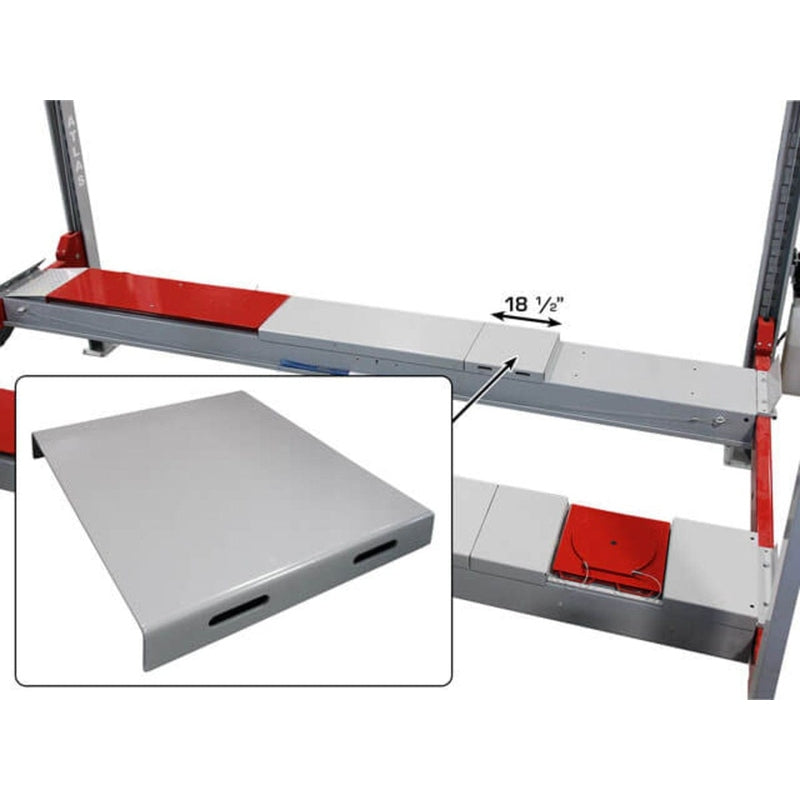

Platinum Alignment Kit
-

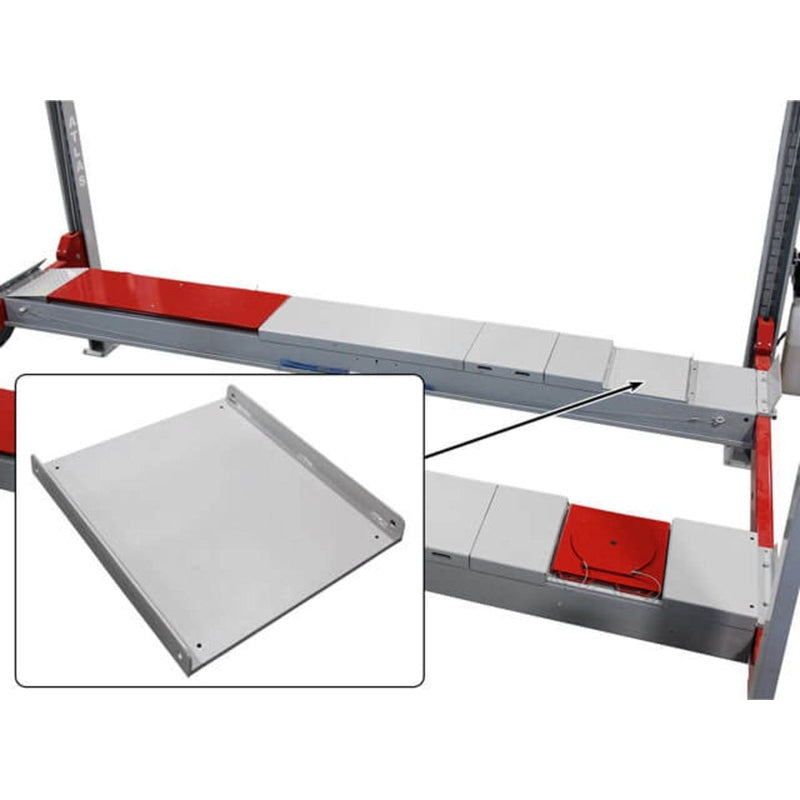

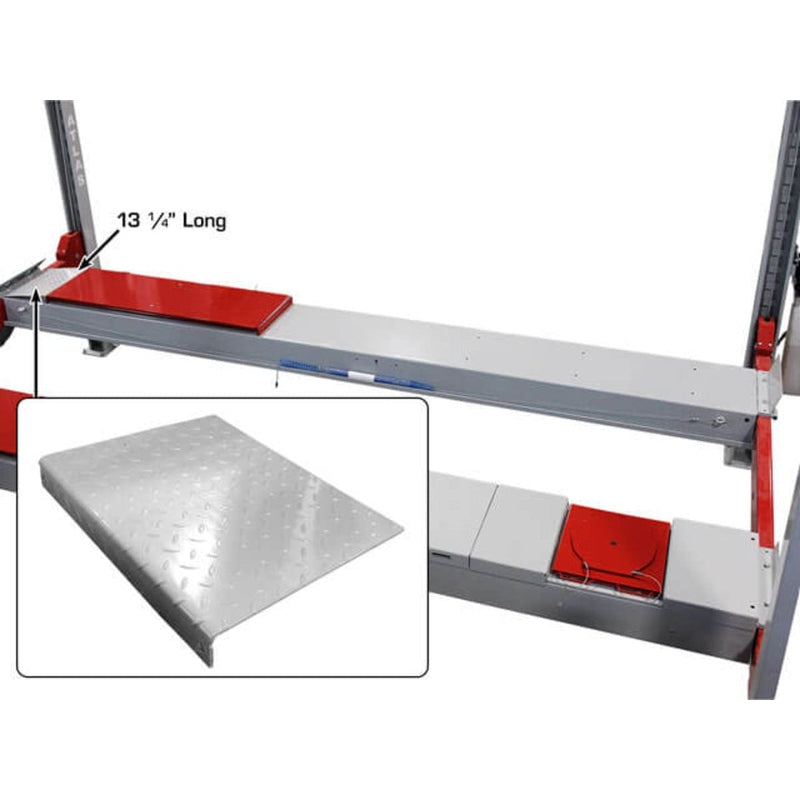

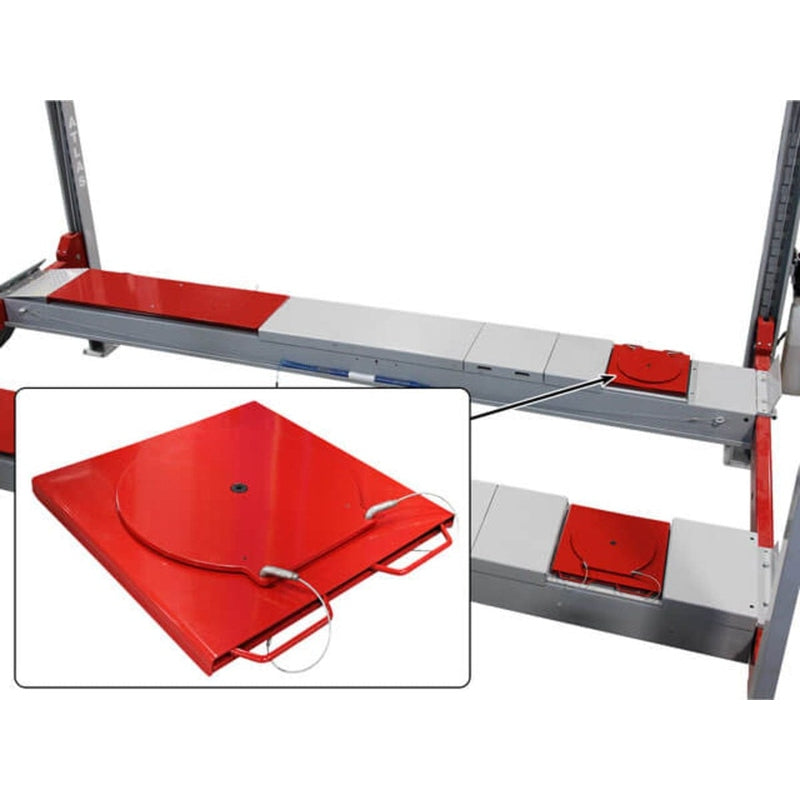

Includes slip plates, turntables, ramps, and spacers
-
Heavy-duty steel construction
-

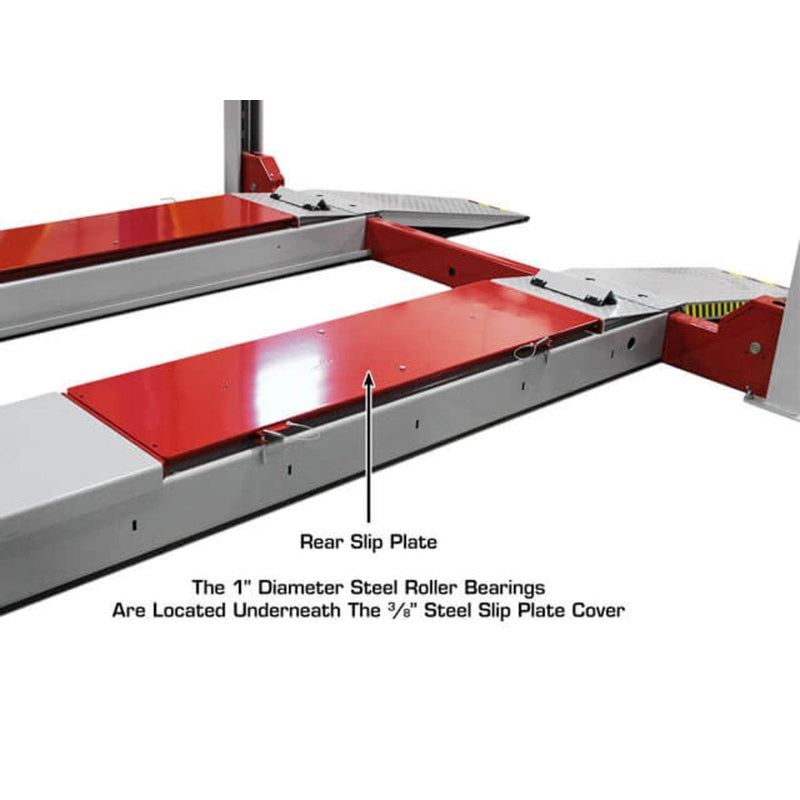

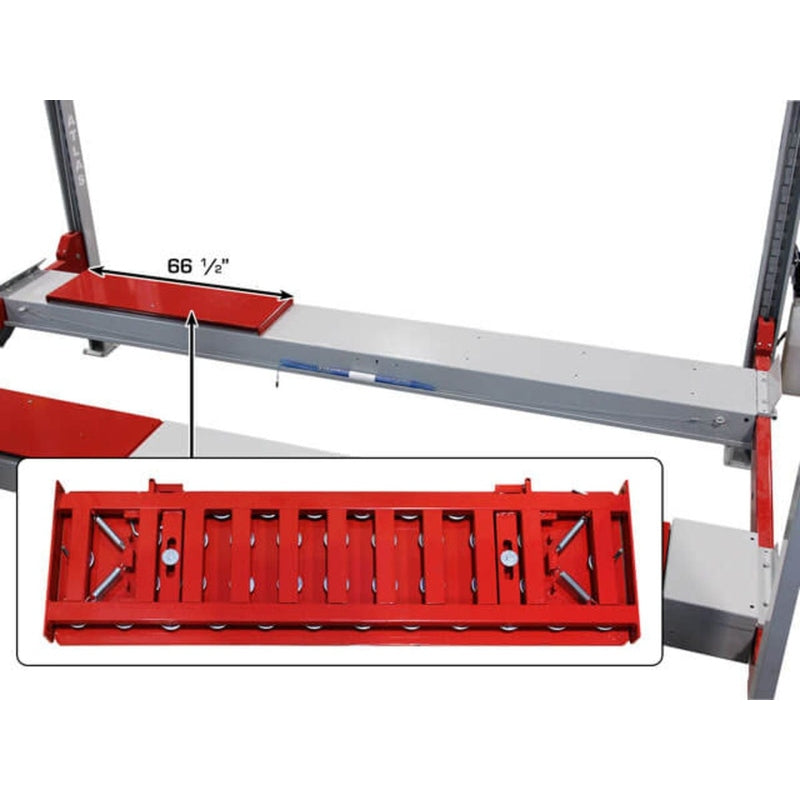

1" diameter roller bearings on rear slip plates for smooth motion
-
Removable and easy to install when needed
-
Shipping weight: 1,000 lbs
-
Warranty: 1-year parts only
Specifications

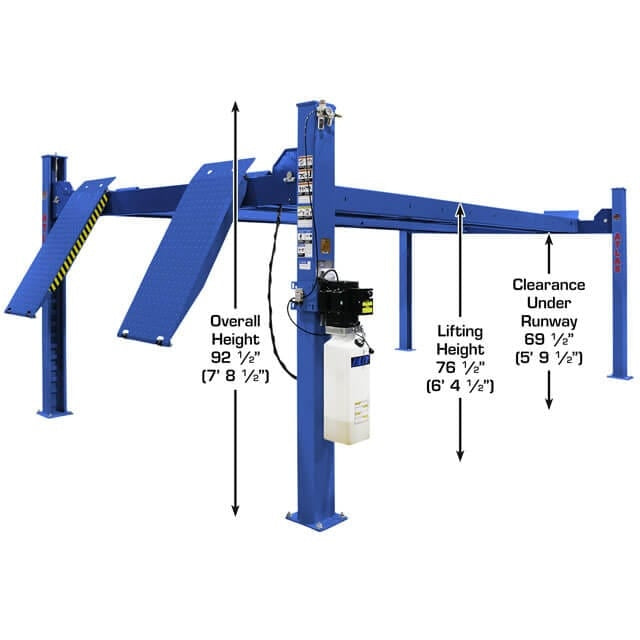

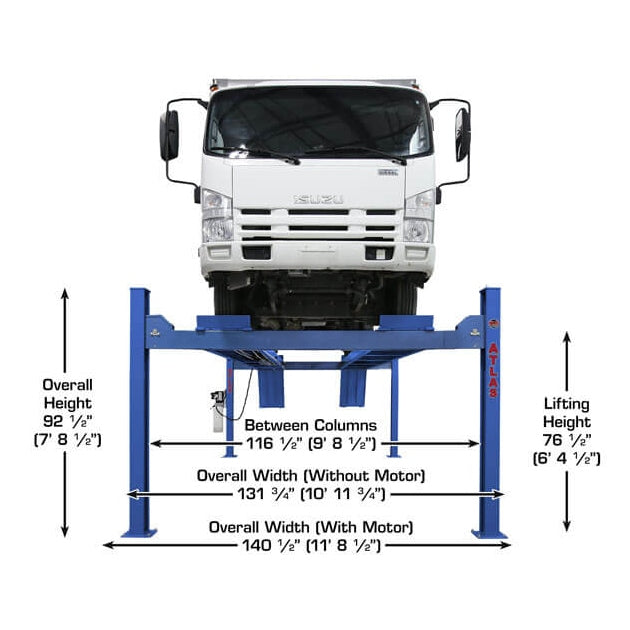

Atlas® Platinum PVL14
| Specification | Measurement |
|---|---|
| Capacity | 14,000 lbs |
| Lifting Height | 76½" (6' 4½") |

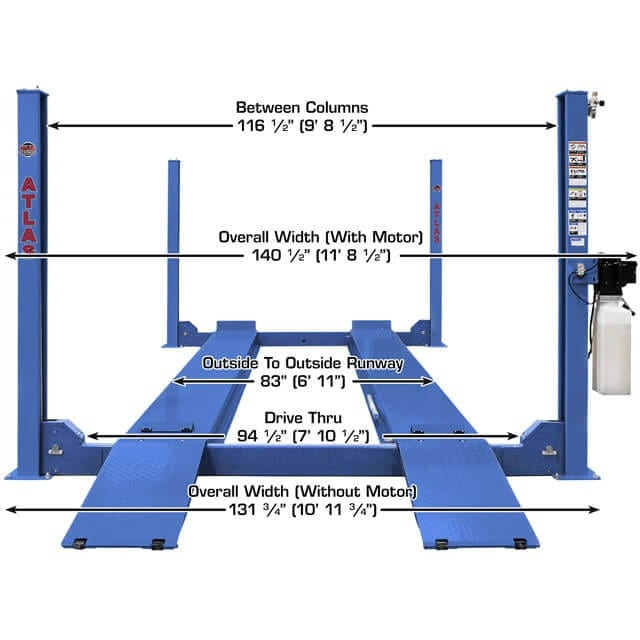

| Overall Width (w/o motor) | 131¾" (10' 11¾") |
| Overall Width (w/ motor) | 140½" (11' 8½") |

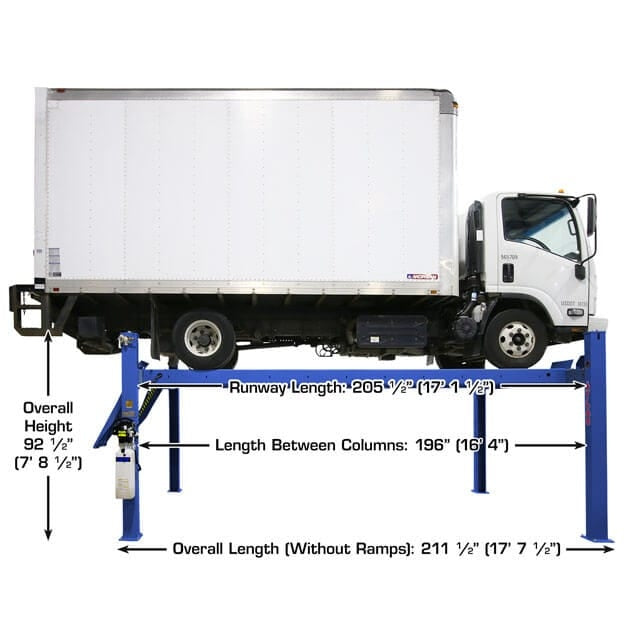

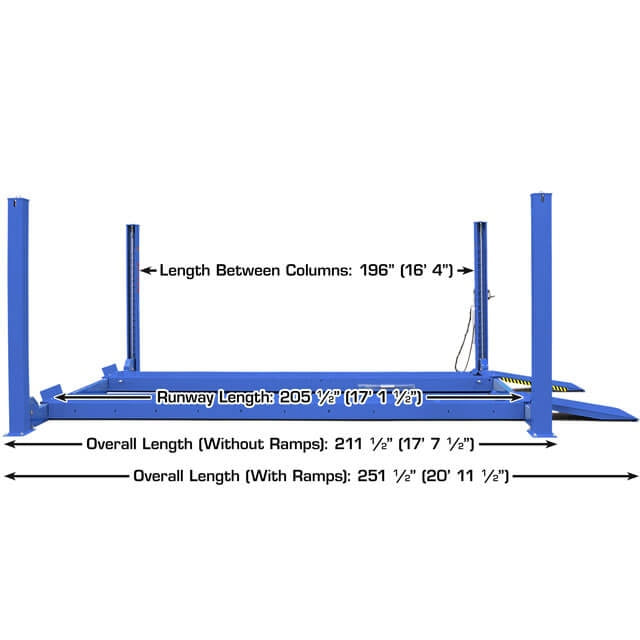

| Overall Length (w/ approach ramps) | 251½" (20' 11½") |
| Length Between Columns | 196" (16' 4") |
| Runway Length | 205½" (17' 1½") |

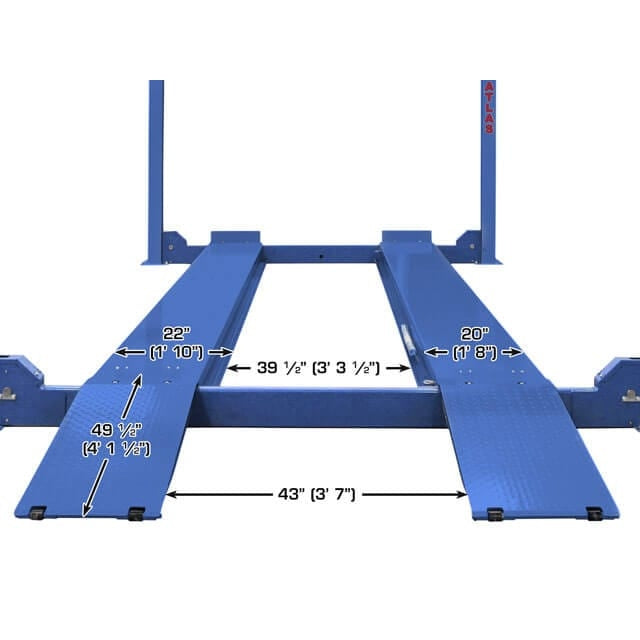

| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42¾" (w/ rail 39¼") |
| Outside Runway to Outside Runway | 83⅛" (6' 11⅛") |
| Clearance Under Runways | 69½" (5' 9½") |
| Clearance Between Columns | 116⅜" (9' 8⅜") |
| Height of Columns | 92½" (7' 8½") |
| Maximum Wheelbase | 195" (16' 3") |
| Drive-Through Width | 94½" (7' 10½") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,800 lbs |
| Concrete Requirement | Minimum 6" thickness, 3,000 PSI rating |

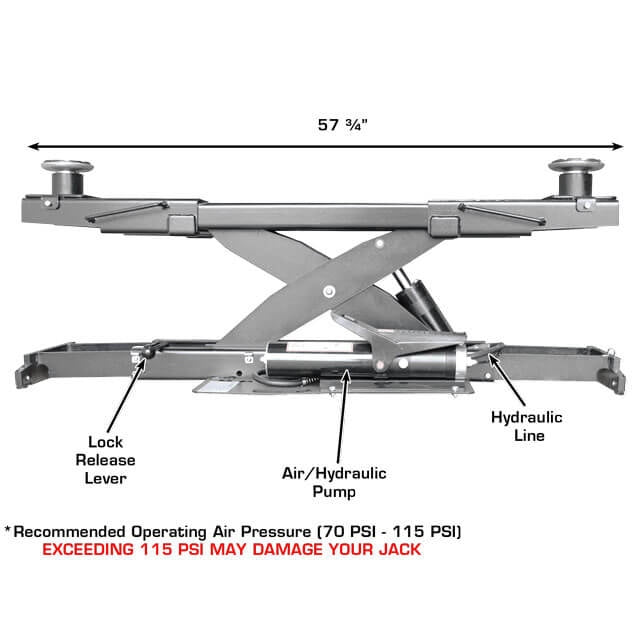

Atlas® Platinum RJ7000
| Specification | Measurement |
|---|---|
| Capacity | 7,000 lbs |
| Maximum Width | 45½" (3' 9½") |
| Minimum Width | 36" (3') |
| Runway Compatibility | 36"–45" |
| Maximum Lifting Height (with adapters) | 27½" (2' 3½") |
| Air Requirement | 70–115 PSI |
| Double Screw-Up Adapter Range | 1½" – 4" |

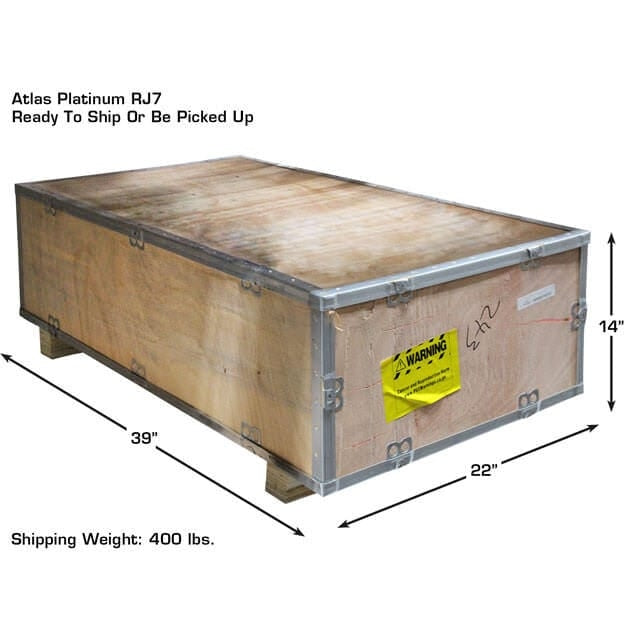

| Shipping Weight | 400 lbs |
Atlas® Platinum Alignment Kit
| Specification | Measurement |
|---|---|
| Capacity | 14,000 lbs |
| Overall Length | 199⅓" (16' 7⅓") |
| Overall Width (each side) | 20⅝" |
| Minimum Wheelbase | 75⅖" (6' 3⅖") |
| Maximum Wheelbase | 148⅔" (12' 4⅔") |
| Turntable Recess (min–max) | 1½" – 2" |
| Turntable Dimensions | 17½" × 17½" × 1½" |

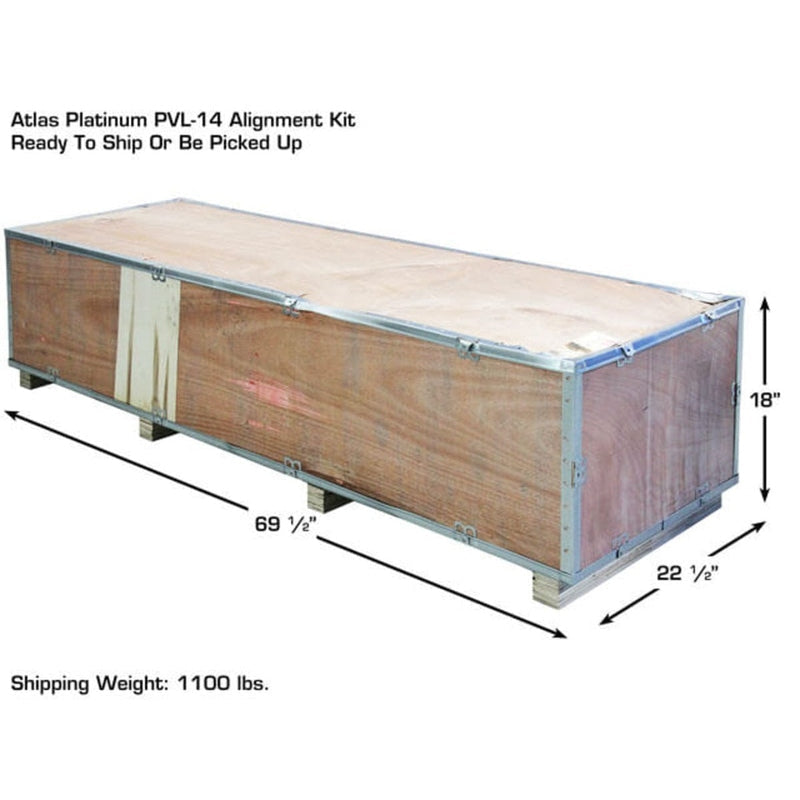

| Shipping Weight | 1,100 lbs |
