The Atlas® Platinum PVL14 is a commercial-grade, heavy-duty four-post lift engineered specifically for professional automotive shops. Designed for versatility and long-term reliability, this lift accommodates a wide range of cars, SUVs, vans, trucks, and even light to medium-duty commercial vehicles.

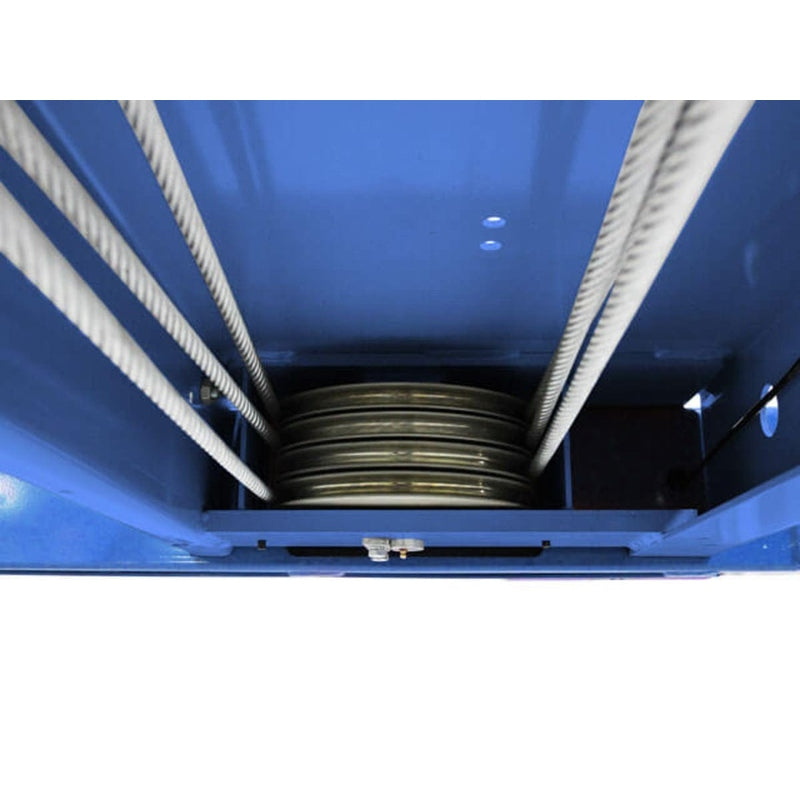

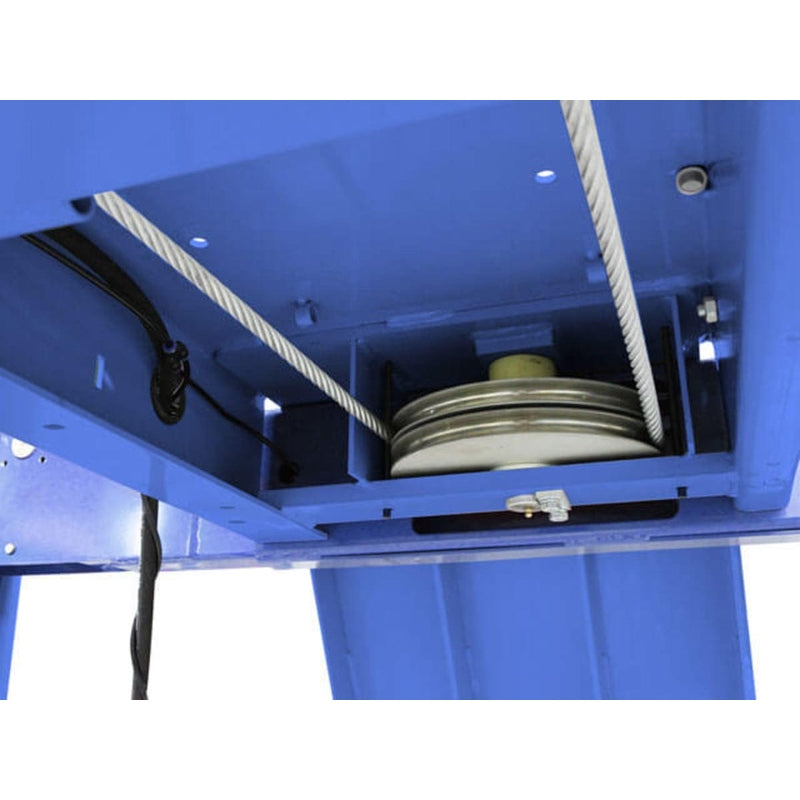

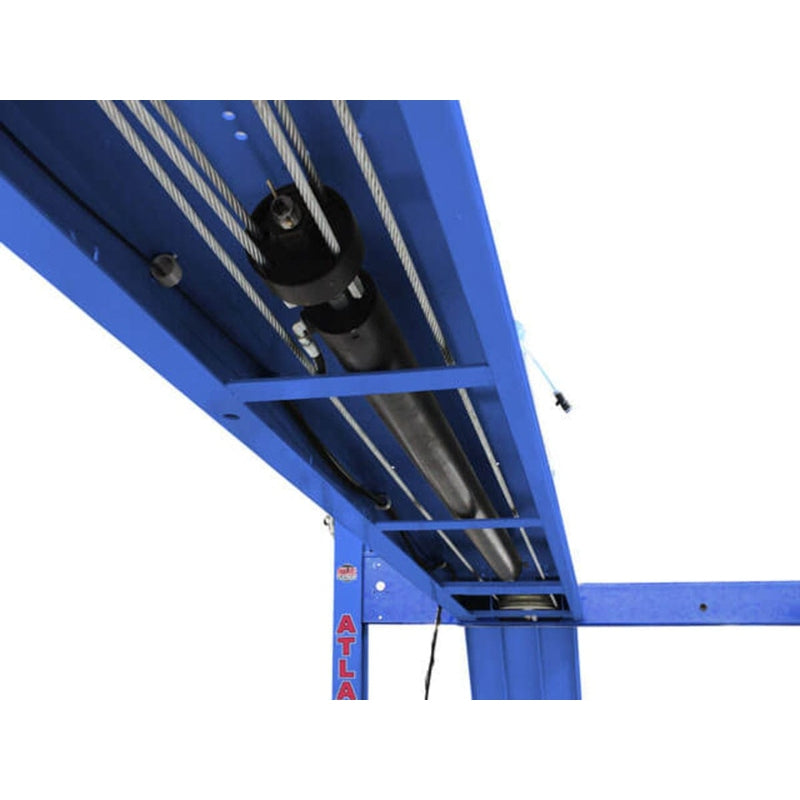

Powered by a 220-volt single-phase motor, the PVL14 utilizes a high-strength cable lifting system with a large under-runway hydraulic cylinder. This advanced configuration delivers smoother, more consistent lifting performance compared to traditional chain-driven systems. Unlike older chain lifts—which often use exposed hydraulic cylinders that cause uneven leveling and door dings—the PVL14’s enclosed design ensures precision, safety, and a clean workspace.
The Atlas® Platinum PVL14 is ALI Certified (Automotive Lift Institute) and backed by one of the strongest warranties in the industry, giving professionals complete peace of mind.

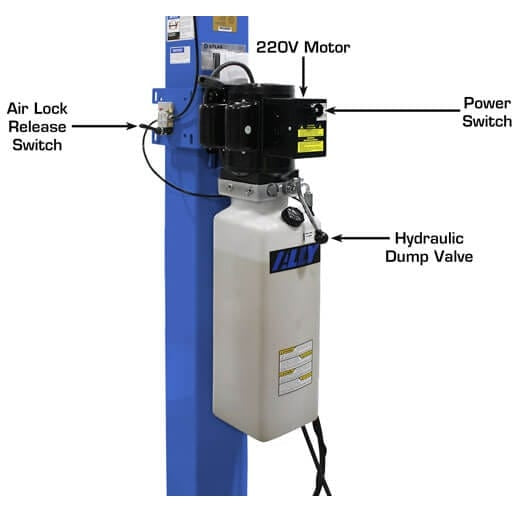

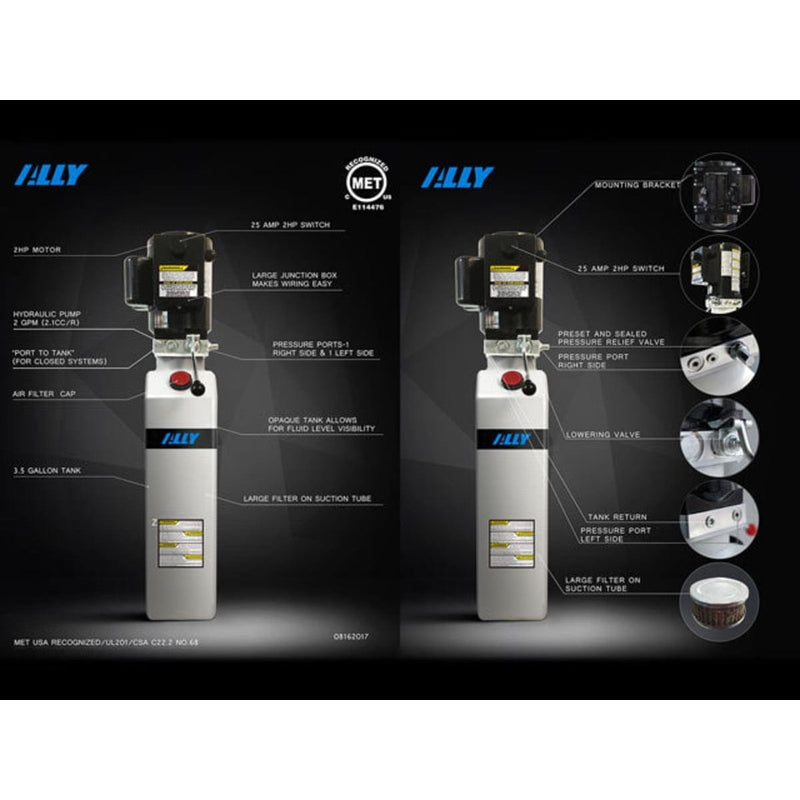

This lift comes equipped with the ALLY Hydraulic AL2650 power unit, a premium-grade, MET Laboratories–certified system meeting electrical compliance standards in both the United States and Canada. Built with heavy-duty armatures, reinforced motor windings, and high-silver content wiring, it generates less heat while maintaining constant torque for efficient and reliable operation. The power unit also includes a two-year limited warranty for added confidence.
This combo package also includes:
-
Two ALI Certified Atlas® Platinum RJ7000 rolling bridge jacks, perfect for lifting vehicle wheels off the runways to perform tire, brake, or suspension work.
Features
PLATINUM PVL14 Lift
-
ALI Certified four-post lift
-
14,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-
Extra tall, extra wide, and extra long design
-

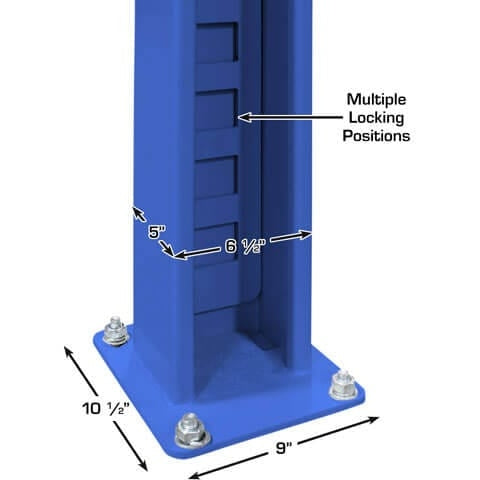

Adjustable lock-ladder system
-
Durable, premium powder-coated finish
-
Air-operated single-point lock release (requires external air supply)
-
Double-lock safety mechanism
-

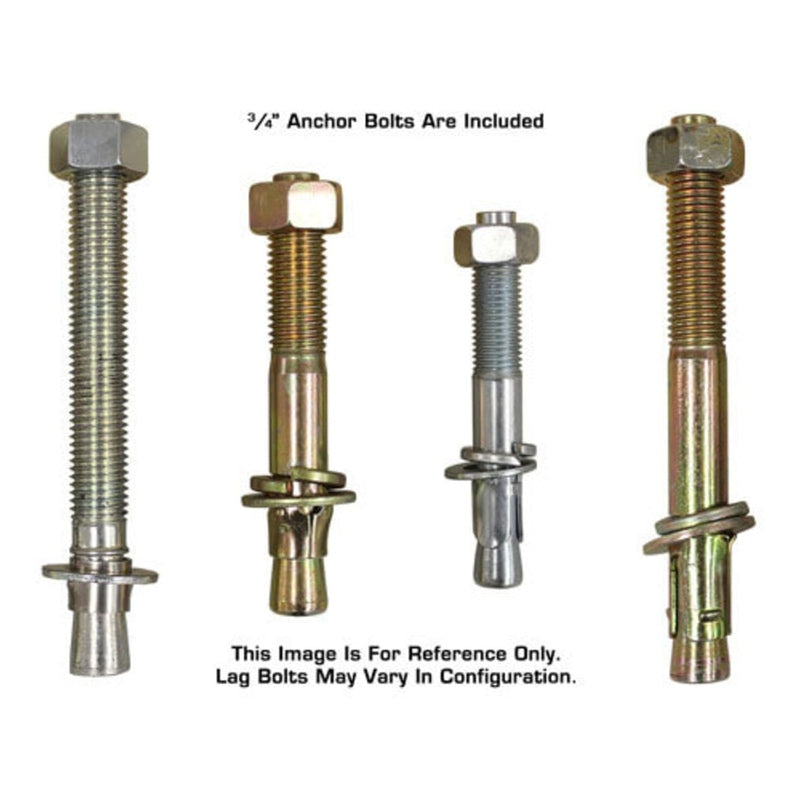

Includes steel approach ramps and mounting hardware
-
Equipped with premium ALLY Hydraulic AL2650 power unit
-
220V / single-phase electric operation (30-amp breaker required)
-
Shipping weight: 2,800 lbs
-
Warranty: 5 years structural / 2 years hydraulic / 2 years power unit

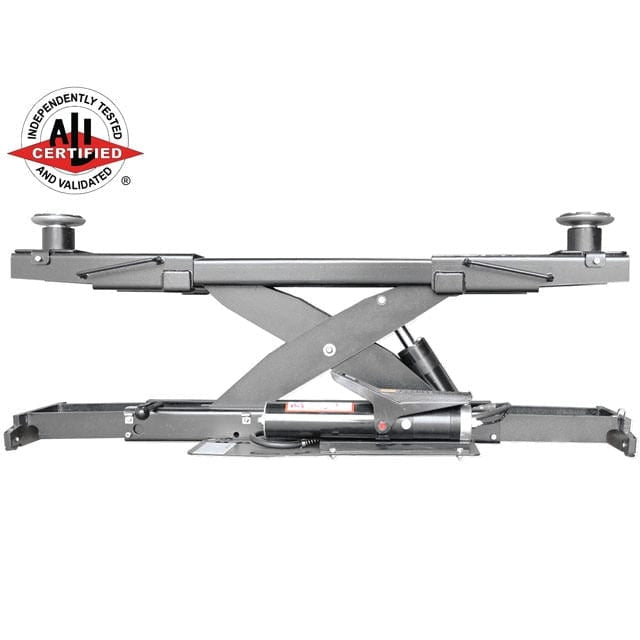

PLATINUM RJ7000 Rolling Bridge Jack
-
7,000 lb. lifting capacity
-

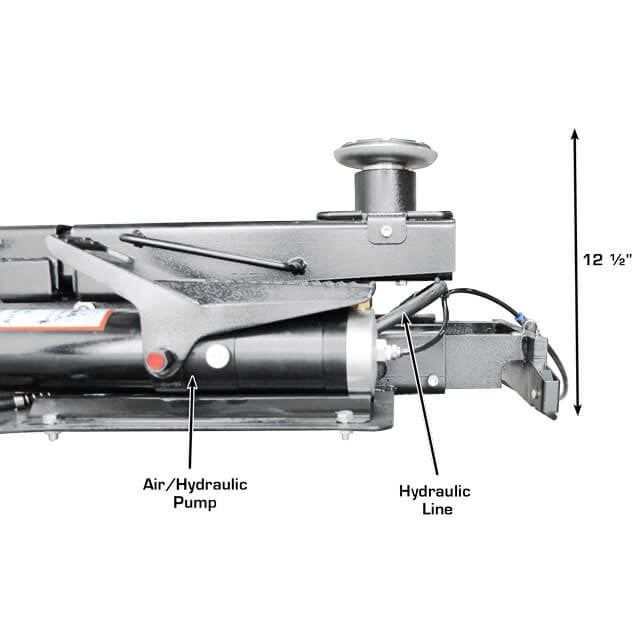

Air/hydraulic operation
-

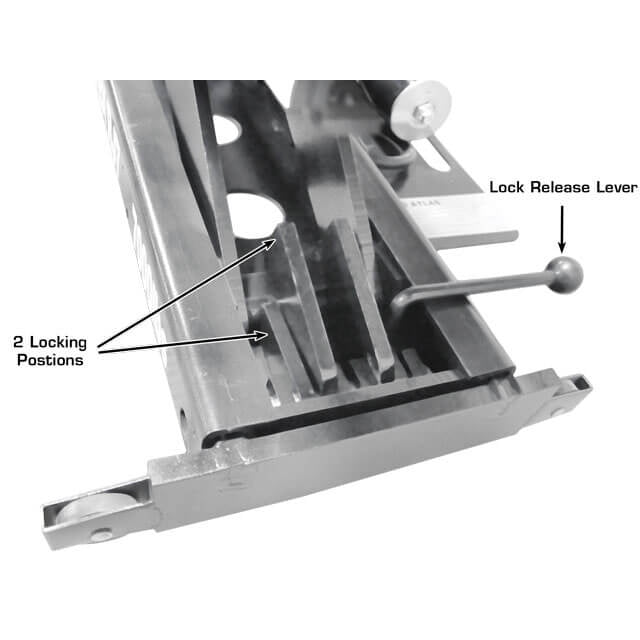

Two safety lock positions
-
Includes double screw-up adapters
-
Compact, low-profile design
-

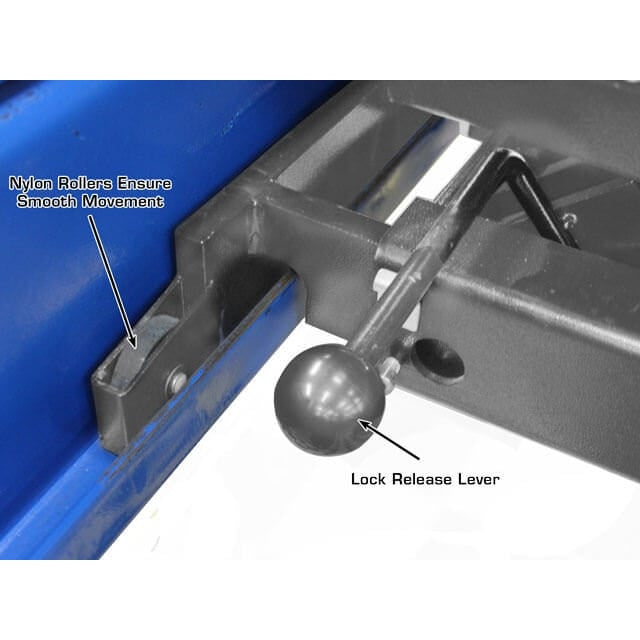

Smooth rolling, scissor-style lifting for level operation
-
Powder-coated finish for durability
-
Shipping weight: 400 lbs
-
Warranty: 1-year parts only
Specifications

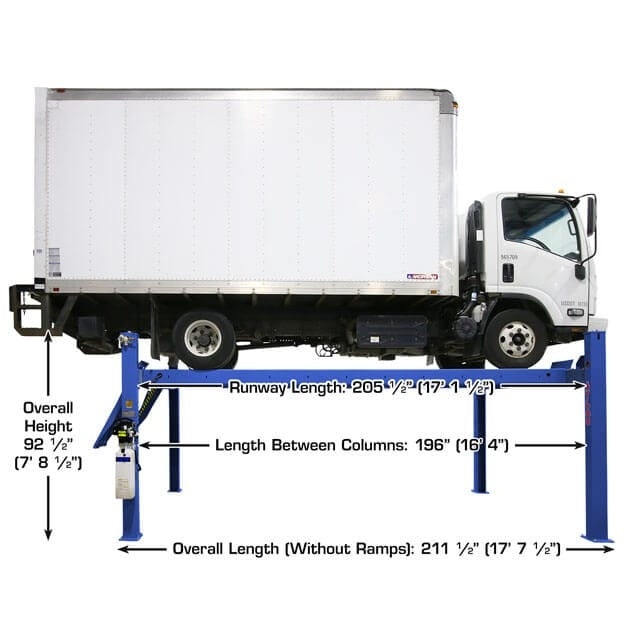

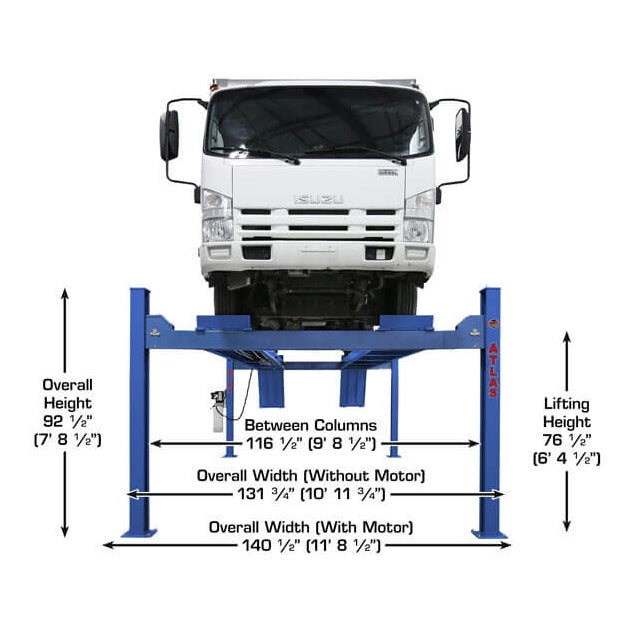

Atlas® Platinum PVL14
| Specification | Measurement |
|---|---|
| Capacity | 14,000 lbs |

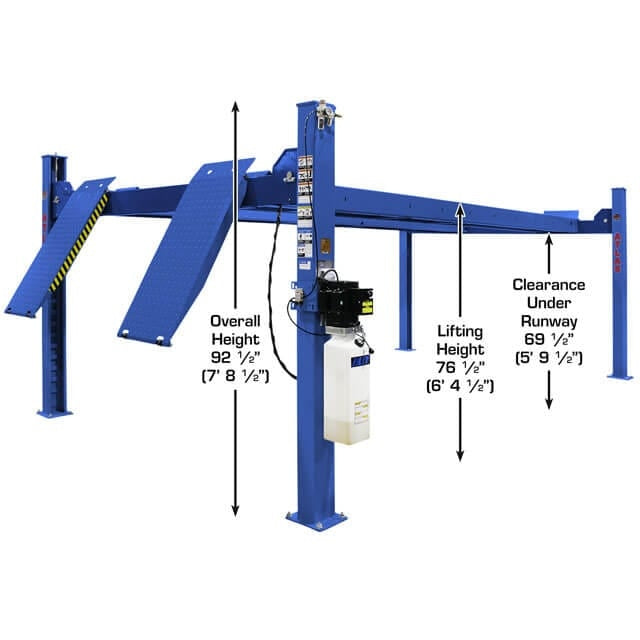

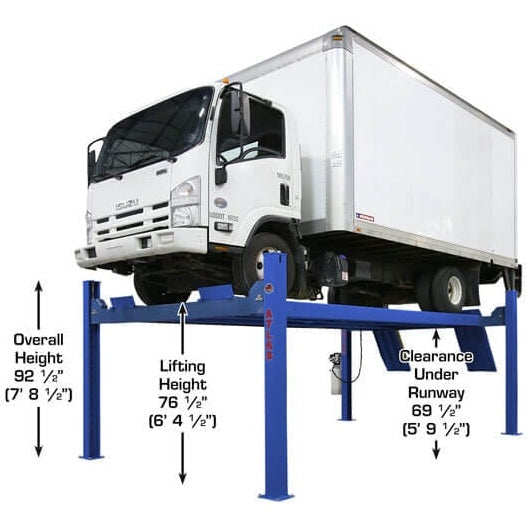

| Lifting Height | 76½" (6' 4½") |

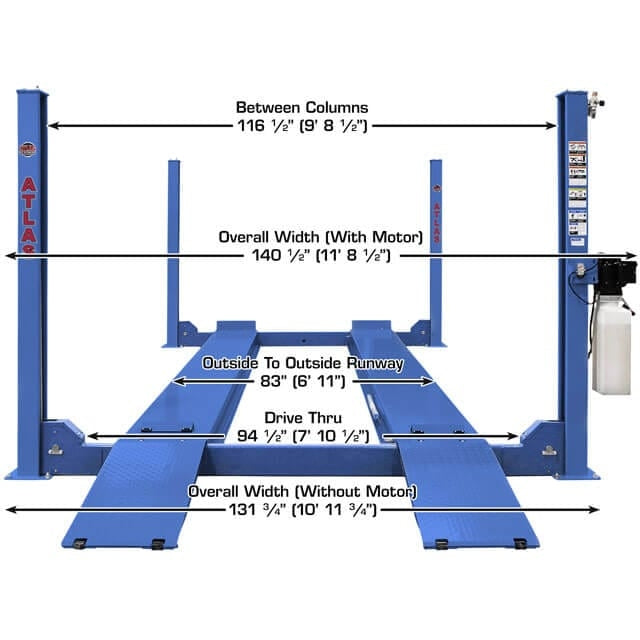

| Overall Width (w/o motor) | 131¾" (10' 11¾") |
| Overall Width (w/ motor) | 140½" (11' 8½") |

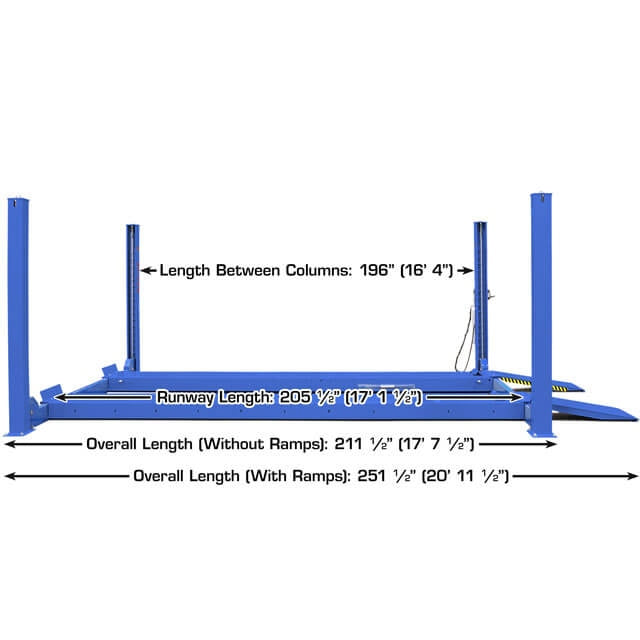

| Overall Length (w/ approach ramps) | 251½" (20' 11½") |
| Length Between Columns | 196" (16' 4") |
| Runway Length | 205½" (17' 1½") |

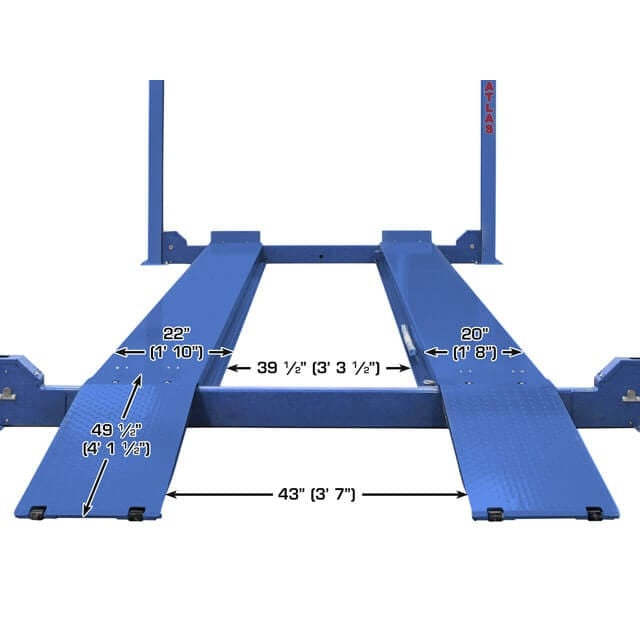

| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42¾" (with rail: 39¼") |
| Outside Runway to Outside Runway | 83⅛" (6' 11⅛") |
| Clearance Under Runways | 69½" (5' 9½") |
| Clearance Between Columns | 116⅜" (9' 8⅜") |
| Height of Columns | 92½" (7' 8½") |
| Maximum Wheelbase | 195" (16' 3") |
| Drive-Through Width | 94½" (7' 10½") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |

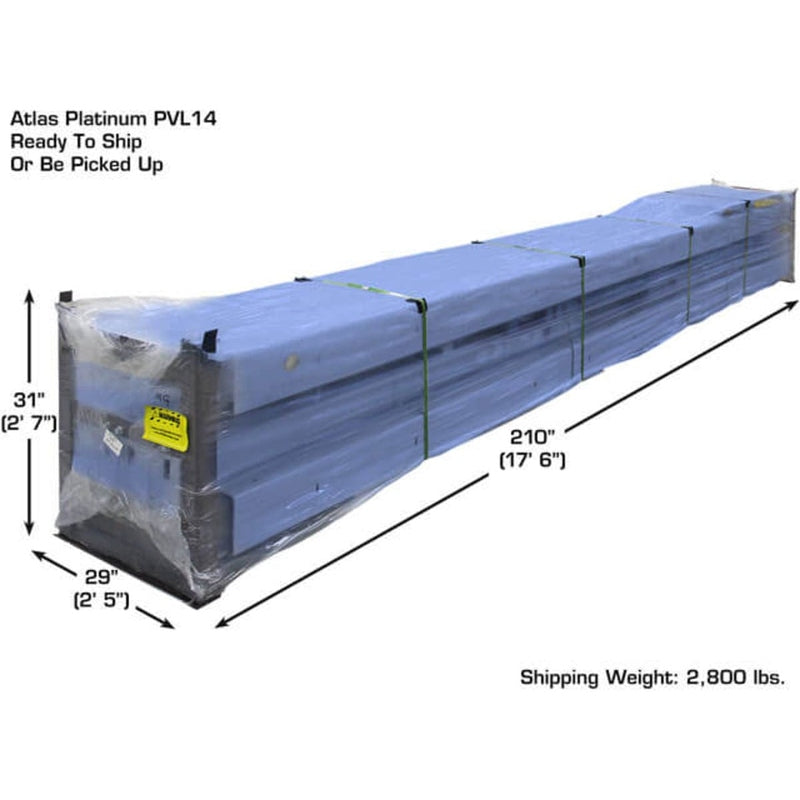

| Shipping Weight | 2,800 lbs |
| Minimum Concrete Requirement | 6" thick at 3,000 PSI strength |

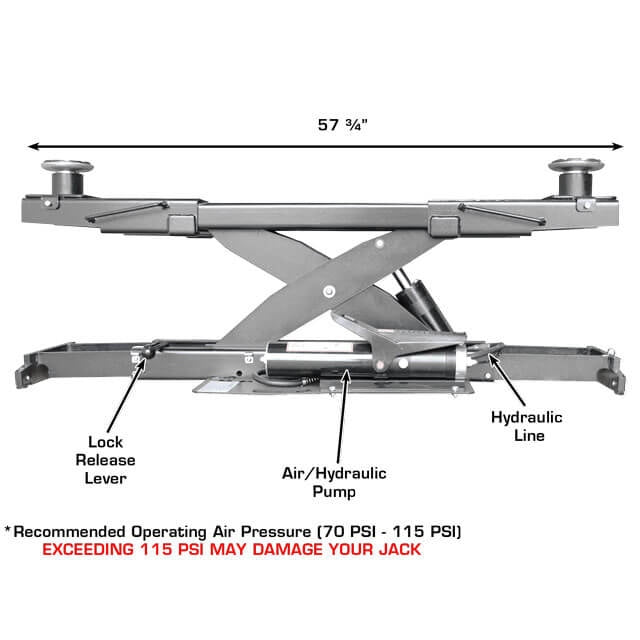

Atlas® Platinum RJ7000
| Specification | Measurement |
|---|---|
| Capacity | 7,000 lbs |
| Maximum Width | 45½" (3' 9½") |
| Minimum Width | 36" (3') |
| Runway Compatibility | 36" – 45" |

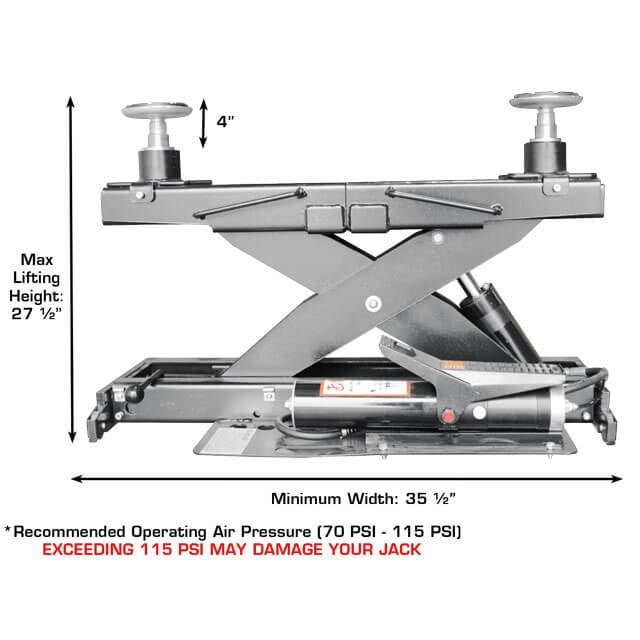

| Maximum Lifting Height (with adapters) | 27½" (2' 3½") |
| Air Requirement | 70–115 PSI |
| Double Screw-Up Adapter Range | 1½" – 4" |

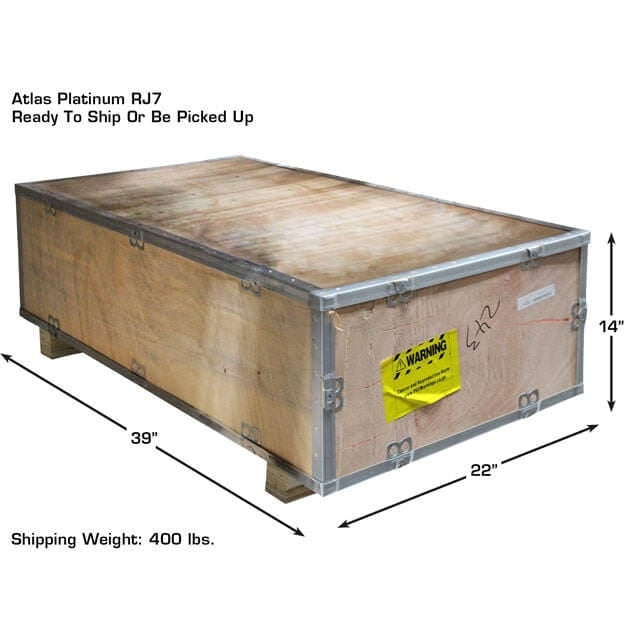

| Shipping Weight | 400 lbs |
