Description

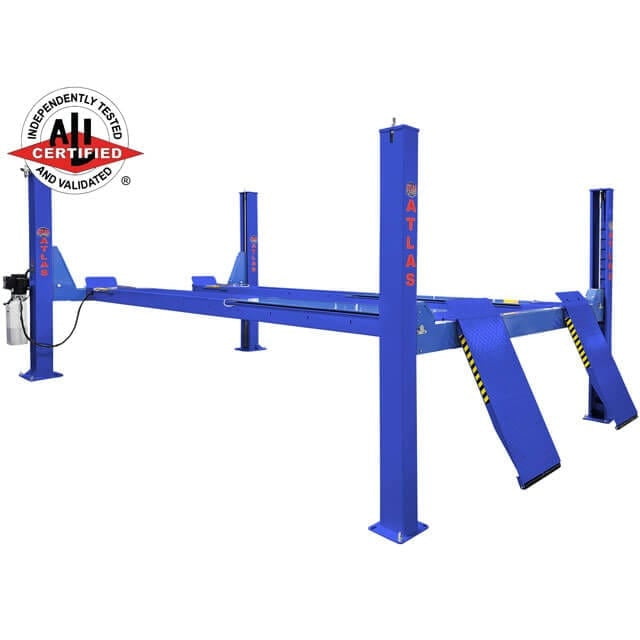

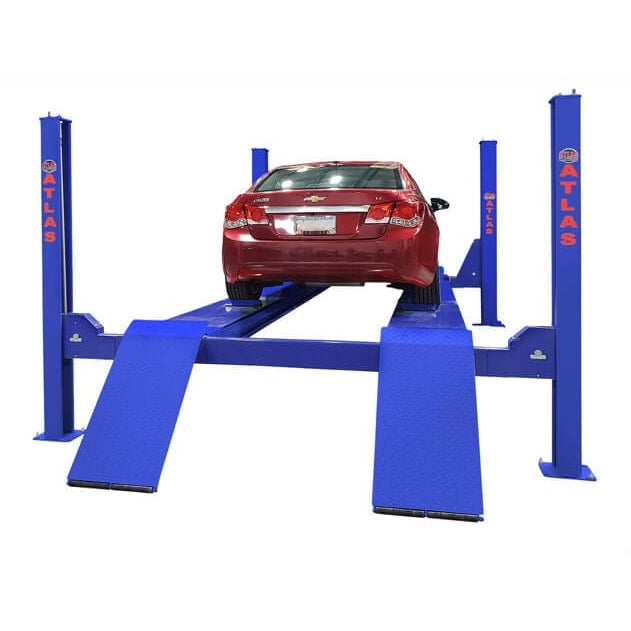

The Atlas® Platinum PVL14OF-EXT is a commercial-grade, open-front alignment lift engineered for professional automotive service centers that demand precision, performance, and reliability. Designed to handle a wide variety of cars, SUVs, vans, trucks, and commercial vehicles, this lift features extra-long runways and an open-front configuration that provides unobstructed access to the underside of the vehicle during service.

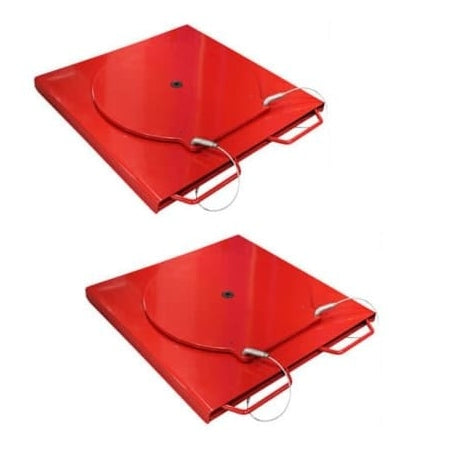

The PVL14OF-EXT comes equipped with built-in slip plates and a pair of heavy-duty turntables, enabling full four-wheel alignment capability. The open-front design ensures better workspace ergonomics, making it ideal for both alignment and general repair applications.
This lift uses a high-strength cable system combined with an under-runway oversized hydraulic cylinder, powered by a 220V single-phase electric motor. Unlike older chain-driven designs with exposed cylinders—which are harder to level and can cause vehicle damage—the PVL14OF-EXT offers a cleaner, safer, and more stable lifting experience.
The Atlas® Platinum PVL14OF-EXT is ALI Certified (Automotive Lift Institute) and backed by one of the industry’s leading warranties, ensuring long-term performance and peace of mind.

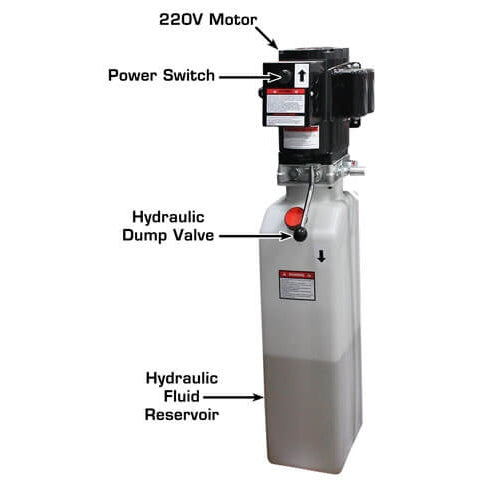

Each lift is powered by the ALLY Hydraulic AL3000 power unit, certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Its heavy-duty armatures, enhanced motor windings, and high-silver content connections reduce heat buildup and maintain consistent torque throughout the lifting process. This premium power unit also includes a two-year limited warranty.
This combo package also includes two ALI Certified Atlas® Platinum RJ7000 rolling bridge jacks, ideal for raising a vehicle’s wheels off the runways to perform tire, brake, or suspension service.
Features
PLATINUM PVL14OF-EXT Lift
-
ALI Certified four-post lift
-
14,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-

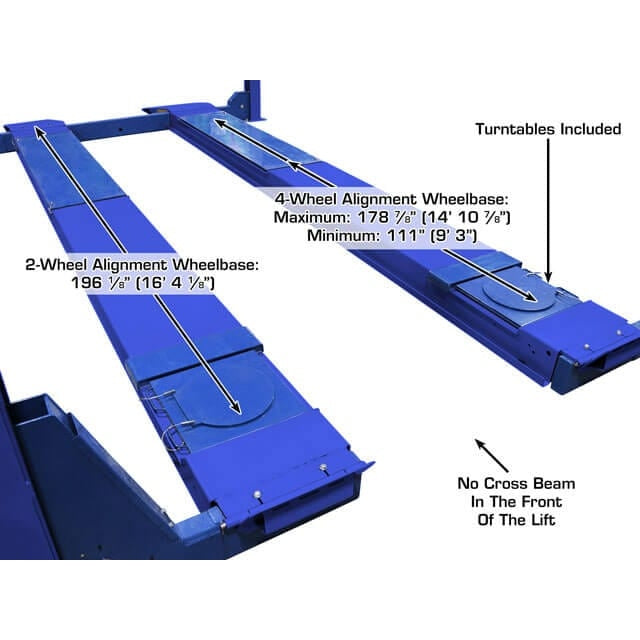

Alignment-ready design with built-in slip plates and turntables
-
Open-front configuration for improved access to the underside of vehicles
-
Extra-long runways accommodate a wide range of vehicles
-

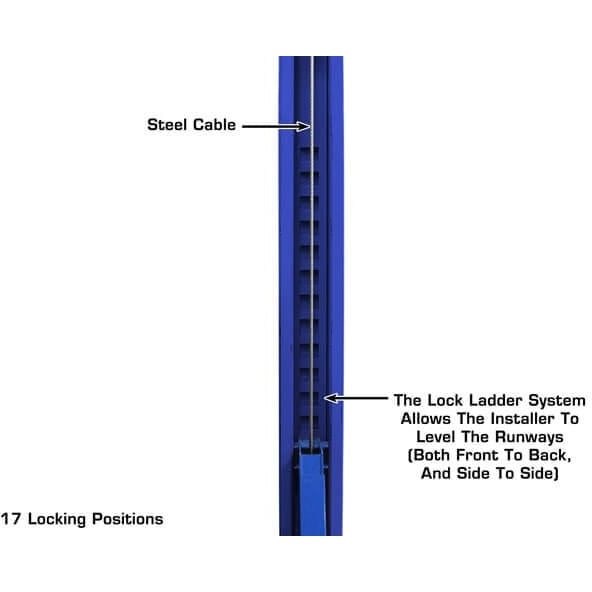

Adjustable lock-ladder design
-
Premium powder-coated finish for superior durability
-

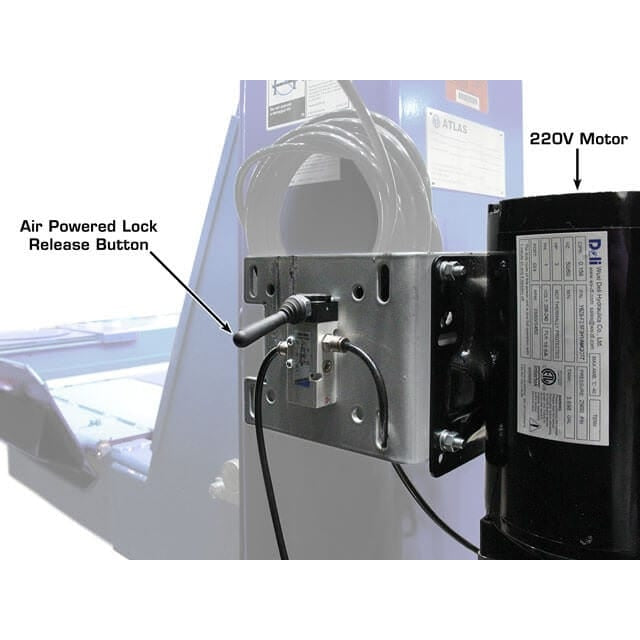

Air-operated single-point lock release (requires external air supply)
-
Double-lock safety system
-

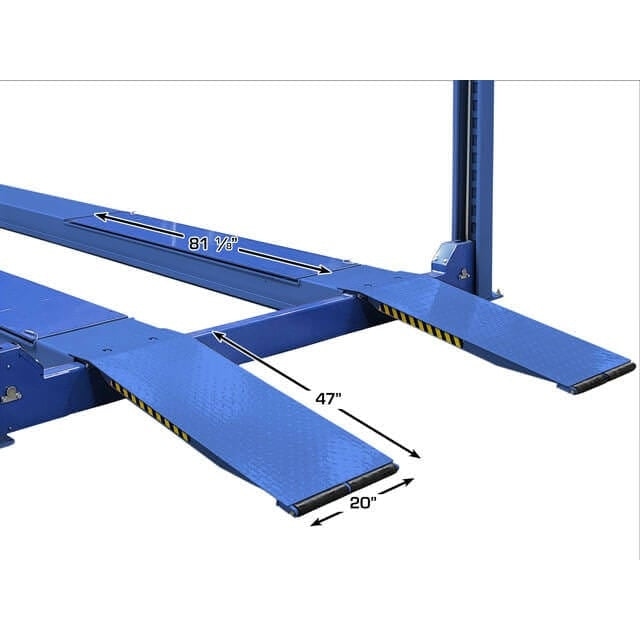

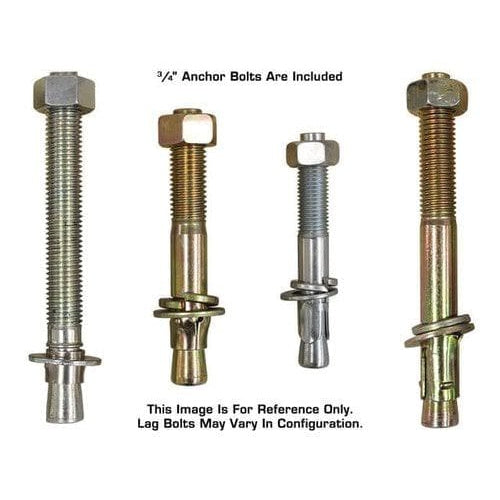

Includes steel approach ramps and mounting hardware
-
Equipped with ALLY Hydraulic AL3000 power unit (premium MET-certified motor)
-
220V single-phase electric operation (30-amp breaker required)
-

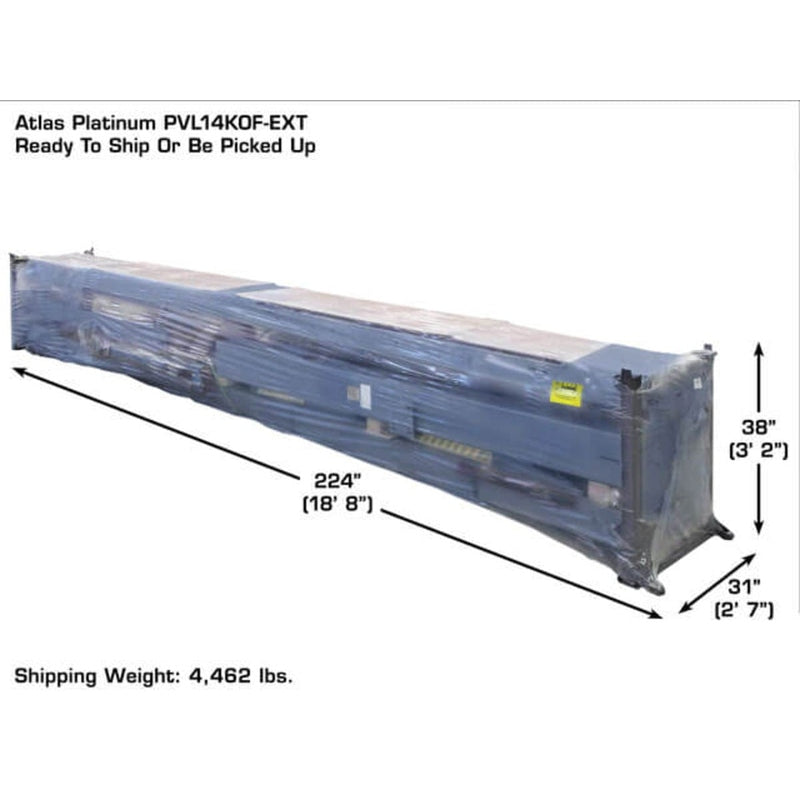

Shipping weight: 4,462 lbs
-
Warranty: 5 years structural / 2 years hydraulic / 2 years power unit

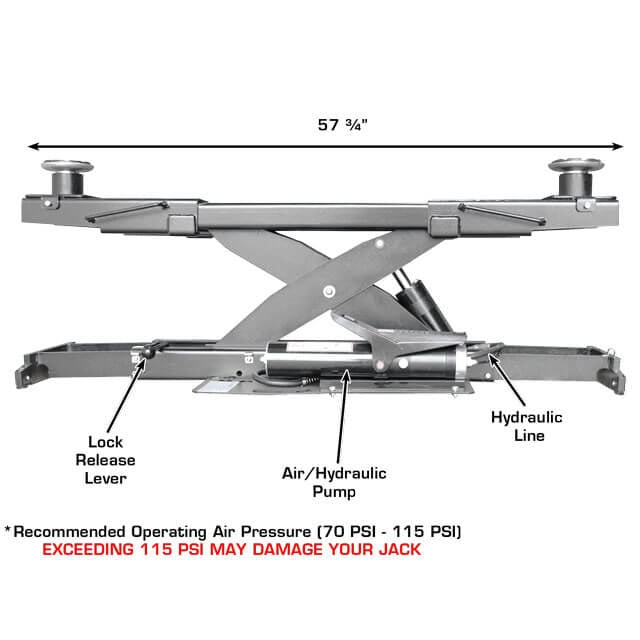

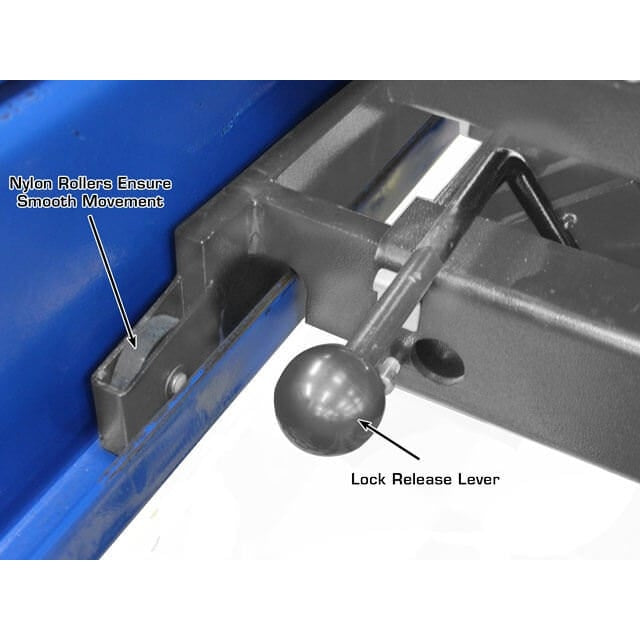

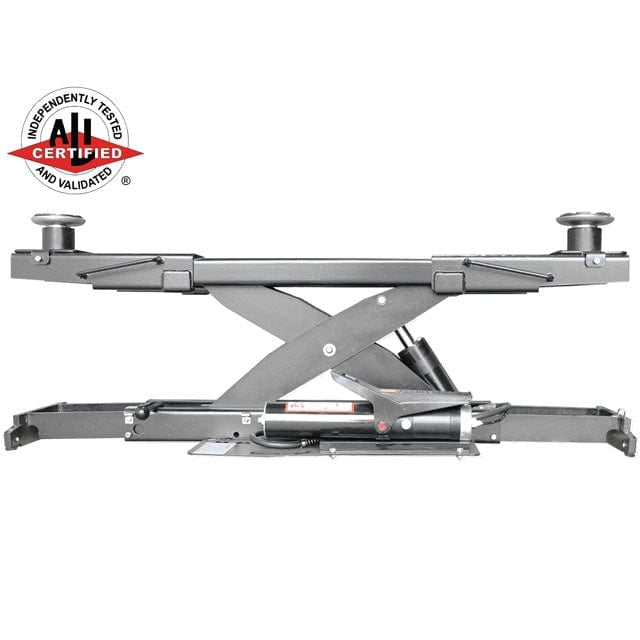

PLATINUM RJ7000 Rolling Bridge Jack
-
7,000 lb. lifting capacity
-

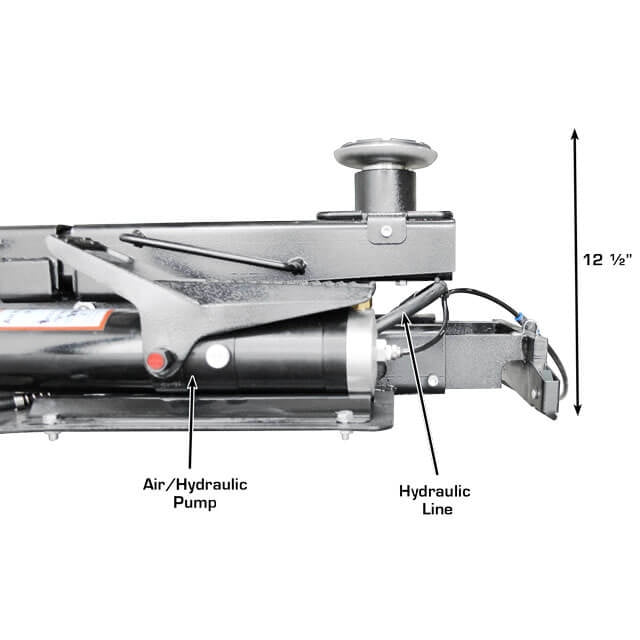

Air/hydraulic operation
-

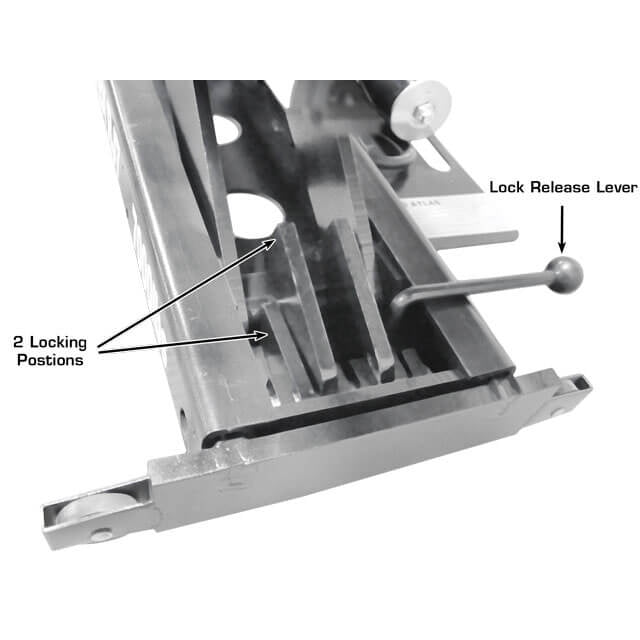

Two safety lock positions
-
Double screw-up adapters included
-
Compact, low-profile design
-
Smooth-rolling scissor mechanism for stable, level lifting
-
Durable powder-coated finish
-

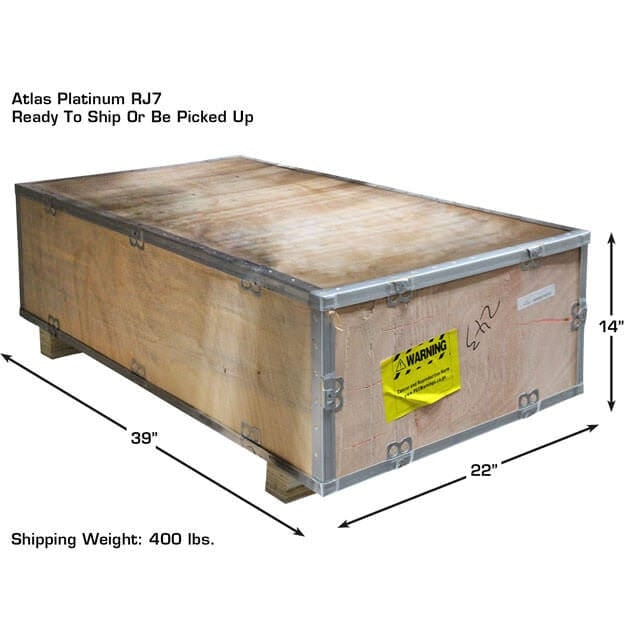

Shipping weight: 400 lbs
-
Warranty: 1-year parts only
Specifications
Atlas® Platinum PVL14OF-EXT
| Specification | Measurement |
|---|---|
| Capacity | 14,000 lbs |

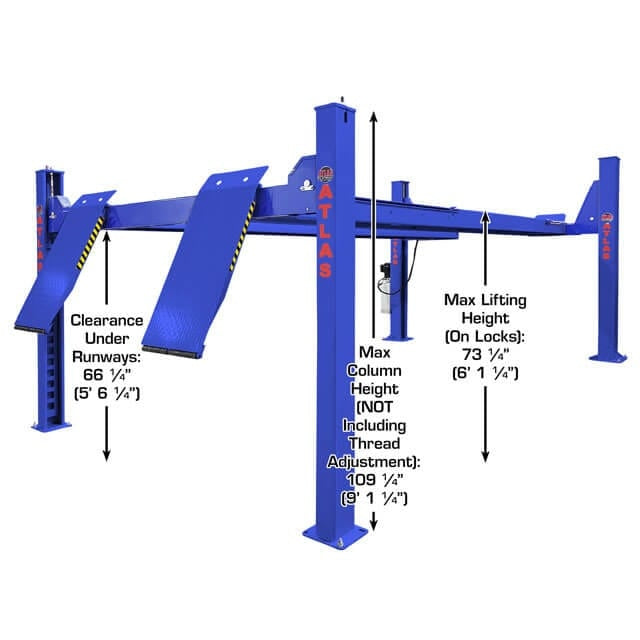

| Lifting Height | 73¼" (6' 1¼") |

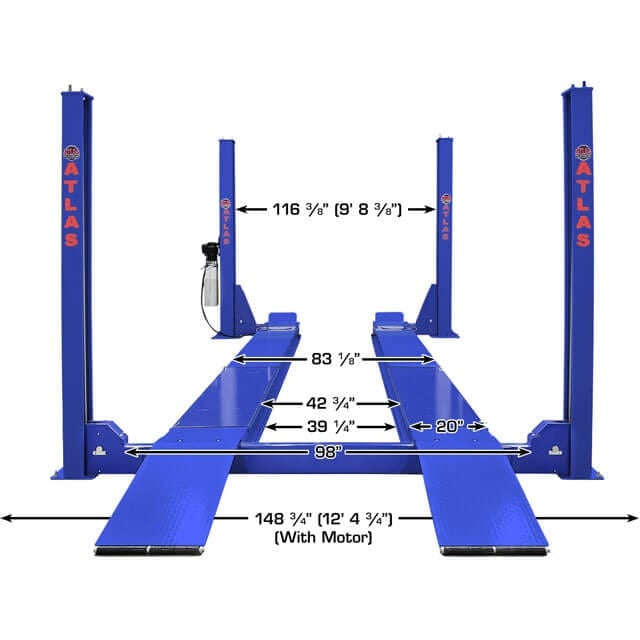

| Overall Width (w/o motor) | 140⅛" (11' 8⅛") |
| Overall Width (w/ motor) | 148¾" (12' 4¾") |
| Overall Length (w/ approach ramps) | 272⅛" (22' 8⅛") |
| Length Between Columns | 207" (17' 3") |
| Runway Length | 223½" (18' 7½") |
| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42¾" (with rail: 39¼") |
| Outside Runway to Outside Runway | 83⅛" (6' 11⅛") |
| Clearance Under Runways | 66¼" (5' 6¼") |
| Clearance Between Columns | 116⅜" (9' 8⅜") |

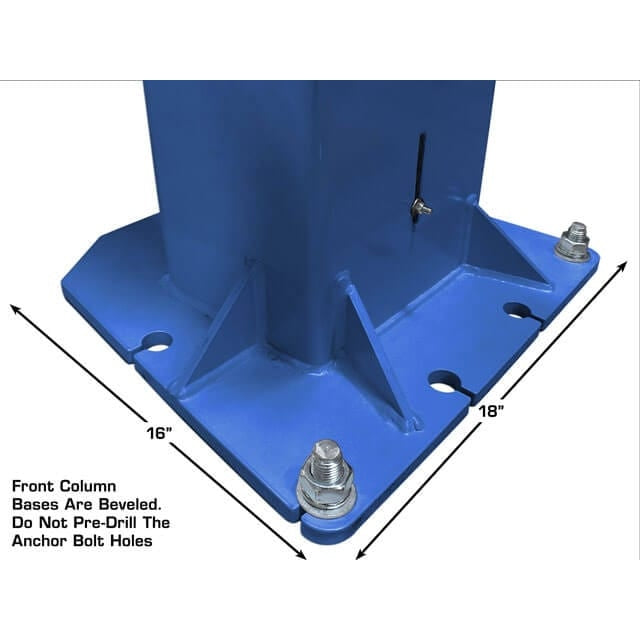

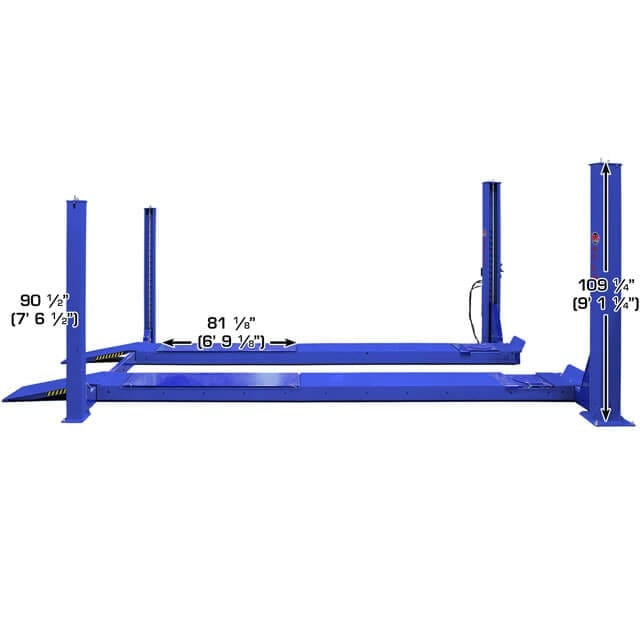

| Height of Columns | Rear: 92½" (7' 8½") / Front: 109¼" (9' 1¼") |
| Maximum Wheelbase | 203" (16' 11") |
| Drive-Through Width | 94½" (7' 10½") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 / AW46 (not included) |
| Shipping Weight | 4,462 lbs |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI strength |

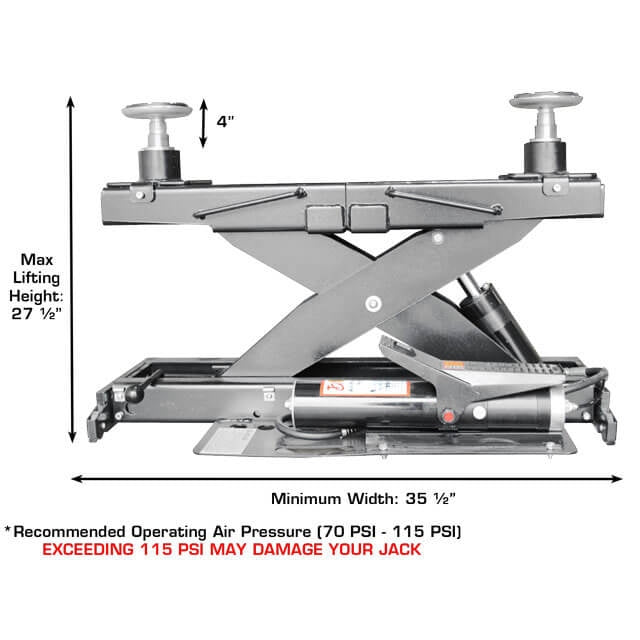

Atlas® Platinum RJ7000
| Specification | Measurement |
|---|---|
| Capacity | 7,000 lbs |
| Maximum Width | 45½" (3' 9½") |
| Minimum Width | 36" (3') |
| Runway Compatibility | 36" – 45" |
| Maximum Lifting Height (with adapters) | 27½" (2' 3½") |
| Air Requirement | 70–115 PSI |
| Double Screw-Up Adapter Range | 1½" – 4" |
| Shipping Weight | 400 lbs |
