Description

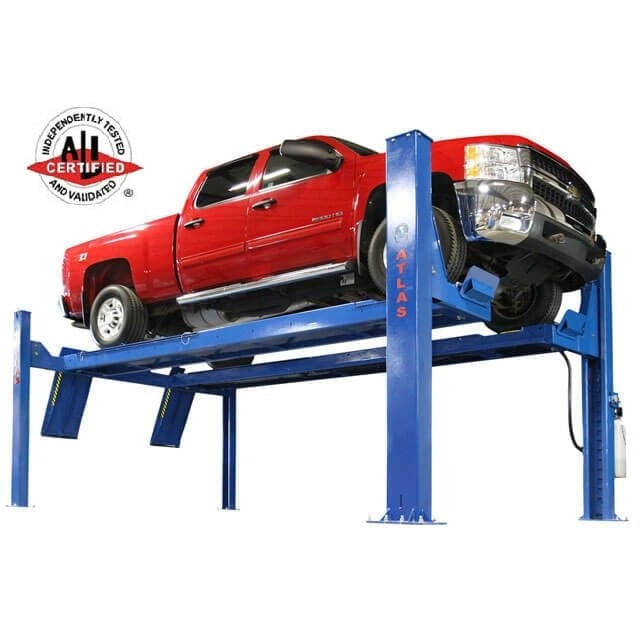

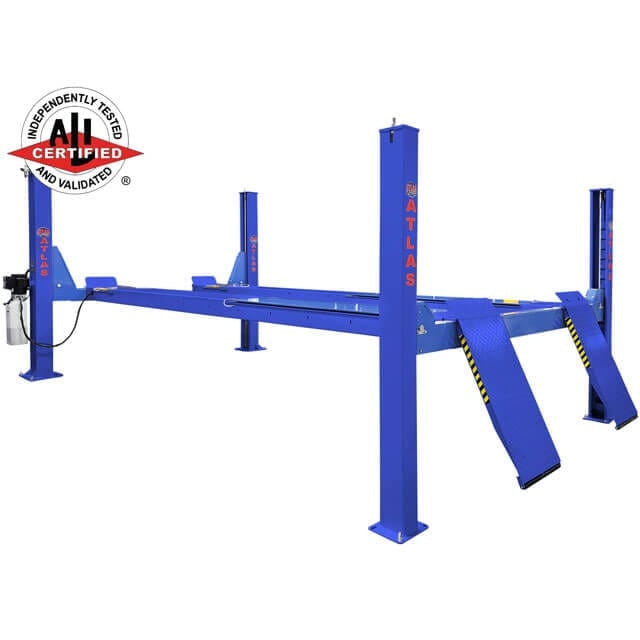

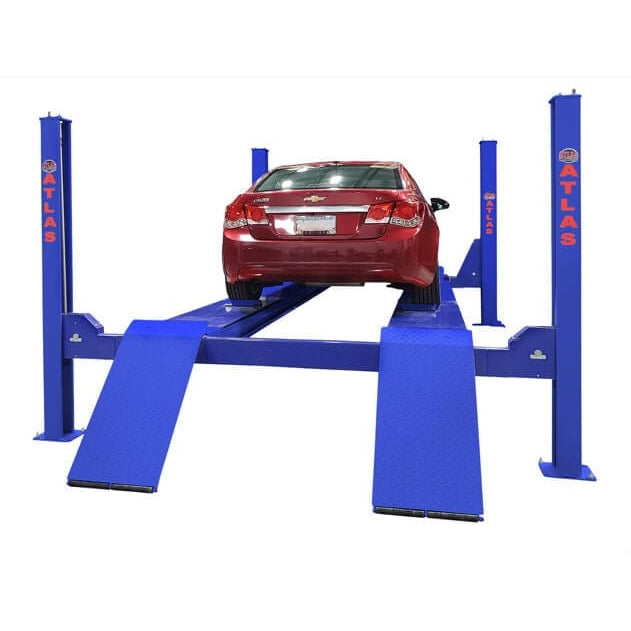

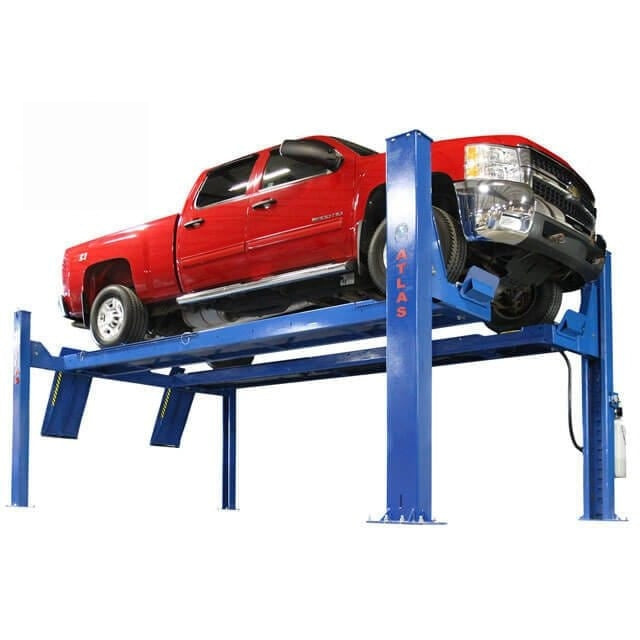

The Atlas® Platinum PVL14OF-EXT is a professional-grade, open-front, four-post alignment lift engineered for demanding commercial service environments. With a 14,000 lb. lifting capacity and extended runways, it can easily accommodate a wide range of vehicles — from cars and SUVs to trucks, vans, and commercial fleets.
Its open-front design provides unobstructed access to the vehicle’s underside, allowing technicians to perform alignment, inspection, and general service tasks with improved efficiency. The lift comes equipped with built-in slip plates and a pair of heavy-duty turntables, making precise four-wheel alignments simple and reliable across varying wheelbases.
The PVL14OF-EXT operates on a high-strength cable system with a large hydraulic cylinder positioned beneath the runways, powered by a 220-volt single-phase power unit. Unlike older chain-driven lift systems with exposed cylinders — which can be difficult to level and prone to causing door damage — this modern design ensures smoother operation, enhanced safety, and greater lifting accuracy.
Integrated runway tracks allow for the use of optional rolling bridge jacks (recommended: Atlas® Platinum RJ7000, sold separately), enabling wheel-off services such as tire, brake, and suspension work.
This model is ALI Certified and protected by one of the strongest warranties in the industry, offering 5 years on structural components, 2 years on hydraulic parts, and 2 years on the power unit.

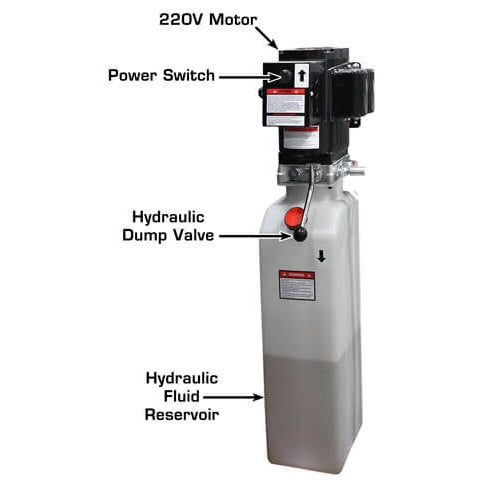

At its core, the PVL14OF-EXT is powered by the ALLY Hydraulic AL3000 Power Unit, MET-certified for electrical compliance in the U.S. and Canada. This premium system features heavy-duty armatures and enhanced motor windings with increased silver content, reducing heat buildup and maintaining consistent torque throughout the lift cycle. The power unit also includes an industry-leading two-year limited warranty.
Key Features
-
ALI Certified Lift
-
14,000 lb. Capacity
-
Heavy-Duty Commercial Construction
-
Open-Front Design for unobstructed vehicle access
-

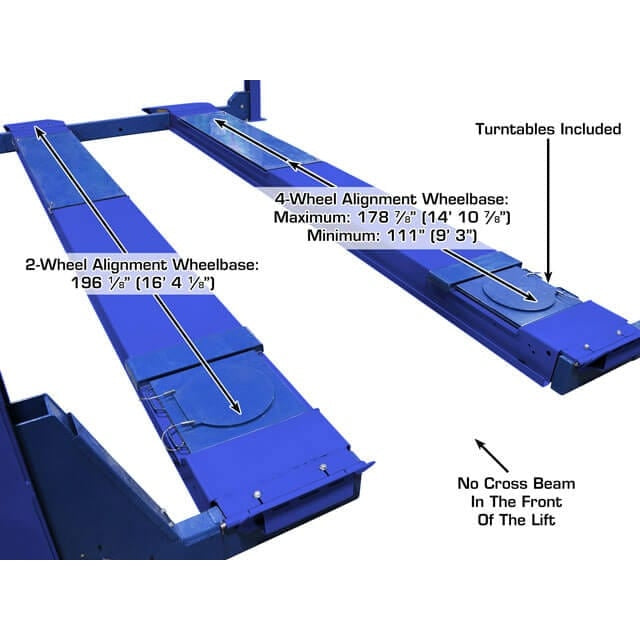

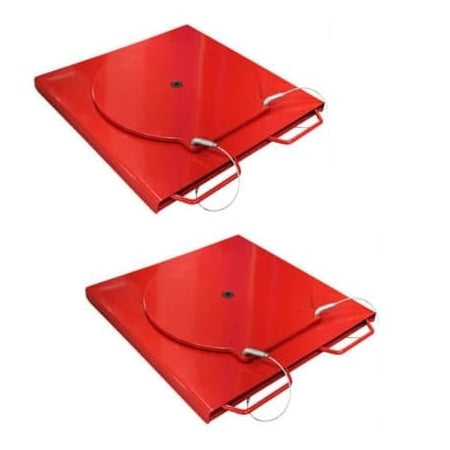

Built-In Slip Plates and Turntables for alignment work
-
Extended Runways for larger vehicles
-

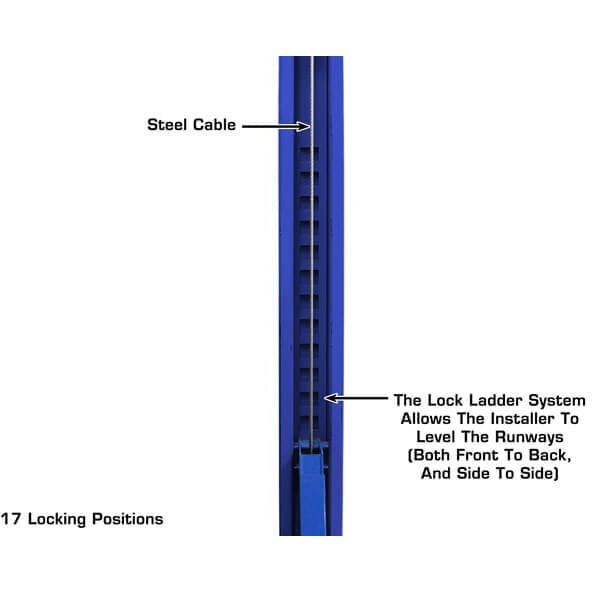

Adjustable Lock Ladder Design
-
Dual Lock Safety System
-

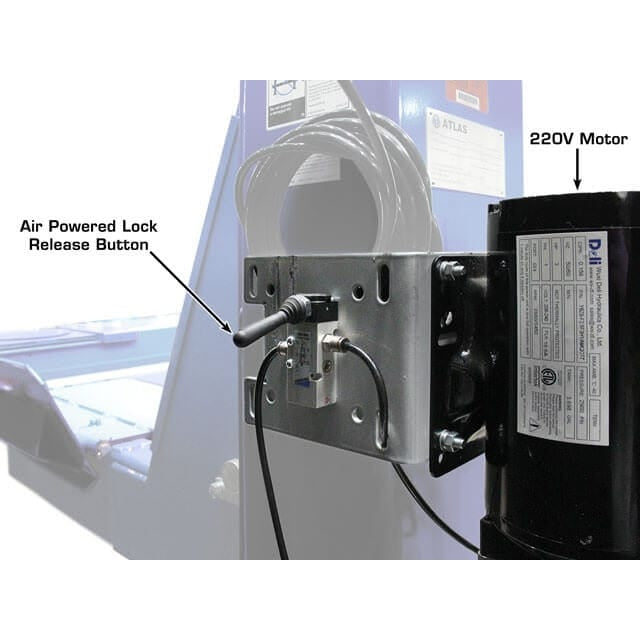

Air-Operated Single Point Lock Release (requires external air supply, 85–115 PSI)
-
Premium Powder-Coated Finish
-

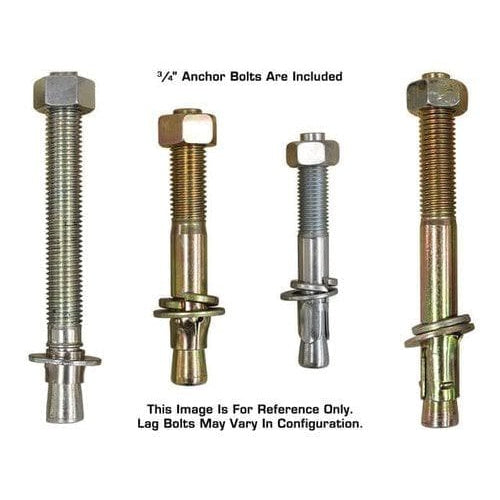

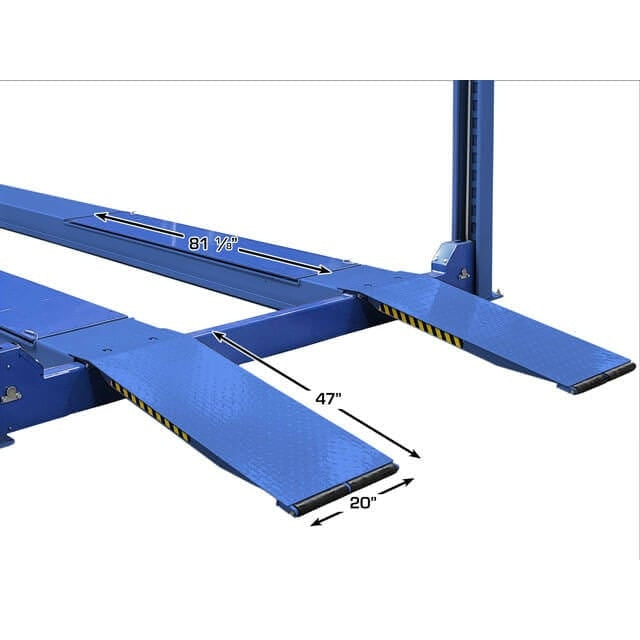

Steel Approach Ramps & Mounting Hardware Included
-
Standard with ALLY AL3000 Power Unit
-
220V / 1-Phase Electrical Operation (30A Breaker Required)
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 14,000 lb. |
| Lifting Height | 73 ¼" (6' 1¼") |

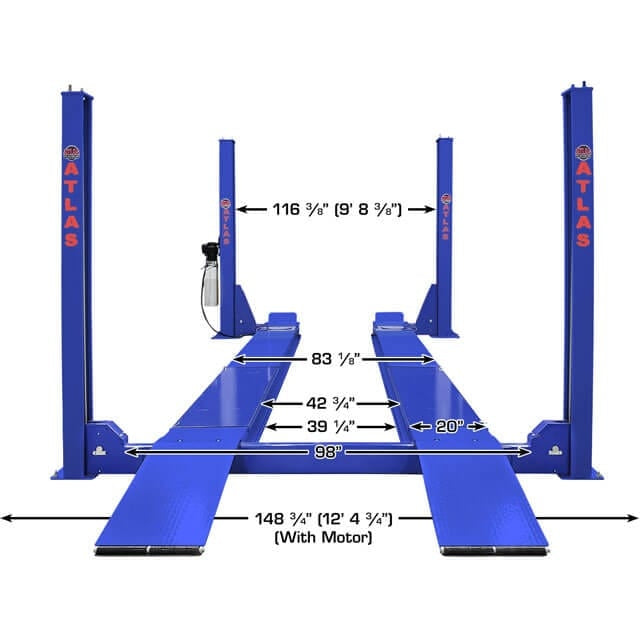

| Overall Width (w/o Motor) | 140 ⅛" (11' 8⅛") |
| Overall Width (w/ Motor) | 148 ¾" (12' 4¾") |
| Overall Length (w/ Ramps) | 272 ⅛" (22' 8⅛") |
| Runway Length | 223 ½" (18' 7½") |
| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42 ¾" (39 ¼" with rail) |

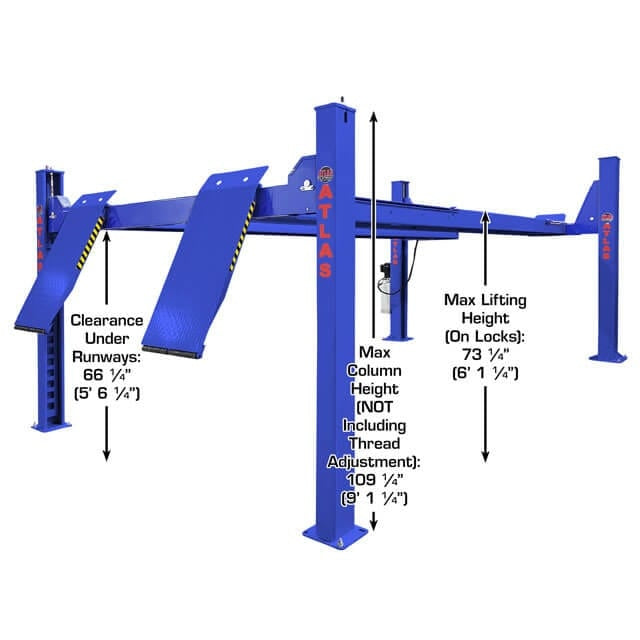

| Clearance Under Runways | 66 ¼" (5' 6¼") |
| Clearance Between Columns | 116 ⅜" (9' 8⅜") |

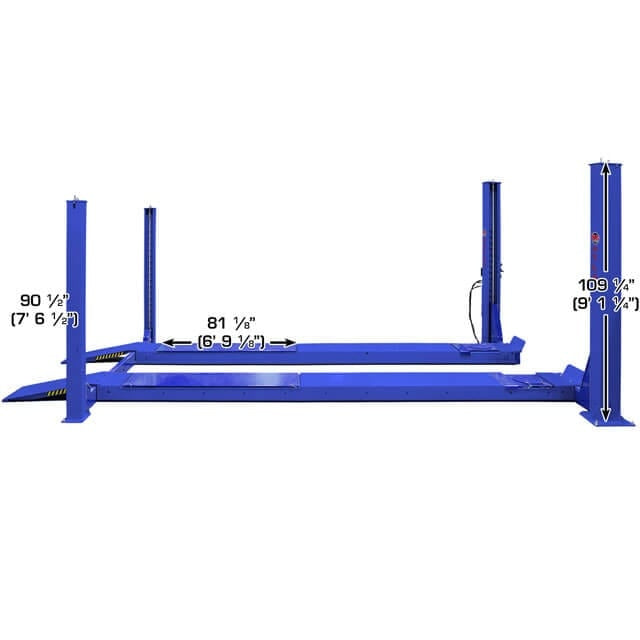

| Height of Columns | Rear: 92 ½" (7' 8½") / Front: 109 ¼" (9' 1¼") |
| Maximum Wheelbase | 203" (16' 11") |
| Drive-Through Width | 94 ½" (7' 10½") |
| Air Requirement | 85–115 PSI (external supply required) |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |

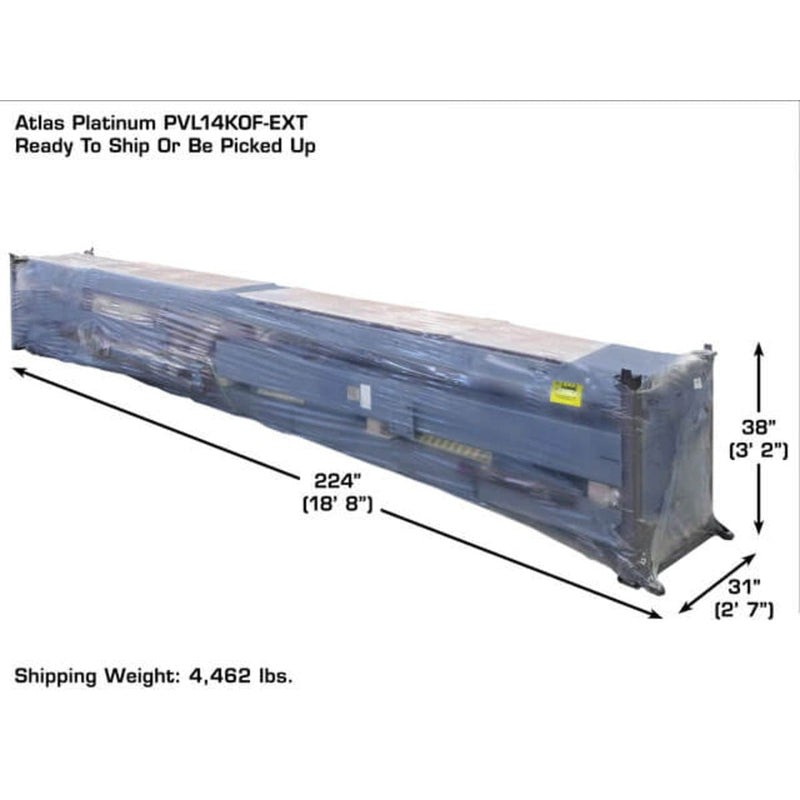

| Shipping Weight | 4,462 lb. |
| Concrete Requirement | Minimum 6" at 3,000 PSI |
Warranty Coverage:
-
5-Year Structural
-
2-Year Hydraulic
-
2-Year Power Unit
