Description
Atlas® Platinum PVL15 – ALI Certified 15,000 lb. Capacity Commercial 2-Post Lift

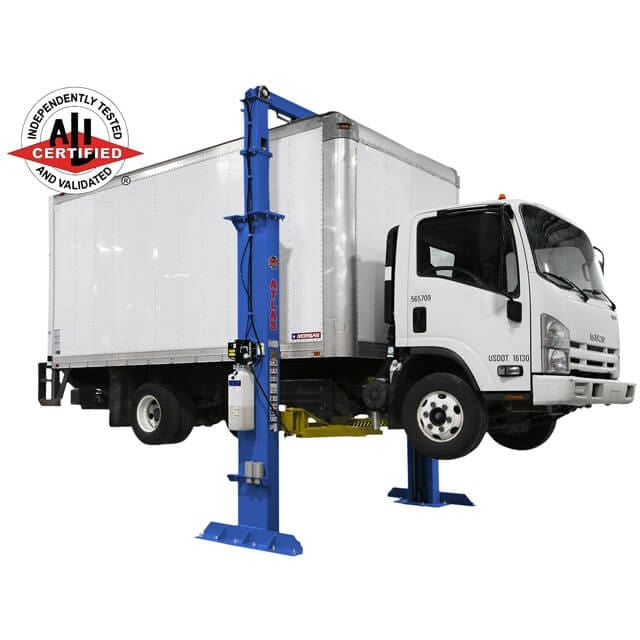

The Atlas® Platinum PVL15 is a commercial-grade, ALI Certified two-post lift engineered for heavy-duty performance and professional use. With a 15,000 lb. lifting capacity, it’s designed to handle everything from long wheelbase pickup trucks to large service vehicles with ease and precision.

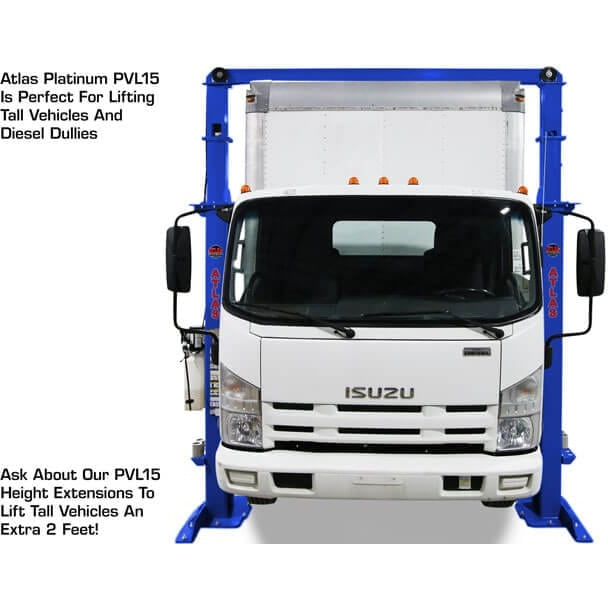

Standing at 174 ½″ (14′ 6 ½″) in standard configuration, the PVL15 can be upgraded with an optional Height Extension Kit to provide an additional 2 feet of clearance, making it ideal for servicing taller vehicles. Built for reliability, power, and smooth operation, this lift is a top choice for high-volume repair shops and fleet service centers.

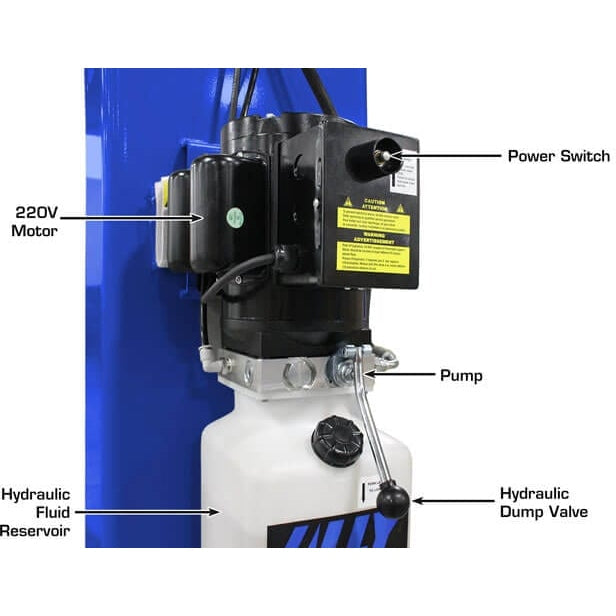

At the heart of the PVL15 is the ALLY Hydraulic AL2300 Power Unit, a premium-grade system certified by MET Laboratories Inc. for electrical compliance in both the U.S. and Canada. It features heavy-duty armatures and enhanced silver-infused motor windings, minimizing heat buildup and ensuring consistent torque throughout the lift cycle. The ALLY power unit is backed by an industry-leading two-year limited warranty, guaranteeing professional-level performance and longevity.
Combining advanced engineering, superior build quality, and ALI-certified safety, the Atlas® Platinum PVL15 is the ultimate solution for professionals who demand dependable lifting capability and exceptional versatility.
Key Features
-
ALI Certified Lift for verified safety and performance
-
15,000 lb. Lifting Capacity
-
Heavy-Duty, Commercial-Grade Construction
-
Extra-Tall and Extra-Wide Design accommodates larger vehicles
-
Overall Height: 174 ½″ (14′ 6 ½″) (extendable with optional Height Extension Kit)
-

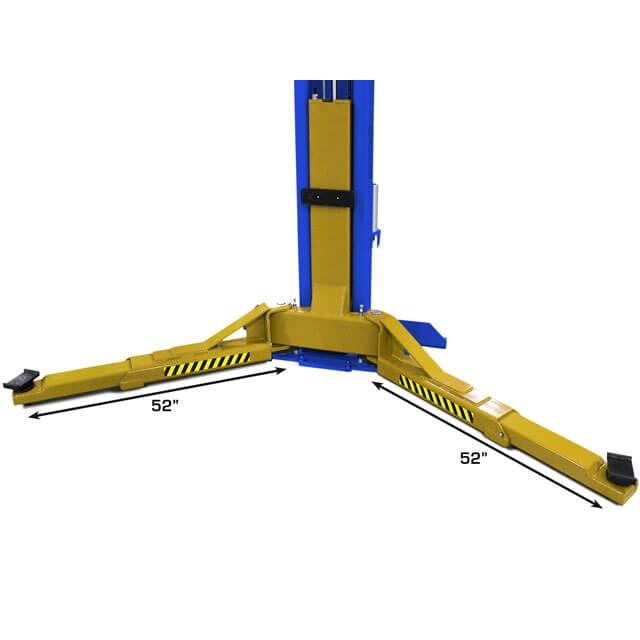

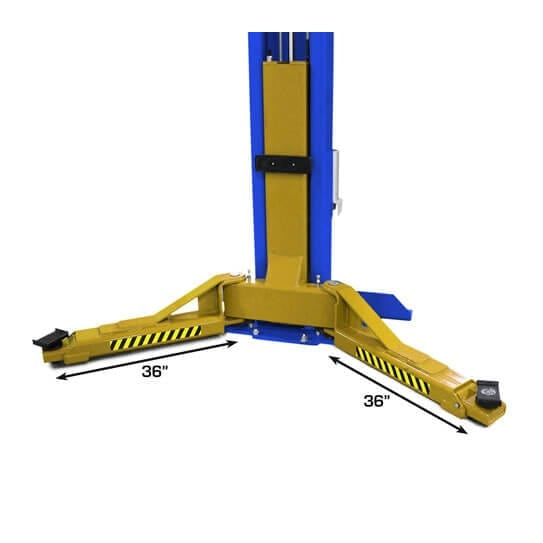

Symmetric Arm Configuration for balanced lifting of large trucks and vans
-
Padded Carriages protect vehicle doors and body panels
-

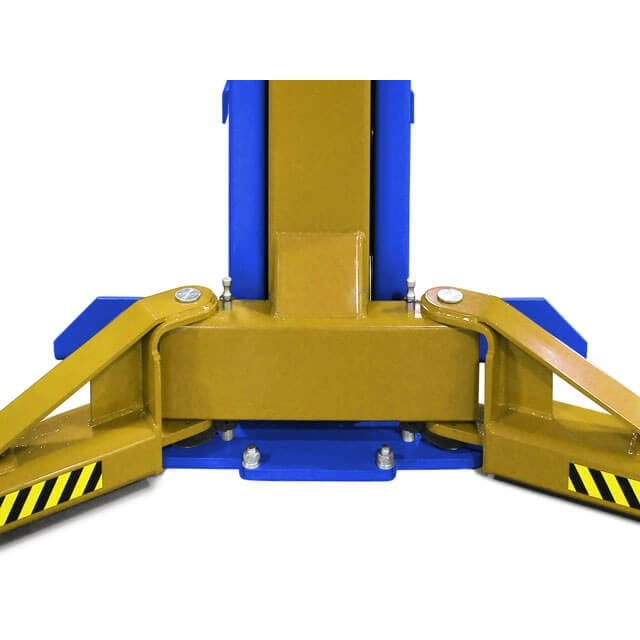

Professional-Grade Arm Lock Restraint System for operator safety
-

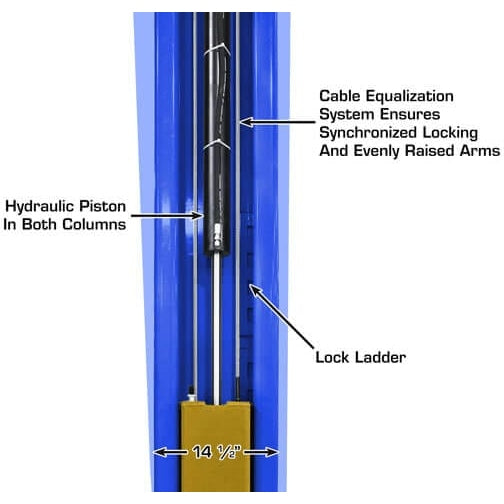

Dual Direct-Drive Hydraulic Cylinders provide smooth, efficient lift motion
-

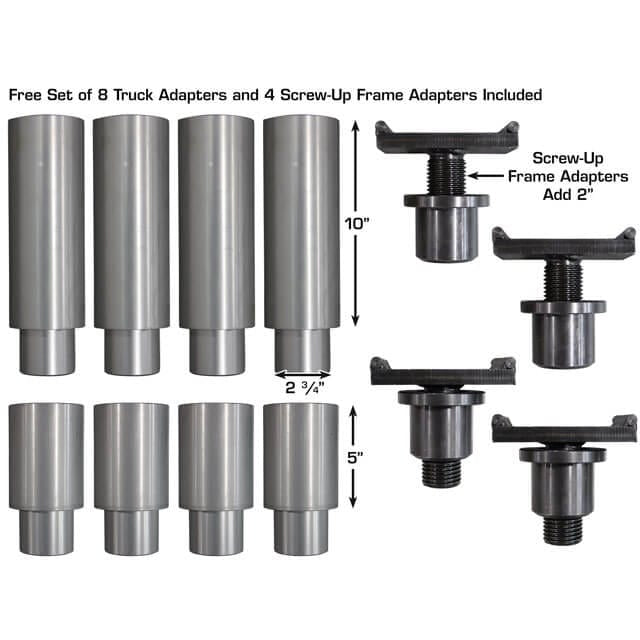

Includes Free 8-Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
-
Heavy-Duty 3/8″ Equalization Cables for precise synchronization
-
Standard with Premium ALLY Hydraulic Power Unit
-
Mounting Hardware Included
-

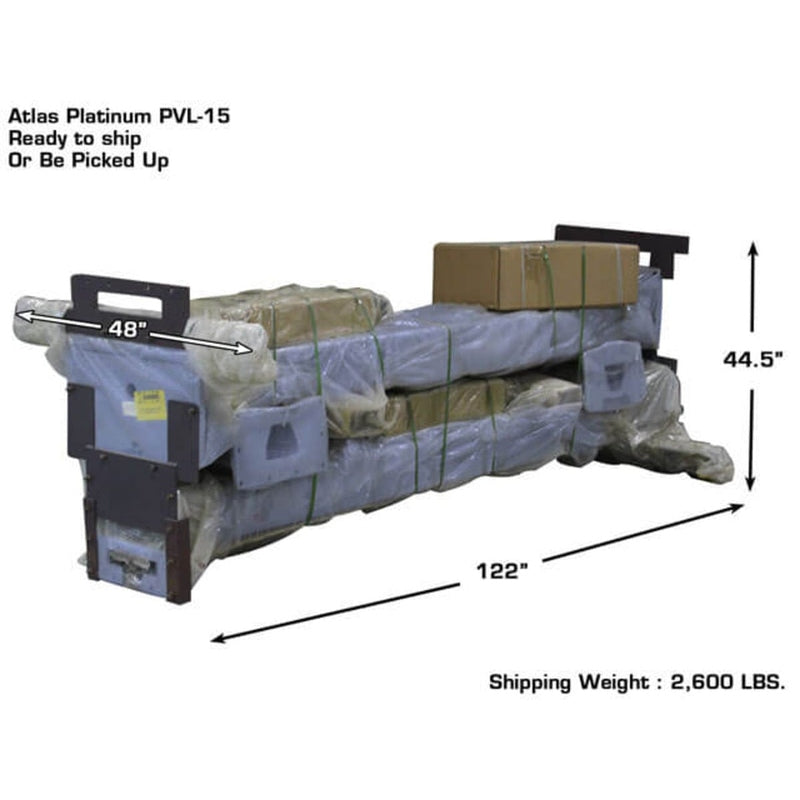

Shipping Weight: 2,600 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic | 2-Year Power Unit
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 15,000 lb. |

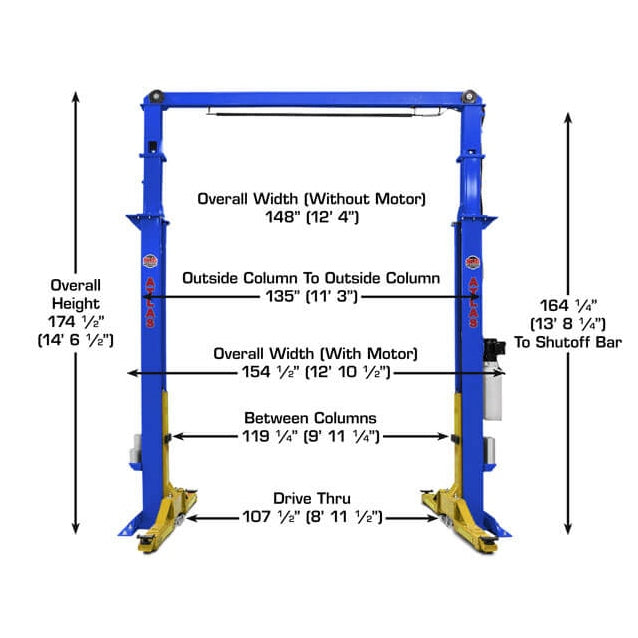

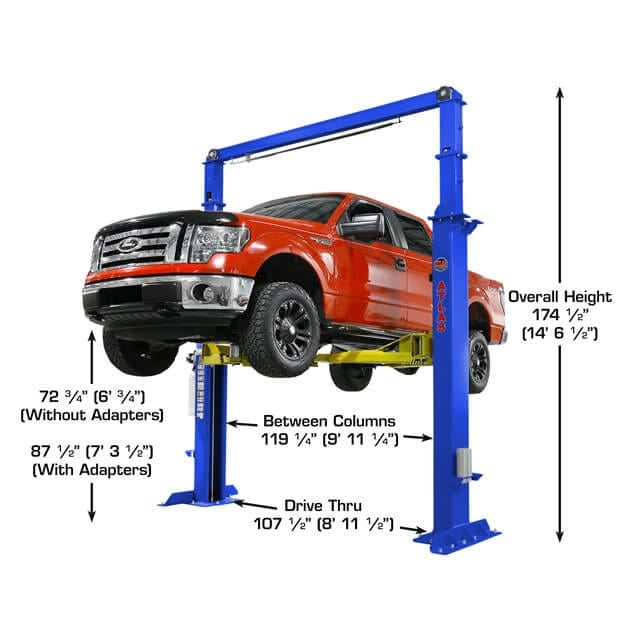

| Overall Height | 174 ½″ (14′ 6 ½″) |
| Overall Floor Width | 148″ (12′ 4″) |
| Outside Column to Outside Column | 135″ (11′ 3″) |

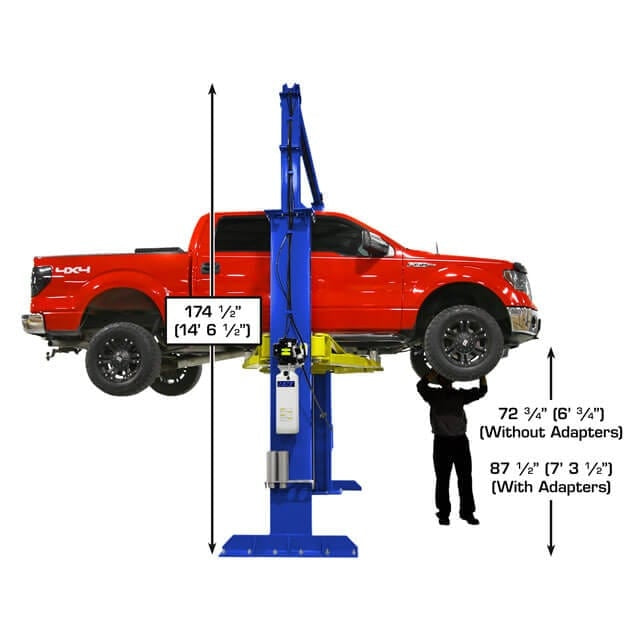

| Maximum Lift Height (Without Adapters) | 72 ¾″ |
| Maximum Lift Height (With Adapters) | 87 ½″ |
| Minimum Arm Height | 6″ |
| Inside Column Width | 119 ¼″ (9′ 11 ¼″) |
| Drive-Through Clearance | 107 ½″ (8′ 11 ½″) |
| Column Size | 8″ × 14 ½″ |
| Column Steel Thickness | 8 mm |

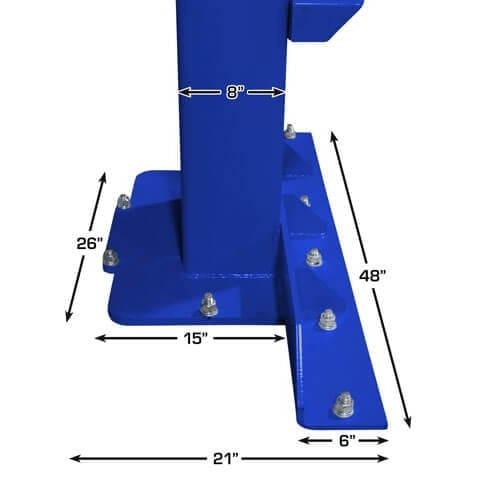

| Base Plate Dimensions | 21″ × 48″ |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,600 lb. |

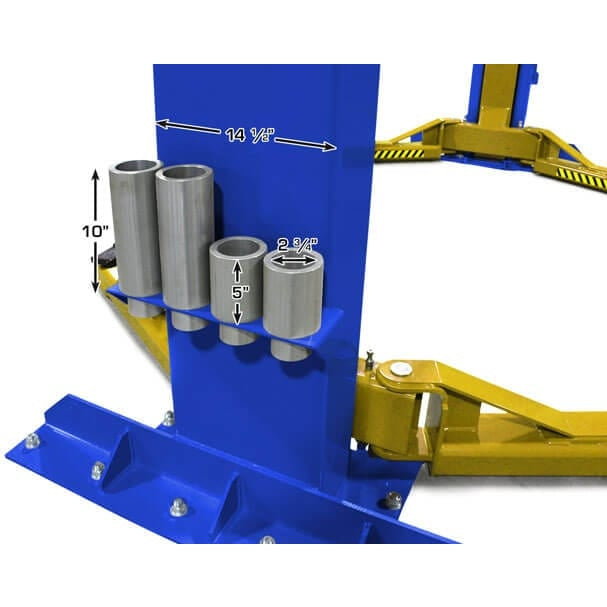

| Adapter Heights | Four each: 5″ and 10″ |
| Arm Hole/Adapter Peg Size | 2.75″ |
| Concrete Requirement | Minimum 6″ thick slab rated at 3,000 PSI |
