Description

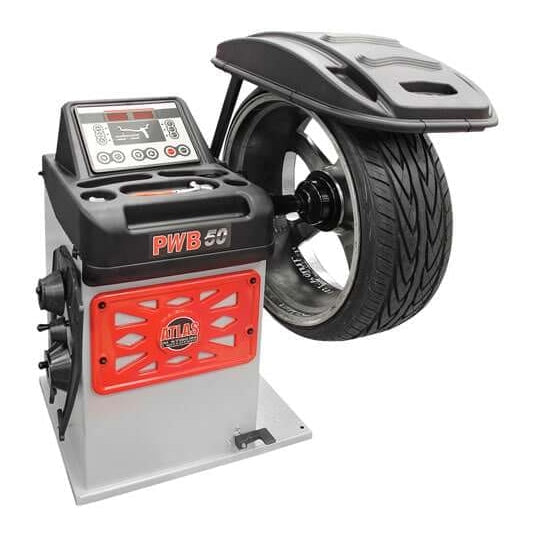

The Atlas Platinum PWB50 is a premium computer wheel balancer with an LED display and automatic 2D data entry from a single measuring gauge. It offers multiple ALU weight positions and guides you back to the exact spot after each spin, balancing to 1 gram in a 7-second cycle. It handles tires up to 43″ and wheels up to 165 lb and runs on 110V. Compare all wheel balancers or more Atlas equipment. Financing is available through Approve and Shop Pay.

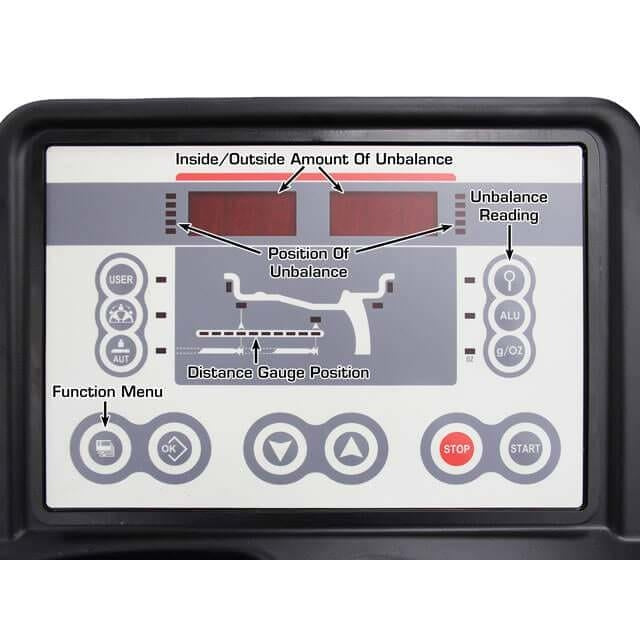

The Atlas® Platinum PWB50 is a high-performance electronic wheel balancer engineered for precision, speed, and operator convenience. Featuring an easy-to-read LED display and Automatic 2D Data Entry via a single measuring gauge, it simplifies wheel balancing for professional automotive environments.
With multiple ALU weight placement configurations, the PWB50 allows the operator to select the most convenient position for adhesive weights. After the spin cycle, the machine automatically guides the user back to the exact location for precise weight placement. The Fast & Easy Split (FES) function makes hiding adhesive weights behind wheel spokes simple, while the Opposite Weight Function (OWF) enables repositioning of weight application from 12 o’clock to 6 o’clock for easier access.
Additionally, the OPTIMATCH software allows for efficient tire and wheel match-mounting to correct imbalance, ensuring smooth, accurate results even for challenging wheel assemblies. Combining Italian-engineered components with Atlas®’ renowned Factory Direct Value, the PWB50 delivers exceptional reliability and long-lasting performance for high-volume automotive shops.
Features
-
Platinum computer-controlled motorized spin balancer
-
Precision Italian engineering and components
-

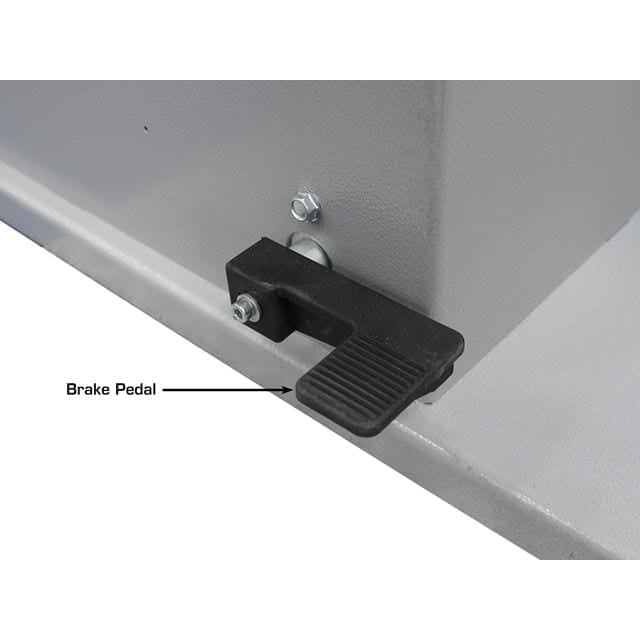

Automatic and pedal-operated brake for convenience
-
Automatic start/stop when the hood is lowered or raised
-
Supports both static and dynamic balancing modes
-
Optimatch, FES (Fast & Easy Split), and OPF (Opposite Position) functions for advanced balancing control
-
Multiple ALU-S and ALU programs for various wheel types
-
Automatic 2D Data Entry for faster operation
-
NWN (No Wheel Needed) calibration feature
-
Self-diagnosing and self-calibrating system
-
USB hub for firmware updates via PC or notebook
-
Exceptional stability and accuracy when detecting imbalance between planes
-
Dual-unit display in grams or ounces, and mm or inches
-
No anchor-down installation required
-

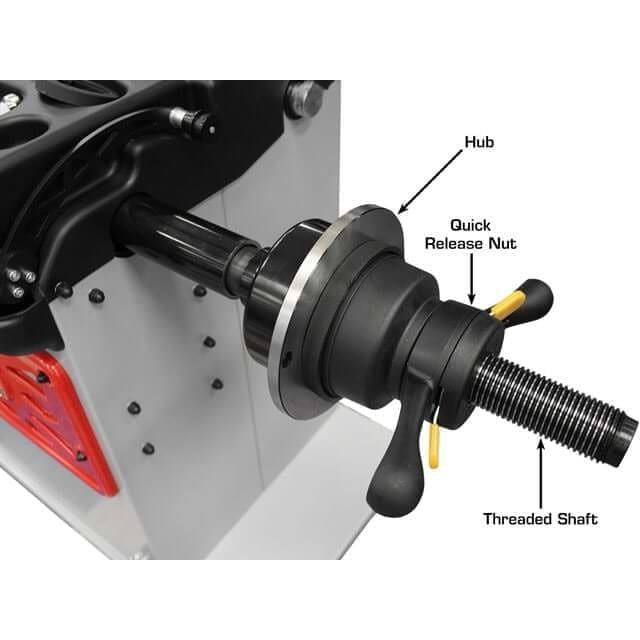

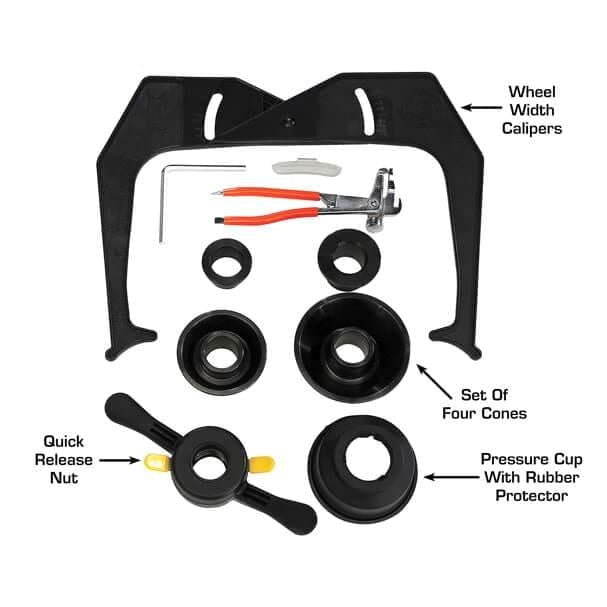

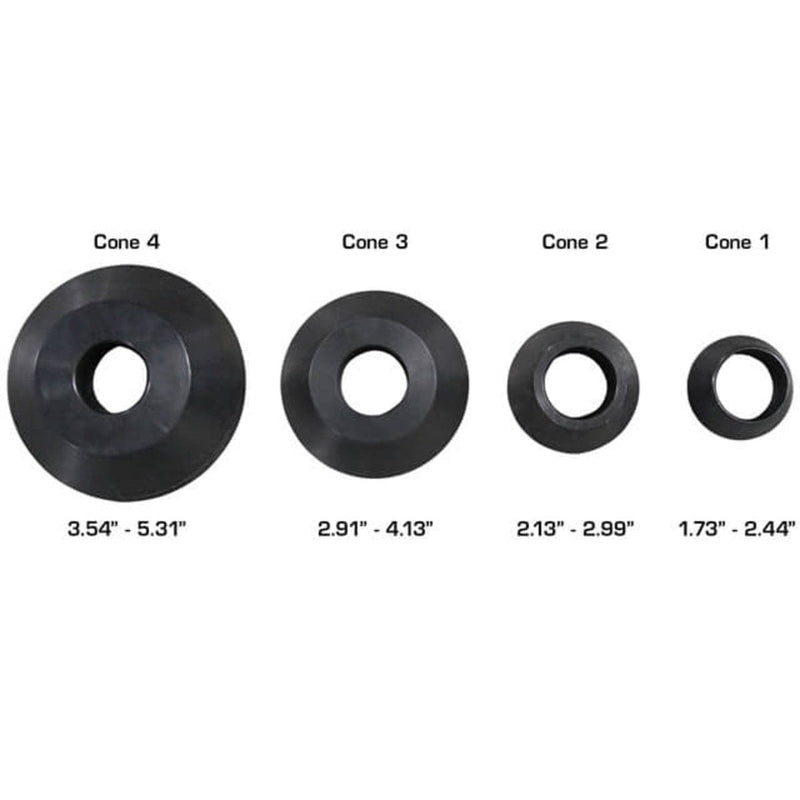

Includes: plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
-
Replacement parts and wear items readily available
-
2-Year Parts Only Warranty
Specifications
Atlas® Platinum PWB50 Specifications
-

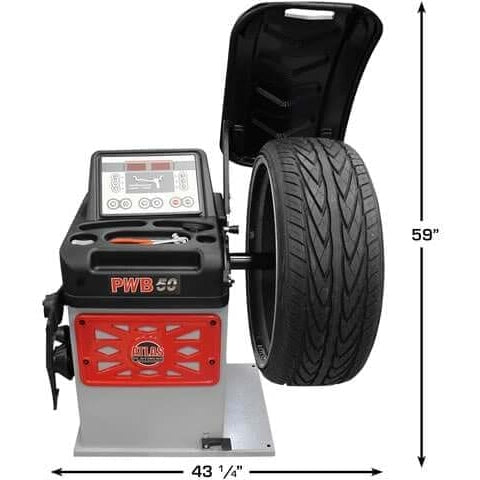

Max Tire Diameter: 43"
-
Rim Sizes (Cars and Light Trucks): 10"–30"
-
Rim Width: 1½"–20"
-

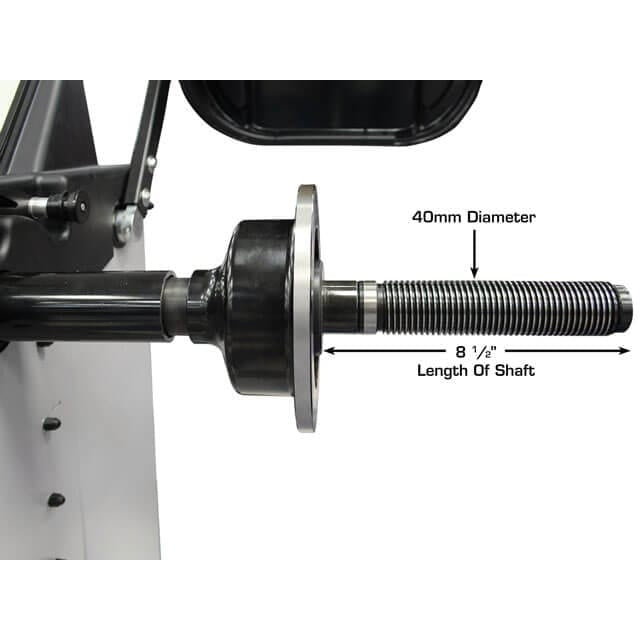

Shaft Size: 40 mm
-
Max Wheel Weight: 165 lbs
-
Balancing Speed: 130 rpm
-
Data Entry: Automatic 2D
-
Measurements: Standard or Metric
-
Accuracy: 1 gram
-
Weight Position Resolution: 1.4°
-
Self-Calibration: Yes
-
Cycle Time: 7 seconds
-
Power Supply: 110V
-
Shipping Weight: 230 lbs
