Description
The Atlas Platinum PWB90XL is a 3D video wheel balancer with super automatic data entry: one gauge reads offset and diameter while a touchless sonar reads rim width, so there is no manual measuring. A laser line guide shows exactly where to place each weight, and Optimatch, split-weight and opposite-position functions help with match mounting and hidden weight placement. It balances to 1 gram in a 7-second cycle, handles tires up to 43″ and wheels up to 165 lb, and runs on 110V. Compare all wheel balancers or more Atlas equipment. Financing is available through Approve and Shop Pay.

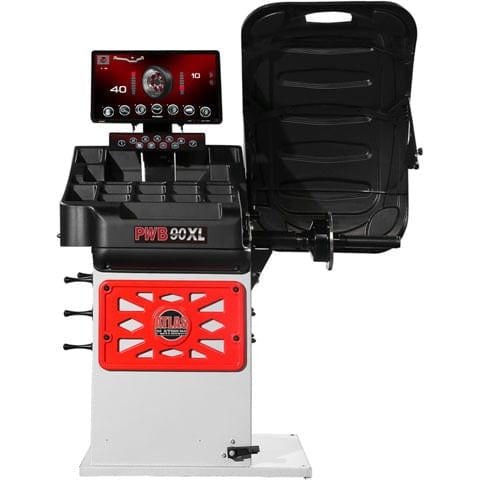

The Atlas® Platinum PWB90XL represents the pinnacle of wheel balancing technology, delivering unmatched precision, speed, and ease of operation. It features Super Automatic 3D Data Entry, combining a single gauge for offset and diameter measurement with touchless sonar technology for rim width — eliminating the need for manual measuring arms.
The intuitive weight placement arm allows operators to select the most convenient position for weight application, while a Laser Line Guide returns the user to the exact location after each spin cycle, ensuring flawless, first-time zero/zero balancing results. Advanced features like the Fast & Easy Split (FES) function make concealing adhesive weights behind spokes effortless, and the Opposite Weight Function (OWF) enables repositioning of weight application from 12 o’clock to 6 o’clock for easier access.
For challenging assemblies, the OPTIMATCH software optimizes tire and wheel balance through match mounting, providing smoother results and extended tire life.
Make no mistake — the PWB90XL stands shoulder-to-shoulder with the industry’s most premium models. Combining Italian-engineered components with Atlas®’ renowned Factory Direct Value, this wheel balancer guarantees professional-grade accuracy, long-term reliability, and exceptional return on investment.
Features
-

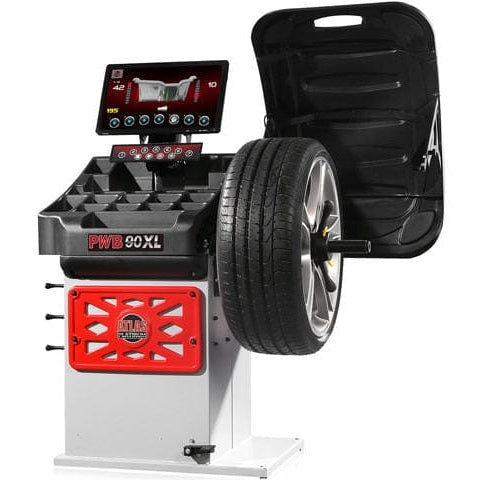

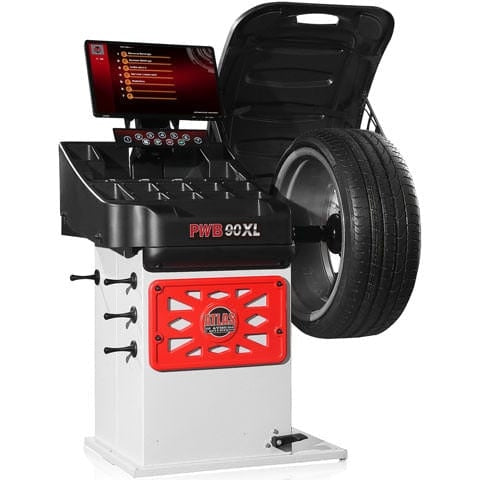

Platinum 3D Video Motorized Spin Balancer for advanced precision and efficiency
-
Italian-engineered components ensuring superior build quality and performance
-

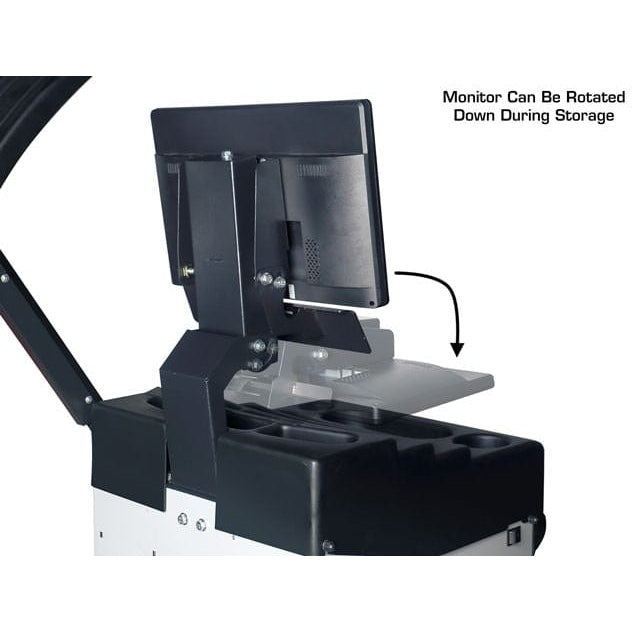

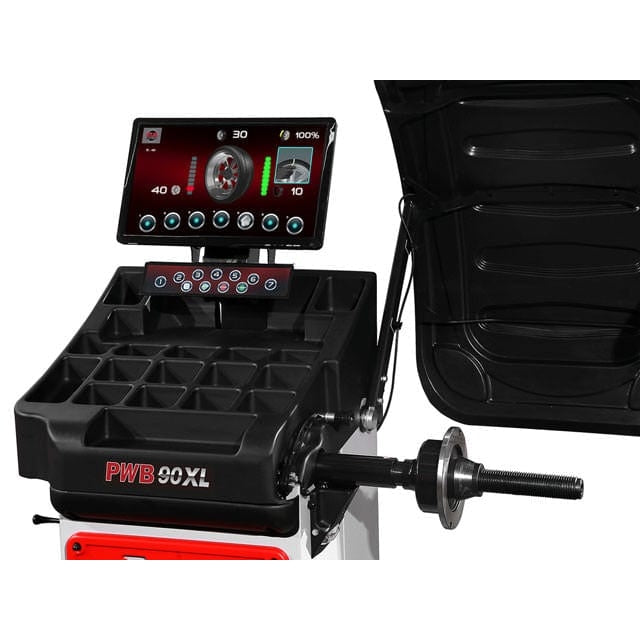

High-resolution video monitor display for clear, user-friendly operation
-
Super Automatic 3D Data Entry with touchless sonar technology for rim width measurement
-
Laser line guide for precise and effortless weight placement
-

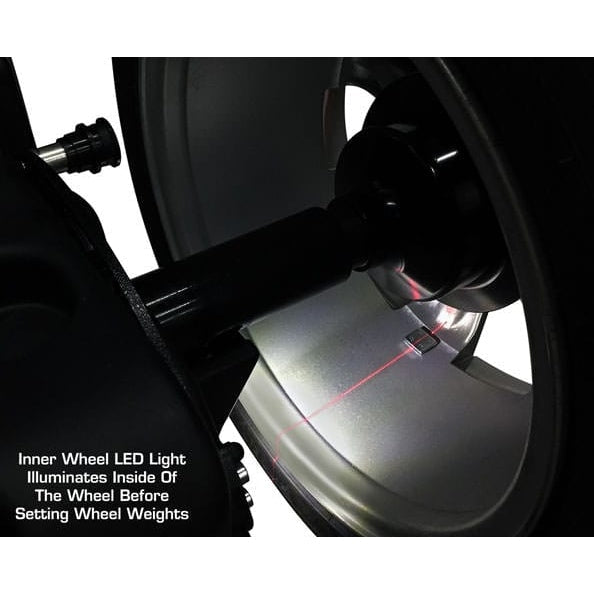

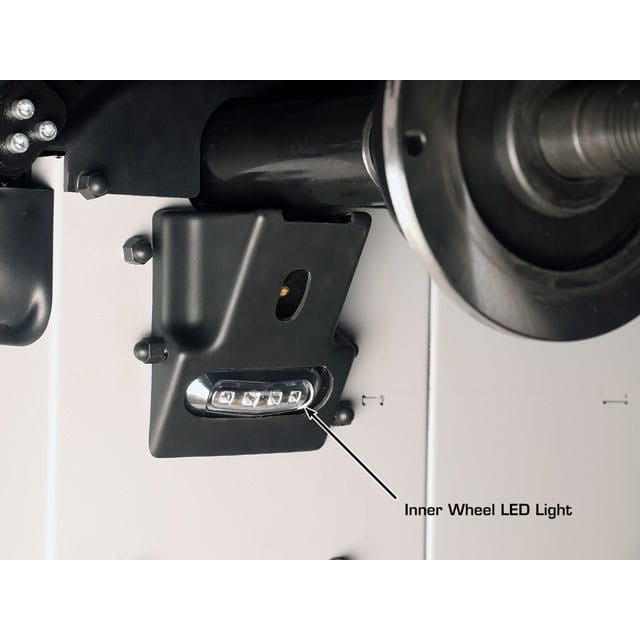

Integrated LED lighting to illuminate the wheel interior for optimal visibility
-
Static and dynamic balancing modes for versatile wheel service
-
Optimatch, FES (Fast & Easy Split), and OPF (Opposite Position) functions for advanced balancing and aesthetic weight placement
-
Special ALU-S and multiple ALU programs for different wheel types
-
NWN (No Wheel Need) system for simplified calibration and testing
-
Self-diagnosing and self-calibrating system for minimal downtime
-
USB hub for convenient firmware updates via PC or laptop
-
Exceptional balance reading stability across both measurement planes
-
Dual measurement display — grams or ounces, millimeters or inches
-
No anchor-down installation required, designed for mobility and convenience
-

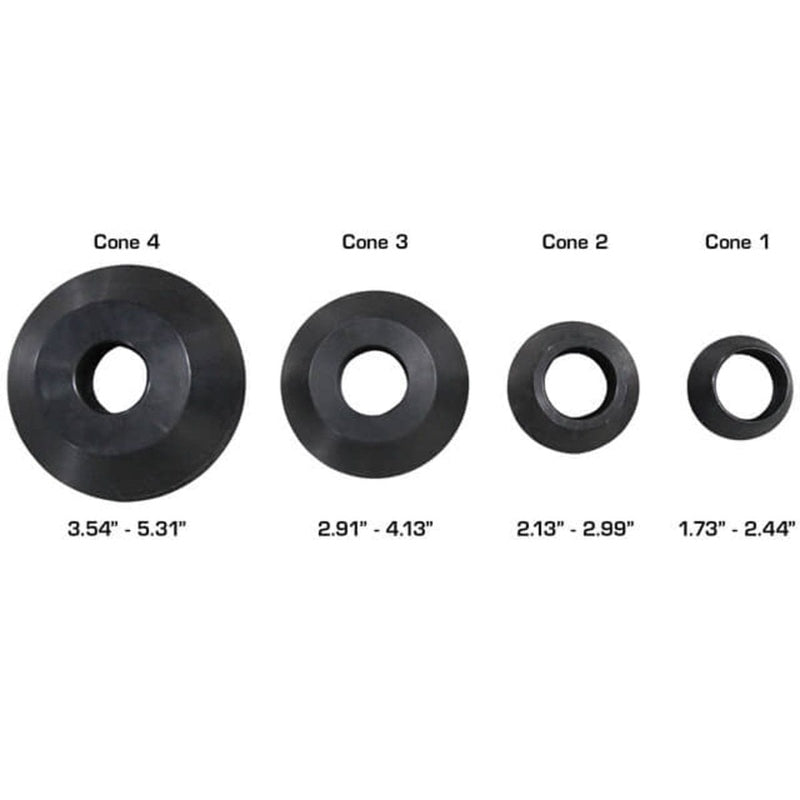

Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, and Measuring Calipers
-
Replacement parts and wear items readily available
-
2-Year Parts-Only Warranty for peace of mind
Specifications
| Model | Atlas® Platinum PWB90XL |
|---|---|
| Max Tire Diameter | 43" |
| Rim Size Range (Cars & Light Trucks) | 10" – 30" |
| Rim Width | 1.5" – 20" |
| Shaft Size | 40mm |
| Max Wheel Weight | 165 lbs |
| Balancing Speed | 130 rpm |
| Data Entry | Super Automatic 3D |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110V |
| Shipping Weight | 290 lbs |
