The Atlas® 408SL Super Deluxe portable vehicle storage lift is built for car enthusiasts who demand top-tier design, premium quality, and professional-grade construction. Combining the sleek style of the Atlas® Garage Pro Series with the durability and engineering of commercial-grade lifts, the 408SL sets a new standard in the hobbyist lift category.

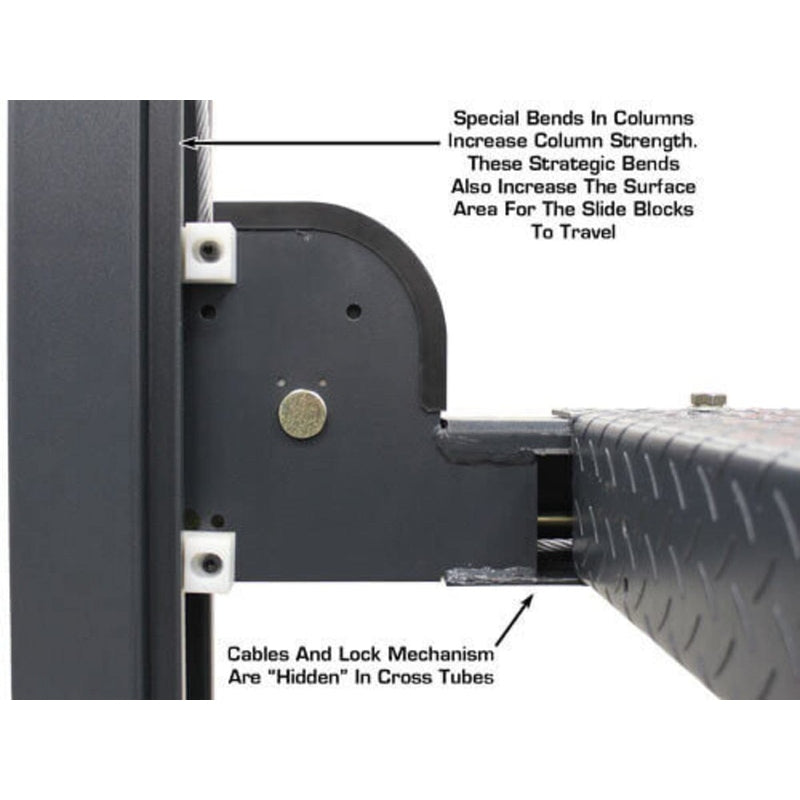

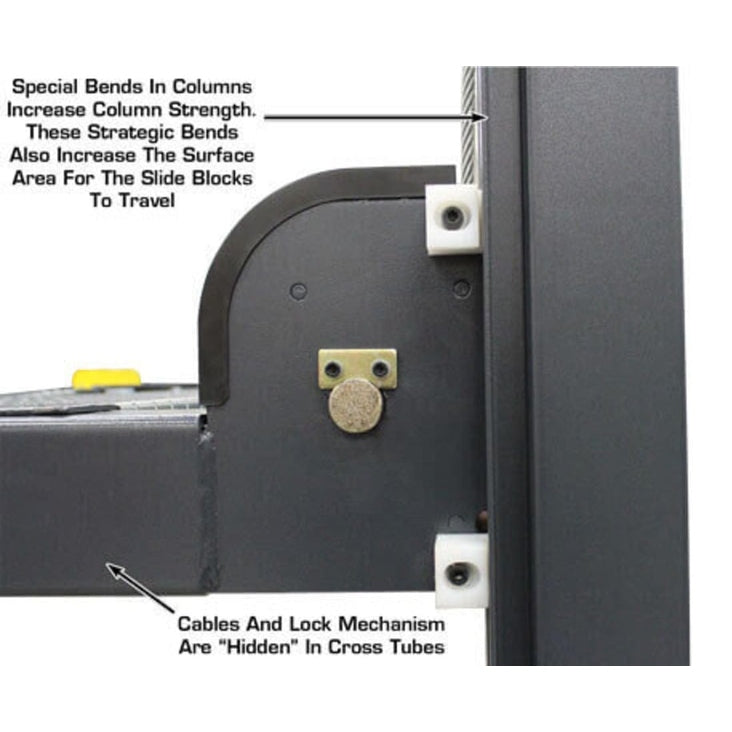

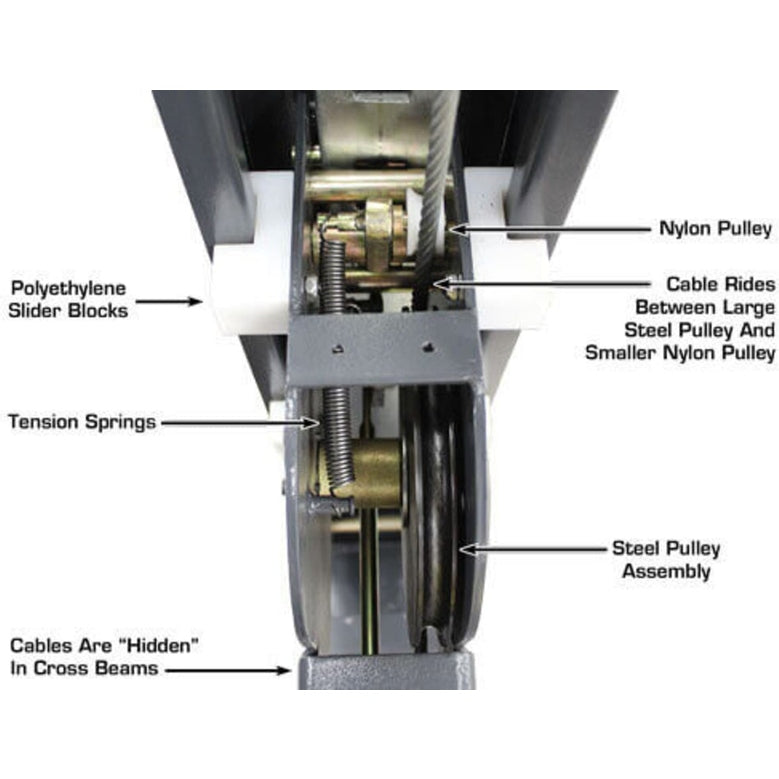

Every detail of the 408SL reflects superior craftsmanship. Its reinforced columns feature two precision bends that significantly increase column strength and expand the surface area for smoother slide block travel. The horizontal cables are fully concealed within the cross tubes for a clean, streamlined appearance, while professional-grade wheel covers protect the cables and double-lock system from exposure.
Weighing over 100 lbs. more than comparable hobbyist lifts, the Atlas® 408SL offers more structural steel, increased stability, and longer-lasting performance. It is built to the same engineering standards as the Atlas® 412 and Atlas® 414 commercial lifts but includes a caster kit for true portability, allowing easy relocation when needed.
If you’re looking for a lift that combines professional-grade strength with refined design, the Atlas® 408SL Super Deluxe stands out as one of the most impressive storage lifts available in the U.S.

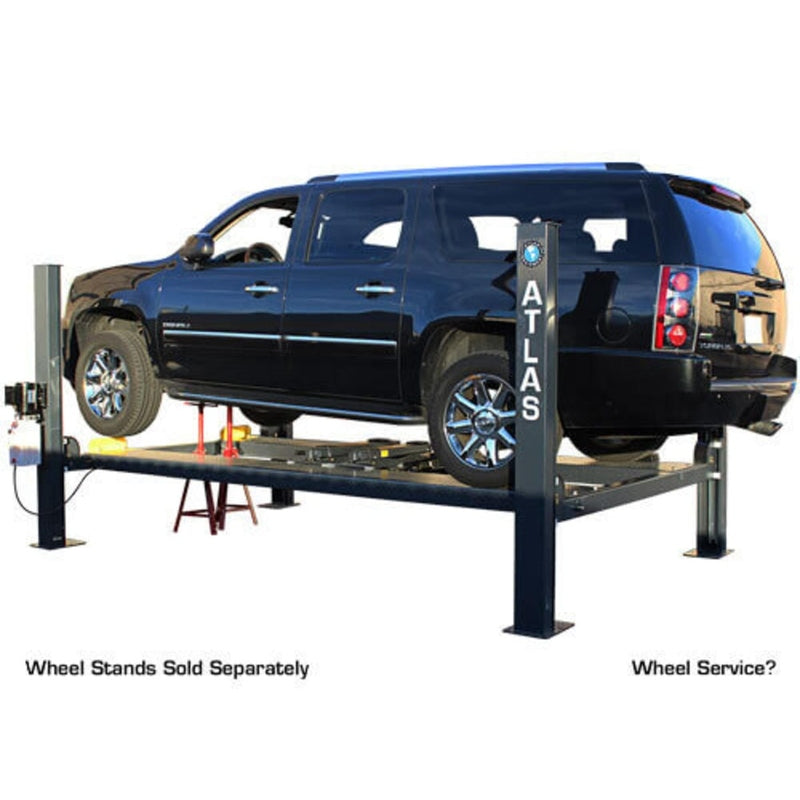

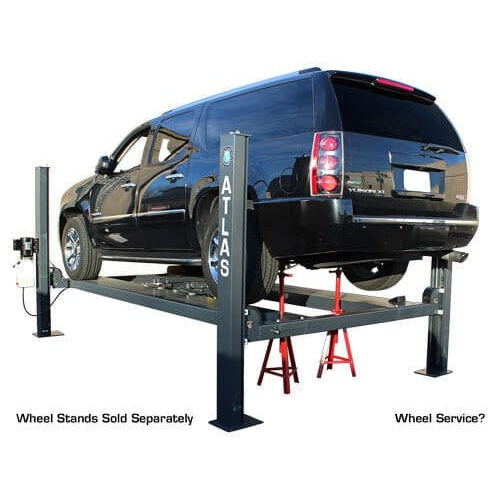

This combo package also includes two Atlas® RJ35 sliding bridge jacks, perfect for lifting a vehicle’s wheels off the runways for tire, brake, and suspension service.
Features
DELUXE 408SL Lift
-
8,000 lb. lifting capacity
-
Free-standing, portable design
-
Diamond-plated runways for added grip and durability
-
Single-point lock release for easy operation
-

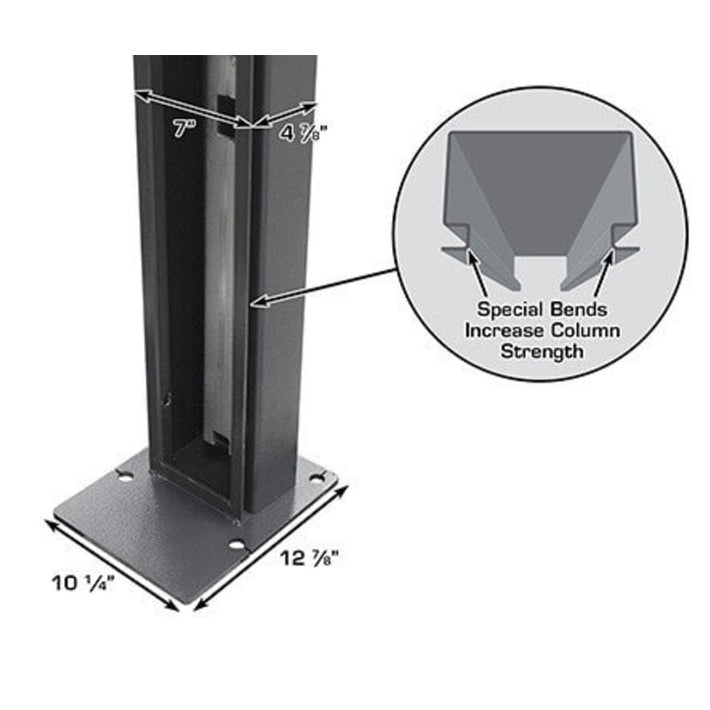

Reinforced columns with dual structural bends for greater strength
-
Larger column size for improved stability
-

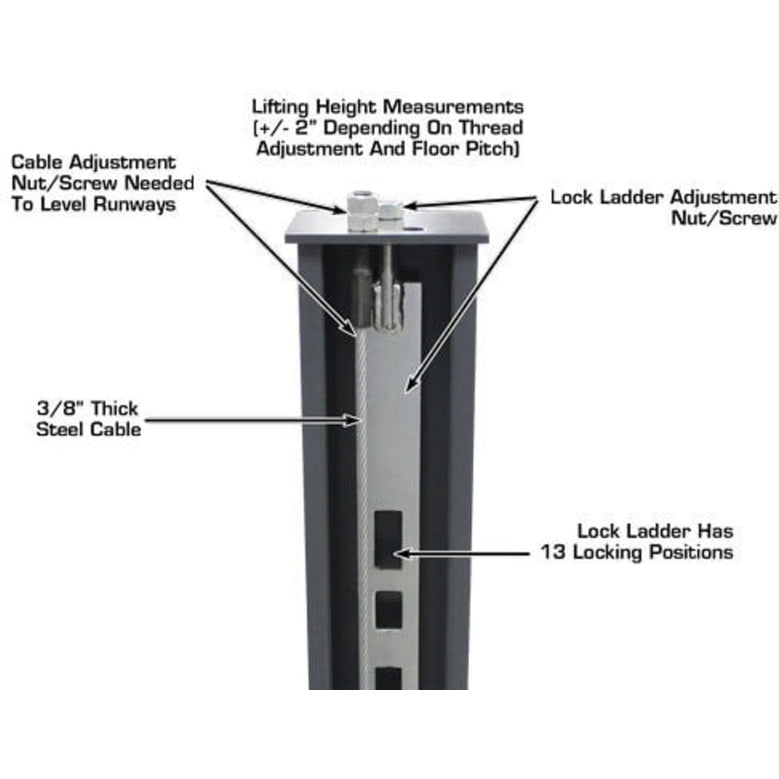

Double-lock safety system for enhanced protection
-
High-quality steel-gray powder-coat finish
-

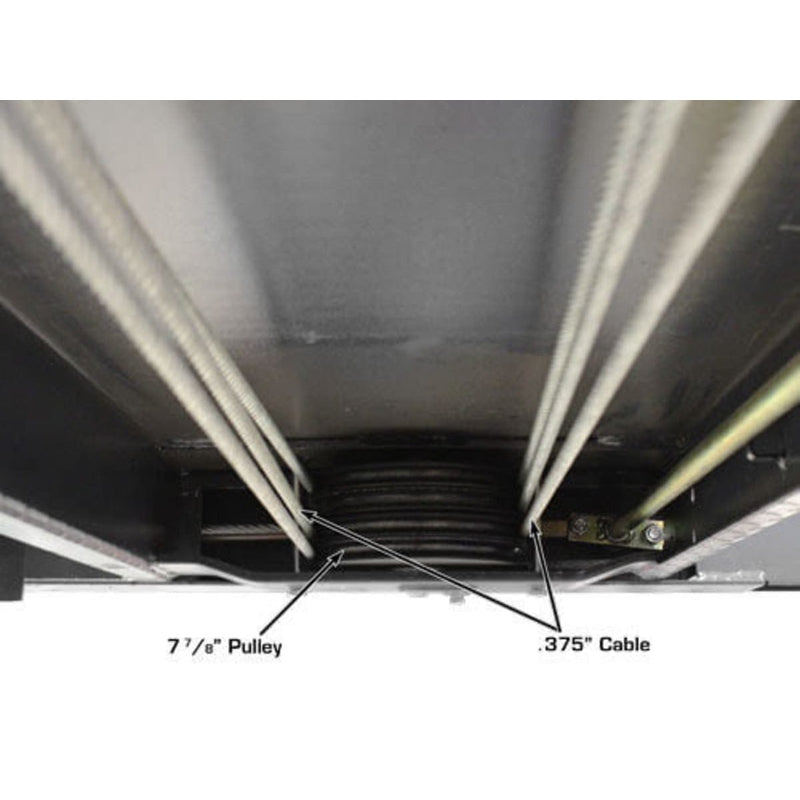

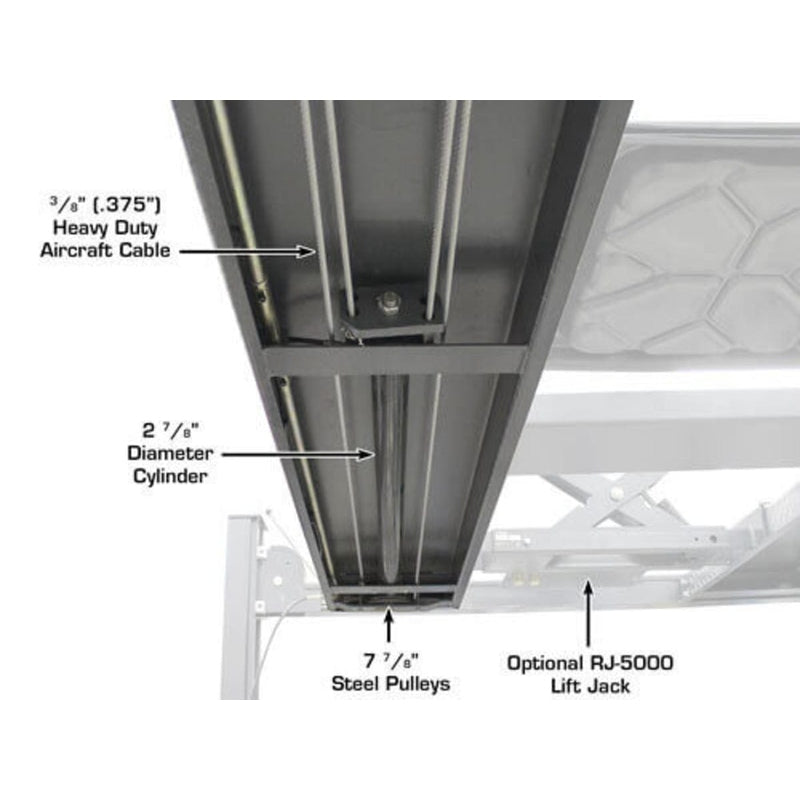

Concealed cables routed through columns and cross tubes for a clean look
-
Commercial-grade wear blocks for long-term reliability
-

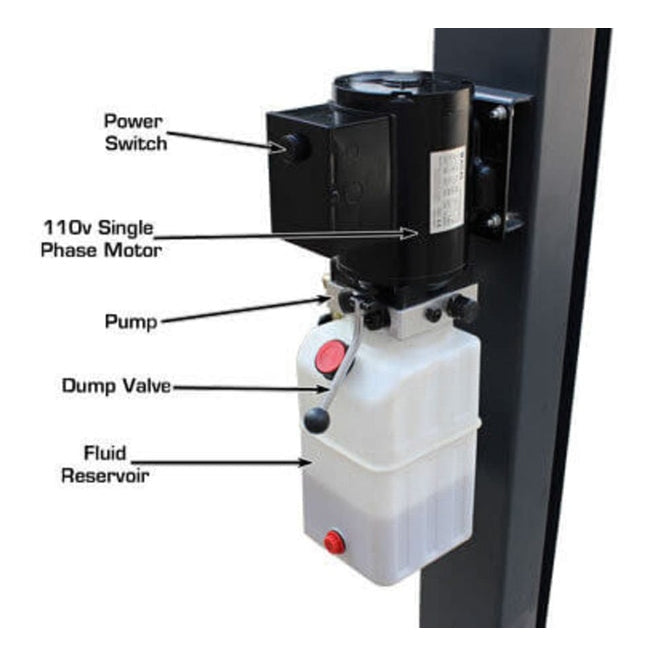

Power unit can be mounted at any corner for flexible setup
-
Wider access space between runways for easier entry and maintenance
-

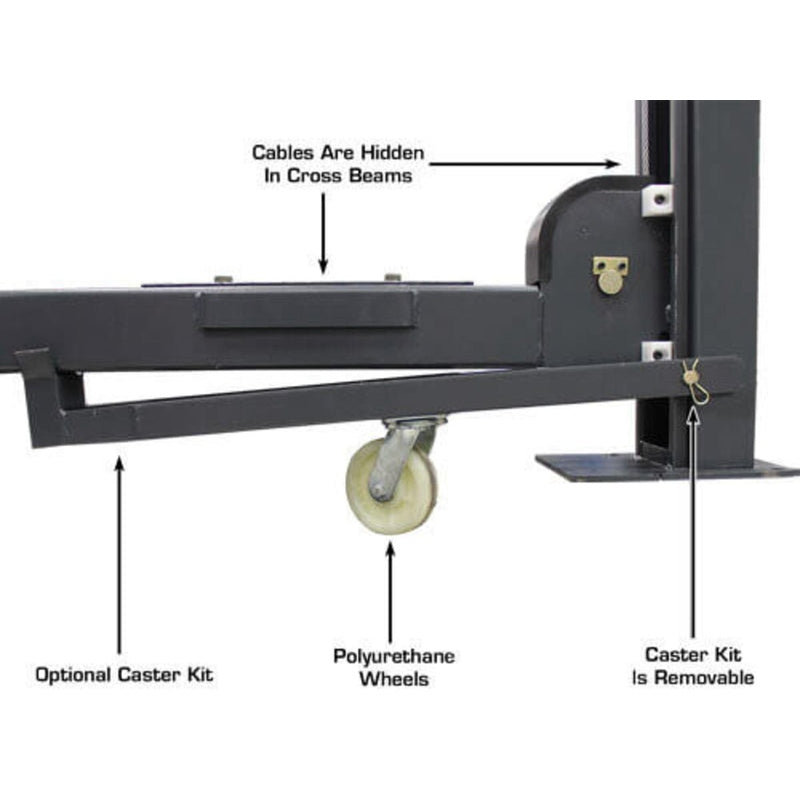

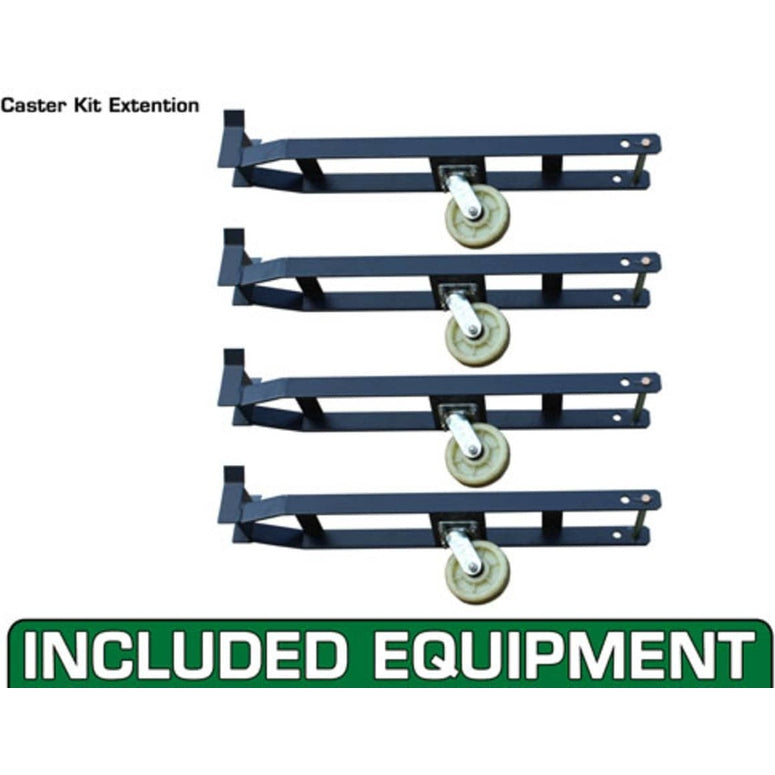

Includes caster kit with polyurethane wheels for mobility
-

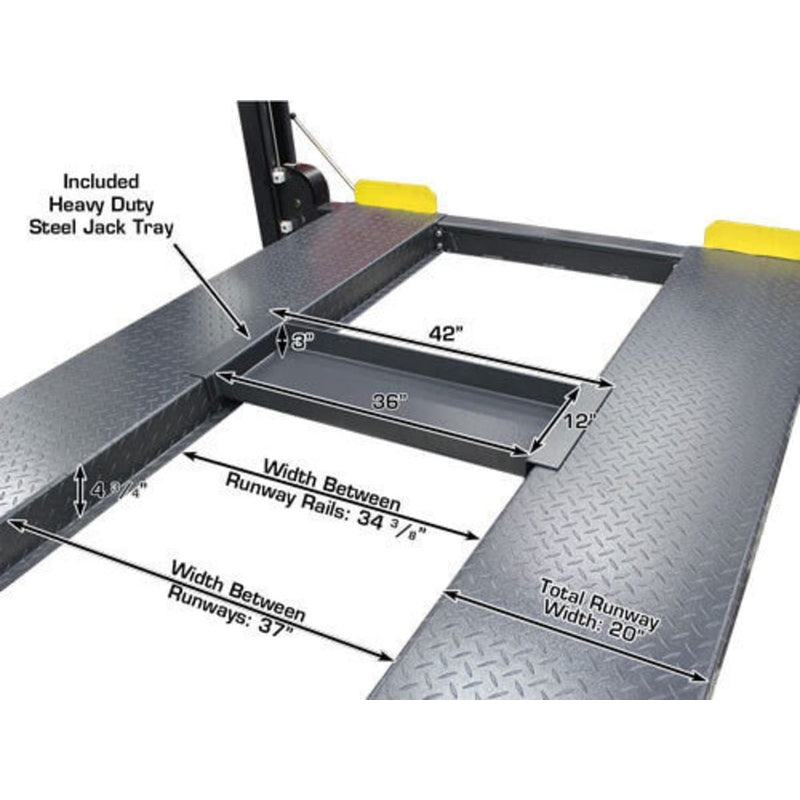

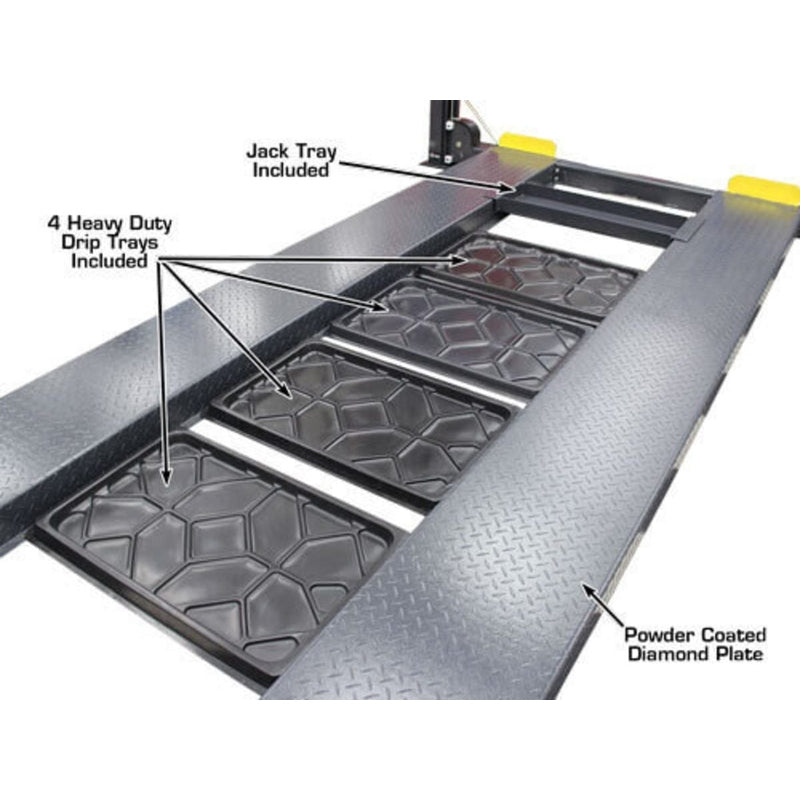

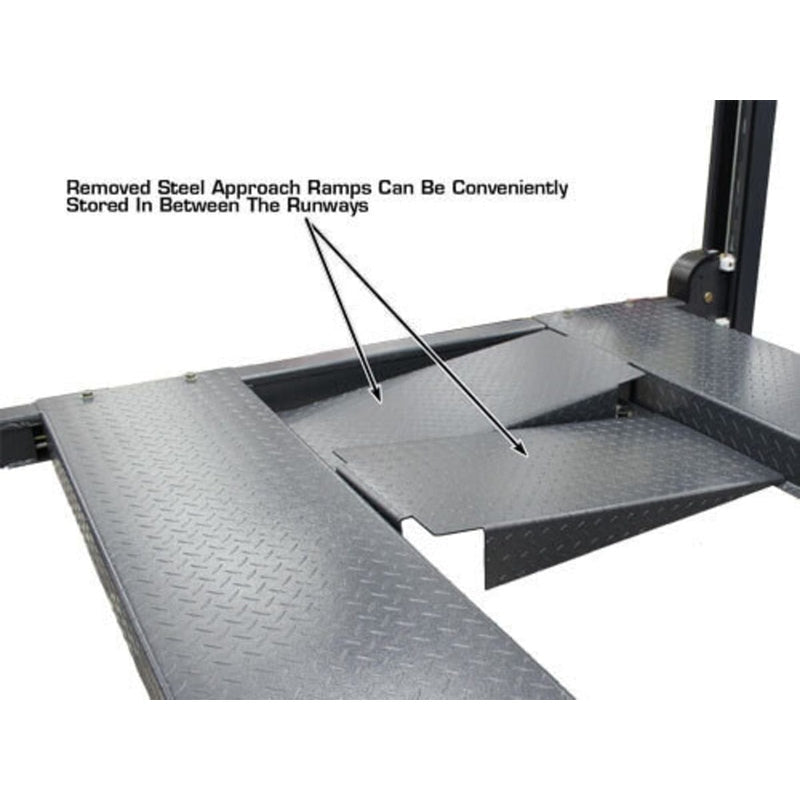

Includes steel approach ramps and steel jack tray
-
(4) plastic drip trays included
-

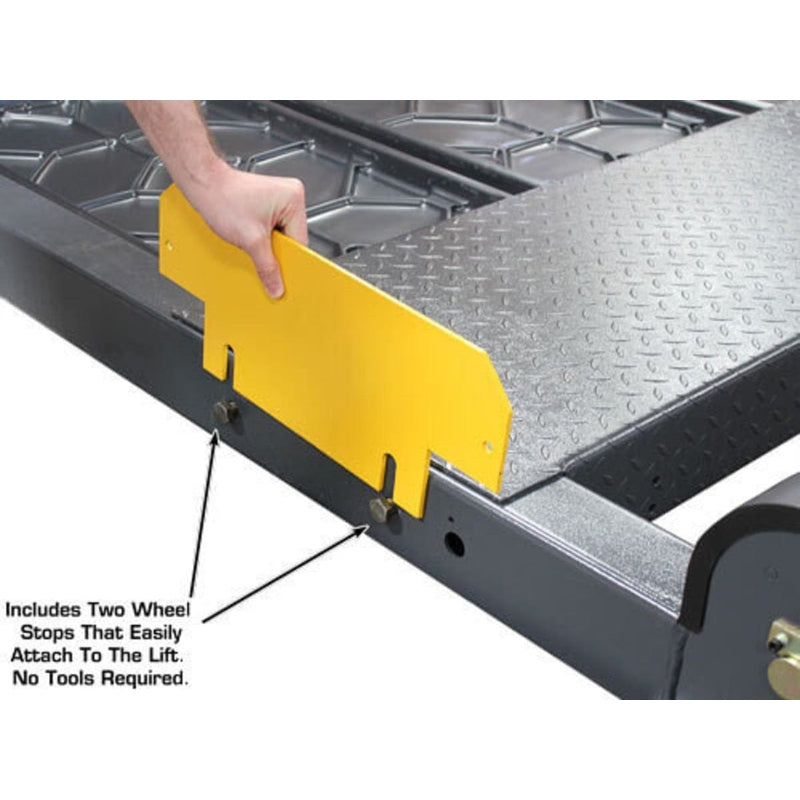

Wheel stops included
-
Anchor bolts optional (sold separately)
-
110V electric operation (plug not included; 30-amp breaker required)
-

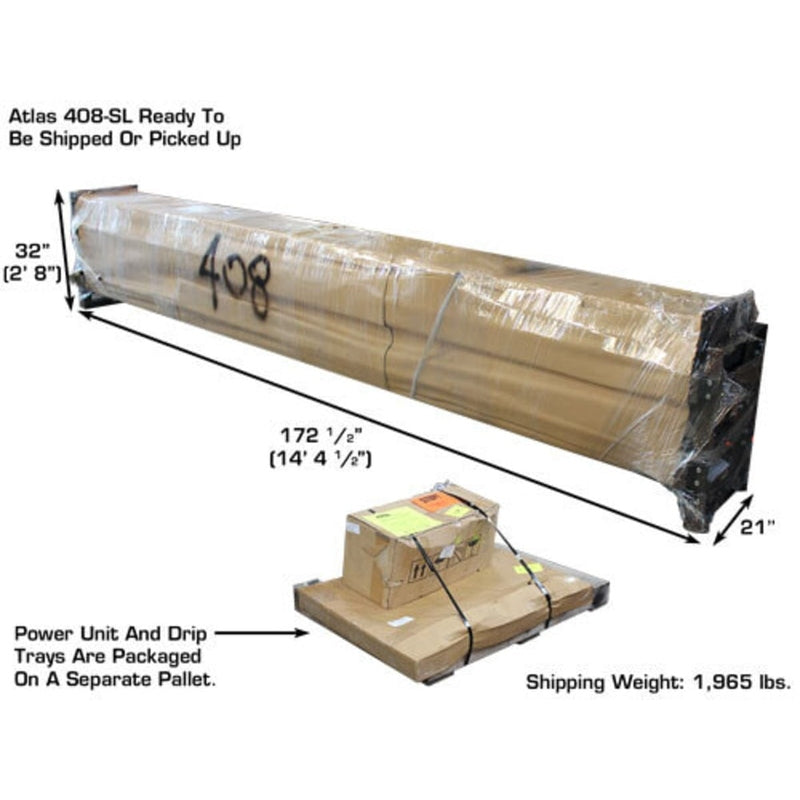

Shipping weight: 1,965 lbs
-
Warranty: 2-year structural / 2-year hydraulic (parts only)

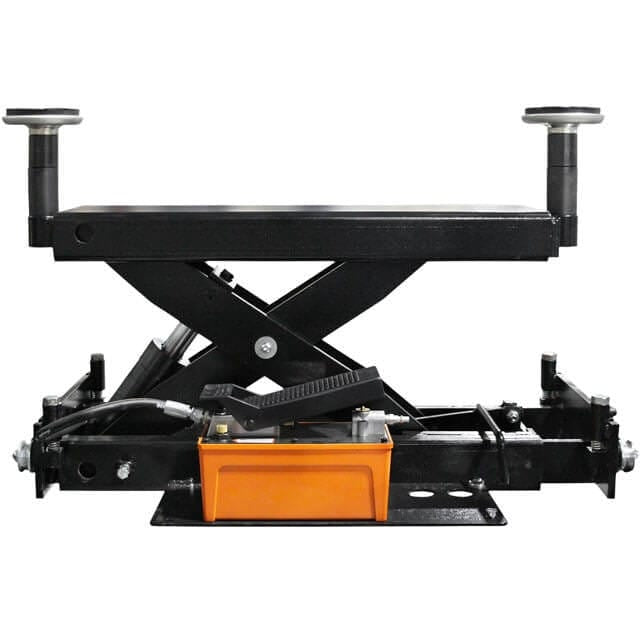

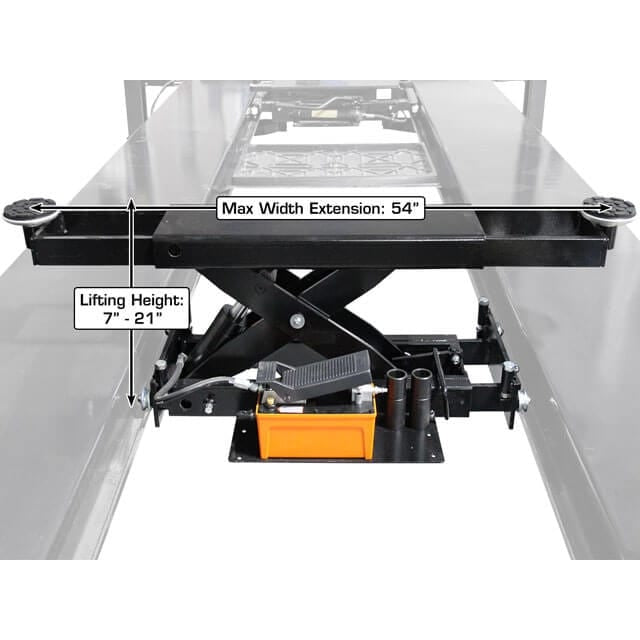

PROJACK35 Sliding Bridge Jack
-
3,500 lb. capacity
-
Manual hand-pump operation
-
Scissor mechanism for level, controlled lifting
-
Low-profile, compact design
-
Adjustable width fits most 4-post lifts
-
Adjustable lift arms reach multiple lifting points
-

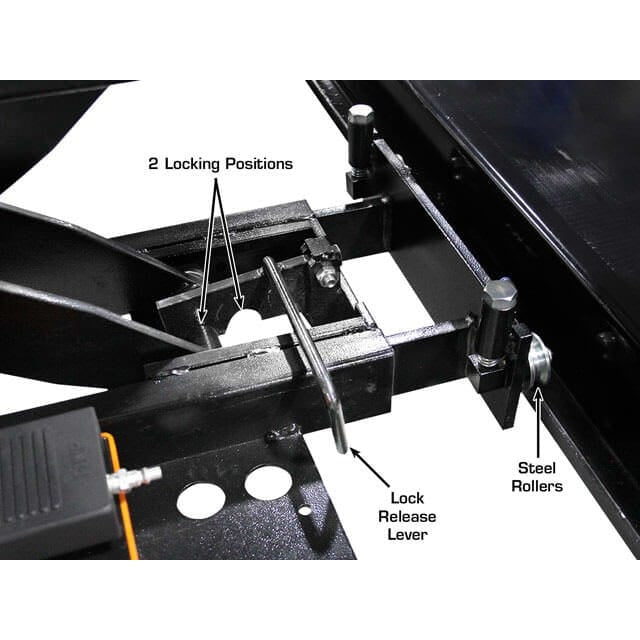

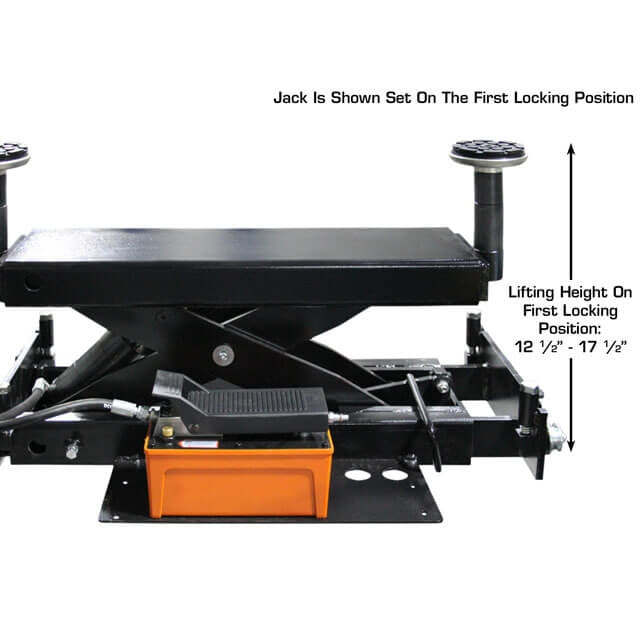

Multiple safety lock positions
-
Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

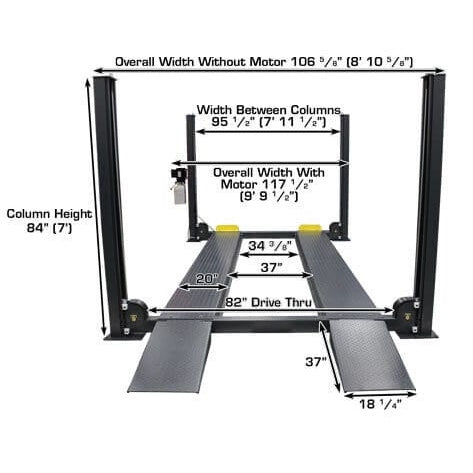

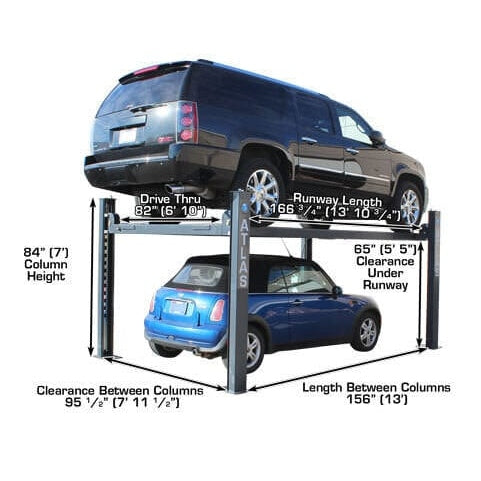

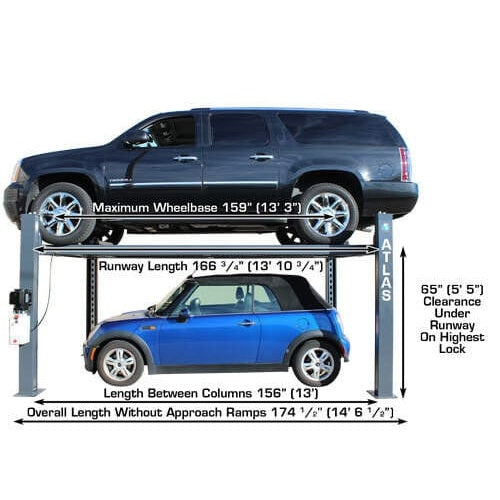

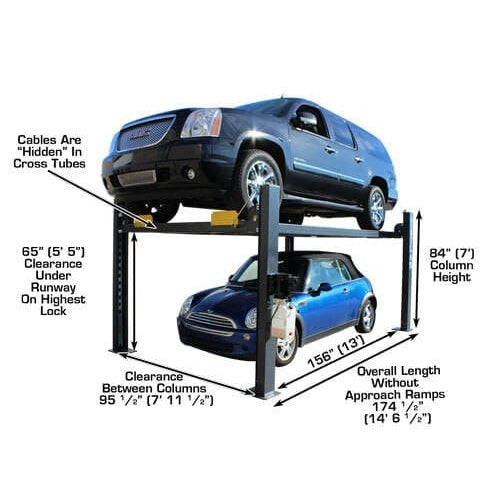

Atlas® 408SL

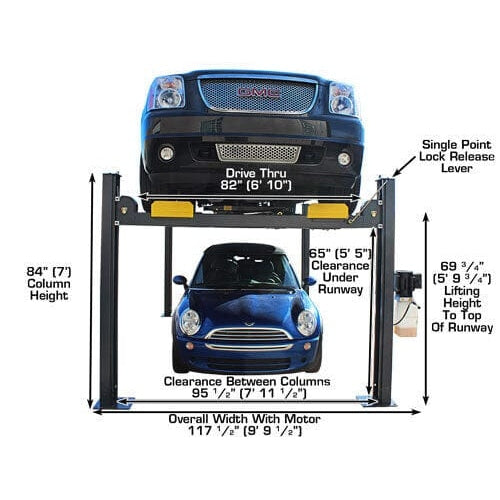

| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |
| Lifting Height (to top of runway) | 73¼" (6' 1¼") – not on lock |
| Clearance Under Runways | 68½" (5' 8½") |
| Height of Columns | 83" (6' 11") |
| Overall Width (w/o motor) | 109⅝" (9' 1⅝") |
| Overall Width (w/ motor) | 117½" (9' 9½") |
| Overall Length (w/ approach ramps) | 205⅜" (17' 1⅜") |
| Approach Ramp | 35" (2' 11") |
| Runway Width | 21½" (with rails) / 18¾" (driving surface) |

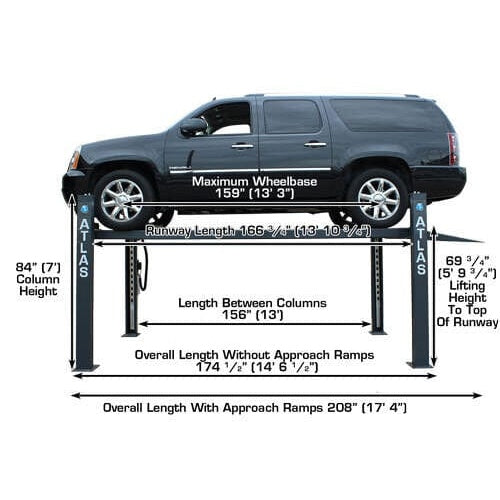

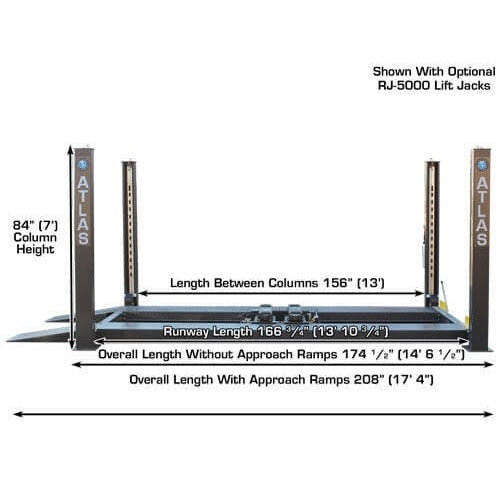

| Runway Length | 166¾" (13' 10¾") |
| Runway Thickness | 4¾" |
| Width Between Runways | 37¼" (3' 1¼") |
| Width Between Runway Rails | 34⅜" (2' 10⅜") |
| Outside Runway to Outside Runway | 74¾" (6' 2¾") |

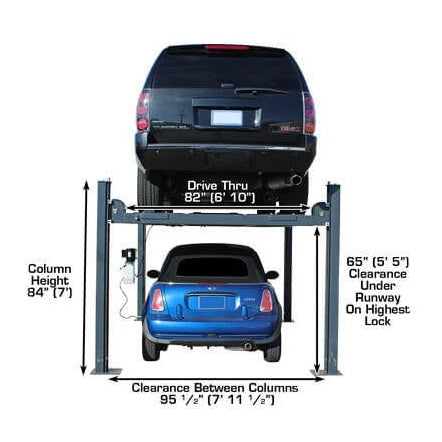

| Clearance Between Columns | 95½" (7' 11½") |
| Length Between Columns | 156" (13') |
| Maximum Wheelbase | 154" (12' 10") |
| Drive-Through Width (outside of tires) | 82" (6' 10") |
| Motor / Electrical | 110V, requires 30-amp breaker |
| Shipping Weight | 1,965 lbs |
Atlas® RJ35 Sliding Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 3,500 lbs |
| Maximum Width | 64¾" (5' 4¾") |

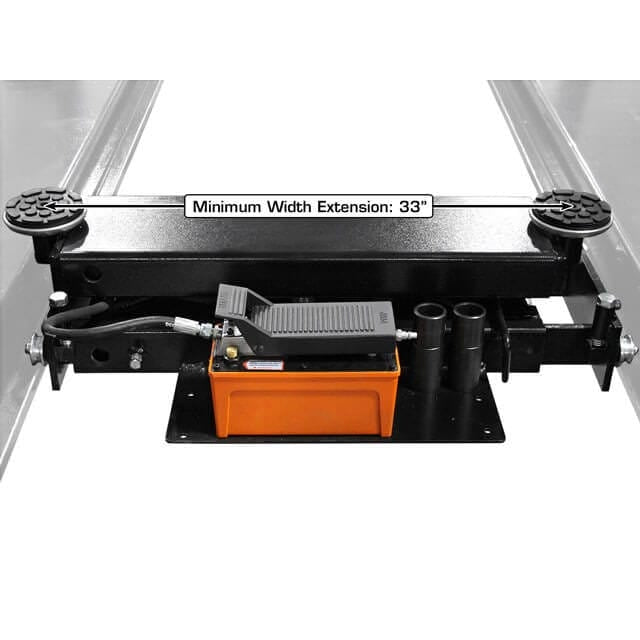

| Minimum Width | 29½" (2' 5½") |
| Minimum Height (lift pad above runway) | 3½" (varies by lift) |
| Lift Pad Height (above arm) | 1⅜" |

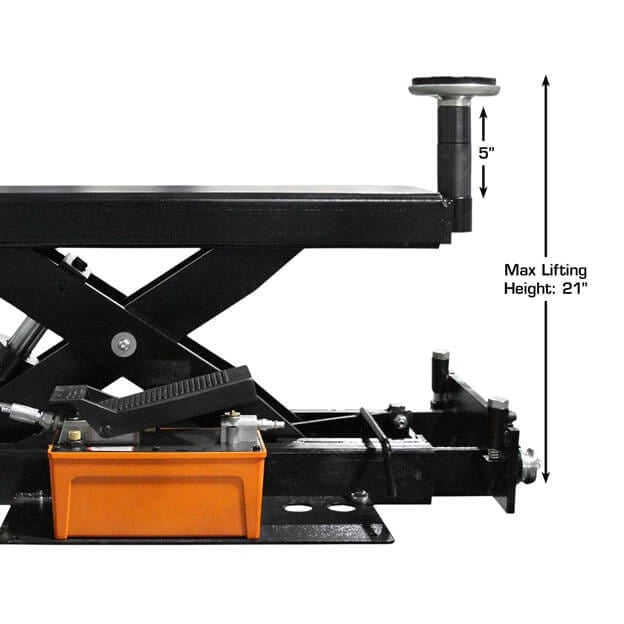

| Maximum Raised Height (no adapters) | 11" |
| Maximum Raised Height (with adapters) | 17¼" |

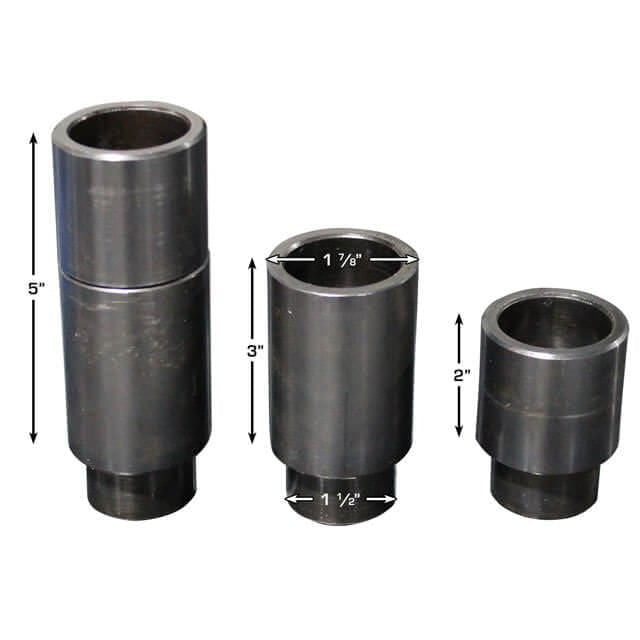

| Adapter Heights | (2) each – 1.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Shipping Weight | 350 lbs |
Documents
Atlas® 408SL Cylinder Bleeding Procedure (Do this immediately after installation)
