The Atlas® Garage PRO8000 is one of the most popular and trusted 4-post hobbyist lifts in the Atlas® lineup — ideal for customers who need more vehicle storage or workspace in their garage. Designed to double your parking capacity, this lift allows most passenger vehicles to be safely stacked, freeing up valuable floor space without the need for permanent installation.
Built for homeowners, collectors, and restoration enthusiasts, the Atlas® Garage PRO Series (8,000 lb. capacity) lifts are engineered for occasional-use environments such as personal garages and small restoration shops. They are not intended for high-frequency commercial repair applications, where lifts are raised and lowered multiple times daily.
This combo package also includes two Atlas® RJ35 sliding bridge jacks, designed to lift a vehicle’s wheels off the runways for convenient tire, brake, and suspension service.
Features
PRO8000 Lift
-
8,000 lb. lifting capacity
-
Free-standing, portable design
-
Diamond-plated runways for added traction and durability
-
Single-point lock release system
-

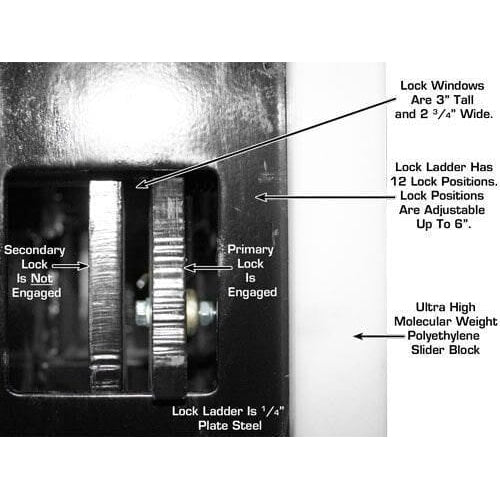

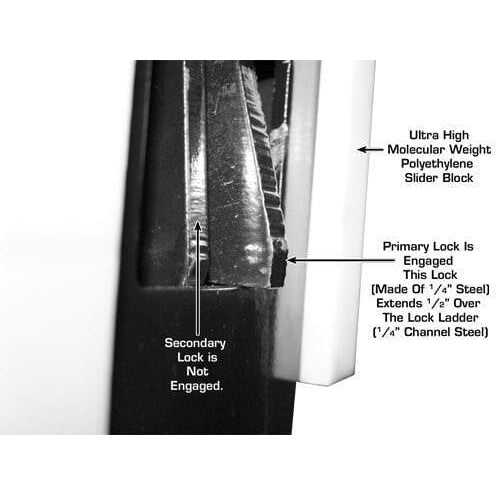

Lock-ladder design with double-lock safety mechanism
-

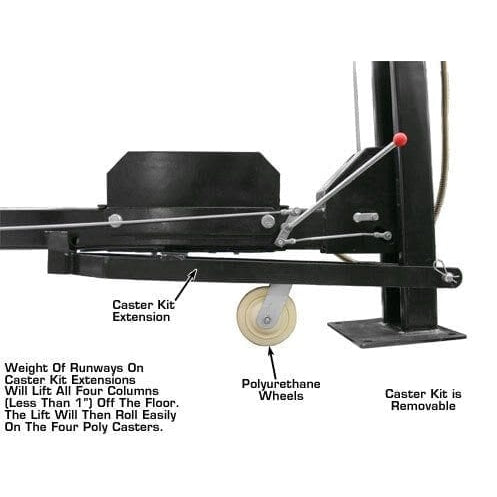

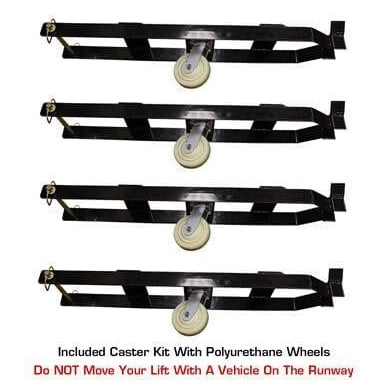

Includes caster kit with polyurethane wheels for mobility
-

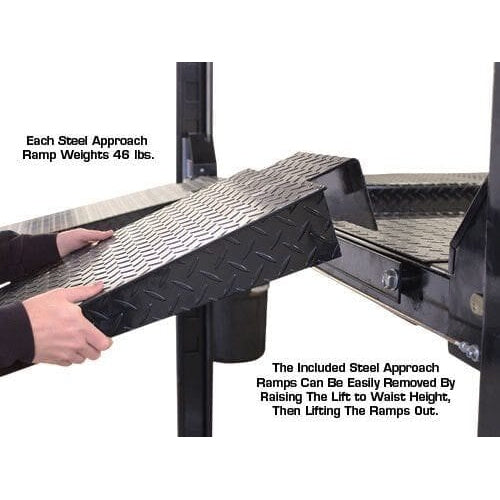

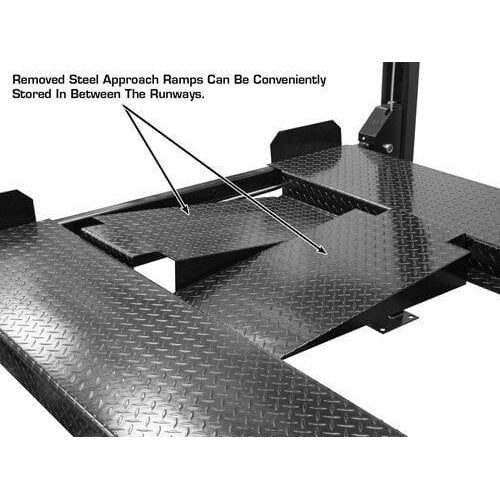

Includes steel approach ramps and jack tray
-

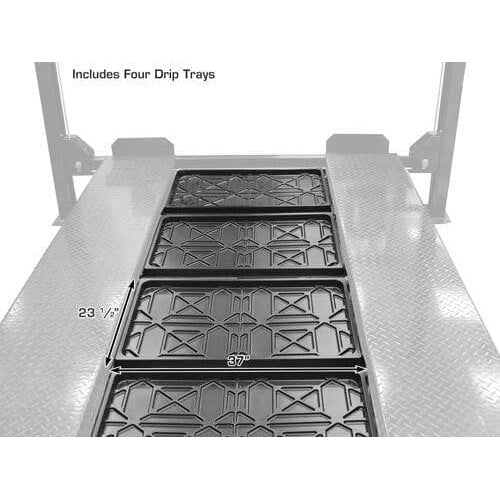

(4) plastic drip trays included
-
(4) wheel stops included
-

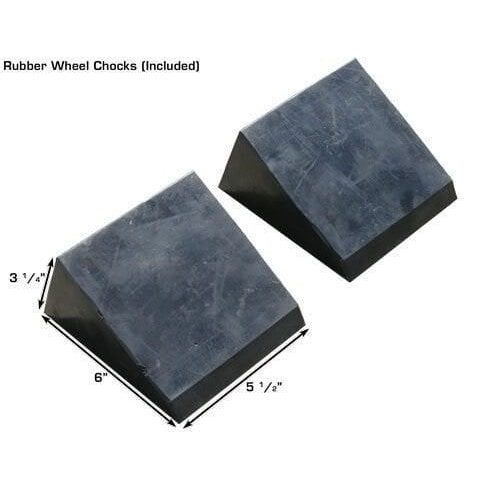

(2) rubber wheel chocks included
-
Ideal for both vehicle storage and light-duty maintenance
-
110V electric operation (30-amp breaker required)
-

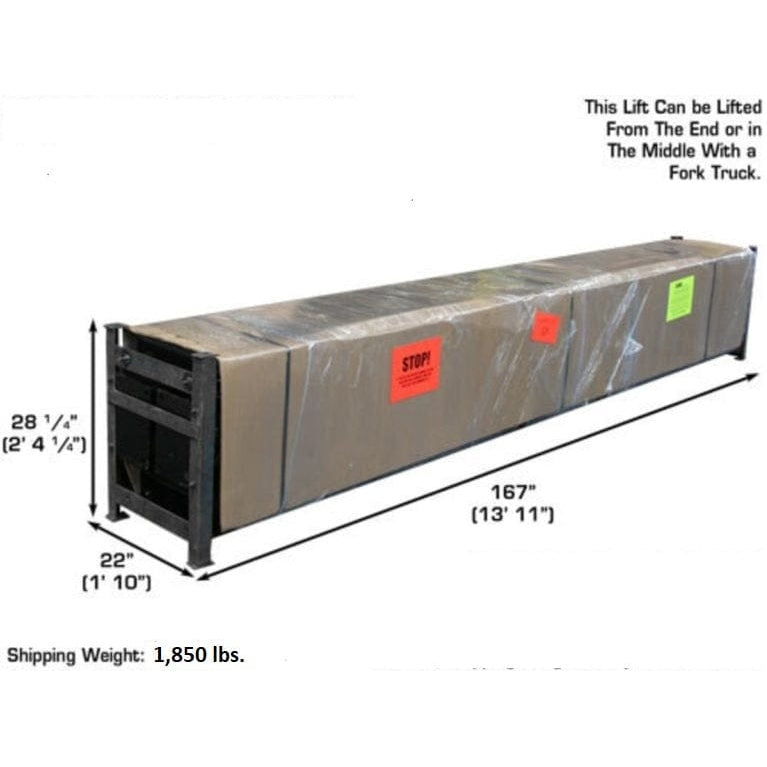

Shipping weight: 1,800 lbs
-
Warranty: 2-year structural / 1-year hydraulic (parts only)
PROJACK35 Sliding Bridge Jack
-
3,500 lb. capacity
-

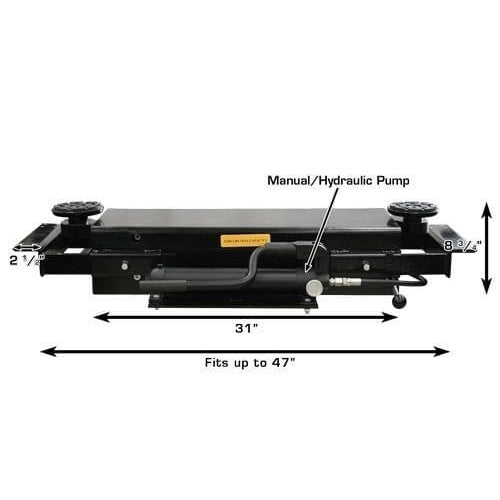

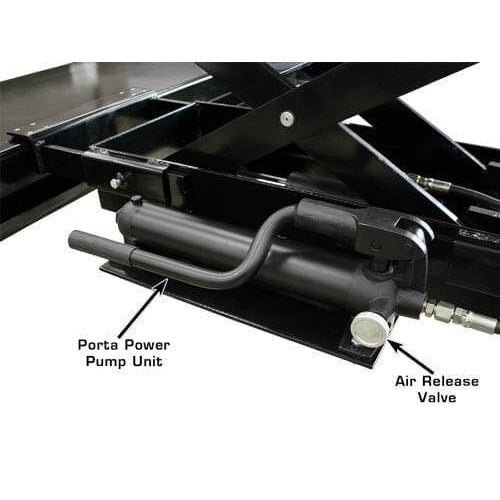

Manual, hand-pump operation
-

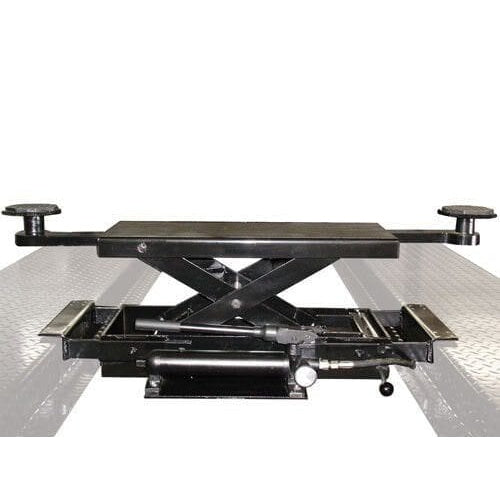

Scissor mechanism provides level lifting action
-
Compact, low-profile design
-
Adjustable width fits many 4-post lift models
-
Adjustable lift arms to reach various lifting points
-
Multiple safety lock positions
-

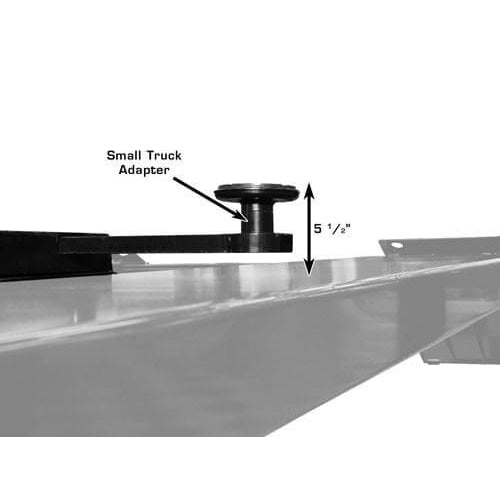

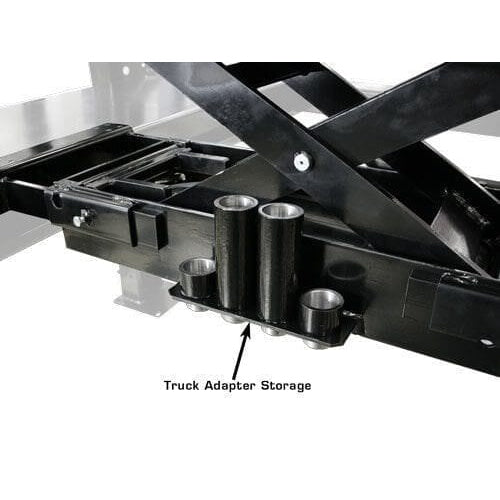

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

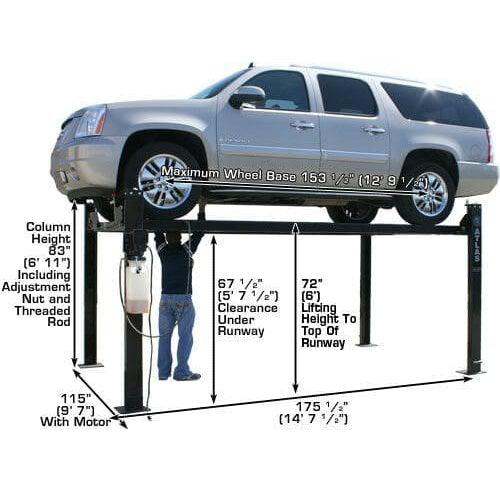

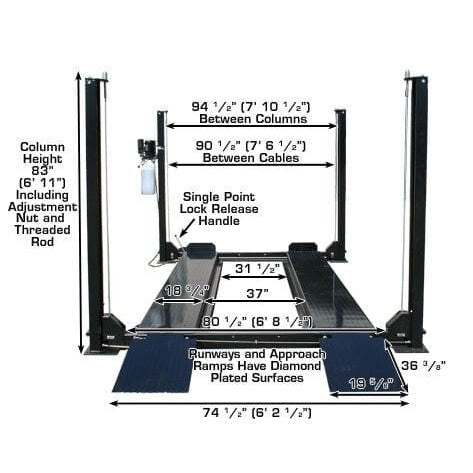

Atlas® Garage PRO8000
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |

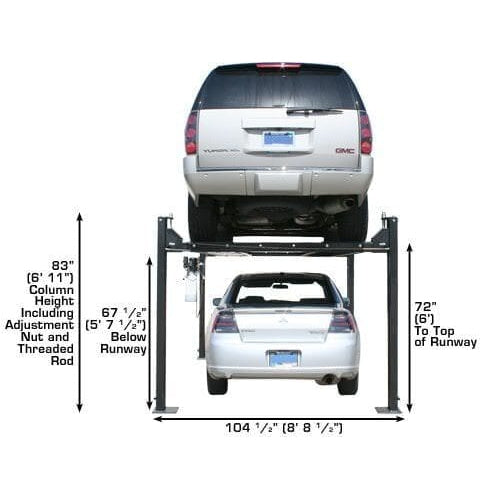

| Lifting Height (to top of runway) | 72" (6') |
| Clearance Under Runways | 67½" (5' 7½") |

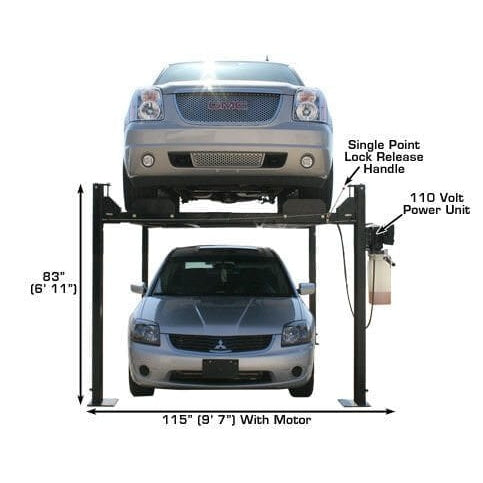

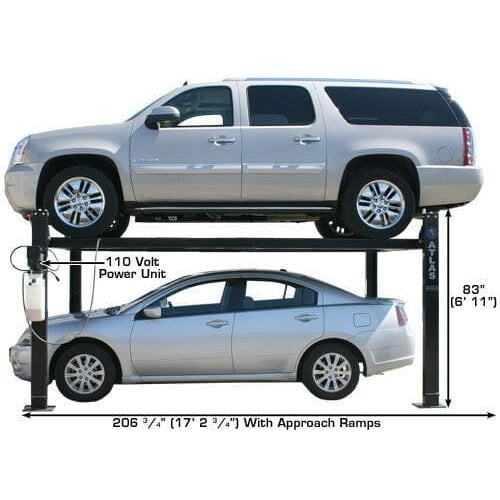

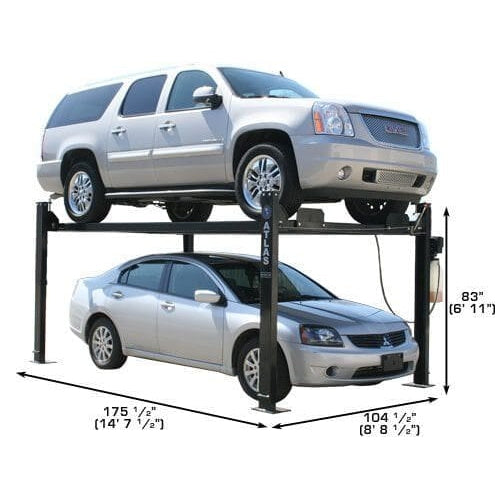

| Height of Columns | 83" (6' 11") |

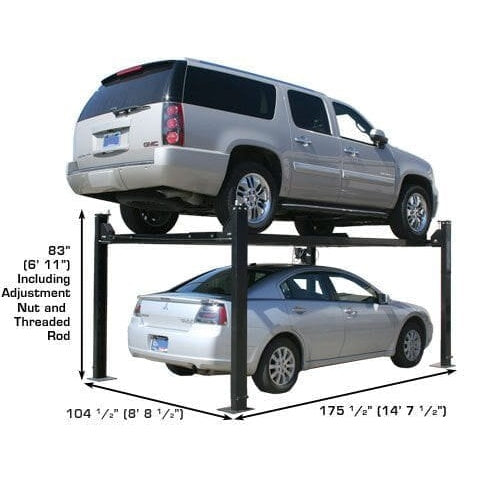

| Overall Width (w/o motor) | 104½" (8' 8½") |

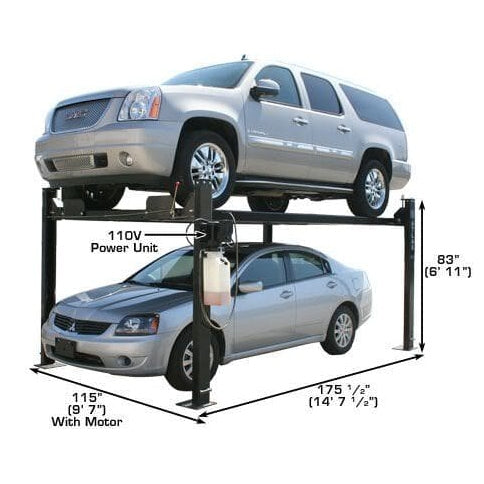

| Overall Width (w/ motor) | 115" (9' 7") |

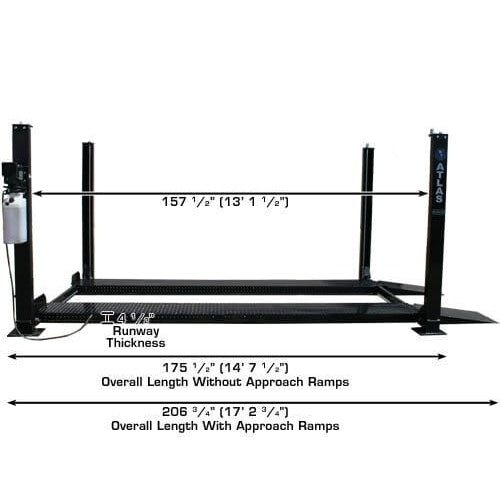

| Overall Length (w/ approach ramps) | 206¾" (17' 2¾") |
| Overall Length (w/o approach ramps) | 175½" (14' 7½") |
| Approach Ramps | 36⅜" (3' ⅜") |
| Runway Width | 18½" (1' 6½") |
| Runway Length | 165¾" (13' 9¾") |
| Runway Thickness | 4½" |

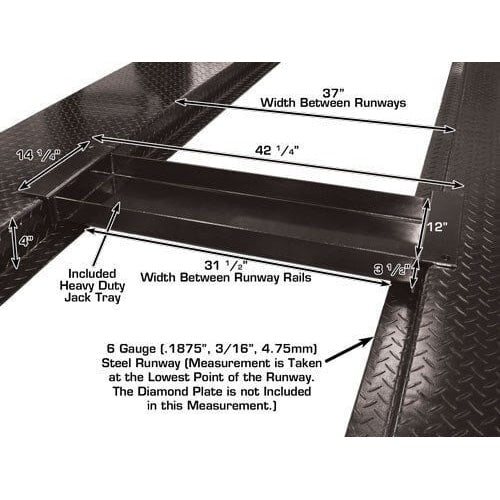

| Width Between Runways | 37" (3' 1") |
| Width Between Runway Rails | 31½" (2' 7½") |
| Outside Runway to Outside Runway | 74⅝" (6' 2⅝") |
| Column Size | 6¼" × 3⅜" |
| Clearance Between Columns | 94½" (7' 10½") |
| Length Between Columns | 157½" (13' 1½") |

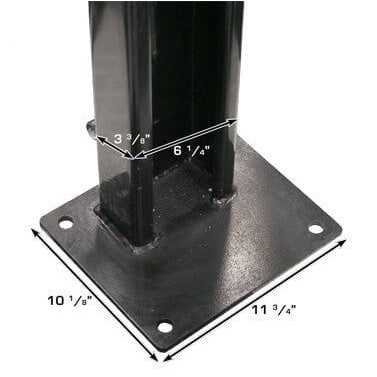

| Column Base | 10⅛" × 11¾" |
| Maximum Wheelbase | 153½" (12' 9½") |
| Drive-Through Width (outside of tires) | 80½" (6' 8½") |
| Cable Diameter | .350" |
| Steel Gauge | 6 gauge (3/16" / 4.75mm) |
| Motor | 110 Volt (requires 30-amp breaker) |
| Shipping Weight | 1,720 lbs |
Locking Positions (±2")
Under Runway: 19½", 25½", 31½", 37½", 43½", 49½", 55½", 61½", 67½"
Top of Runway: 24", 30", 36", 42", 48", 54", 60", 66", 72"

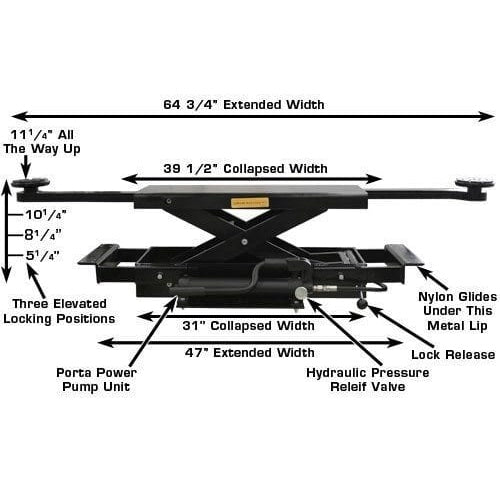

Atlas® RJ35 Sliding Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 3,500 lbs |
| Minimum Width | 29½" |
| Width (Arms In) | 39½" |

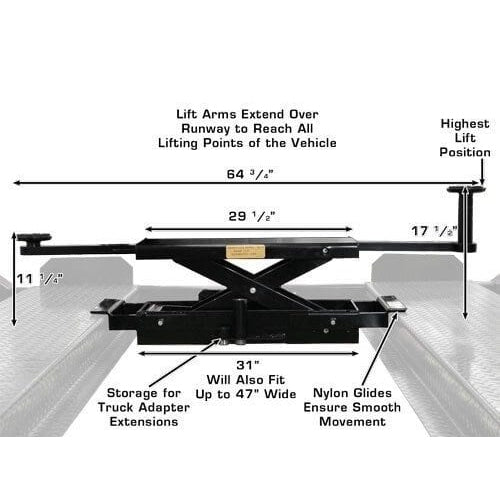

| Width (Arms Out) | 64¾" |
| Working Width | 31" – 47" |
| Minimum Height (Lift Pad) | 3½" |
| Lifting Pad | 1⅜" |

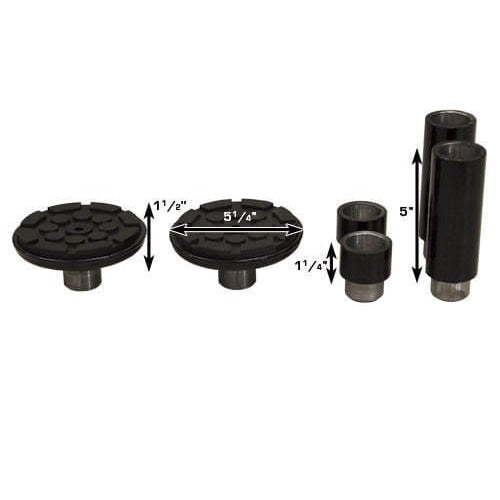

| Short Adapter | 1¼" |
| Tall Adapter | 5" |
| Raised Height (no adapter) | 11" |
| Raised Height (small adapter) | 12¼" |

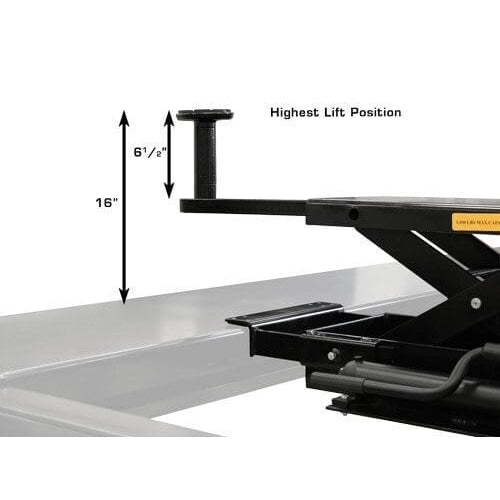

| Raised Height (large adapter) | 16" |
| Raised Height (both adapters) | 17¼" |

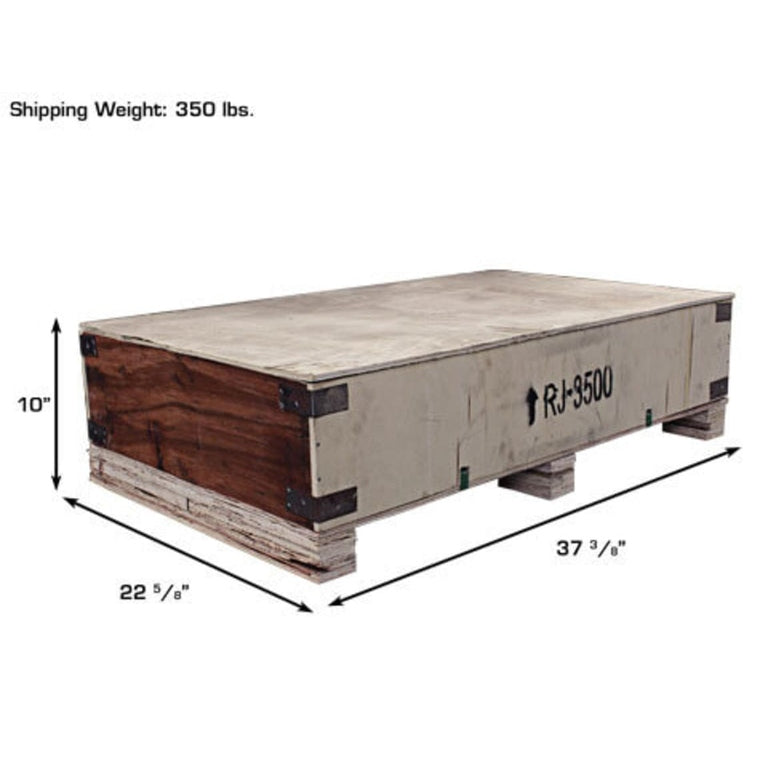

| Shipping Weight | 350 lbs |
