Description
The Atlas® Garage PRO8000EXT is a true 8,000 lb. capacity four-post lift and one of the most popular models in the Atlas® Garage PRO Series. It combines many of the premium features found in both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000, offering the perfect balance of height, performance, and space efficiency.
Many customers with SUVs or pickup trucks have asked for a lift that provides greater clearance without taking up additional floor space. While many competing “tall” lifts also come with extended runways, the PRO8000EXT is specifically engineered to lift higher without increasing overall length—ideal for garages where space is limited.

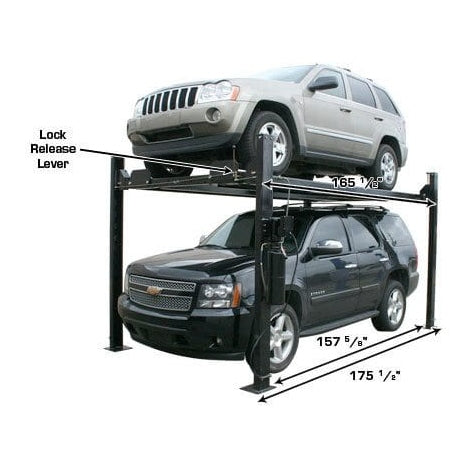

With 79 inches of clearance under the raised runways, the PRO8000EXT easily accommodates taller vehicles below while supporting cars or light trucks above. For users who need the lifting height of the PRO9000 but not the additional width or runway length, this model is the perfect solution.
This combo package also includes two Atlas® RJ35 sliding bridge jacks, designed to raise a vehicle’s wheels off the runways for tire, brake, and suspension service.
Features
PRO8000EXT Lift
-
8,000 lb. lifting capacity
-
Free-standing, portable design
-
Extra-tall construction for greater under-runway clearance
-
Diamond-plated runways
-

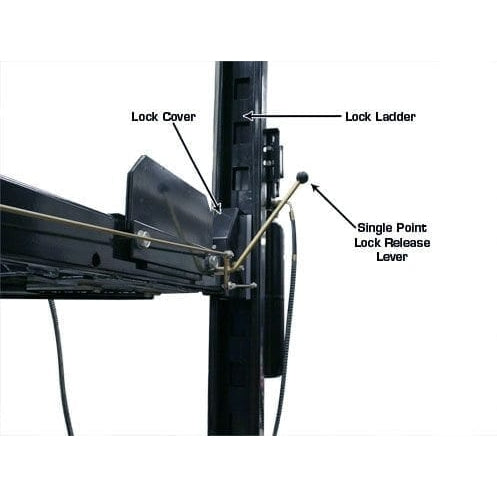

Single-point lock release for easy operation
-

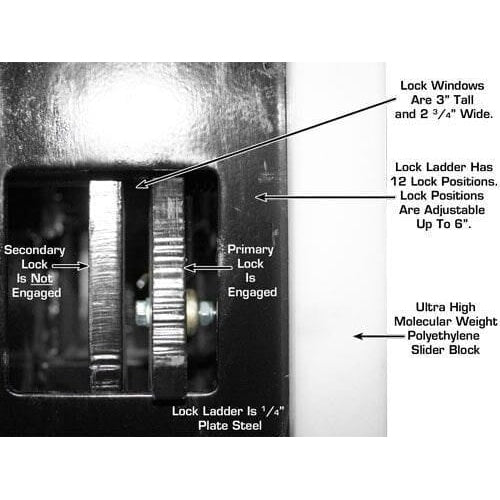

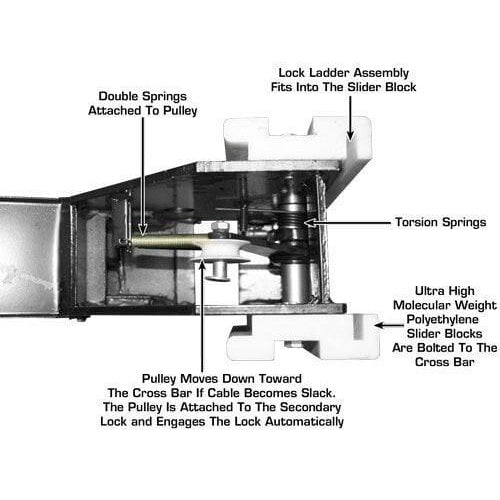

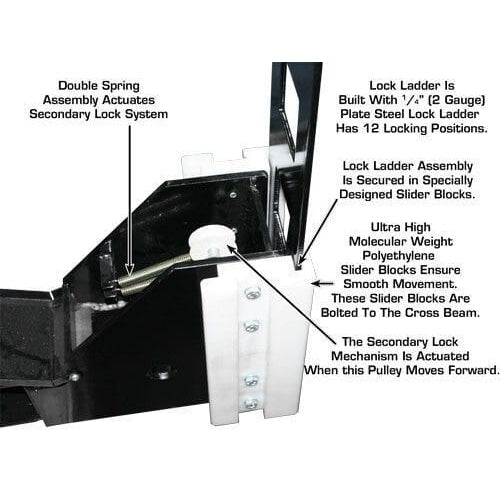

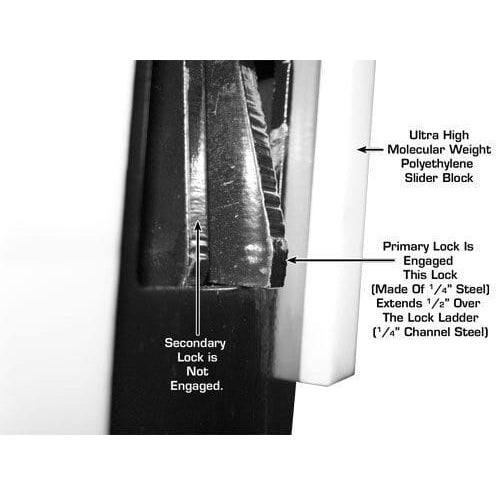

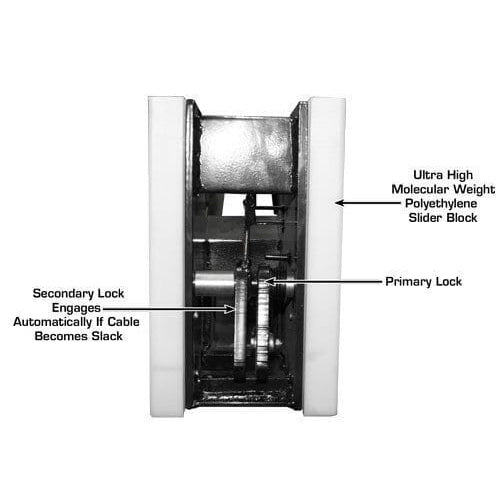

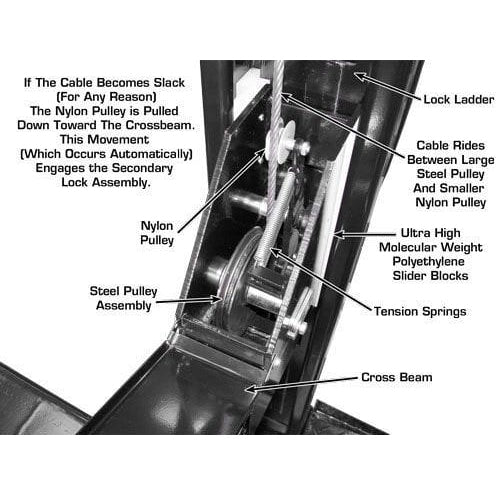

Lock-ladder design with double-lock safety system
-

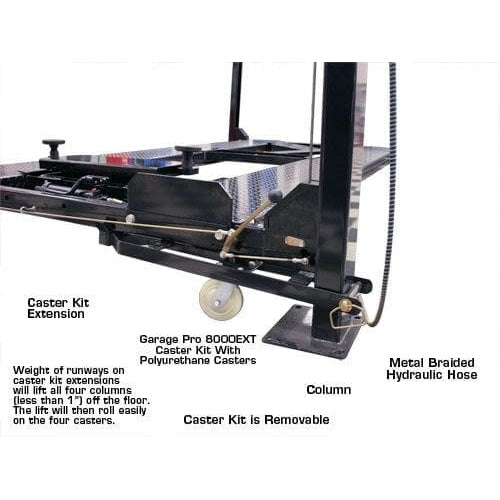

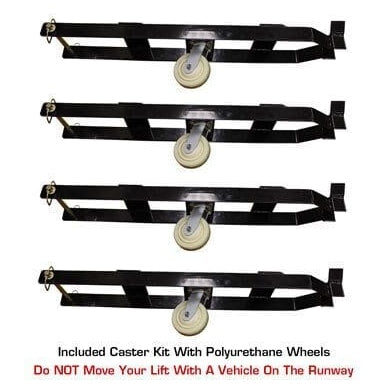

Includes caster kit with polyurethane wheels
-

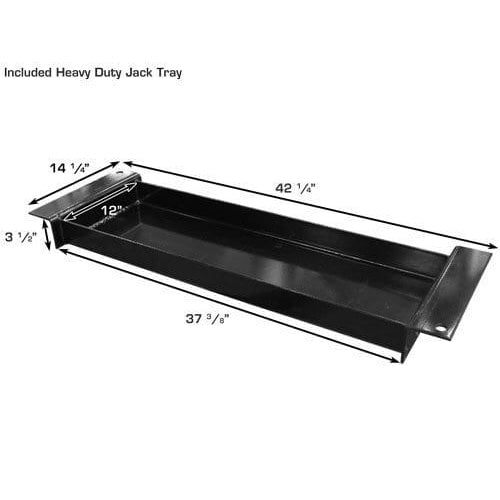

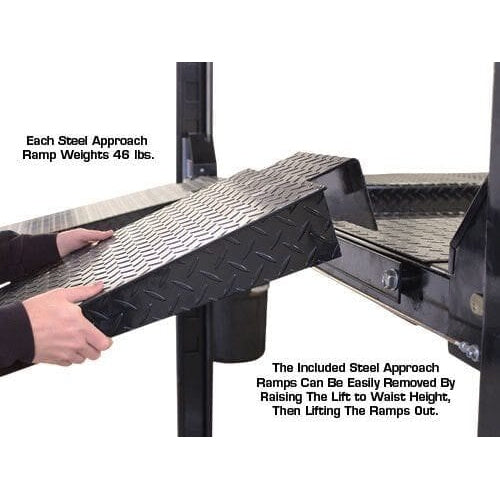

Includes steel approach ramps and jack tray
-

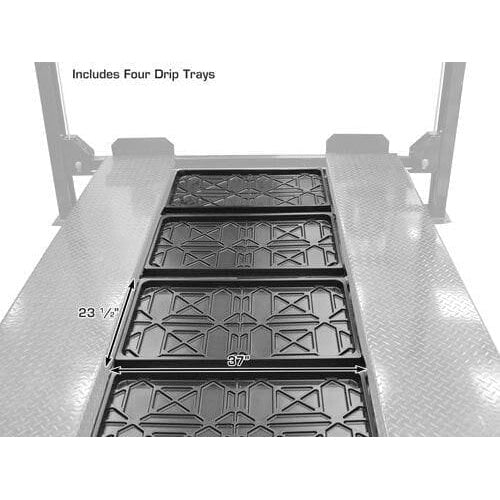

(4) plastic drip trays included
-
(4) wheel stops included
-

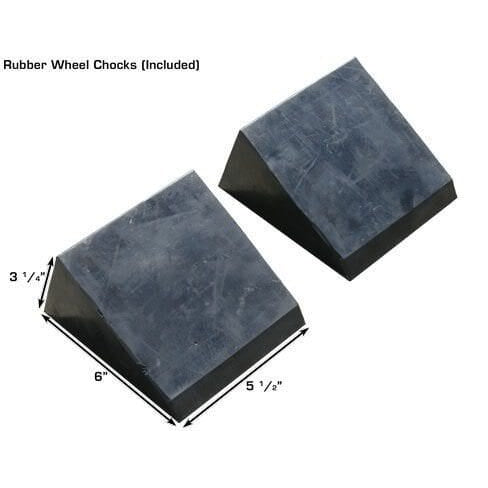

(2) rubber wheel chocks included
-
Ideal for both vehicle storage and service work
-
110V electric operation (30-amp breaker required)
-

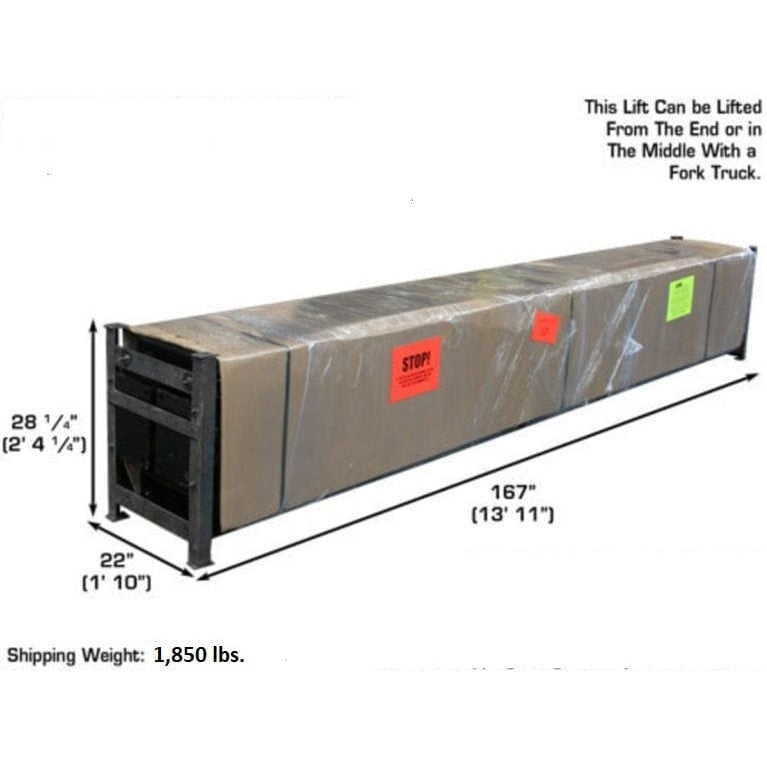

Shipping weight: 1,850 lbs
-
Warranty: 2-year structural / 1-year hydraulic (parts only)

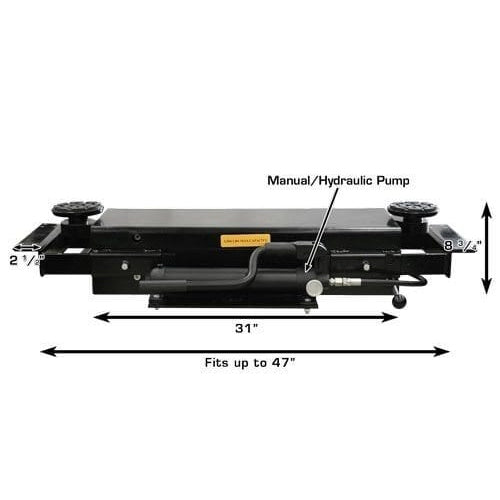

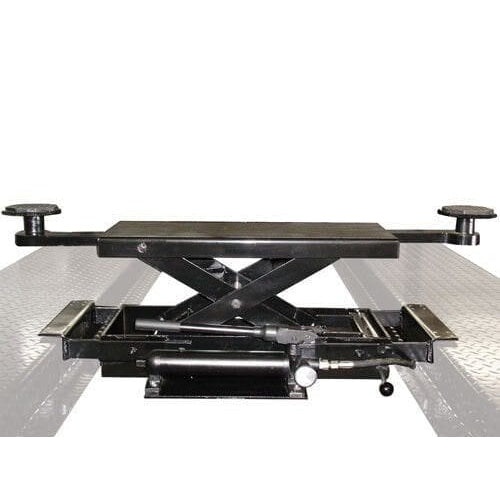

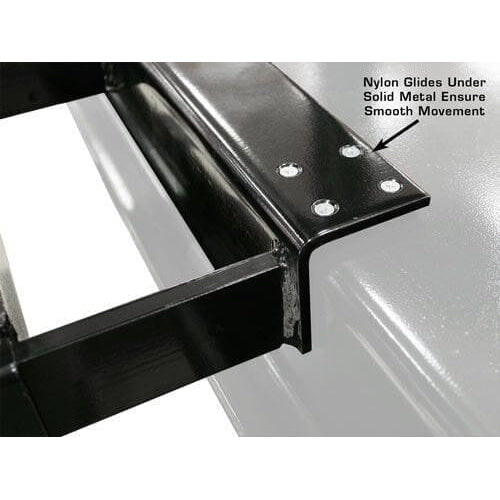

PROJACK35 Sliding Bridge Jack
-
3,500 lb. capacity
-

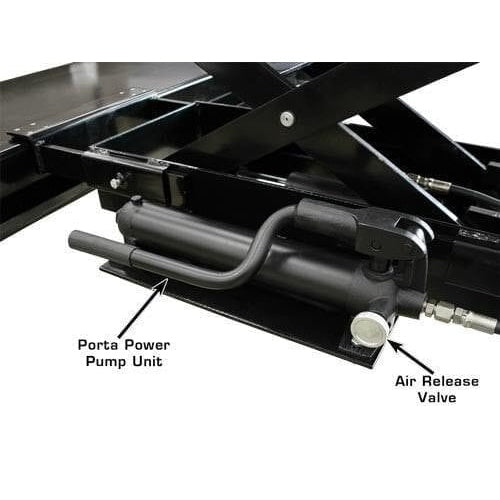

Manual, hand-pump operation
-
Scissor mechanism for level lifting
-
Compact, low-profile design
-
Adjustable width fits a variety of 4-post lifts
-
Adjustable lift arms for multiple lifting points
-
Multiple safety lock positions
-

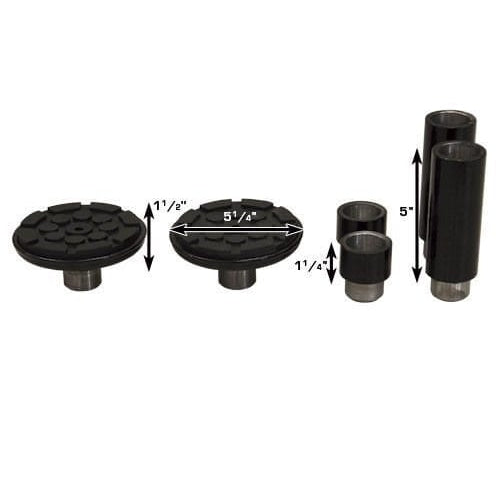

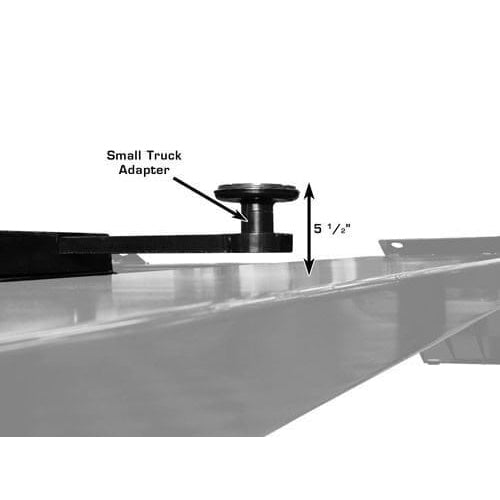

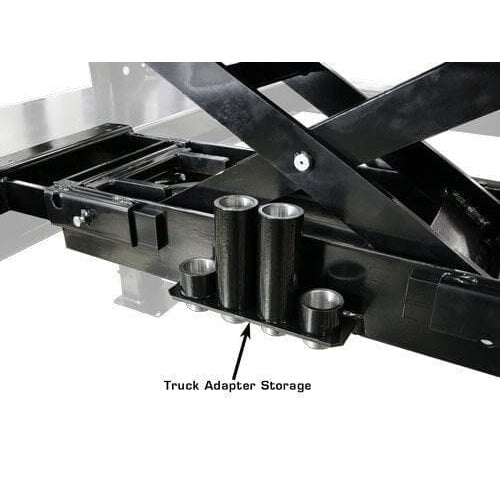

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications
Atlas® Garage PRO8000EXT
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |
| Lifting Height | 84¼" (7' ¼") |

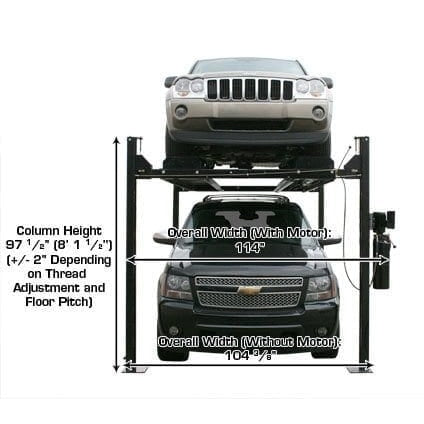

| Overall Width (w/o motor) | 104⅜" (8' 8⅜") |
| Overall Width (w/ motor) | 114" (9' 6") |

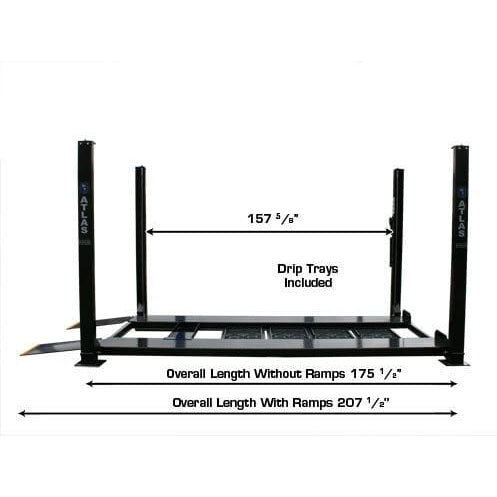

| Length Between Columns | 157⅝" (13' 1⅝") |
| Overall Length (w/ approach ramps) | 207½" (17' 3½") |
| Overall Length (w/o approach ramps) | 175½" (14' 7½") |
| Approach Ramps | 37" (3' 1") |
| Total Runway Width | 21¼" (1' 9¼") |

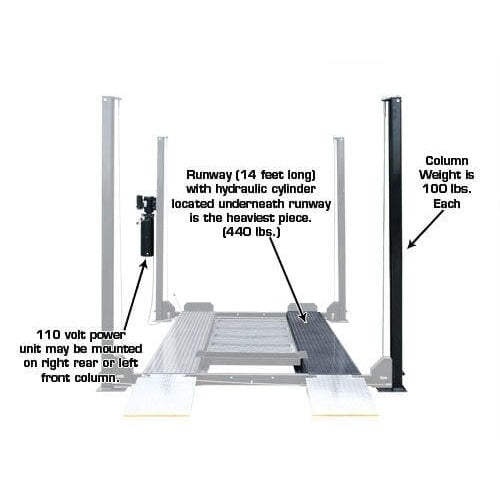

| Runway Length | 165½" (13' 9½") |
| Runway Thickness | 5" |
| Width Between Runways | 37⅜" |
| Width Between Runway Rails | 31¾" |
| Outside Runway to Outside Runway | 74¾" (6' 2¼") |

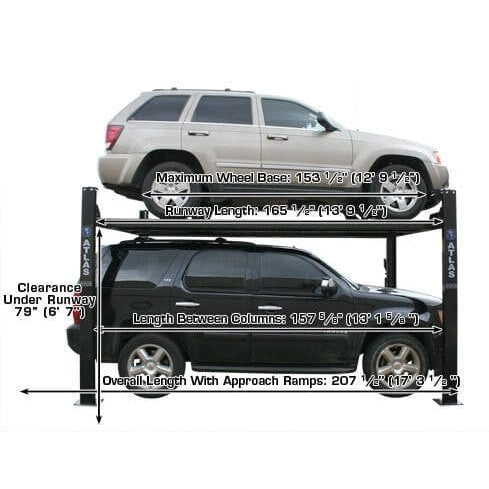

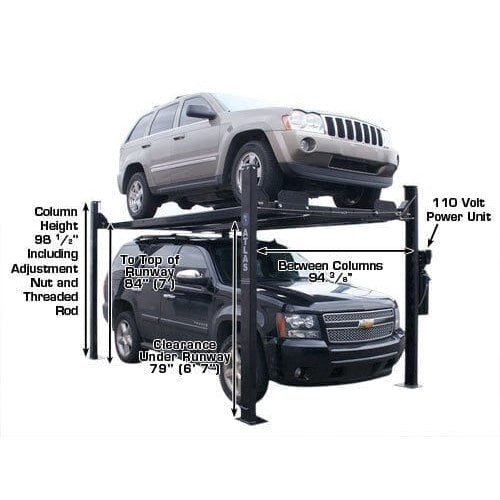

| Clearance Under Runways | 79" (6' 7") |
| Column Size | 6¼" × 3⅜" |

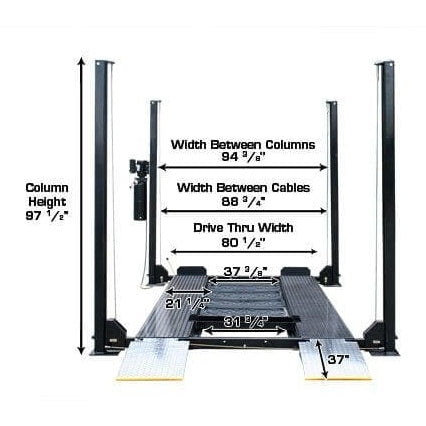

| Clearance Between Columns | 94⅜" (7' 10⅜") |

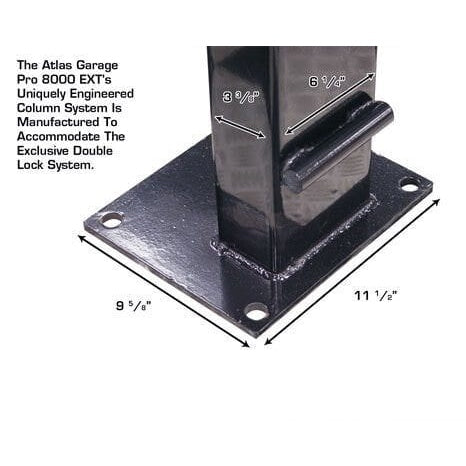

| Column Base | 9⅝" × 11½" |
| Column Height | 98½" (8' 2½") |
| Maximum Wheelbase | 153½" (12' 9½") |
| Drive-Through Width (outside of tires) | 80½" (6' 8½") |

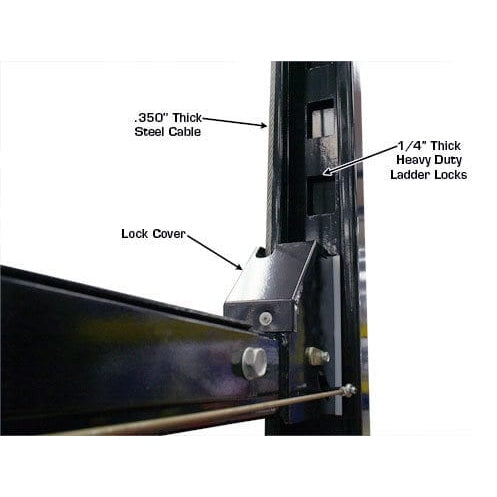

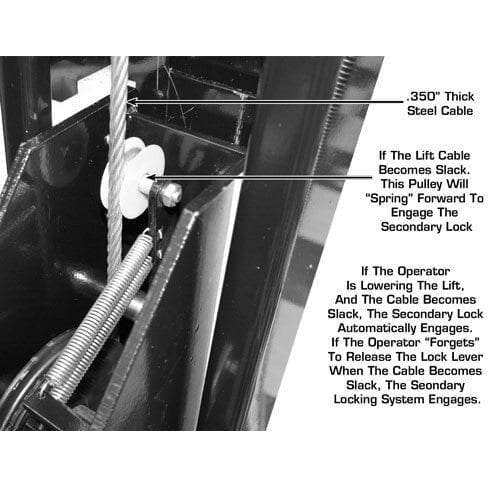

| Cable Diameter | .350" |

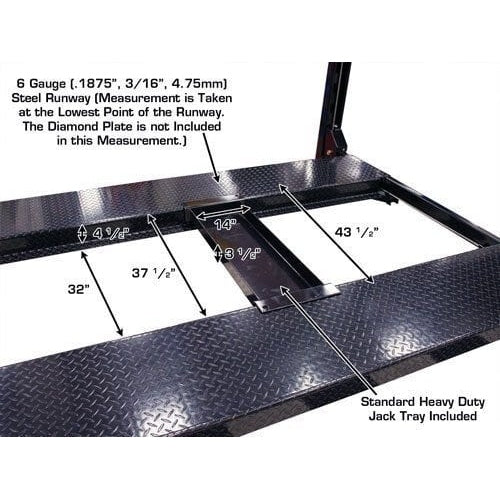

| Steel Gauge | 6 gauge (3/16" / 4.75mm) |
| Motor | 110 Volt (requires 30-amp breaker) |
| Shipping Weight | 1,739 lbs |
Locking Positions (±2")
Under Runway: 21", 27", 33", 39", 45", 51", 57", 63", 69", 75", 81"
Top of Runway: 26", 32", 38", 44", 50", 56", 62", 68", 74", 80", 86"

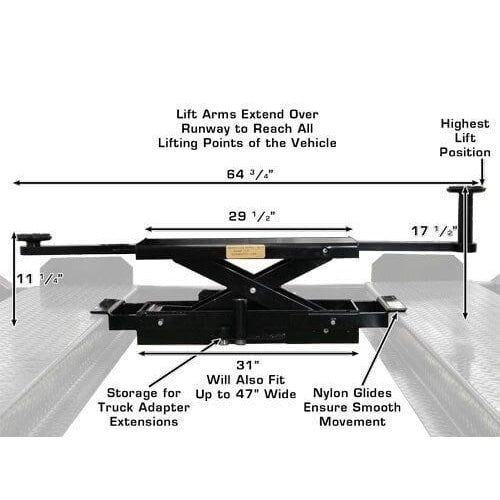

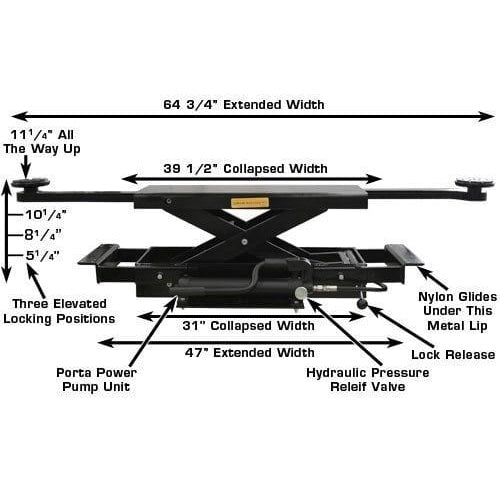

Atlas® RJ35 Sliding Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 3,500 lbs |
| Minimum Width | 29½" |
| Width (Arms In) | 39½" |
| Width (Arms Out) | 64¾" |
| Working Width | 31"–47" |
| Minimum Height (Lift Pad) | 3½" |
| Lifting Pad | 1⅜" |
| Short Adapter | 1¼" |
| Tall Adapter | 5" |
| Raised Height (no adapter) | 11" |
| Raised Height (small adapter) | 12¼" |

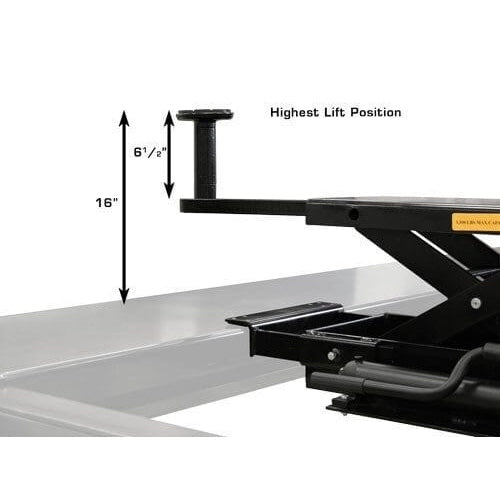

| Raised Height (large adapter) | 16" |
| Raised Height (both adapters) | 17¼" |

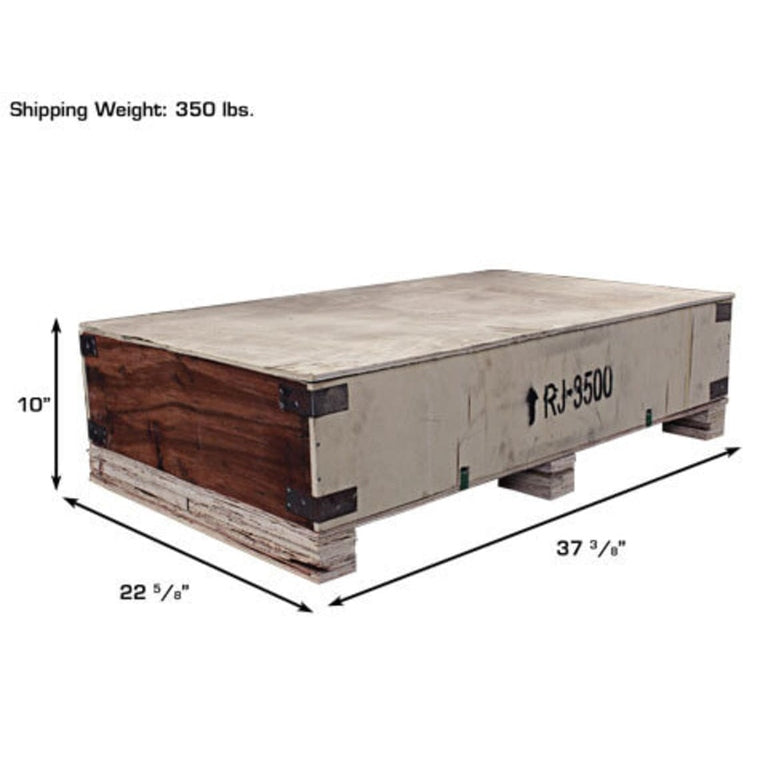

| Shipping Weight | 350 lbs |
