Description
The Atlas® Garage PRO8000EXT-L offers all the advantages of the PRO8000EXT, but with even greater dimensions — it’s 20 inches longer and 3 inches wider, providing additional space and versatility. Compared to the standard Atlas® Garage PRO8000, this model is 20 inches longer, 3 inches wider, and 14 inches taller, making it ideal for larger vehicles and extended wheelbases.
With its extra runway length, the PRO8000EXT-L can accommodate nearly all long-wheelbase pickup trucks — excluding dually models, as their dual rear wheels are too wide to fit between the column lock assemblies. If you need a portable lift suitable for duallys, consider the Atlas® Garage PRO9000.
This combo package also includes two Atlas® RJ35 sliding bridge jacks, perfect for lifting a vehicle’s wheels off the runways for tire, brake, or suspension service.
Features
PRO8000EXT-L
-
8,000 lb. lifting capacity
-
Free-standing, portable design
-
Extra-tall and extra-long configuration
-
Diamond-plated runways
-

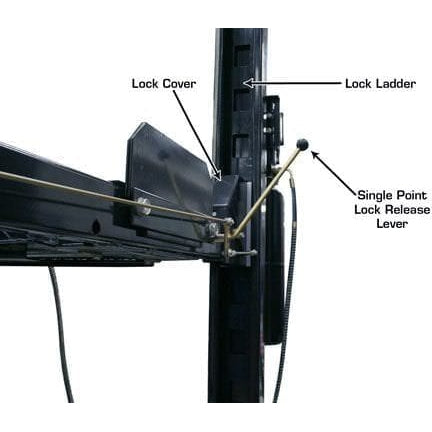

Single-point lock release
-

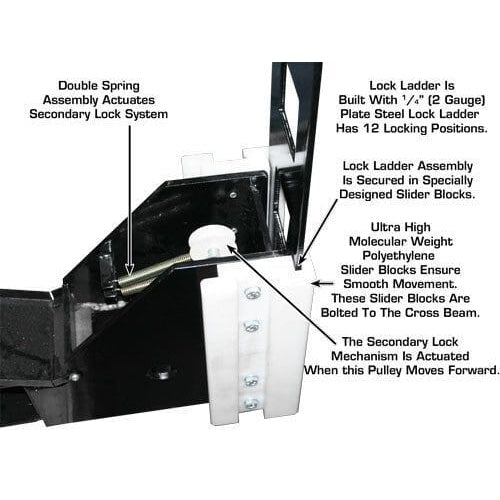

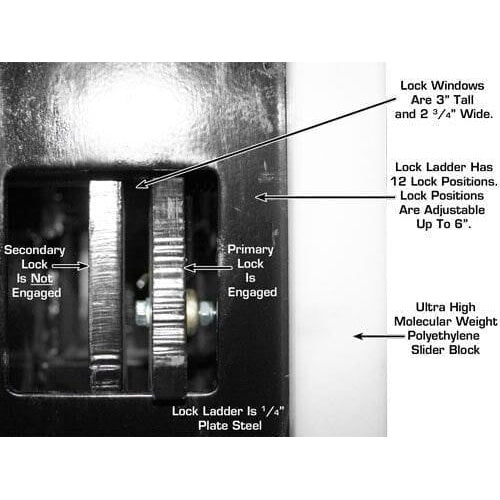

Lock-ladder safety design
-

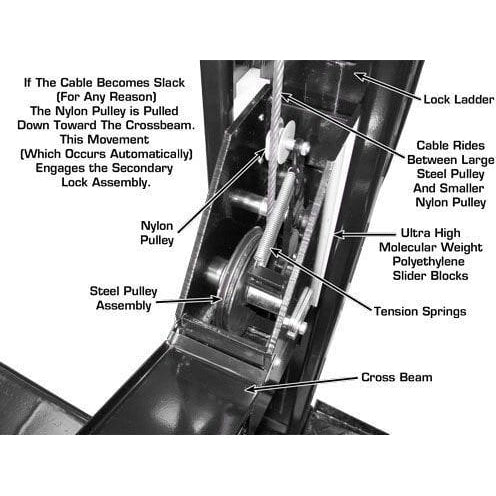

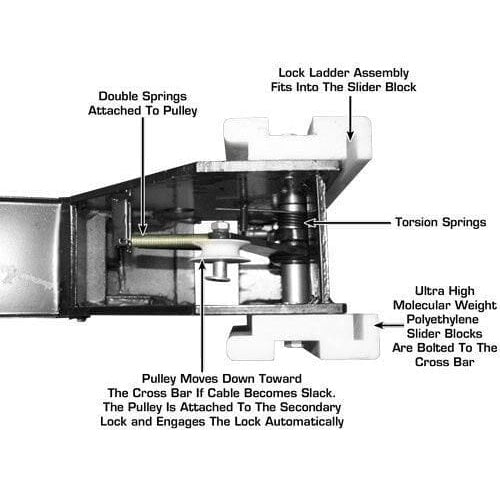

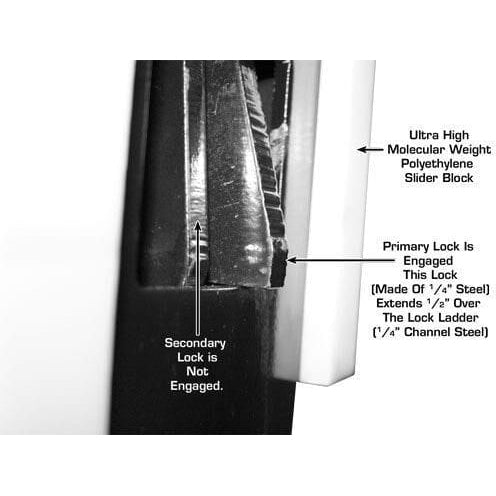

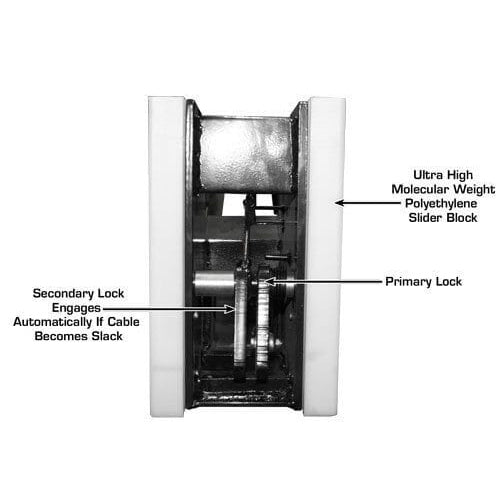

Double-lock safety system
-

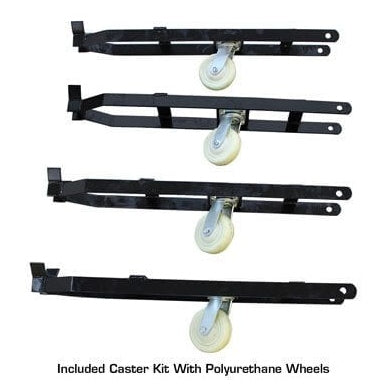

Includes caster kit with polyurethane wheels
-

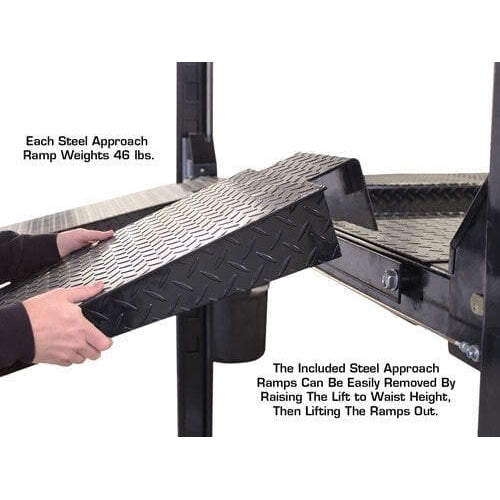

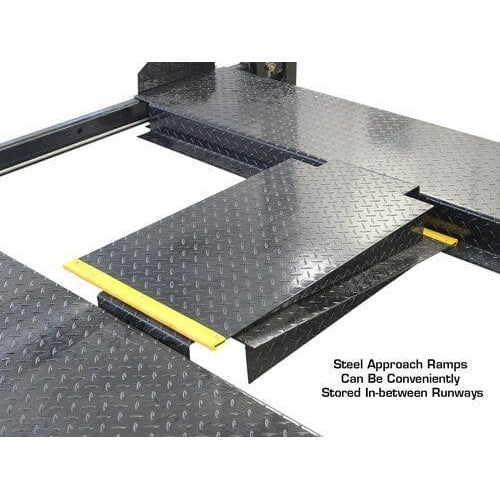

Includes steel approach ramps
-

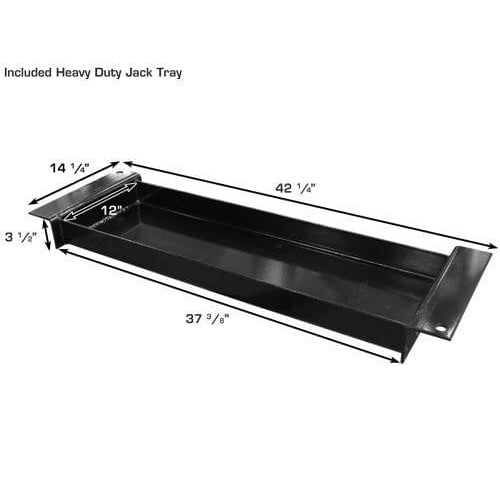

Includes steel jack tray
-

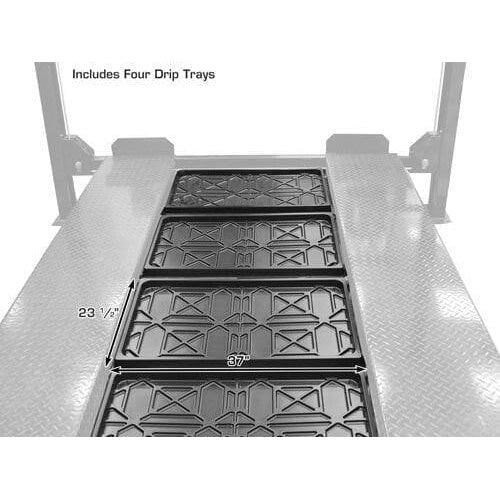

(4) plastic drip trays included
-
(4) wheel stops included
-

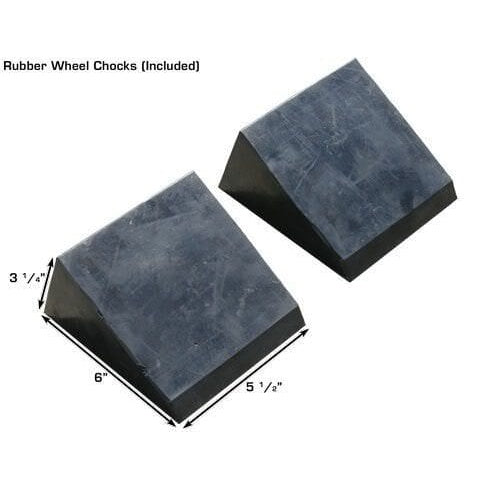

(2) rubber wheel chocks included
-
Ideal for both vehicle storage and maintenance
-
110V electric motor (requires 30-amp breaker)
-

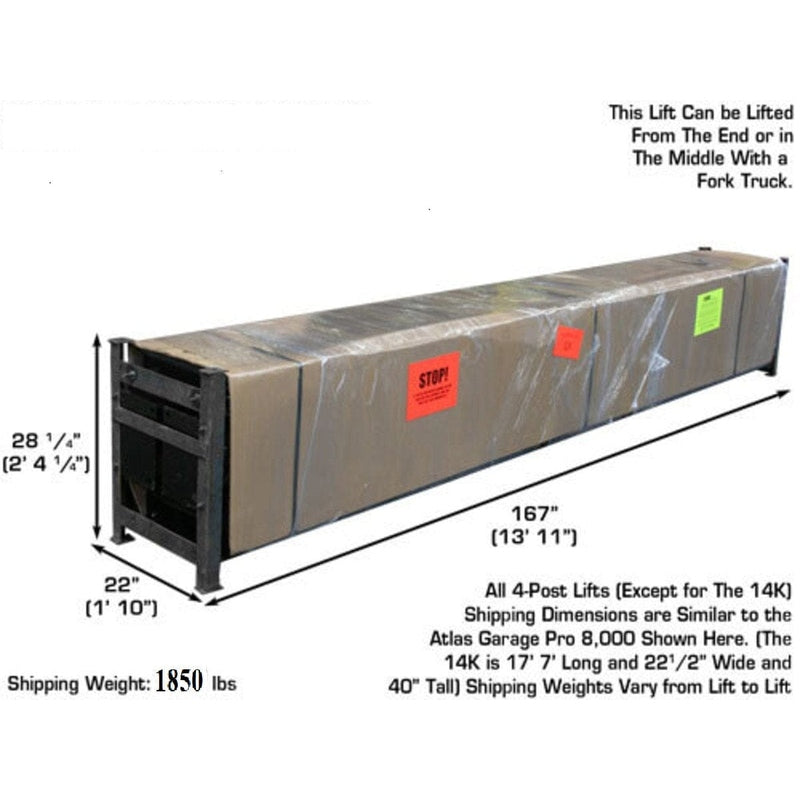

Shipping weight: 1,850 lbs
-
Warranty: 2 years structural / 1 year hydraulic (parts only)

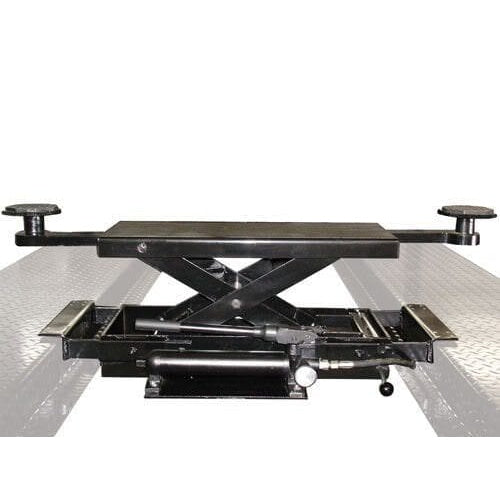

PROJACK35
-
Sliding bridge jack, 3,500 lb. capacity
-
Manual hand-pump operation
-
Scissor mechanism for level lifting
-
Compact, low-profile design
-
Adjustable width for multiple 4-post lift types
-
Adjustable lift arms to reach diverse lifting points
-
Multiple safety lock positions
-

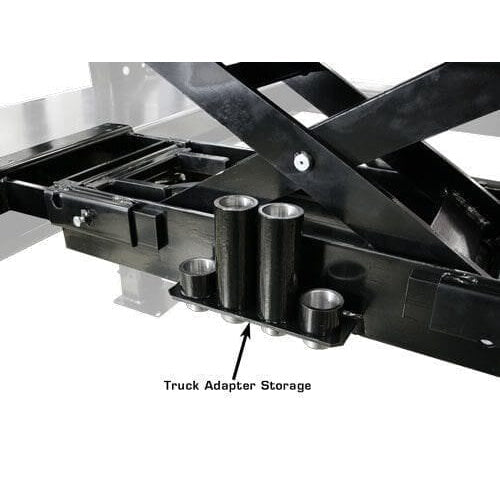

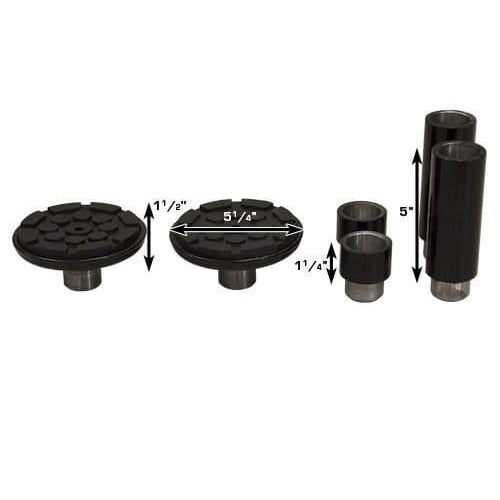

Includes 4-piece truck adapter set
-
Warranty: 1 year parts only
Specifications
Atlas® Garage PRO8000EXT-L
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |

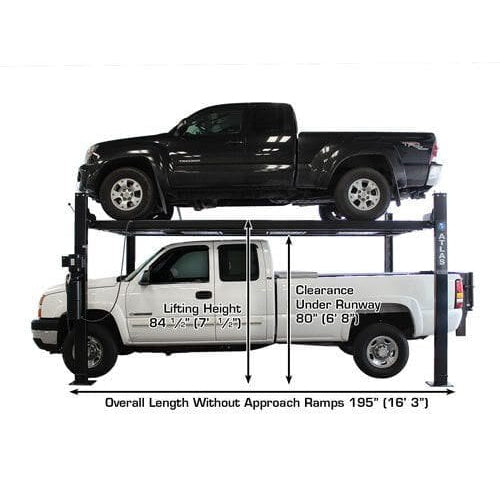

| Lifting Height | 84½" (7' ½") |
| Overall Width (w/o Motor) | 108" (9') |

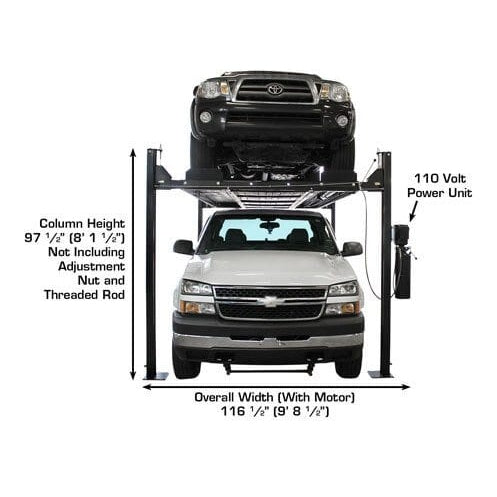

| Overall Width (w/ Motor) | 116½" (9' 8½") |

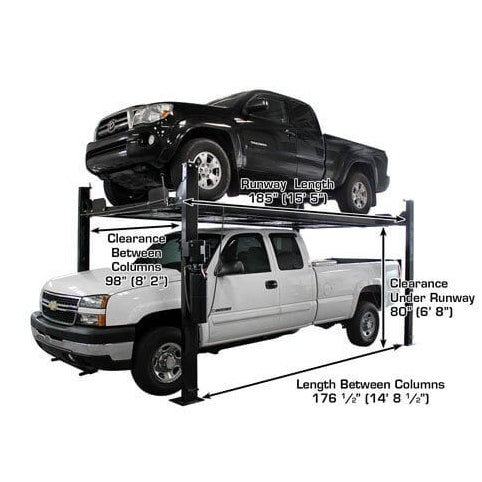

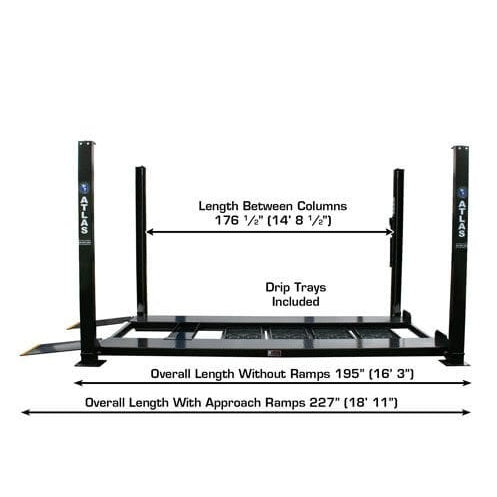

| Length Between Columns | 176½" (14' 8½") |
| Overall Length w/ Ramps | 227" (18' 11") |
| Overall Length w/o Ramps | 195" (16' 3") |

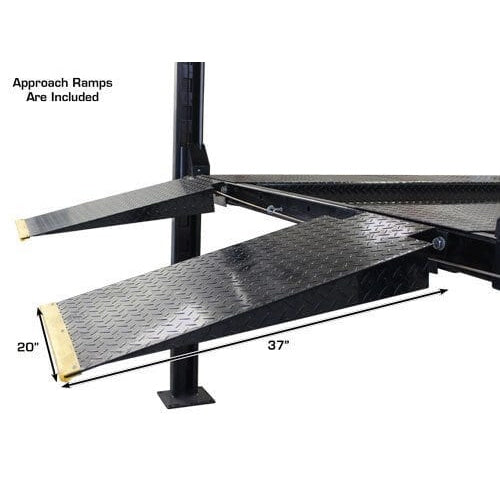

| Approach Ramps | 36¾" x 19⅝" |

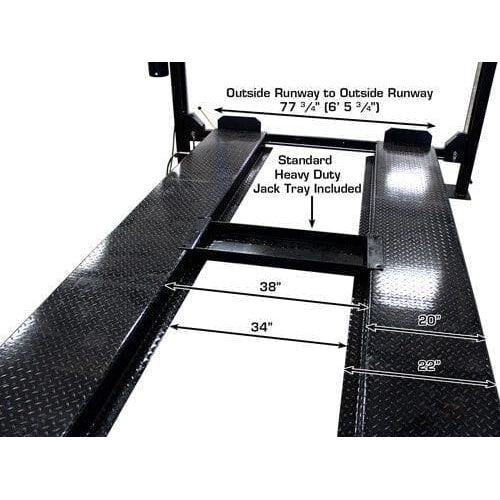

| Total Runway Width | 22" |
| Runway Length | 185" (15' 5") |
| Runway Thickness | 4½" |
| Width Between Runways | 38" |
| Width Between Runway Rails | 34" |
| Outside Runway to Outside Runway | 77¾" |
| Clearance Under Runways (max) | 80" (6' 8") |

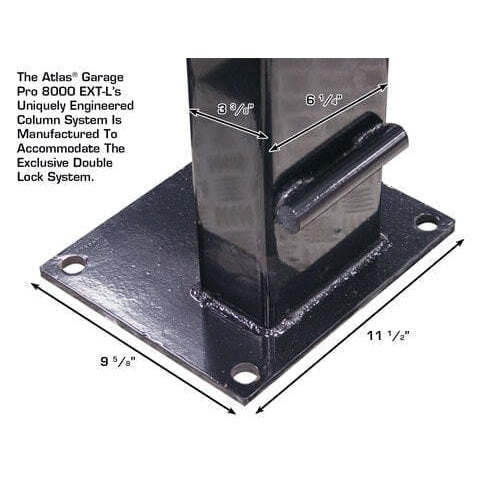

| Column Size | 6¼" x 3⅜" |

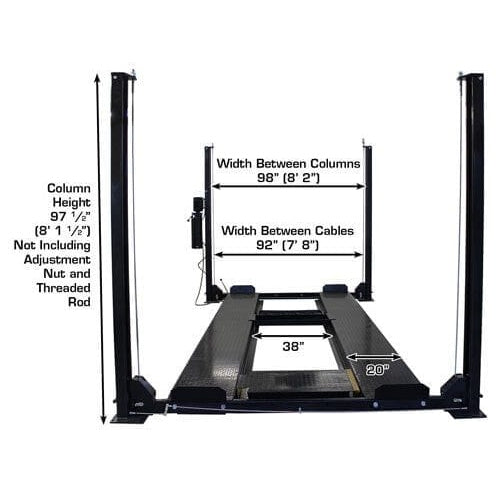

| Clearance Between Columns | 98" (8' 2") |
| Column Base | 9⅝" x 11½" |

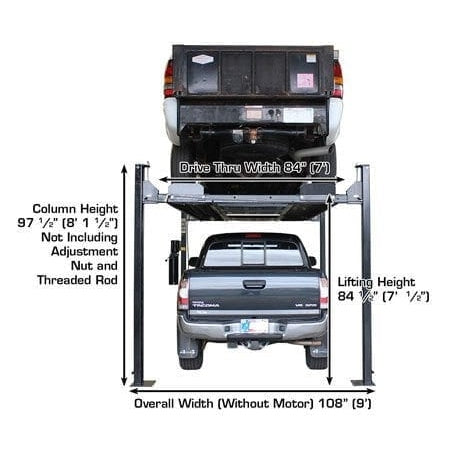

| Column Height | 97½" (8' 1½"); 100" (8' 4") w/ bolts |

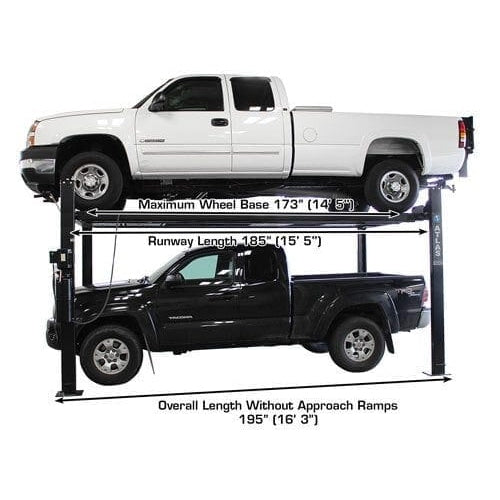

| Maximum Wheelbase | 173" (14' 5") |
| Drive-Through Width | 84" (7') |

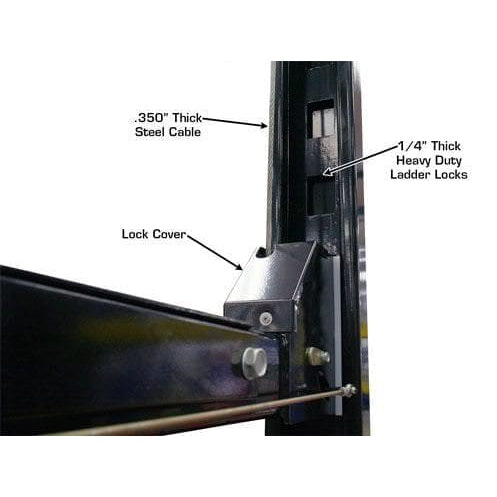

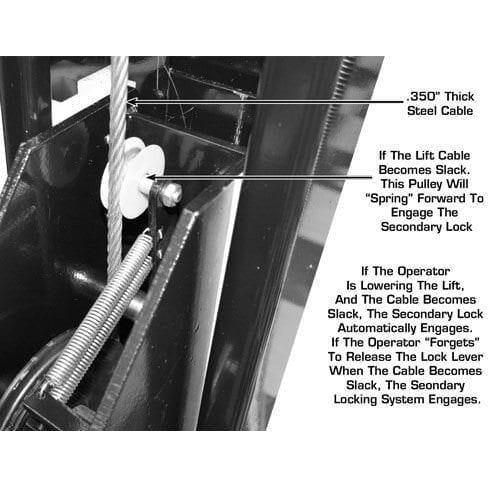

| Cable Diameter | .350" |

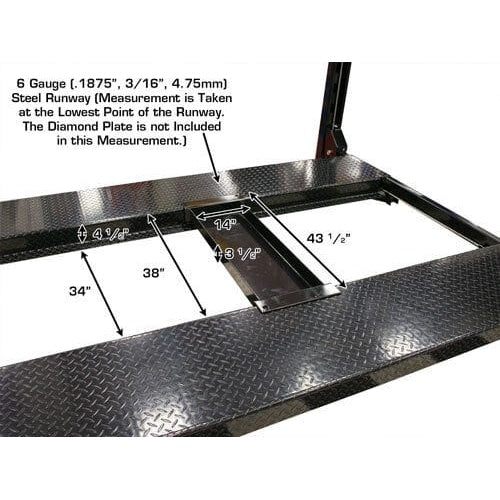

| Steel Gauge | 6 gauge (3/16" / 4.75mm) |
| Motor | 110V |
| Oil Requirement | 3–5 gallons (AW32 / AW46) |
| Shipping Weight | 1,900 lbs |
Locking Positions (±2")
19", 24¼", 25", 30¼", 31", 36¼", 37", 42¼", 43", 48¼", 49", 54¼", 55", 60¼", 61", 66¼", 67", 72¼", 73", 78¼", 79", 84¼"

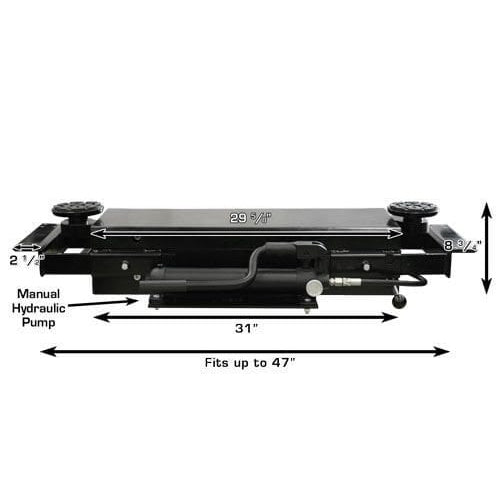

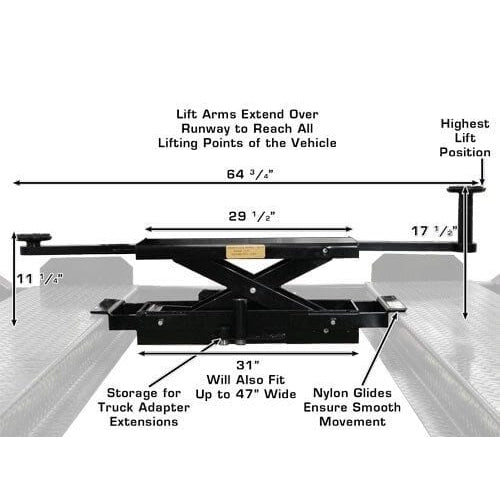

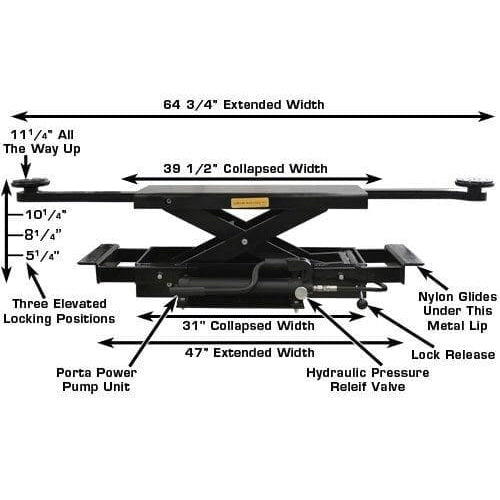

Atlas® RJ-35 Sliding Jack
| Specification | Measurement |
|---|---|
| Capacity | 3,500 lbs |
| Minimum Width | 29½" |
| Width (Arms In) | 39½" |
| Width (Arms Out) | 64¾" |
| Working Width | 31" – 47" |

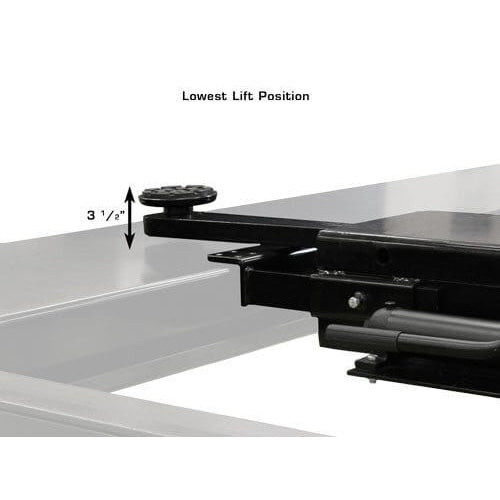

| Minimum Height (Lift Pad) | 3½" |
| Lift Pad Height | 1⅜" |
| Short Adapter | 1¼" |
| Tall Adapter | 5" |
| Raised Height (no adapter) | 11" |
| Raised Height (small adapter) | 12¼" |

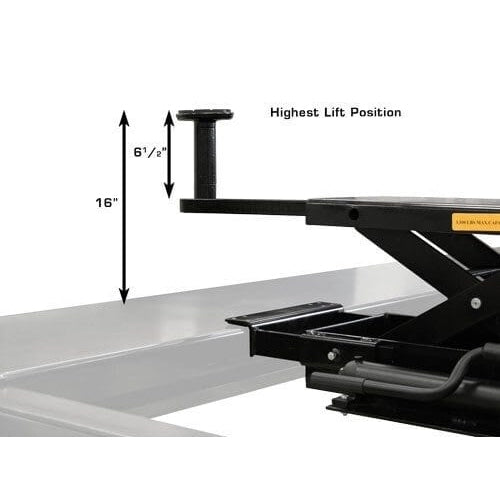

| Raised Height (large adapter) | 16" |
| Raised Height (both adapters) | 17¼" |

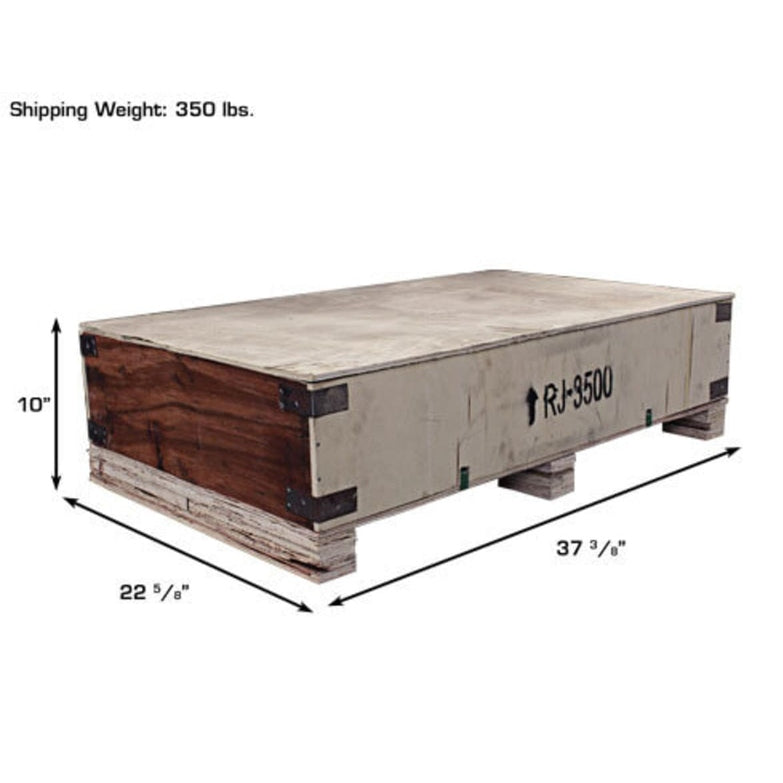

| Shipping Weight | 350 lbs |
