Description
The Atlas® Garage PRO9000 4-post lift is a heavy-duty, professional-grade unit designed for hobbyists, collectors, and small service environments that need maximum lifting power and versatility. With a 9,000 lb. capacity, it’s the most powerful model in the Atlas® Garage PRO Series — engineered to handle a wide range of vehicles from compact cars to large pickup trucks and diesel duallys.
The PRO9000 features extra-long runways — among the longest available on any portable 9,000 lb. four-post lift — allowing it to accommodate vehicles with extended wheelbases. Its extra-wide and extra-tall design provides ample clearance to park vehicles both on top of and beneath the lift, maximizing space efficiency in any garage.
Built with commercial-grade construction, the PRO9000 offers the strength, safety, and reliability required by professionals, while remaining portable and easy to install for home users seeking professional-level equipment at a competitive price.
This combo package includes two Atlas® RJ35 sliding bridge jacks, ideal for lifting a vehicle’s wheels off the runways for tire, brake, and suspension service.
Features
PRO9000 Lift
-
9,000 lb. lifting capacity
-
Heavy-duty, free-standing, portable design
-
Extra tall, extra wide, and extra long configuration
-

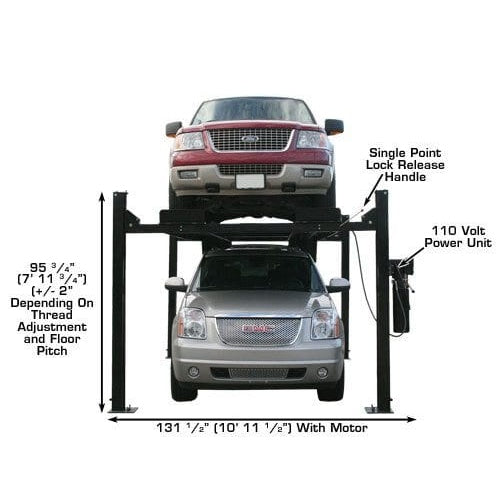

Single-point lock release for convenient operation
-
Lock-ladder design with double-lock safety system
-

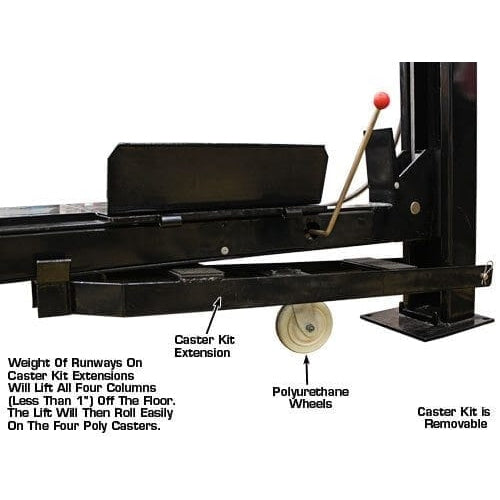

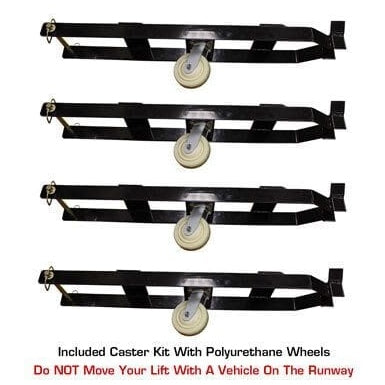

Includes caster kit with polyurethane wheels
-

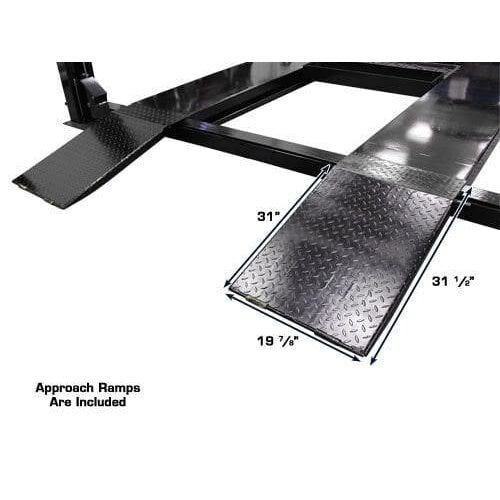

Includes steel approach ramps
-

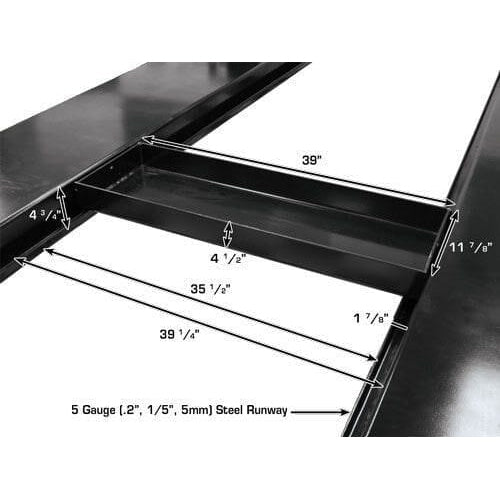

Includes steel jack tray
-
(4) plastic drip trays included
-

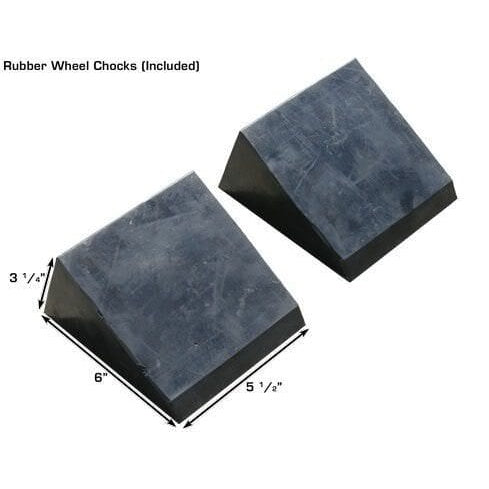

(2) rubber wheel chocks included
-
Perfect for both vehicle storage and maintenance
-

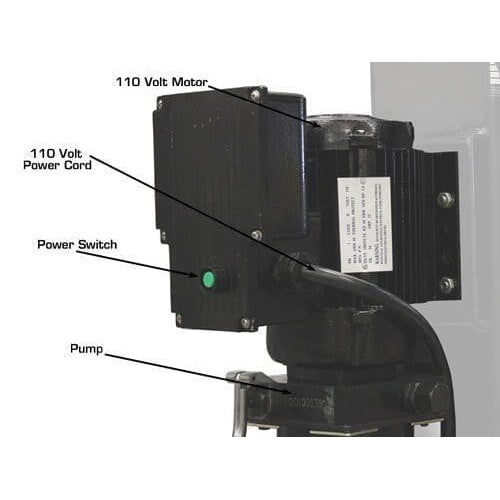

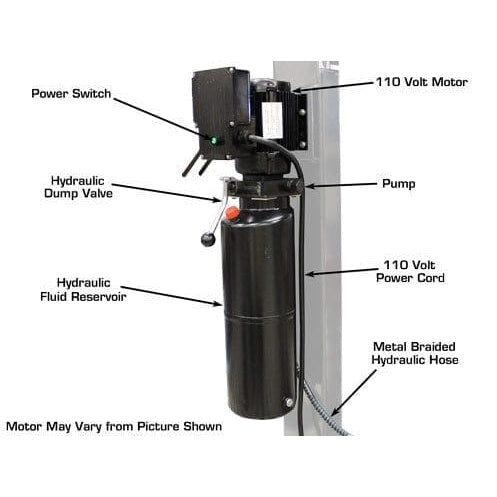

Operates on 110V electric power (30-amp breaker required)
-

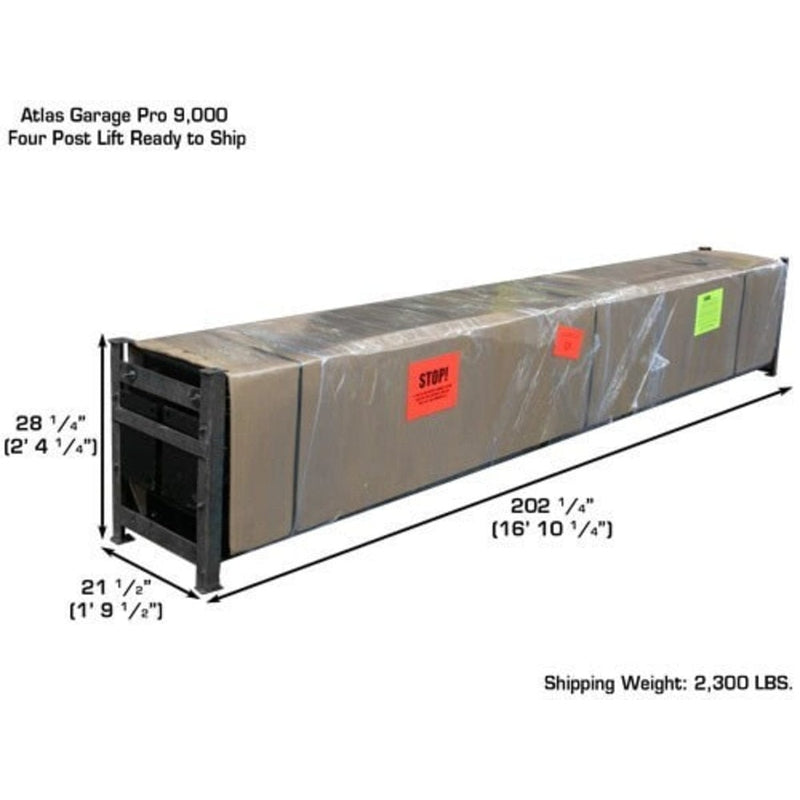

Shipping weight: 2,300 lbs
-
Warranty: 2-year structural / 1-year hydraulic (parts only)

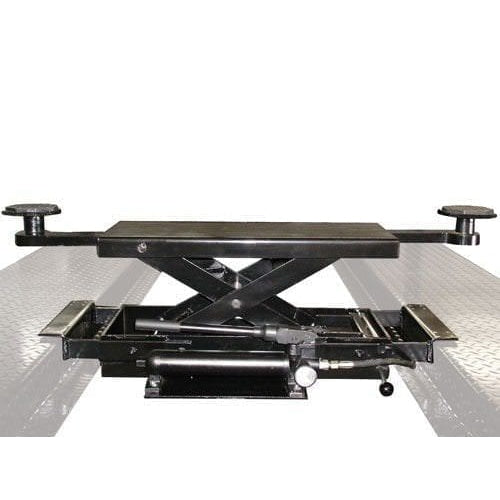

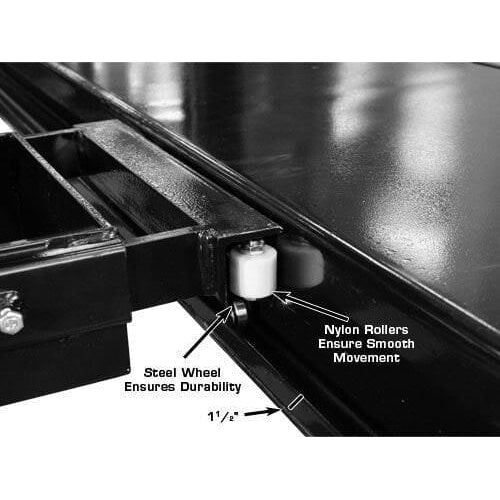

PROJACK35 Sliding Bridge Jack
-
3,500 lb. capacity per jack
-

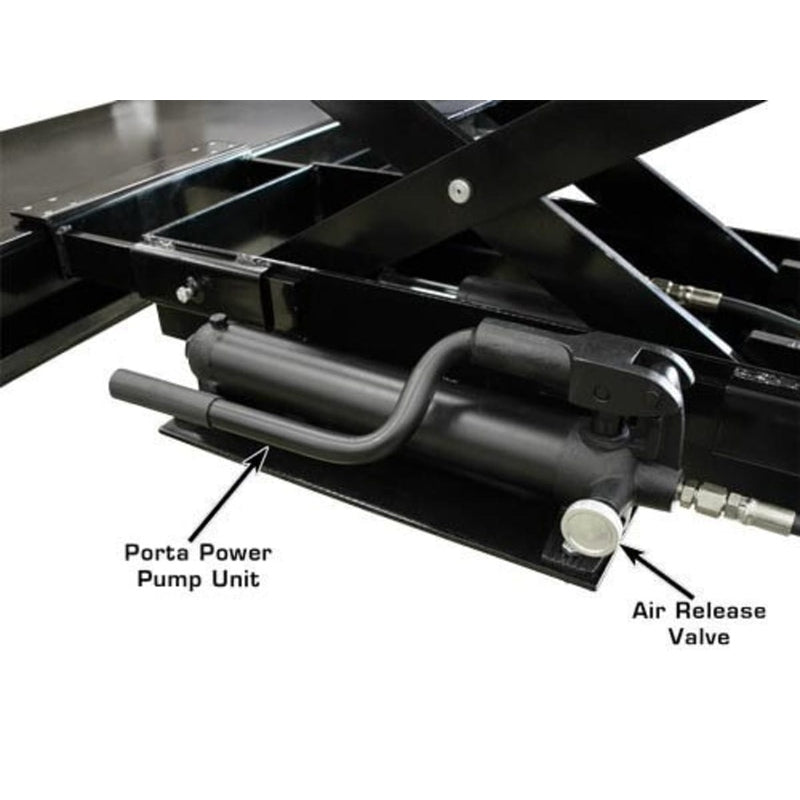

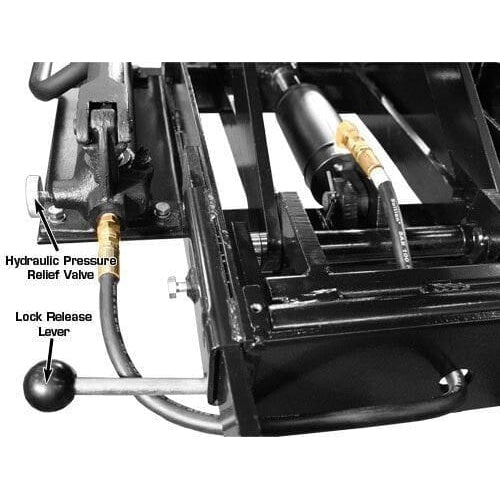

Manual hand-pump operation
-
Scissor-type mechanism for smooth, level lifting
-
Compact, low-profile design
-
Adjustable width fits multiple 4-post lift models
-
Adjustable lift arms for flexible lifting points
-
Multiple safety lock positions
-

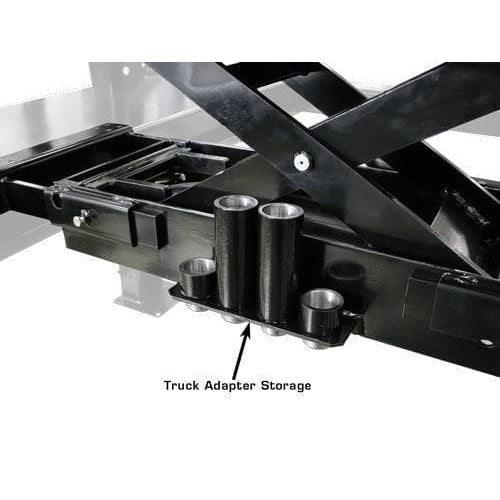

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

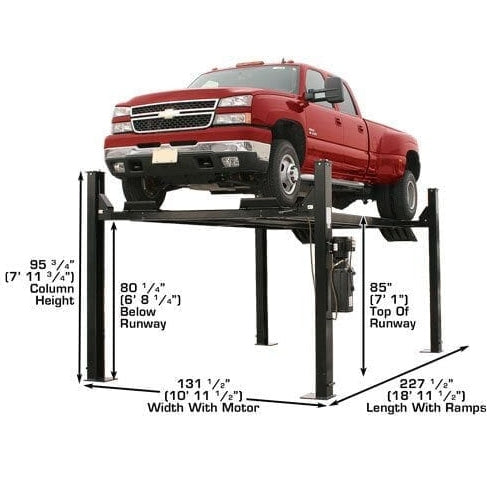

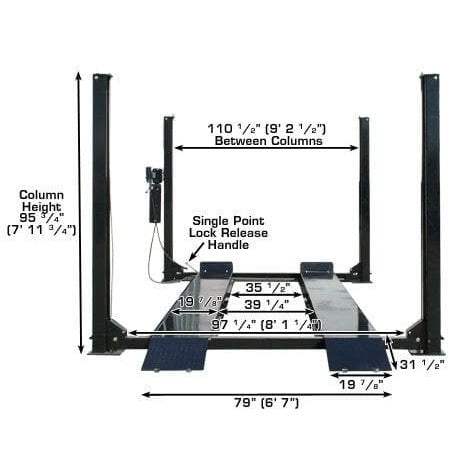

Atlas® Garage PRO9000
| Specification | Measurement |
|---|---|
| Capacity | 9,000 lbs |
| Lifting Height (to top of runway) | 85" (7' 1") |
| Clearance Under Runways | 80¼" (6' 8¼") |

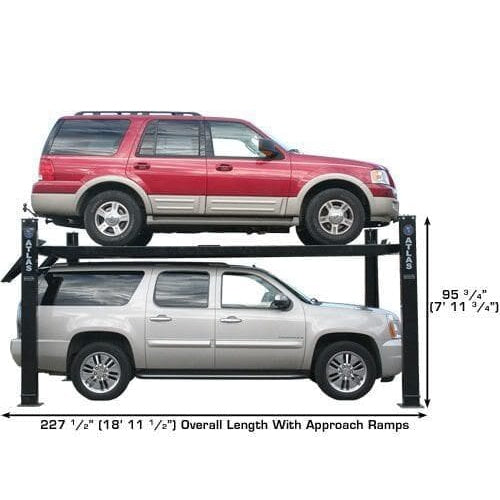

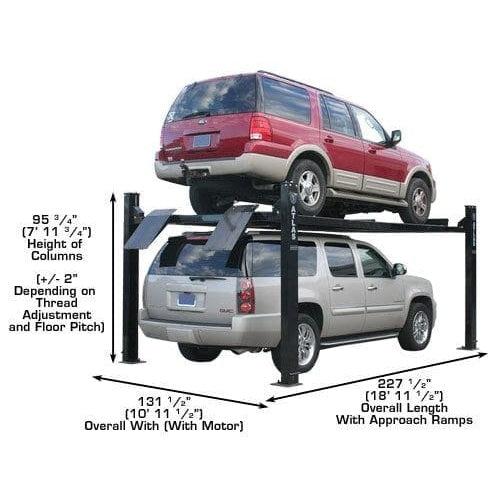

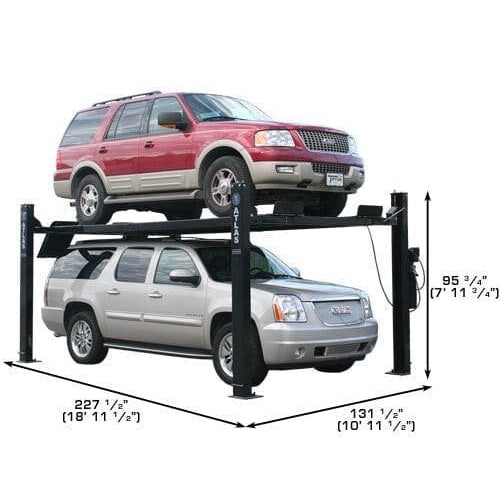

| Height of Columns | 95¾" (7' 11¾") |

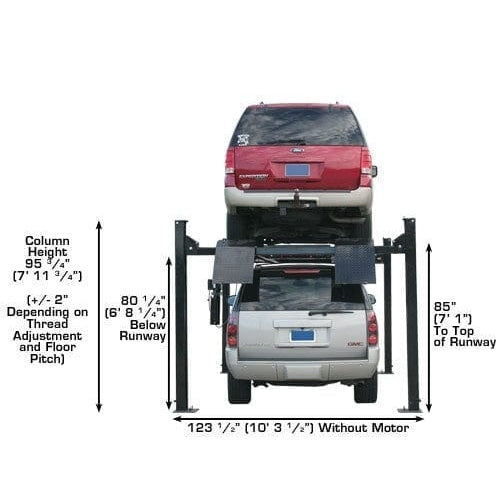

| Overall Width (w/o motor) | 123½" (10' 3½") |
| Overall Width (w/ motor) | 131½" (10' 11½") |

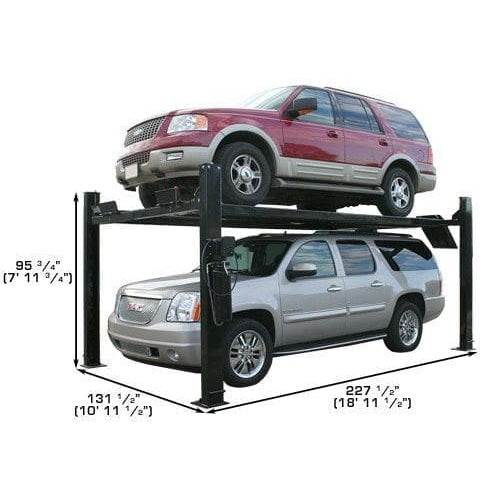

| Overall Length (w/ ramps) | 227½" (18' 11½") |
| Approach Ramp | 31" (2' 7") |
| Runway Width | 21¼" (with rails) / 20" (driving surface) |
| Runway Length | 199½" (16' 7½") |
| Runway Thickness | 4¾" |
| Width Between Runways | 39¾" (3' 3¾") |
| Width Between Runway Rails | 35½" (2' 11½") |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 110½" (9' 2½") |

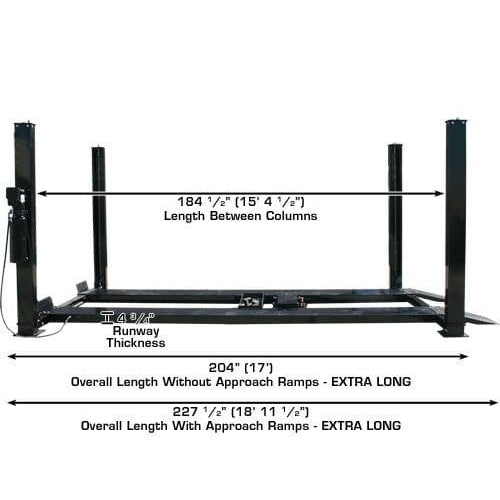

| Length Between Columns | 184½" (15' 4½") |
| Maximum Wheelbase | 187" (15' 7") |
| Drive-Through Width (outside of tire to outside of tire) | 97¼" (8' 1¼") |
| Motor / Electrical | 110V, 30-amp breaker required |
| Shipping Weight | 2,300 lbs |

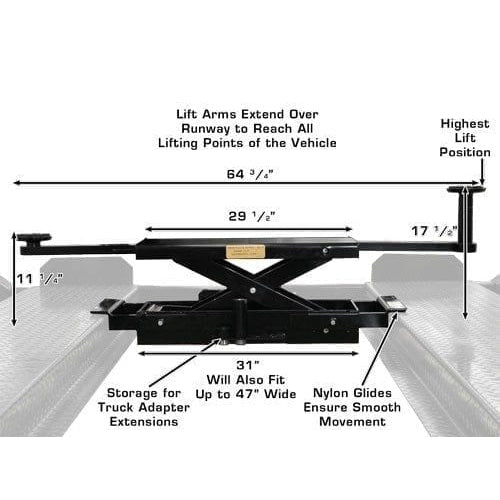

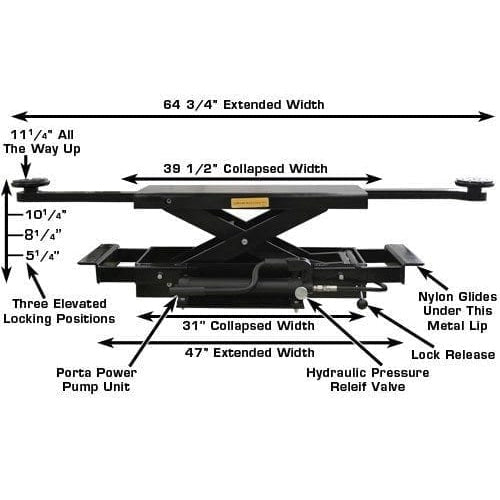

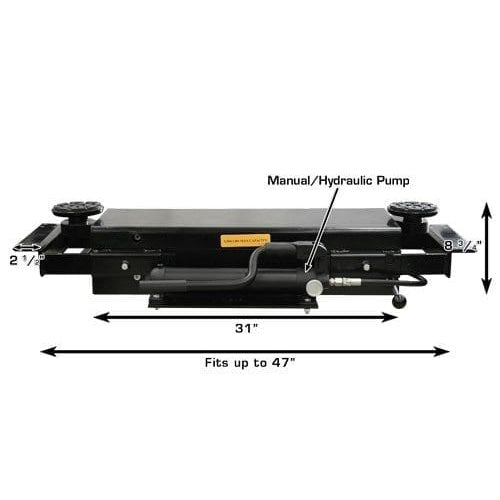

Atlas® RJ35 Sliding Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 3,500 lbs |
| Maximum Width | 64¾" (5' 4¾") |
| Minimum Width | 29½" (2' 5½") |
| Minimum Height (with lift pad above runway) | 3½" (varies by lift) |
| Lift Pad Height (above arm) | 1⅜" |
| Maximum Raised Height (no adapters) | 11" |
| Maximum Raised Height (with adapters) | 17¼" |

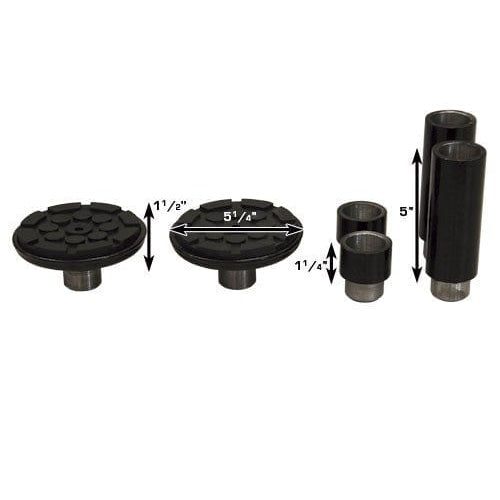

| Adapter Heights | (2) each – 1.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |

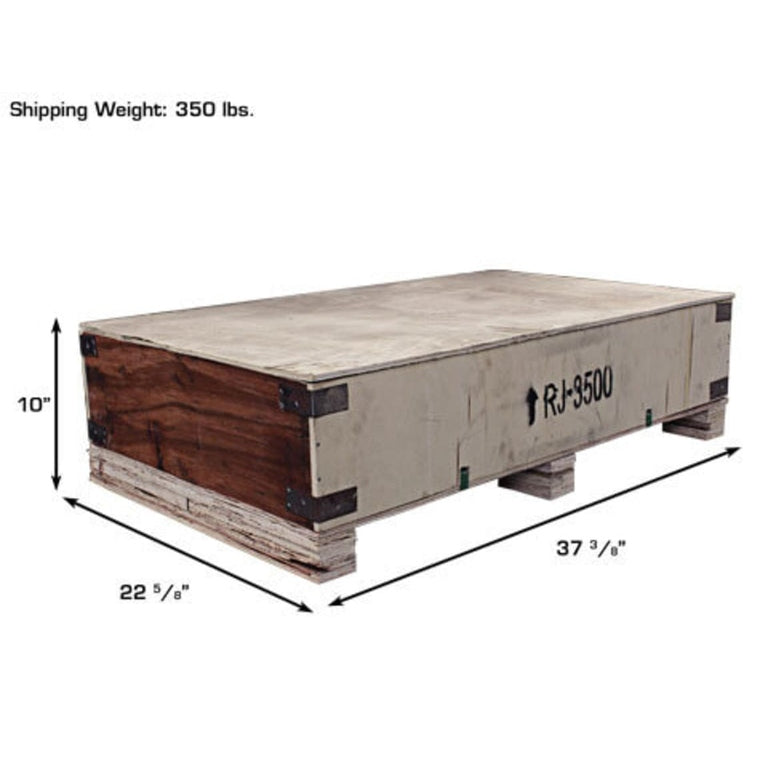

| Shipping Weight | 350 lbs |
