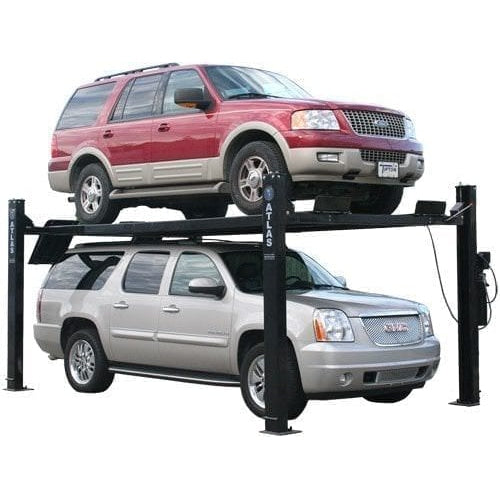

The Atlas® Garage PRO9000 4-post lift is a heavy-duty hobbyist and professional-grade lift that offers the highest lifting capacity in the Atlas® Garage PRO Series. Designed for versatility, it features extra-long runways—among the longest of any portable 9,000 lb. four-post lift on the market—allowing it to handle some of the longest wheelbase vehicles available today.
Its extra-wide design easily accommodates large trucks, including diesel duallys, while the extra height provides ample clearance to park everything from compact cars to full-size pickups both on top of and beneath the lift.
Built with commercial-grade components, the PRO9000 delivers the strength and reliability needed for professional automotive service environments, yet remains portable and convenient for home or garage use. It’s the perfect choice for enthusiasts or service centers seeking a durable, professional four-post lift at a competitive price.
This combo package also includes two Atlas® RJ6 rolling bridge jacks, which make it easy to raise a vehicle’s wheels off the runways for efficient tire, brake, and suspension service.
Features
PRO9000 Lift
-
9,000 lb. lifting capacity
-
Heavy-duty, free-standing, portable design
-
Extra tall, extra wide, and extra long configuration
-
Single-point lock release for simple operation
-
Lock-ladder design with double-lock safety system
-

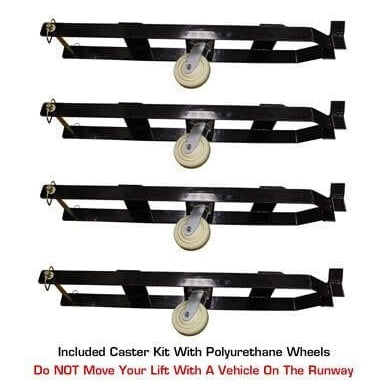

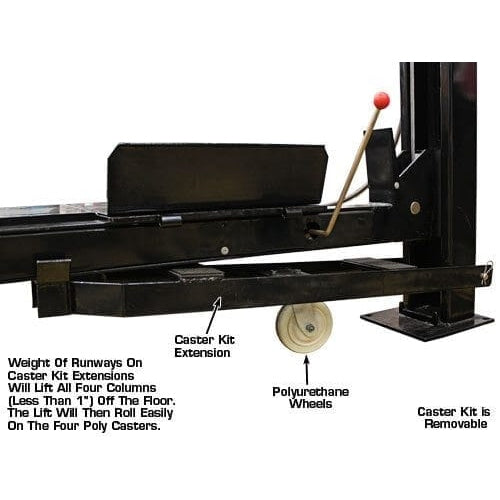

Includes caster kit with polyurethane wheels
-

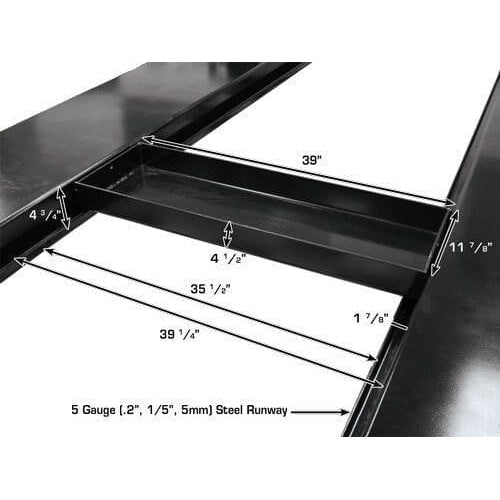

Includes steel approach ramps and jack tray
-

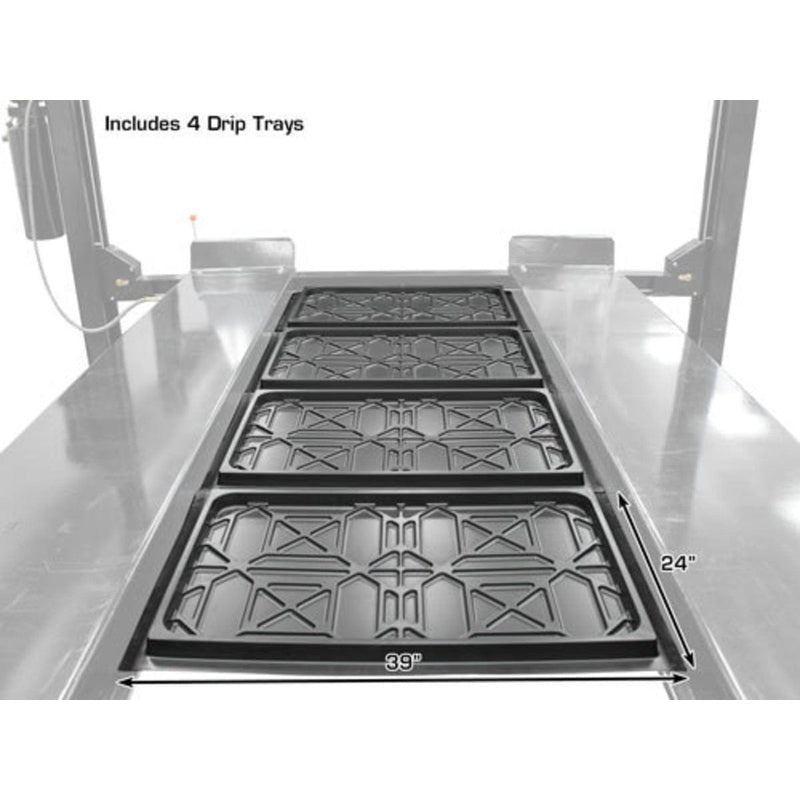

(4) plastic drip trays included
-

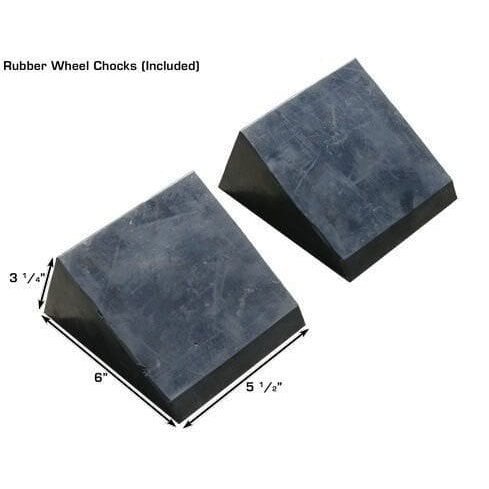

(2) rubber wheel chocks included
-
Ideal for both storage and vehicle maintenance
-
Operates on 110V electric power (30-amp breaker required)
-

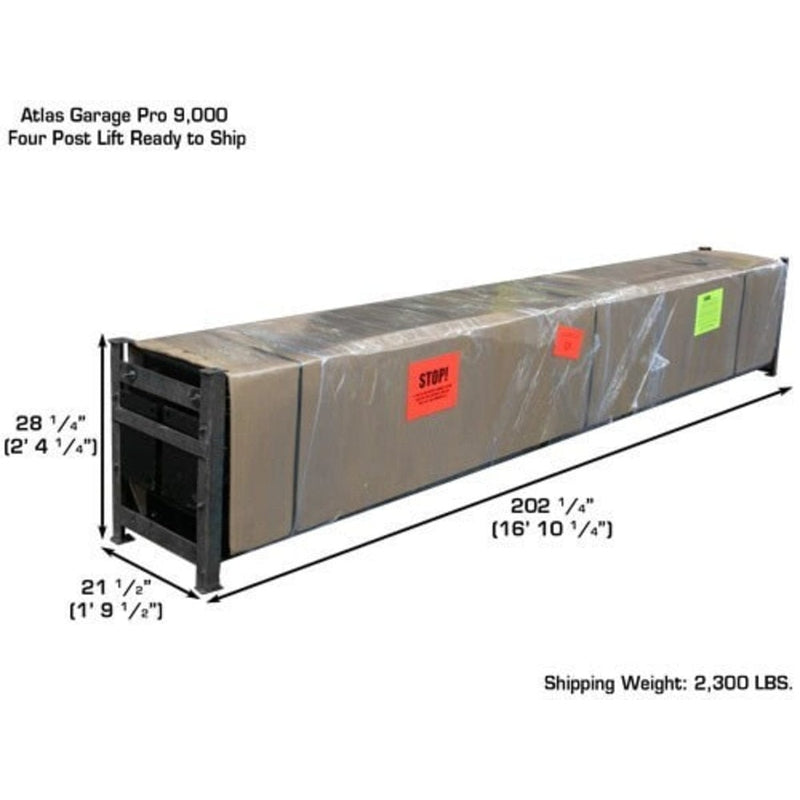

Shipping weight: 2,300 lbs
-
Warranty: 2-year structural / 1-year hydraulic (parts only)

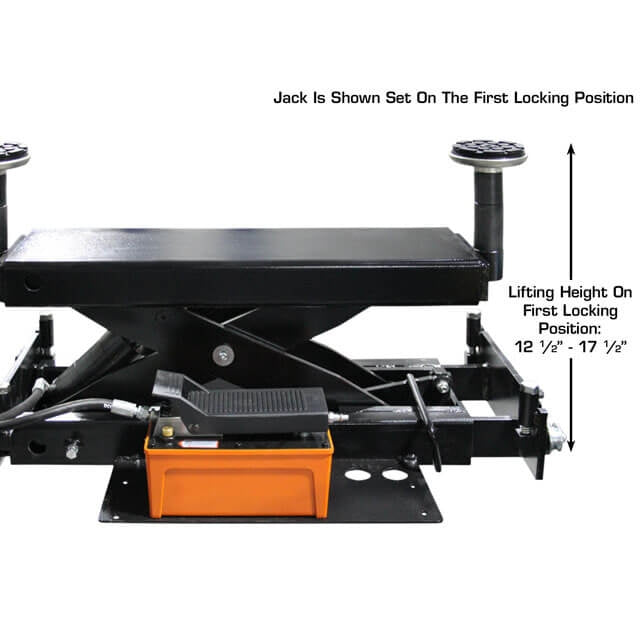

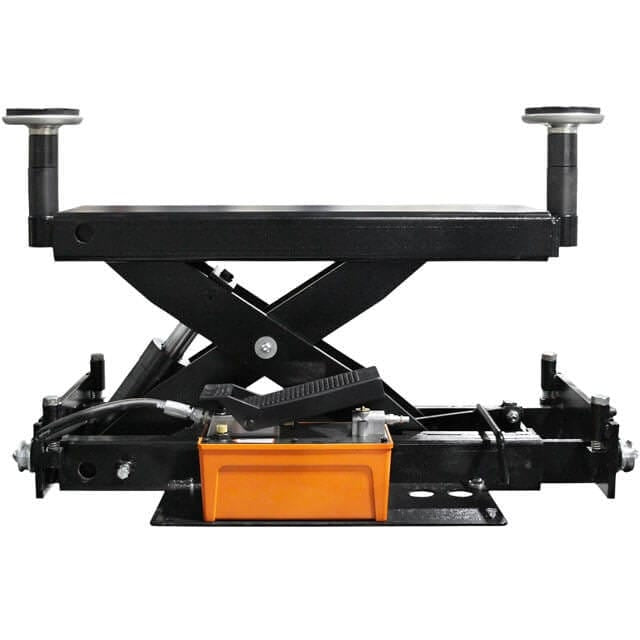

RJ6 Rolling Bridge Jack
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (requires external air supply)
-

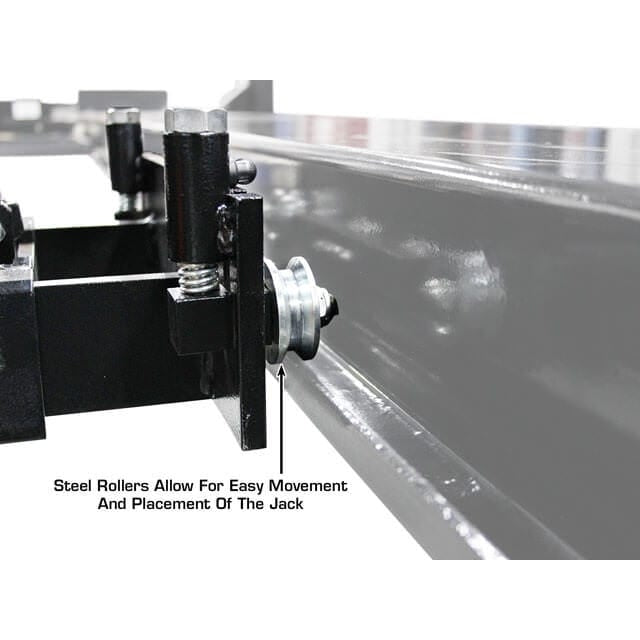

Smooth rolling action for easy positioning
-

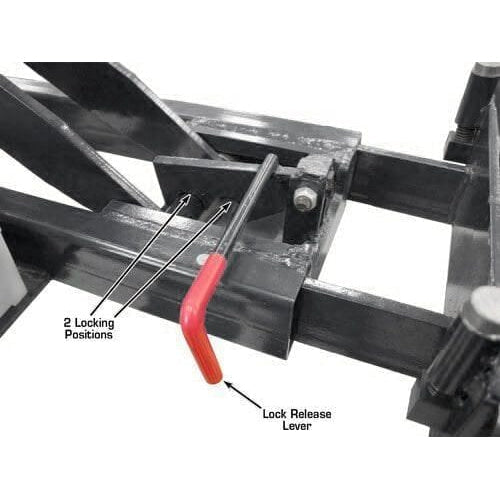

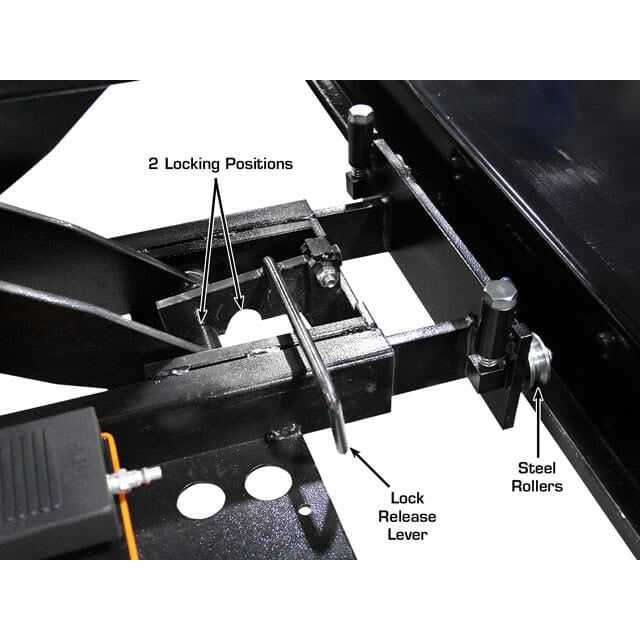

Multiple safety lock positions
-
Compact, low-profile design
-
Scissor mechanism for stable, level lifting
-
Durable powder-coated finish
-
Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

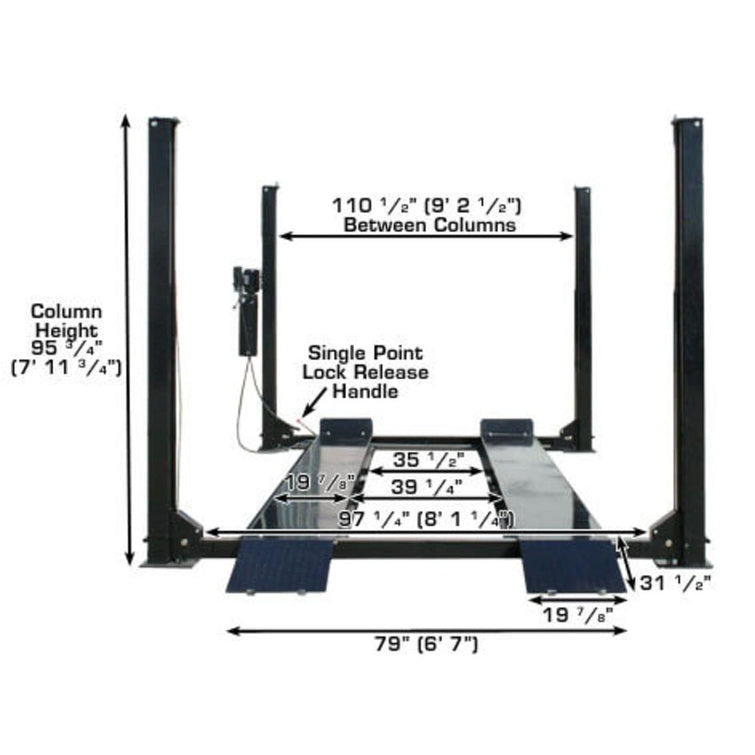

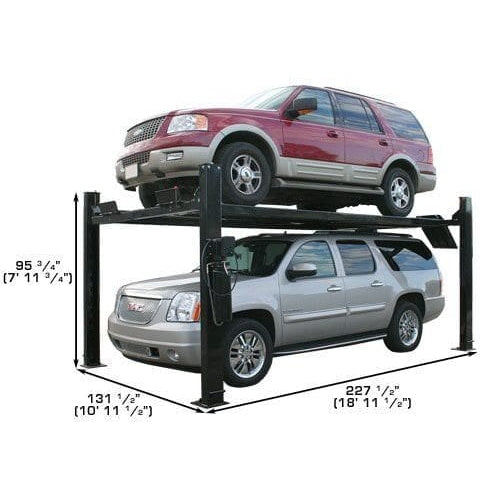

Atlas® Garage PRO9000
| Specification | Measurement |
|---|---|
| Capacity | 9,000 lbs |

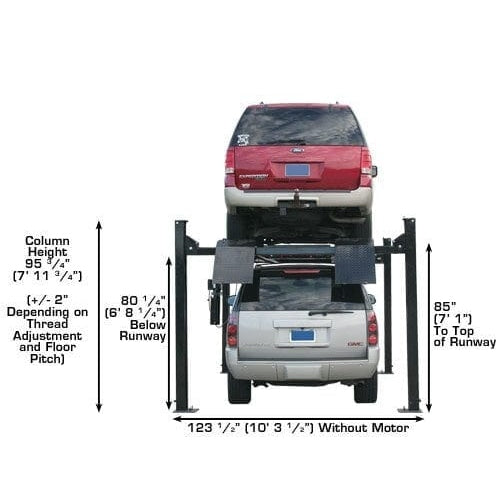

| Lifting Height (to top of runway) | 85" (7' 1") |
| Clearance Under Runways | 80¼" (6' 8¼") |

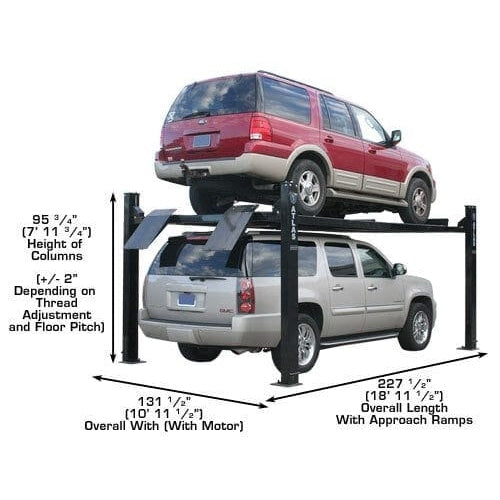

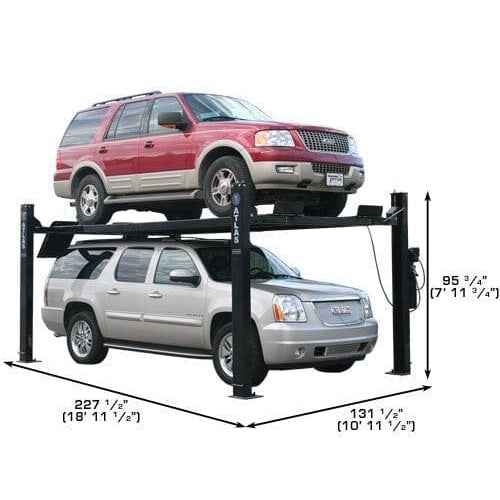

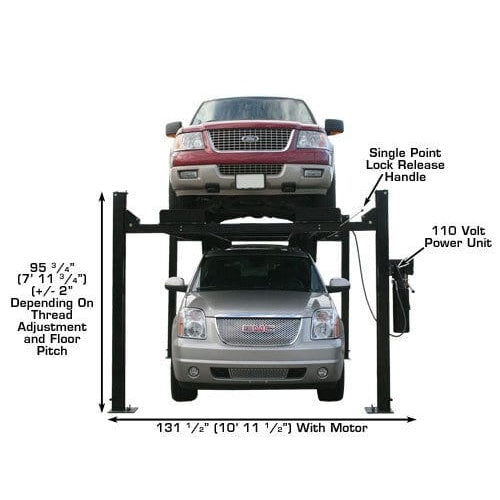

| Height of Columns | 95¾" (7' 11¾") |
| Overall Width (w/o motor) | 123½" (10' 3½") |
| Overall Width (w/ motor) | 131½" (10' 11½") |

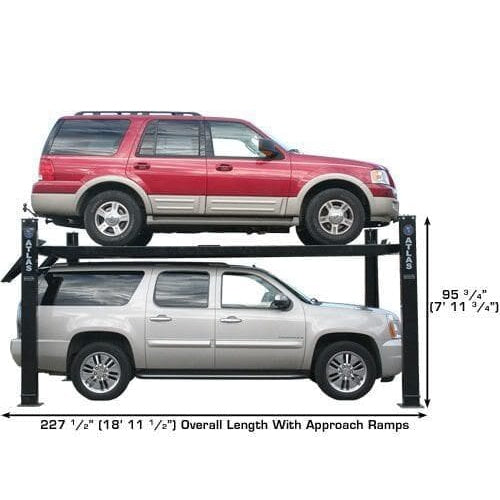

| Overall Length (w/ approach ramps) | 227½" (18' 11½") |

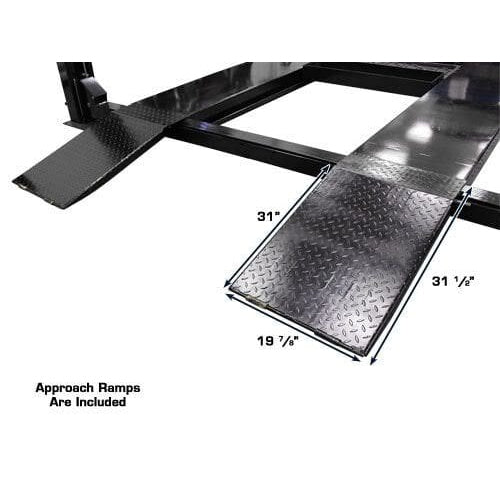

| Approach Ramp | 31" (2' 7") |
| Runway Width | 21¼" (with rails) / 20" (driving surface) |
| Runway Length | 199½" (16' 7½") |
| Runway Thickness | 4¾" |
| Width Between Runways | 39¾" (3' 3¾") |
| Width Between Runway Rails | 35½" (2' 11½") |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 110½" (9' 2½") |

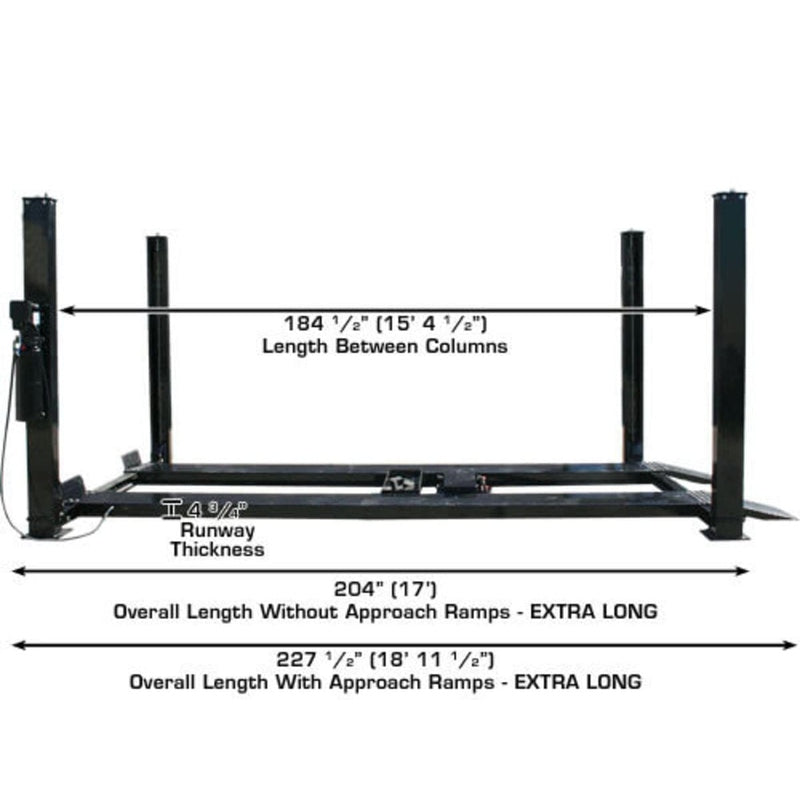

| Length Between Columns | 184½" (15' 4½") |
| Maximum Wheelbase | 187" (15' 7") |
| Drive-Through Width (outside of tire to outside of tire) | 97¼" (8' 1¼") |
| Motor / Electrical Requirement | 110 Volt, 30-amp breaker required |
| Shipping Weight | 2,300 lbs |

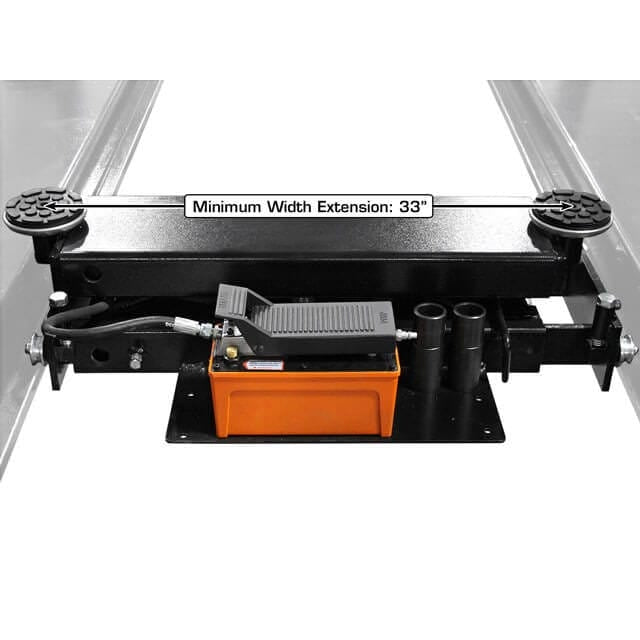

Atlas® RJ6 Rolling Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 6,000 lbs |

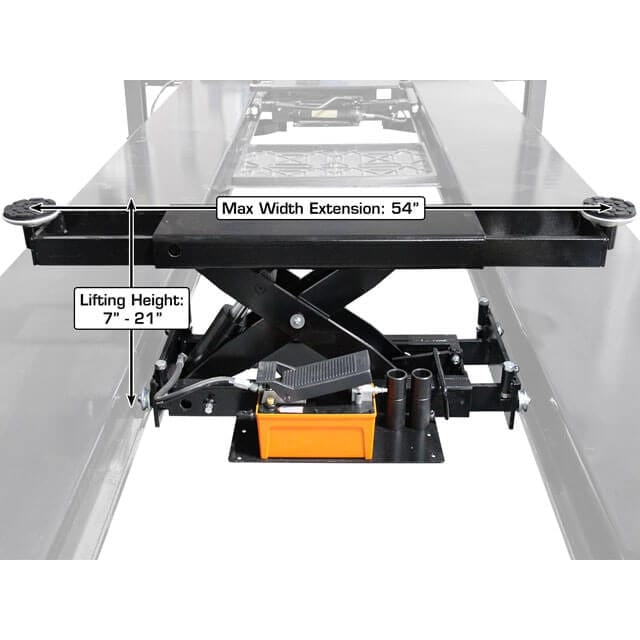

| Maximum Width | 55" (4' 7") |
| Minimum Width | 35" (2' 11") |
| Runway Compatibility | 32" – 52" spacing |

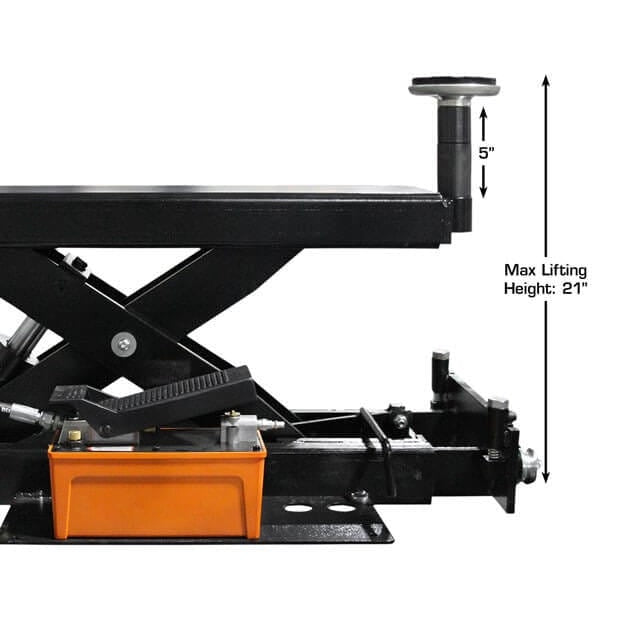

| Maximum Lifting Height (with adapters) | 21" (1' 9") |
| Air Requirement | 70–115 PSI |

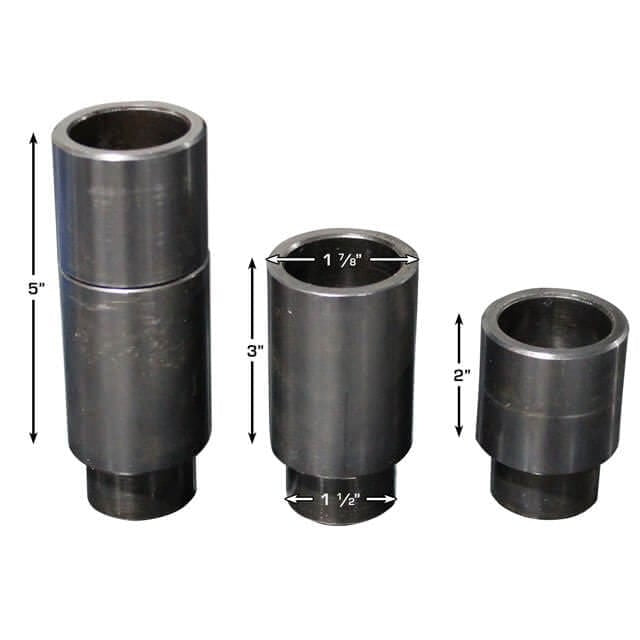

| Adapter Heights | (2) each – 2", 3" |
| Arm Hole / Adapter Peg Size | 1.5" |

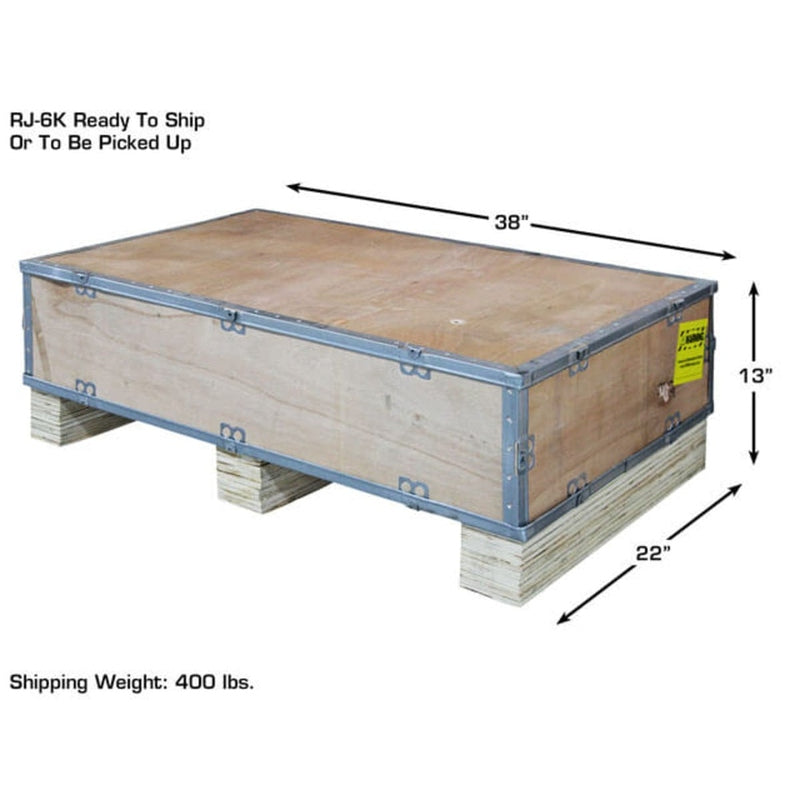

| Shipping Weight | 350 lbs |
