Description
Description

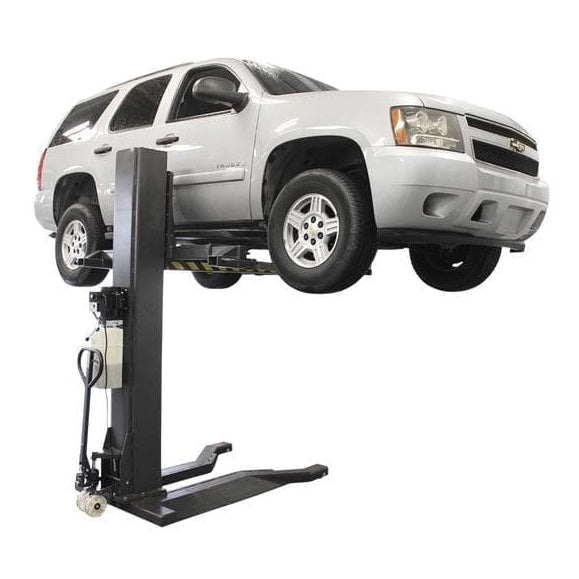

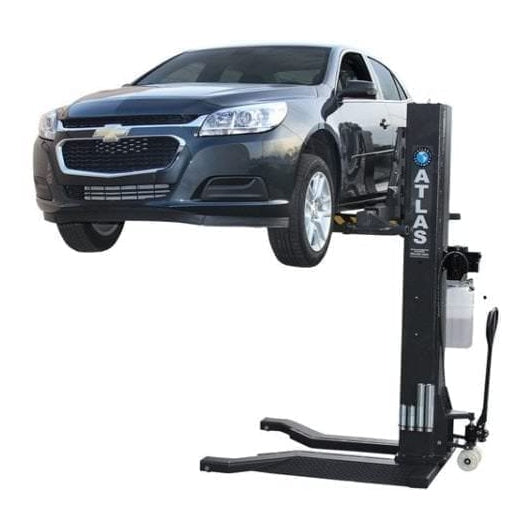

The Atlas® PSP-6000 Portable Single Post Lift is a practical and space-saving lifting solution ideal for both professional service shops and homeowners who prefer not to dedicate a full bay to a permanent lift installation. This portable lift allows operators to move freely around or beneath the vehicle for efficient wheel and undercarriage service. When not in use, the PSP-6000 can be easily rolled aside for storage. Its built-in drive-over ramp further maximizes garage space and convenience.
Designed for mobility and versatility, the PSP-6000 moves smoothly across level concrete surfaces and can be operated both indoors and outdoors. The lift’s column fits under a standard 9-foot (108-inch) ceiling, providing ample lift height for most vehicles and allowing access to areas that are typically unreachable with a mid-rise lift.
For enhanced safety, the Atlas® PSP-6000 is equipped with an automatic chain-break locking mechanism that secures the carriage in place in the unlikely event of a chain failure.
Features
-
6,000 lb. lifting capacity
-
Portable design for convenient movement and storage
-
Low-profile construction for easy vehicle access
-
Heavy-duty, rigid base for stability and durability
-

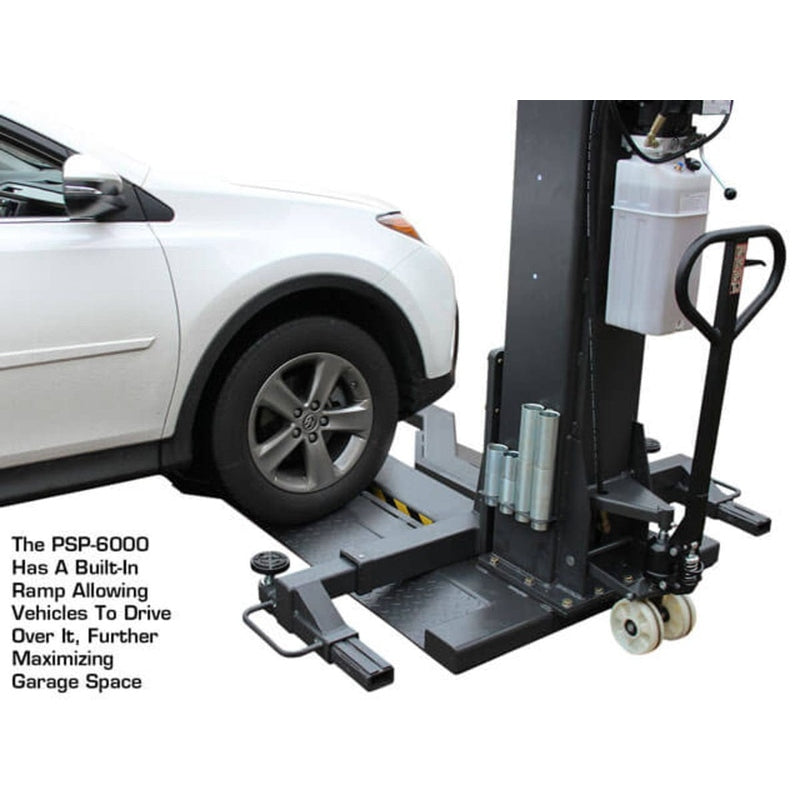

Built-in drive-over ramps to maximize floor space
-

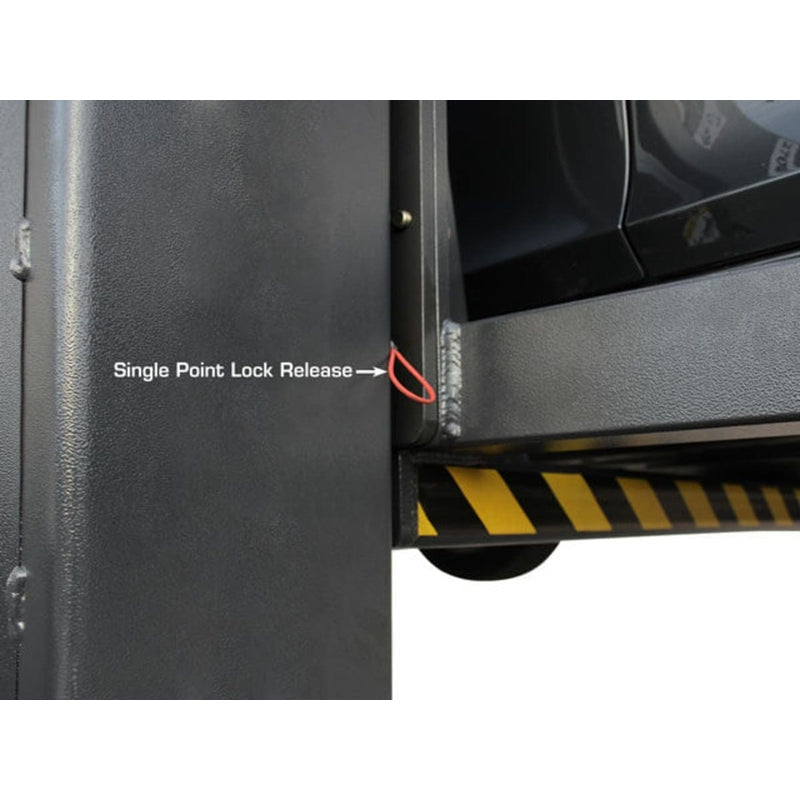

Single-point lock release for simplified operation
-

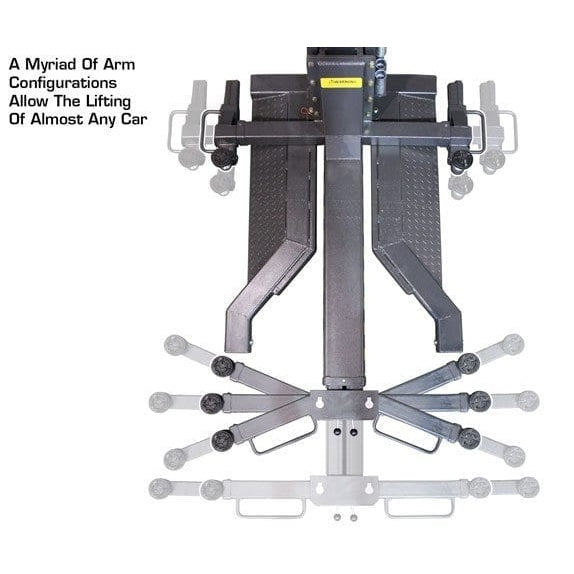

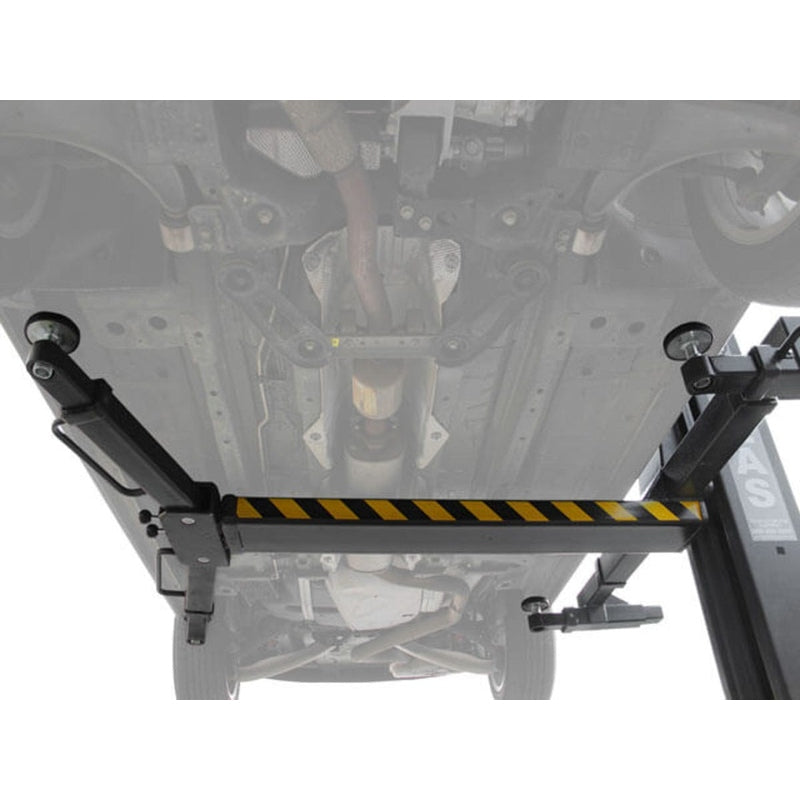

Two-stage telescoping swing arms for flexible vehicle positioning
-
Automatic locking arm restraints for added safety
-
Lifting height: 71 ⅔″ (5′ 11 ⅔″)
-
110V electric operation (requires 30-amp breaker)
-
Includes free 8-piece truck adapter set
-

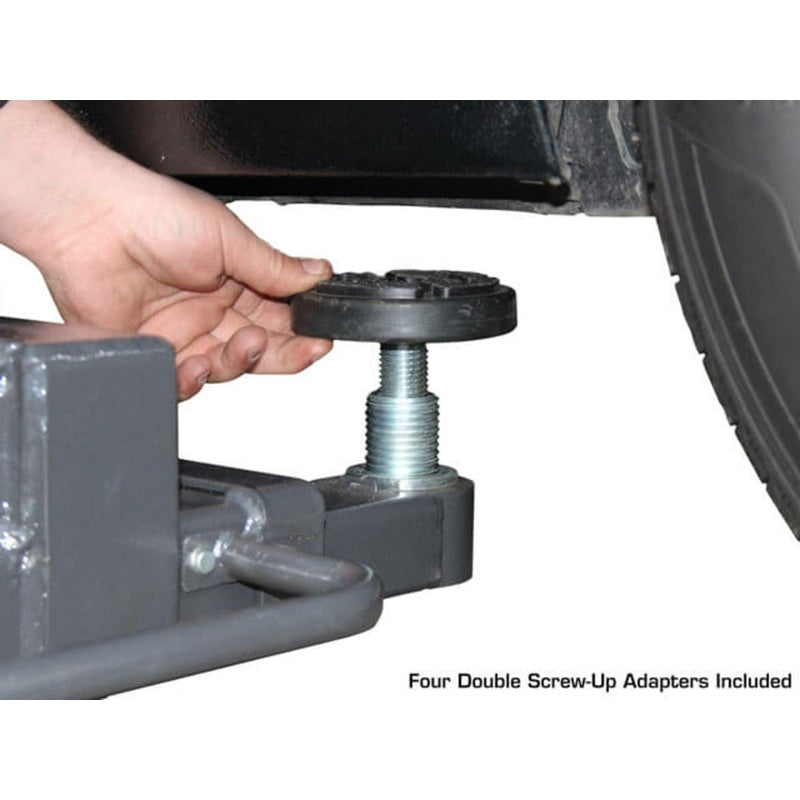

Double screw-up adapters included for additional reach
-

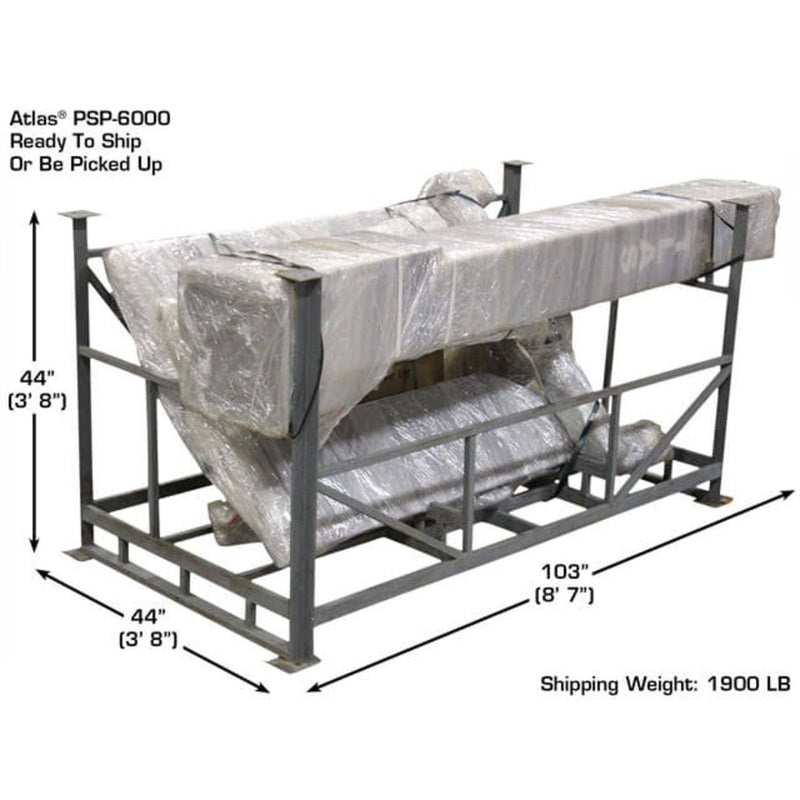

Shipping weight: 1,900 lbs.
-
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)
Specifications
| Specification | Detail |
|---|---|
| Capacity | 6,000 lbs |

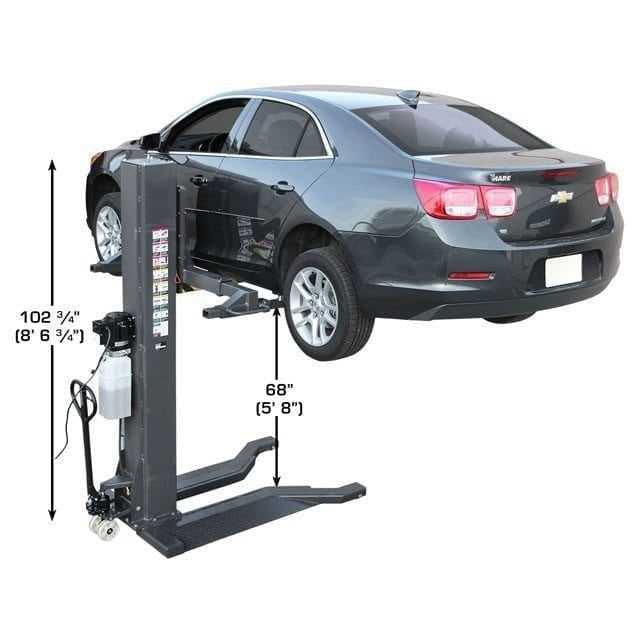

| Overall Height | 102 ¾″ (8′ 6 ¾″) |

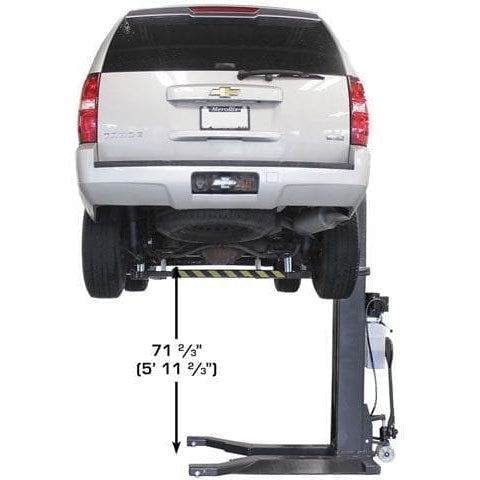

| Maximum Lifting Height (Without Truck Adapters) | 71 ⅔″ (5′ 11 ⅔″) |

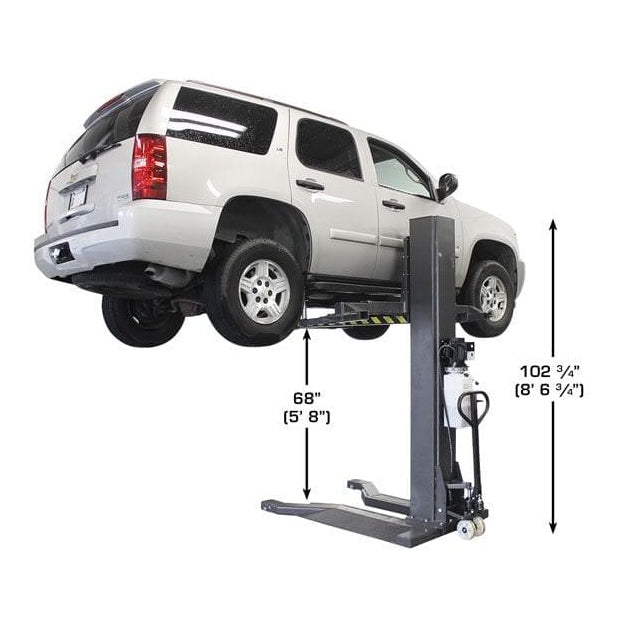

| Maximum Clearance | 68″ (5′ 8″) |
| Minimum Height | 5″ |

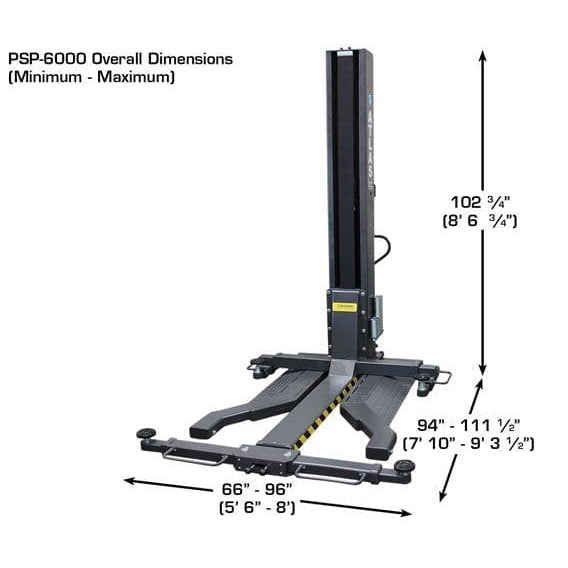

| Overall Maximum Dimensions | L: 111 ½″ × W: 96″ × H: 102 ¾″ |
| Column Size | 10 ½″ × 12 ½″ |

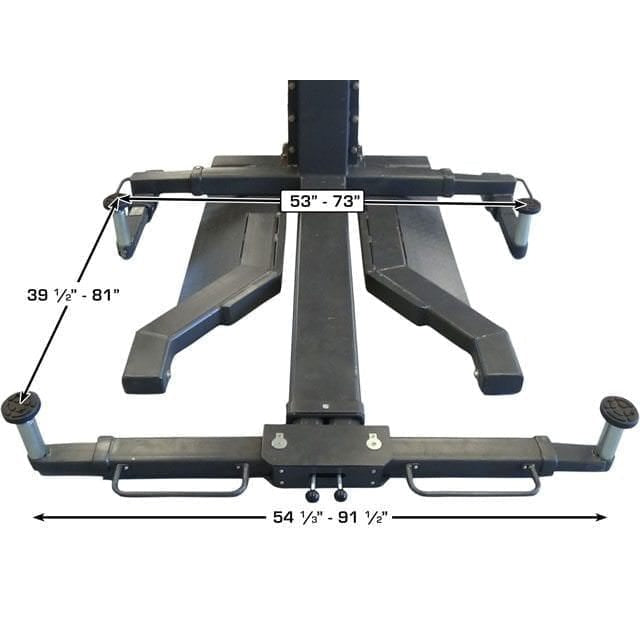

| Distance Between Lifting Pads (Column Side to Offside) | 39 ½″ – 81″ |
| Distance Between Lifting Pads (Column Side to Column Side) | 53″ – 73″ |
| Distance Between Lifting Pads (Offside to Offside) | 54 ⅓″ – 91 ½″ |
| Motor / Electric Requirement | 110V (30-amp breaker required) |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 1,900 lbs |
| Adapter Heights | Four at 2.75″, Four at 6″ |
| Arm Hole / Adapter Peg Size | 2″ |
