The Atlas® PX16A is a 16,000 lb. capacity scissor-style alignment lift engineered for professional automotive service facilities that need a space-saving, narrow-width solution capable of handling everything from passenger vehicles to heavy-duty, long-wheelbase trucks and vans.

Designed for precision and versatility, the PX16A supports four-wheel alignments on vehicles with wheelbases ranging from 96 inches to 184 inches, making it ideal for high-volume alignment work across a wide range of applications.

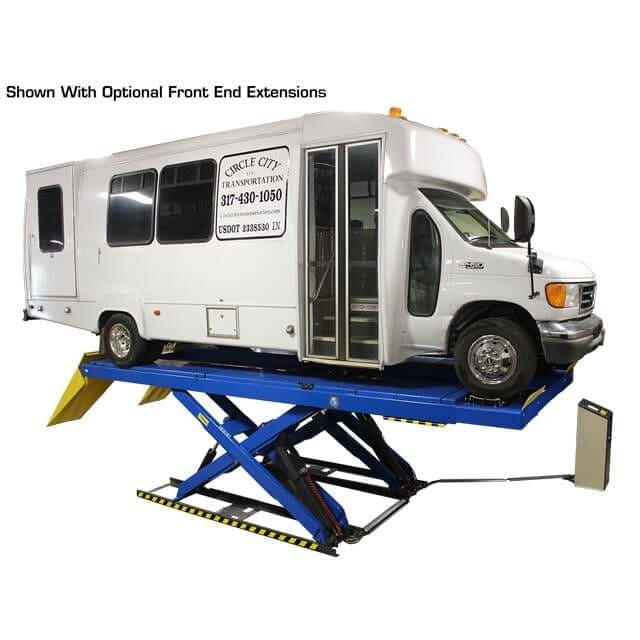

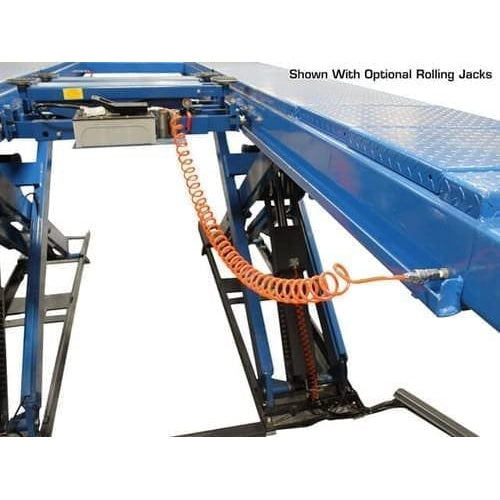

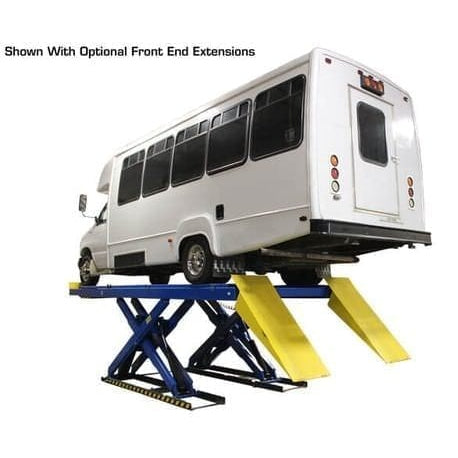

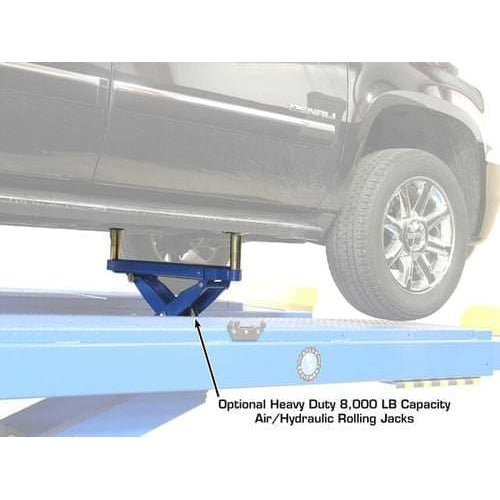

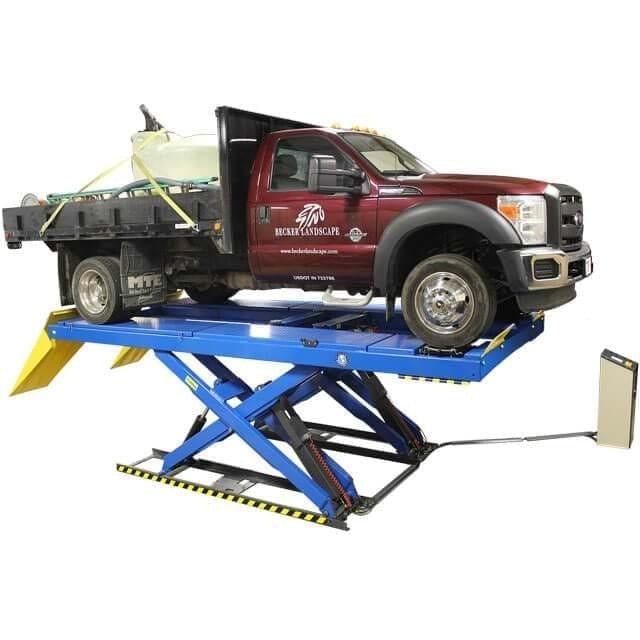

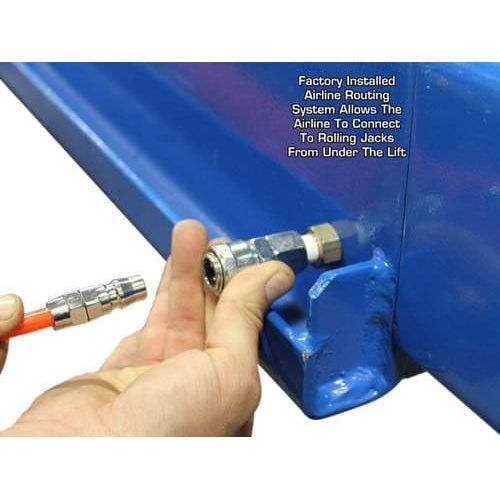

This premium alignment lift comes standard with turntables, built-in slip plates, and runway jack rails, which are compatible with optional rolling bridge jacks such as the Atlas® RJ8000BK. The lift also features a semi-enclosed air line routing system, which accommodates the optional air line kit—providing clean, organized air delivery to the rolling jacks and keeping the work area free from tangled or obstructive shop air hoses.

Built for efficiency, strength, and professional-grade accuracy, the Atlas® PX16A delivers exceptional performance while maximizing shop space and productivity.

Features

  • 16,000 lb. lifting capacity

  • Heavy-duty, commercial-grade construction

  • Precision-engineered scissor-style alignment lift

  • Front cross-beam for enhanced structural stability

  • Super-balanced design for highly accurate platform leveling—ideal for wheel alignment work

  • Built-in slip plates and alignment turntables included

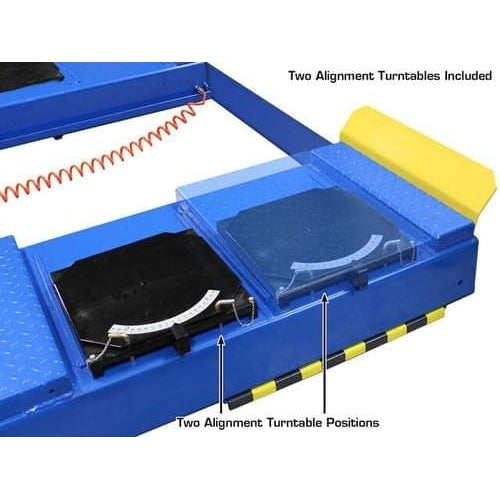

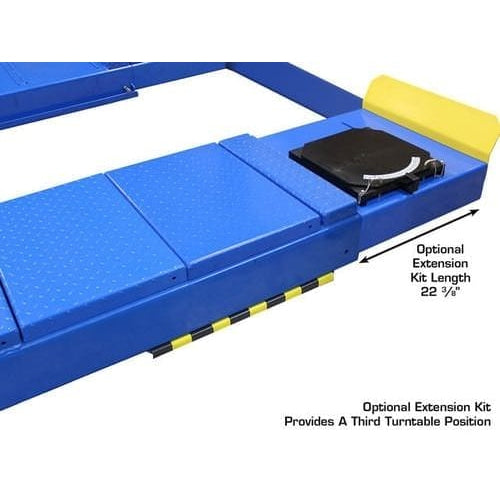

  • Recessed turntable positions for easy setup and alignment accuracy

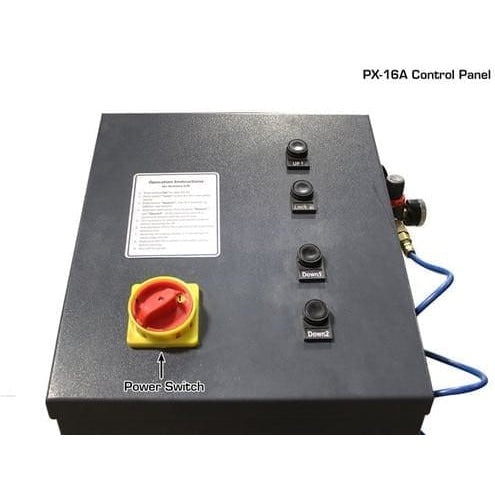

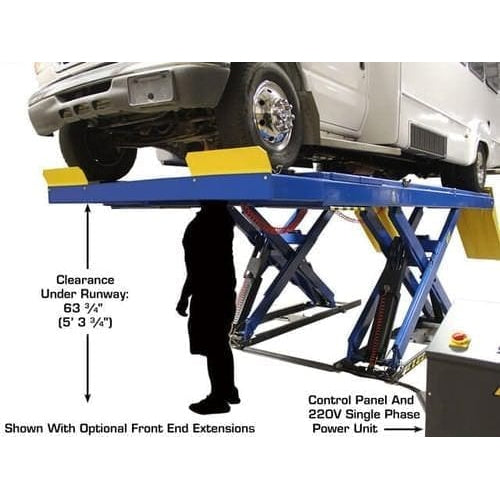

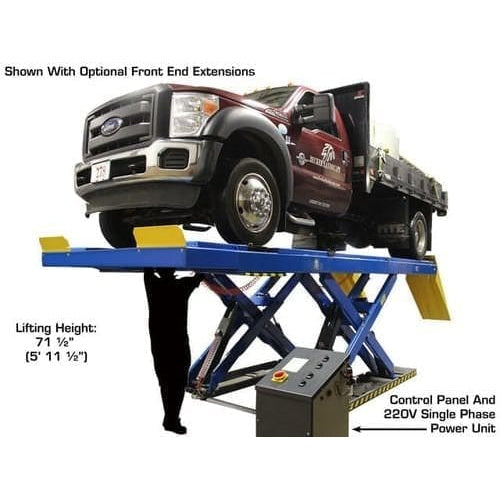

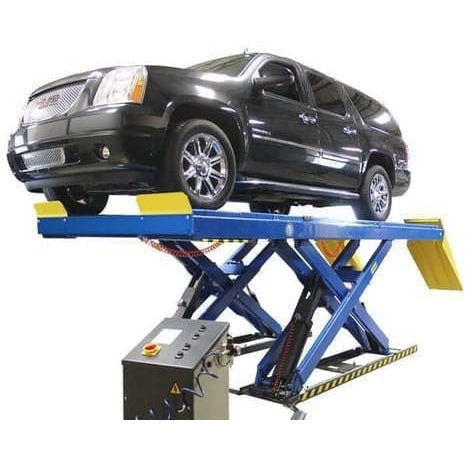

  • Separate, self-contained control unit for clean operation and easy access

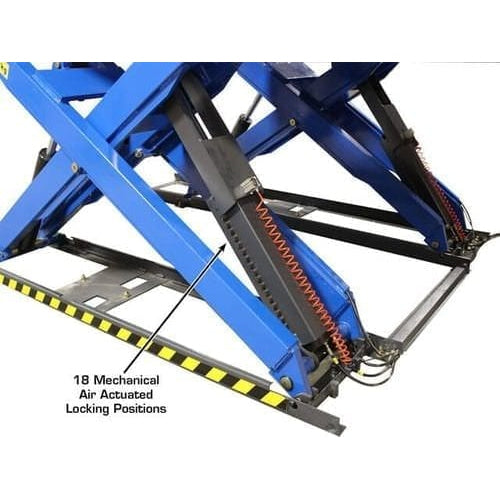

  • Air-operated mechanical safety locks (requires external air supply)

  • Emergency manual pump for safe lowering in the event of power loss

  • Integrated overload protection valve

  • Adjustable lowering speed valve for controlled descent

  • Mounting hardware included

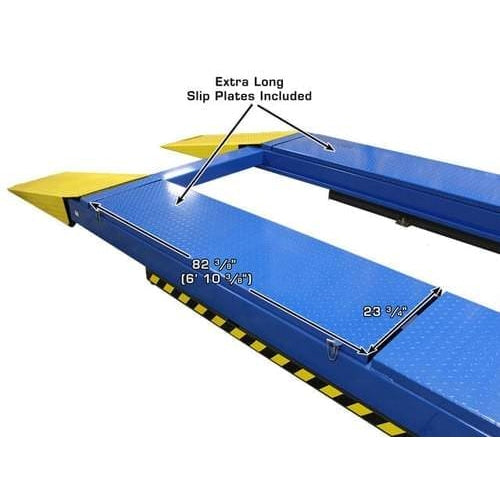

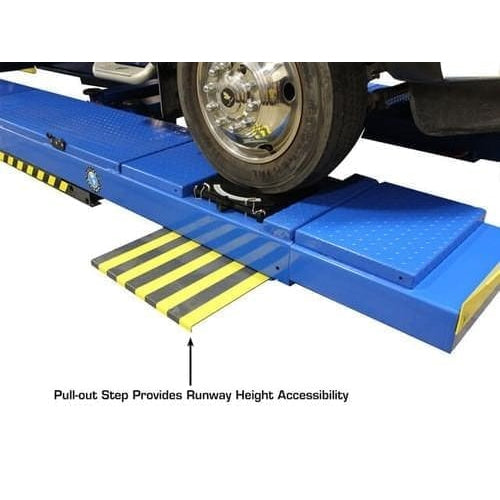

  • Extra-long slip plates support 4-wheel alignments for wheelbases from 96" to 184"

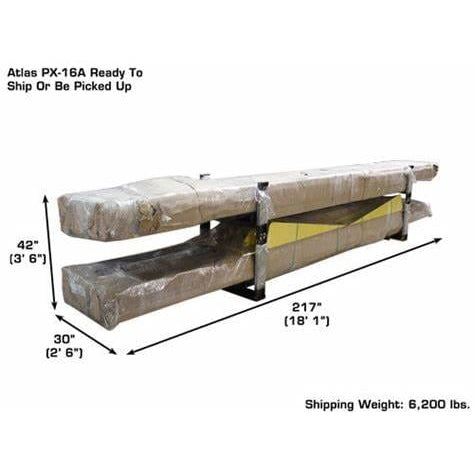

  • Shipping weight: 6,200 lbs

  • Warranty: 2-year structural / 1-year hydraulic (parts only)

Specifications

Atlas® PX16A

Specification Measurement
Lifting Capacity 16,000 lbs

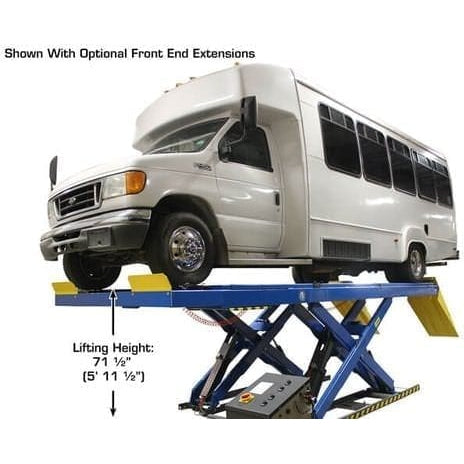

Maximum Lifting Height 71½" (5' 11½")
Minimum Height (lowered) 13¼"

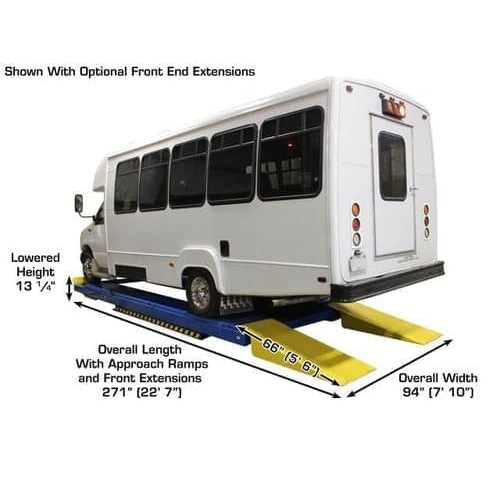

Overall Width 94" (7' 10")
Overall Length (with approach ramps) 271" (22' 7")

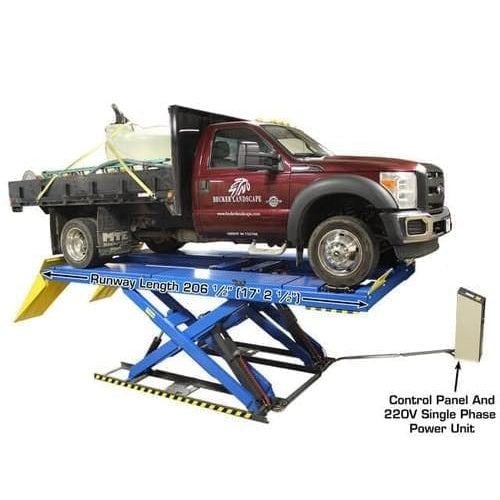

Overall Length (without approach ramps) 206½" (17' 2½")
Approach Ramp Length 66" (5' 6")

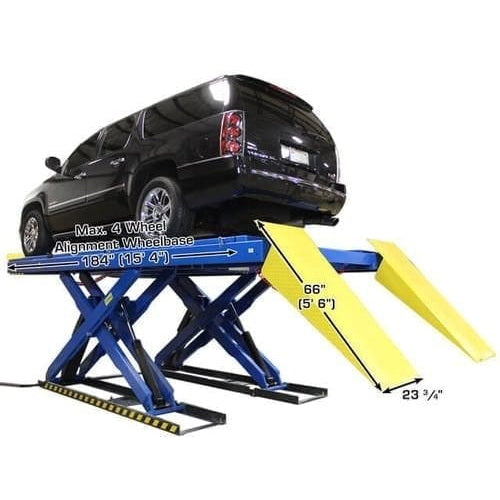

4-Wheel Alignment Wheelbase (maximum) 184"
4-Wheel Alignment Wheelbase (minimum) 96"
Runway Width (including rail) 23¾" (1' 11¾")
Width Between Runways 44⅞"

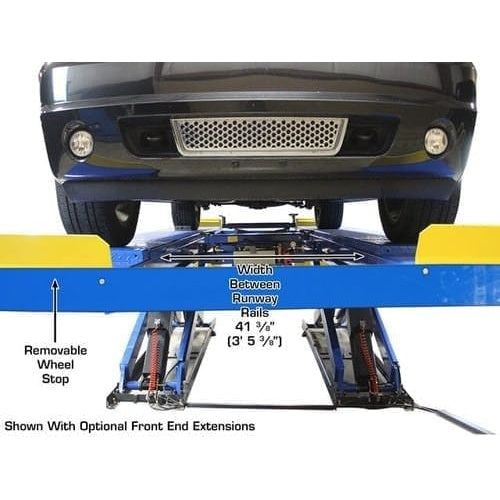

Width Between Runway Rails 41⅜"
Air Requirement 90–120 PSI
Motor / Electrical 220V ±5% (209–231V) single-phase — requires 30A breaker
Oil Requirement 3.5 gallons AW32 / AW46
Shipping Weight 6,200 lbs
Concrete Requirement Minimum 6" thick slab, 3,000 PSI strength
