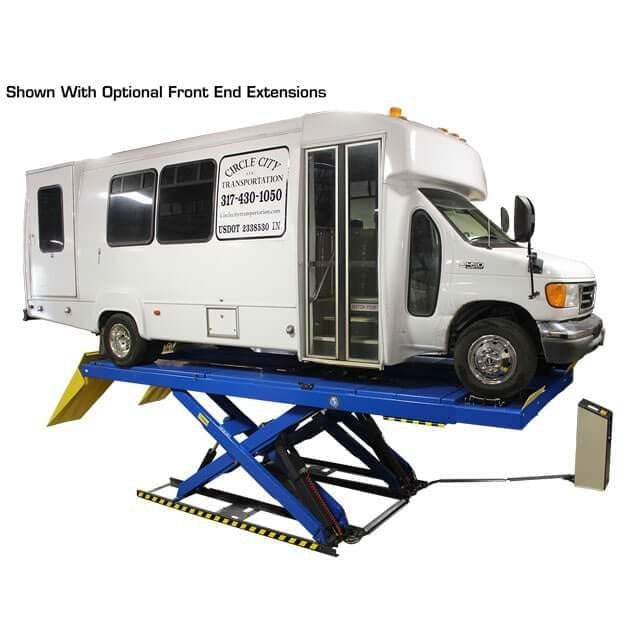

The Atlas® PX16A Scissor Alignment Lift, with a 16,000 lb. lifting capacity, is an ideal solution for professional service shops that need a space-saving, narrow-width alignment lift capable of handling everything from standard passenger cars to long-wheelbase trucks and vans.

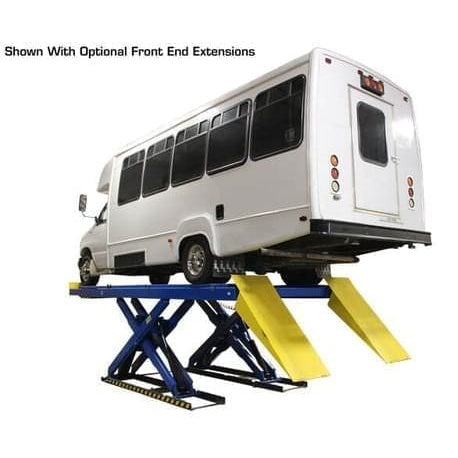

Designed for versatility, the PX16A allows technicians to perform 4-wheel alignments on vehicles with wheelbases ranging from 96″ to 184″, making it suitable for a wide range of light- and heavy-duty applications.

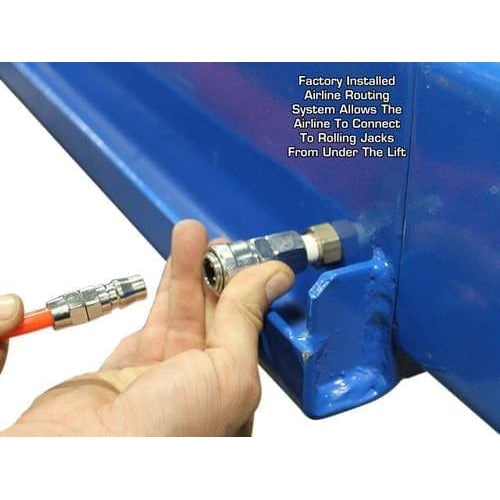

This model comes equipped with built-in slip plates and a set of turntables for precision alignment work. It also includes a semi-enclosed airline routing system, which supports an optional airline kit—keeping shop air lines organized and reducing floor clutter.

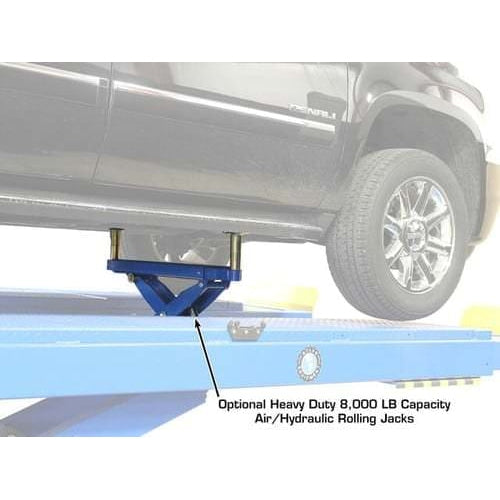

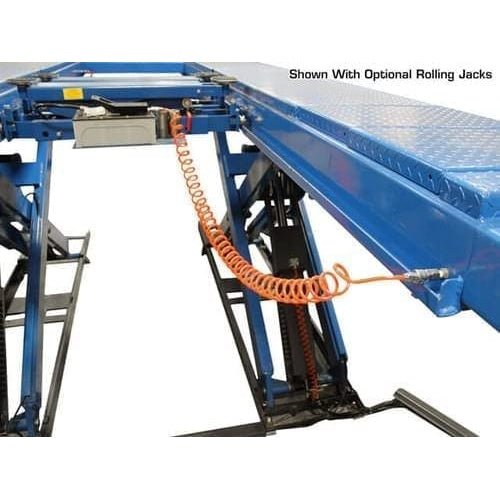

The package also includes two Atlas® RJ8 Rolling Bridge Jacks, each designed for lifting the vehicle’s wheels off the runways for convenient tire, suspension, and brake service.
Features

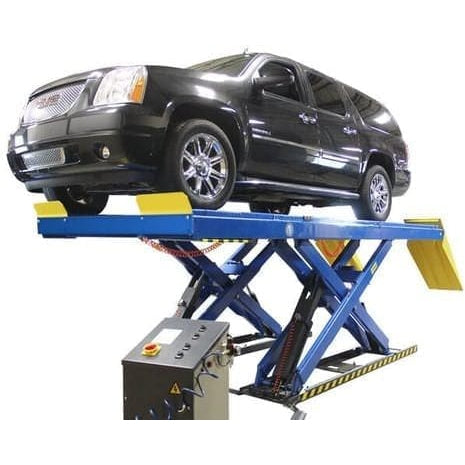

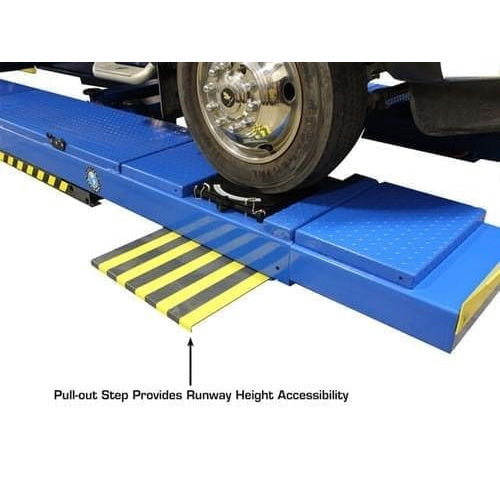

PX16A Alignment Scissor Lift
-
16,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction for professional use
-
Scissor-style alignment lift with front cross-beam for enhanced stability
-
Super-balanced design for precise platform leveling and accurate wheel alignment
-

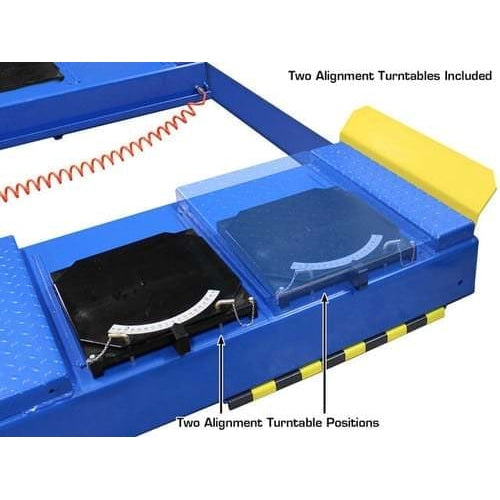

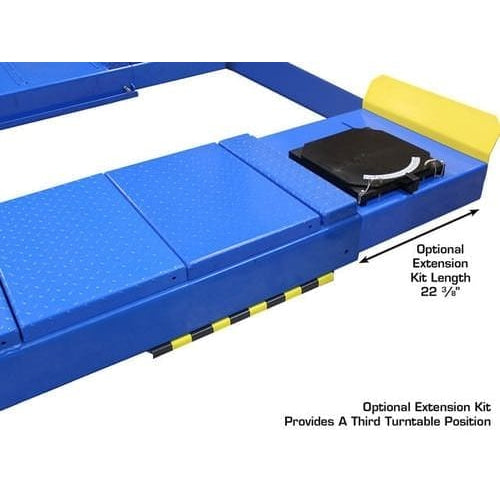

Built-in slip plates and alignment turntables included
-
Recessed positions for turntables for a flush, professional fit
-

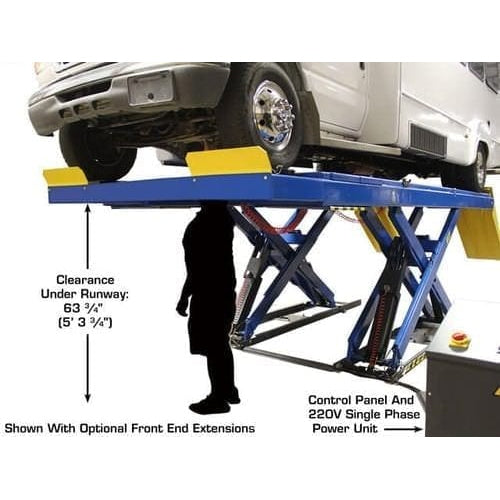

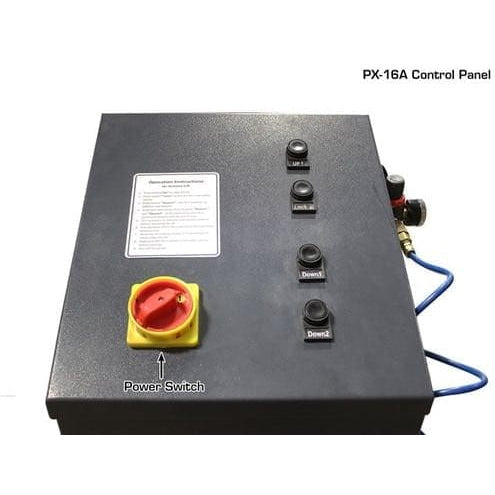

Separate self-contained control unit for easy operation
-

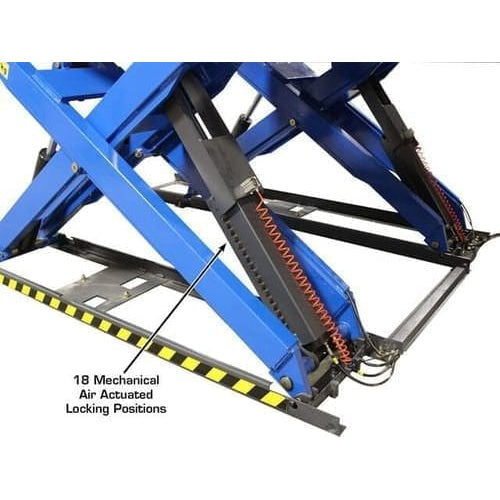

Air-operated mechanical safety locks (requires external air supply)
-
Emergency manual lowering pump included
-
Overload and lowering speed valves for added safety and control
-
Mounting hardware included for installation convenience
-

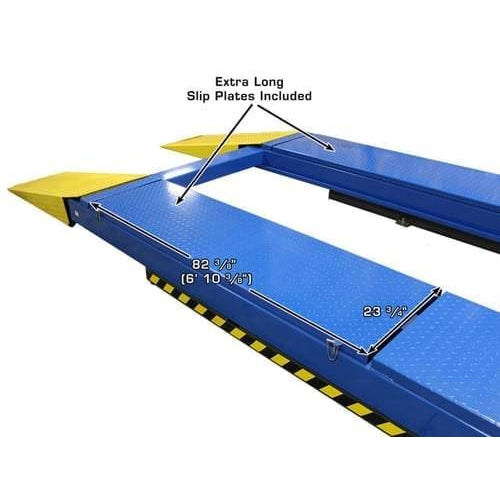

Extra-long slip plates allow for 4-wheel alignment on wheelbases from 96″ to 184″
-

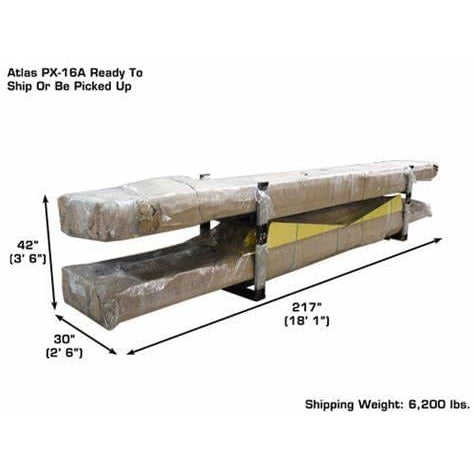

Shipping Weight: 6,200 lbs.
-
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)

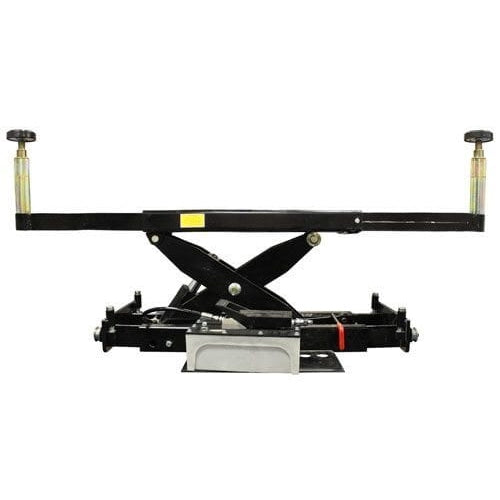

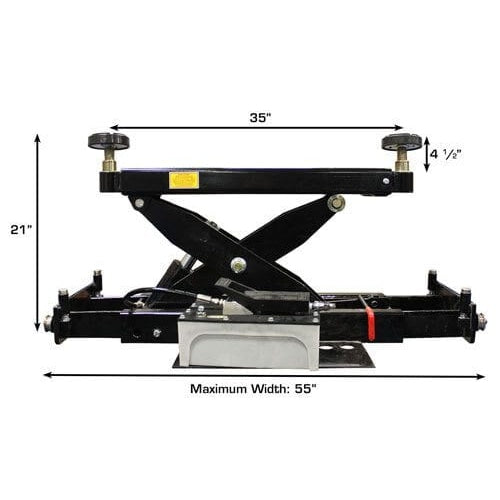

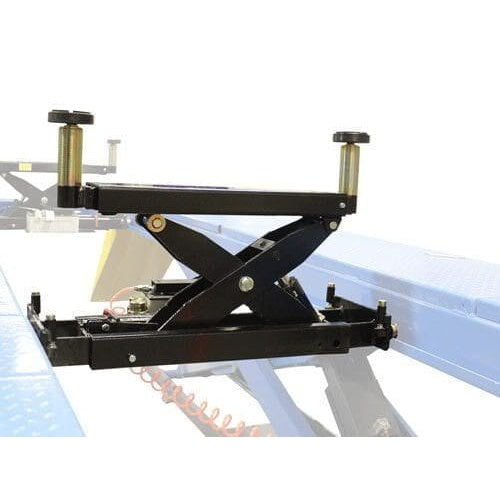

RJ8 Rolling Bridge Jack
-
8,000 lb. lifting capacity
-

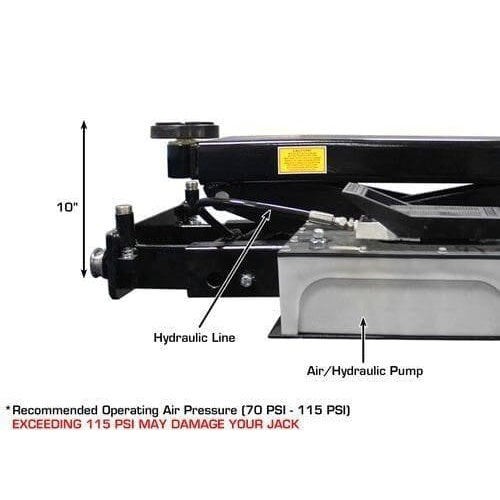

Air/hydraulic operation (requires external air supply)
-

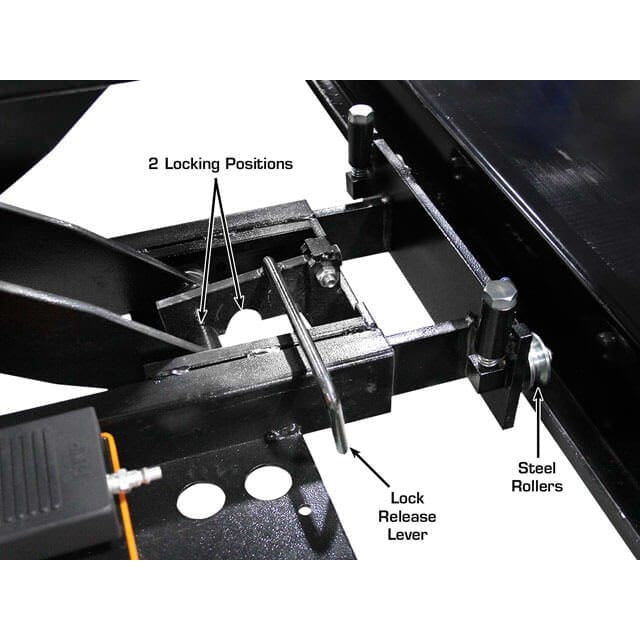

Multiple safety lock positions for secure lifting
-
Compact, low-profile design for easy positioning
-

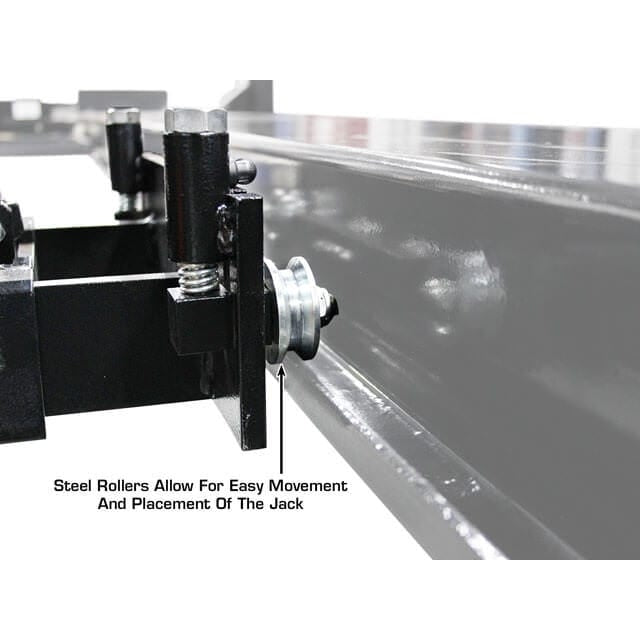

Smooth rolling action for effortless operation
-
Scissor mechanism ensures level and stable lifting
-
Durable powder-coated finish for longevity
-

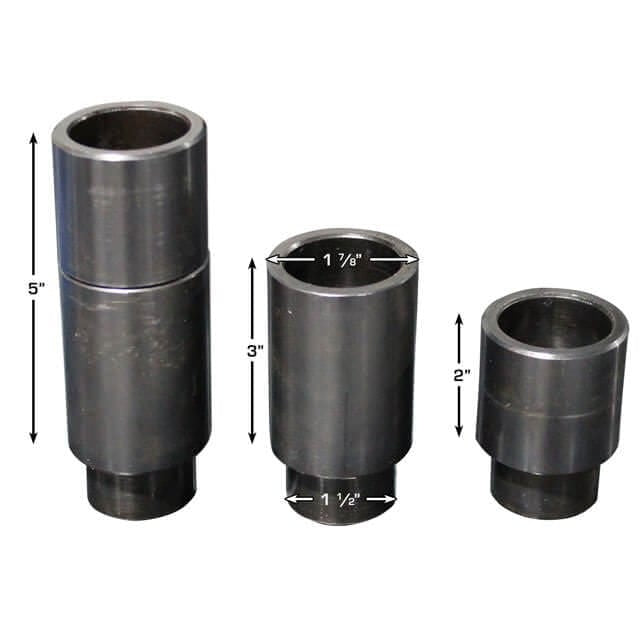

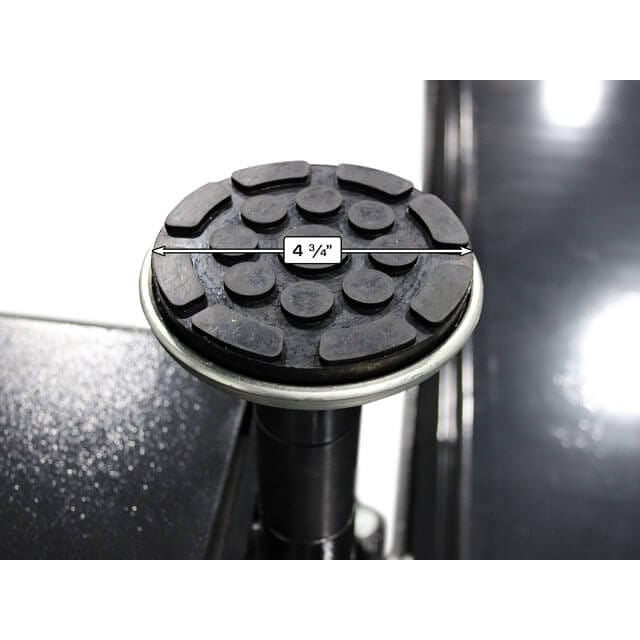

Includes 4-piece truck adapter set
-
Warranty: 1-Year Parts Only
Specifications
| Atlas® PX16A Alignment Scissor Lift | Details |
|---|---|
| Lifting Capacity | 16,000 lbs |

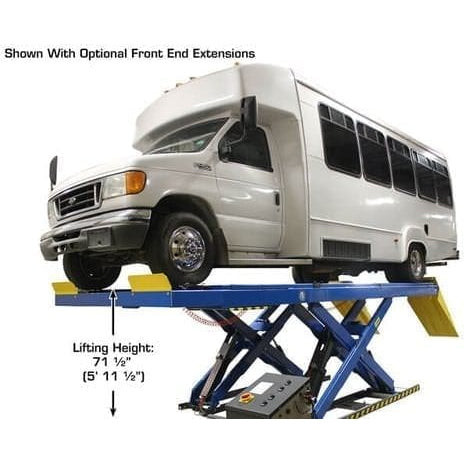

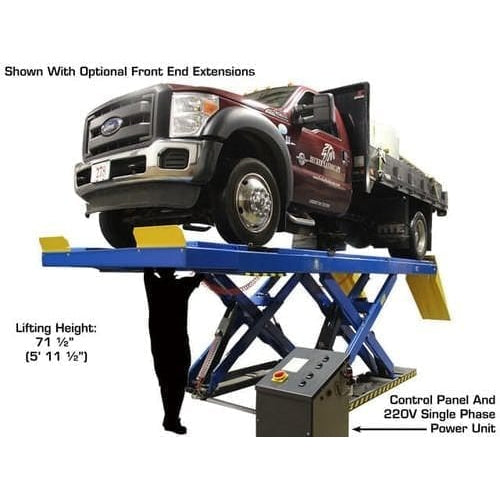

| Lifting Height | 71 ½″ (5′ 11 ½″) |
| Lowered Height | 13 ¼″ |

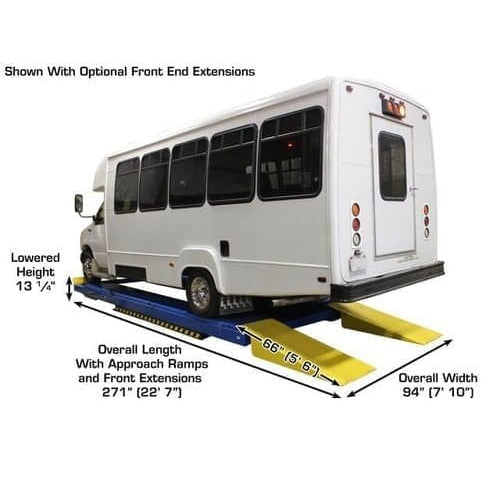

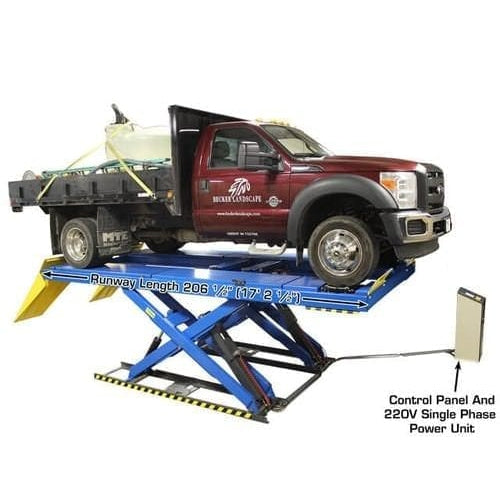

| Overall Width | 94″ (7′ 10″) |
| Overall Length (with Ramps) | 271″ (22′ 7″) |
| Overall Length (without Ramps) | 206 ½″ (17′ 2 ½″) |
| Approach Ramp Length | 66″ (5′ 6″) |

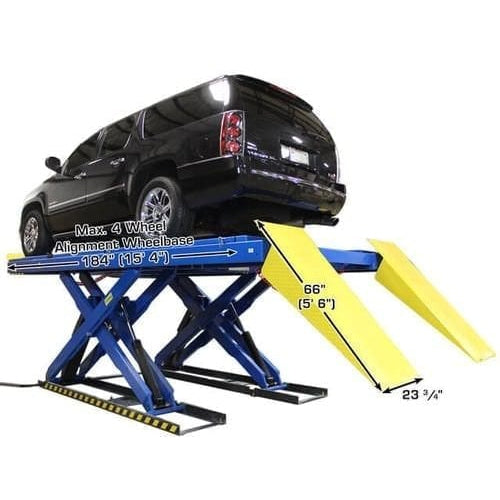

| 4-Wheel Alignment Wheelbase (Max) | 184″ |
| 4-Wheel Alignment Wheelbase (Min) | 96″ |
| Runway Width (including rail) | 23 ¾″ (1′ 11 ¾″) |
| Width Between Runways | 44 ⅞″ |

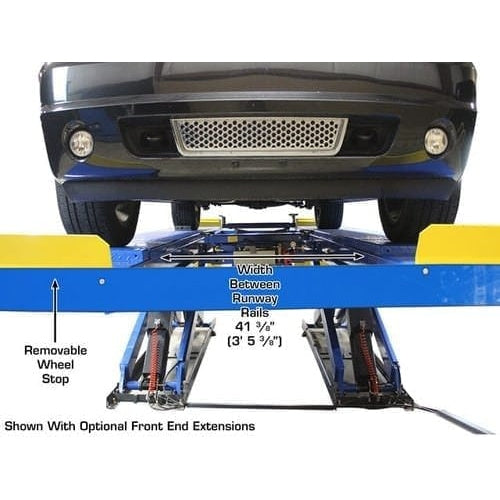

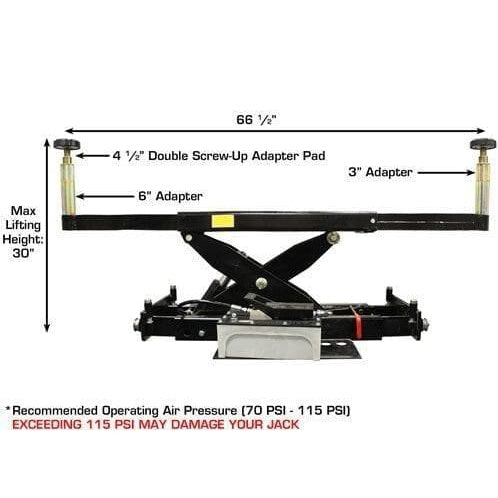

| Width Between Runway Rails | 41 ⅜″ |
| Air Requirement | 90–120 PSI |
| Motor / Electrical Requirement | 220V ±5% (209–231V) Single-Phase • 30A Breaker Required |
| Oil Requirement | 3.5 Gallons AW32 or AW46 |
| Shipping Weight | 6,200 lbs |
| Concrete Requirement | Minimum 6″ thick at 3,000 PSI rating |
| Atlas® RJ8000 Rolling Jack | Details |
|---|---|
| Maximum Capacity | 8,000 lbs |

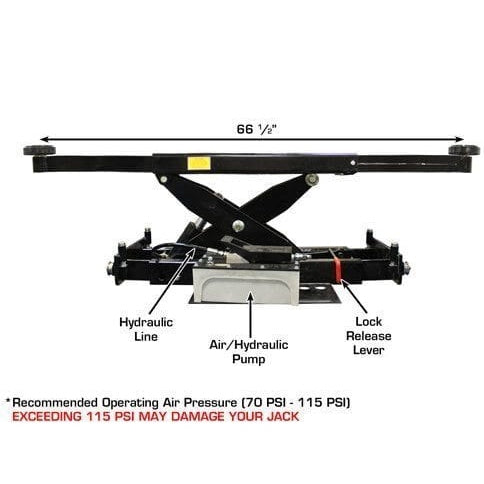

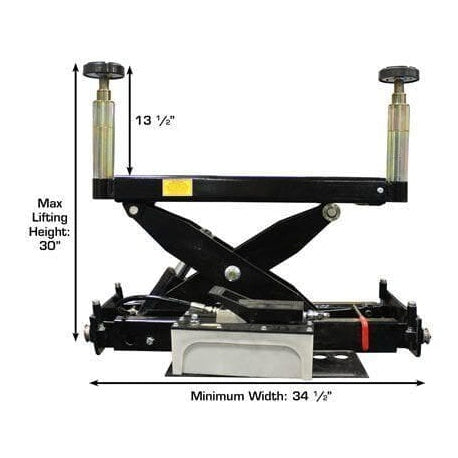

| Maximum Width | 66 ½″ (5′ 6 ½″) |
| Minimum Width | 40″ (3′ 4″) |
| Distance Between Runway Capability | 34 ½″ – 55″ |
| Maximum Lifting Height (with Adapters) | 30″ |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 390 lbs |
| Adapter Heights | Two at 2″ • Two at 3″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
