Description
Description

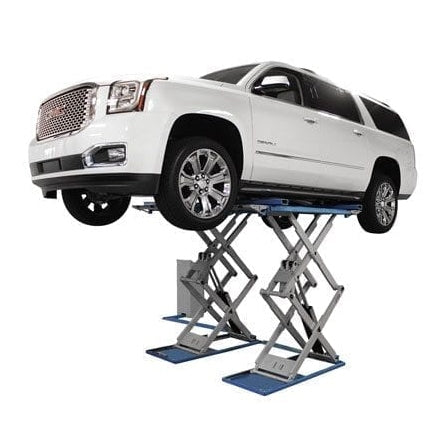

The Atlas® SLP9K is a full-rise, 9,000 lb. capacity scissor lift that combines an exceptionally low profile with a powerful 78-inch full-rise lifting height. Designed for performance, versatility, and space efficiency, this lift is ideal for shops or garages with ceiling height limitations—offering enough lifting power to handle full-size pickup trucks and SUVs with ease.
Unlike traditional post-style lifts, the SLP9K provides a clean, open workspace without vertical columns, making it a great choice for facilities that prefer an uncluttered and modern shop layout.
The Atlas® SLP9K can also be flush-mounted, giving the service bay a streamlined, professional appearance. When installed flush with the floor, the lift creates a flat, drive-over surface accessible from any direction, simplifying vehicle positioning and workflow.

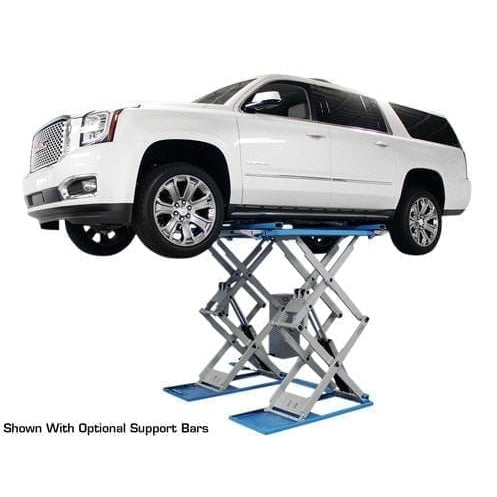

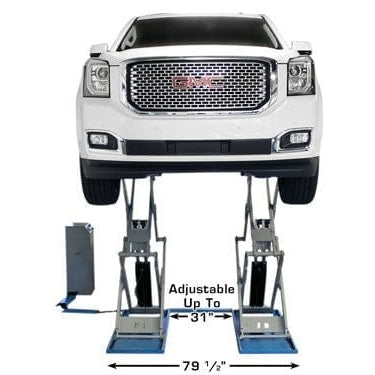

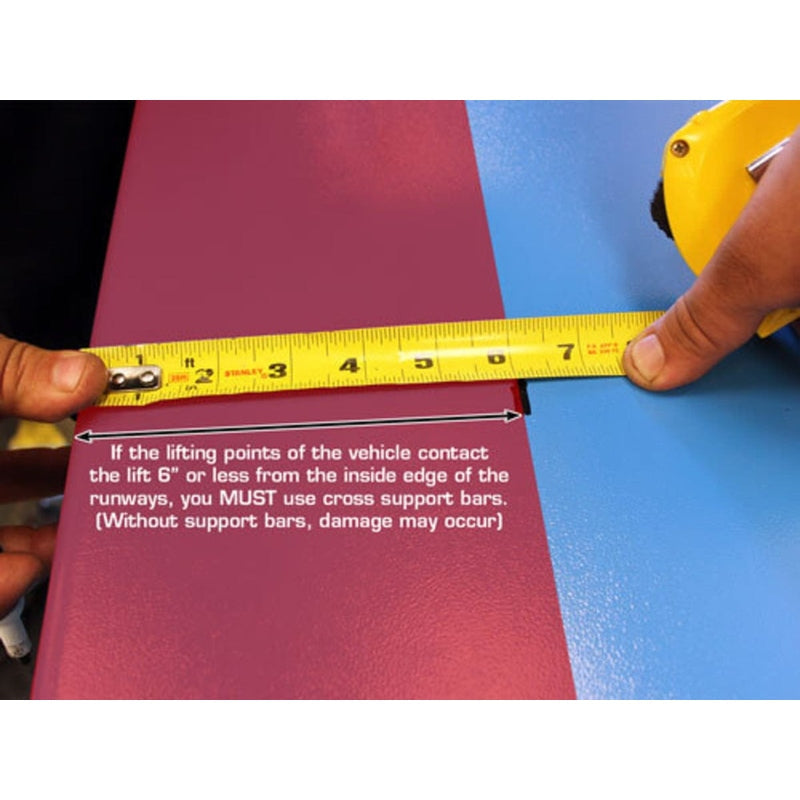

The lift’s 31-inch adjustable platform spacing allows it to accommodate a wide variety of vehicle types, including full-frame, unibody, and SUV designs. For heavier vehicles with narrow frames—such as trucks—it is highly recommended to pair the lift with the Atlas® Scissor Lift Support Bar Kit for added stability and balance. For optimal operation, always maintain a 2–6 inch clearance between the lift platform and the vehicle’s lifting points.

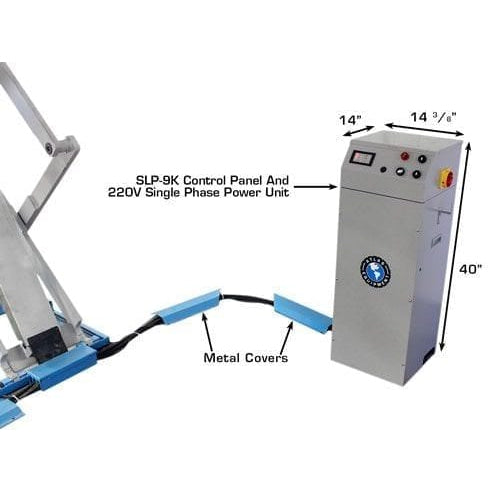

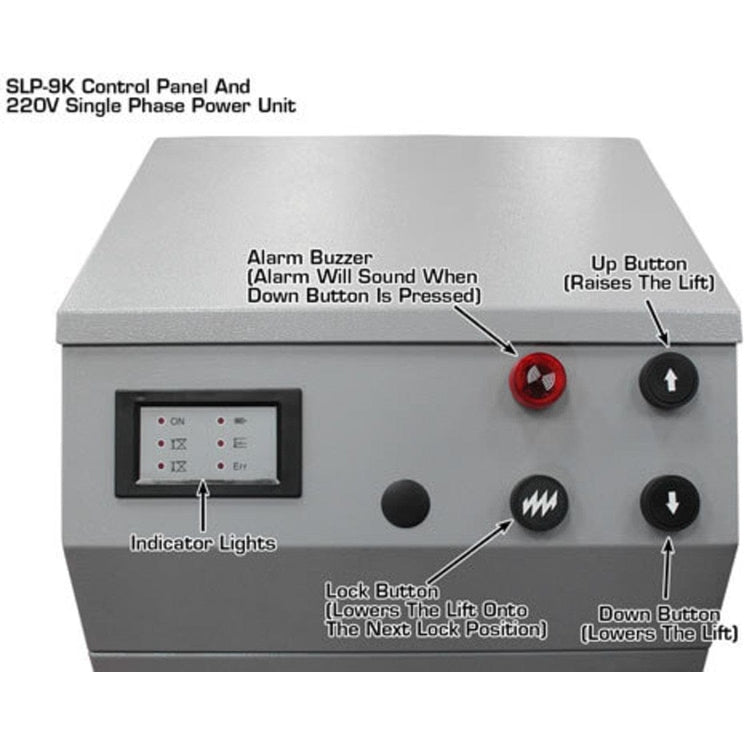

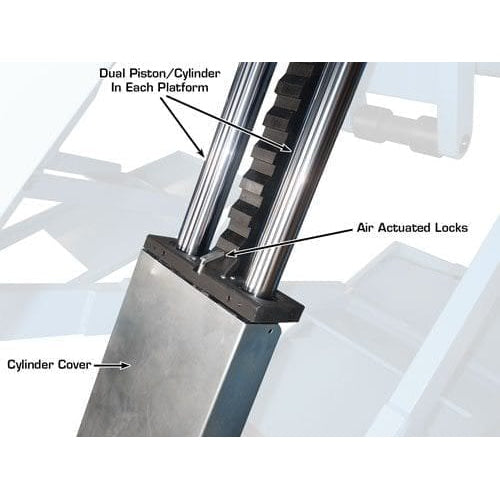

The remote control panel can be positioned for operator convenience and houses the 220V single-phase electric/hydraulic power unit. Smooth and responsive push-button controls manage lift operation, while the 10-position air-actuated safety lock system automatically engages and releases during use.
Additional safety features include a lowering limit switch, which pauses descent once the lift reaches approximately 10½ inches above ground level. The operator must then release and re-press the “Down” button to complete the lowering cycle—adding an extra layer of safety against accidental operation.
Built for strength, safety, and efficiency, the Atlas® SLP9K is a superior choice for professional service shops and serious automotive enthusiasts who want full-rise lifting power in a clean, space-efficient design.
Features
-
9,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-
Full-rise scissor lift design for maximum access and workspace efficiency
-
Open-center design allows easy access to the underside of the vehicle
-
Adjustable platform width accommodates a wide range of vehicles
-
Air-operated single-point lock release (requires external air supply)
-
10 mechanical locking positions for secure operation at various heights
-
Locking approach ramps for added stability and safety
-
Grease zerk fittings at every hinge point for smooth, long-term performance
-
Separate, self-contained control panel for operator convenience
-
CE certified for safety and performance compliance
-

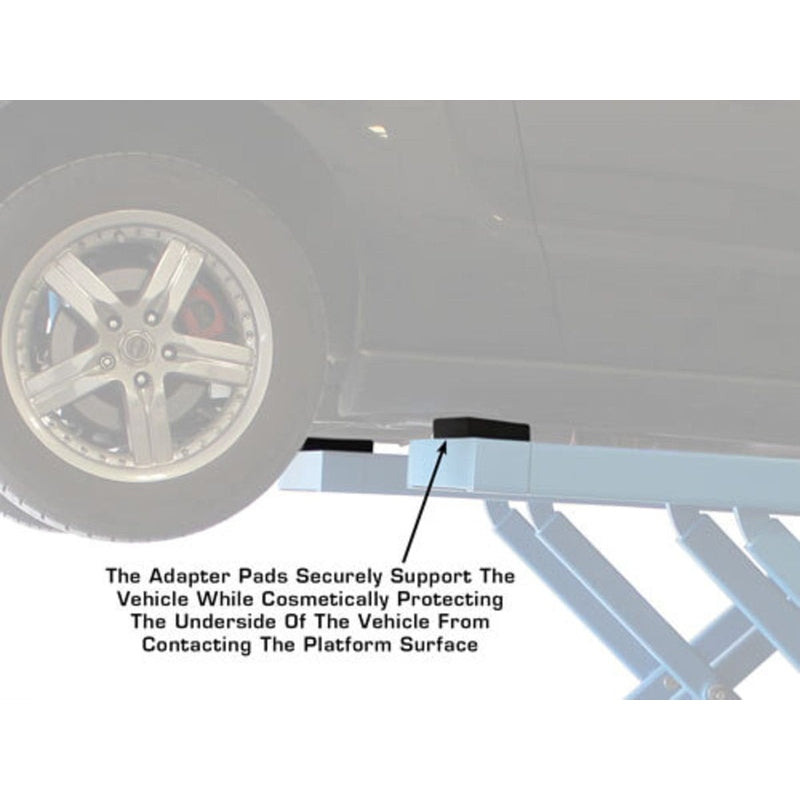

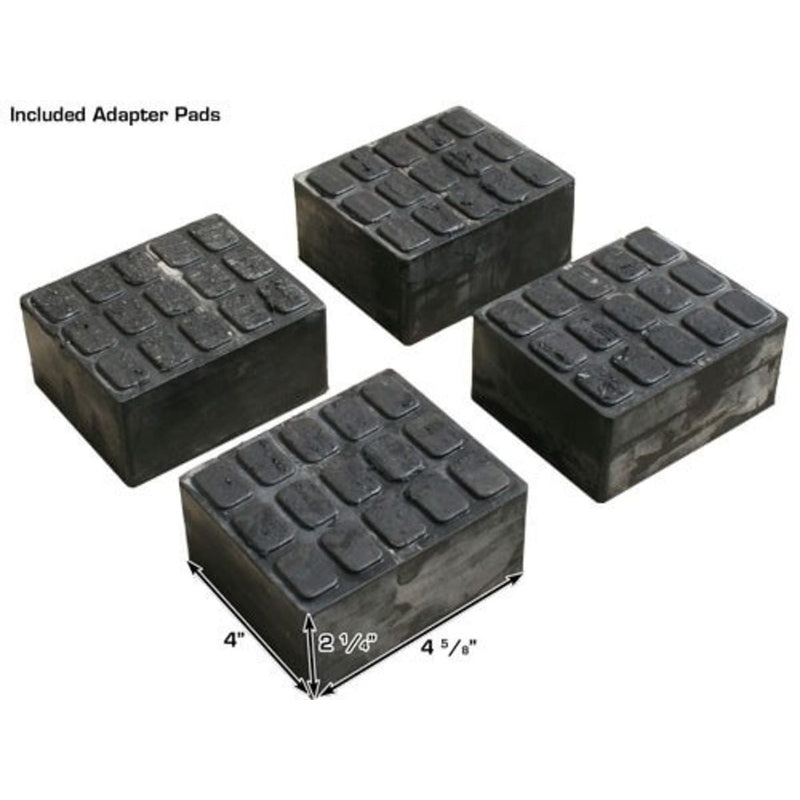

Includes heavy-duty rubber lifting blocks
-
Mounting hardware included
-
220V single-phase electric operation (requires 30-amp breaker)
-

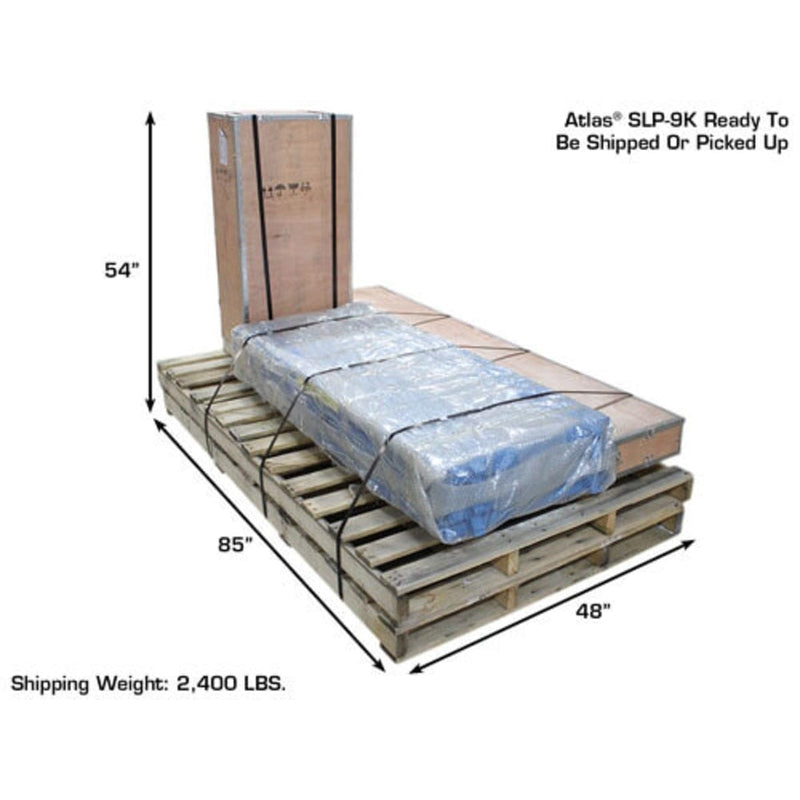

Shipping weight: 2,400 lbs
-
Warranty: 1-year structural / 1-year hydraulic (parts only)
Specifications
Atlas® SLP9K
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lbs |

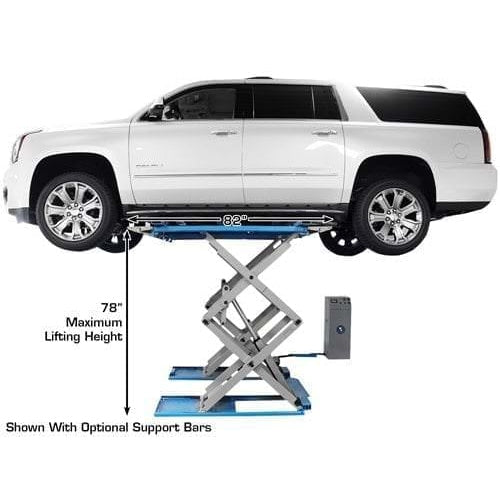

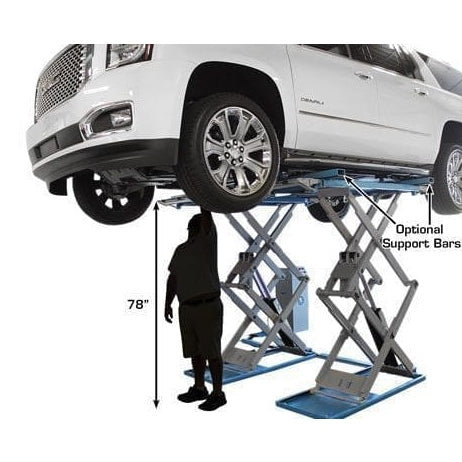

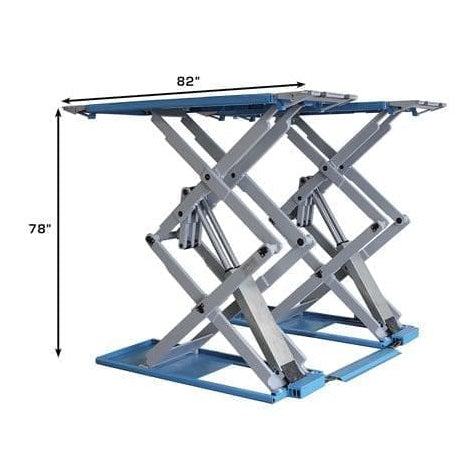

| Maximum Lifting Height | 78" (6' 6") |
| Overall Length | 82" (6' 10") |
| Maximum Overall Width | 82" (6' 10") |

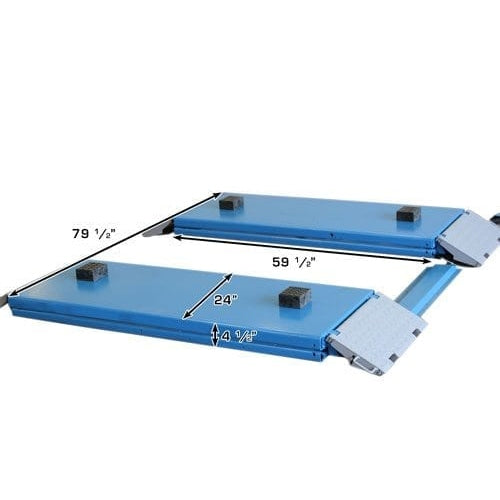

| Lift Platform Dimensions | 59" × 24" |
| Minimum Height (lowered) | 4" |
| Width Between Platforms | Adjustable up to 31" |
| Approach Ramp Size | 11" × 24" |
| Air Requirement | 90–120 PSI |
| Power Unit | 220V ±5% (209–231V), single-phase — requires 30A breaker |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 2,400 lbs |
