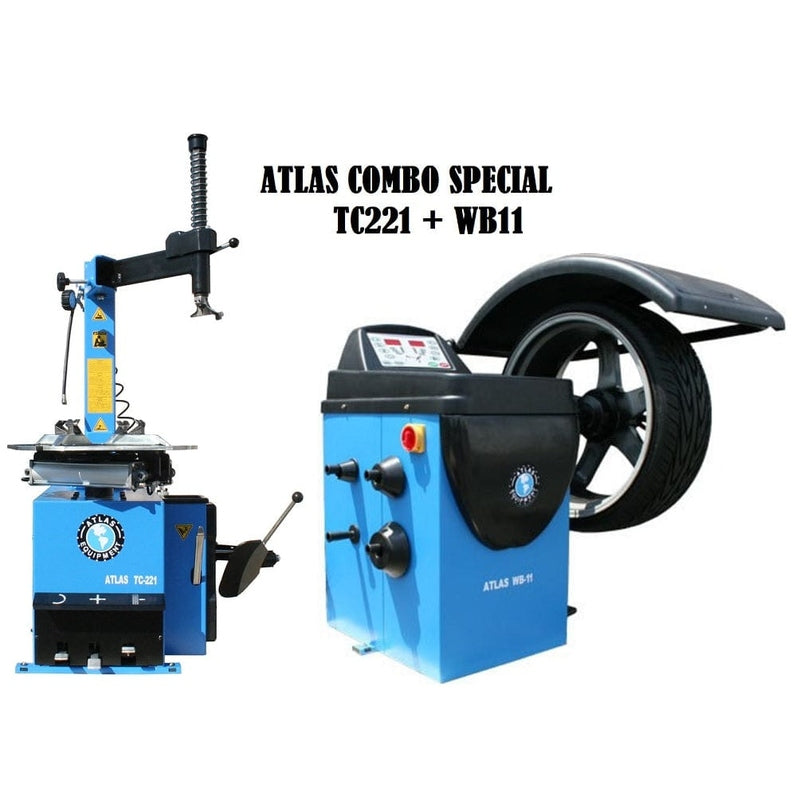

Atlas TC221 Tire Changer + WB11 Economy Wheel Balancer Combo Package

Description

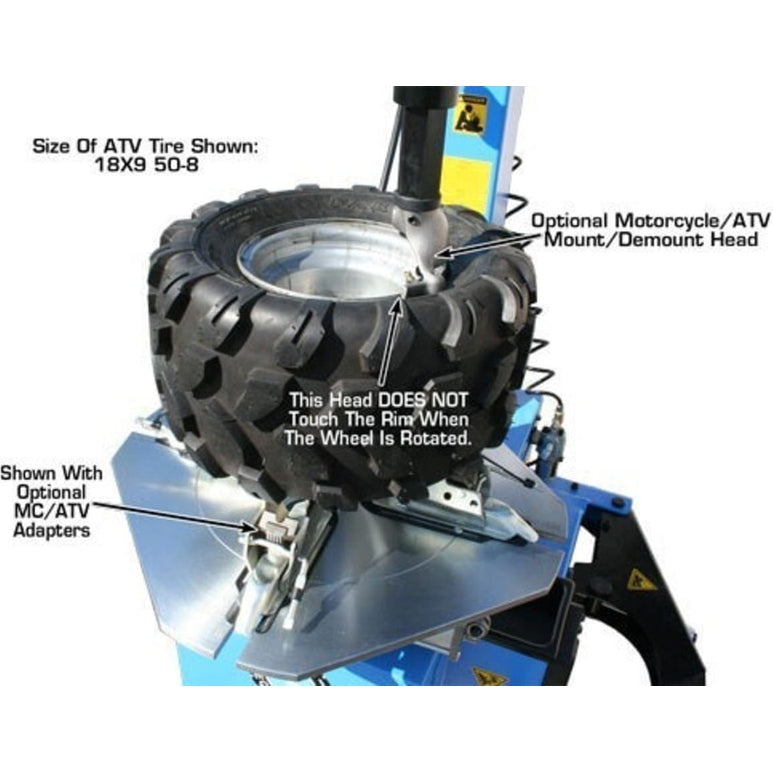

This budget-friendly combination package includes the Atlas® TC221 rim-clamp swing arm tire changer and the Atlas® WB11 computerized spin balancer. Designed for versatility and reliability, it’s the perfect setup for home garages, small commercial shops, or ATV/motorcycle dealers needing an efficient solution for changing and balancing tires.

Both machines operate on 110 volts, are CE certified for safety and quality, and come backed by the Atlas® 1-year parts-only warranty, ensuring dependable performance and long-term value.

Features

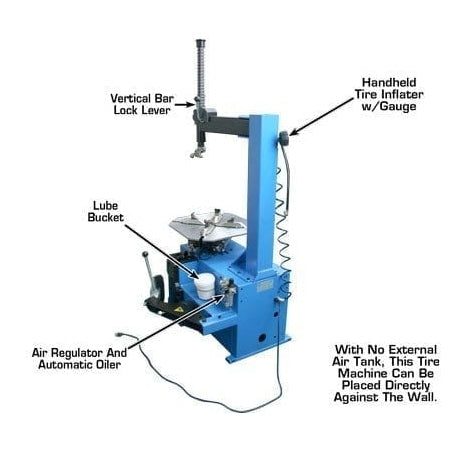

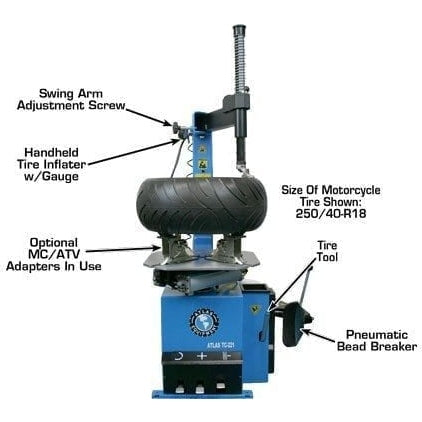

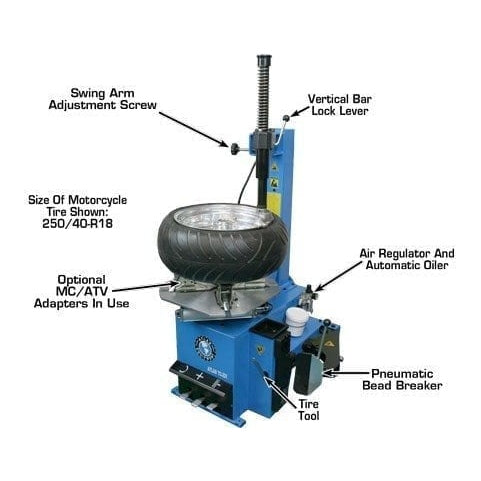

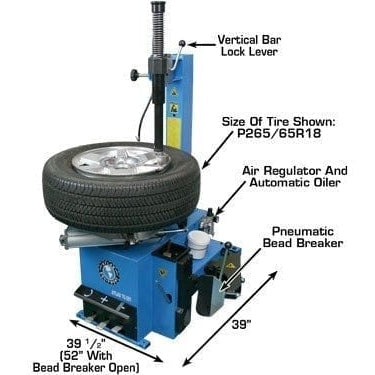

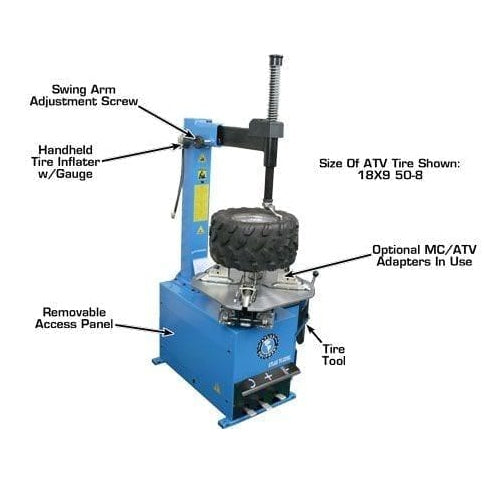

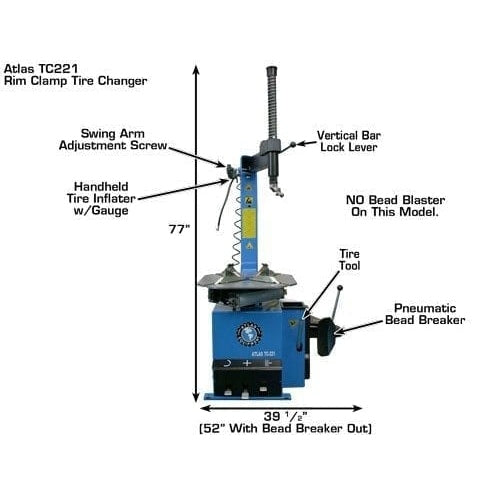

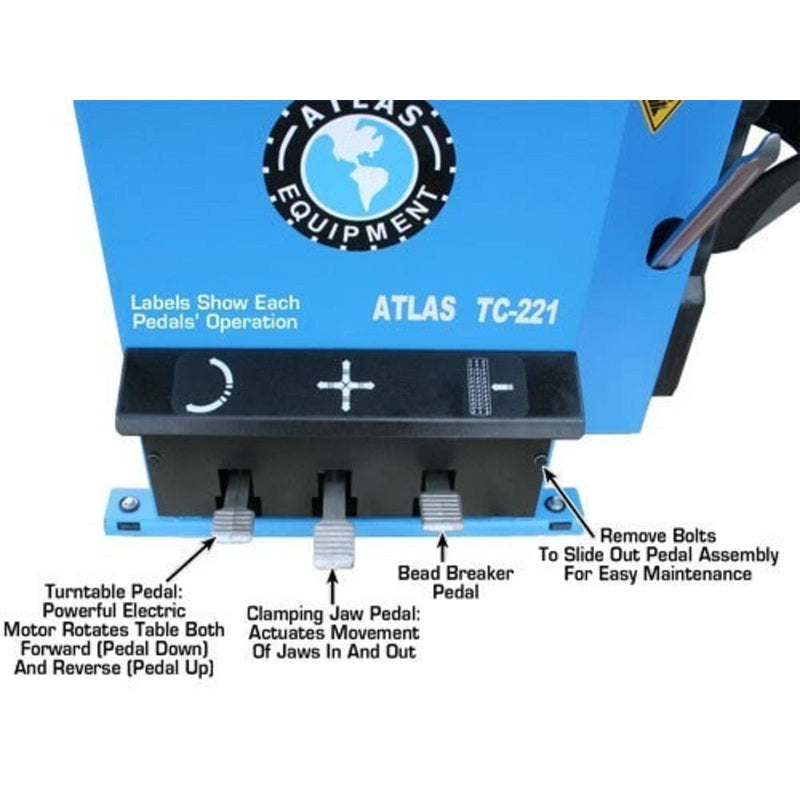

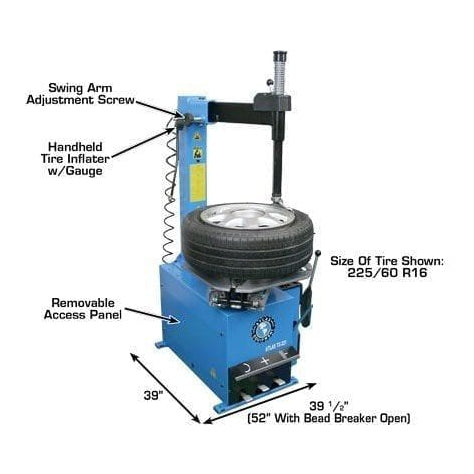

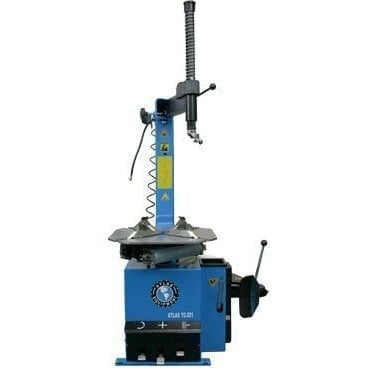

TC221 Tire Changer

• Rim-clamp, swing arm design for versatile tire handling

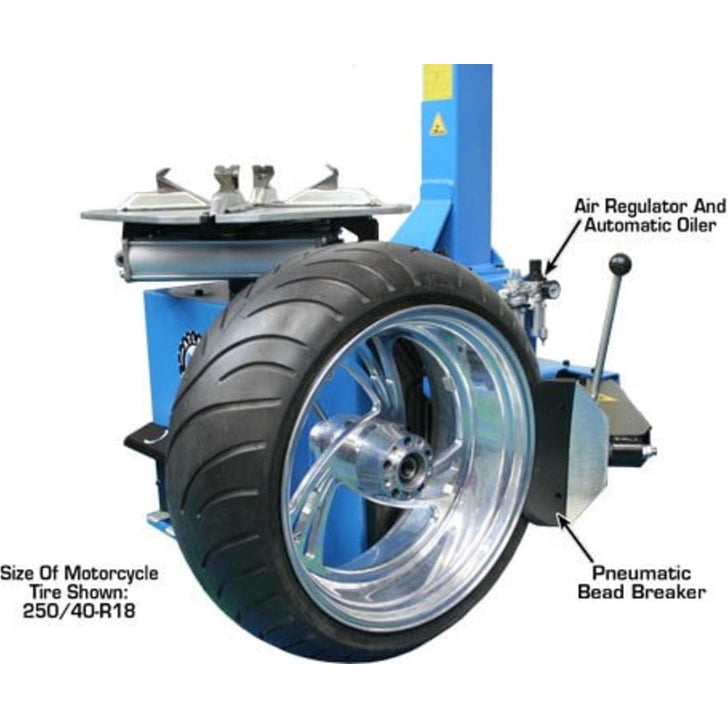

• Air-operated jaws and bead breaker (requires external air supply)

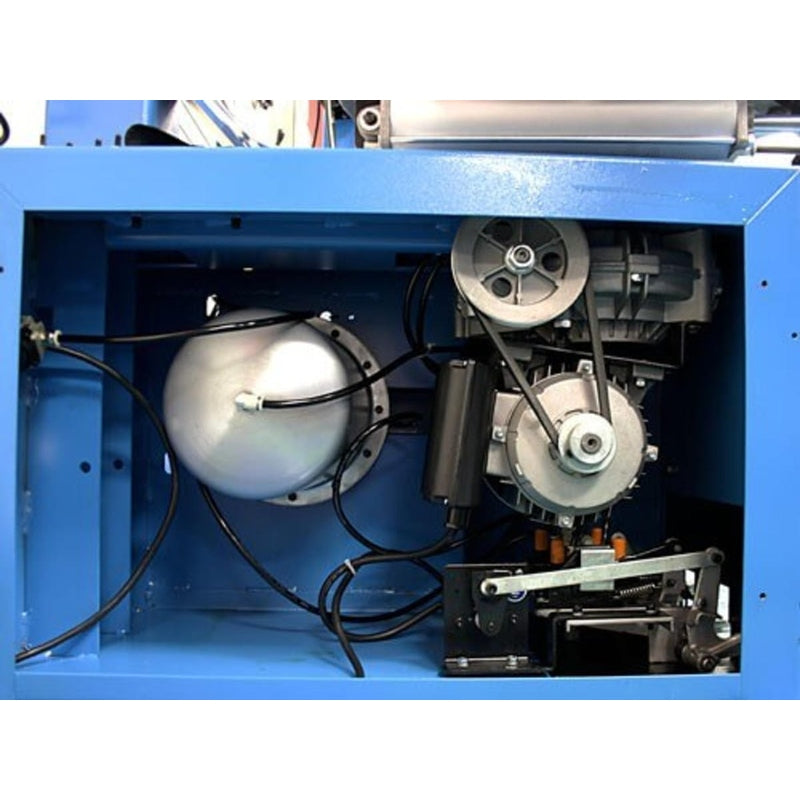

• Electric turntable for smooth and efficient operation

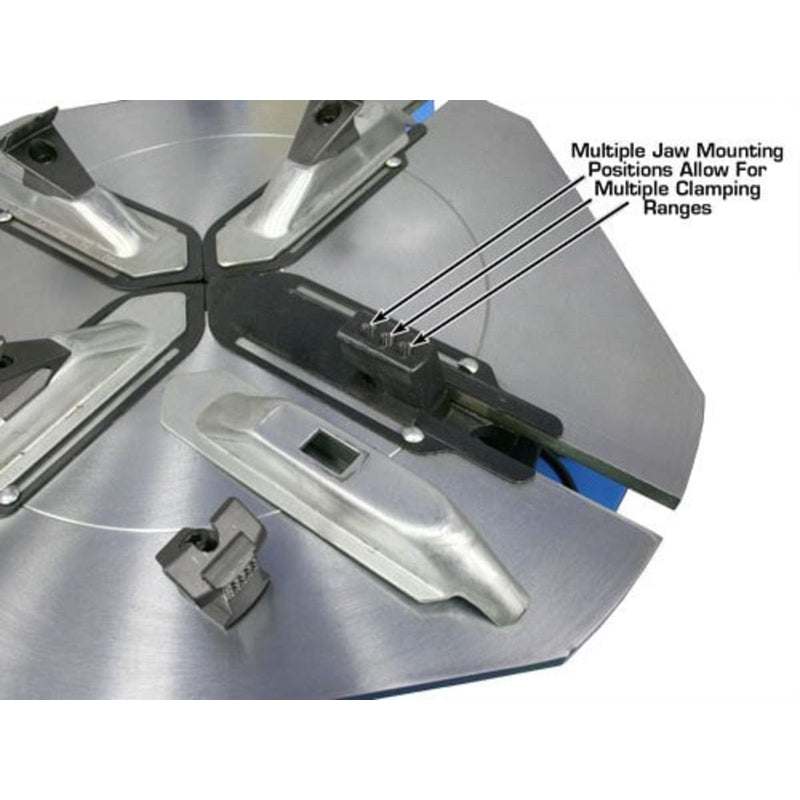

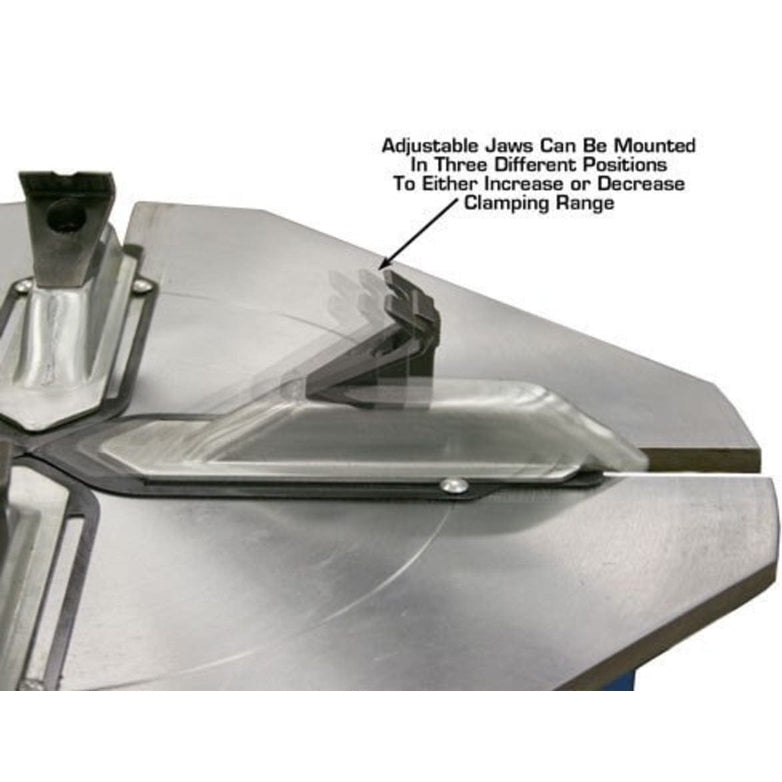

• Adjustable jaws with three mounting positions for different wheel sizes

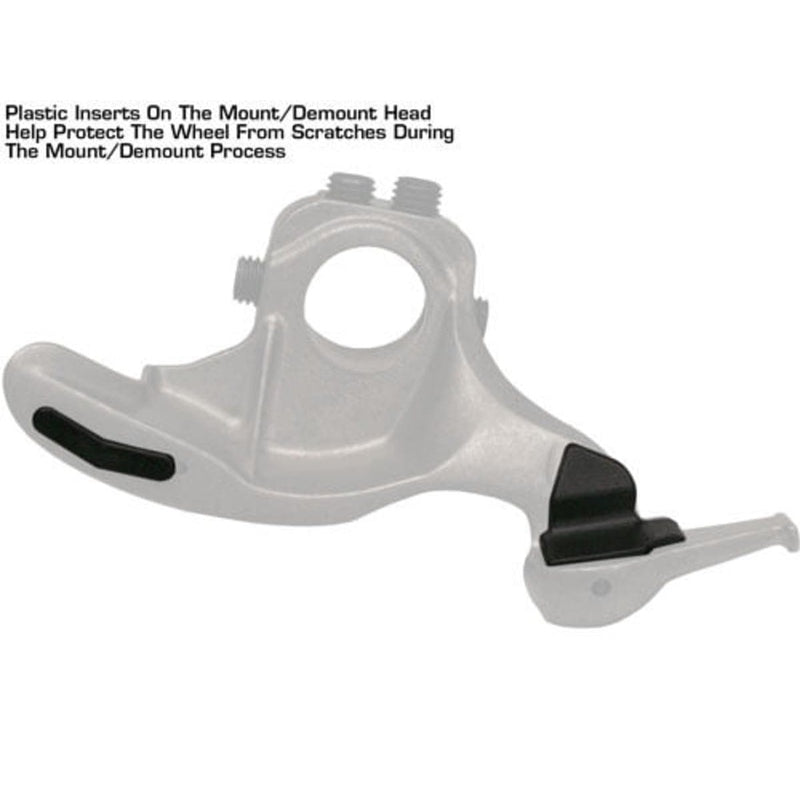

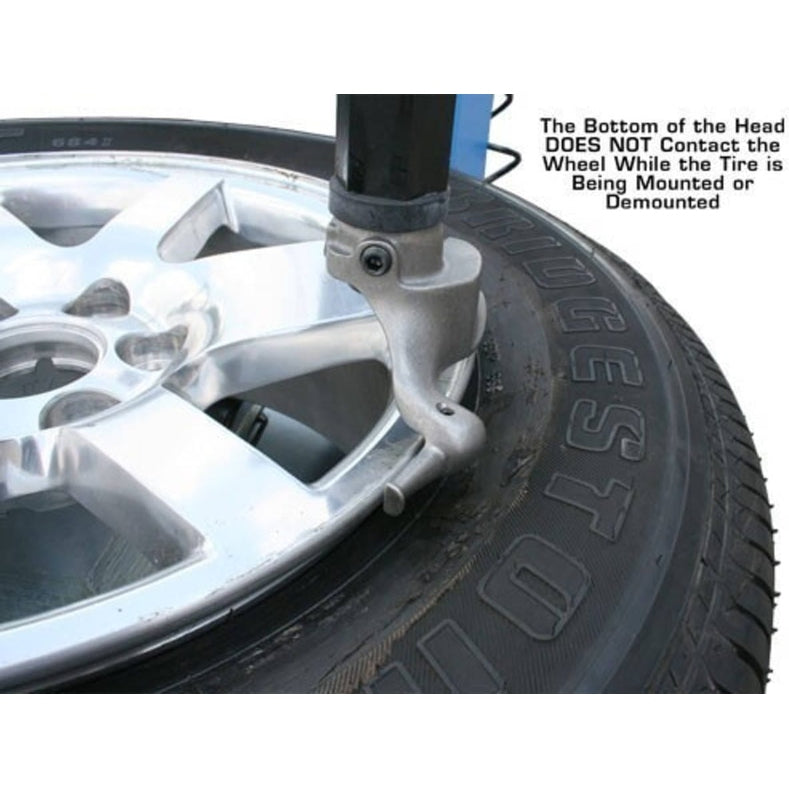

• Durable metal mount/demount head with metal roller or replaceable plastic inserts

• Column-mounted inflator box with pressure gauge included

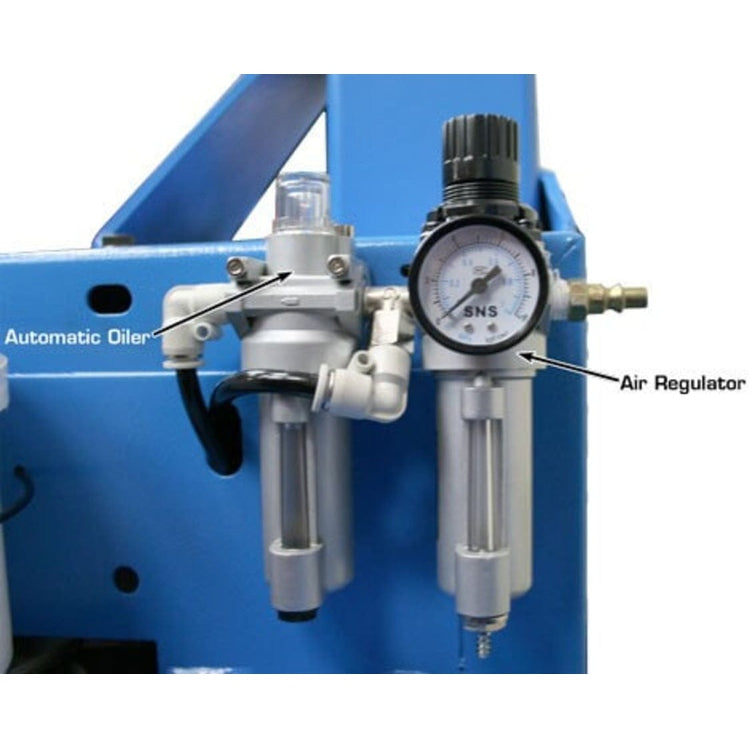

• Integrated filter, regulator, and lubricator for optimal air system performance

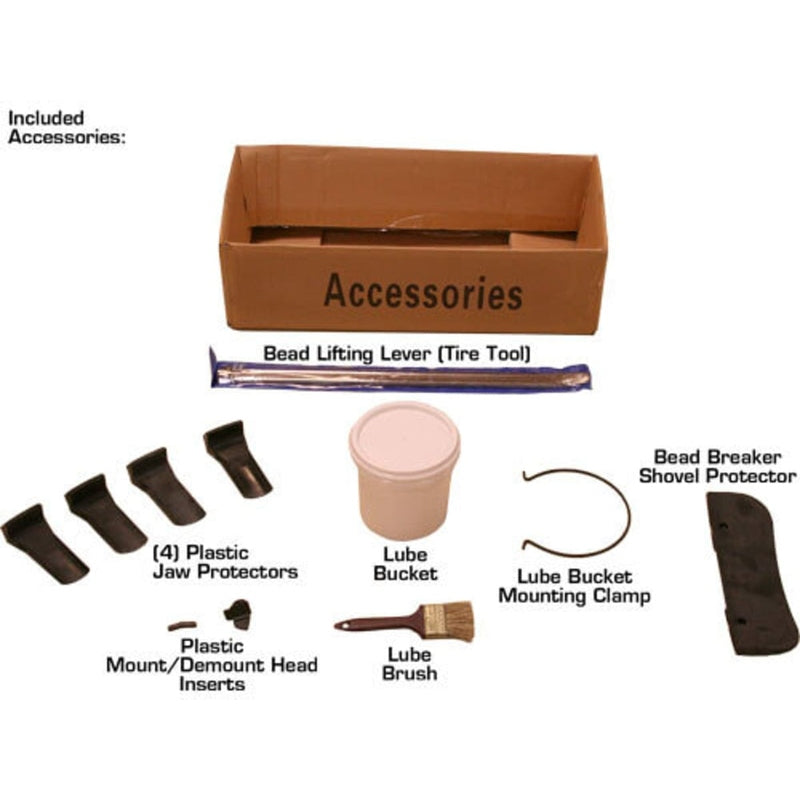

• Includes 20″ tire tool, lube bucket, and brush for easy tire servicing

• Comes with large plastic jaw covers, bead breaker shovel cover, and multiple replacement plastic inserts

• Built-in “Beadblaster” for quick tire seating

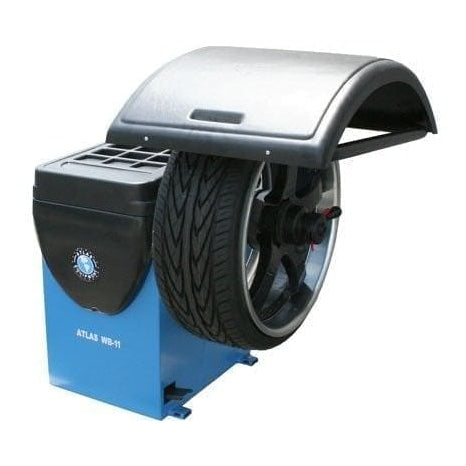

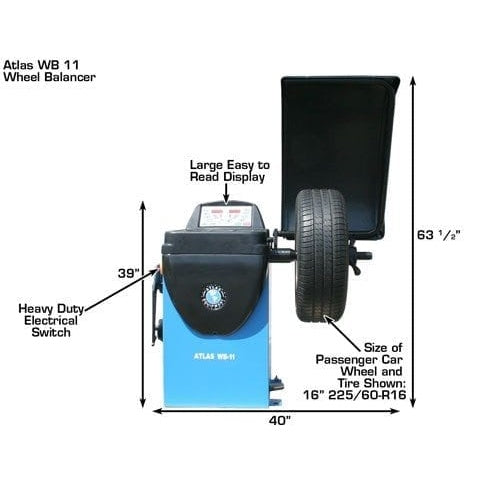

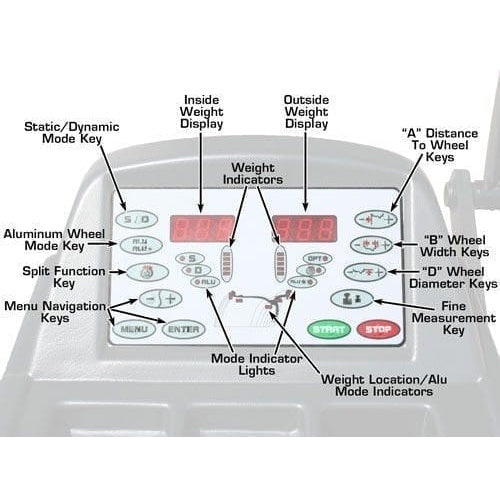

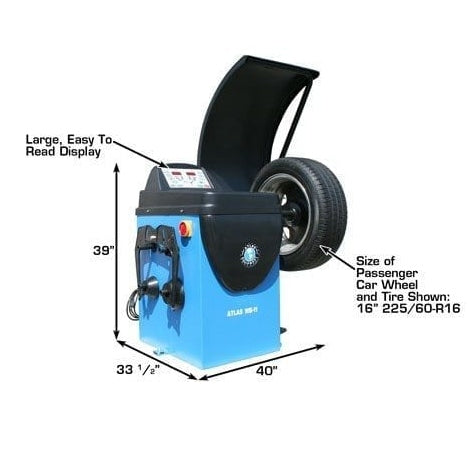

WB11 Wheel Balancer

• Computer-controlled, motorized spin balancer for precise results

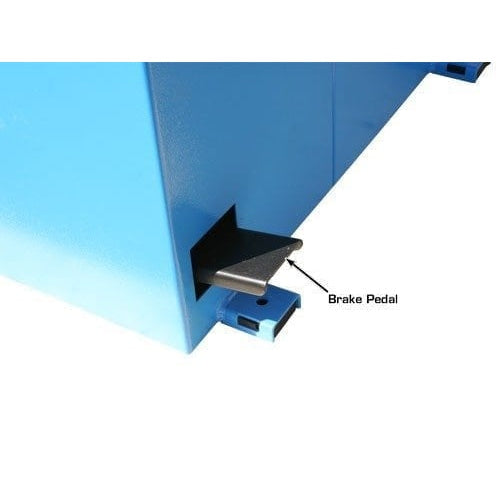

• Automatic and pedal-operated braking for user convenience

• Automatic start/stop when hood is lowered or raised

• Static and dynamic balancing modes for various tire types

• Rapid optimization (OPT) for efficient balancing

• Self-diagnosing and self-calibrating for accuracy and reliability

• Exceptional stability when reading unbalance between planes

• Displays in grams or ounces, and in mm or inches

• No anchor-down installation required

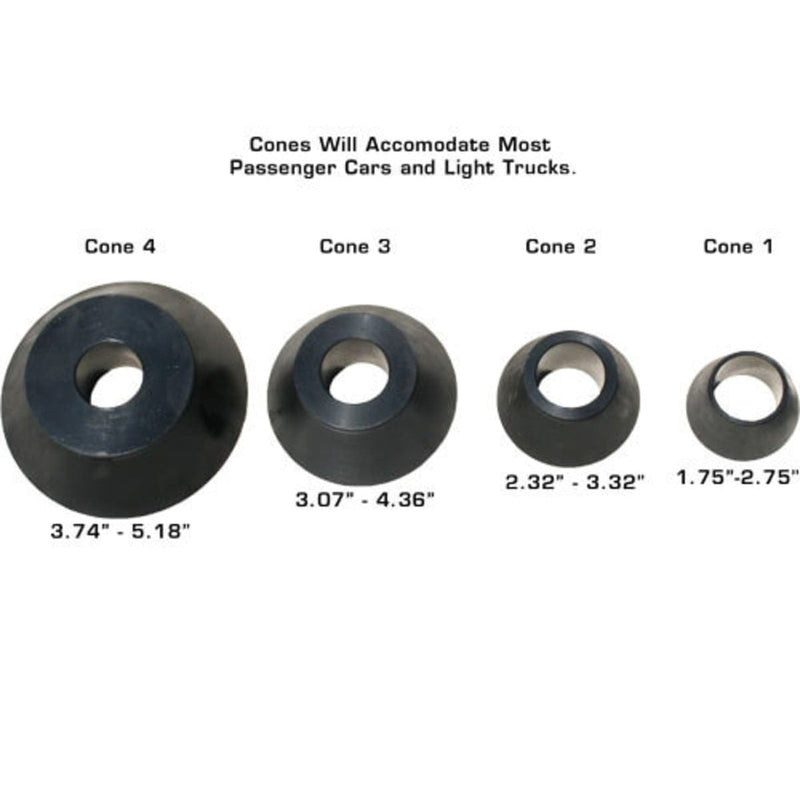

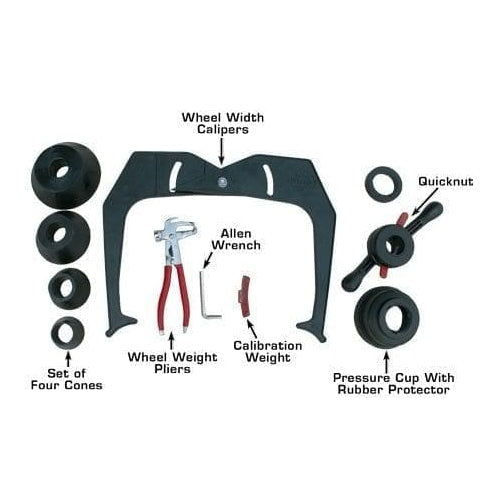

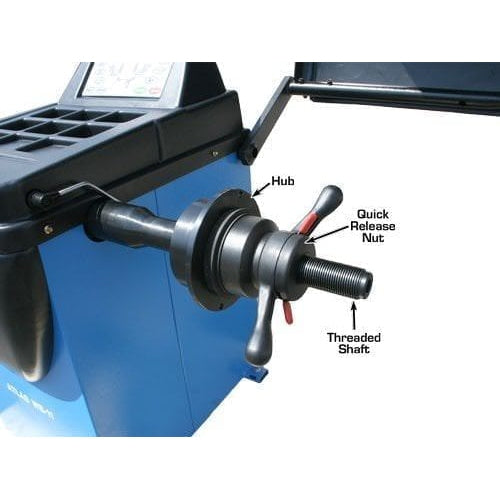

• Includes plastic quick-release nut, four centering cones, wheel weight pliers, and measuring calipers

---

Specifications

Atlas® TC221 Tire Changer

• Rims: Steel, Aluminum, Alloy

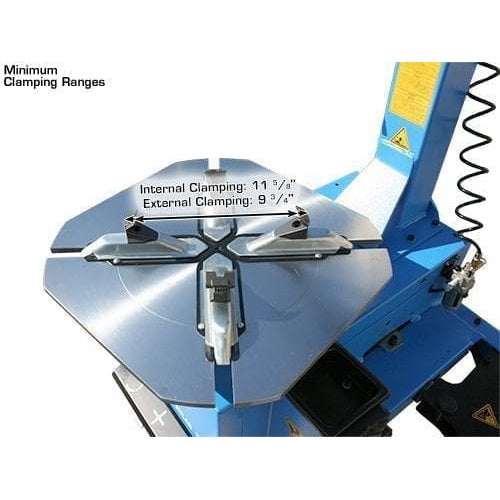

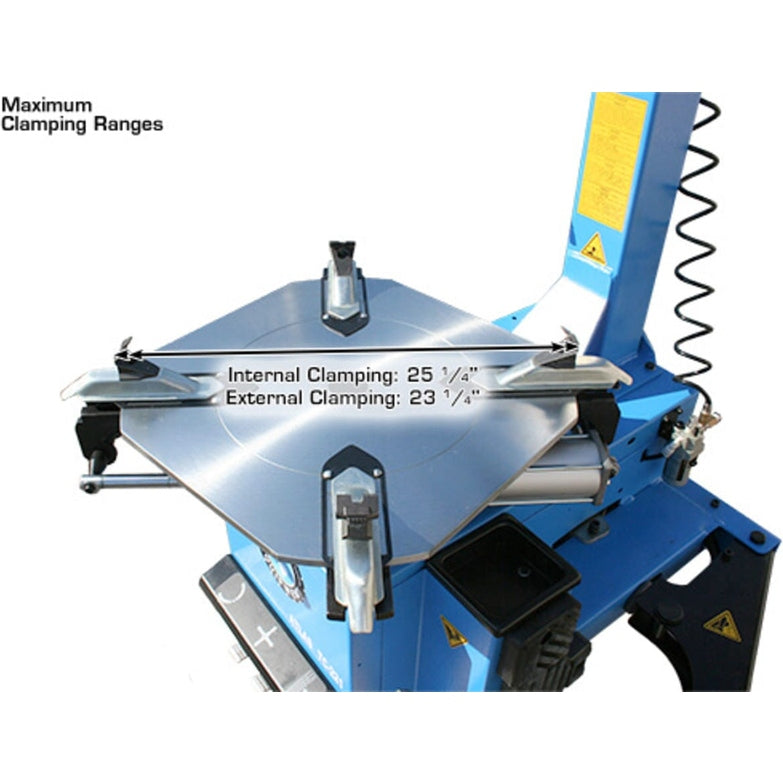

• External Locking Rim Range (3 positions):

  1. 9 ¾" – 21 ⅝"

  2. 10 ¾" – 22 ½"

  3. 11 ⅝" – 23 ¼"

• Internal Locking Rim Range (3 positions):

  1. 11 ⅝" – 23 ¼"

  2. 12 ⅝" – 24 ¼"

  3. 13 ½" – 25 ¼"

• Max Tire Diameter: 39"

• Max Wheel Width (Bead Breaker): 13"

• Table Motor: 1 HP

• Turntable Torque: 885 ft/lbs

• Bead Breaker Force: 5,500 lbs

• Air Requirement: 90–110 PSI (Do not exceed 140 PSI)

• Operating Voltage: 110V

• Shipping Weight: 550 lbs

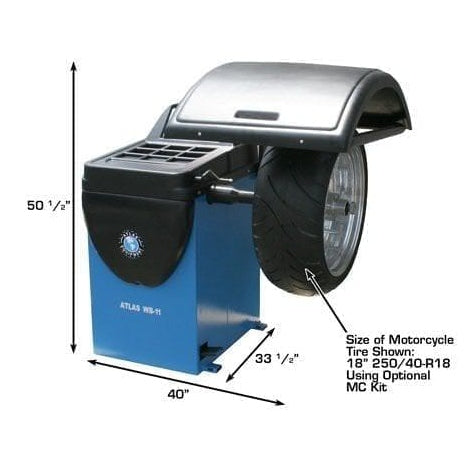

Atlas® WB11 Wheel Balancer

• Max Tire Diameter: 39" (3' 6")

• Rim Sizes (Cars and Light Trucks): 10"–32"

• Rim Width: 1 ½"–20"

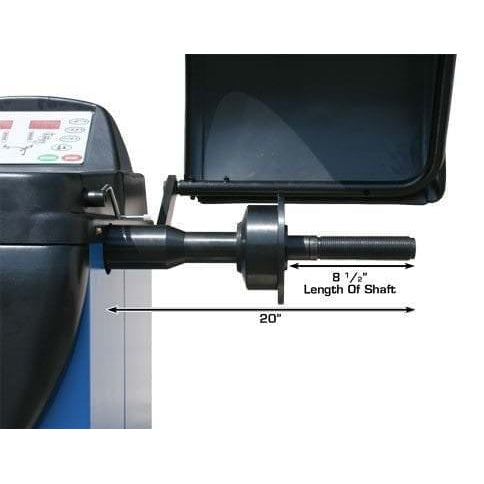

• Shaft Size: 40mm

• Max Wheel Weight: 150 lbs

• Balancing Speed: 150 rpm

• Data Entry: Manual (all dimensions)

• Measurements: Standard or Metric

• Accuracy: 1 gram

• Weight Position Resolution: 1.4°

• Self-Calibration: Yes

• Motor: ¼ HP

• Power Supply: 110V

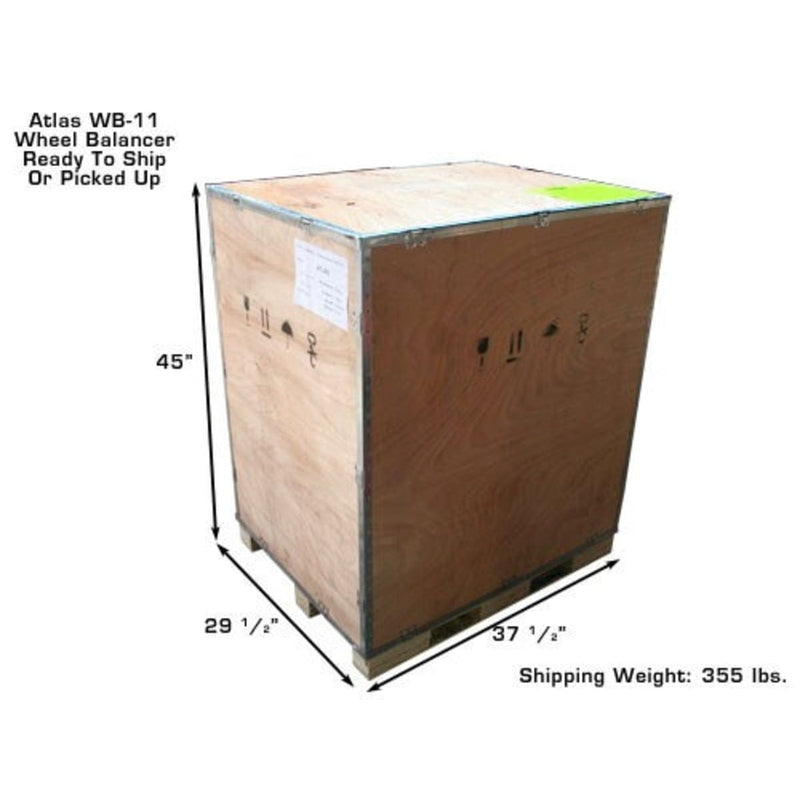

• Shipping Weight: 355 lbs
