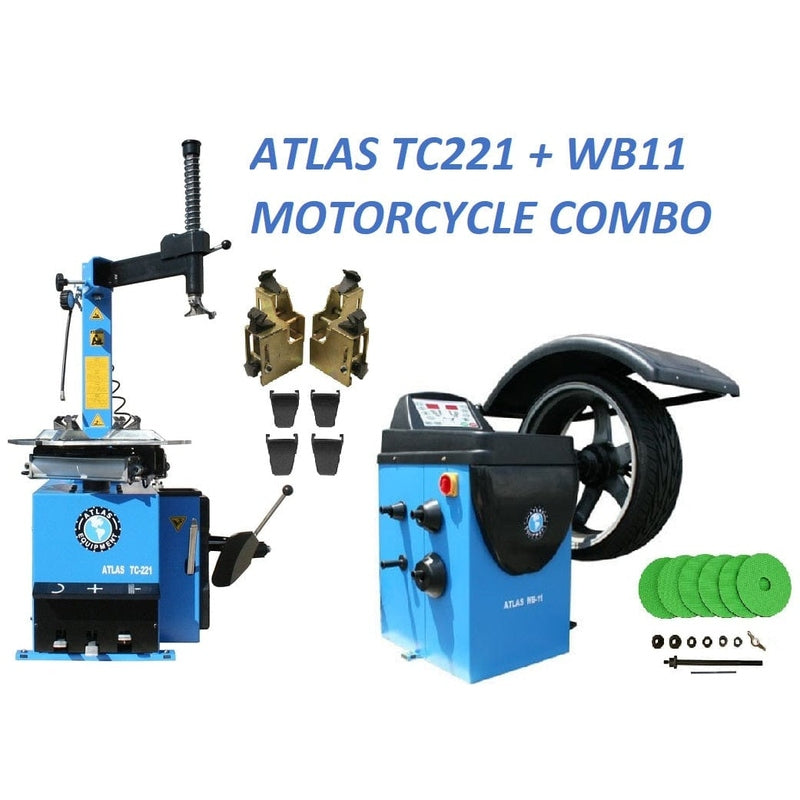

Atlas TC221 Tire Changer + WB11 Motorcycle Wheel Balancer Combo Package

Features

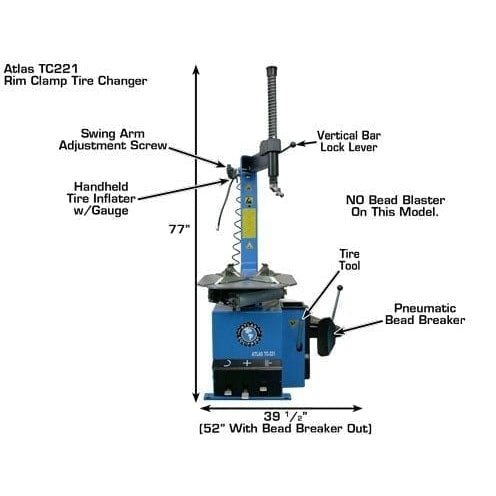

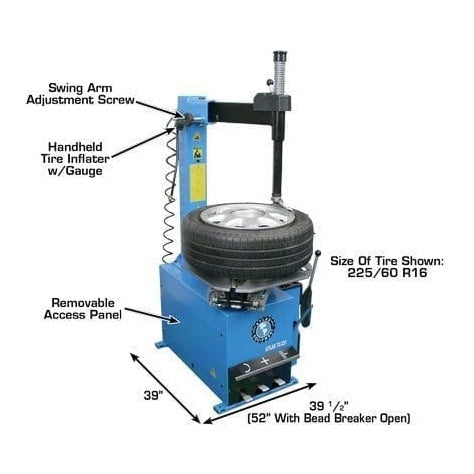

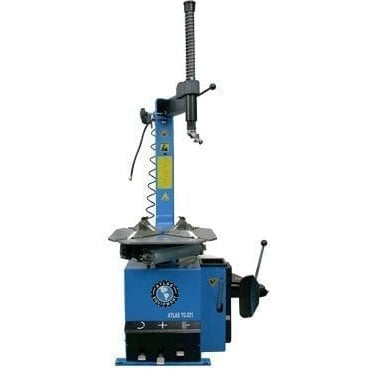

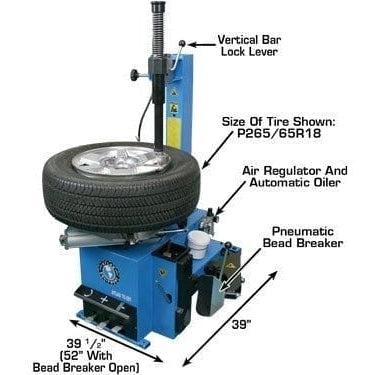

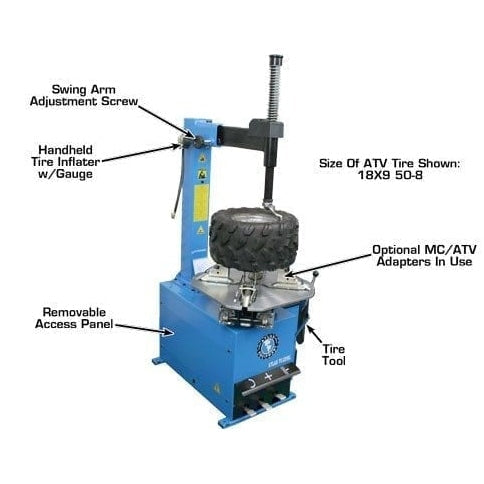

TC221 Tire Changer

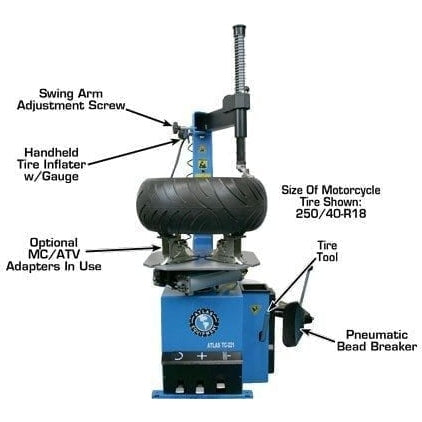

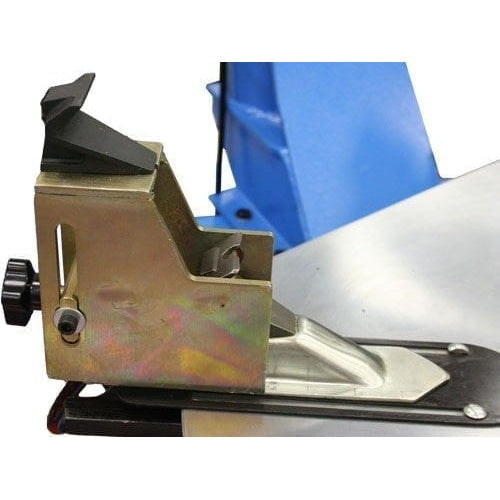

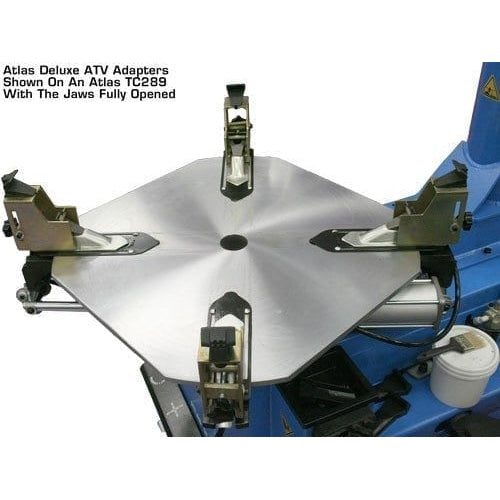

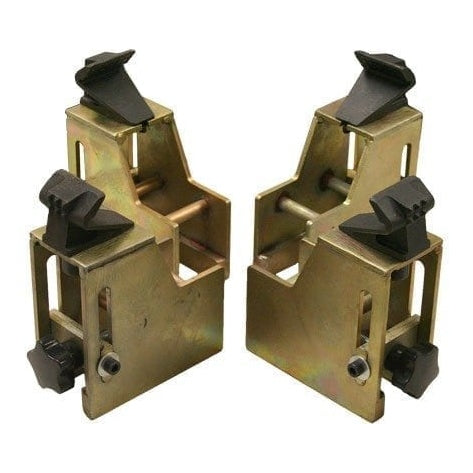

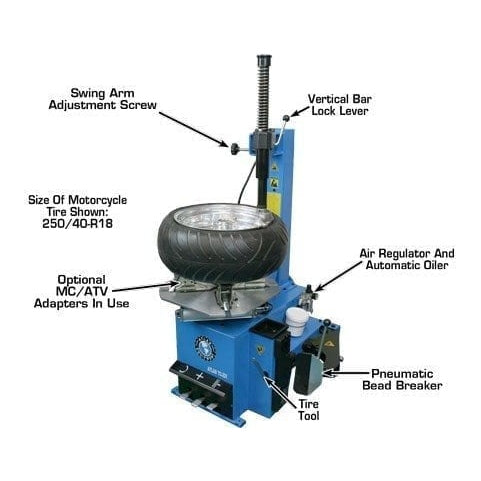

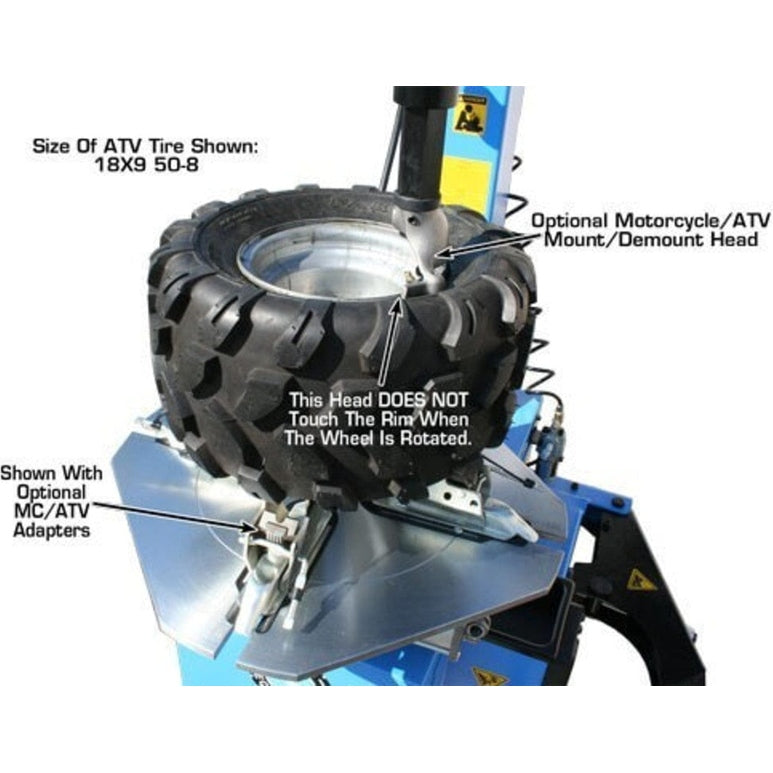

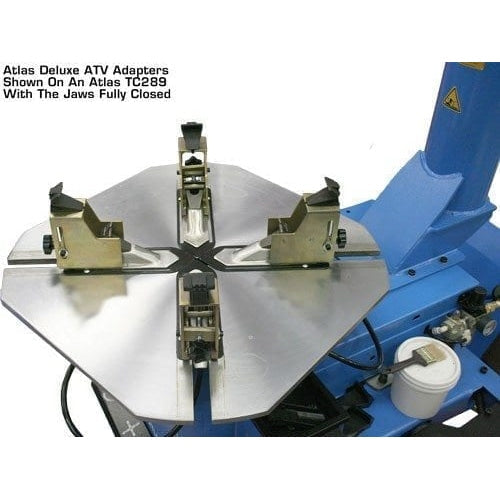

• Swing-arm rim clamp tire changer with deluxe motorcycle adapters and plastic jaw covers included

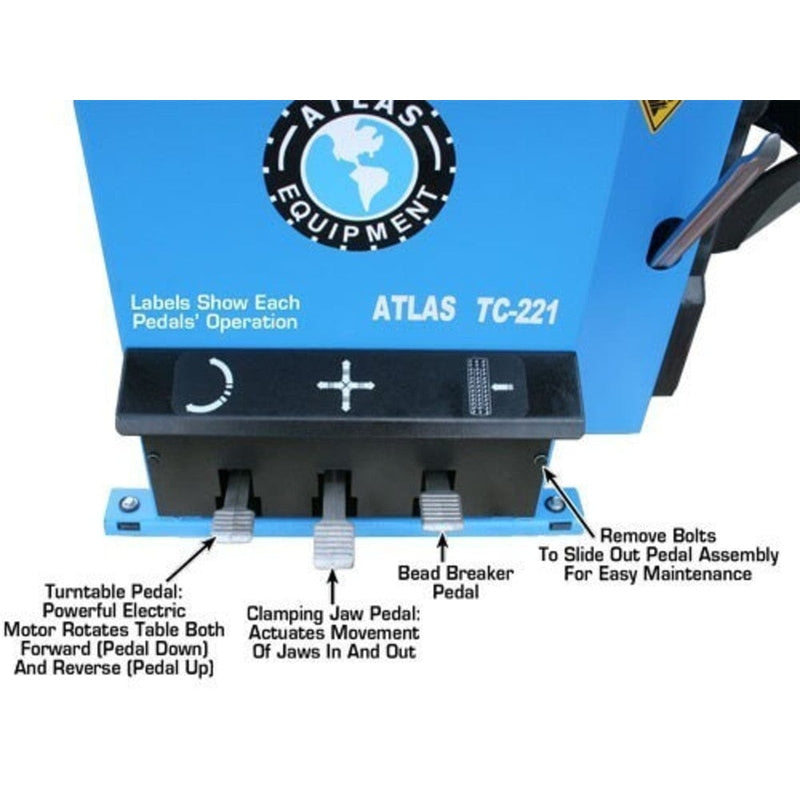

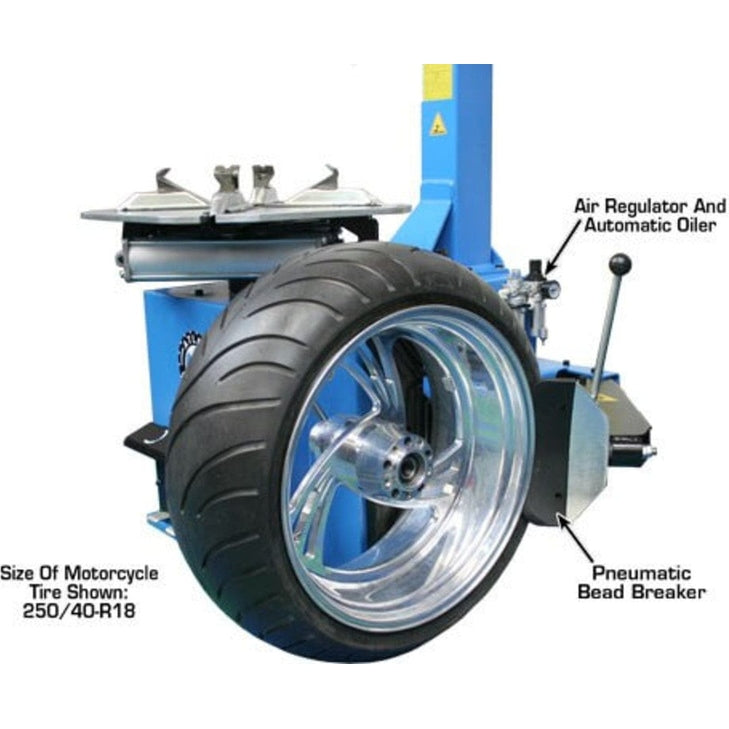

• Air-operated jaws and bead breaker (requires external air supply)

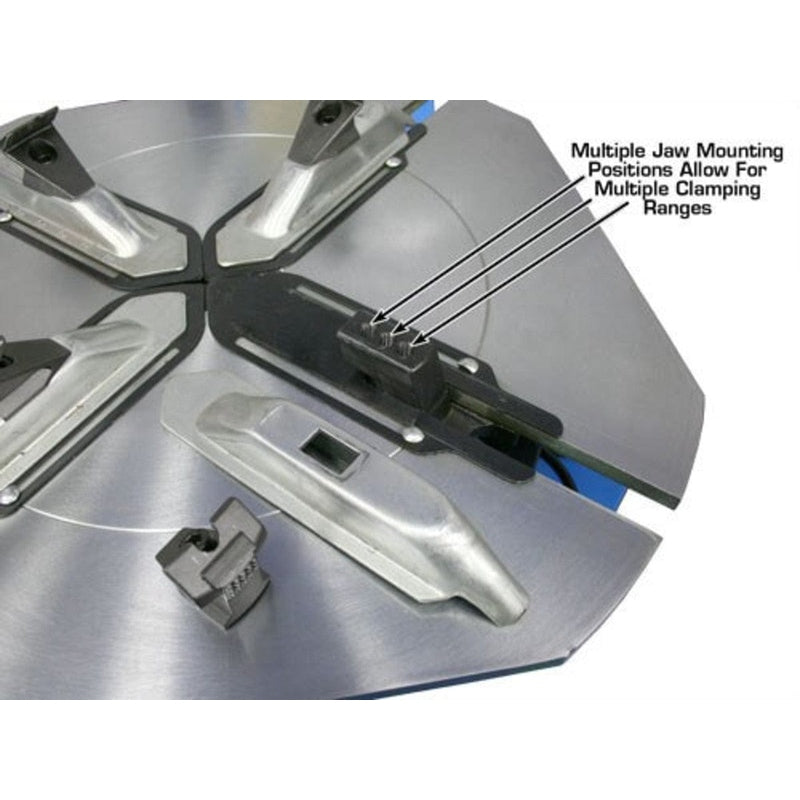

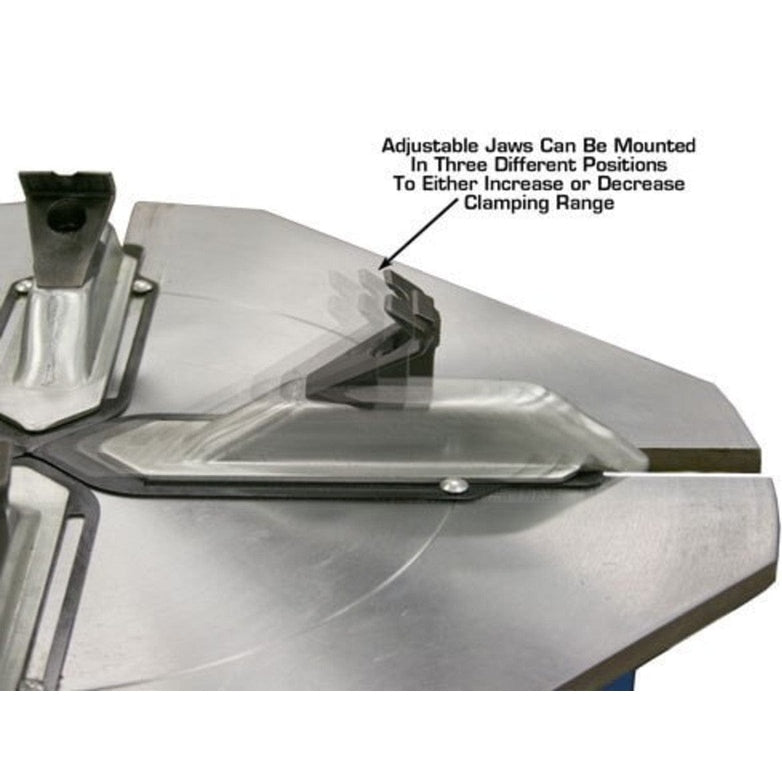

• Electric turntable with adjustable jaws offering three mounting positions

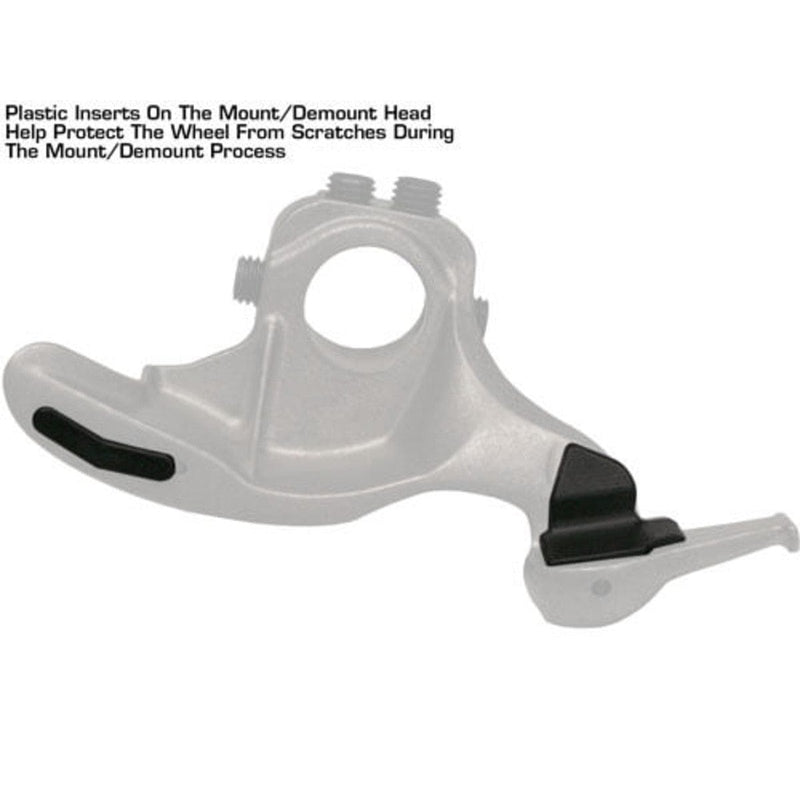

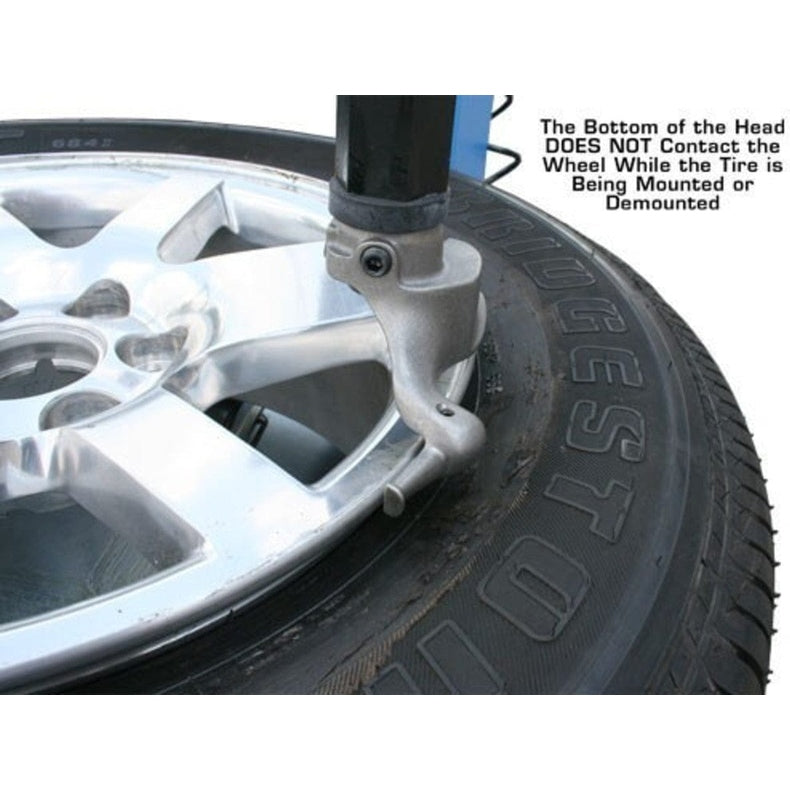

• Durable metal mount/demount head with metal roller or replaceable plastic inserts for rim protection

• Inflator gun with pressure gauge conveniently mounted on the column

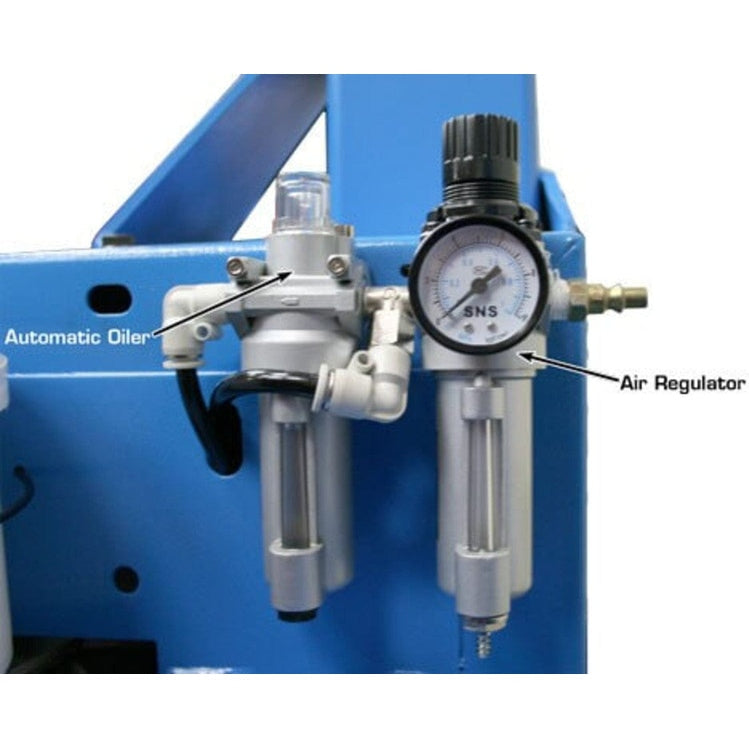

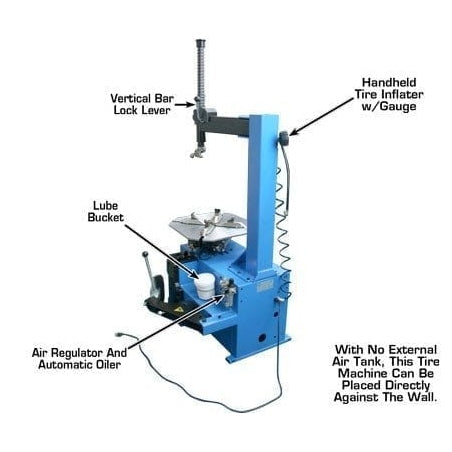

• Filter, regulator, and lubricator included for optimal air system performance

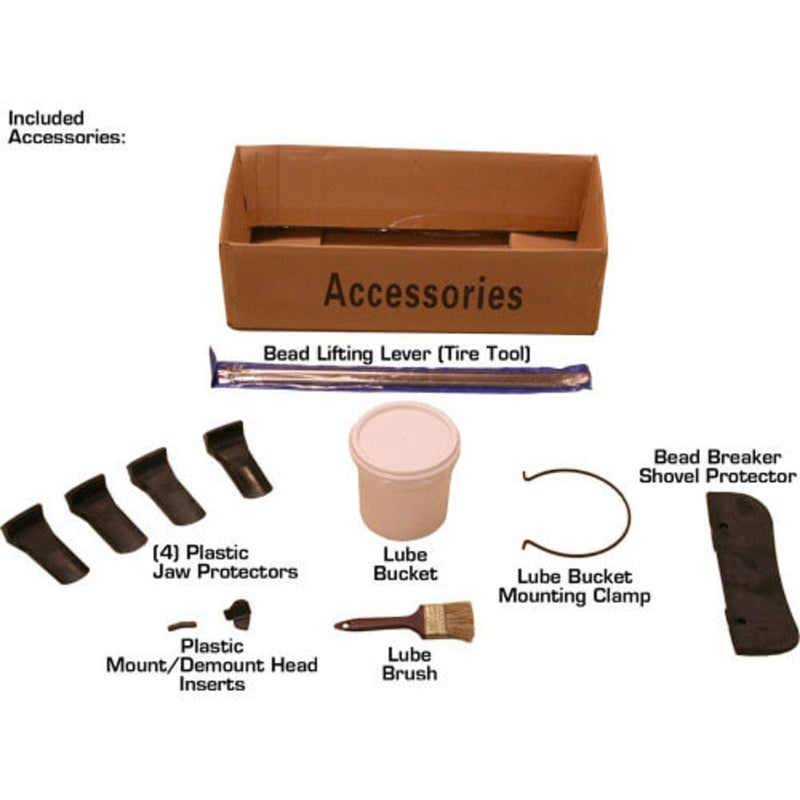

• Includes 20" tire tool, lube bucket, and brush

• Comes with large plastic jaw covers, plastic bead breaker shovel cover, and multiple replacement plastic inserts for long-term use

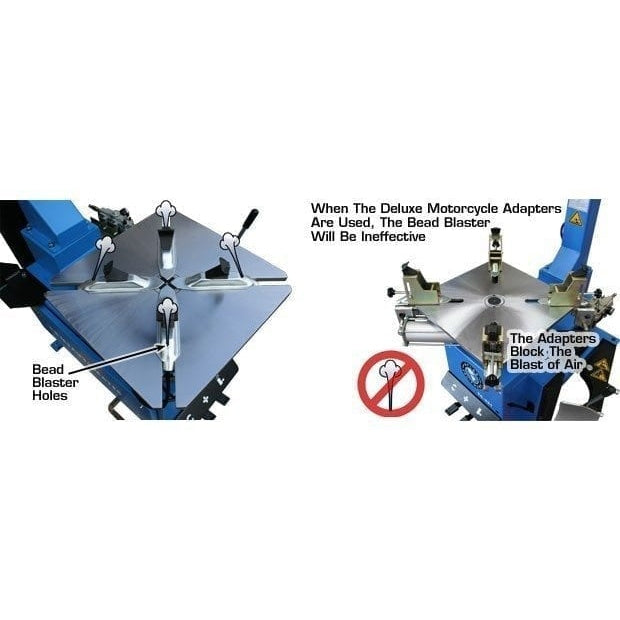

• Built-in “Beadblaster” system for efficient bead seating

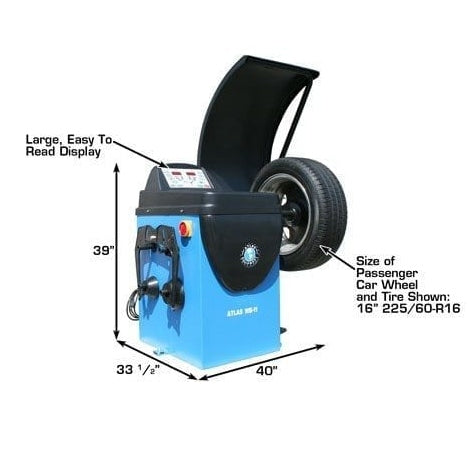

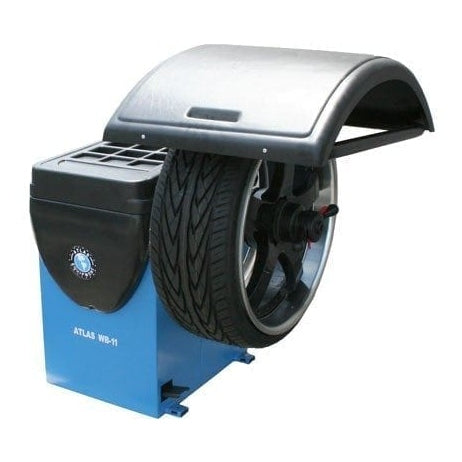

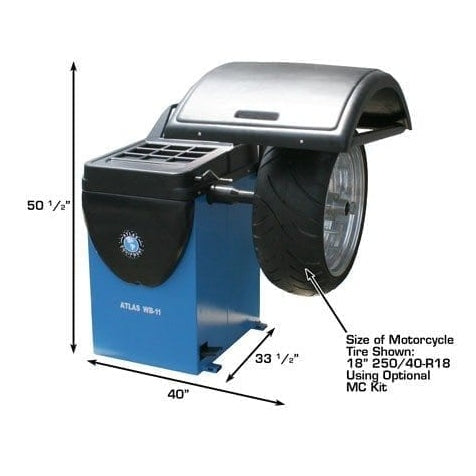

WB11 Wheel Balancer

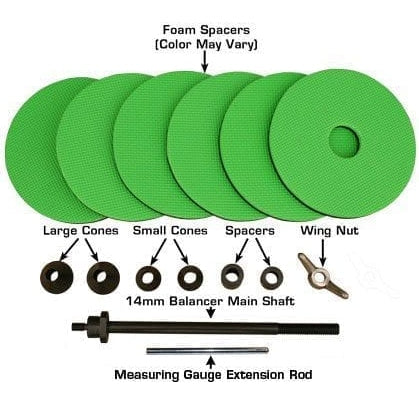

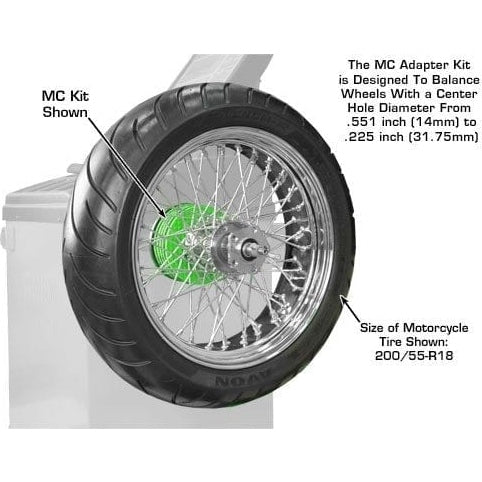

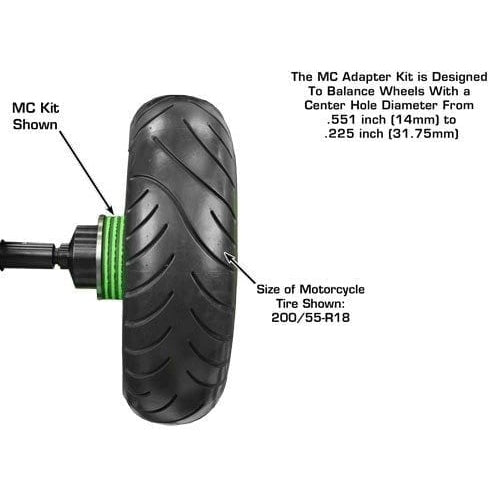

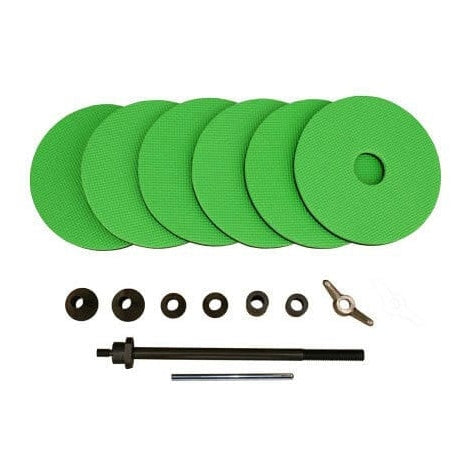

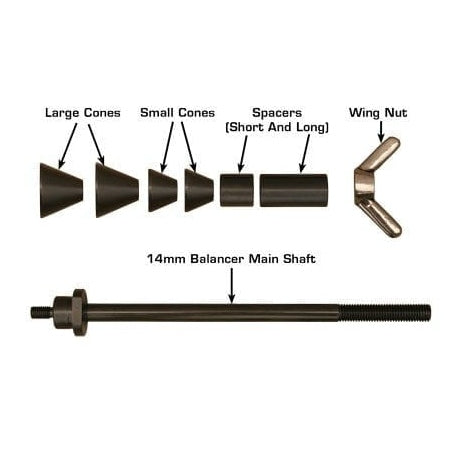

• Computer-controlled motorized spin balancer with standard 14mm motorcycle adapter kit included

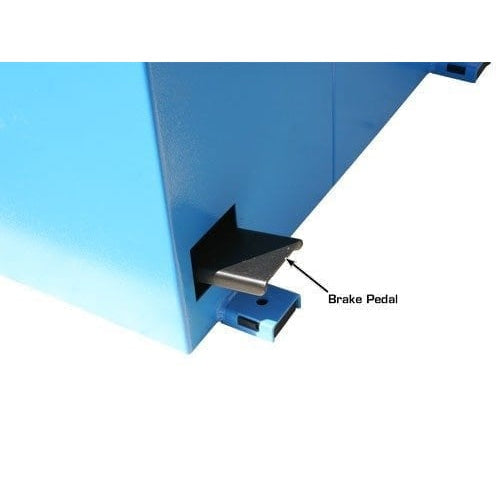

• Automatic and pedal-operated brake for ease of use

• Automatic start/stop function activates when the hood is lowered or raised

• Supports static and dynamic balancing modes

• Rapid optimization (OPT) and auto-calibration/self-diagnosis functions

• Ensures exceptional stability and accuracy in unbalance readings

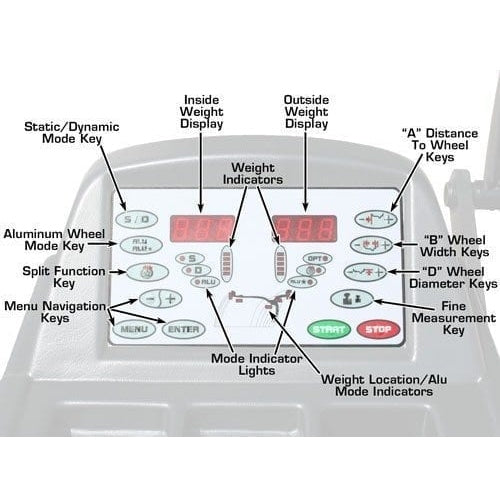

• Displays measurements in grams or ounces, millimeters or inches

• No anchor-down installation required

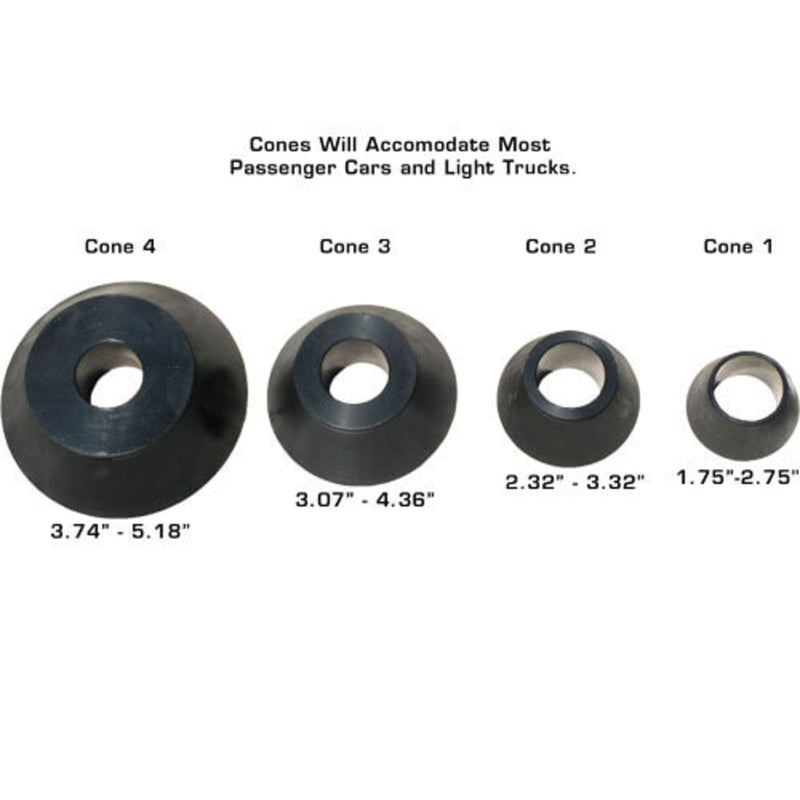

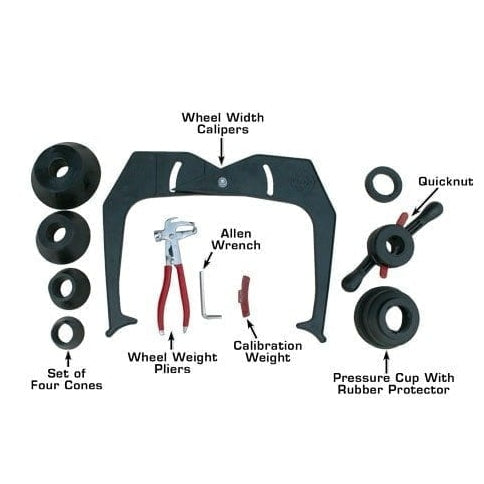

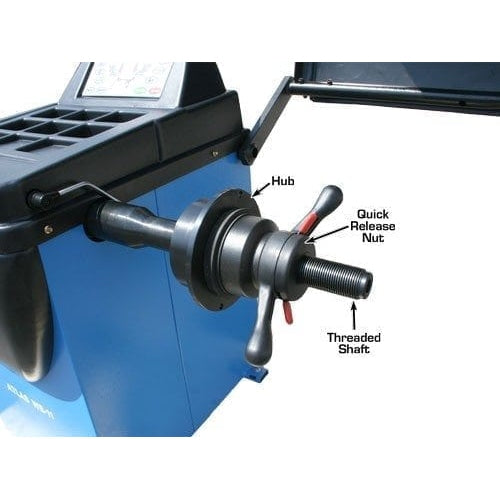

• Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers

Specifications

Atlas® TC221 Specifications

• Compatible Rims: Steel, Aluminum, Alloy

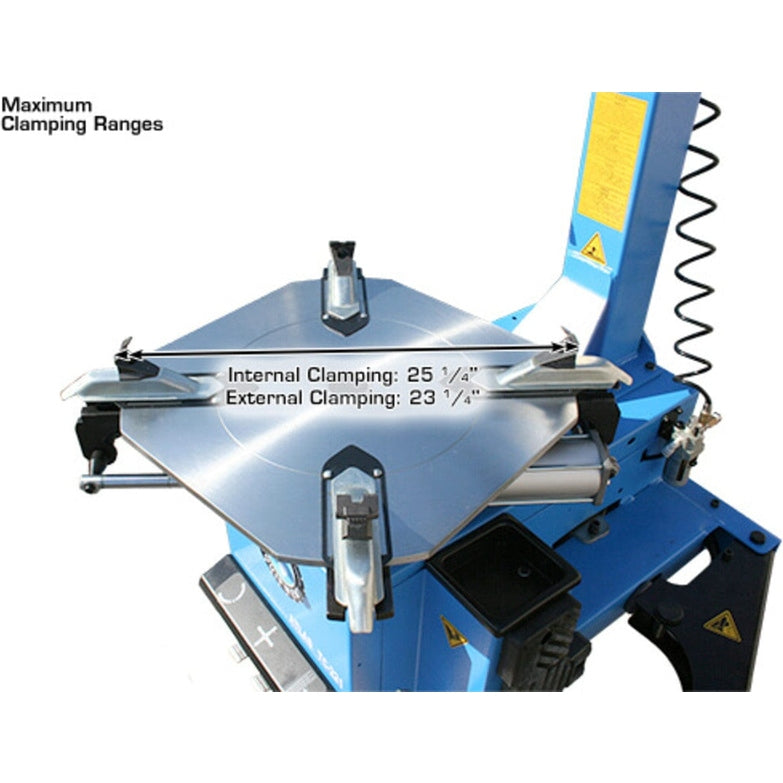

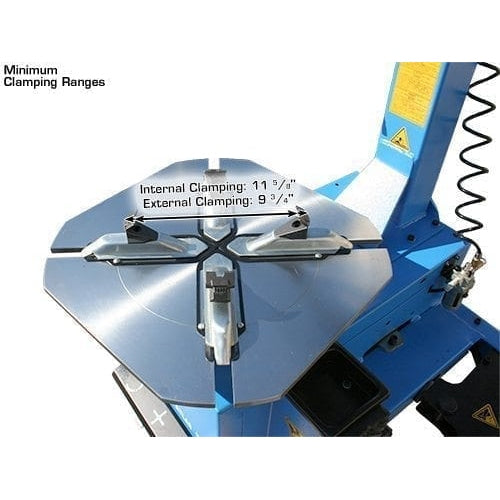

• External Locking Rim Range (3 positions):

  1. 9 3/4" – 21 5/8"

  2. 10 3/4" – 22 1/2"

  3. 11 5/8" – 23 1/4"

• Internal Locking Rim Range (3 positions):

  1. 11 5/8" – 23 1/4"

  2. 12 5/8" – 24 1/4"

  3. 13 1/2" – 25 1/4"

• Max Tire Diameter: 39"

• Max Wheel Width (Bead Breaker): 13"

• Table Motor: 1 HP

• Turntable Rotating Torque: 885 ft/lbs

• Bead Breaker Force: 5,500 lbs

• Air Requirement: 90–110 PSI (must not exceed 140 PSI)

• Operating Voltage: 110V

• Shipping Weight: 550 lbs

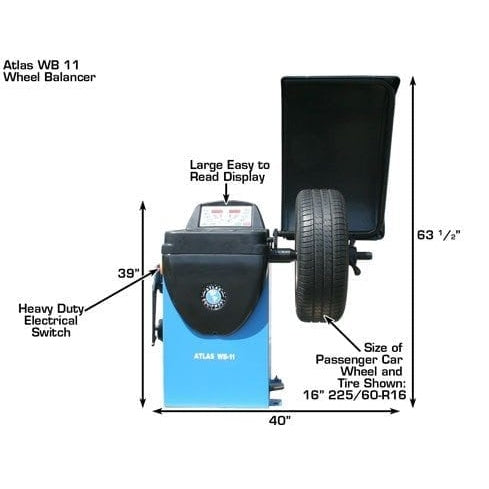

Atlas® WB11 Specifications

• Max Tire Diameter: 39" (3' 6")

• Rim Size Range (Cars & Light Trucks): 10"–32"

• Rim Width: 1.5"–20"

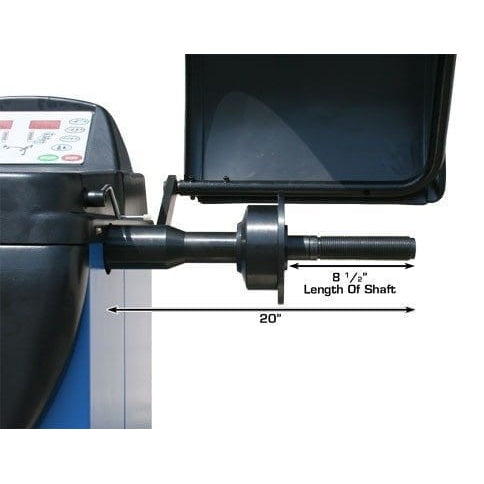

• Shaft Size: 40mm

• Max Wheel Weight: 150 lbs

• Balancing Speed: 150 rpm

• Data Entry: Manual for all dimensions

• Measurements: Standard or Metric

• Accuracy: 1 gram

• Weight Position Resolution: 1.4°

• Self Calibration: Yes

• Motor Power: 1/4 HP

• Power Supply: 110V

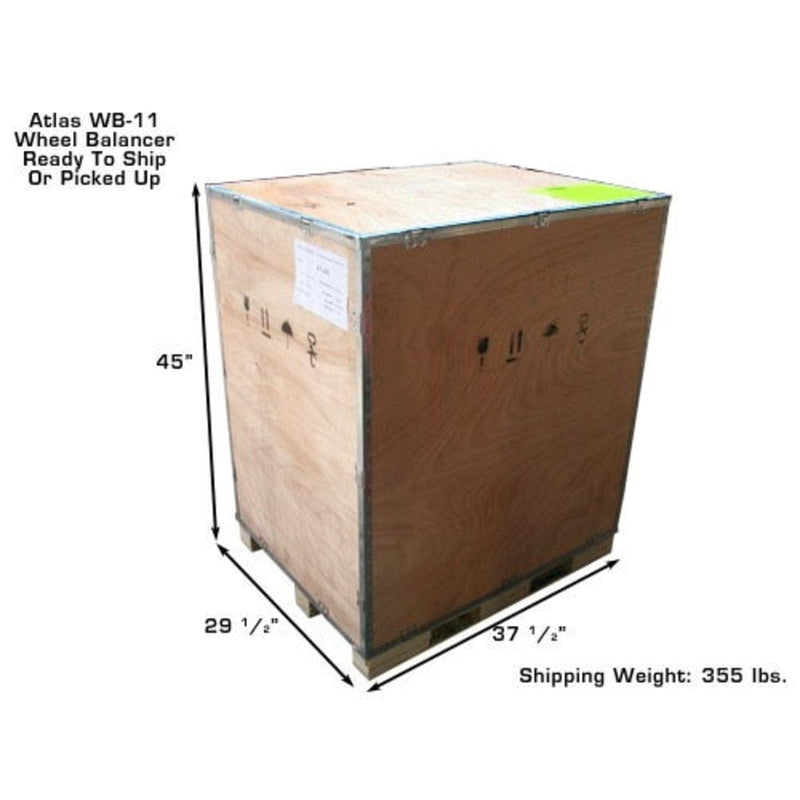

• Shipping Weight: 355 lbs
