Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package

Description

This professional-grade combo includes the Atlas® TC229 Rim-Clamp Swing Arm Tire Changer and the Atlas® Platinum PWB50 Computerized Spin Balancer — an excellent setup for commercial shops needing reliable tire changing and precision balancing equipment. Both units operate on 110V power, are CE approved, and come with solid warranty coverage: a 1-year parts-only warranty for the TC229 and an extended 2-year parts-only warranty for the Platinum PWB50.

Features

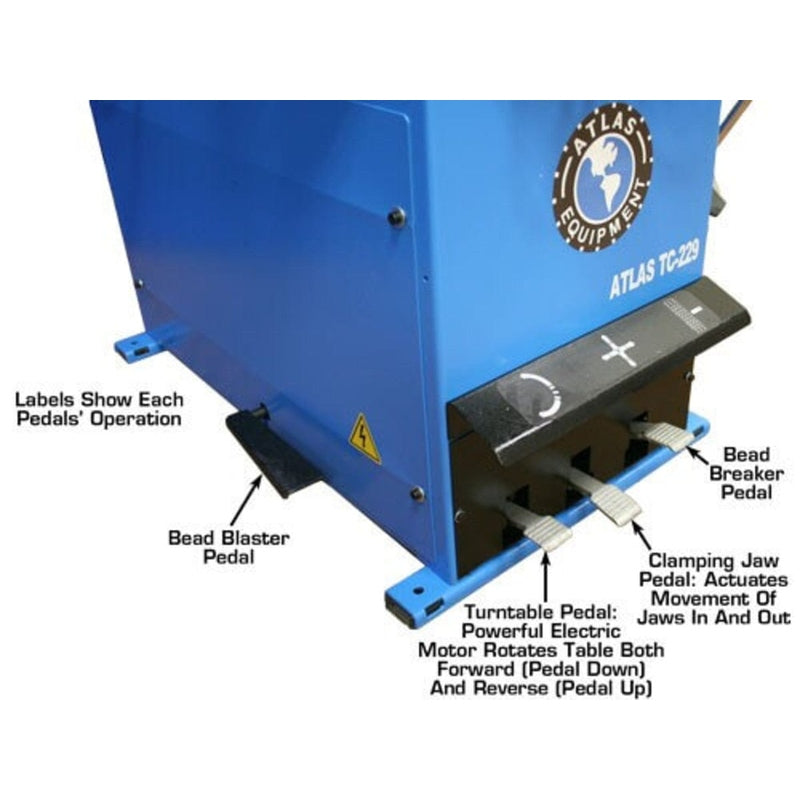

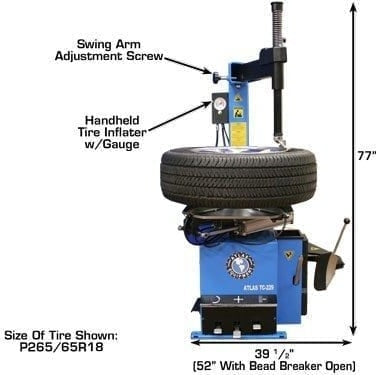

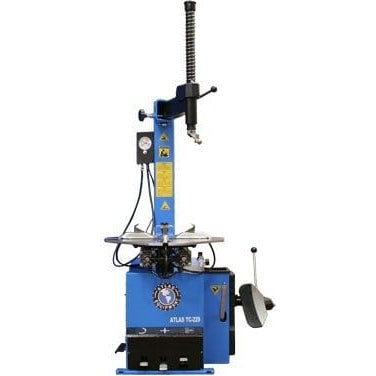

TC229 Tire Changer

• Durable rim-clamp, swing-arm design for versatility and precision

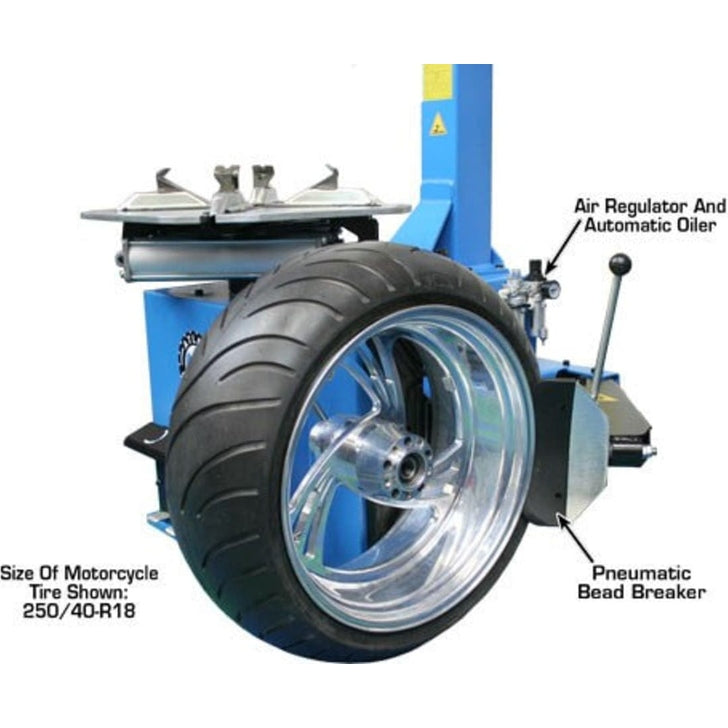

• Air-operated jaws and bead breaker (external air supply required)

• Electric turntable for smooth, consistent rotation

• Adjustable jaws with three mounting positions

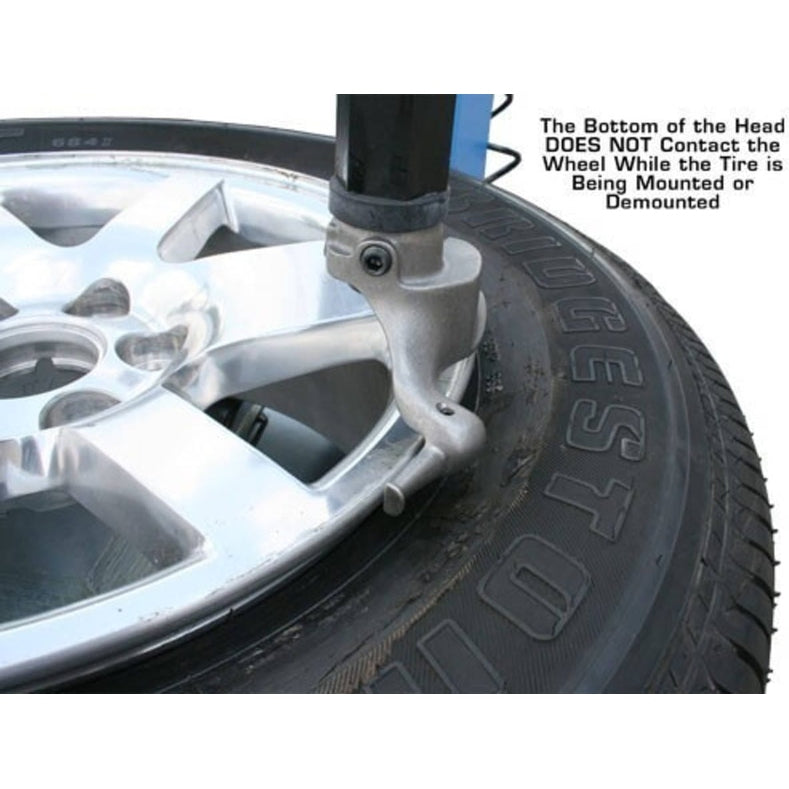

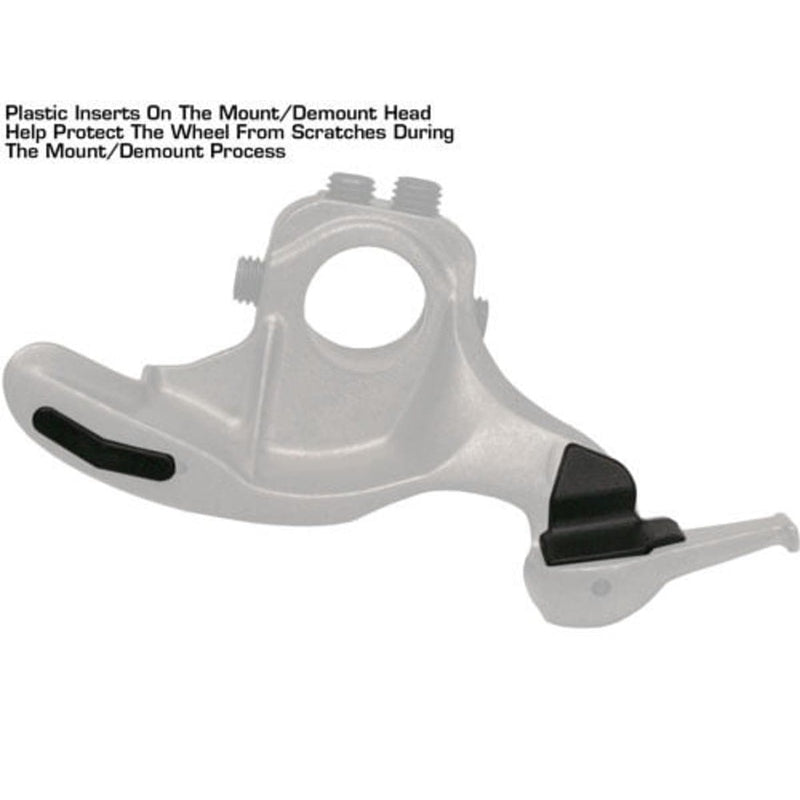

• Metal mount/demount head with roller and replaceable plastic inserts for rim protection

• Column-mounted inflator box with integrated pressure gauge

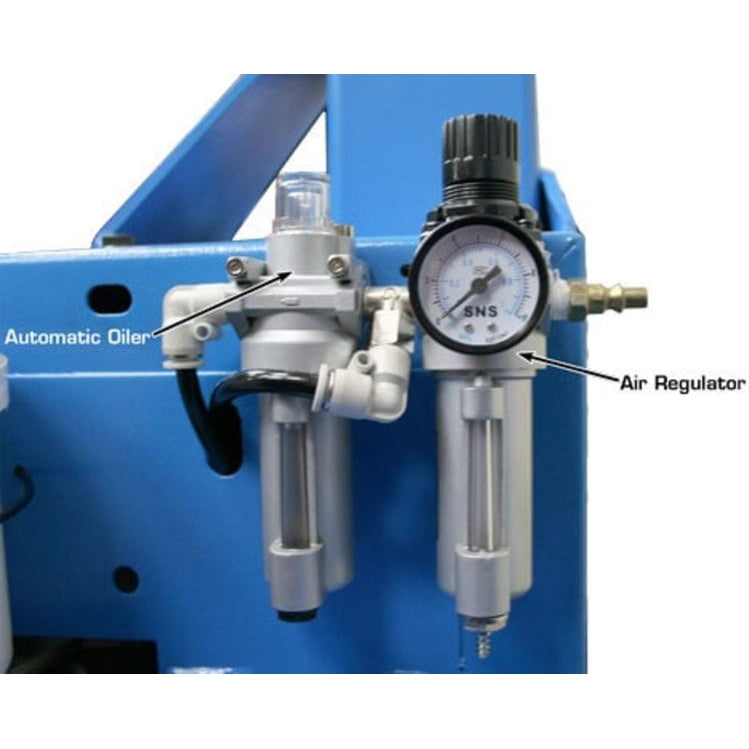

• Includes filter, regulator, and lubricator for clean and efficient air control

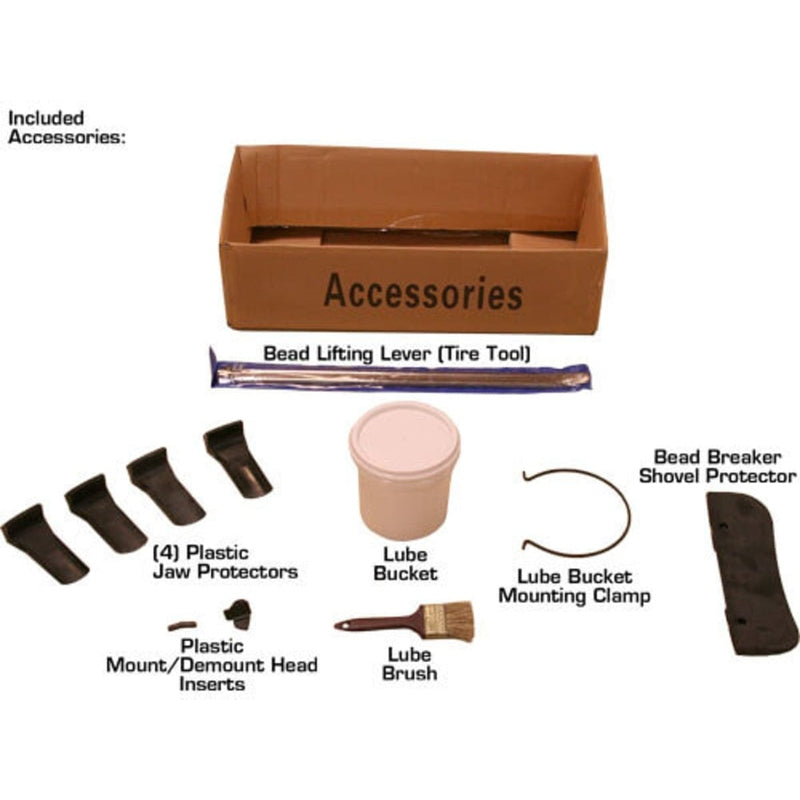

• 20″ tire tool, lube bucket, and brush included for convenience

• Comes with plastic jaw covers, bead breaker shovel protector, and extra plastic inserts

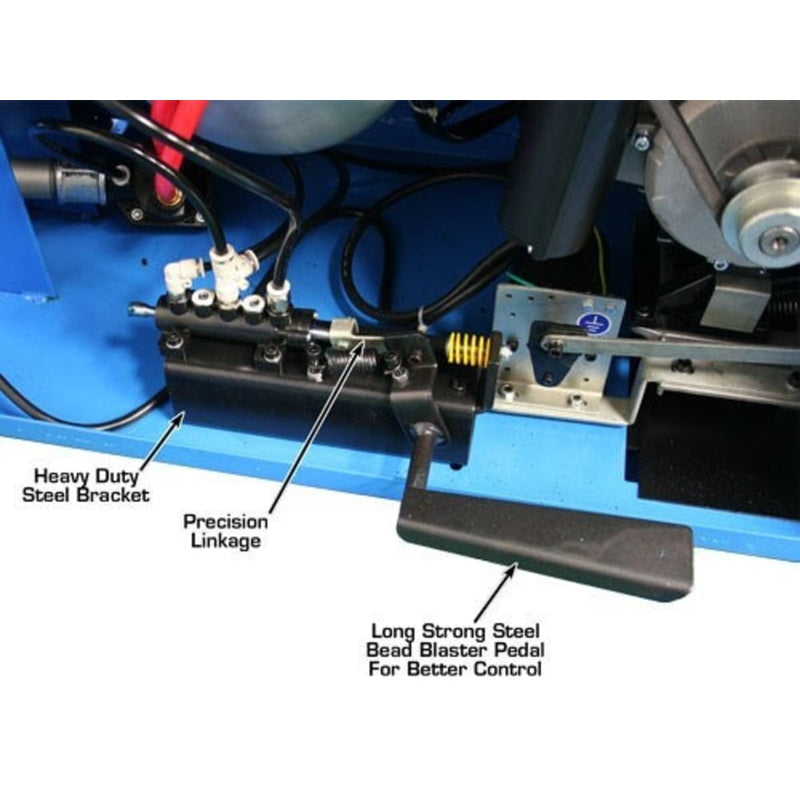

• Built-in “Beadblaster” for fast and secure tire seating

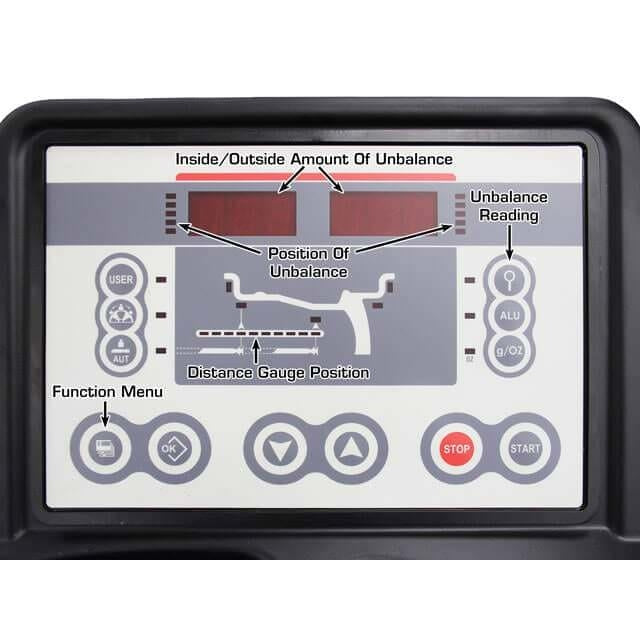

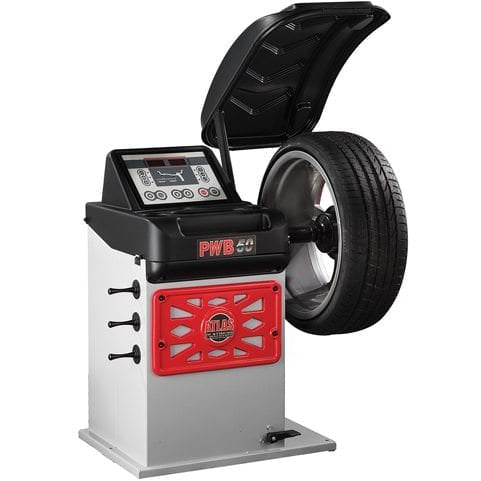

PWB50 Wheel Balancer

• Platinum series computer-controlled spin balancer engineered with premium Italian components

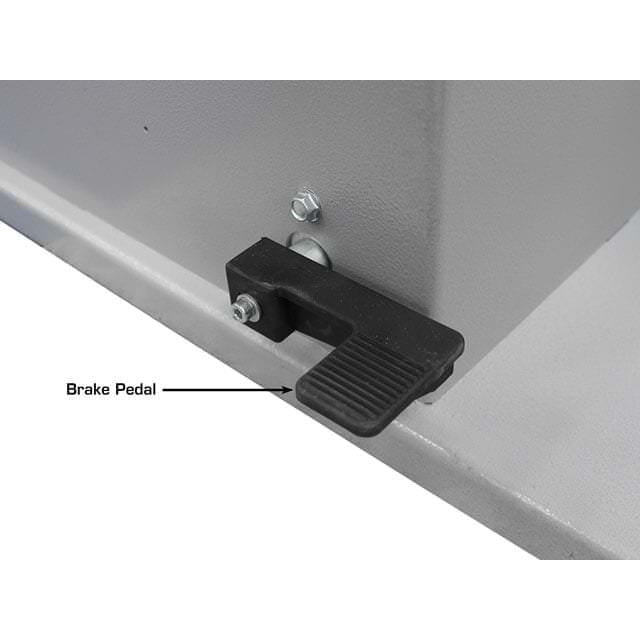

• Automatic and pedal-operated brake for user control

• Automatic start/stop when hood is raised or lowered

• Static and dynamic balancing modes for all tire types

• Advanced functions: Optimatch, FES (Split), and OPF (Opposite Position)

• Specialized ALU-S and other ALU programs for alloy wheels

• Automatic 2D data entry and NWN (No Wheel Needed) system for efficiency

• Self-diagnosing and self-calibrating for consistent accuracy

• USB hub allows firmware updates via PC or laptop

• Highly stable readings for precise balance measurements

• Display options in grams or ounces, and mm or inches

• No anchor-down installation required

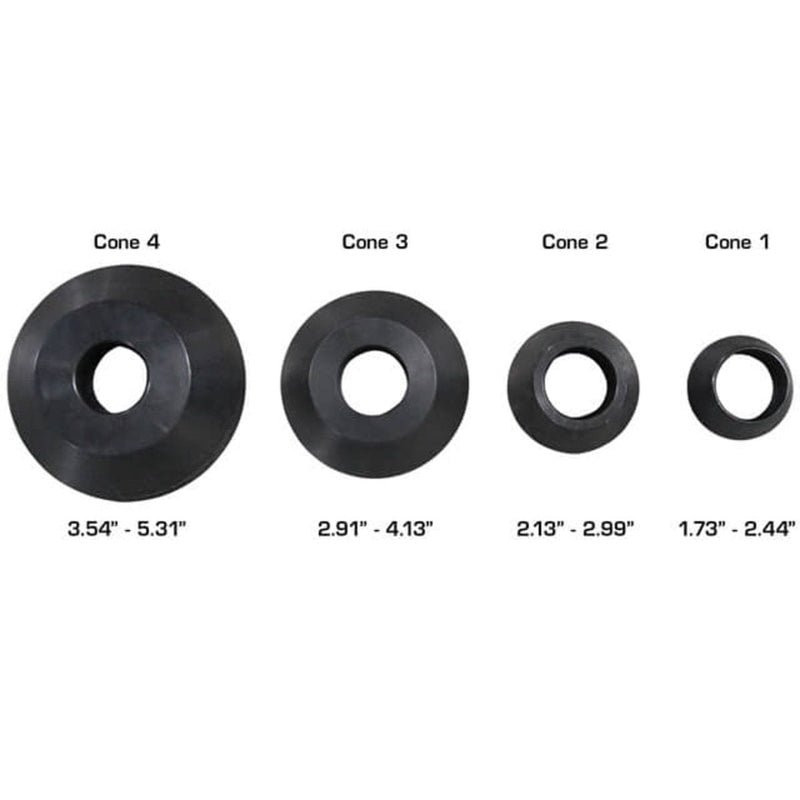

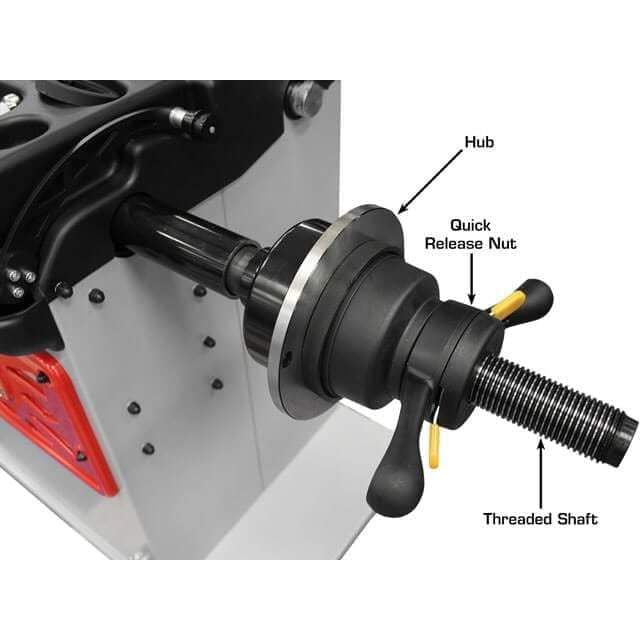

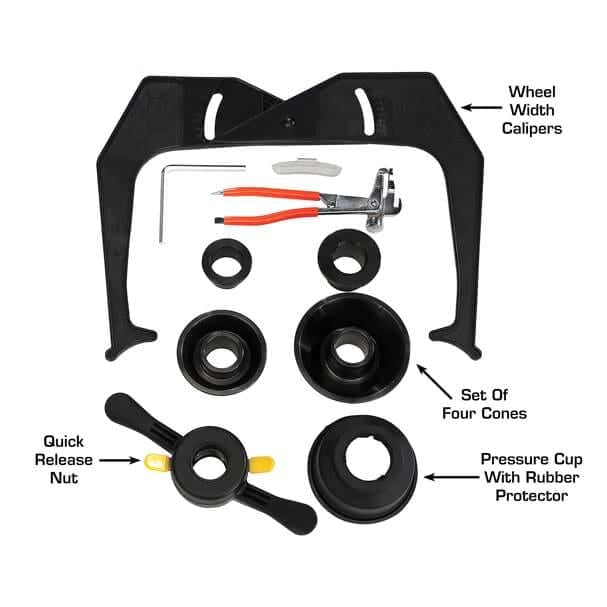

• Includes plastic quick-release nut, four centering cones, wheel weight pliers, and measuring calipers

Specifications

Atlas® TC229 Tire Changer

• Rims: Steel, Aluminum, Alloy

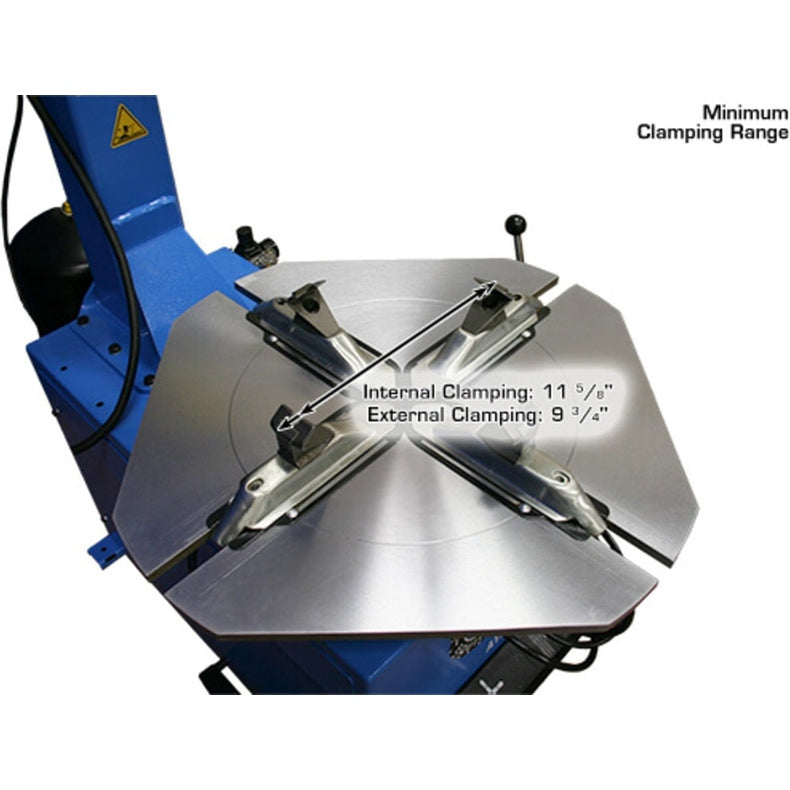

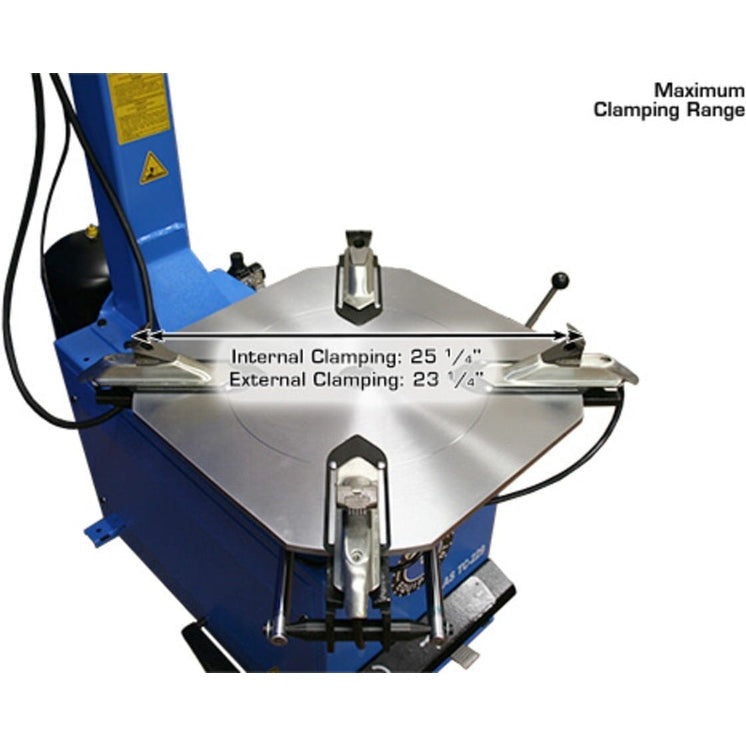

• External Locking Rim Dimensions (3 positions):

  1. 9¾" – 21⅝"

  2. 10¾" – 22½"

  3. 11⅝" – 23¼"

• Internal Locking Rim Dimensions (3 positions):

  1. 11⅝" – 23¼"

  2. 12⅝" – 24¼"

  3. 13½" – 25¼"

• Max Tire Diameter: 39"

• Max Wheel Width (Bead Breaker): 13"

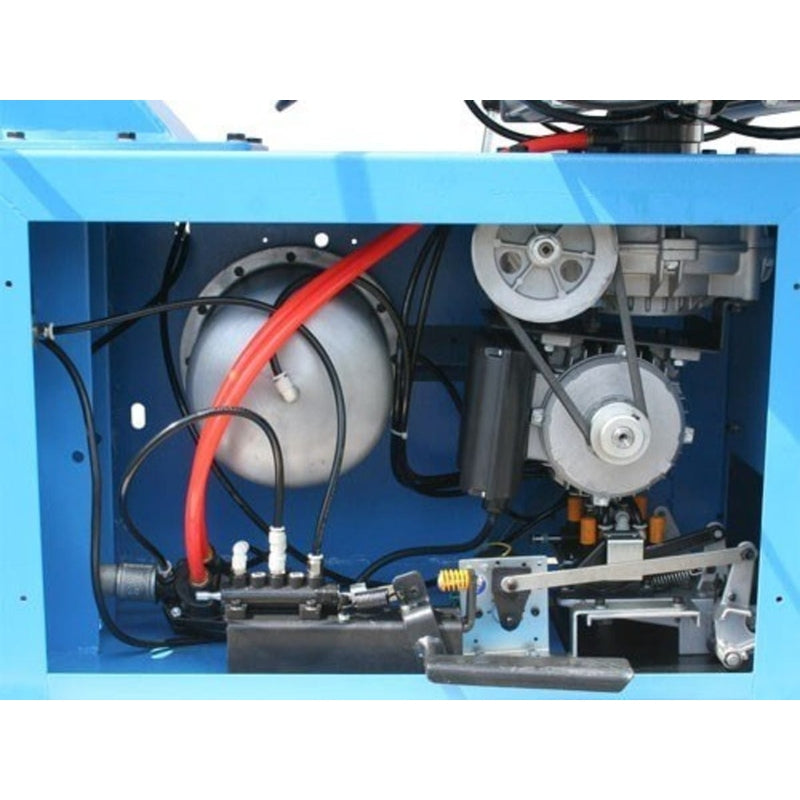

• Table Motor: 1 HP

• Turntable Torque: 885 ft/lbs

• Bead Breaker Force: 5,500 lbs

• Air Requirement: 90–110 PSI (Do not exceed 140 PSI)

• Operating Voltage: 110V

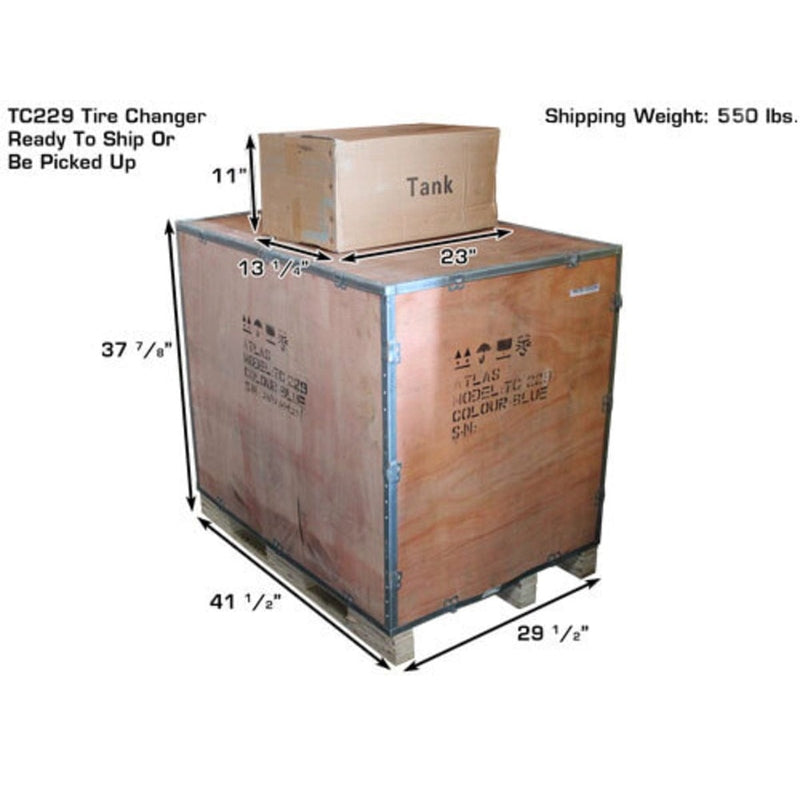

• Shipping Weight: 550 lbs

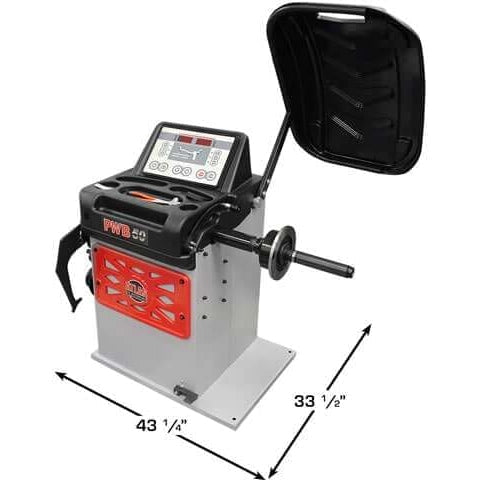

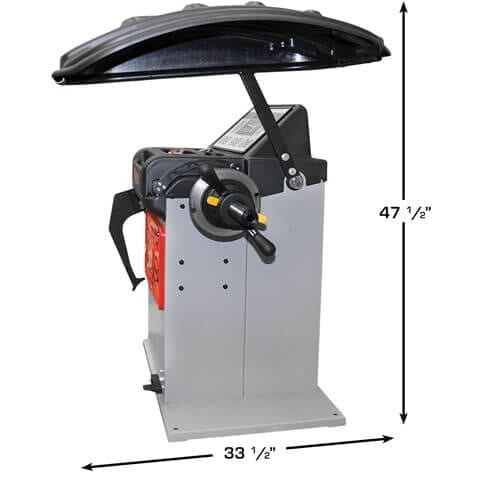

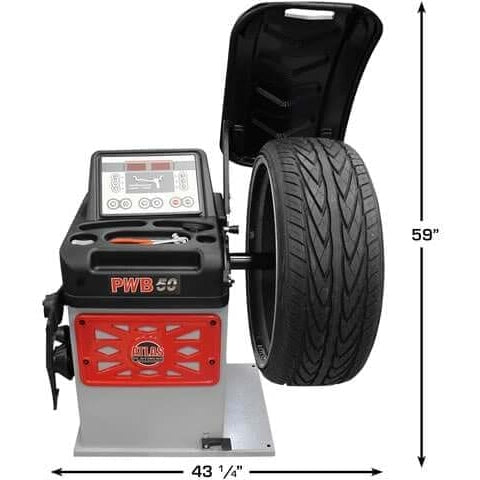

Atlas® Platinum PWB50 Wheel Balancer

• Max Tire Diameter: 43"

• Rim Sizes: 10"–30"

• Rim Width: 1½"–20"

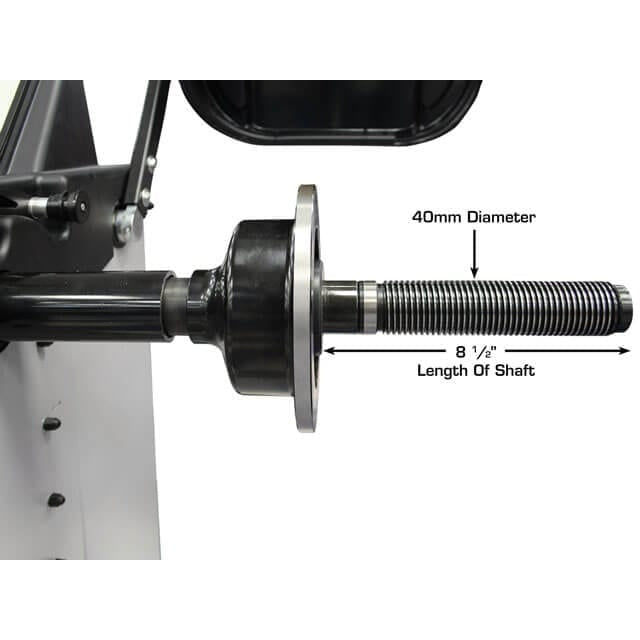

• Shaft Size: 40mm

• Max Wheel Weight: 165 lbs

• Balancing Speed: 130 rpm

• Data Entry: Automatic 2D

• Measurements: Standard or Metric

• Accuracy: 1 gram

• Weight Position Resolution: 1.4°

• Self-Calibration: Yes

• Cycle Time: 7 seconds

• Power Supply: 110V

• Shipping Weight: 230 lbs
