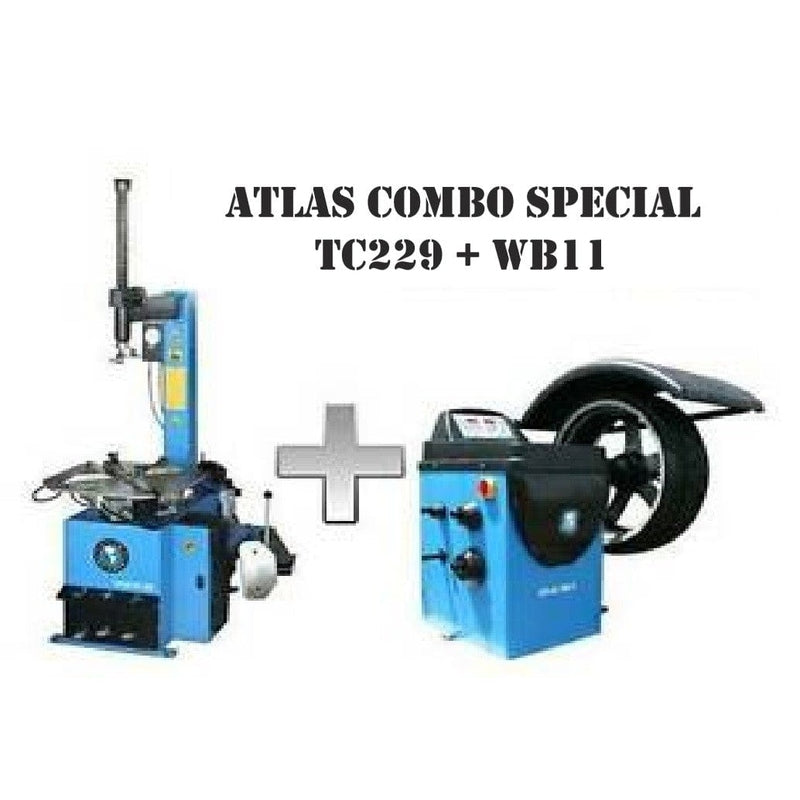

The Atlas® TC229 & WB11 Combo Package is an ideal solution for homeowners, small repair shops, and ATV or motorcycle service centers seeking reliable, professional-grade tire changing and balancing equipment. This package includes the Atlas® TC229 Rim-Clamp Swing Arm Tire Changer and the Atlas® WB11 Computerized Spin Balancer—both CE certified and powered by standard 110V electricity. Each unit comes backed by the Atlas® 1-Year Parts-Only Warranty for dependable performance and peace of mind.
Features

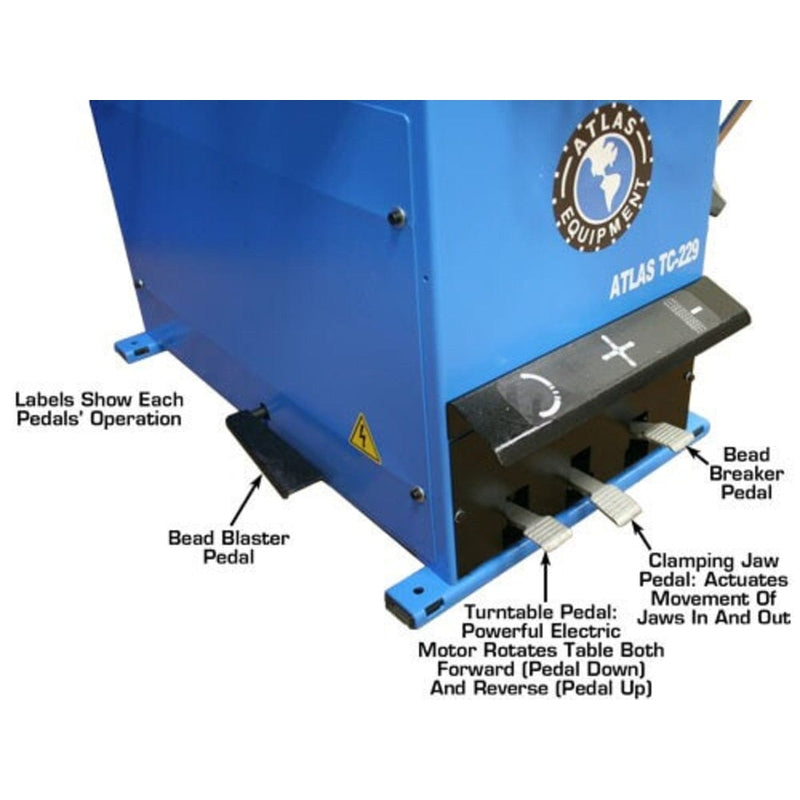

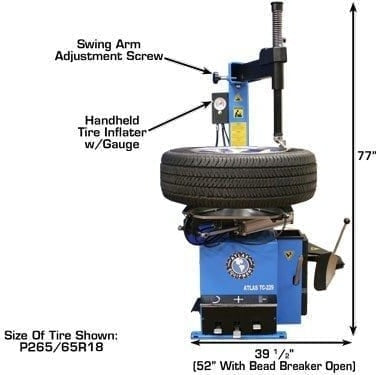

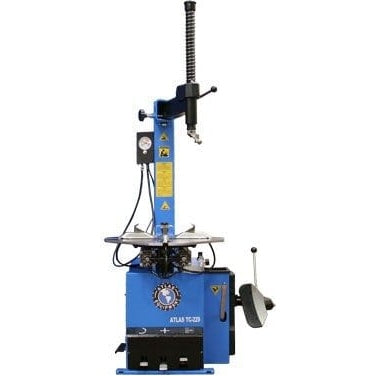

Atlas® TC229 Tire Changer
-
Rim-Clamp Swing Arm Design: Compatible with steel, aluminum, and alloy rims.
-

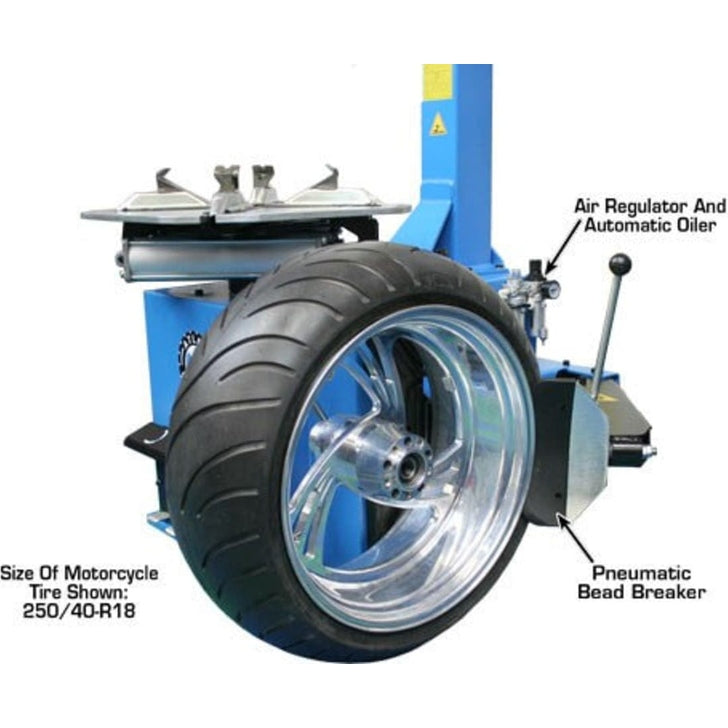

Air-Operated Jaws & Bead Breaker: Provides consistent power and control (requires external air supply).
-

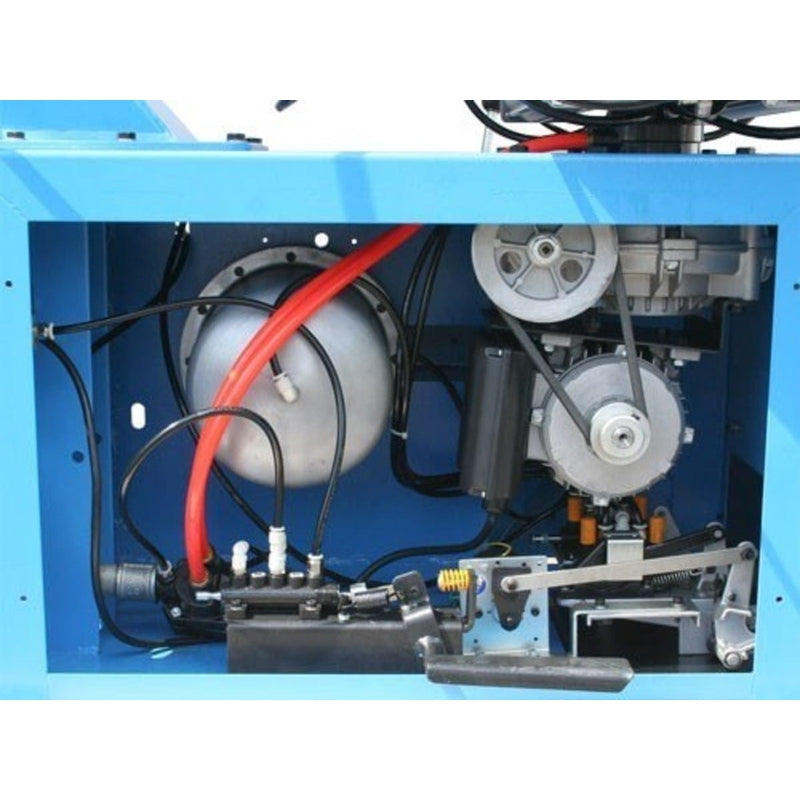

Electric Turntable: Smooth operation for efficient tire mounting and removal.
-
Adjustable Jaws: Three mounting positions to accommodate a variety of wheel sizes.
-

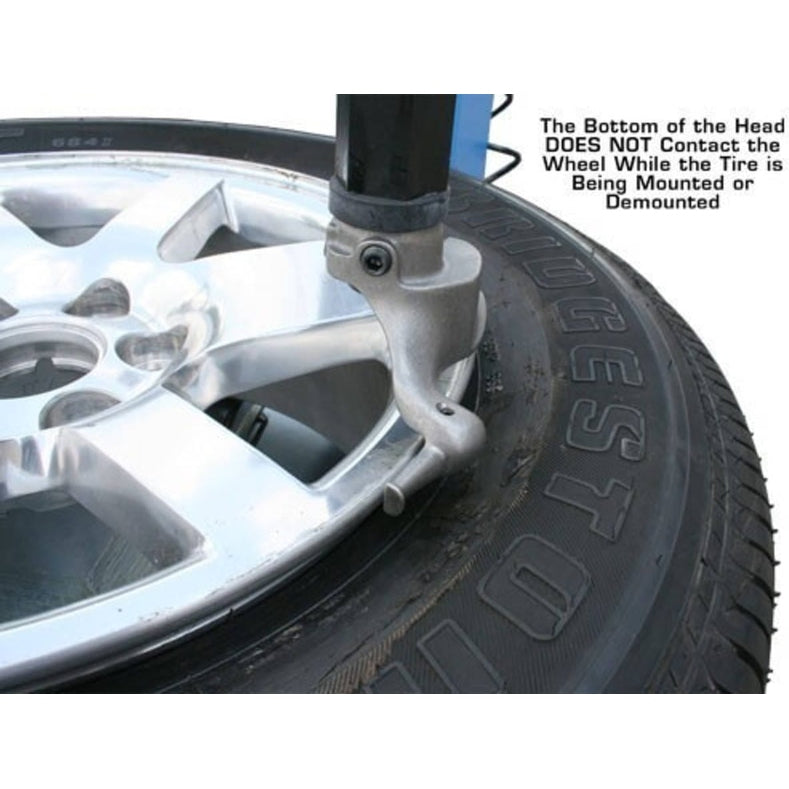

Durable Mount/Demount Head: Metal construction with roller and replaceable plastic inserts.
-
Integrated Inflator Box with Gauge: Convenient, column-mounted inflation control.
-

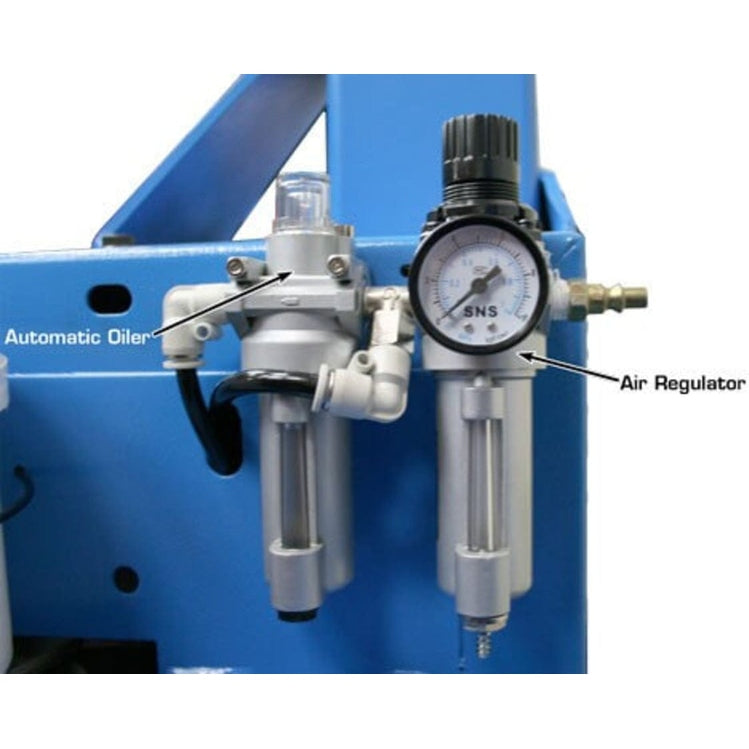

Filter/Regulator/Lubricator Included: Ensures clean, lubricated air for optimal pneumatic performance.
-
Essential Accessories Included: 20″ tire tool, lube bucket with brush, large plastic jaw covers, bead breaker shovel protector, and multiple replacement inserts.
-

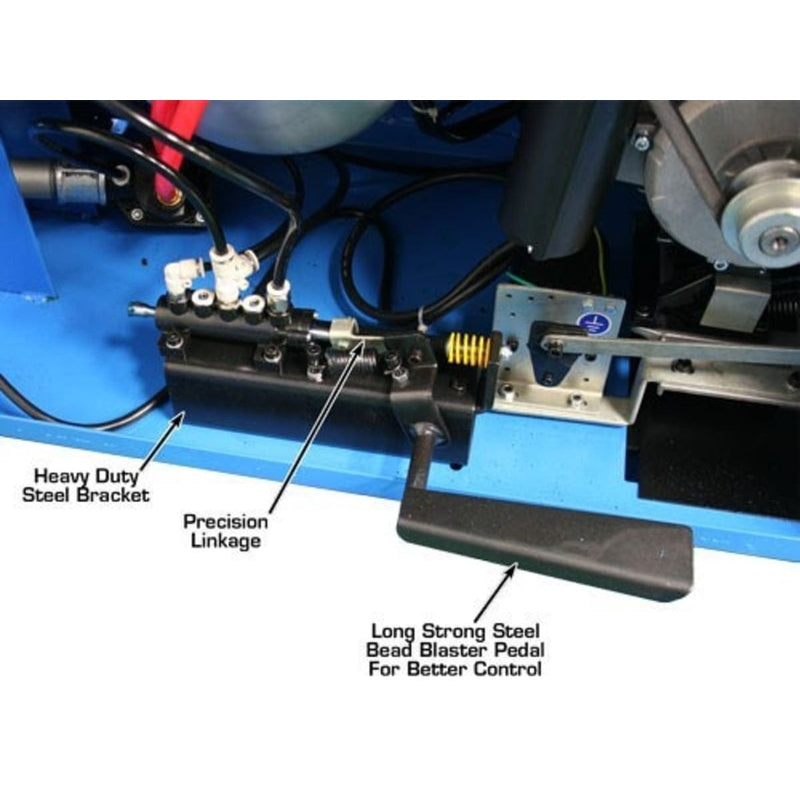

Built-In “Bead Blaster”: Aids in seating tough tire beads quickly and safely.

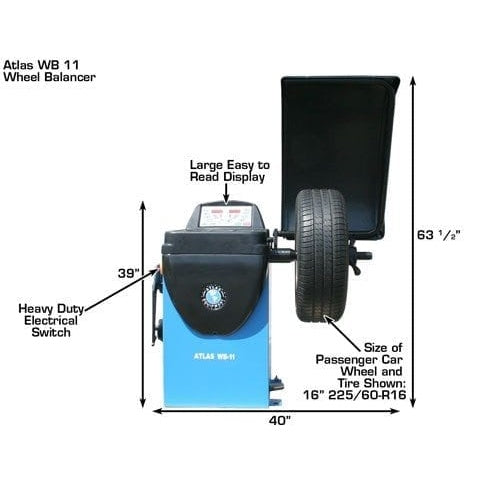

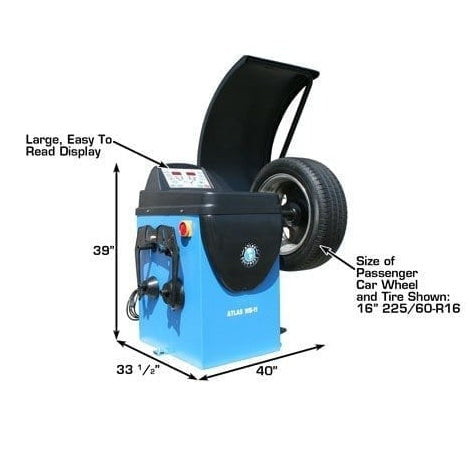

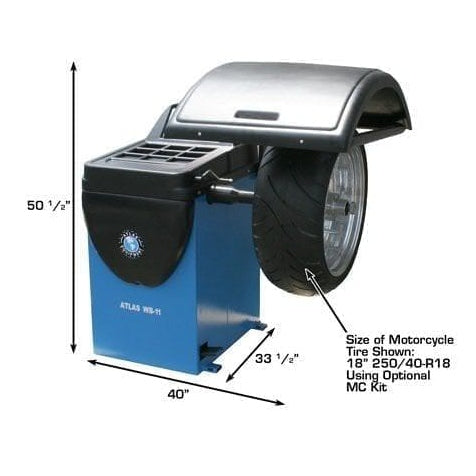

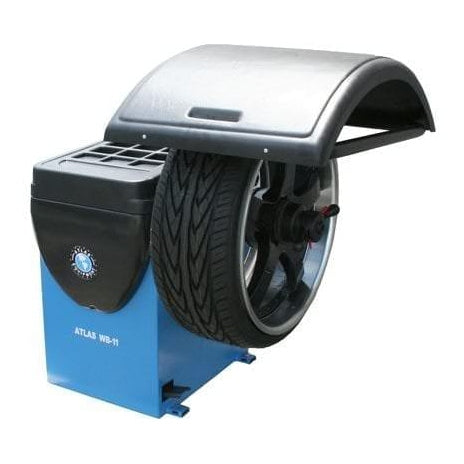

Atlas® WB11 Wheel Balancer
-
Computer-Controlled Spin Balancer: Ensures accurate, consistent wheel balancing.
-
Automatic Start/Stop Function: Engages when the hood is lowered and disengages when raised.
-
Static & Dynamic Balancing Modes: Suitable for a wide range of tire types and vehicle applications.
-
Rapid Optimization (OPT): Delivers fast and precise balancing results.
-
Self-Diagnosing & Self-Calibrating System: Guarantees long-term accuracy with minimal maintenance.
-
Stable Performance: Excellent consistency in reading unbalanced measurements across planes.
-

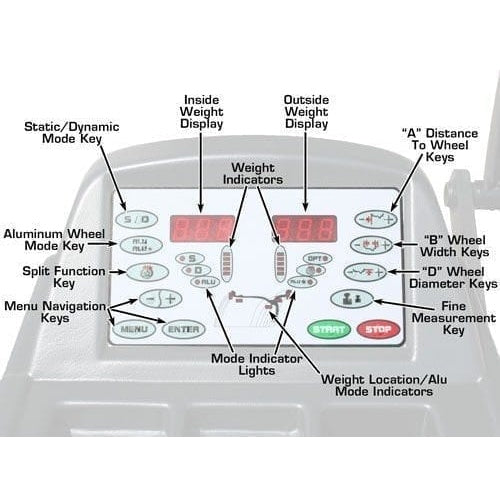

User-Friendly Display: Offers readings in grams or ounces, and millimeters or inches.
-
Convenient Design: No anchoring required for installation.
-

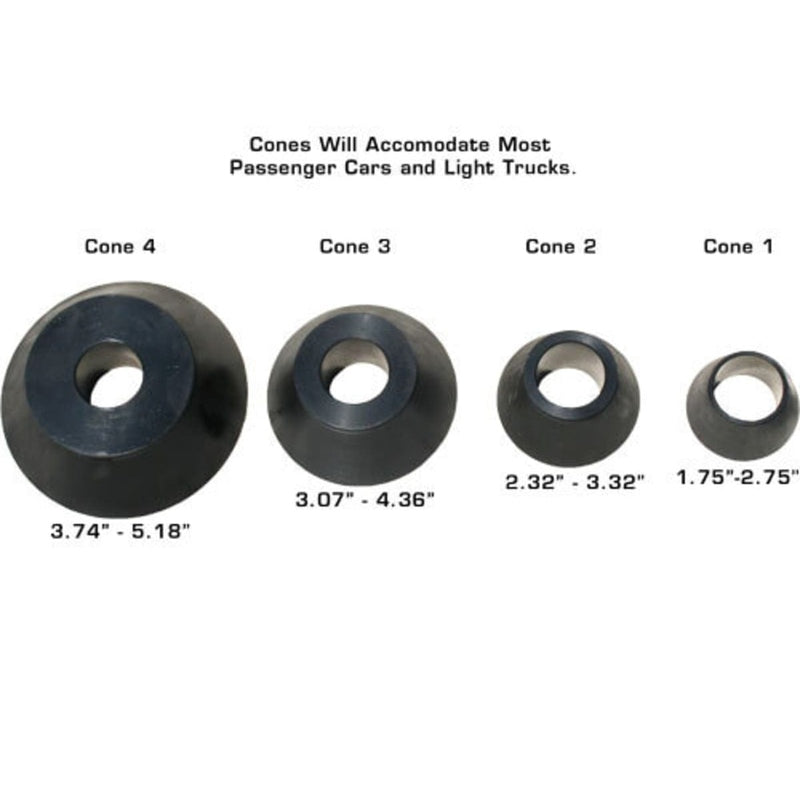

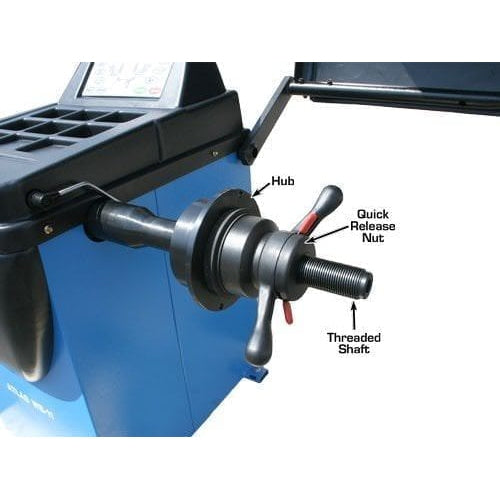

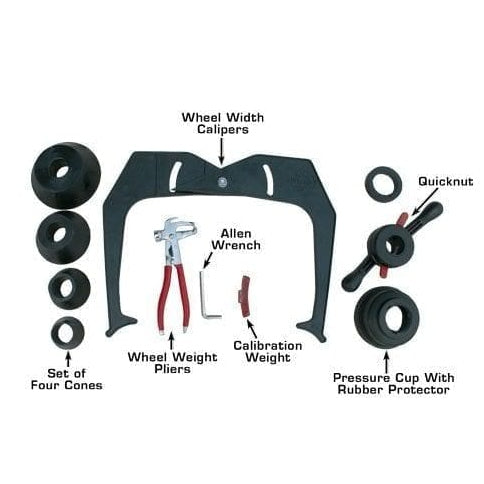

Included Accessories: Plastic quick-release nut, four centering cones, wheel weight pliers, and measuring calipers.
Specifications
Atlas® TC229 Tire Changer
| Specification | Details |
|---|---|
| Rim Types | Steel, Aluminum, Alloy |

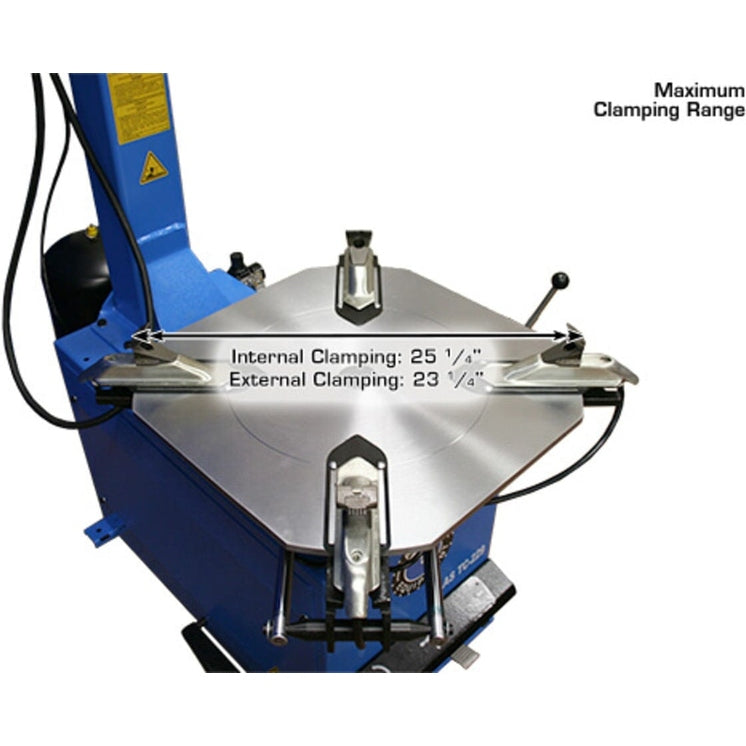

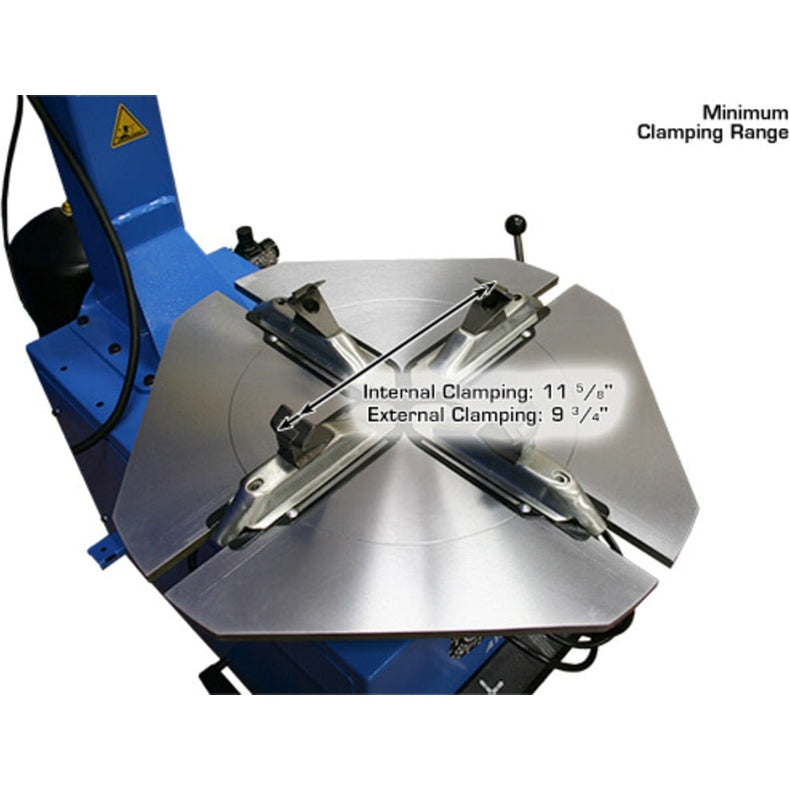

| External Locking Rim Range | 9¾″–21⅝″ / 10¾″–22½″ / 11⅝″–23¼″ |
| Internal Locking Rim Range | 11⅝″–23¼″ / 12⅝″–24¼″ / 13½″–25¼″ |
| Max Tire Diameter | 39″ |
| Max Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

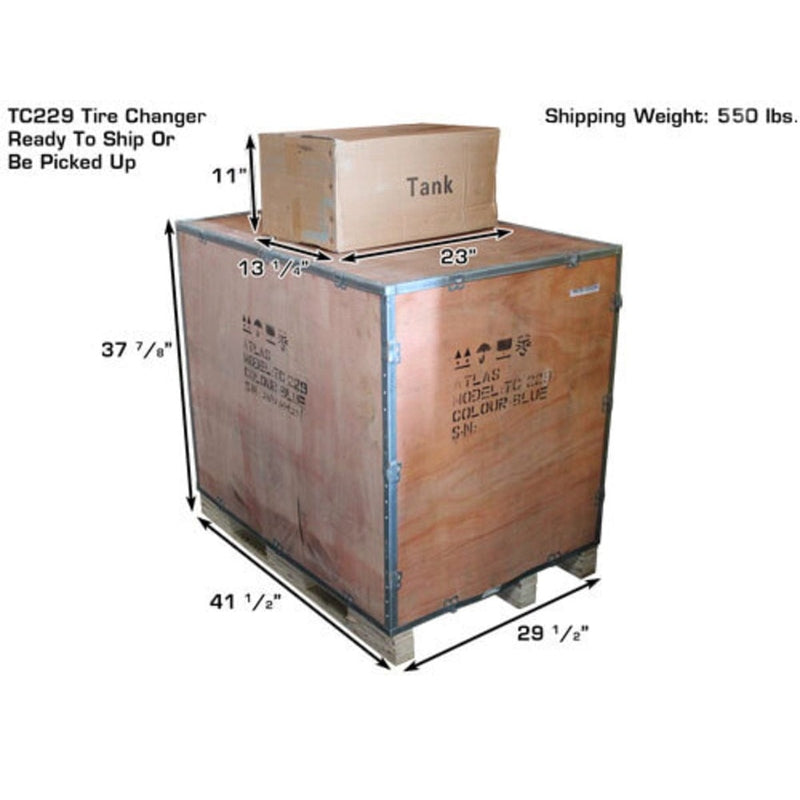

| Shipping Weight | 550 lbs |
Atlas® WB11 Wheel Balancer
| Specification | Details |
|---|---|
| Max Tire Diameter | 39″ (3′ 6″) |
| Rim Size Range | 10″–32″ |
| Rim Width | 1½″–20″ |

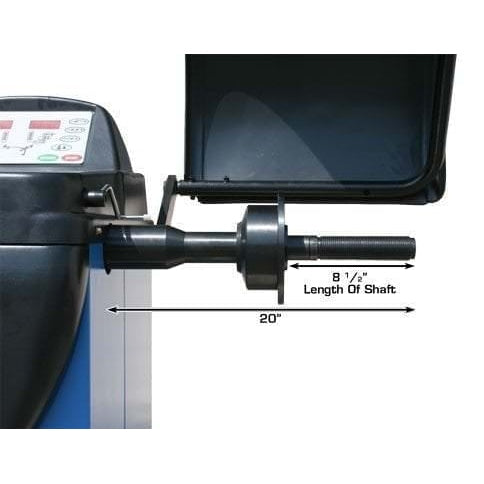

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs |
| Balancing Speed | 150 RPM |
| Data Entry | Manual |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibration | Yes |
| Motor | ¼ HP |
| Power Supply | 110V |

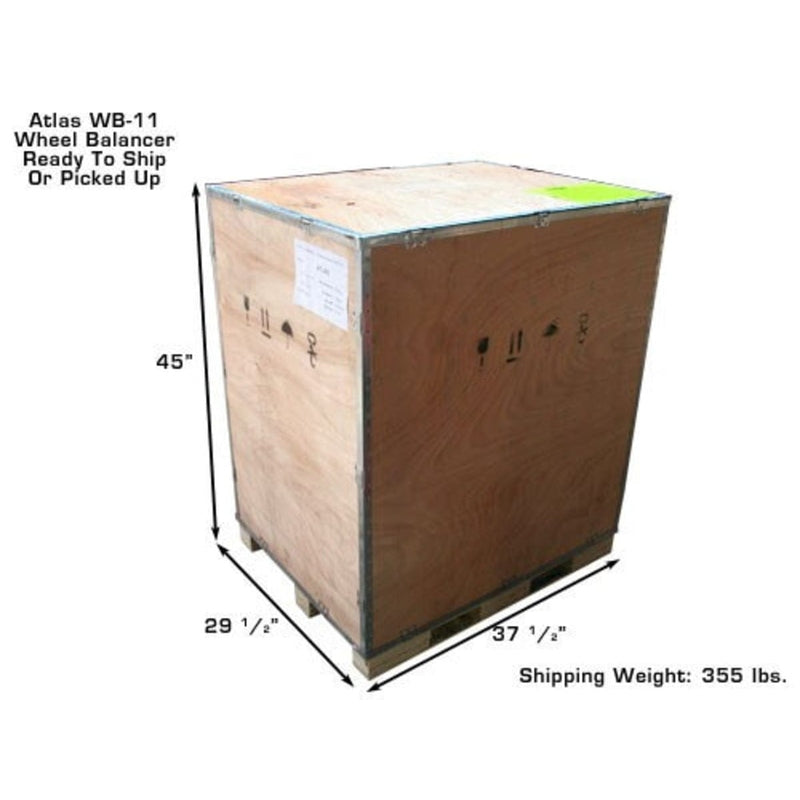

| Shipping Weight | 355 lbs |
The Atlas® TC229 & WB11 Combo delivers an affordable, efficient, and durable solution for light to medium-duty tire service operations — combining reliability, precision, and ease of use in one complete package.
